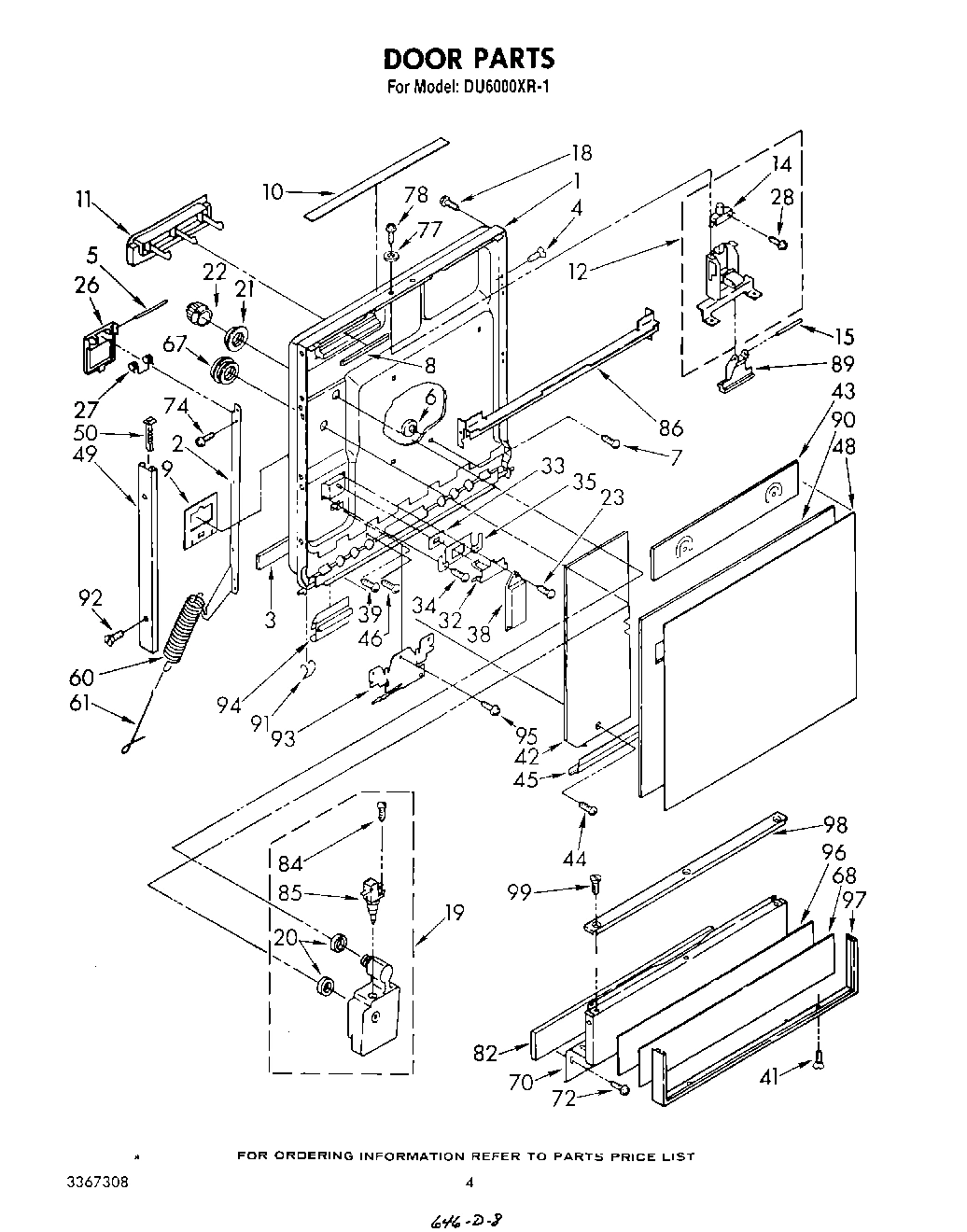

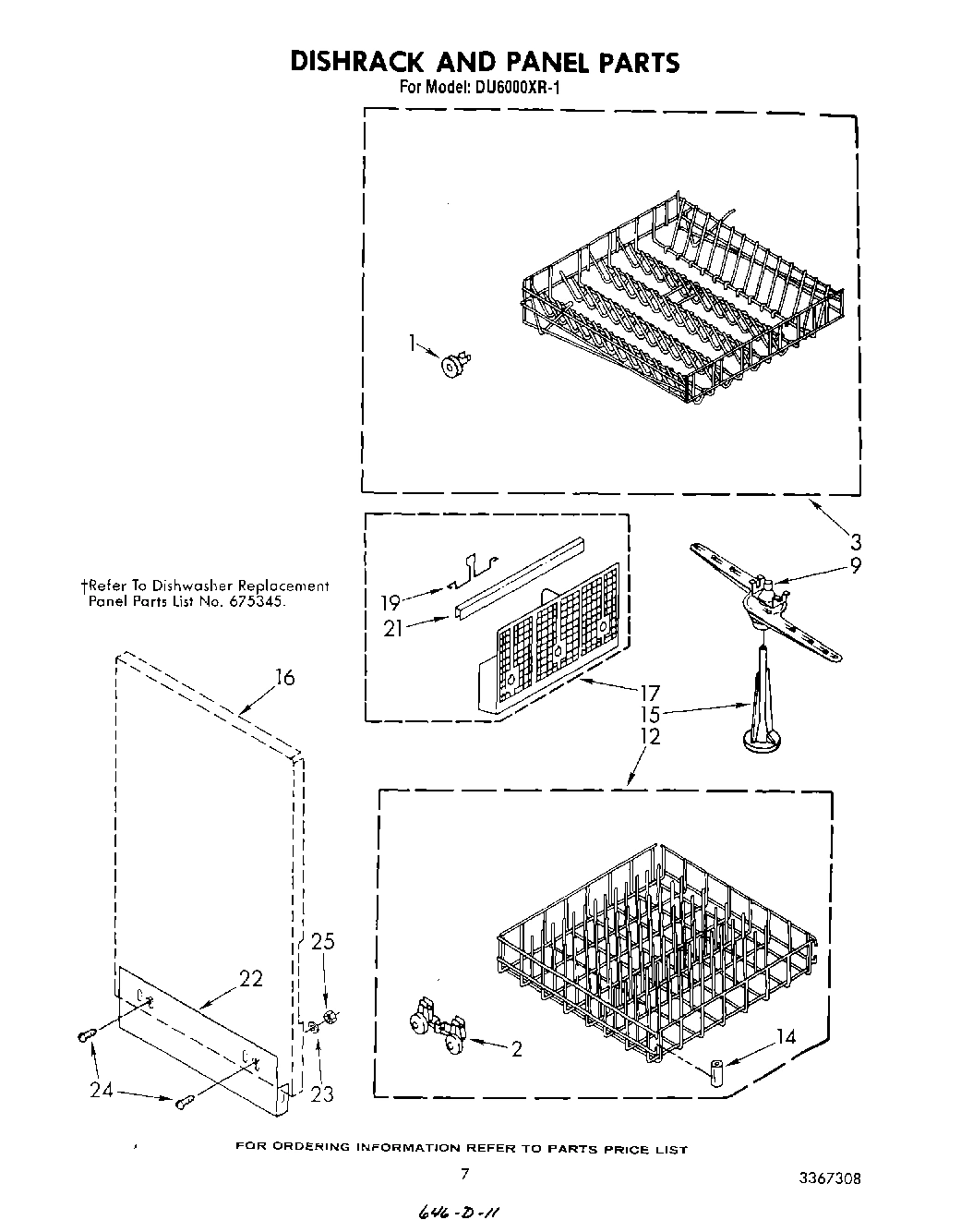

Model Whirlpool DU6000XR1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

Switch, Pushbutton WPL 304452 Contact Us For Availability

1

Door, Inner WPL 3367388 Contact Us For Availability

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

1

Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Button (6) WPL 304455 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $142.10

3

Gasket, Door WPL 717921 Contact Us For Availability

3

Disconnect Block, Timer WPL 304758 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

4

Receptacle, Terminal WPL 717252 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $16.78

5

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

5

Hose, Inlet WPL 304670 Contact Us For Availability

5

Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

7

Cover, Valve WPL 302721 Contact Us For Availability

8

Baffle WPL 719860 Contact Us For Availability

8

Timer (For Electrical Connector Only, See Wir WPL 304676 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

Spray Arm WPL 304204 Contact Us For Availability

9

Screw, 8-18 x 1-3/8 Slot Hex Wash Hd WPL 304232 Contact Us For Availability

9

Barrier WPL 303978 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

Relay, Start WPL 304409 Contact Us For Availability

Label, User Guide WPL LIT303498 Contact Us For Availability

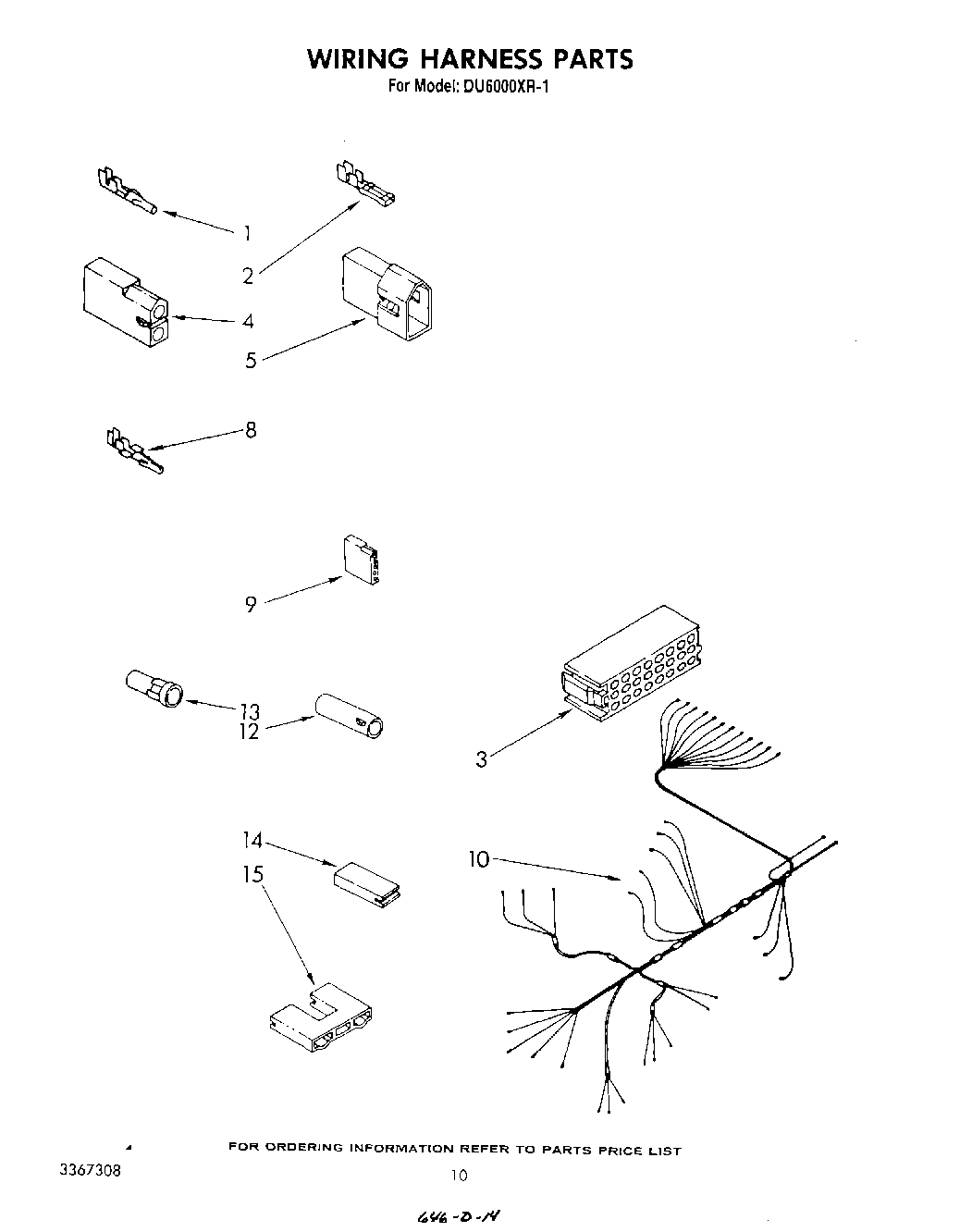

Harness, Wiring WPL 304679 Contact Us For Availability

Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability

11

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $176.67

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

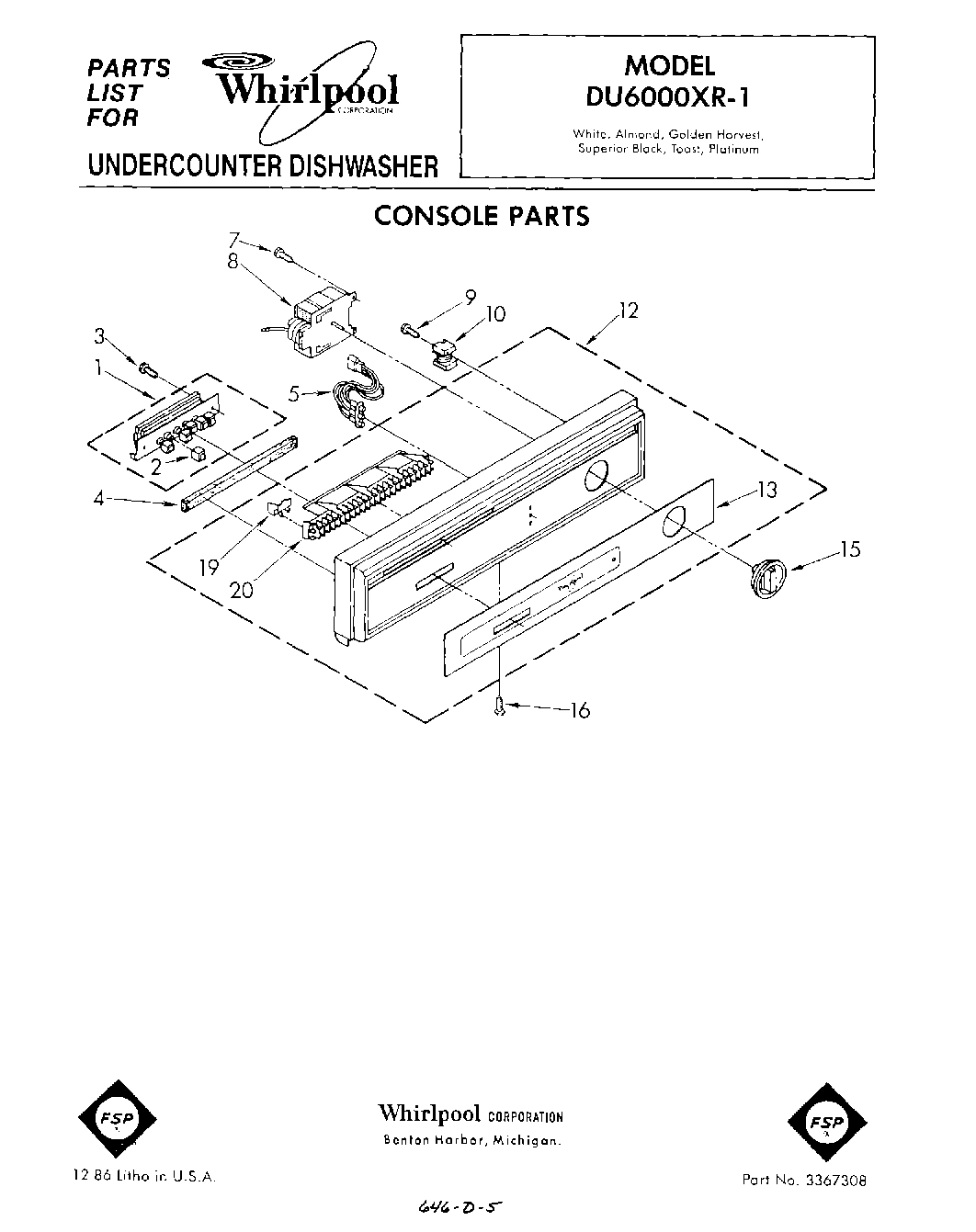

Console WPL 304609 Contact Us For Availability

Latch Assembly WPL 3367058 Contact Us For Availability

Receptacle WPL 351296 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

13

Insert, Decorative WPL 304541 Contact Us For Availability

13

Plug WPL 351297 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability

Bumper (2) WPL 717970 Contact Us For Availability

Connector Block (Alternate) WPL 301219 Contact Us For Availability

Connector Block (Alternate) WPL 358736 Contact Us For Availability

Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

Tower WPL 304170 Contact Us For Availability

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

Knob, Timer WPL 304435 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

Connector, Block (Alternate) WPL 300708 Contact Us For Availability

Connector Block (Alternate) WPL 374230 Contact Us For Availability

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

16

Gasket WPL 713878 Contact Us For Availability

16

Panel, Reversible Side WPL ARI23962A6 Contact Us For Availability

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Silverware Basket WPL 304166 Contact Us For Availability

17

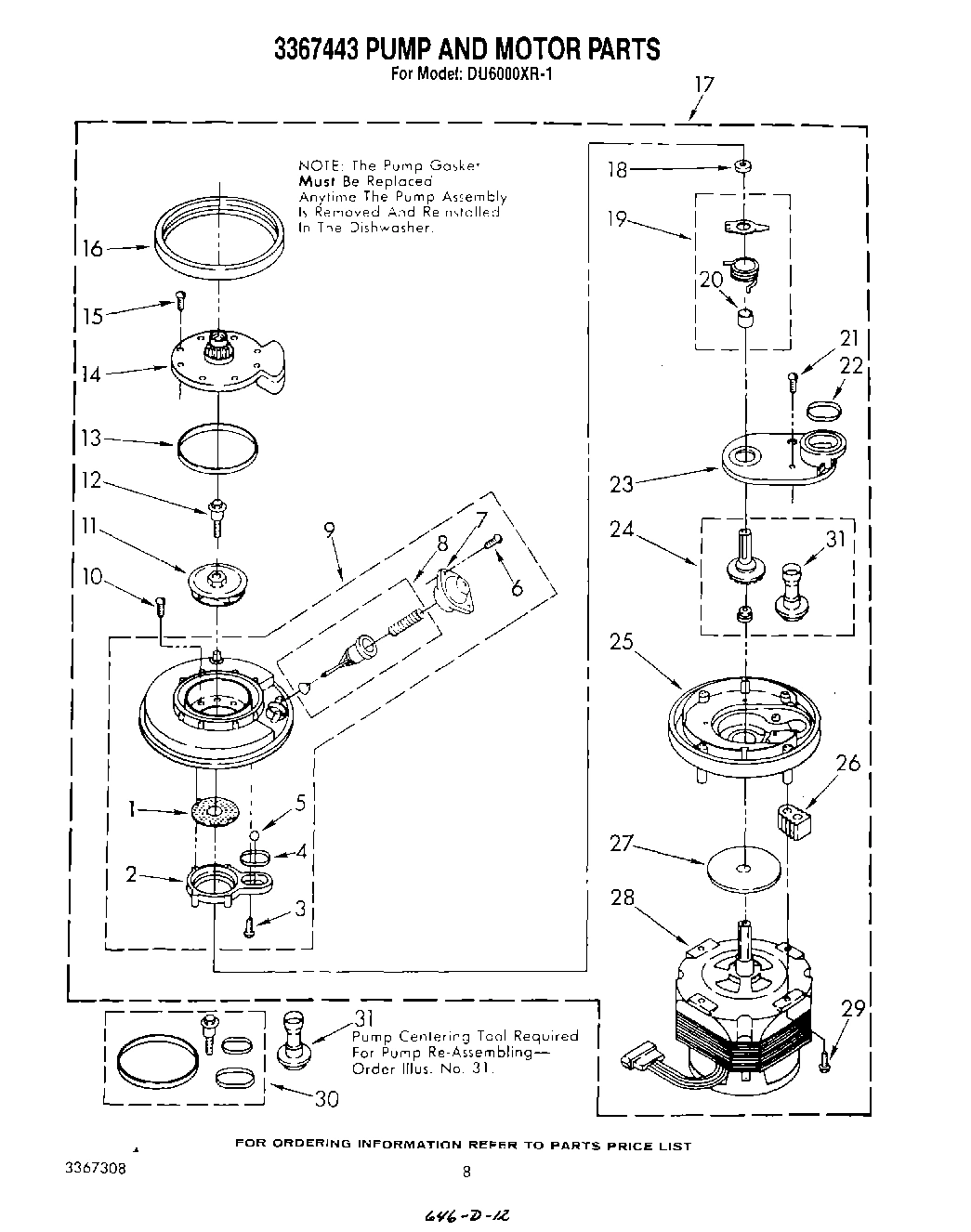

Pump & Motor Assembly WPL 3367443 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

18

Screw, 8-18 x 1-7/8 Truss Head Tapping (2) WPL 304233 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $89.38

Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability

Cover, Grill WPL 304425 Contact Us For Availability

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

Handle, Basket WPL 300086 Contact Us For Availability

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

Grill, Vent (Includes Illus. 19) WPL 304426 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Switch, Pressure (Alternate) WPL 304589 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

Panel, Lower Side WPL 3367549 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

23

W11089212 Whirlpool Washer Backorder WPL W11089212 $3.29

23

Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability

24

Wheel, Leg WPL 302819 Contact Us For Availability

24

Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability

25

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

25

Base, Pump (Includes Illus. 24) (Also Order I WPL 3367204 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.64

27

Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability

28

Cover, Terminal Box WPL 300068 Contact Us For Availability

28

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

28

Motor (Includes Illus. 24, 27 & 31) (Also Ord WPL 675540 Contact Us For Availability

29

WPL 301817 WPL 301817 Contact Us For Availability

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

30

WPL 675505 WPL 675505 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

31

Screw, Shoulder WPL 302818 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

Bearing, Nozzle WPL 719576 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Gasket, Pump WPL 717000 Contact Us For Availability

41

Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability

42

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

42

Barrier, Door WPL 303906 Contact Us For Availability

43

Barrier, Console WPL 303908 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel, Edging (Door) WPL 304047 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI23960A2 Contact Us For Availability

49

Wheel WPL 300844 Contact Us For Availability

49

Trim, Door R.H. WPL 3367206 Contact Us For Availability

49

Trim, Door (L.H.) WPL 3367207 Contact Us For Availability

50

WPL 712499 WPL 712499 Contact Us For Availability

50

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

51

WPL 303297 WPL 303297 Contact Us For Availability

52

WPL 303299 WPL 303299 Contact Us For Availability

53

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

53

WPL 719266 WPL 719266 Contact Us For Availability

54

WPL 301662 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

58

WPL 303298 WPL 303298 Contact Us For Availability

59

WPL 301663 WPL 301663 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675611 Whirlpool Spring Assembly Backorder WPL 675611 $41.19

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

61

Retainer, Spring WPL 716401 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Panel, Access WPL ARI23961A3 Contact Us For Availability

70

Plate, Toe WPL 3367671 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

WPL 300237 WPL 300237 Contact Us For Availability

78

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

82

WPL 302803 WPL 302803 Contact Us For Availability

84

WPL 304444 WPL 304444 Contact Us For Availability

85

WPL 304443 WPL 304443 Contact Us For Availability

86

WPL 304391 WPL 304391 Contact Us For Availability

89

WPL 304407 WPL 304407 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

WPL 3367288 WPL 3367288 Contact Us For Availability

93

WPL 303362 WPL 303362 Contact Us For Availability

94

WPL 303121 WPL 303121 Contact Us For Availability

95

WPL 303090 WPL 303090 Contact Us For Availability

96

WPL 303755 WPL 303755 Contact Us For Availability

97

WPL 303753 WPL 303753 Contact Us For Availability

98

WPL 303754 WPL 303754 Contact Us For Availability

99

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59
