Model Whirlpool DU5200XW0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
06 - DISHRACK
01 - FRAME AND CONSOLE

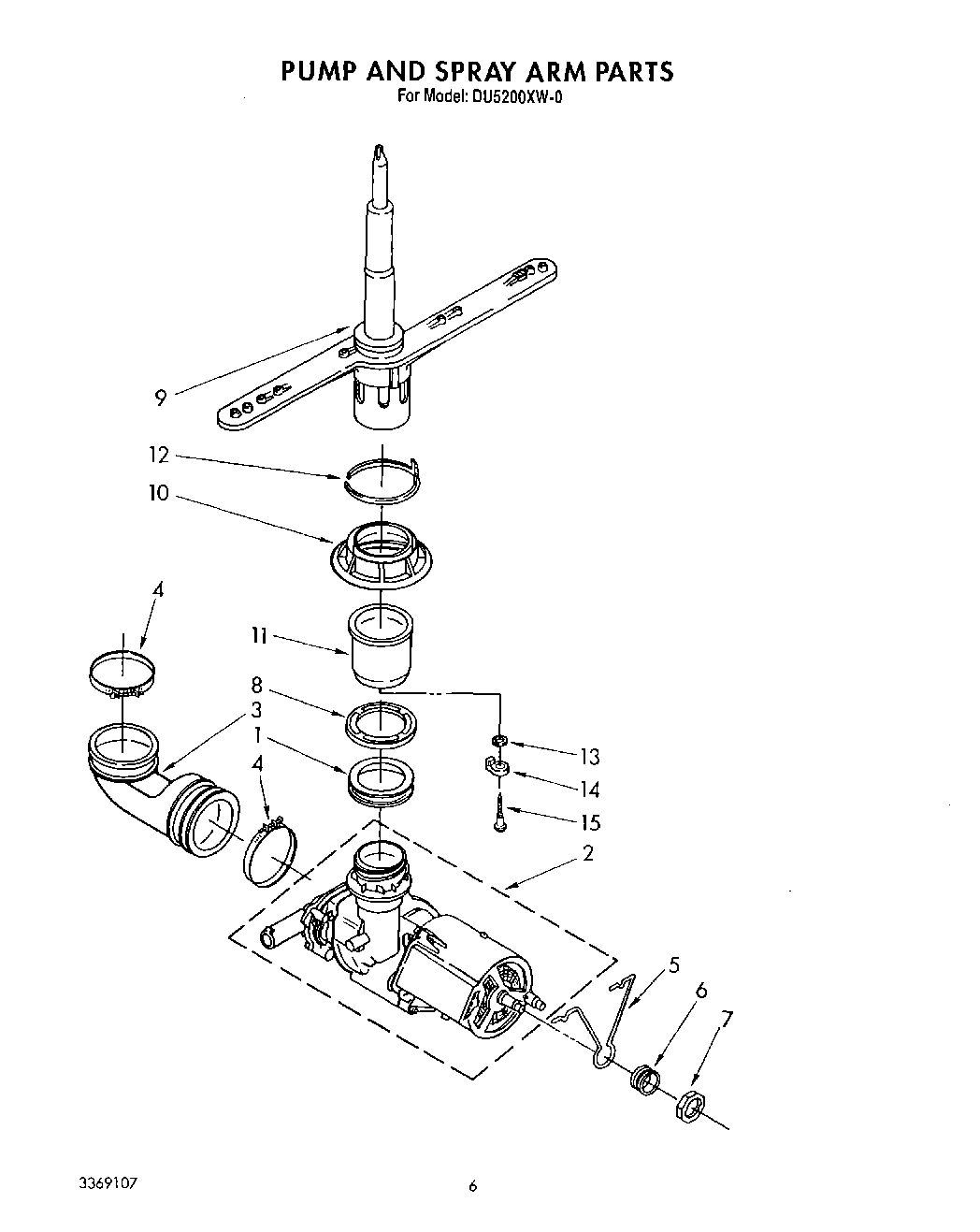

04 - PUMP AND SPRAY ARM

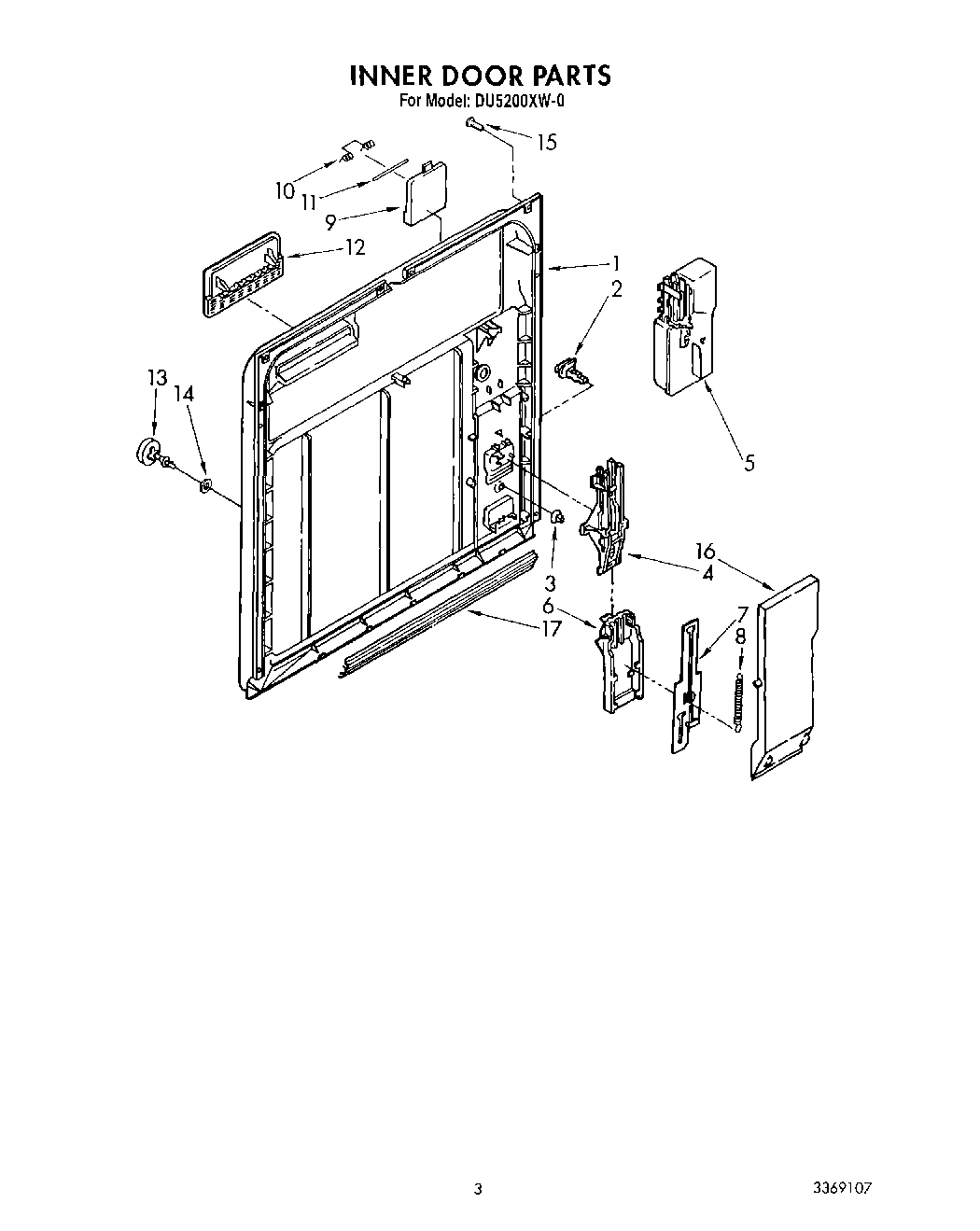

02 - INNER DOOR

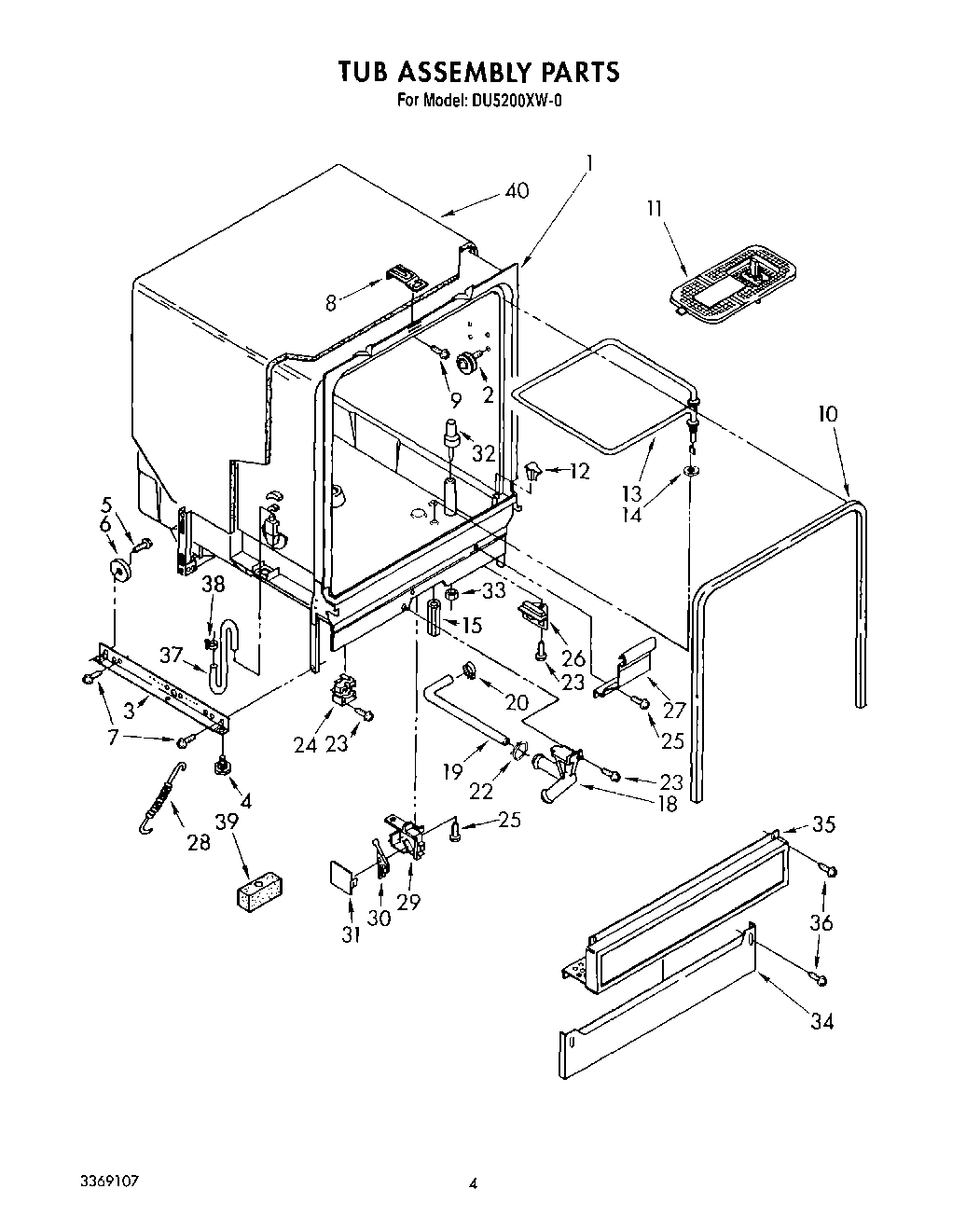

03 - TUB ASSEMBLY

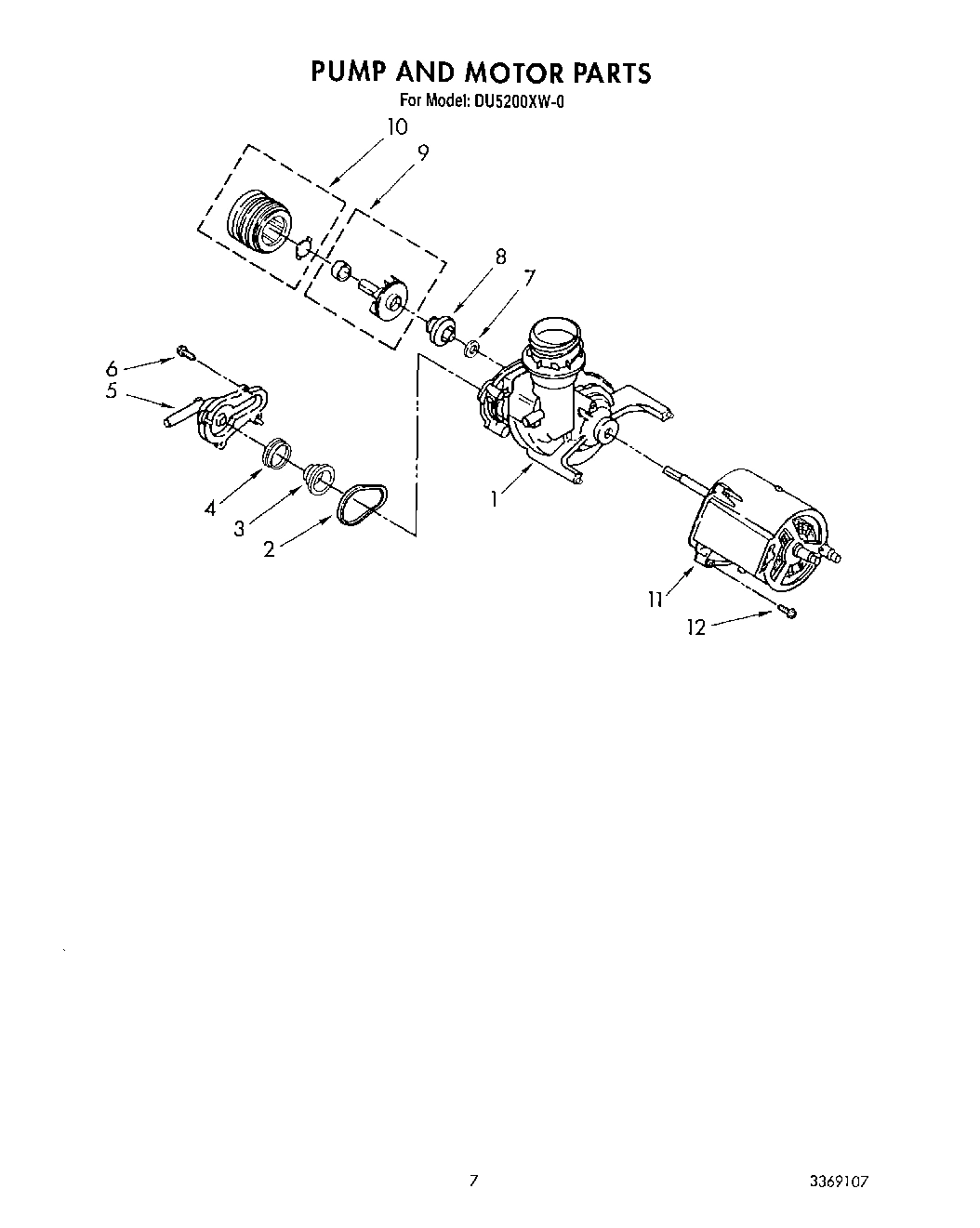

05 - PUMP AND MOTOR

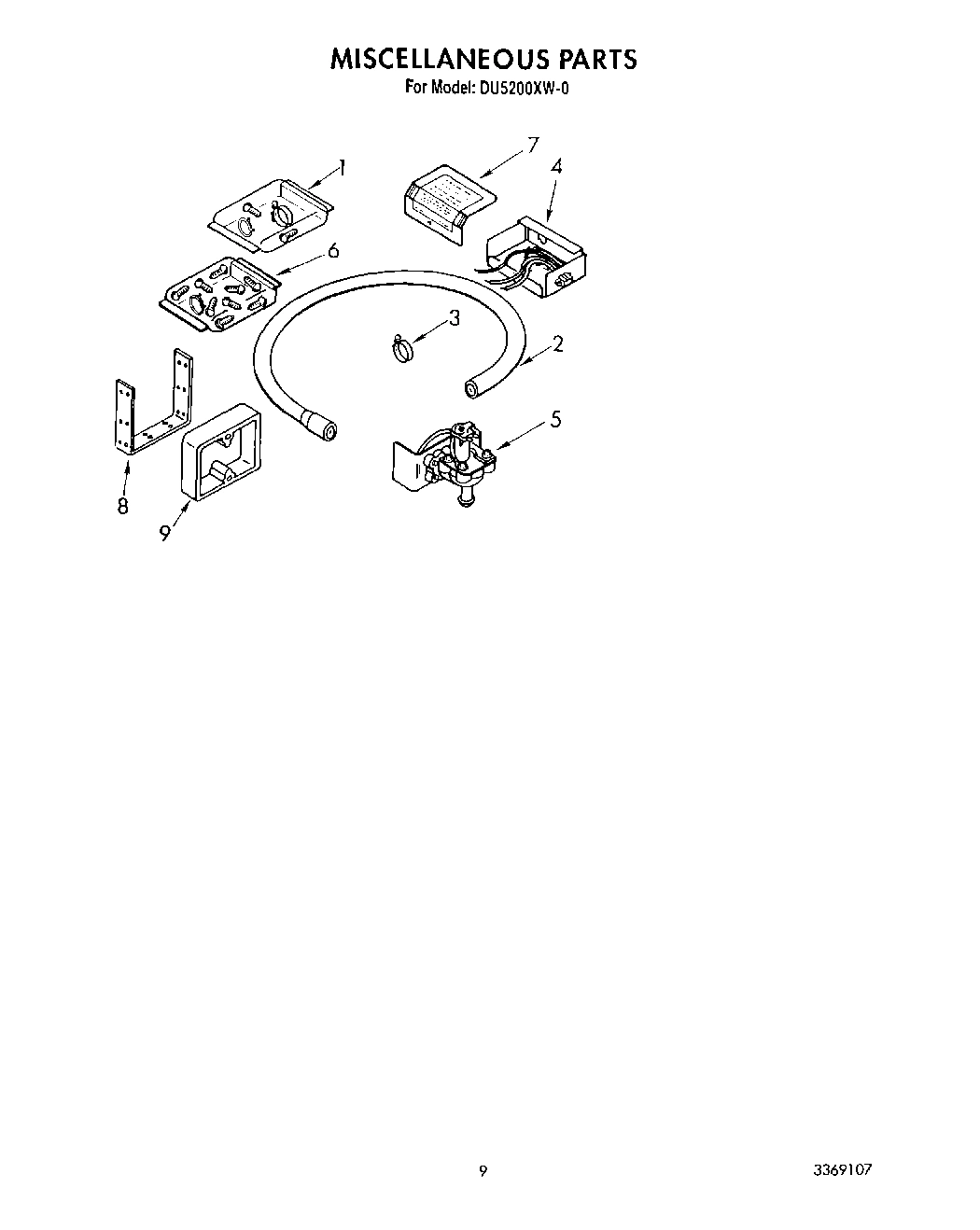

07 - MISCELLANEOUS, LIT/OPTIONAL
Common parts from model Whirlpool DU5200XW0 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Instructions, Installation WPL LIT3369088 Contact Us For Availability
Guide, Use & Care WPL LIT3369096 Contact Us For Availability
Parts List WPL LIT3369107 Contact Us For Availability
Energy Guide WPL LIT3369289 Contact Us For Availability
Wiring Diagram WPL LIT3369539 Contact Us For Availability
Instructions, Installation (Utility) WPL LIT3369629 Contact Us For Availability
Template, Installation WPL LIT3369756 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Console WPL 3368991 Contact Us For Availability
1
Tub Assembly (Not Serviceable) WPL ARI23938A4 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369085 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Diaphragm WPL 3369028 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
4
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370031 Contact Us For Availability
5
Water Valve WPL 3369074 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
Bag Assembly (Loose Parts) (Includes 1 Clamp WPL 3369333 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
7
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Plate, Latch WPL 3368965 Contact Us For Availability
8
Bracket, Utility WPL 3368986 Contact Us For Availability
9
Screw, 8-32 WPL 3368919 Contact Us For Availability
9
Mount, Terminal Box WPL 3369217 Contact Us For Availability
9
Leveler (Thinner) WPL 350941 Contact Us For Availability
9
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
9
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
9
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
9
Black (Uncut) WPL 799340 Contact Us For Availability
9
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
9
Almond (Uncut) WPL 978883 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
11
Motor WPL 3369583 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Drip WPL 3369068 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
17
Spatter Shield WPL 3369479 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Check, Valve Assembly WPL 3369421 Contact Us For Availability
19
Hose, Coupler WPL 3369050 Contact Us For Availability
20
Clamp WPL 3369082 Contact Us For Availability
22
Clamp WPL 3369327 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3368936 Contact Us For Availability
37
Hose, Inlet WPL 3369070 Contact Us For Availability
39
Diverter WPL 3369317 Contact Us For Availability
× ![]()
