Model Whirlpool DU5004XM0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT303311 WPL LIT303311 Contact Us For Availability

WPL LIT303706 WPL LIT303706 Contact Us For Availability

WPL LIT303821 WPL LIT303821 Contact Us For Availability

WPL LIT304103 WPL LIT304103 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

1

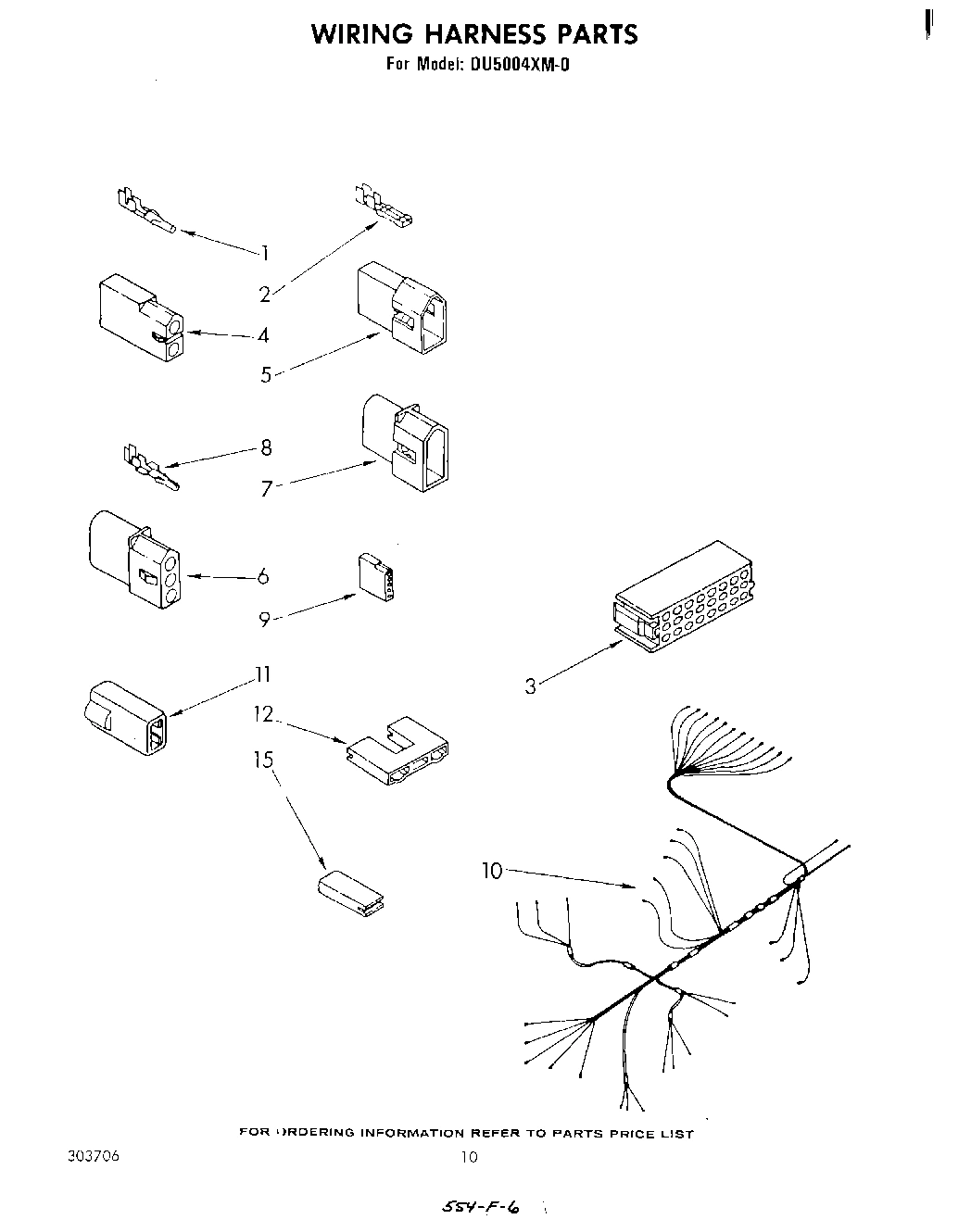

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Control WPL 300754 Contact Us For Availability

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

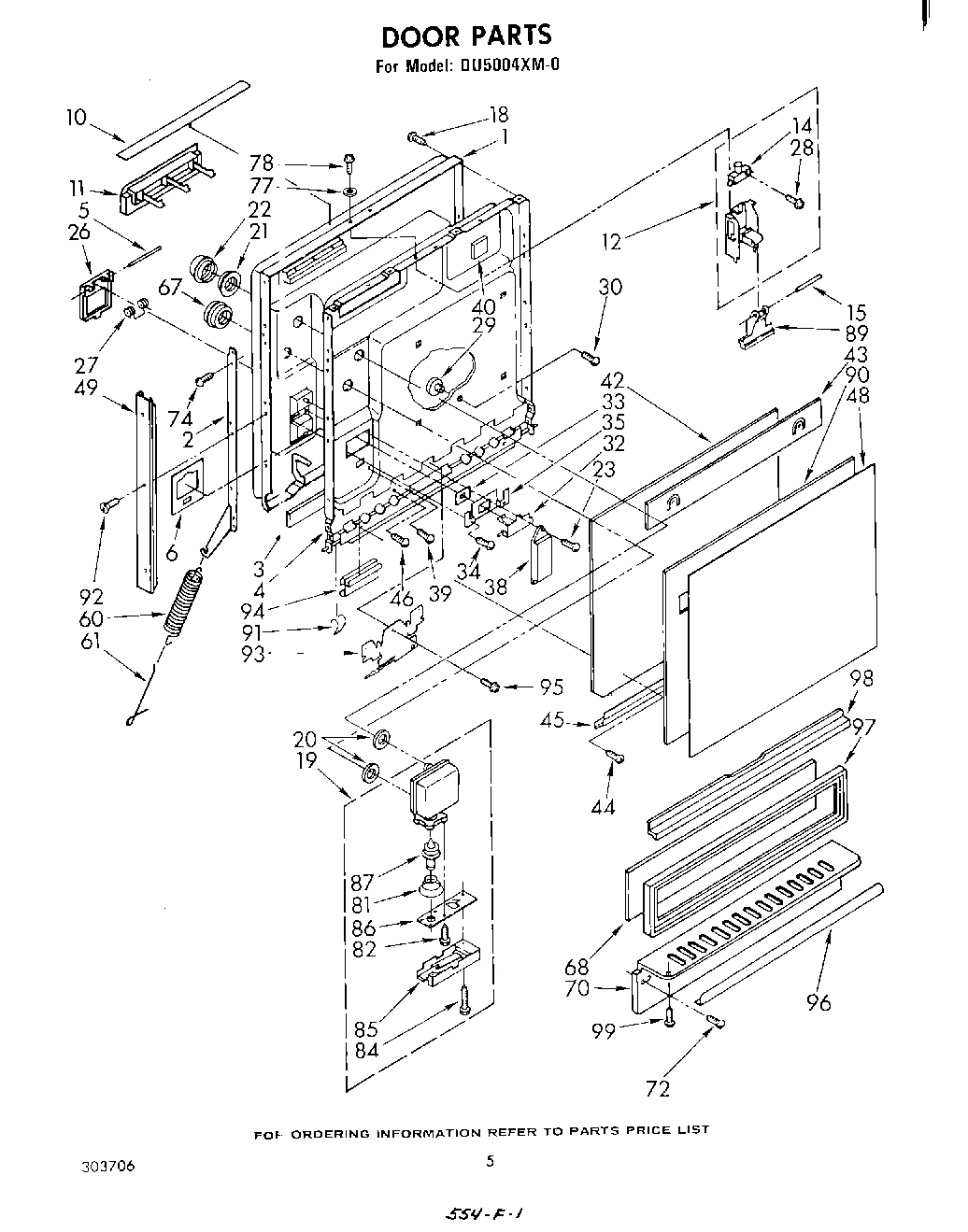

Door, Inner (Includes Illus. 4) WPL 303269 Contact Us For Availability

1

Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability

2

Terminal, Female WPL 352088 Contact Us For Availability

2

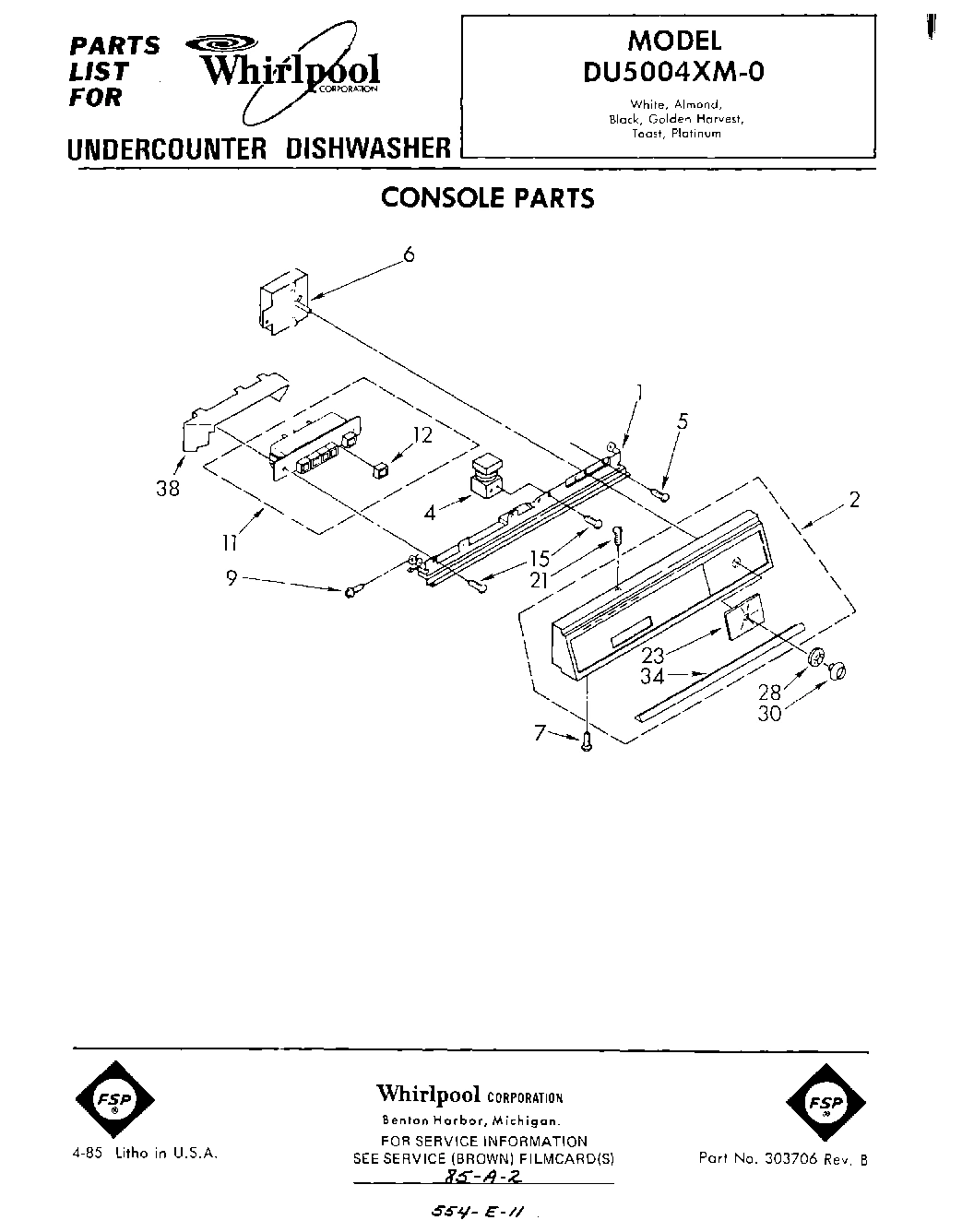

Console Assembly WPL 304056 Contact Us For Availability

2

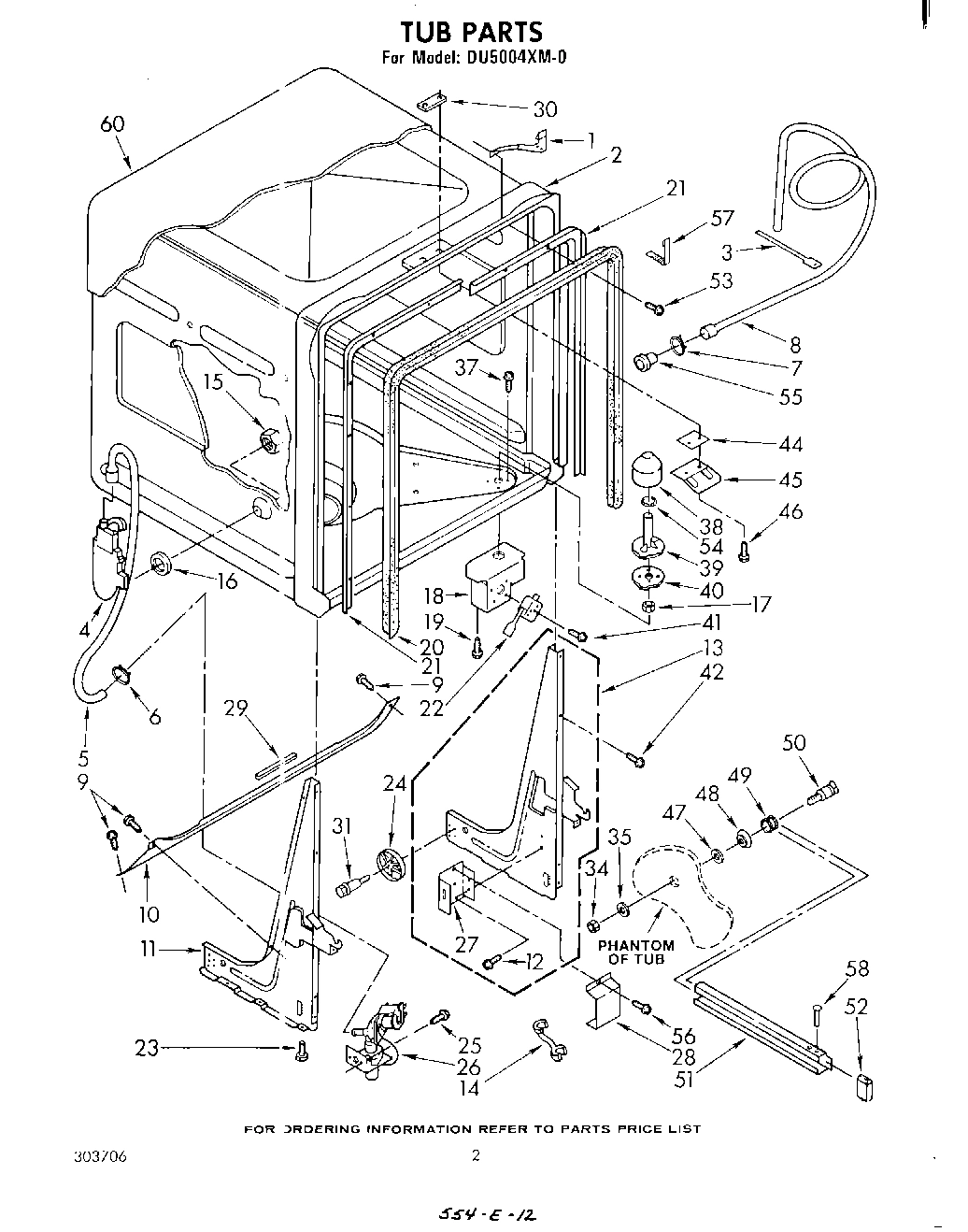

Tub Assembly WPL 303110 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Liner, Door WPL 303202 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

5

Hose, Inlet WPL 301054 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

353424 Whirlpool Connector Backorder WPL 353424 $10.76

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Timer, Disconnect WPL 303995 Contact Us For Availability

6

Barrier WPL 303978 Contact Us For Availability

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

7

Cover, Valve WPL 302721 Contact Us For Availability

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

10

Brace WPL 303111 Contact Us For Availability

10

Label, User Guide WPL LIT303498 Contact Us For Availability

10

Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability

11

Switch, Push Button WPL 303427 Contact Us For Availability

11

Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability

11

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Button (6) WPL 301977 Contact Us For Availability

Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability

Latch Assembly WPL 300235 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability

Bumper WPL 719964 Contact Us For Availability

Relief, Strain WPL 717563 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability

Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

Tower WPL 302030 Contact Us For Availability

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

16

Panel, R.S. WPL ARI23917A9 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

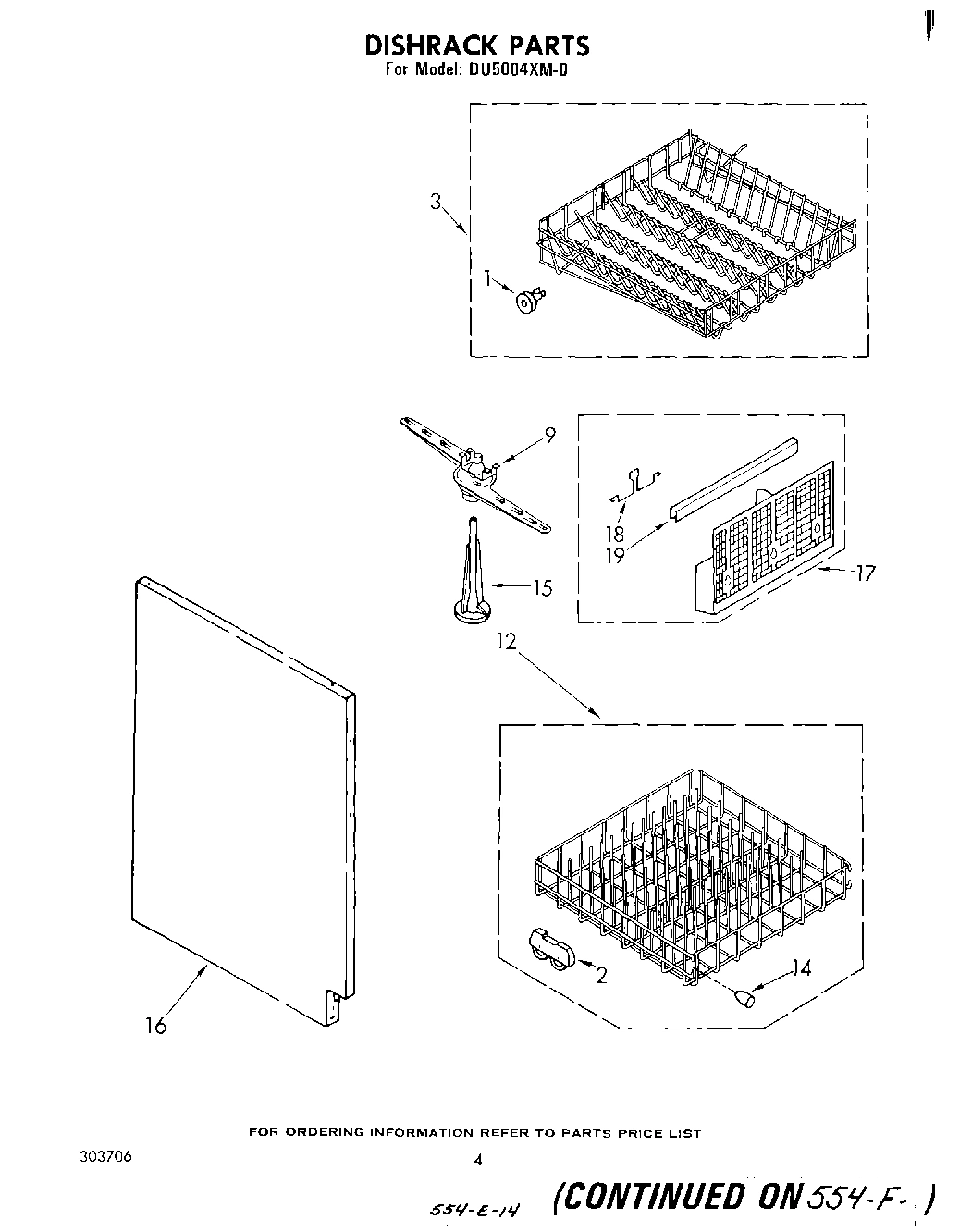

Silverware Basket Assembly WPL 301994 Contact Us For Availability

17

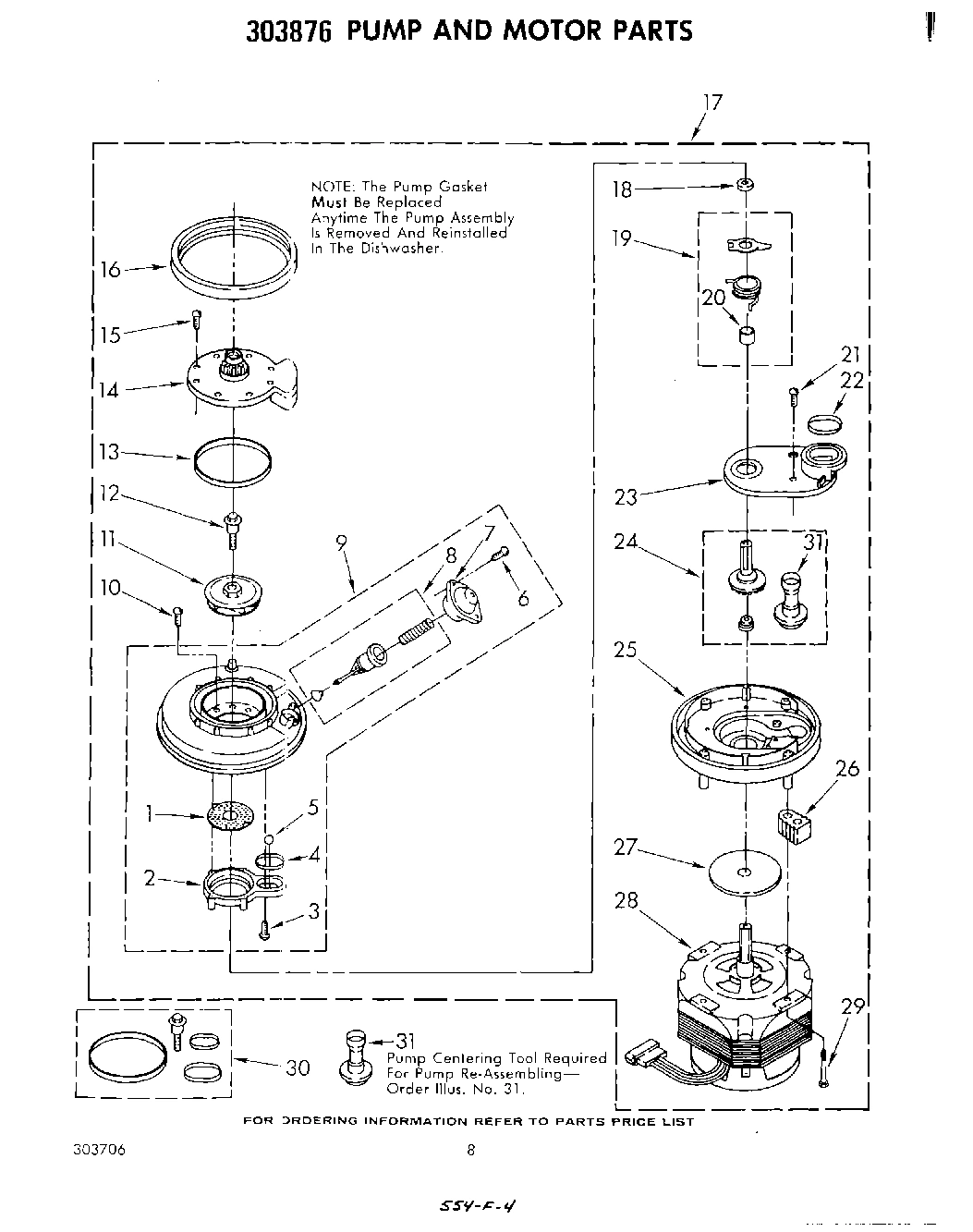

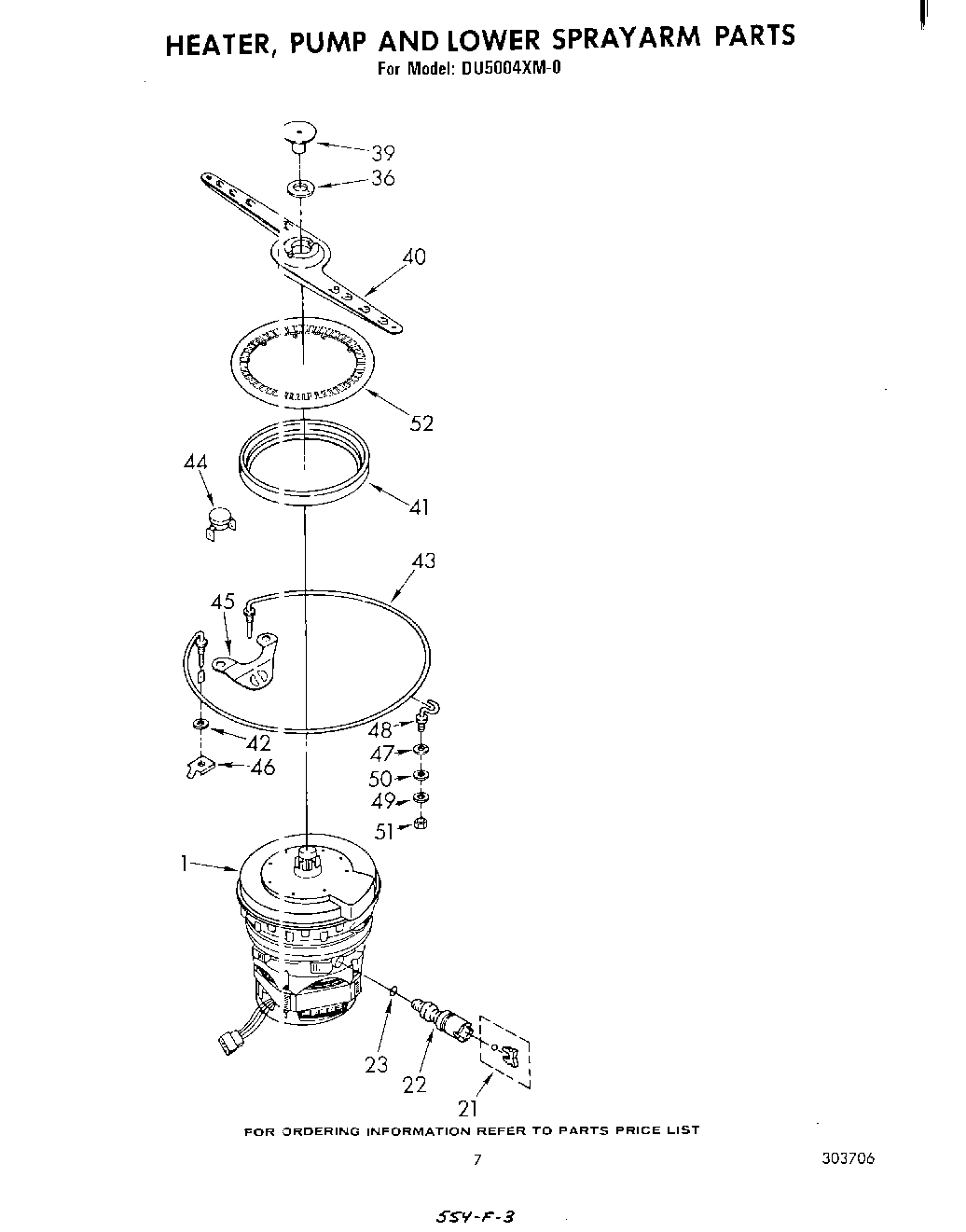

Pump & Motor Assembly WPL 303876 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Handle, Basket WPL 300086 Contact Us For Availability

Bracket, Overflow WPL 719342 Contact Us For Availability

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

19

Trim, Basket WPL 717528 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

23

Insert WPL 304004 Contact Us For Availability

23

Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

25

Base, Pump (Includes Illus. 24) (Also Order I WPL 675516 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability

26

Support, Pump Mounting (4) WPL 718260 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Box, Terminal WPL 300067 Contact Us For Availability

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

Indicator, Dial WPL 300996 Contact Us For Availability

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

Motor (Includes Illus. 24 & 27) (Also Order I WPL 675515 Contact Us For Availability

29

Protector, Edge WPL 303294 Contact Us For Availability

29

Button, Retainer (3) WPL 300239 Contact Us For Availability

29

WPL 301817 WPL 301817 Contact Us For Availability

Knob, Timer WPL 301010 Contact Us For Availability

Nut, Twin Spring WPL 303080 Contact Us For Availability

Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability

WPL 675505 WPL 675505 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

31

Screw, Shoulder WPL 302818 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Trim, Console WPL 301624 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

38

Actuator WPL 300109 Contact Us For Availability

38

Barrier, Pushbutton Switch WPL 303129 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Spacer, Timer WPL 302866 Contact Us For Availability

41

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

41

Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability

42

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

42

Barrier, Door WPL 303223 Contact Us For Availability

43

Barrier, Console WPL 303222 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Edging, Door Panel WPL 304047 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI23919A1 Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

49

Trim, Door (2) WPL 303501 Contact Us For Availability

50

Screw, WPL 712499 Contact Us For Availability

51

WPL 303297 WPL 303297 Contact Us For Availability

52

WPL 303299 WPL 303299 Contact Us For Availability

53

WPL 719266 WPL 719266 Contact Us For Availability

54

WPL 301662 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPL 301663 WPL 301663 Contact Us For Availability

58

WPL 303298 WPL 303298 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

60

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Panel, Access WPL ARI23920A4 Contact Us For Availability

70

Plate, Toe WPL 303144 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

81

Spring, Coni WPL 718592 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

WPL 718646 WPL 718646 Contact Us For Availability

86

WPL 718596 WPL 718596 Contact Us For Availability

87

WPL 718595 WPL 718595 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

WPL 303362 WPL 303362 Contact Us For Availability

94

WPL 303121 WPL 303121 Contact Us For Availability

95

WPL 303090 WPL 303090 Contact Us For Availability

96

WPL 301815 WPL 301815 Contact Us For Availability

97

WPL 301814 WPL 301814 Contact Us For Availability

98

WPL 301816 WPL 301816 Contact Us For Availability

99

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
