Model Whirlpool DU5000XW0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369088 Contact Us For Availability

Guide, Use & Care WPL LIT3369097 Contact Us For Availability

List, Parts WPL LIT3369108 Contact Us For Availability

Wiring Diagram WPL LIT3369205 Contact Us For Availability

Instructions, Installation (Utility) WPL LIT3369629 Contact Us For Availability

Template, Installation WPL LIT3369756 Contact Us For Availability

Energy Guide WPL LIT3369773 Contact Us For Availability

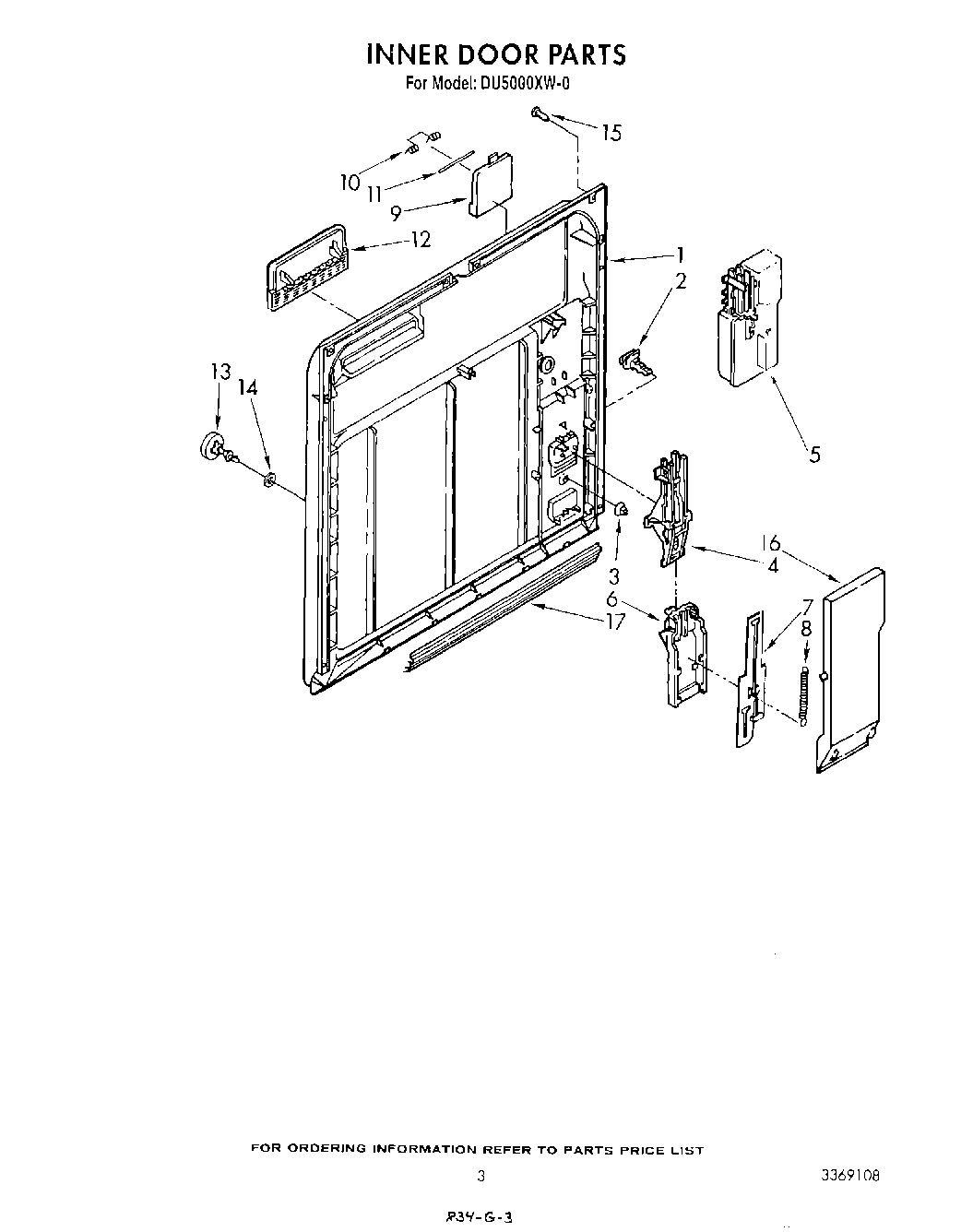

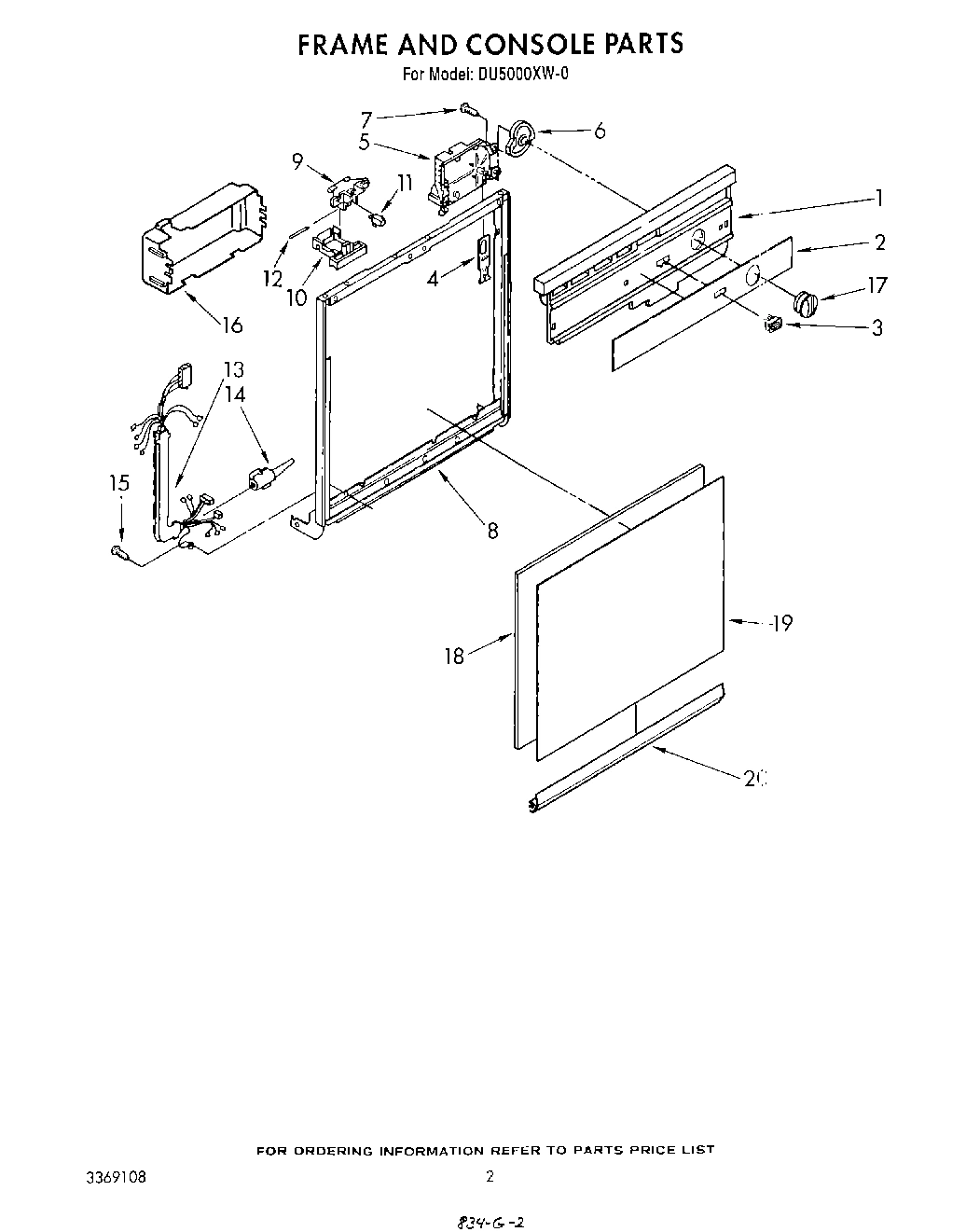

1

WP3369011 Whirlpool Dishwasher Housing In Stock WPL WP3369011 $45.15

1

WP8528310 Whirlpool Dishwasher Inner Door Backorder WPL WP8528310 $116.23

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

Console WPL 3368991 Contact Us For Availability

1

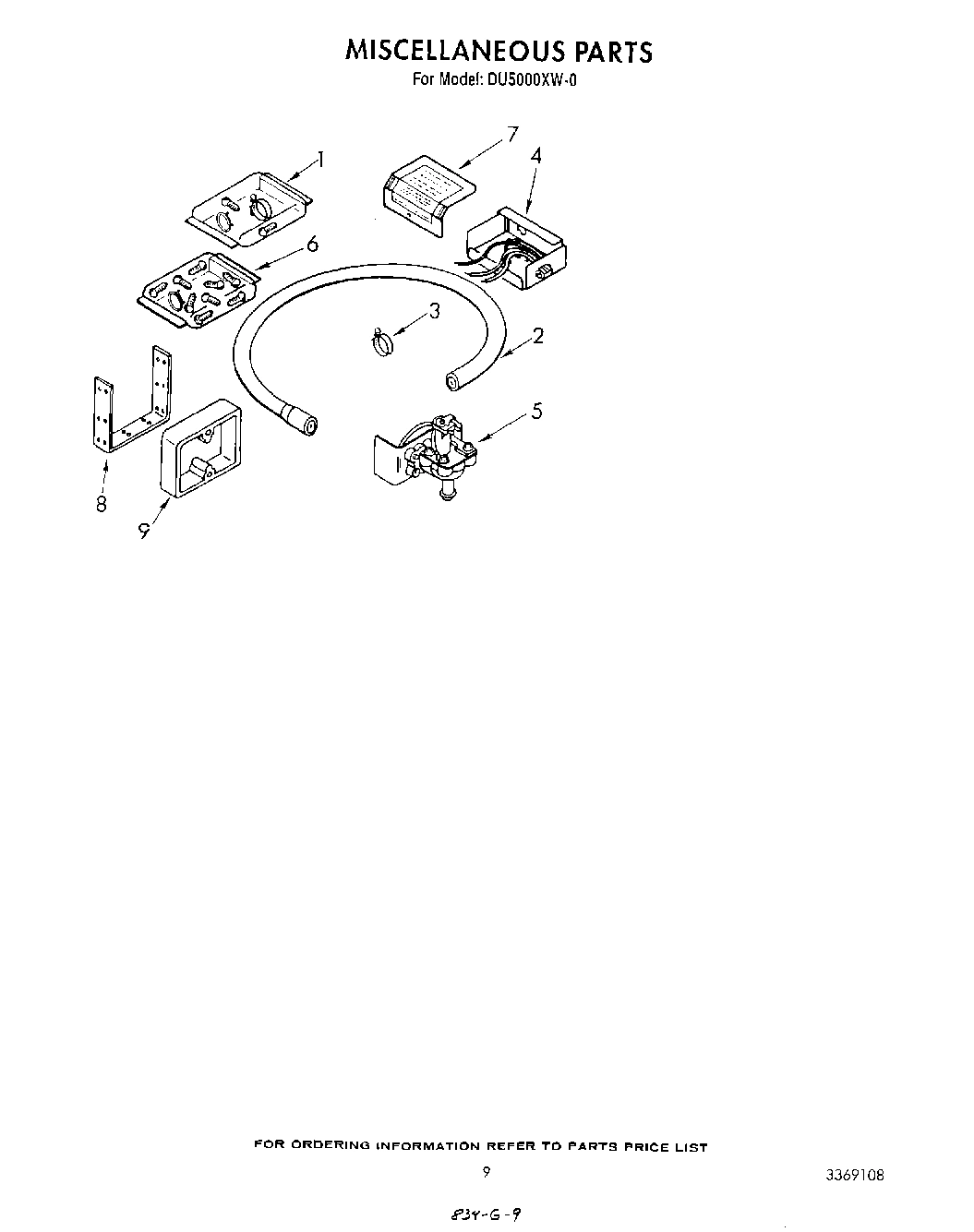

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369085 Contact Us For Availability

1

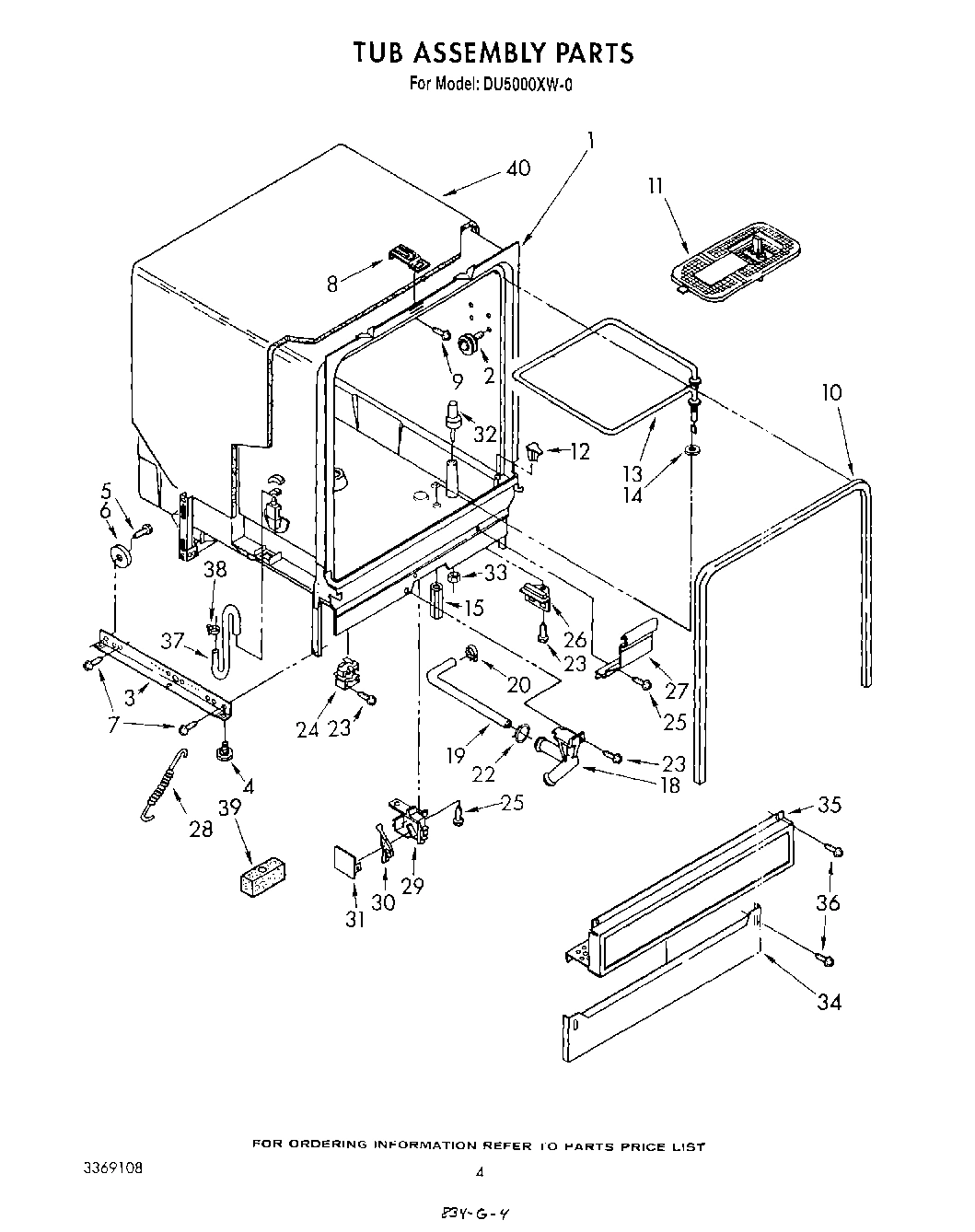

Tub Assembly (Not Serviceable) WPL ARI23910A6 Contact Us For Availability

2

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

2

WP3369031 Whirlpool Dishwasher Seal Backorder WPL WP3369031 $4.37

2

Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

W11189178 Whirlpool Dishwasher Hose Backorder WPL W11189178 $10.12

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

3

Runner (2) WPL 3368932 Contact Us For Availability

3

Diaphragm WPL 3369028 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $30.80

4

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

4

Follower, Cam WPL 3368997 Contact Us For Availability

4

Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $45.91

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Water Valve WPL 3369074 Contact Us For Availability

5

Screw, Shoulder (2) WPL 3370031 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Bag Assembly (Loose Parts) (Includes 1 Clamp WPL 3369333 Contact Us For Availability

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Seal Seat WPL 3369020 Contact Us For Availability

7

Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

WP3385557 Whirlpool Dishwasher Head Seal Backorder WPL WP3385557 $53.09

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Bracket, Utility WPL 3368986 Contact Us For Availability

8

Plate, Latch WPL 3368965 Contact Us For Availability

9

4386996A Whirlpool Dishwasher Impeller In Stock WPL 4386996A $63.17

9

Mount, Terminal Box WPL 3369217 Contact Us For Availability

9

Screw, 8-32 WPL 3368919 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $29.77

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $34.31

End Cap, Track (2) WPL 300845 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

11

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $28.80

11

Motor WPL 3369583 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $30.38

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WPW10082894 Whirlpool Dishwasher Heater Backorder WPL WPW10082894 $47.93

13

Washer WPL 3369044 Contact Us For Availability

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.70

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

15

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

15

Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability

16

Cover, Drip WPL 3369068 Contact Us For Availability

17

Knob, Timer WPL 3368998 Contact Us For Availability

17

Spatter Shield WPL 3369479 Contact Us For Availability

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Check, Valve Assembly WPL 3369421 Contact Us For Availability

19

Hose, Coupler WPL 3369050 Contact Us For Availability

20

Clamp WPL 3369082 Contact Us For Availability

22

Clamp WPL 3369327 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $51.02

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

26

WP3368928 Whirlpool Dishwasher Fuse Backorder WPL WP3368928 $41.52

27

Shield, Harness WPL 3368983 Contact Us For Availability

28

Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float In Stock WPL WP8519552 $37.57

33

Nut WPL 717488 Contact Us For Availability

34

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

35

Panel, Access WPL 3368936 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

37

Hose, Inlet WPL 3369070 Contact Us For Availability

38

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

39

Diverter WPL 3369317 Contact Us For Availability

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15
