Model Whirlpool DU3040XP0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

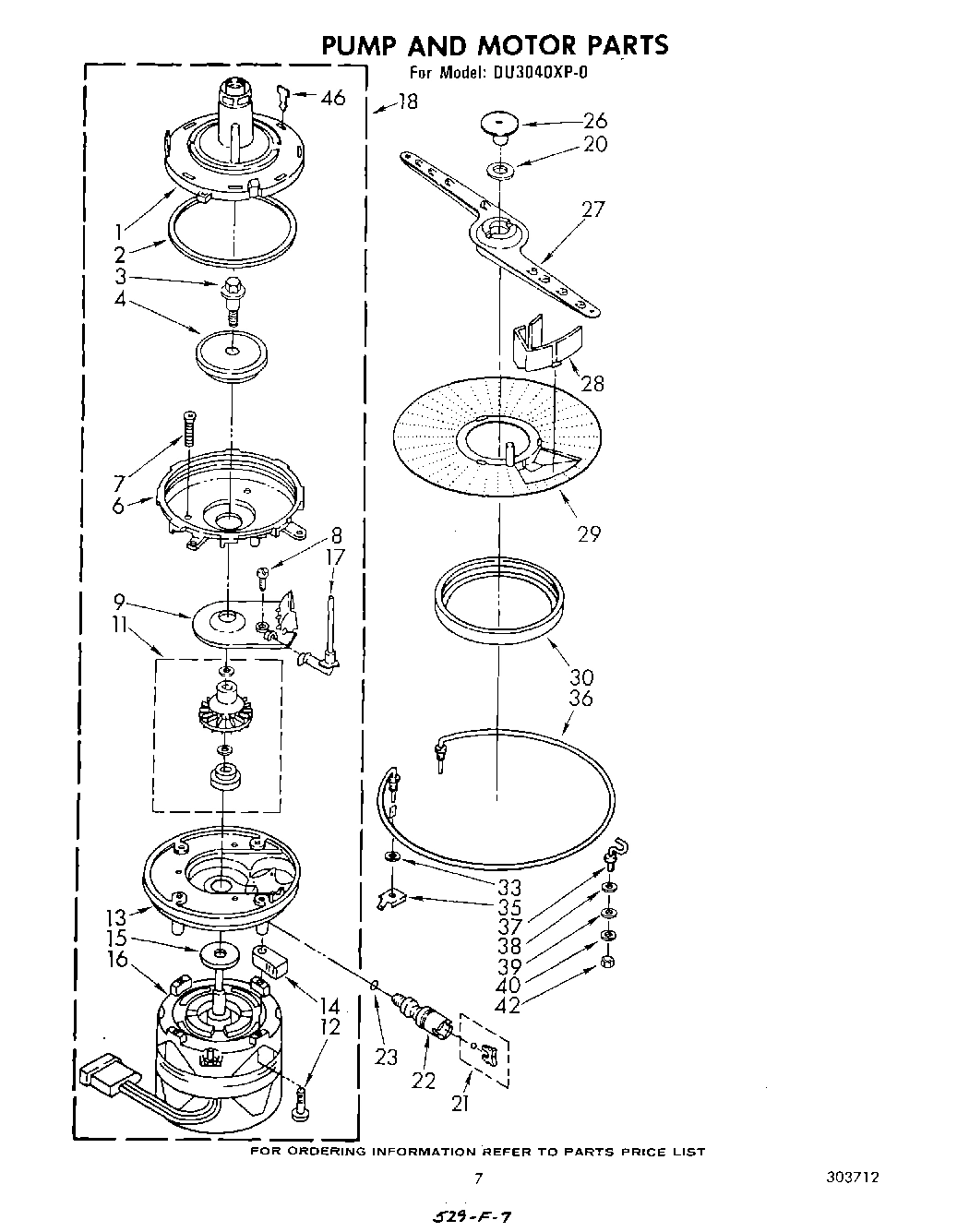

05 - PUMP AND MOTOR

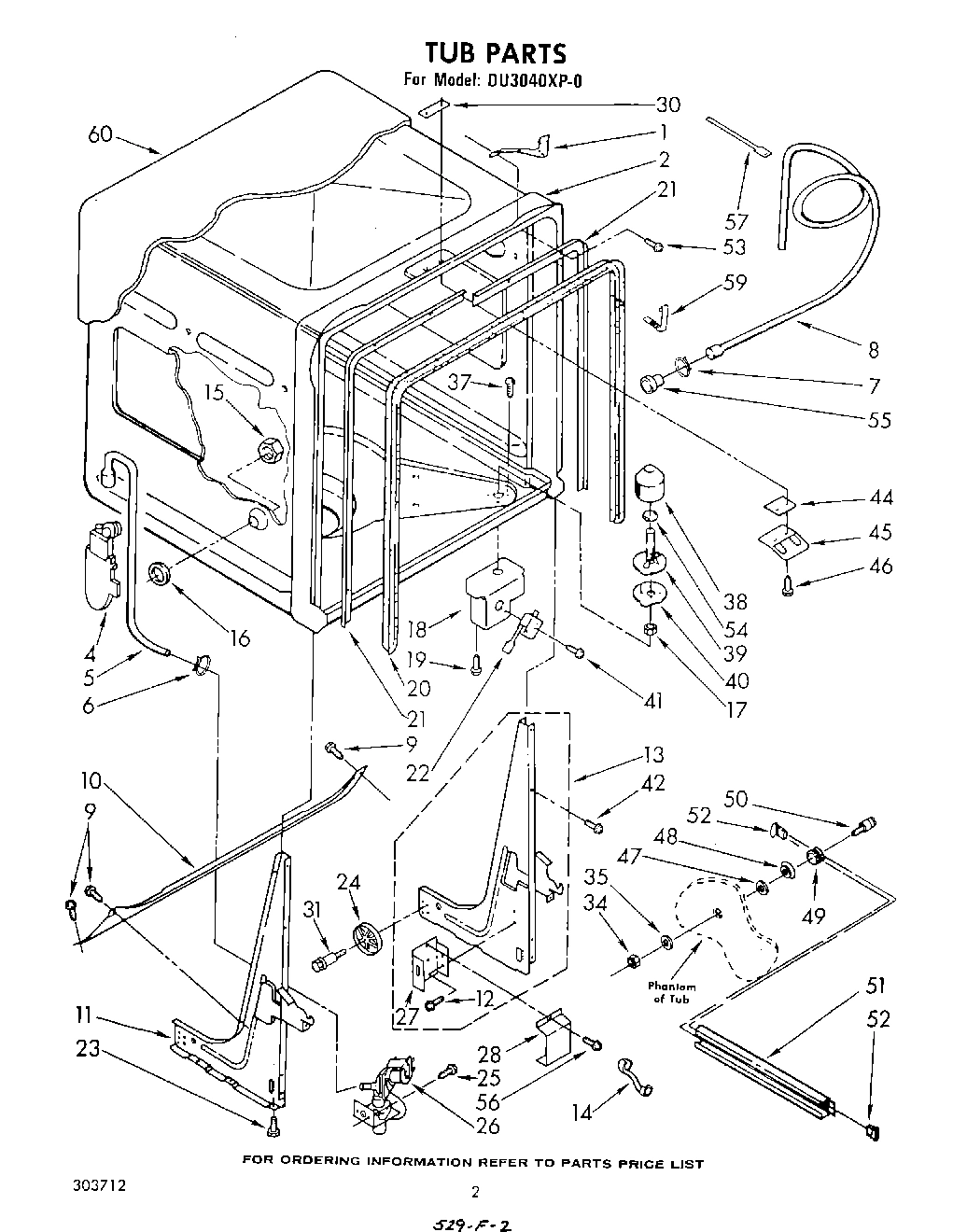

02 - TUB , LITERATURE AND OPTIONAL

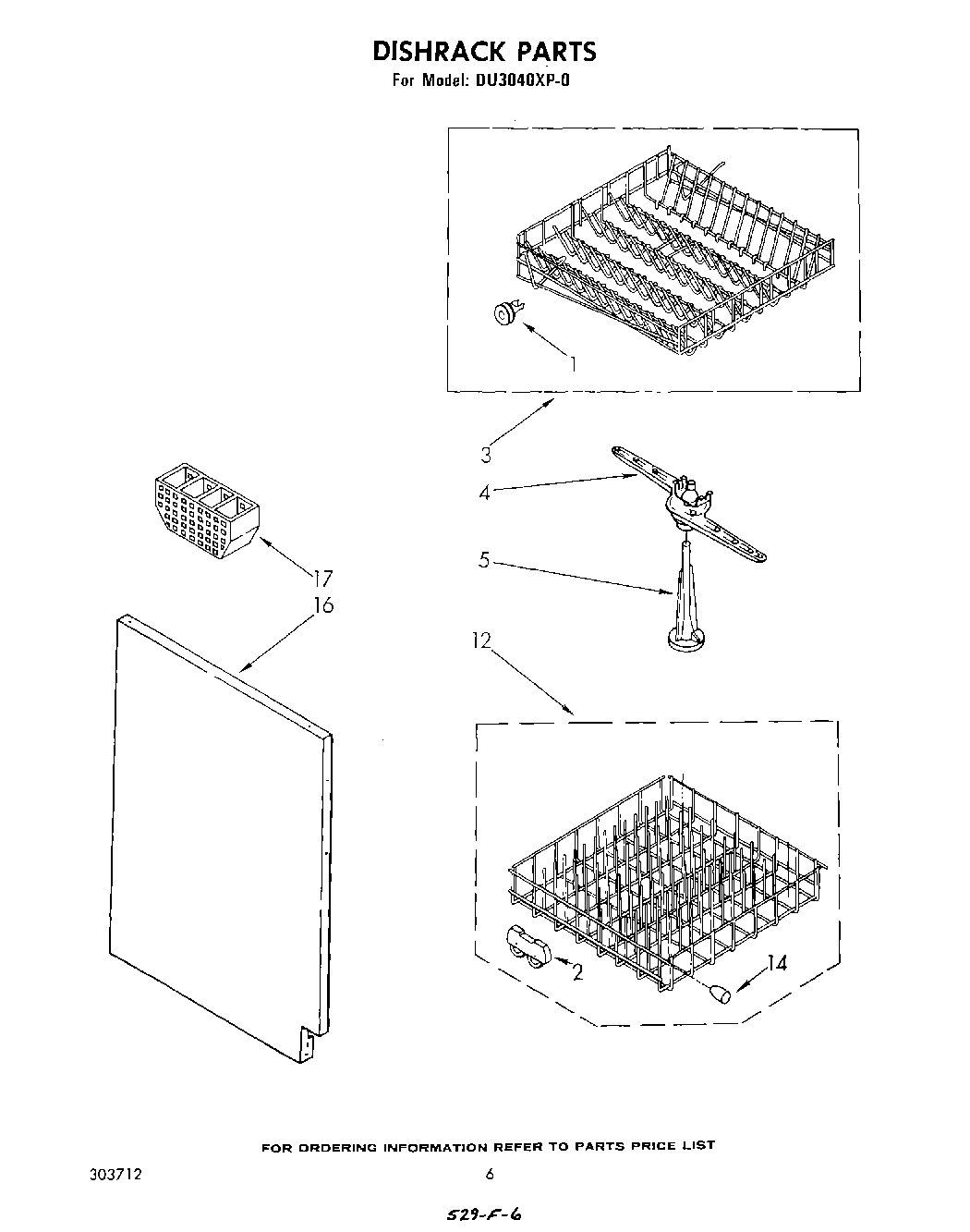

04 - DISH RACK

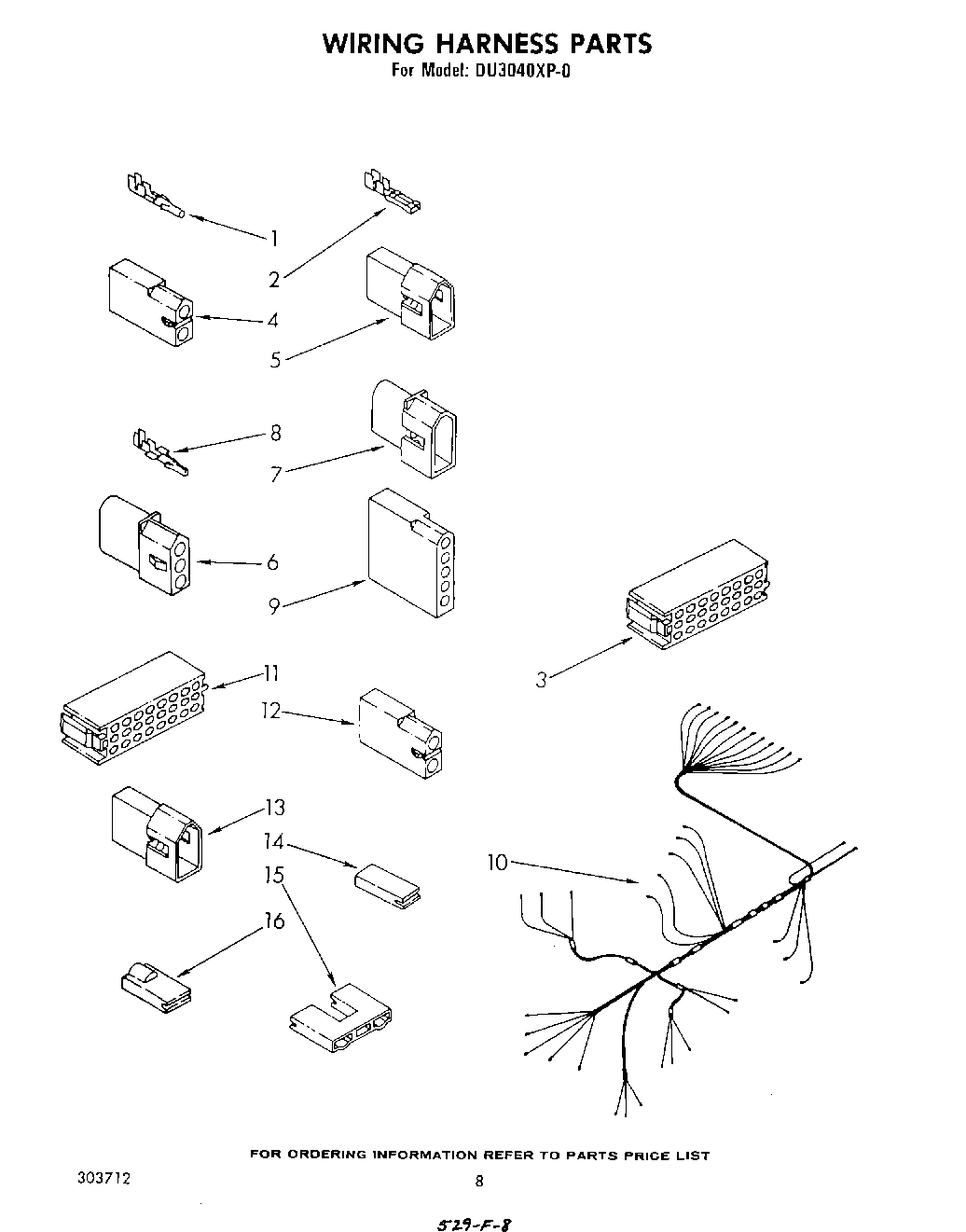

06 - WIRING HARNESS

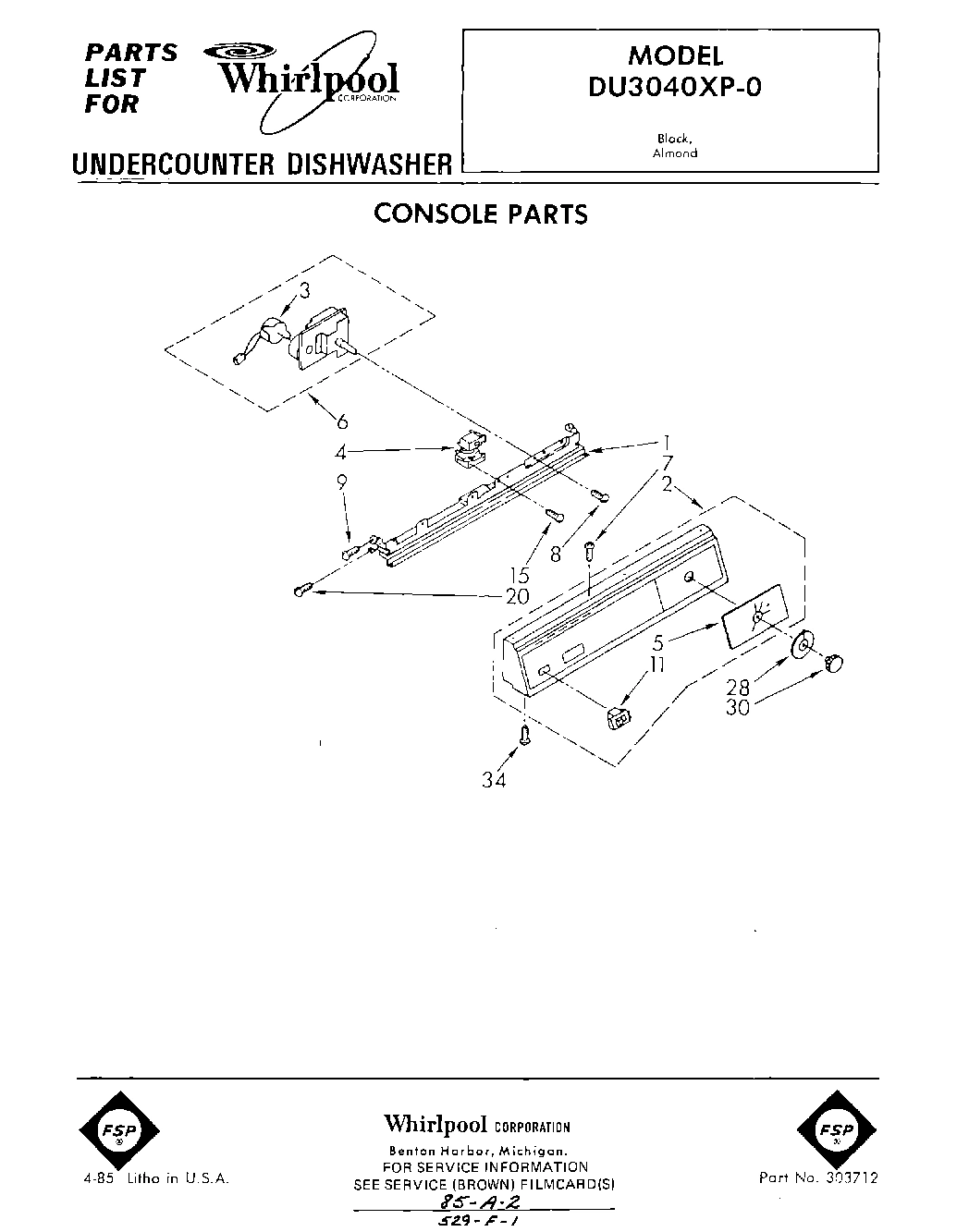

01 - CONSOLE

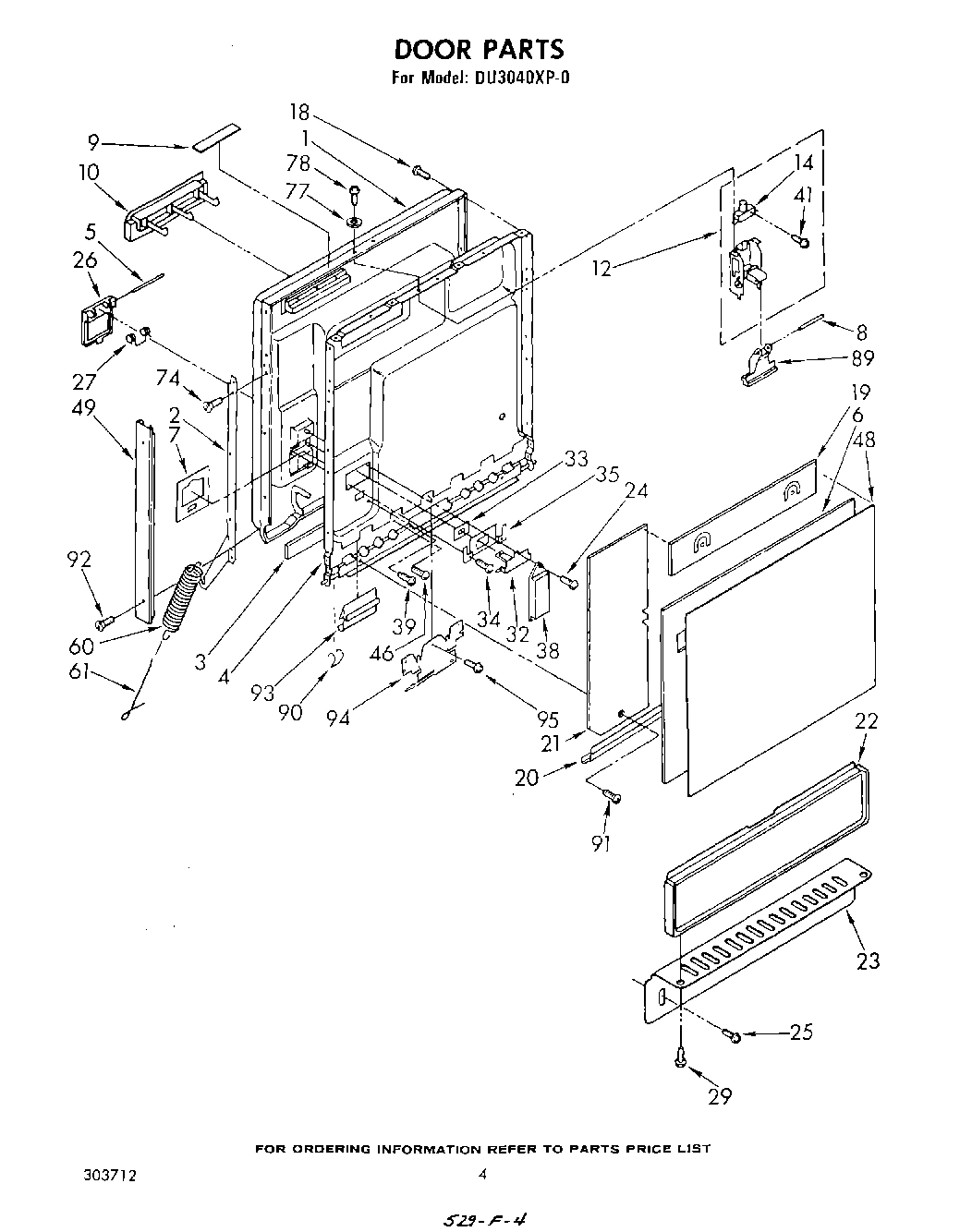

03 - DOOR
Common parts from model Whirlpool DU3040XP0 UNDERCOUNTER DISHWASHER
WPL 675476 WPL 675476 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL LIT303311 WPL LIT303311 Contact Us For Availability
WPL LIT303712 WPL LIT303712 Contact Us For Availability
WPL LIT304109 WPL LIT304109 Contact Us For Availability
WPL LIT304129 WPL LIT304129 Contact Us For Availability
WPL LIT677813 WPL LIT677813 Contact Us For Availability
WPL LIT677818 WPL LIT677818 Contact Us For Availability
WPL LIT677821 WPL LIT677821 Contact Us For Availability
WPL LIT677967 WPL LIT677967 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Bracket, Console WPL 300754 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
2
Panel, Escutcheon WPL 304139 Contact Us For Availability
2
Support Door (L.H.) WPL 303196 Contact Us For Availability
2
Support, Door (R.H.) WPL 303197 Contact Us For Availability
3
Motor, Timer WPL 301074 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability
4
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
4
Liner, Door WPL 303202 Contact Us For Availability
5
Hose, Inlet WPL 301054 Contact Us For Availability
5
Tower WPL 302030 Contact Us For Availability
5
Insert, Console WPL 304145 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
6
Timer WPL 303281 Contact Us For Availability
6
Spacer, Corrugated WPL 301957 Contact Us For Availability
7
Barrier WPL 303978 Contact Us For Availability
8
Screw (2) WPL 339494 Contact Us For Availability
8
Pin, Pivot (2) WPL 300234 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Label, User Guide WPL LIT302081 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
10
Harness, Wiring WPL 302344 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
11
Disconnect Block WPL 352090 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
12
Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper WPL 303358 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
15
Connector Block WPL 300708 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
xPanel, Reversible Side WPL ARI23856A1 Contact Us For Availability
16
Insulator .250 Terminal WPL 358736 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Barrier, Console WPL 303222 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
20
Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability
20
Panel, Edging (Door) WPL 304047 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Barrier, Door WPL 303223 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
23
Plate, Toe WPL 303144 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Dial, Indicator WPL 300996 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
Knob WPL 301010 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
xxPanel, Front WPL ARI23855A1 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Trim, Door (2) WPL 303501 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Tra WPL 300845 Contact Us For Availability
53
WPL 719266 WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 261887 WPL 261887 Contact Us For Availability
60
WPL 261889 WPL 261889 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799340 WPL 799340 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
93
Retainer, Clip WPL 303121 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
× ![]()
