Model Whirlpool DU3016XL0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

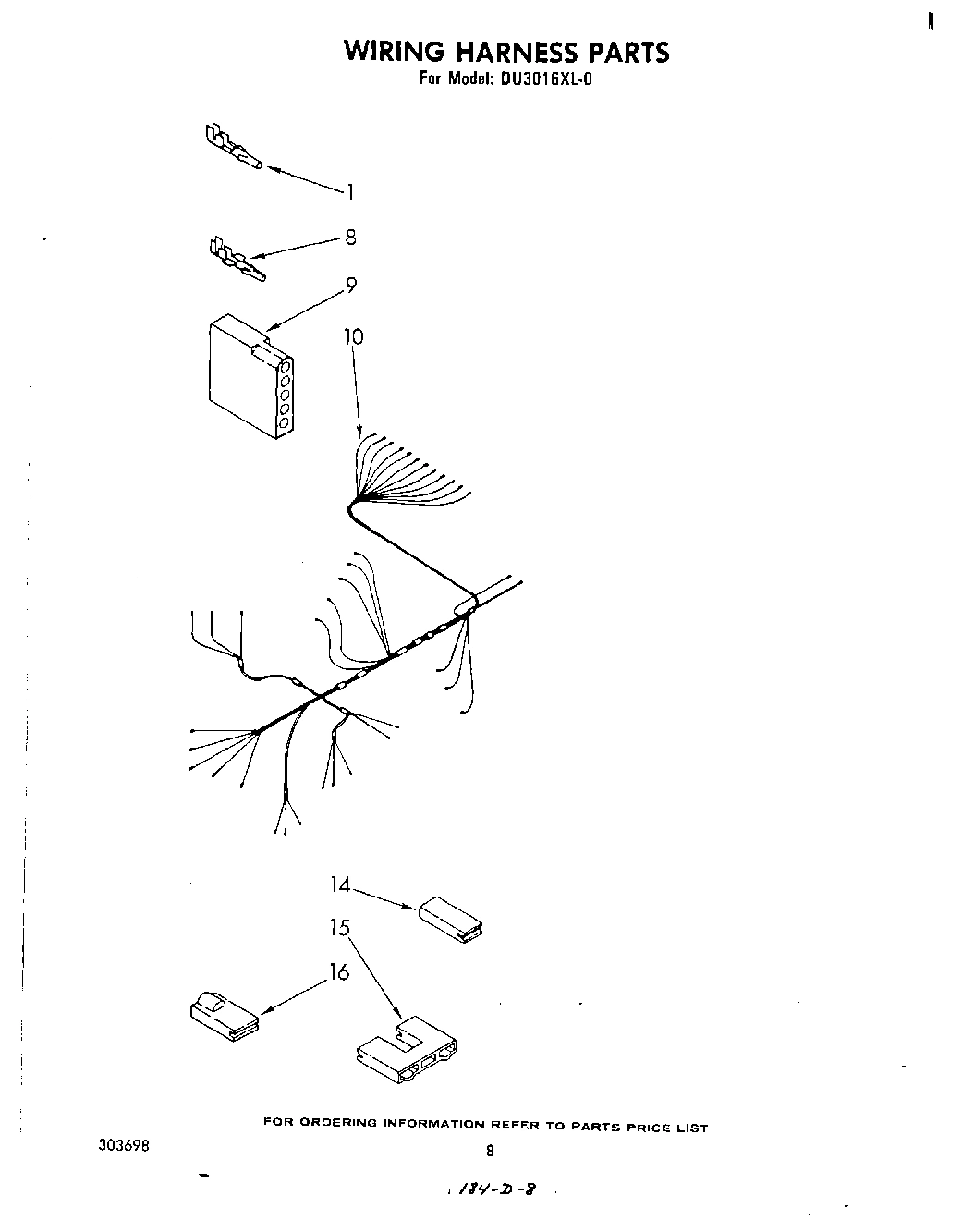

06 - WIRING HARNESS

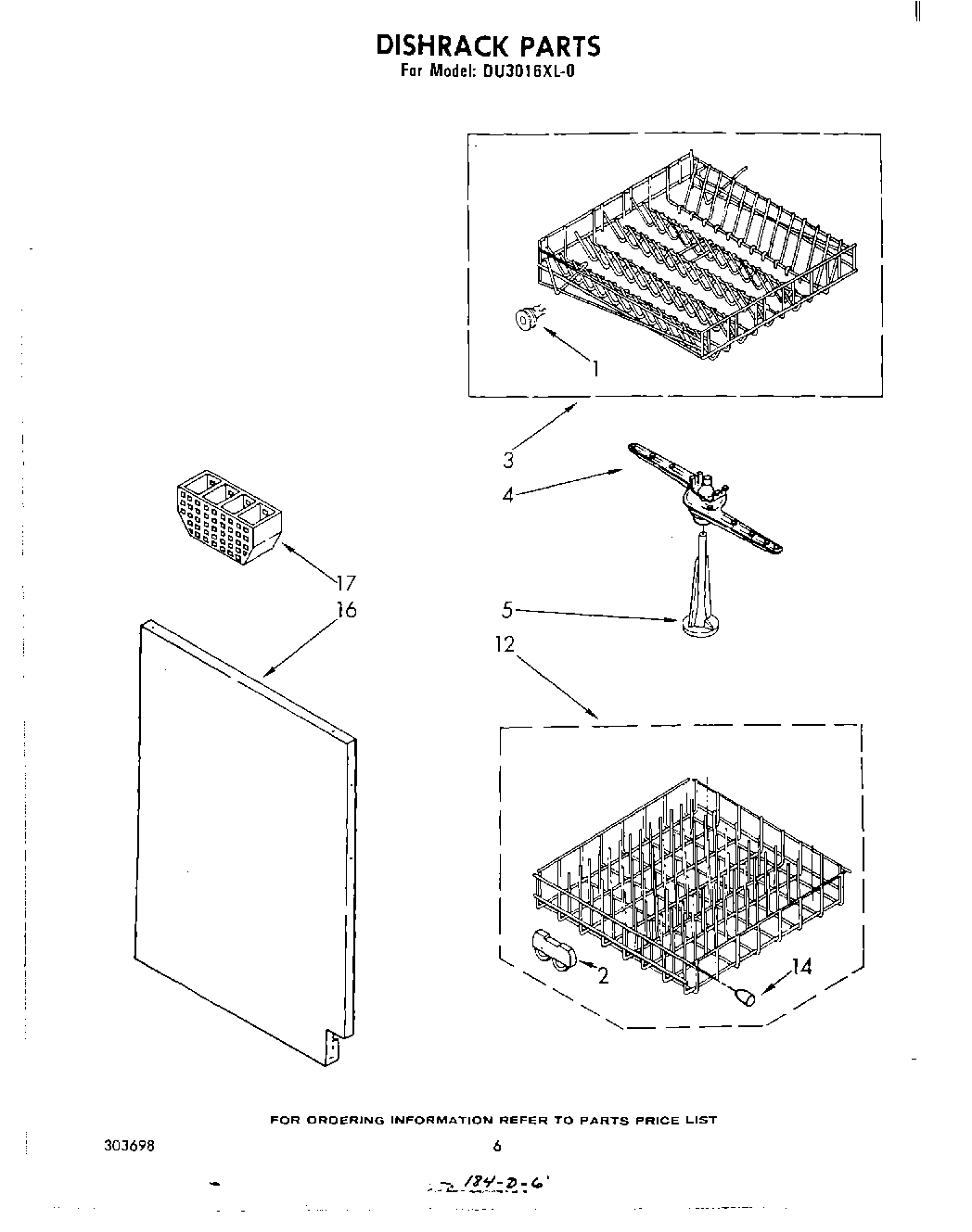

04 - DISHRACK

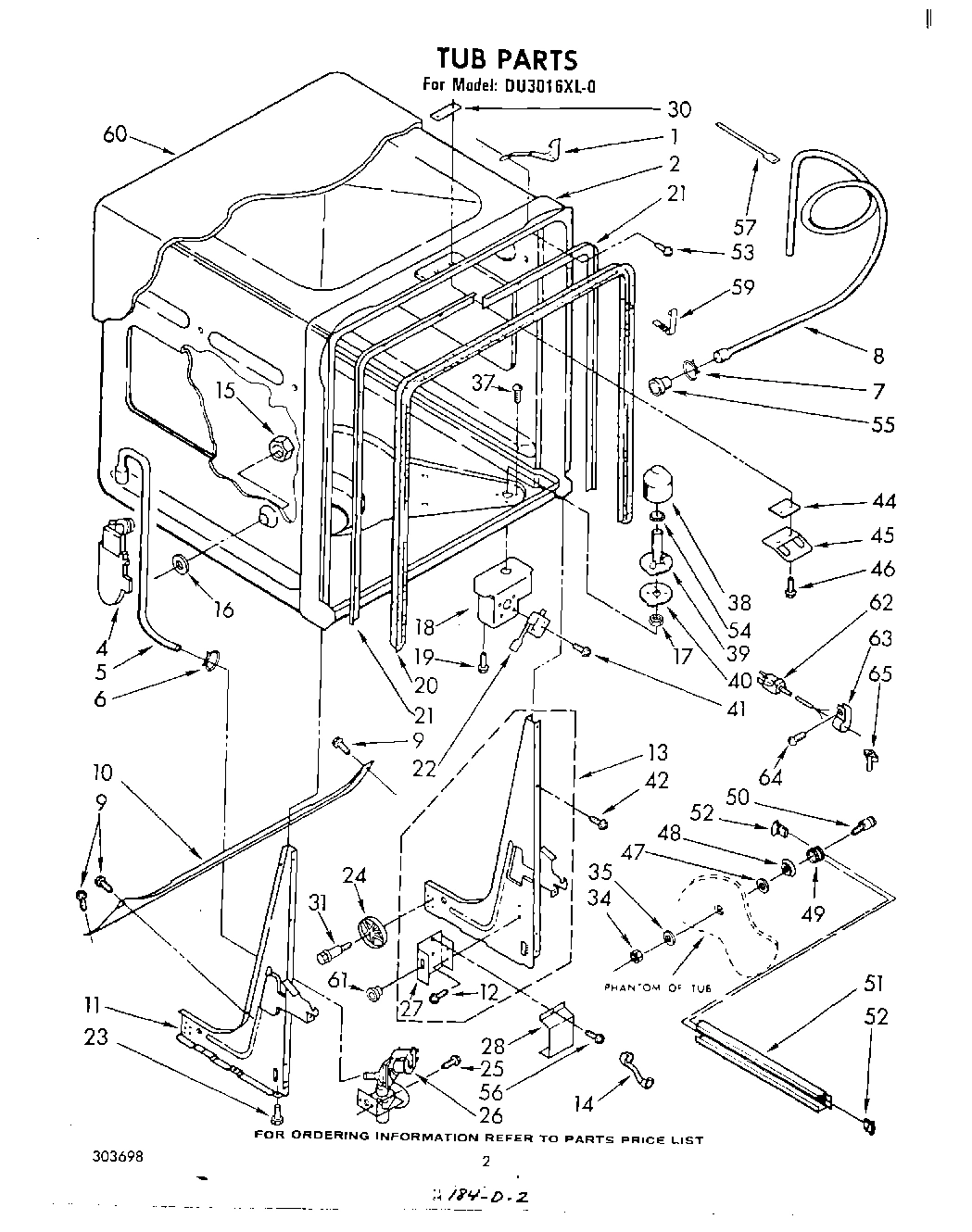

02 - TUB , LITERATURE AND OPTIONAL

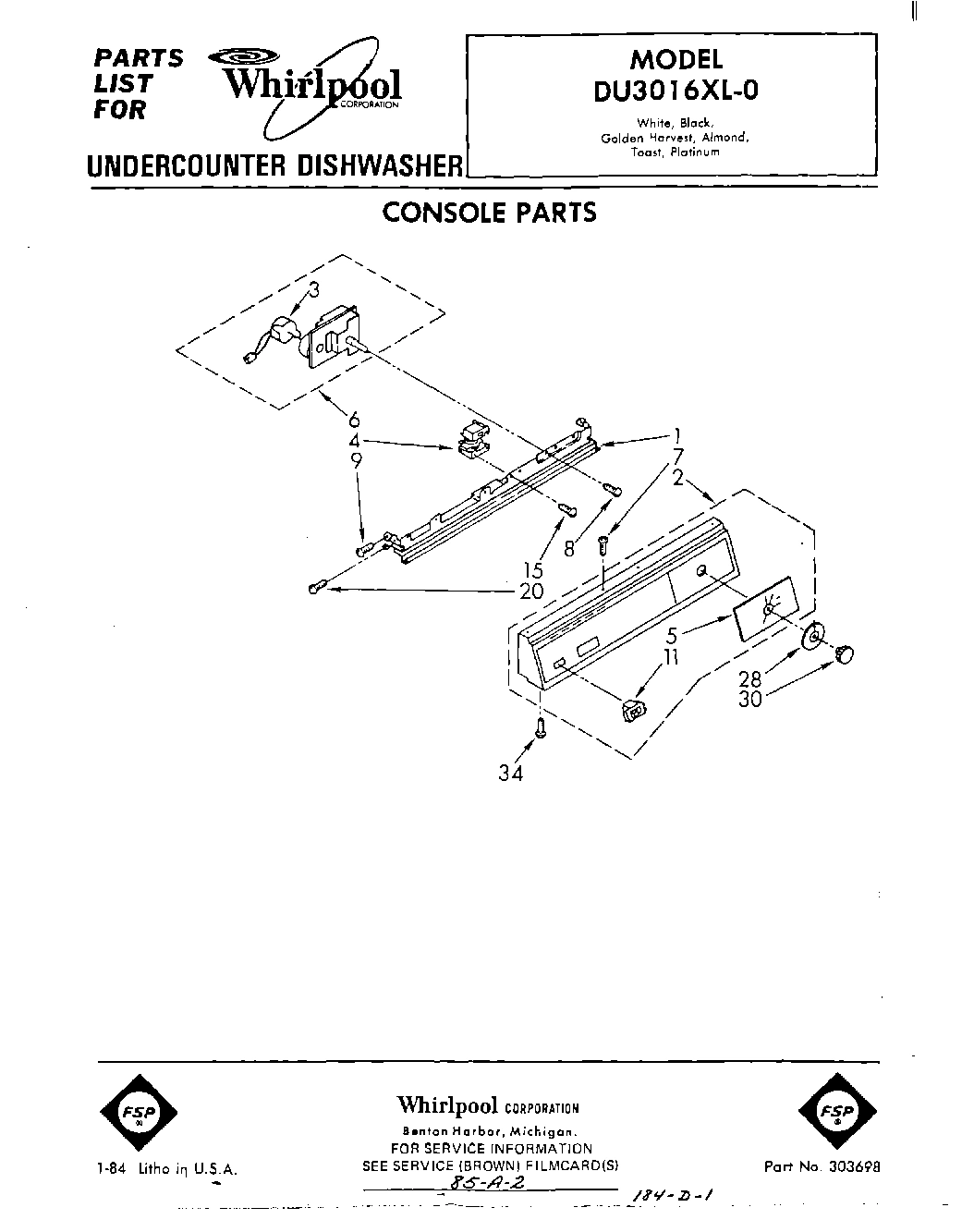

01 - CONSOLE

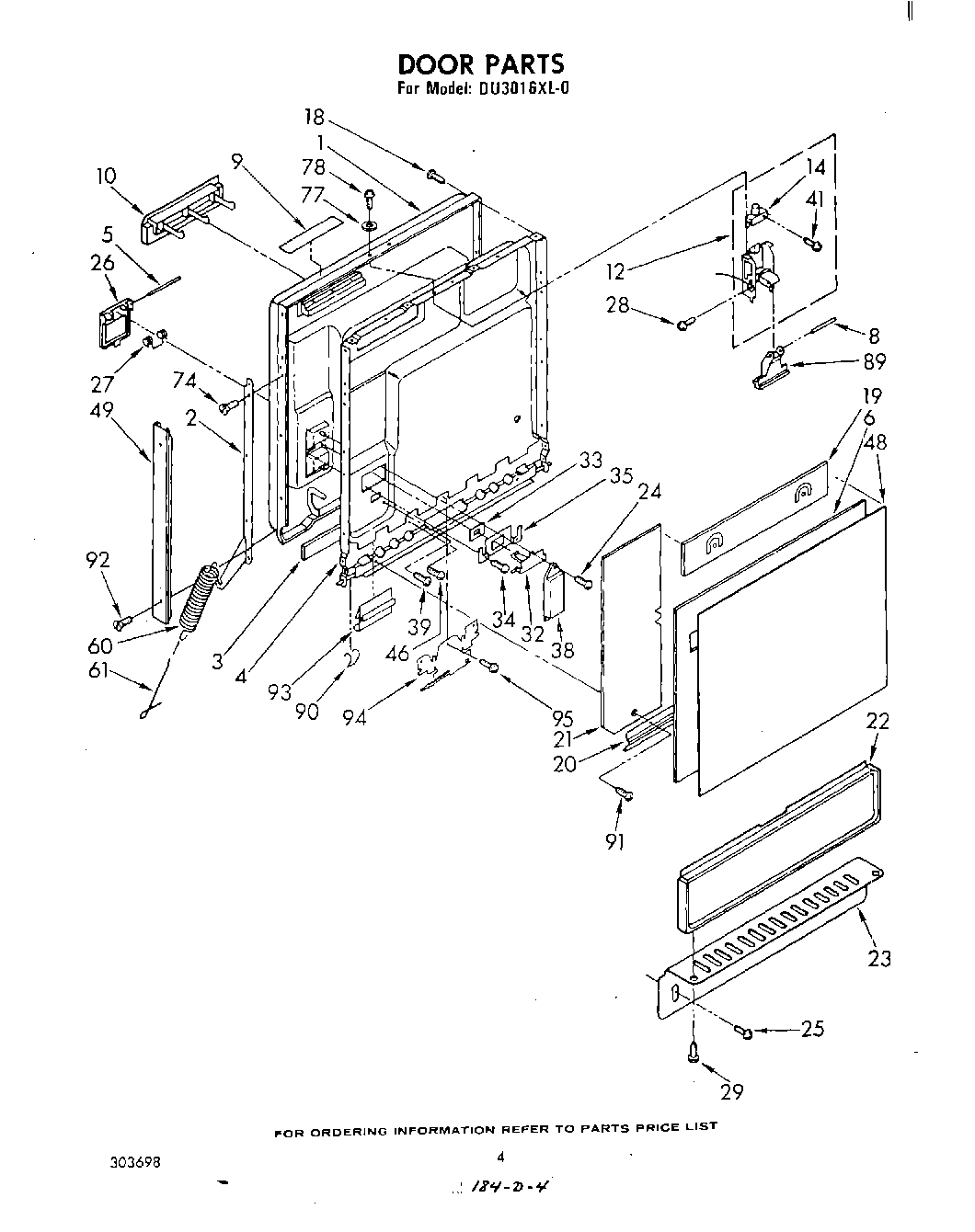

03 - DOOR

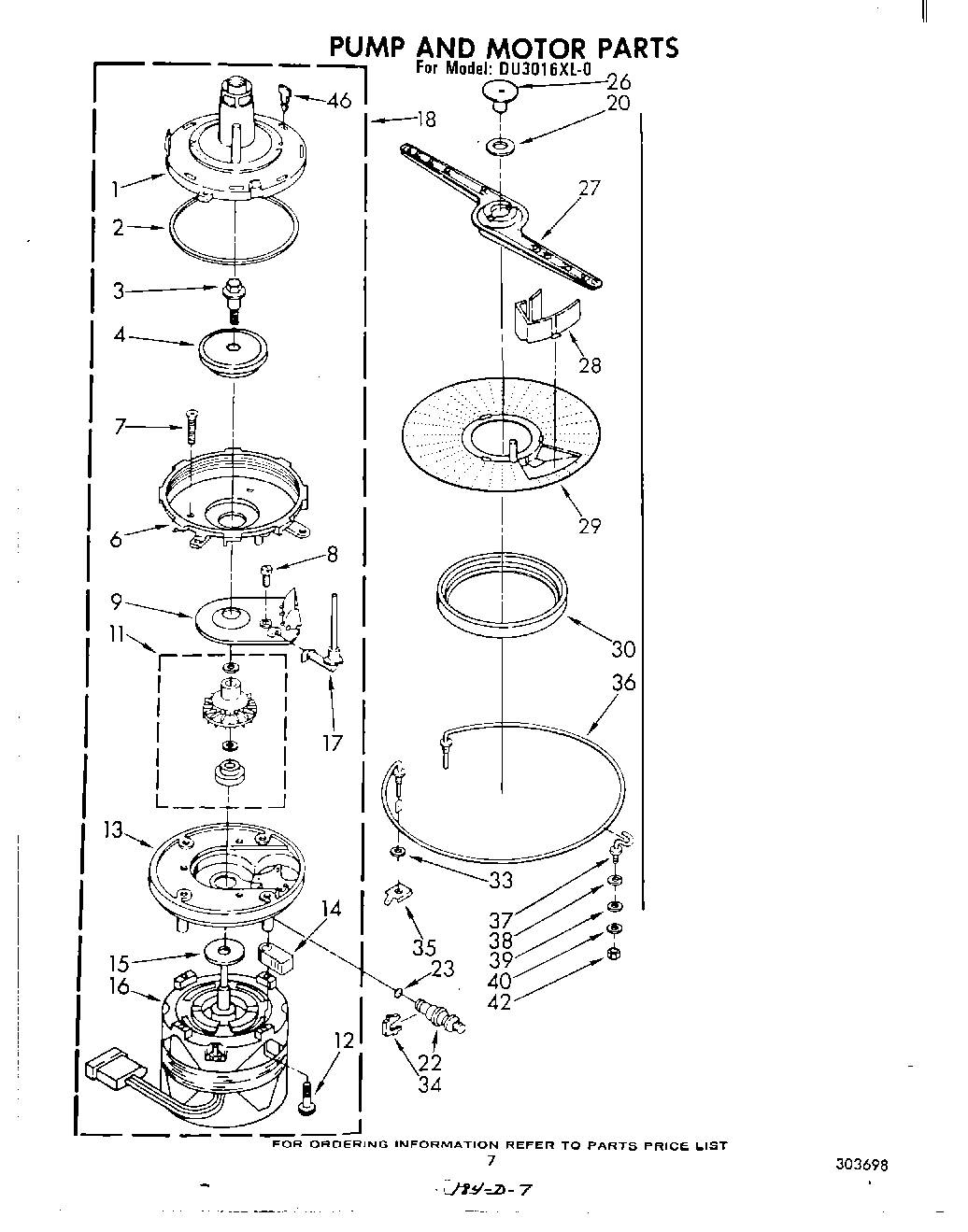

05 - PUMP AND MOTOR
Common parts from model Whirlpool DU3016XL0 UNDERCOUNTER DISHWASHER
WPL 799344 WPL 799344 Contact Us For Availability
1
Bracket, Console WPL 300754 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Panel, Escutcheon WPL 303458 Contact Us For Availability
2
Support Door (L.H.) WPL 303196 Contact Us For Availability
2
Support, Door (R.H.) WPL 303197 Contact Us For Availability
3
Motor, Timer WPL 301074 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
4
Liner, Door WPL 303202 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
5
Insert, Console WPL 303441 Contact Us For Availability
6
Timer WPL 303281 Contact Us For Availability
6
Spacer, Corrugated WPL 301957 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
8
Screw (2) WPL 339494 Contact Us For Availability
8
Pin, Pivot (2) WPL 300234 Contact Us For Availability
9
Label, User Guide WPL LIT302081 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
11
Kit, Drain Impeller WPL 675468 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Pump & Motor Assembly WPL 303576 Contact Us For Availability
19
Barrier, Console WPL 303222 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
20
Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability
20
Panel Edging, Door WPL 301971 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Barrier, Door WPL 303223 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
23
Plate, Toe WPL 303144 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
26
Cap, Nozzle WPL 302816 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Dial, Indicator WPL 300996 Contact Us For Availability
28
Guard, Screen WPL 303069 Contact Us For Availability
29
Screen, Sump WPL 303070 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
Knob WPL 301010 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
34
Retainer, Check Valve WPL 300797 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front WPL ARI23849A4 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Trim, Door (2) WPL 303501 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
WPL 302770 WPL 302770 Contact Us For Availability
62
WPL 302764 WPL 302764 Contact Us For Availability
63
WPL 596553 WPL 596553 Contact Us For Availability
64
WPL 719266 WPL 719266 Contact Us For Availability
65
WPL 206925 WPL 206925 Contact Us For Availability
65
WPL 261886 WPL 261886 Contact Us For Availability
65
WPL 261888 WPL 261888 Contact Us For Availability
65
WPL 261890 WPL 261890 Contact Us For Availability
65
WPL 285365 WPL 285365 Contact Us For Availability
65
WPL 285366 WPL 285366 Contact Us For Availability
65
WPL 303310 WPL 303310 Contact Us For Availability
65
WPL 303549 WPL 303549 Contact Us For Availability
65
WPL 303698 WPL 303698 Contact Us For Availability
65
WPL 303810 WPL 303810 Contact Us For Availability
65
WPL 72108 WPL 72108 Contact Us For Availability
65
WPL 72112 WPL 72112 Contact Us For Availability
65
WPL 770754 WPL 770754 Contact Us For Availability
65
WPL 799351 WPL 799351 Contact Us For Availability
65
WPL 799640 WPL 799640 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
93
Retainer, Clip WPL 303121 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
× ![]()
