Model Whirlpool DU3000XR2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

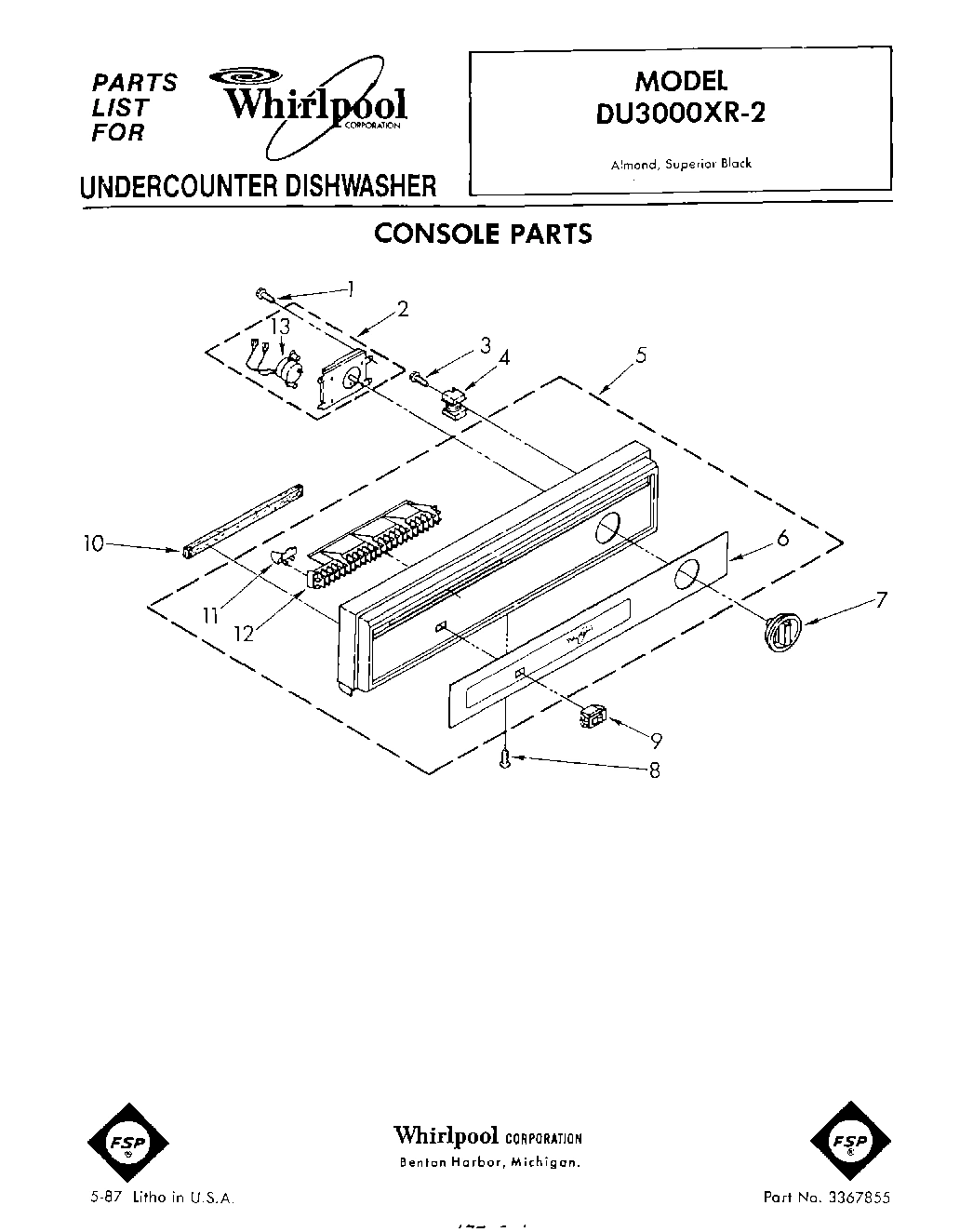

01 - CONSOLE

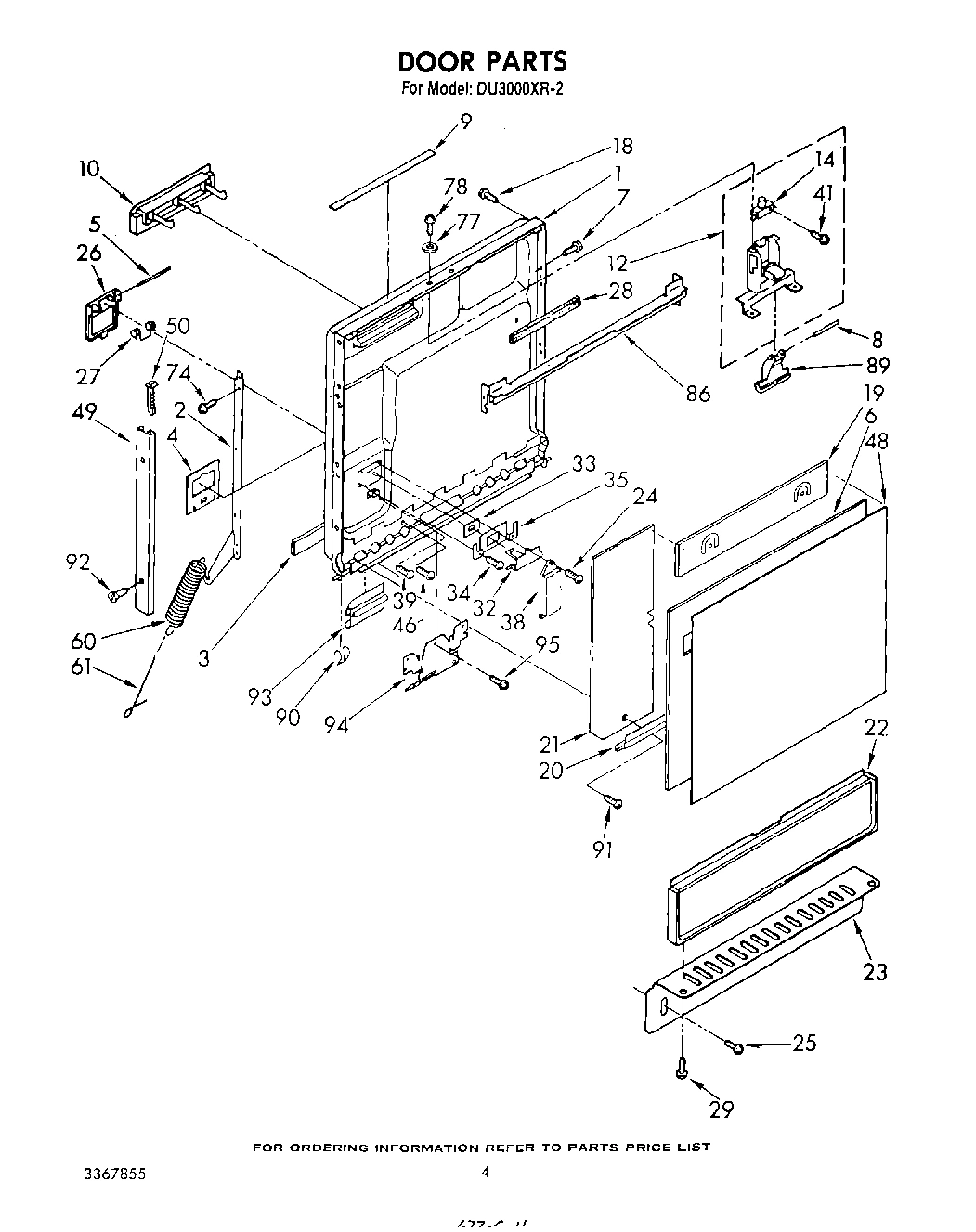

03 - DOOR
06 - WIRING HARNESS
04 - DISHRACK
05 - PUMP AND MOTOR
02 - TUB , LITERATURE AND OPTIONAL
Common parts from model Whirlpool DU3000XR2 UNDERCOUNTER DISHWASHER
WPL LIT304272 WPL LIT304272 Contact Us For Availability
WPL LIT304671 WPL LIT304671 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3367855 WPL LIT3367855 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Pump Housing, Upper WPL 3367439 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Harness, Wiring WPL 304503 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
11
Kit, Drain Impeller WPL 675468 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Base, Pump WPL 3367203 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 3367285 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
14
Bumper WPL 304490 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Insulator WPL 358736 Contact Us For Availability
16
Panel, Reversible Side WPL ARI23842A1 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Gasket, Door WPL 3367679 Contact Us For Availability
21
Barrier, Door WPL 303906 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Alternate WPL 301672 Contact Us For Availability
22
Alternate WPL 304589 Contact Us For Availability
23
Plate, Toe WPL 3367470 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Cap, Nozzle WPL 3367446 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Baffle WPL 719860 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Check Ball & Retainer WPL 675488 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
41
Screw, 4-40 x 9/16 Hex Head Slotted Thread Cu WPL 302203 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI23841A9 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex Head (10) WPL 719266 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Inser WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 206925 WPL 206925 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799340 WPL 799340 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304407 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 WPL 3367288 Contact Us For Availability
93
WPL 303121 WPL 303121 Contact Us For Availability
94
WPL 303362 WPL 303362 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
× ![]()
