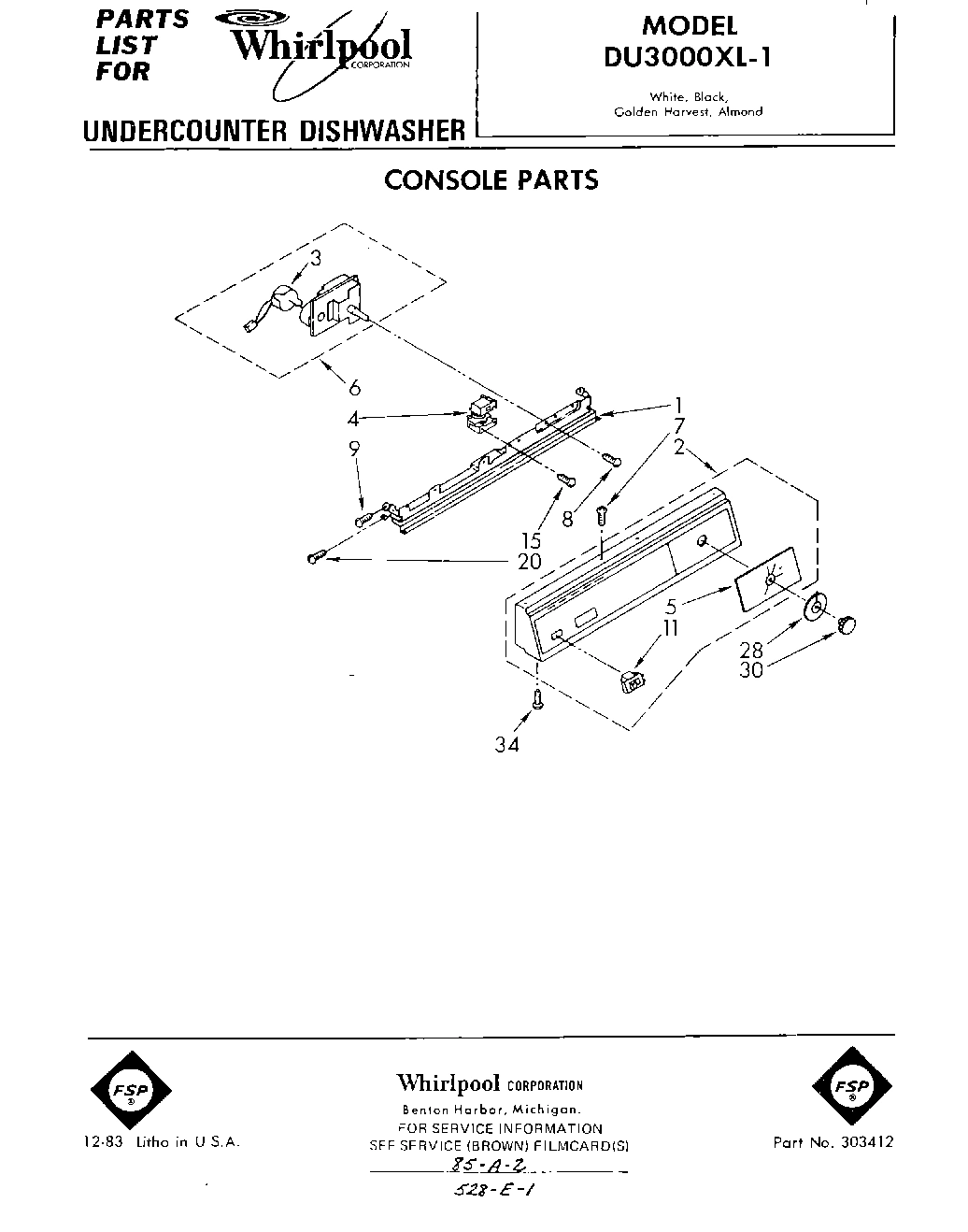

Model Whirlpool DU3000XL1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

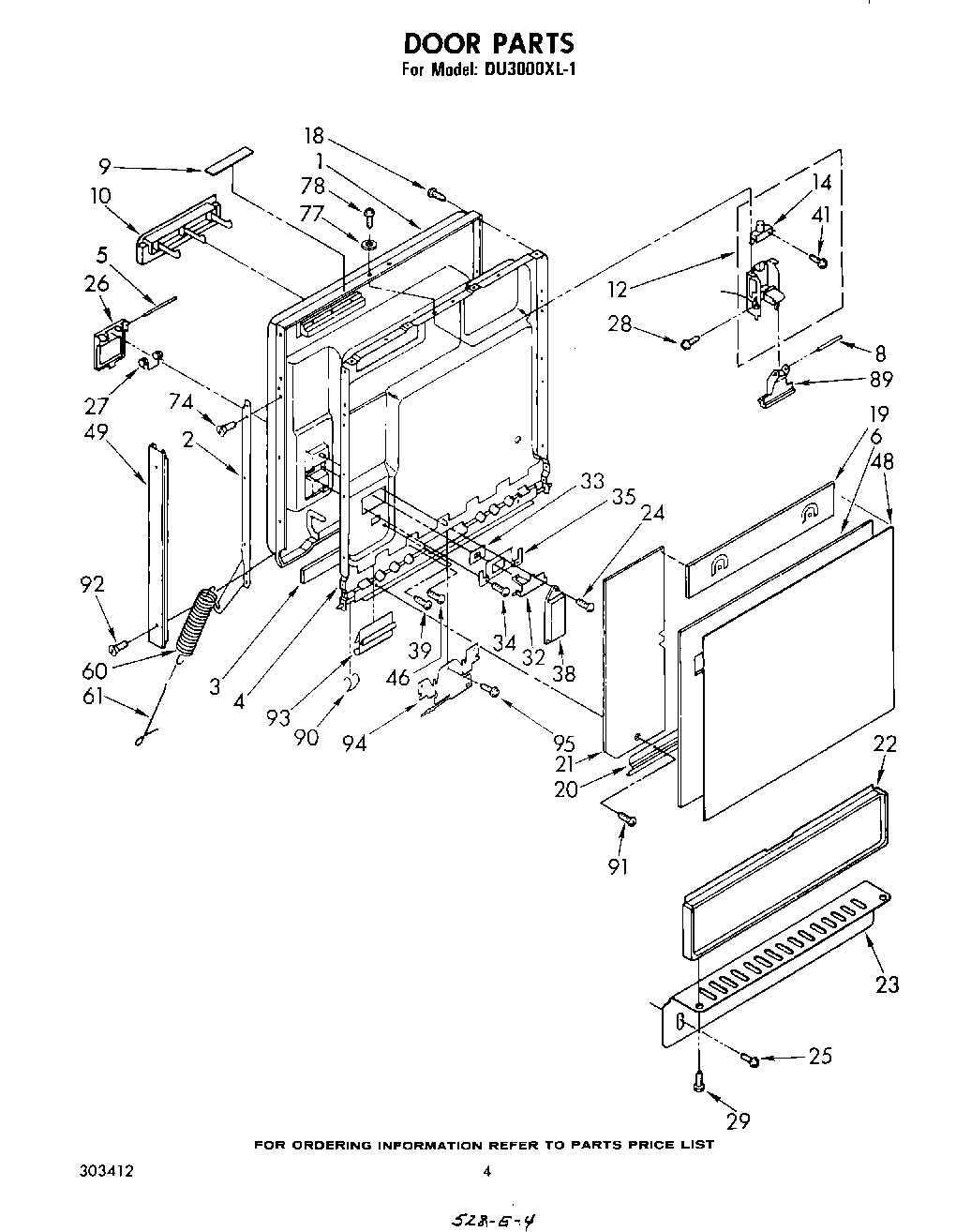

Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

2

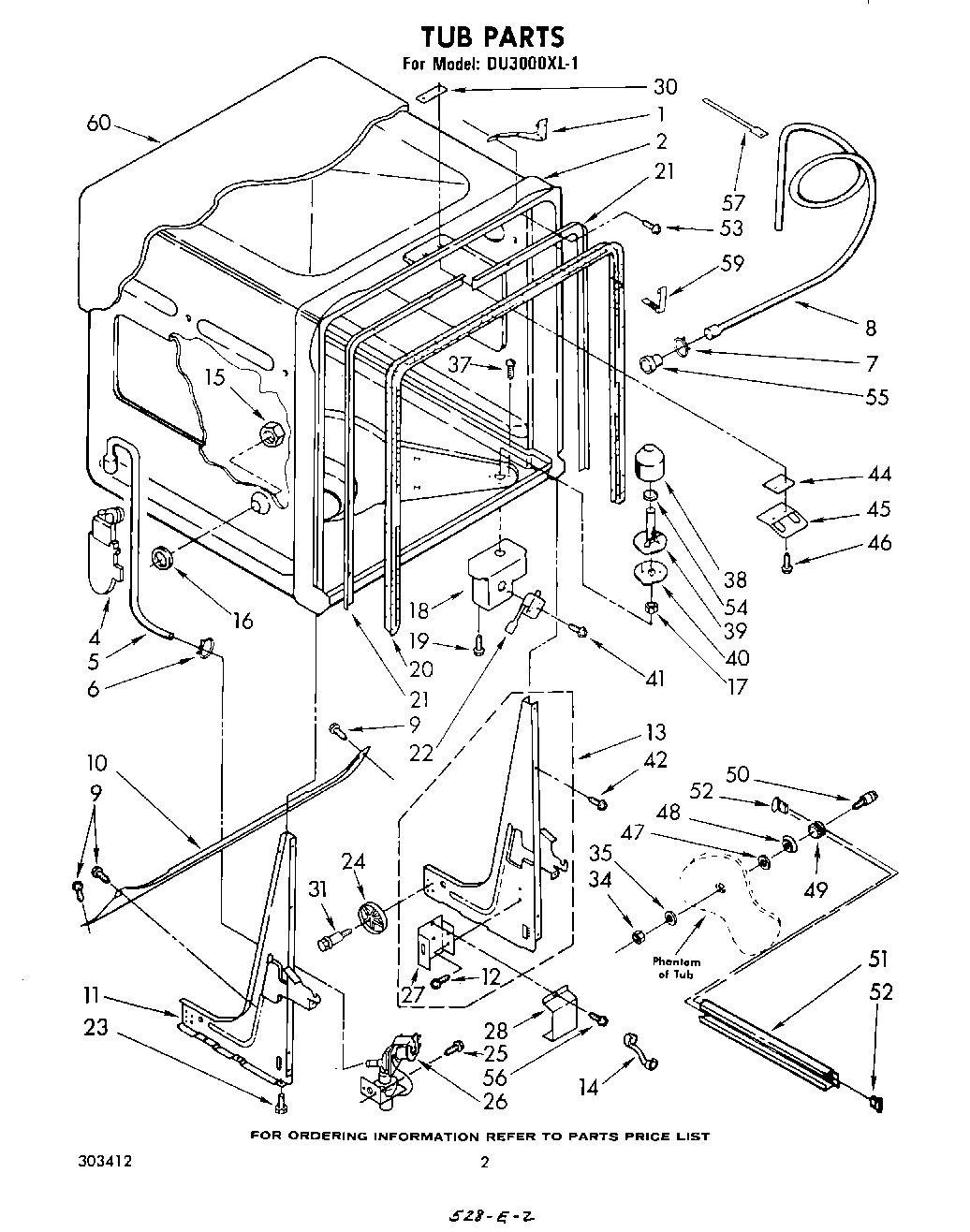

Tub Assembly WPL 303110 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

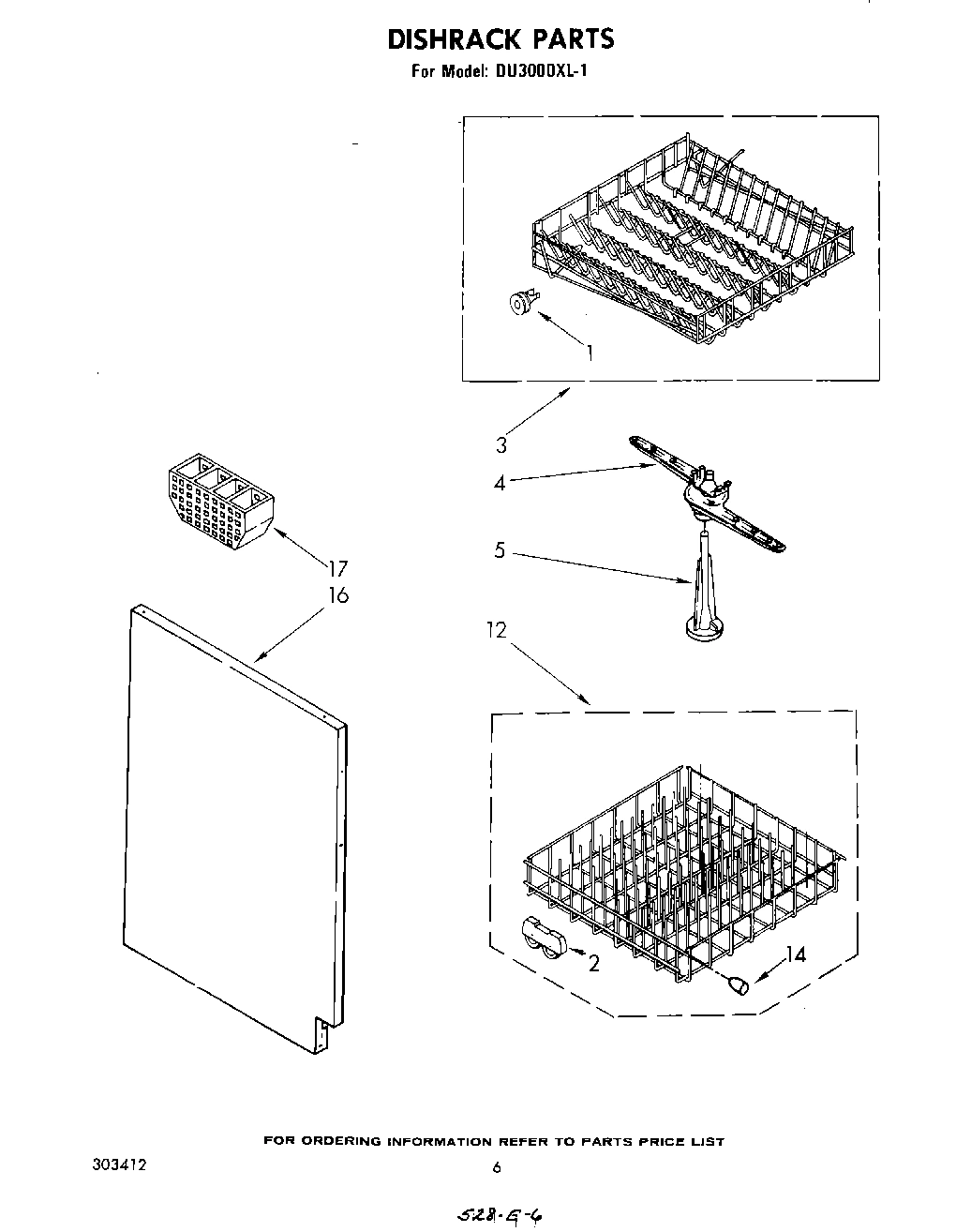

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

4

Liner, Door WPL 303202 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 301054 Contact Us For Availability

5

Tower WPL 302030 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Spacer, Corrugated WPL 301957 Contact Us For Availability

6

Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

9

Label, User Guide WPL LIT302081 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

10

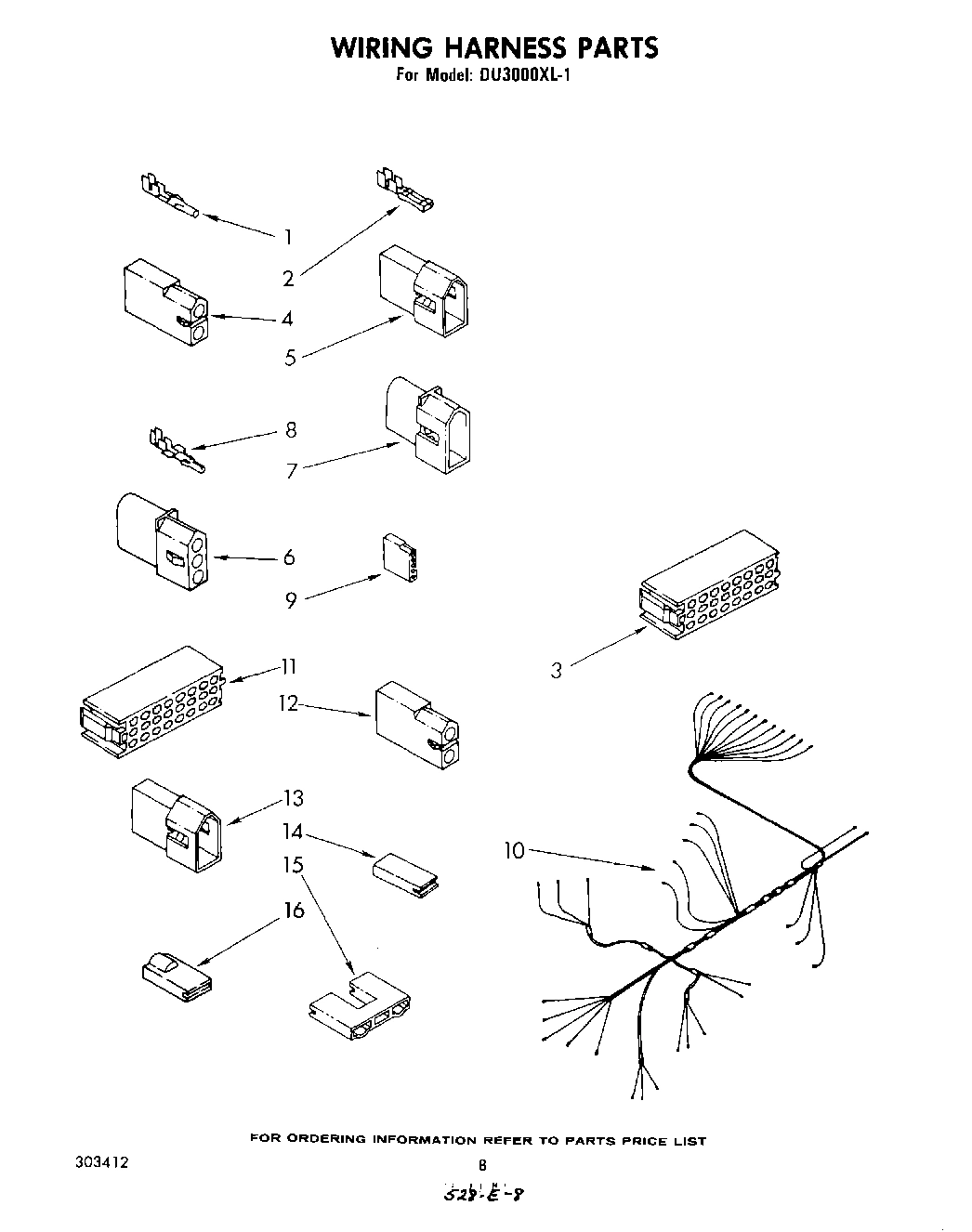

Harness, Wiring WPL 302344 Contact Us For Availability

10

Brace WPL 303111 Contact Us For Availability

11

Disconnect Block WPL 352090 Contact Us For Availability

11

Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Latch Assembly WPL 300235 Contact Us For Availability

Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability

Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability

13

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

13

Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Connector Block WPL 301219 Contact Us For Availability

Relief, Strain WPL 717563 Contact Us For Availability

Bumper WPL 303358 Contact Us For Availability

15

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

15

Connector Block WPL 300708 Contact Us For Availability

15

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

16

Insulator .250 Terminal WPL 358736 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

16

Panel, R.S. WPL ARI23836A3 Contact Us For Availability

17

WP8539066 Whirlpool Dishwasher Basket Ware Backorder WPL WP8539066 $38.52

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

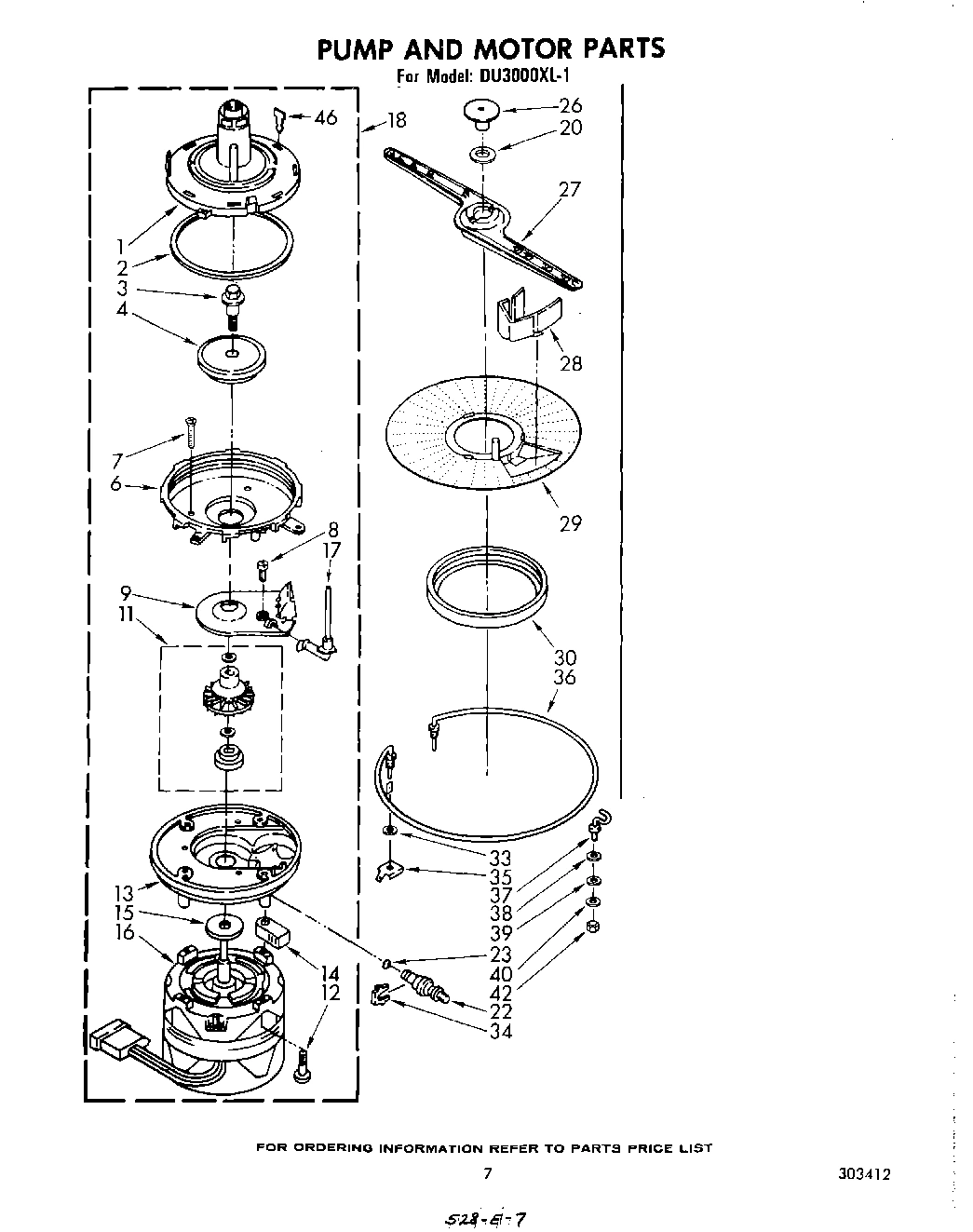

Pump & Motor Assembly WPL 303576 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

19

Barrier, Console WPL 303222 Contact Us For Availability

19

Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Panel Edging, Door WPL 301971 Contact Us For Availability

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

21

Barrier, Door WPL 303223 Contact Us For Availability

21

Retainer (R.H.) WPL 302093 Contact Us For Availability

21

Retainer (L.H.) WPL 302094 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

WP3367793 Whirlpool Black Access Panel Backorder WPL WP3367793 $17.51

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Plate, Toe WPL 303144 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

25

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

26

Cap, Nozzle WPL 302816 Contact Us For Availability

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 302767 Contact Us For Availability

27

Box, Terminal WPL 300067 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Guard, Screen WPL 303069 Contact Us For Availability

29

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

29

Screen, Sump WPL 303070 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

31

Screw, Shoulder WPL 302818 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Retainer, Check Valve WPL 300797 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

35

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability

41

Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability

42

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Panel, Front WPL ARI23835A8 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

49

Trim, Door (2) WPL 303501 Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 Indented Hex Head WPL 719266 Contact Us For Availability

54

WPL 301662 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

59

WPL 301663 WPL 301663 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 303311 WPL 303311 Contact Us For Availability

WPL 303368 WPL 303368 Contact Us For Availability

WPL 303412 WPL 303412 Contact Us For Availability

WPL 303540 WPL 303540 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

89

Lever, Release WPL 300230 Contact Us For Availability

90

Clip, Wire WPL 301857 Contact Us For Availability

91

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

Retainer, Clip WPL 303121 Contact Us For Availability

94

Shield, Harness WPL 303362 Contact Us For Availability
