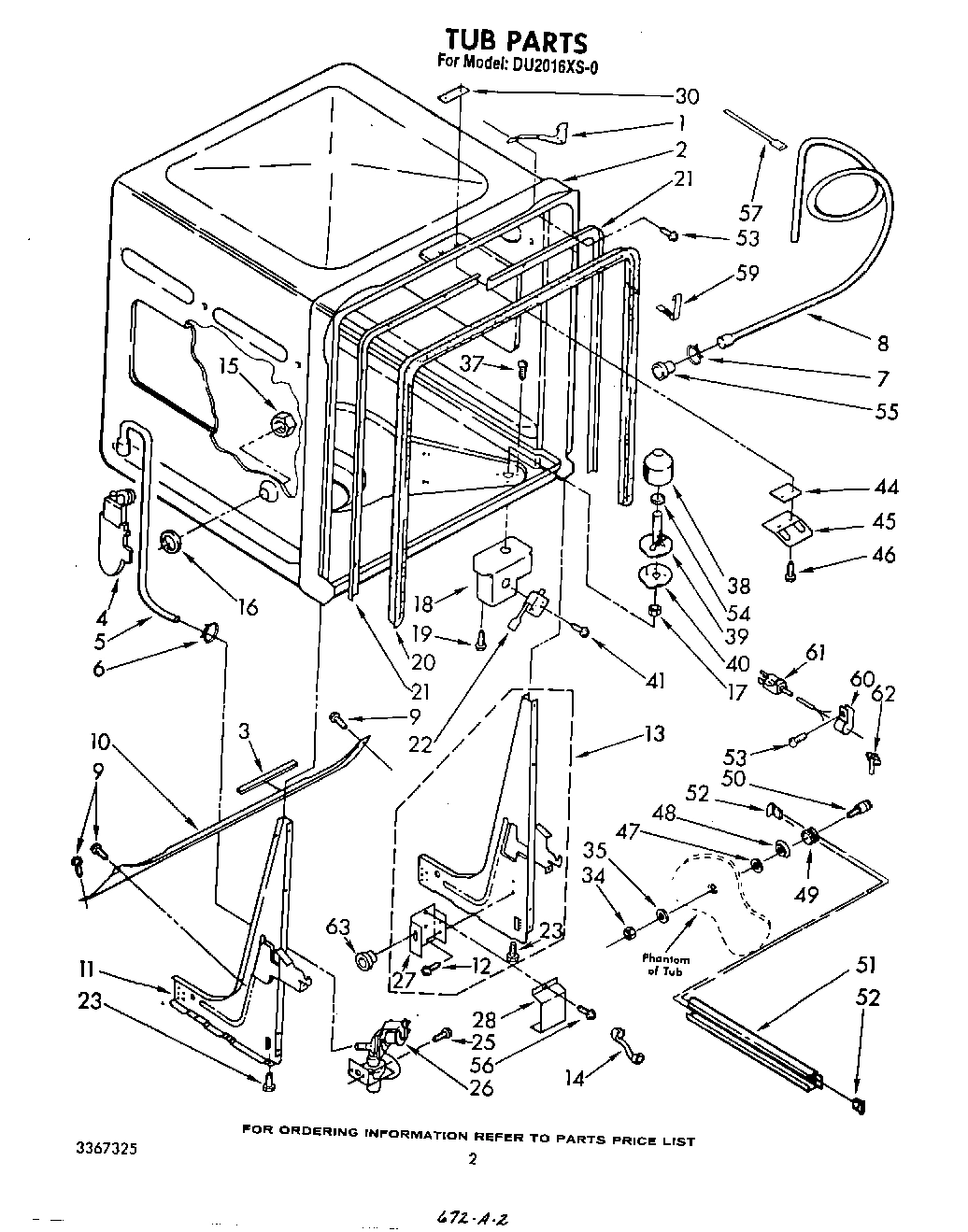

Model Whirlpool DU2016XS0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

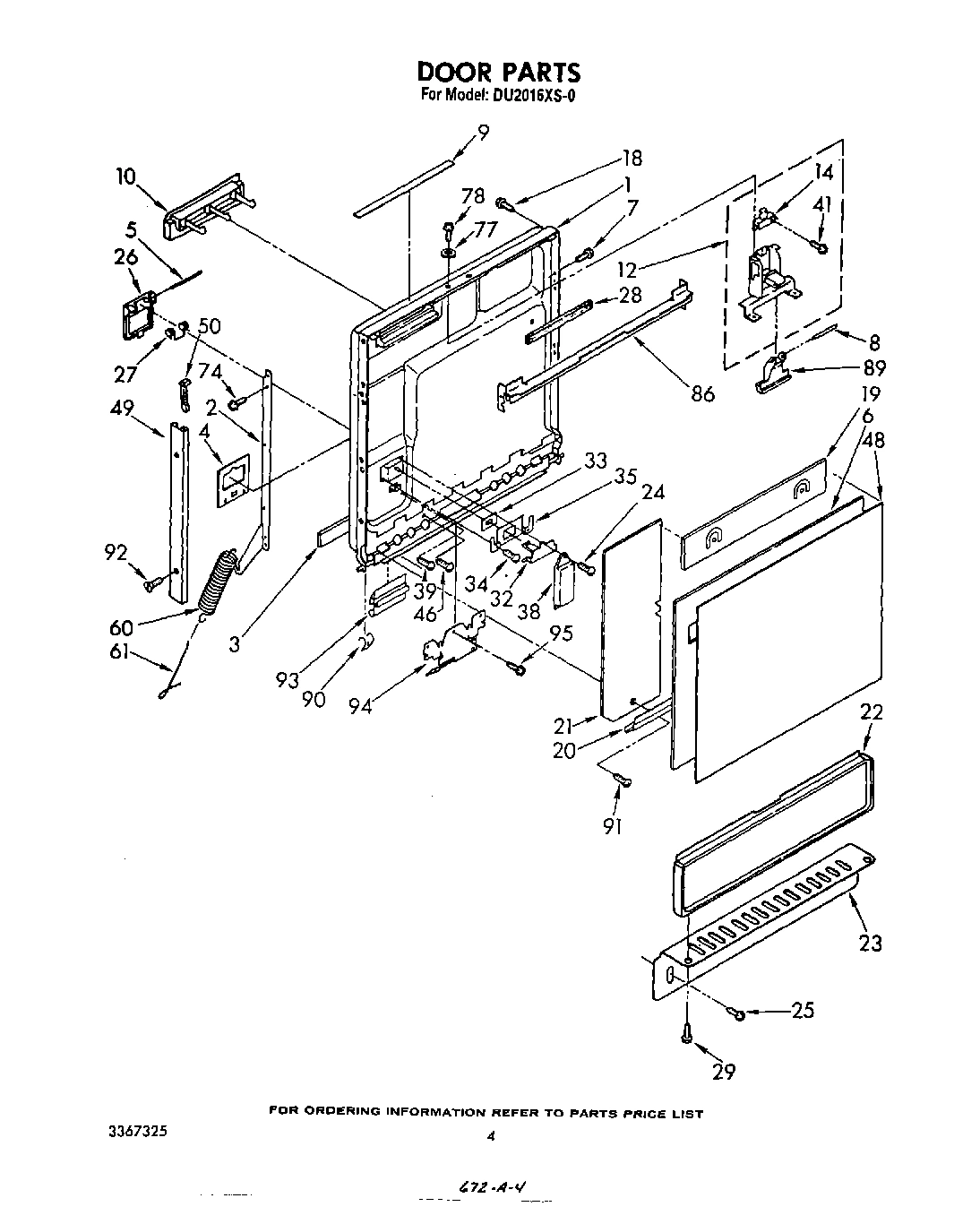

Door, Inner (Includes Illus. 4) WPL 3367387 Contact Us For Availability

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

1

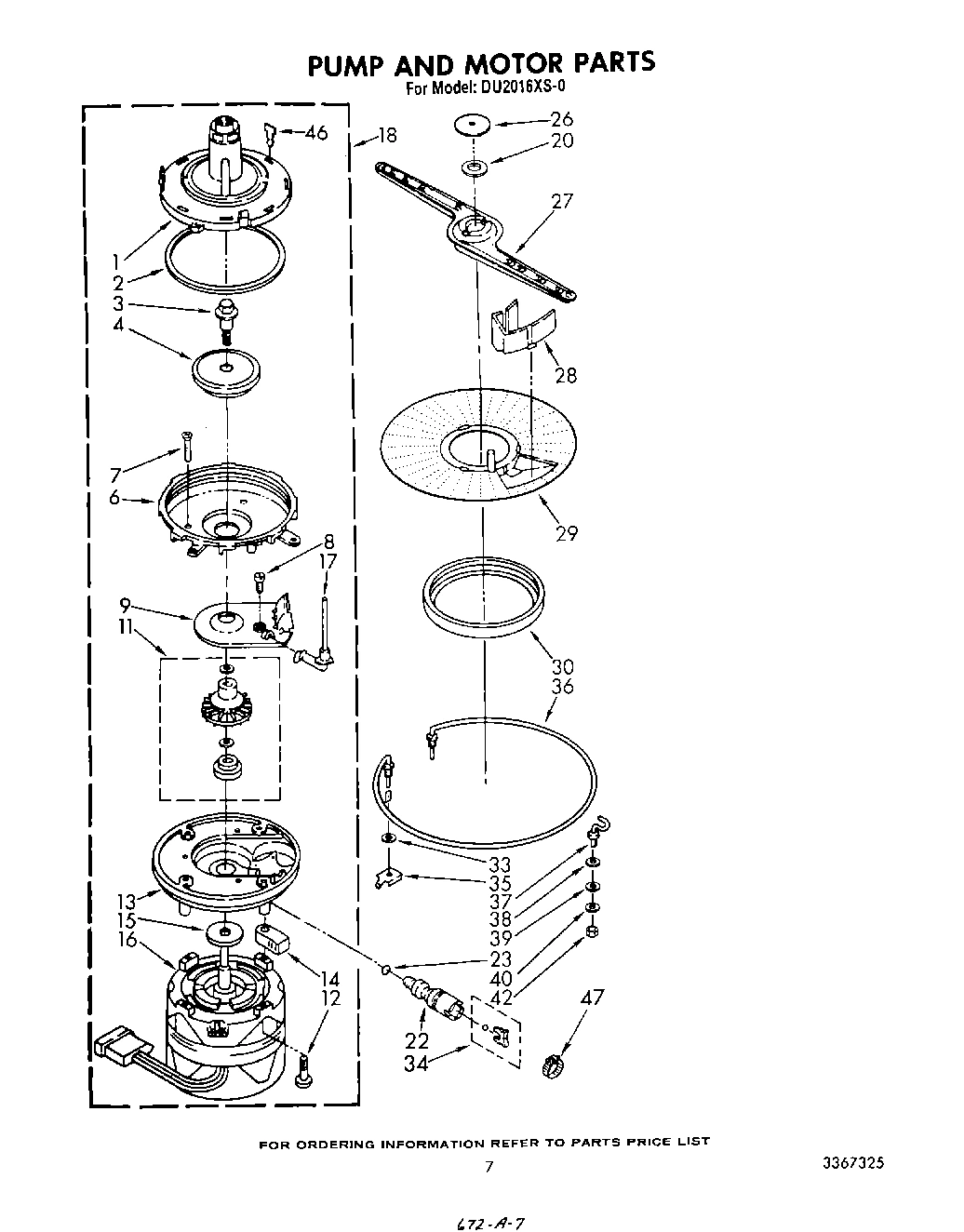

Pump Housing, Upper WPL 3367439 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $142.10

3

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

3

Gasket, Door WPL 717921 Contact Us For Availability

4

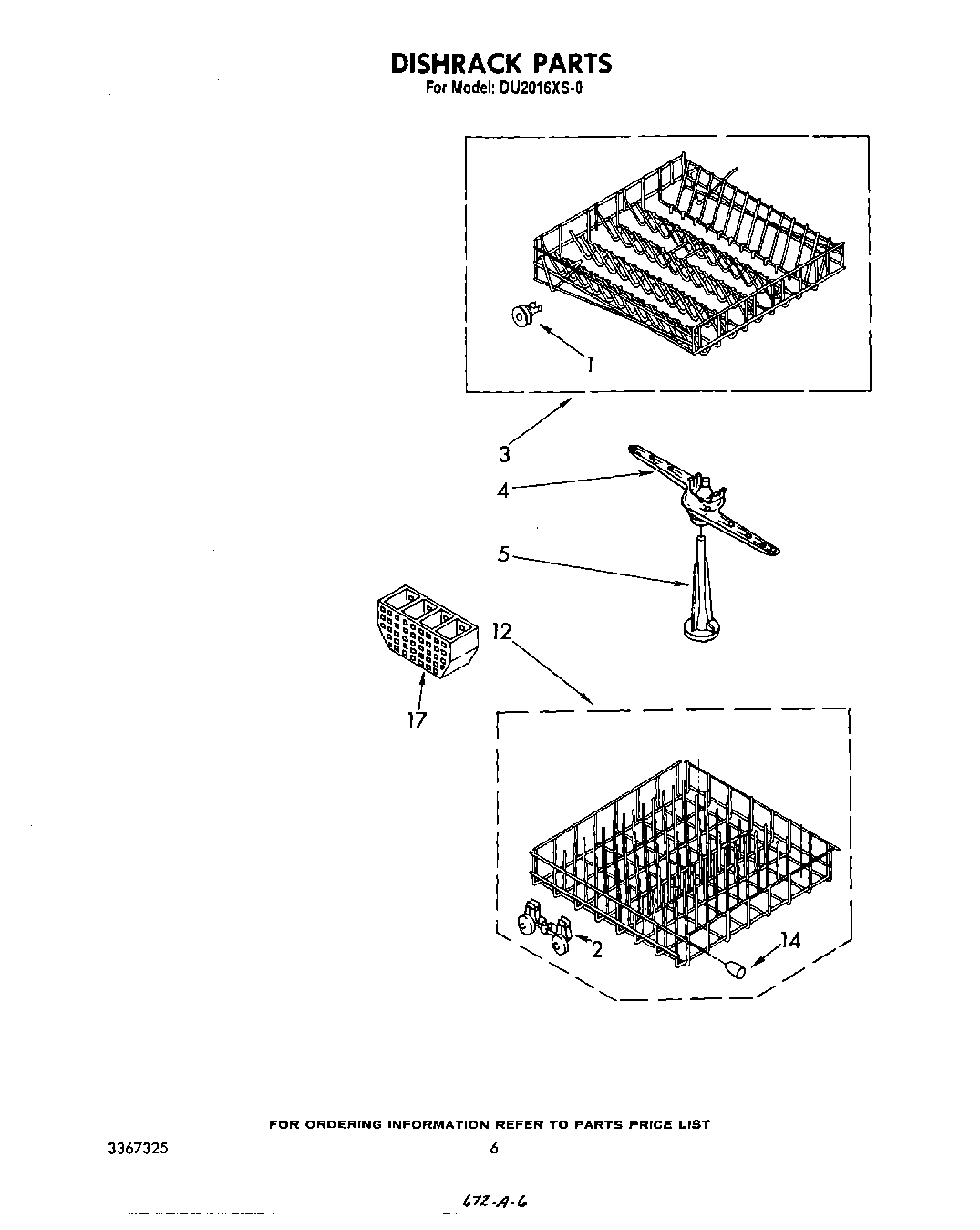

Spray Arm, Upper WPL 304204 Contact Us For Availability

4

Barrier WPL 303978 Contact Us For Availability

4

Impeller WPL 303517 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $16.78

5

Tower WPL 304170 Contact Us For Availability

5

Hose, Inlet WPL 304670 Contact Us For Availability

6

Spacer, Corrugated WPL 301957 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

9

Label, User Guide WPL LIT302081 Contact Us For Availability

9

Coverplate WPL 300084 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

11

Kit, Drain Impeller WPL 675468 Contact Us For Availability

12

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $176.67

12

Latch Assembly WPL 3367058 Contact Us For Availability

12

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

13

Base, Pump WPL 3367203 Contact Us For Availability

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

Switch, Interlock (Alt.) WPL 300232 Contact Us For Availability

Switch, Interlock (Alt.) WPL 303075 Contact Us For Availability

Switch, Interlock (Alt.) WPL 303885 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

Bumper WPL 304490 Contact Us For Availability

15

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

15

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

16

Motor WPL 303574 Contact Us For Availability

17

WP8539066 Whirlpool Dishwasher Basket Ware In Stock WPL WP8539066 $40.44

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

18

Screw, 8 x 1-7/8 Truss Head Hi-Lo (2) WPL 304233 Contact Us For Availability

18

Pump & Motor Assembly WPL 3367440 Contact Us For Availability

19

Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability

19

Barrier, Console WPL 303908 Contact Us For Availability

Bearing, Nozzle WPL 719576 Contact Us For Availability

Gasket (Alt.) WPL 302090 Contact Us For Availability

Gasket (Alt.) WPL 302091 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Gasket WPL 660870 Contact Us For Availability

Panel, Edging (Door) WPL 304047 Contact Us For Availability

21

Retainer, R.S. WPL 302093 Contact Us For Availability

21

Barrier, Door WPL 303906 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $29.44

WP3367793 Whirlpool Black Access Panel Backorder WPL WP3367793 $17.51

Switch, Pressure (Alt.) WPL 301672 Contact Us For Availability

Switch, Pressure (Alt.) WPL 304589 Contact Us For Availability

Switch, Pressure WPL 660741 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

23

Plate, Toe WPL 3367470 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

25

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Valve, Water Inlet (Alt.) WPL 303650 Contact Us For Availability

Valve, Water Inlet (Alt.) WPL 300453 Contact Us For Availability

Valve, Water Inlet WPL 660995 Contact Us For Availability

Cap, Nozzle WPL 3367446 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.64

27

Box, Terminal WPL 300067 Contact Us For Availability

28

Cover, Terminal Box WPL 300068 Contact Us For Availability

28

Baffle WPL 719860 Contact Us For Availability

28

Guard, Screen WPL 300988 Contact Us For Availability

29

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

29

Screen, Sump WPL 718226 Contact Us For Availability

30

Gasket, Pump WPL 717000 Contact Us For Availability

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

34

Check Ball & Retainer WPL 675488 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

37

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

39

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

41

Screw, 4-40 x 9/16 Hex Head Slotted Thread Cu WPL 302203 Contact Us For Availability

41

screw, 6-31 x 1 (1) WPL 301582 Contact Us For Availability

42

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI23826A6 Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

49

Trim, Door R.H. WPL 3367206 Contact Us For Availability

49

Trim, Door (L.H.) WPL 3367207 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 Indented H WPL 719266 Contact Us For Availability

54

WPL 301662 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

59

WPL 301663 WPL 301663 Contact Us For Availability

60

675611 Whirlpool Spring Assembly Backorder WPL 675611 $41.19

60

WPL 596553 WPL 596553 Contact Us For Availability

61

Retainer, Spring WPL 716401 Contact Us For Availability

61

WPL 302764 WPL 302764 Contact Us For Availability

62

WPL 770754 WPL 770754 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 302770 WPL 302770 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 71017 WPL 71017 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

86

Rail, Support WPL 304391 Contact Us For Availability

89

Lever, Release WPL 304407 Contact Us For Availability

90

Clip, Wire WPL 301857 Contact Us For Availability

91

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

92

Screw, WPL 3367288 Contact Us For Availability

93

WPL 303121 WPL 303121 Contact Us For Availability

94

WPL 303362 WPL 303362 Contact Us For Availability

95

WPL 303090 WPL 303090 Contact Us For Availability
