Model Whirlpool DU1099XT1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

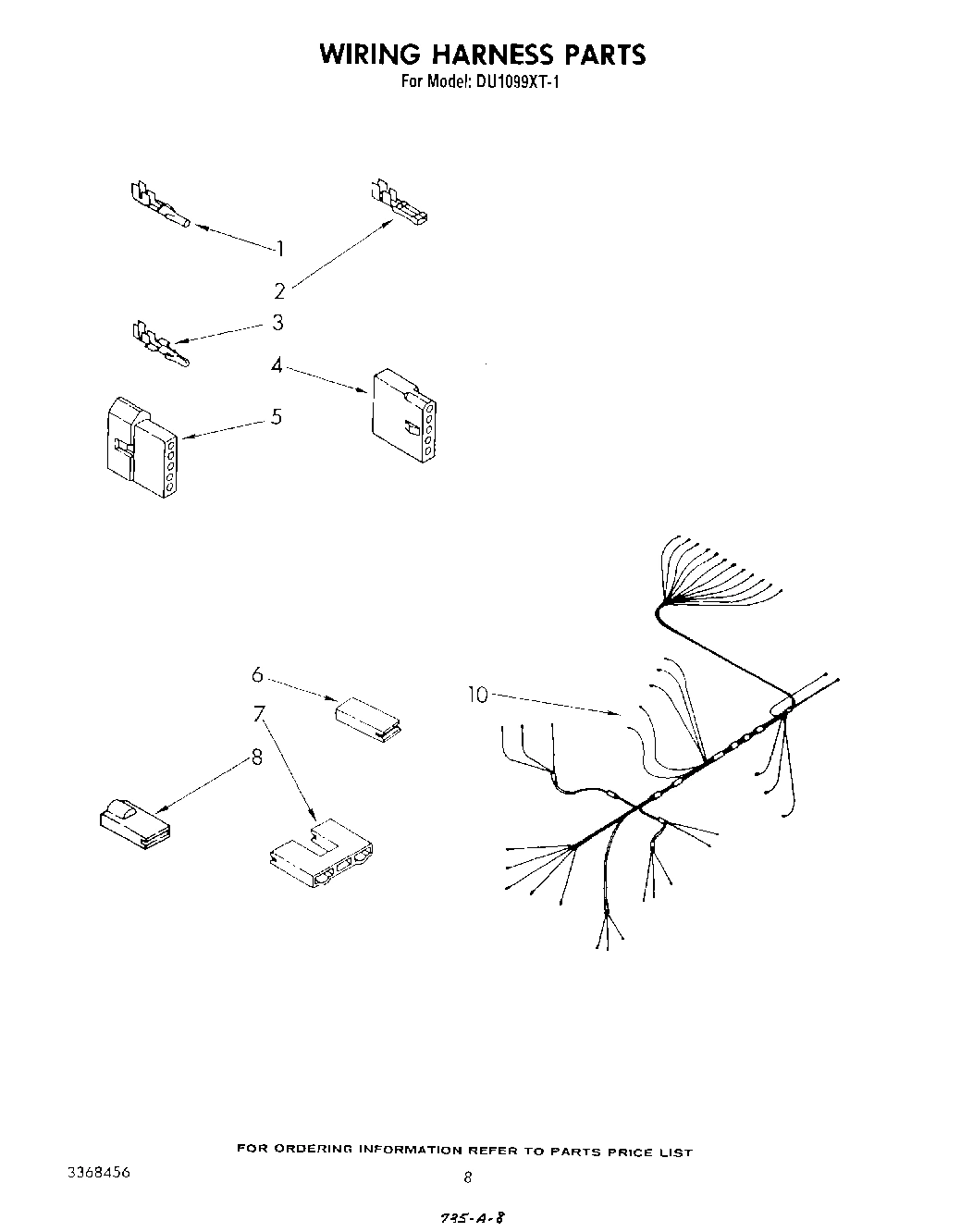

06 - WIRING HARNESS

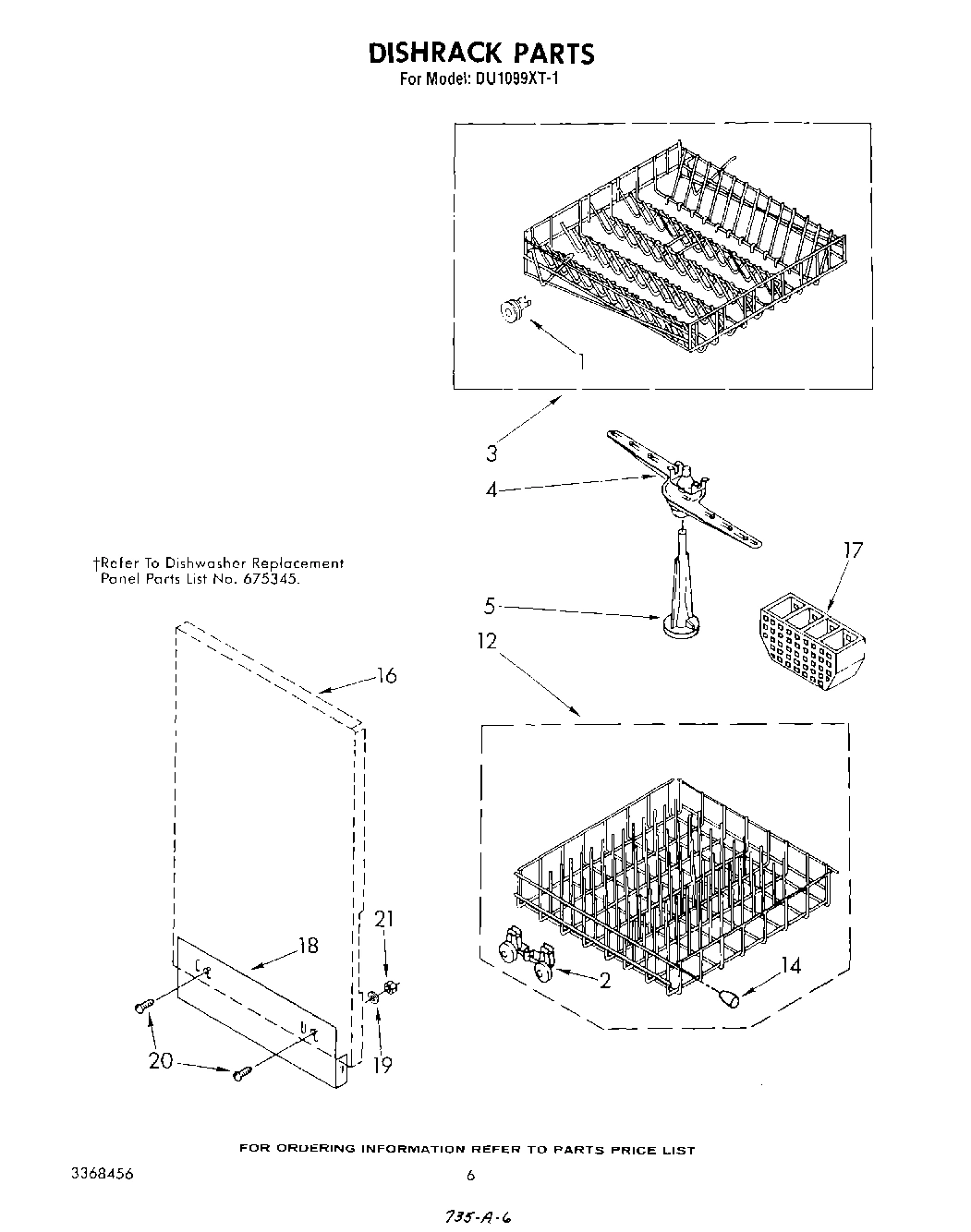

04 - DISHRACK

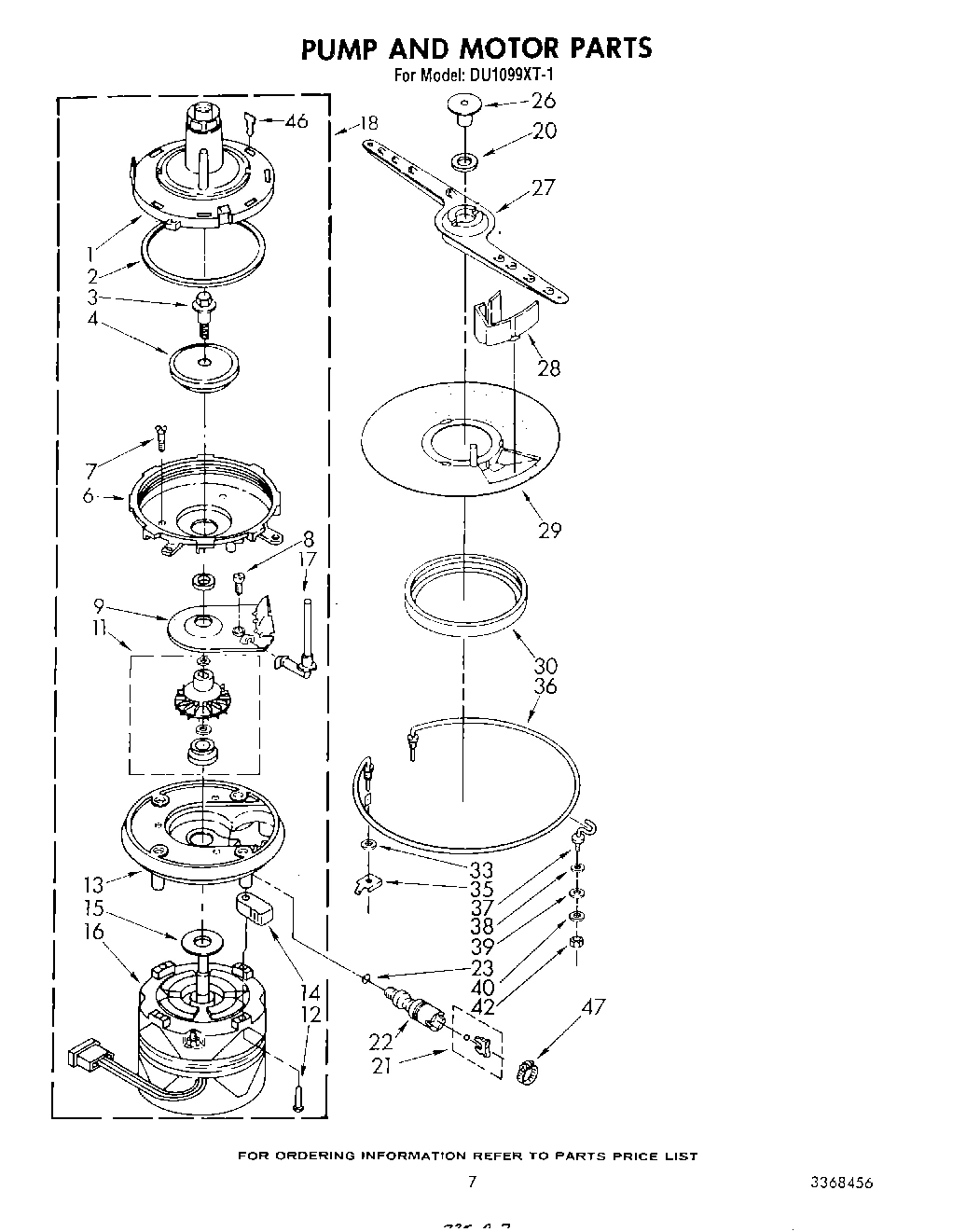

05 - PUMP AND MOTOR

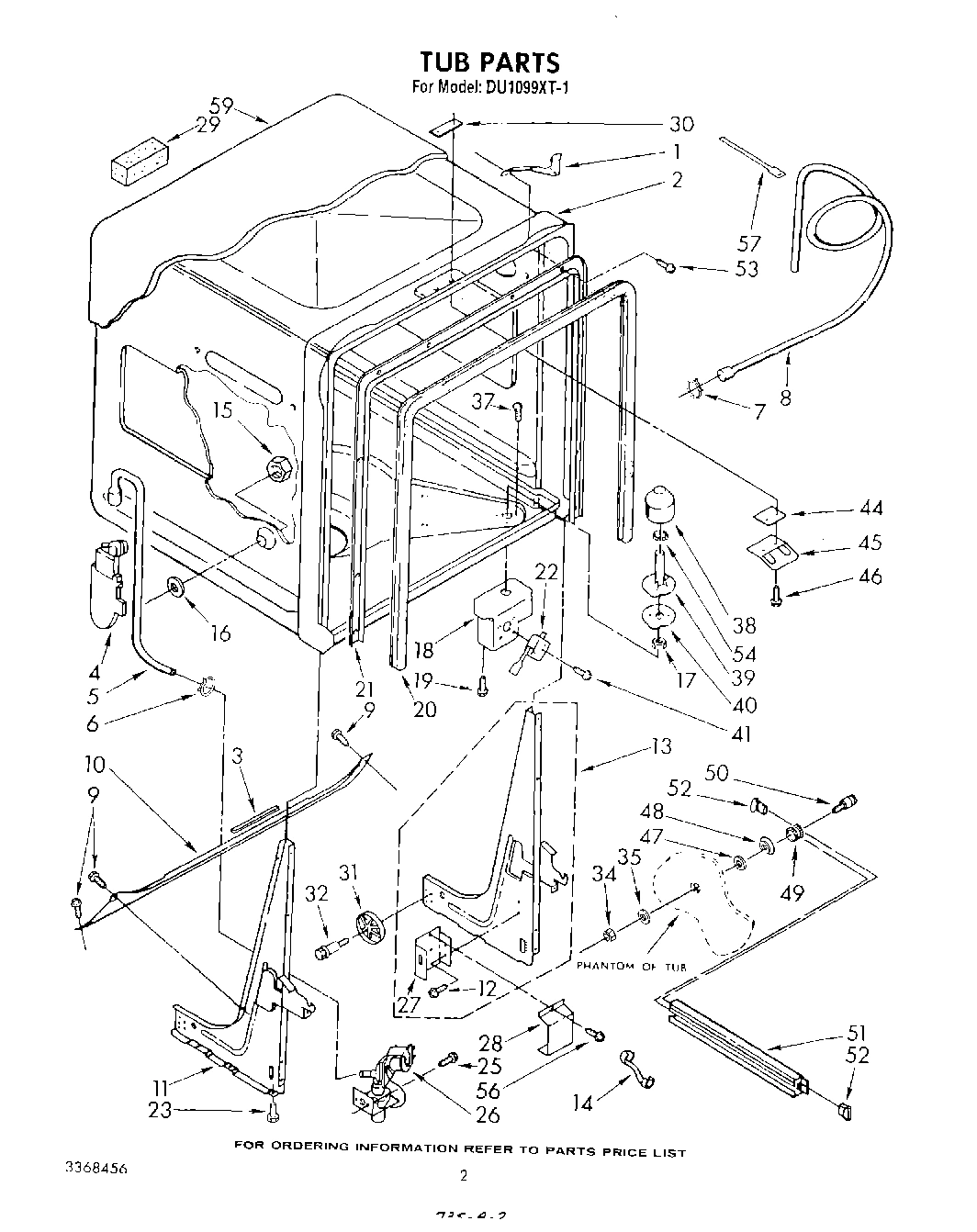

02 - TUB , LITERATURE AND OPTIONAL

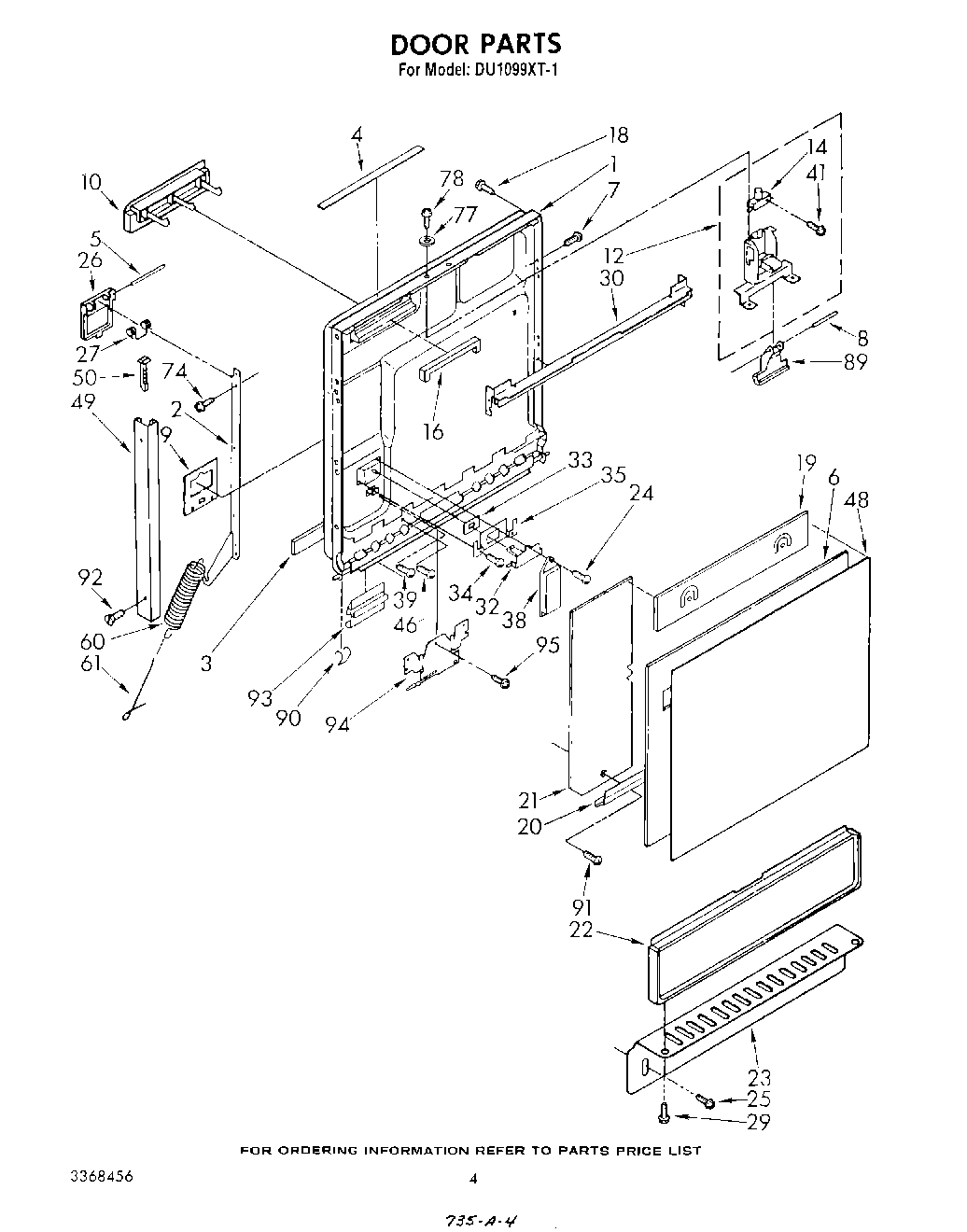

03 - DOOR

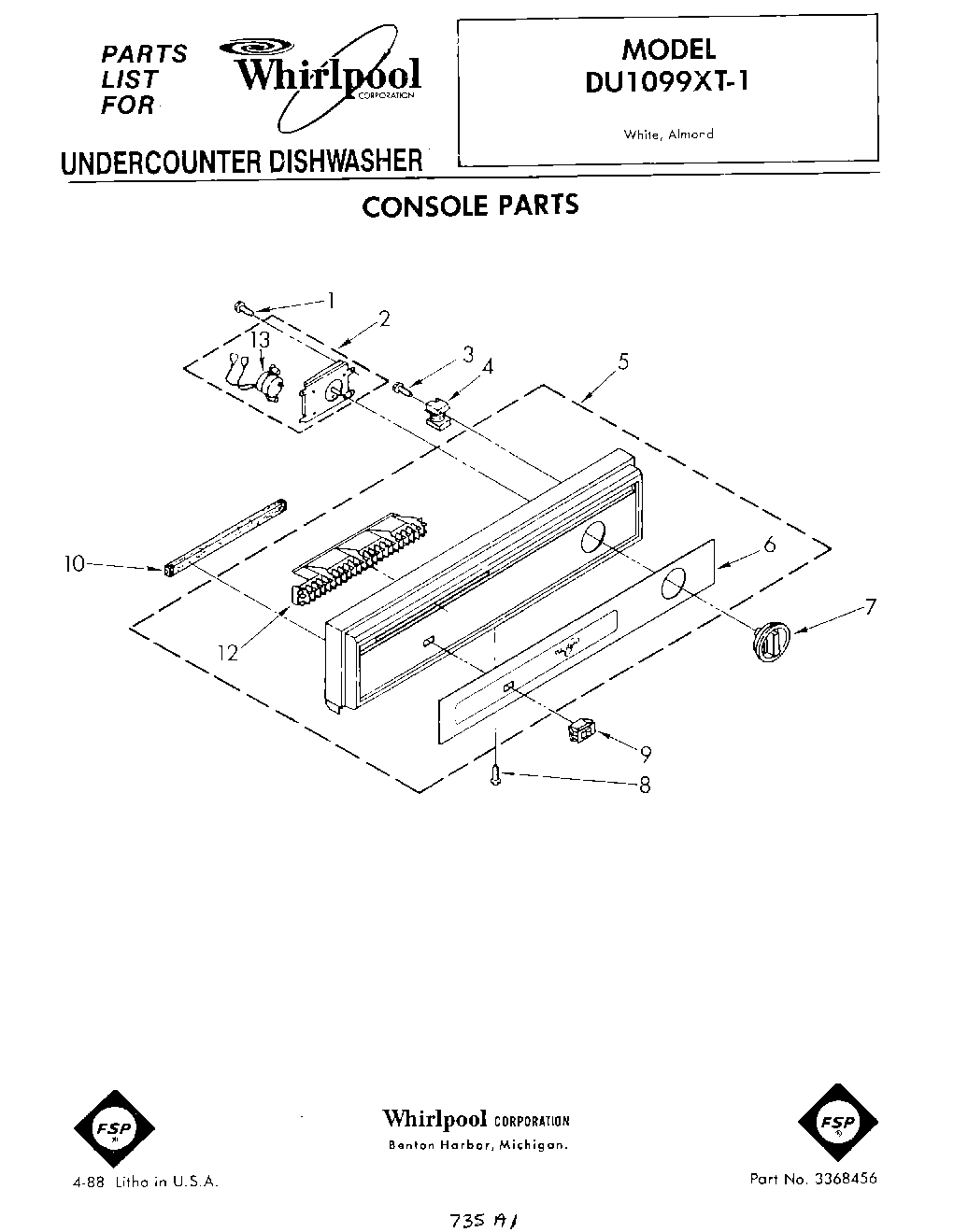

01 - CONSOLE
Common parts from model Whirlpool DU1099XT1 UNDERCOUNTER DISHWASHER
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368022 WPL LIT3368022 Contact Us For Availability
WPL LIT3368317 WPL LIT3368317 Contact Us For Availability
WPL LIT3368456 WPL LIT3368456 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Door, Inner WPL 3367387 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
2
Timer WPL 304464 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Screw, 7-18 x 1-1/4 Slot Hex Wash Hd WPL 304232 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Label, User Guide WPL LIT302081 Contact Us For Availability
4
Relay, Start WPL 304409 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Console WPL 3368120 Contact Us For Availability
6
Spacer, Corrugared WPL 301957 Contact Us For Availability
6
Insert, Decorative WPL 3368117 Contact Us For Availability
7
Knob, Timer WPL 3367282 Contact Us For Availability
8
Hose, Drain WPL 303452 Contact Us For Availability
8
Pin, Pivot (2) WPL 300234 Contact Us For Availability
9
Barrier WPL 303978 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Baffle WPL 719860 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
12
Grill, Vent WPL 304602 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 3367538 Contact Us For Availability
13
Motor, Timer WPL 301074 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Screw, 8-18x1-7/8 Pan Hd Mach St. Stl. (2) WPL 304233 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
19
Barrier, Console WPL 303908 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
20
Edging, Panel WPL 304047 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Barrier, Door WPL 303906 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 304589 Contact Us For Availability
22
Panel, Access WPL 303453 Contact Us For Availability
23
Plate, Toe WPL 3367470 Contact Us For Availability
26
Cap, Nozzle WPL 3367910 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
29
Block, Foam (2) WPL 3368107 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
Rail, Support WPL 304391 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Screw, Shoulder WPL 302818 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 9/16 Hex Head Slotted Thread Cu WPL 302203 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front WPL ARI23150A3 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, WPL 3368008 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
59
WPL 206925 WPL 206925 Contact Us For Availability
59
WPL 261890 WPL 261890 Contact Us For Availability
59
WPL 261891 WPL 261891 Contact Us For Availability
59
WPL 675476 WPL 675476 Contact Us For Availability
59
WPL 675506 WPL 675506 Contact Us For Availability
59
WPL 799340 WPL 799340 Contact Us For Availability
59
WPL 799640 WPL 799640 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 - 18 Oval Head ( WPL 3367288 Contact Us For Availability
93
WPL 3367720 WPL 3367720 Contact Us For Availability
94
WPL 303362 WPL 303362 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
× ![]()
