Model RCA DRB1555RAL Dryer Electric – Common Parts & Diagrams
0
CABINET & TOP

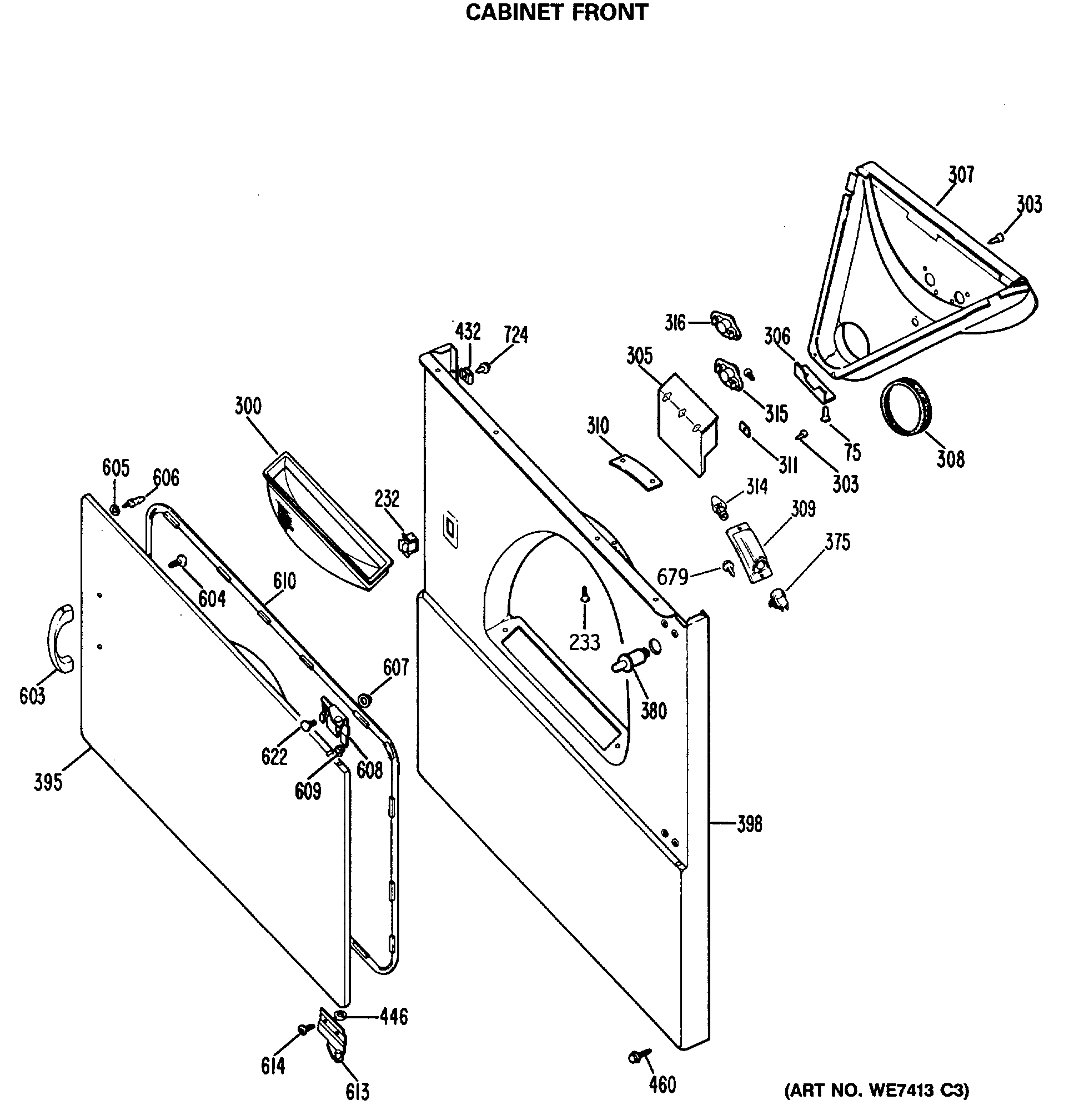

CABINET FRONT

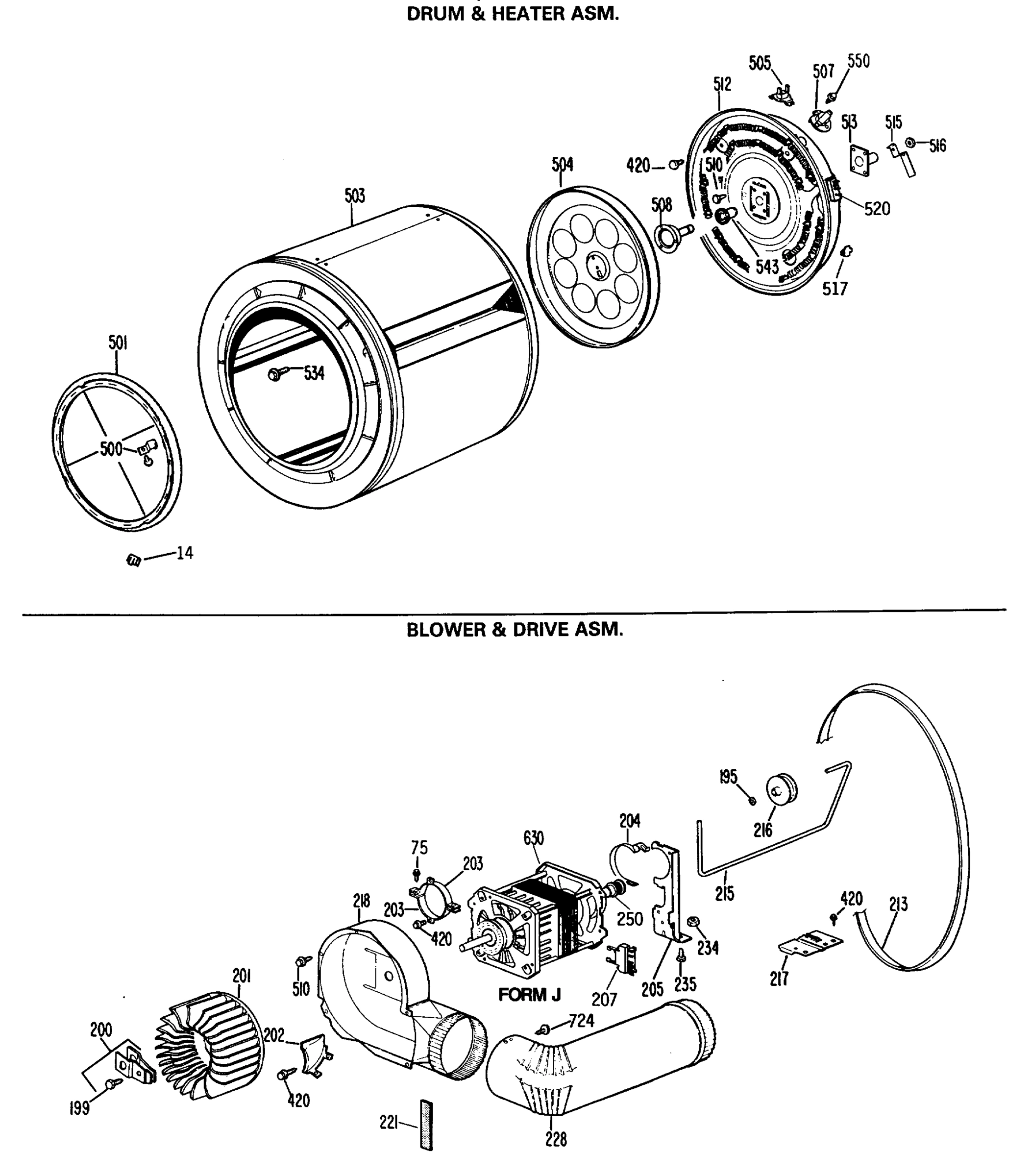

DRUM & HEATER ASM.
Common parts from model RCA DRB1555RAL Dryer Electric
1
GEN 31-1703 GEN 31-1703 Contact Us For Availability
1
GEN 31-2554 GEN 31-2554 Contact Us For Availability
1
GEN 79-9030 GEN 79-9030 Contact Us For Availability
2
GEN WH46X0312 GEN WH46X0312 Contact Us For Availability
3
GEN WH42X2229 GEN WH42X2229 Contact Us For Availability
4
GEN WH42X2230 GEN WH42X2230 Contact Us For Availability
7
GEN WE01X1178 GEN WE01X1178 Contact Us For Availability
13
GEN WE19X0933 GEN WE19X0933 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
16
GEN WH02X1151 GEN WH02X1151 Contact Us For Availability
18
GEN WH02X1152 GEN WH02X1152 Contact Us For Availability
19
GEN WE01X1182 GEN WE01X1182 Contact Us For Availability
41
GEN WE01X0980 GEN WE01X0980 Contact Us For Availability
71
GEN WH02X1153 GEN WH02X1153 Contact Us For Availability
72
GEN WH46X0311 GEN WH46X0311 Contact Us For Availability
87
GEN WE04X0781 GEN WE04X0781 Contact Us For Availability
100
GEN WE04X0796 GEN WE04X0796 Contact Us For Availability
150
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
221
GEN WE01X1171 GEN WE01X1171 Contact Us For Availability
226
GEN WH02X1154 GEN WH02X1154 Contact Us For Availability
228
GEN WE14X0213 GEN WE14X0213 Contact Us For Availability
233
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
234
GEN WE02X0154 GEN WE02X0154 Contact Us For Availability
235
GEN WE02X0194 GEN WE02X0194 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
300
FILTER ASM LINT GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT TRAP GEN WE14X0143 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
THERMOSTAT L145-15 GEN WE04X0600 Contact Us For Availability
380
GEN WE04X0197 GEN WE04X0197 Contact Us For Availability
390
GEN WE01X1174 GEN WE01X1174 Contact Us For Availability
391
GEN WE20X0759 GEN WE20X0759 Contact Us For Availability
391
GEN WE20X0760 GEN WE20X0760 Contact Us For Availability
391
GEN WE20X0761 GEN WE20X0761 Contact Us For Availability
393
CABINET ASM HA GEN WE20X0756 Contact Us For Availability
393
CABINET ASM AD GEN WE20X0755 Contact Us For Availability
393
CABINET ASM WH GEN WE20X0757 Contact Us For Availability
395
DOOR ASM HA GEN WE10X0260 Contact Us For Availability
395
DOOR ASM WH GEN WE10X0258 Contact Us For Availability
395
DOOR ASM AD GEN WE10X0262 Contact Us For Availability
398
CABINET FRONT ASM HA GEN WE20X0564 Contact Us For Availability
398
CABINET FRONT ASM WH GEN WE20X0496 Contact Us For Availability
398
CABINET FRONT ASM AD GEN WE20X0566 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
413
GEN WE14X0212 GEN WE14X0212 Contact Us For Availability
414
GEN WE01X0339 GEN WE01X0339 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
446
GEN WE02X0279 GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE13X0162 GEN WE13X0162 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
GEN WE01X0461 GEN WE01X0461 Contact Us For Availability
517
GEN WE01X1176 GEN WE01X1176 Contact Us For Availability
520
GEN WE01X1177 GEN WE01X1177 Contact Us For Availability
525
GEN WE25X0097 GEN WE25X0097 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
550
GEN WE02X0281 GEN WE02X0281 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
GEN WE02X0227 GEN WE02X0227 Contact Us For Availability
605
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
679
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
724
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
× ![]()
