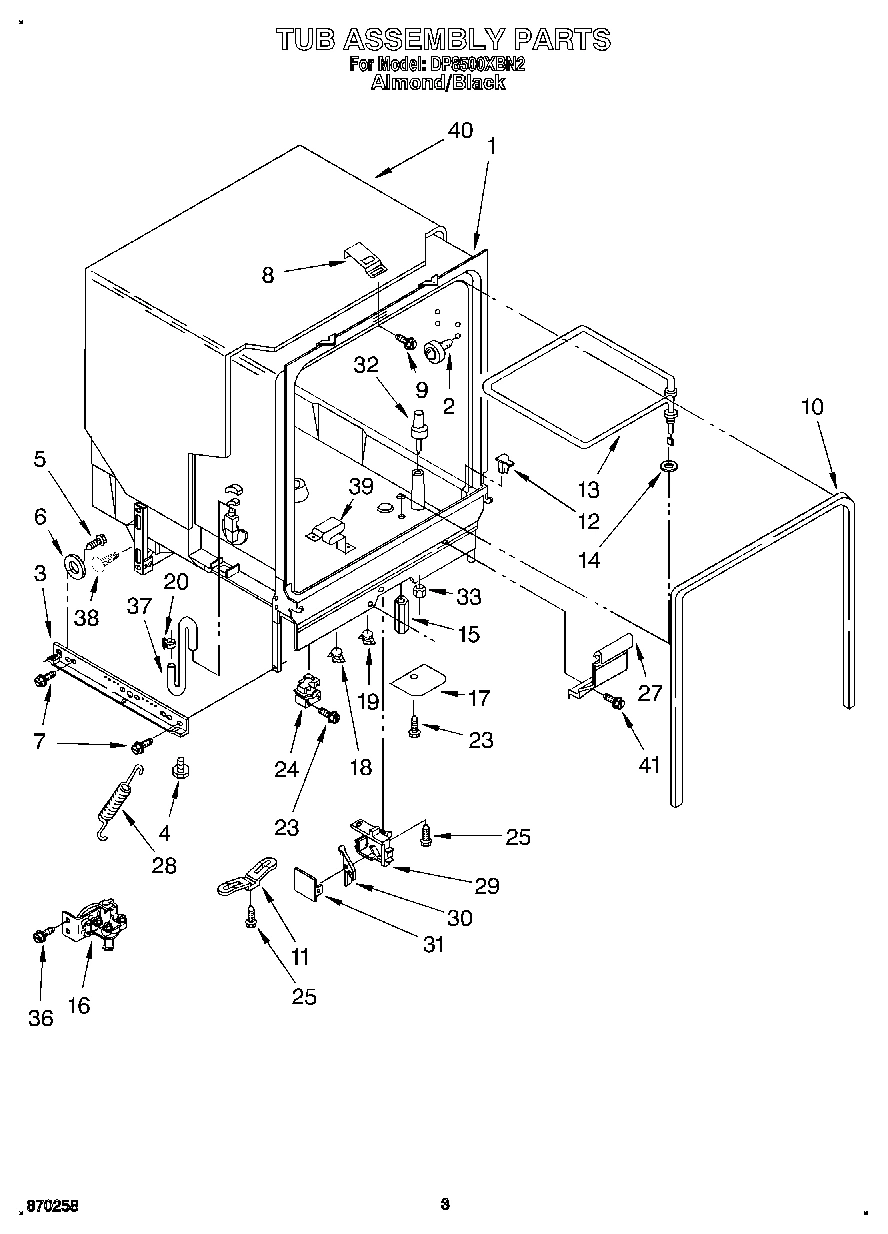

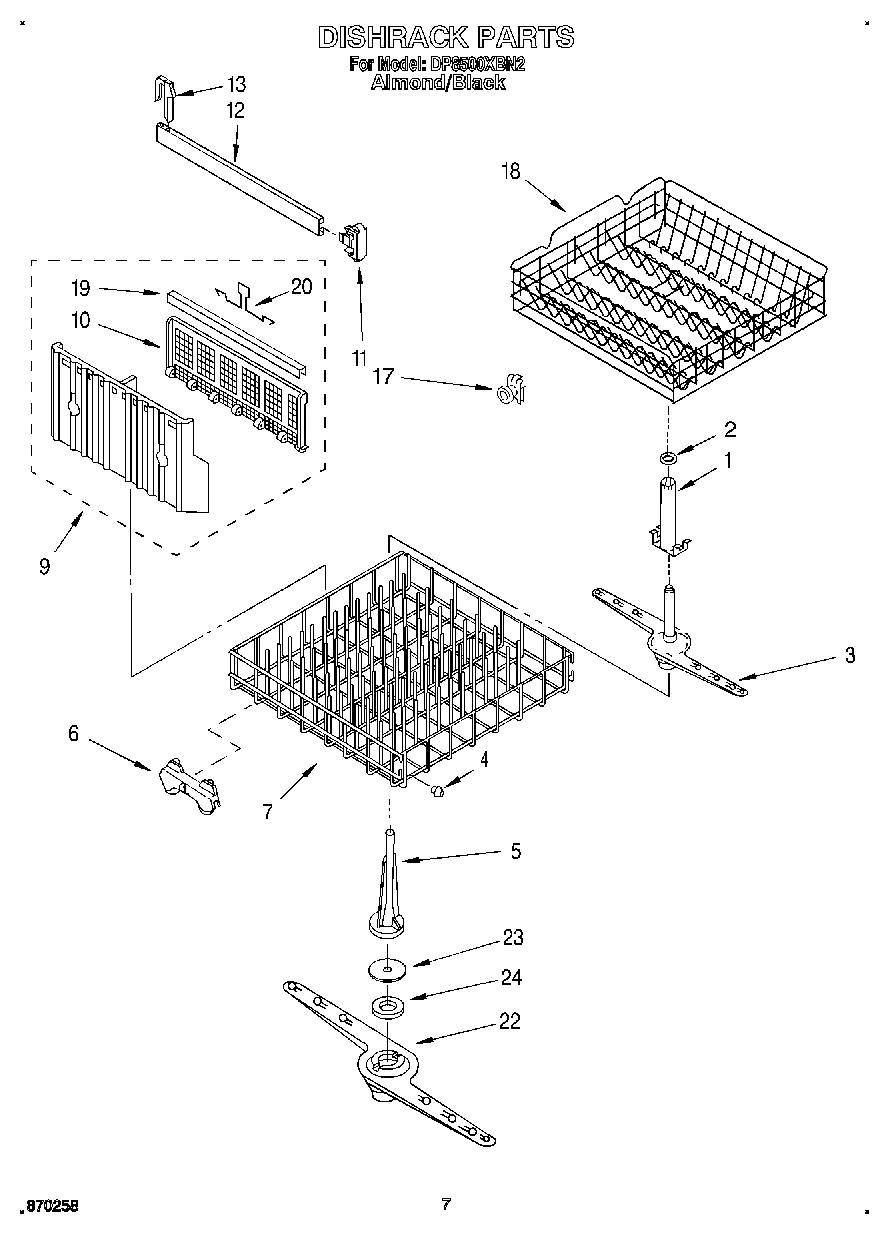

Model Whirlpool DP8500XBN2 PORTABLE DISHWASHER – Common Parts & Diagrams

1
Support, Arm
Support, Arm WPL 3368290 Contact Us For Availability
View on Model
1
Console (Includes Item 2)
Console (Includes Item 2) WPL 3373721 Contact Us For Availability
View on Model
1
Inner Door (Also Order)
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
View on Model
1
Shell Assembly (Almond)
Shell Assembly (Almond) WPL 3370306 Contact Us For Availability
View on Model
1
Plate, Perforated (Includes Item 5) (Also Ord
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
View on Model
2
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
2
Insert, Console
Insert, Console WPL 3373658 Contact Us For Availability
View on Model
2
Base, Inlet (Includes Items 1 & 5) (Also Orde
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
View on Model
3
Switch
Switch WPL 3373603 Contact Us For Availability
View on Model
4
Follower, Cam
Follower, Cam WPL 3368997 Contact Us For Availability
View on Model
4
Retainer, Hose
Retainer, Hose WPL 3370323 Contact Us For Availability
View on Model
5
Timer
Timer WPL 3373626 Contact Us For Availability
View on Model
5
Ball, Check
Ball, Check WPL 302709 Contact Us For Availability
View on Model
6
Draw Bar, (Upper Dispenser)
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
6
``O`` Ring
``O`` Ring WPL 95080 Contact Us For Availability
View on Model
7
Cover, Valve
Cover, Valve WPL 302721 Contact Us For Availability
View on Model
8
Housing, Hose
Housing, Hose WPL 3371343 Contact Us For Availability
View on Model
8
Valve Stem Kit (Includes Items 12, 13 & 22) S
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
View on Model
9
Cord, Power
Cord, Power WPL 3371542 Contact Us For Availability
View on Model
9
Separator Assembly (Includes Items 12, 13 & 2
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
View on Model
10
Pad, Divider
Pad, Divider WPL 3371807 Contact Us For Availability
View on Model
10
Screw, 8-18 x 1-5/8 (4)
Screw, 8-18 x 1-5/8 (4) WPL 9741258 Contact Us For Availability
View on Model
11
End Cap (Front or Rear)
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
View on Model
11
Switch, (2)
Switch, (2) WPL 3369325 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
12
Shroud, Caster
Shroud, Caster WPL 3371640 Contact Us For Availability
View on Model
13
Harness and Protector
Harness and Protector WPL 3373622 Contact Us For Availability
View on Model
13
Screw
Screw WPL 3370544 Contact Us For Availability
View on Model
14
Panel, Top
Panel, Top WPL 3373198 Contact Us For Availability
View on Model
14
Outlet, Pump (Includes Item 13)
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
16
Socket, Caster
Socket, Caster WPL 300450 Contact Us For Availability
View on Model
16
Cover Timer
Cover Timer WPL 3373367 Contact Us For Availability
View on Model
17
Knob, Timer
Knob, Timer WPL 3368998 Contact Us For Availability
View on Model
17
Pump & Motor Assembly (Includes Item 16)
Pump & Motor Assembly (Includes Item 16) WPL 3375493 Contact Us For Availability
View on Model
18
Spacer, Corrugated
Spacer, Corrugated WPL 3368979 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
20
Retainer, Panel
Retainer, Panel WPL 3374010 Contact Us For Availability
View on Model
20
Shield, Sound
Shield, Sound WPL 3375922 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
View on Model
21
Screw (2)
Screw (2) WPL 3370826 Contact Us For Availability
View on Model
22
Trim (2)
Trim (2) WPL 3369586 Contact Us For Availability
View on Model
22
Trim, Bottom
Trim, Bottom WPL 3369588 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Trim, Console
Trim, Console WPL 3369598 Contact Us For Availability
View on Model
23
Trim, Side (2)
Trim, Side (2) WPL 3371430 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
View on Model
24
Relay
Relay WPL 3369447 Contact Us For Availability
View on Model
24
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
24
Avocado
Avocado WPL 4317926 Contact Us For Availability
View on Model
24
Gold
Gold WPL 4317927 Contact Us For Availability
View on Model
24
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
24
Toast
Toast WPL 4317930 Contact Us For Availability
View on Model
24
Platinum
Platinum WPL 4317931 Contact Us For Availability
View on Model
24
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
24
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
24
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
24
Frame Assembly
Frame Assembly WPL 3370551 Contact Us For Availability
View on Model
25
Screw, 8-18 x 1/2
Screw, 8-18 x 1/2 WPL 3371635 Contact Us For Availability
View on Model
25
Base, Pump (Includes Item 24) (Also Order Ite
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
View on Model
26
Screw, 8-18 x 5/8
Screw, 8-18 x 5/8 WPL 3371644 Contact Us For Availability
View on Model
28
Clip, Grounding
Clip, Grounding WPL 3368992 Contact Us For Availability
View on Model
28
Conversion Kit (To Convert From Portable To U
Conversion Kit (To Convert From Portable To U WPL 4317856 Contact Us For Availability
View on Model
28
Motor (Includes Item 27) (Also Order Item 30)
Motor (Includes Item 27) (Also Order Item 30) WPL 3375480 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw (4)
Screw (4) WPL 3369331 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
