Model Whirlpool DP8500XBN0 PORTABLE DISHWASHER – Common Parts & Diagrams

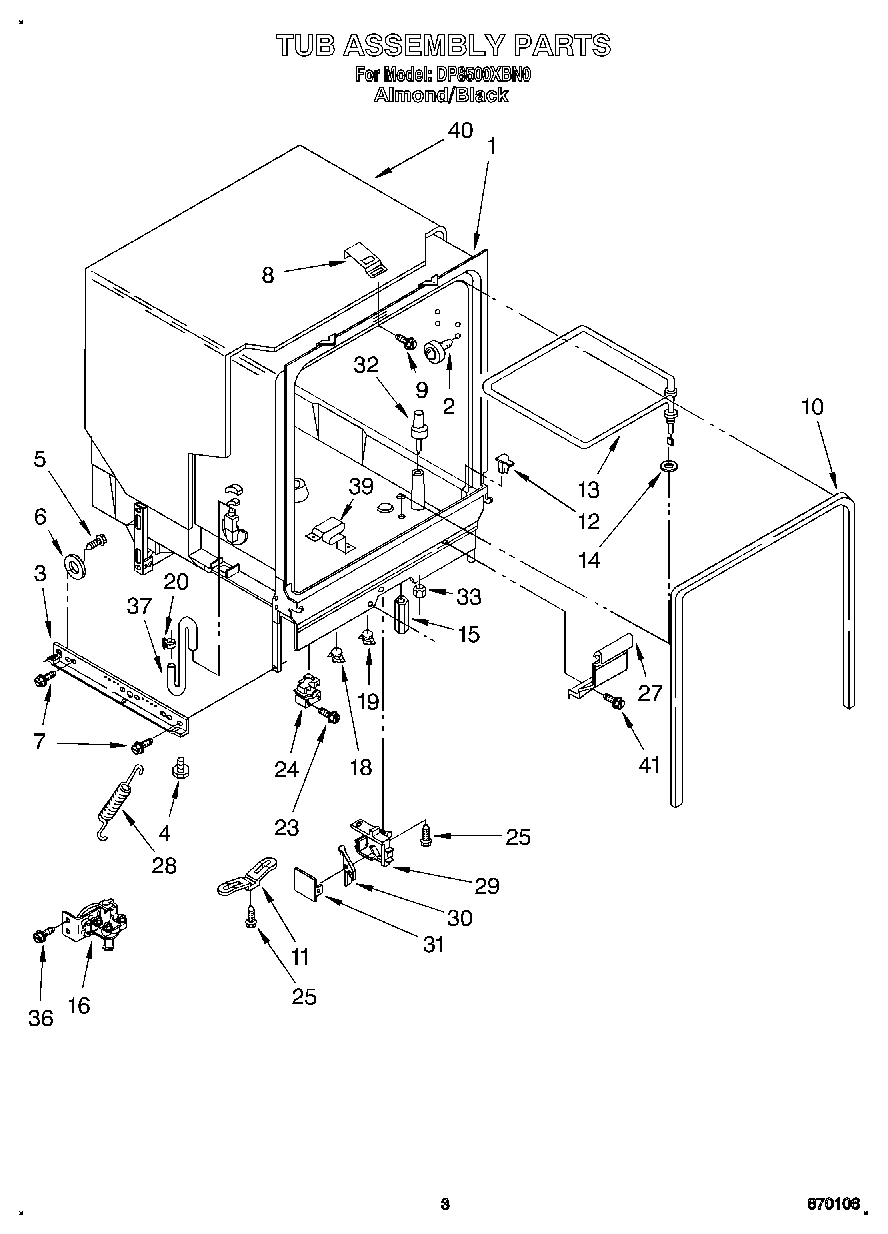

03 - TUB ASSEMBLY

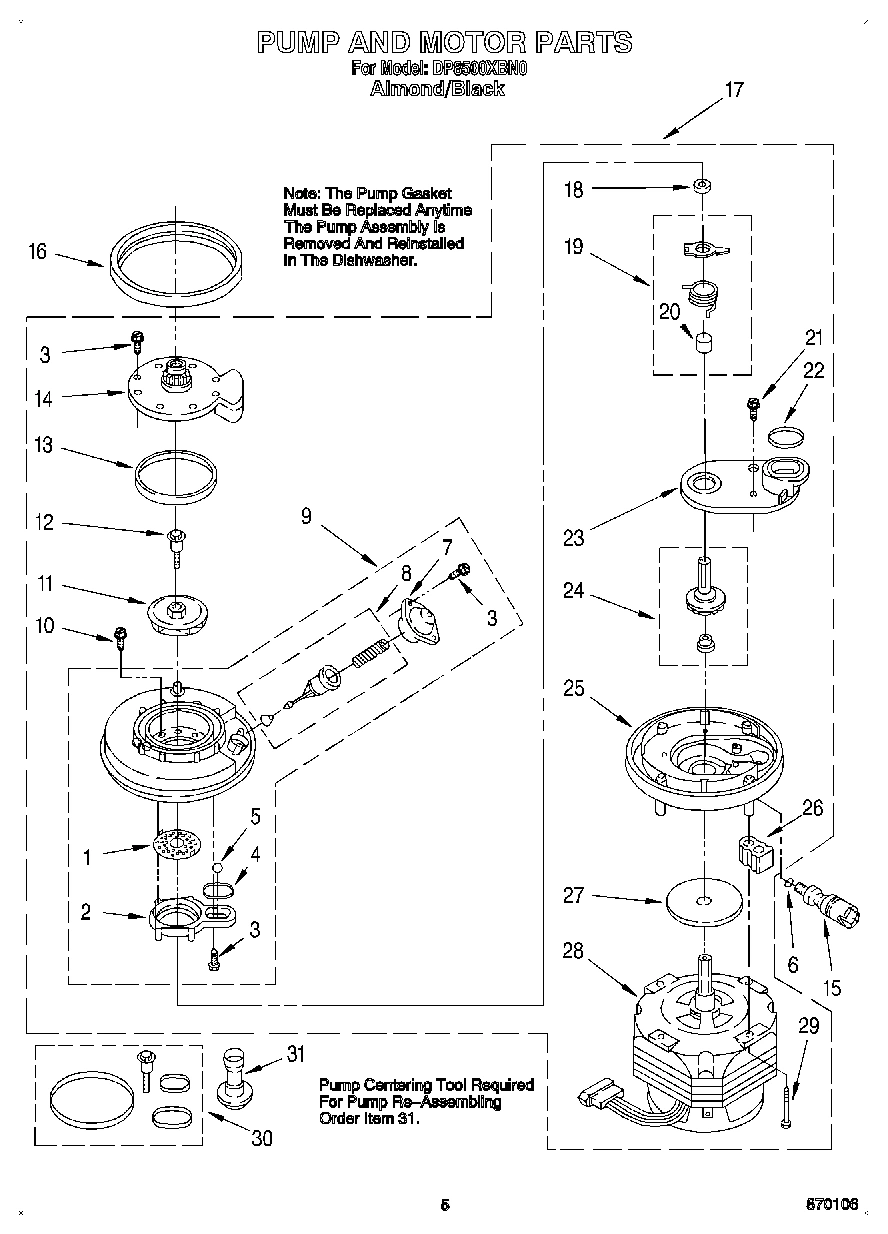

04 - PUMP AND MOTOR

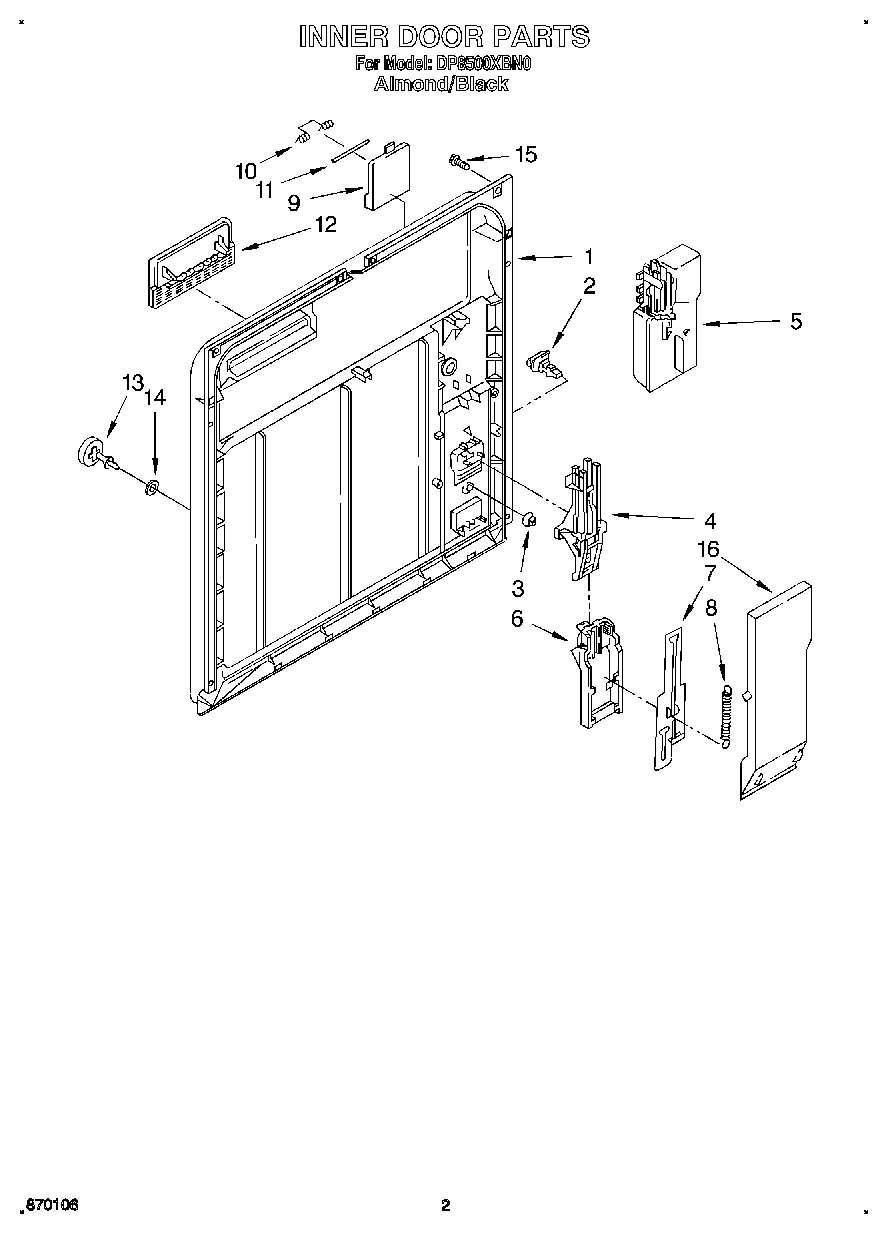

02 - INNER DOOR

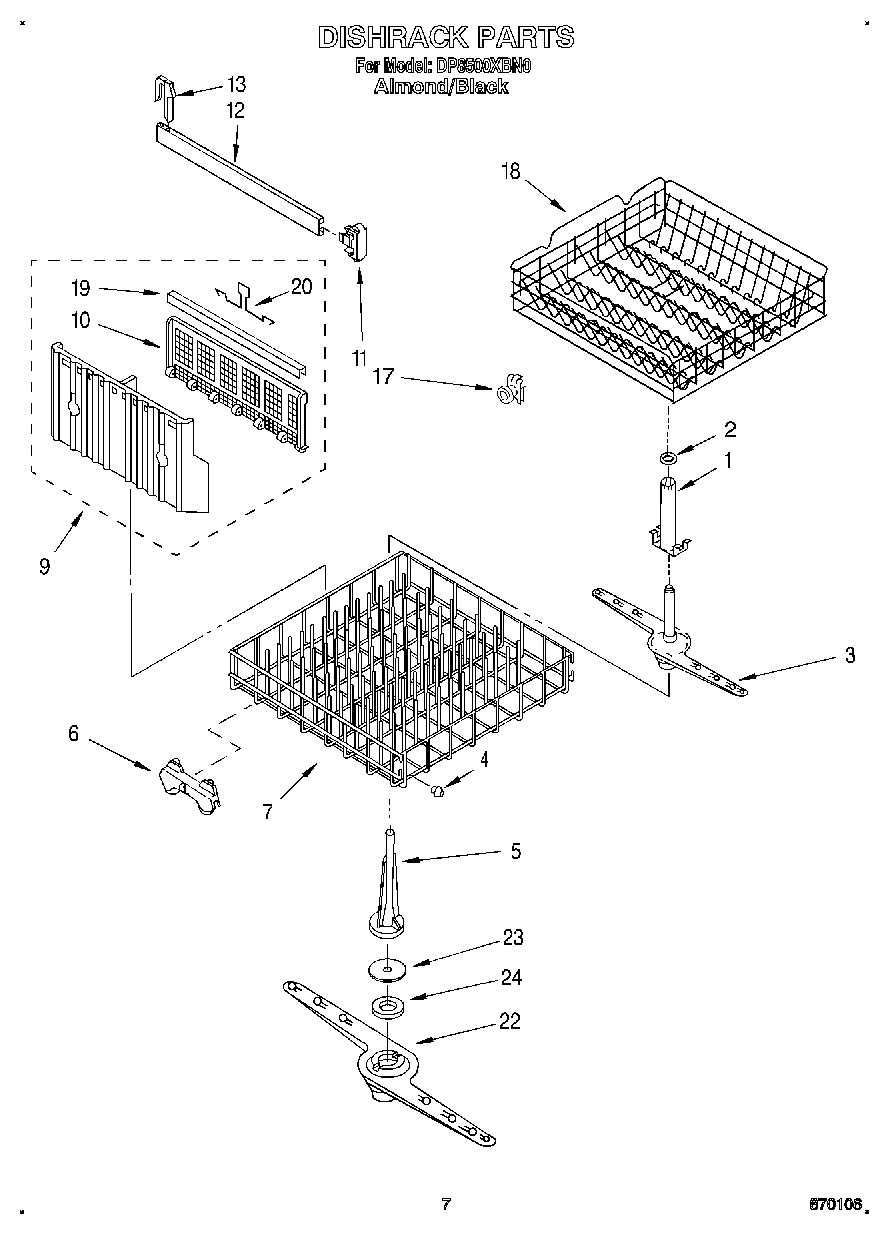

05 - DISHRACK, LITERATURE

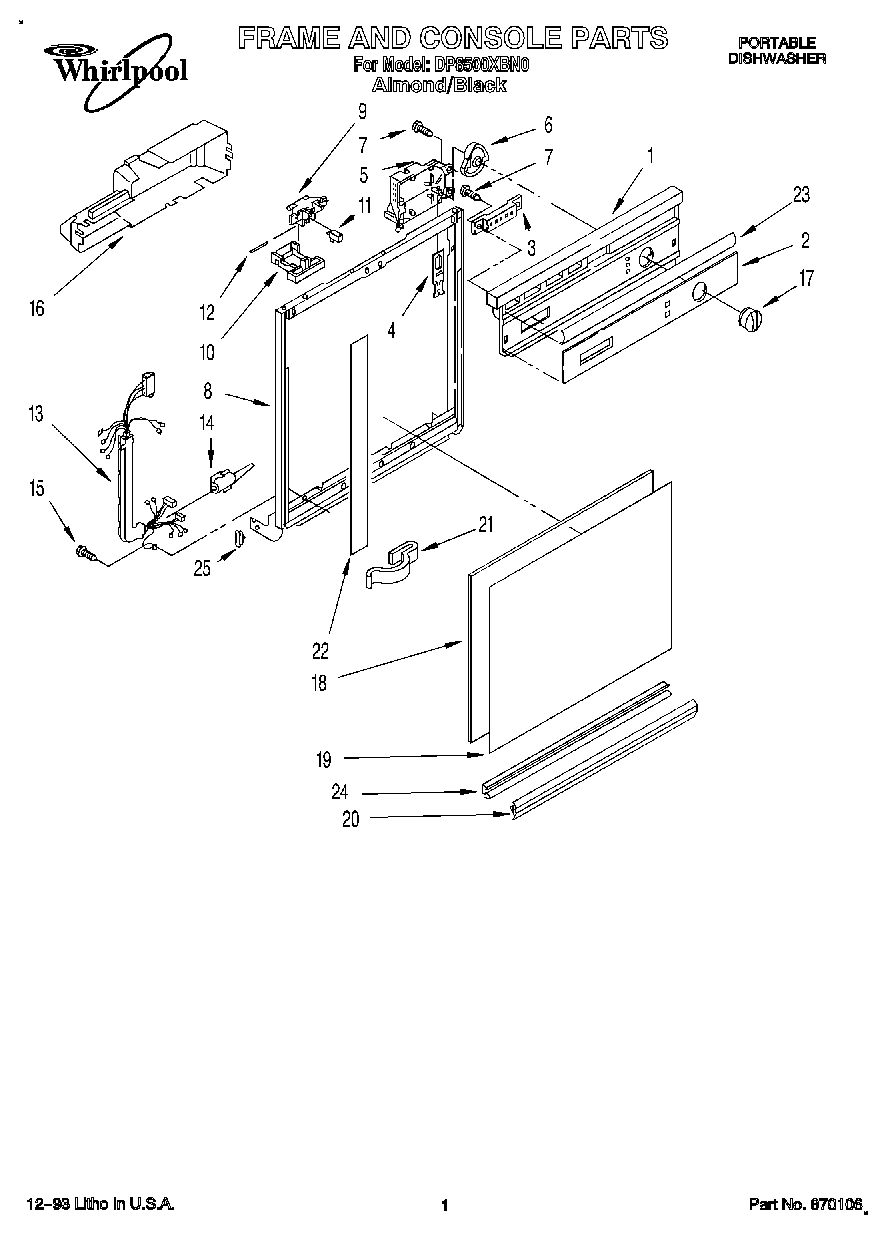

01 - FRAME AND CONSOLE

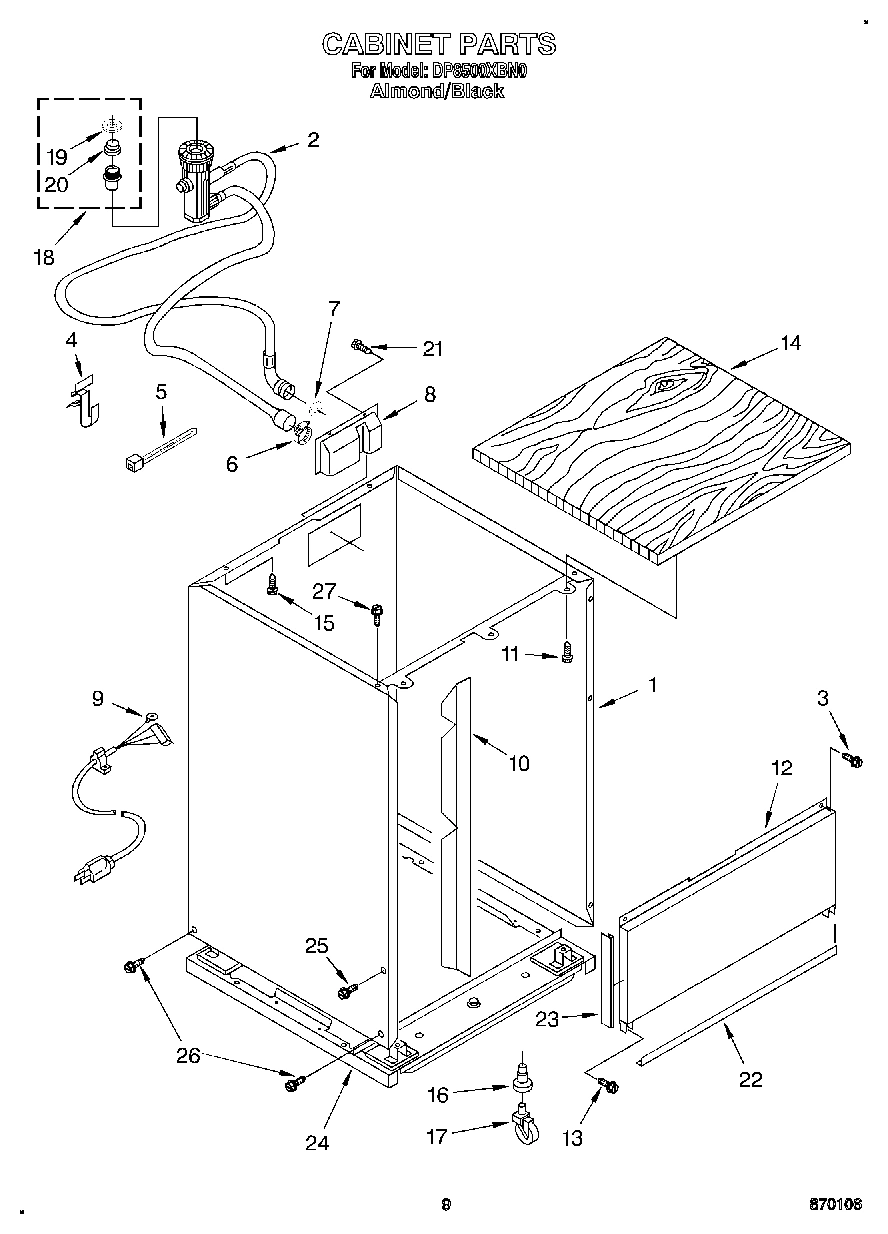

06 - CABINET, OPTIONAL
Common parts from model Whirlpool DP8500XBN0 PORTABLE DISHWASHER
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Instructions, Installa WPL LIT3369678 Contact Us For Availability
WPL LIT3373480 WPL LIT3373480 Contact Us For Availability
WPL LIT3373631 WPL LIT3373631 Contact Us For Availability
WPL LIT3373739 WPL LIT3373739 Contact Us For Availability
1
Support, Arm WPL 3368290 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
1
Console (Includes Item 2) WPL 3373721 Contact Us For Availability
1
Shell Assembly (Almond) WPL 3370306 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Insert, Console WPL 3373658 Contact Us For Availability
3
Spray Arm, Upper WPL 3368300 Contact Us For Availability
3
Switch WPL 3373603 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
4
Retainer, Hose WPL 3370323 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
5
Timer WPL 3373626 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
8
Housing, Hose WPL 3371343 Contact Us For Availability
9
Cord, Power WPL 3371542 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
10
Pad, Divider WPL 3371807 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
12
Shroud, Caster WPL 3371640 Contact Us For Availability
13
Stop, Track (2) WPL 3369046 Contact Us For Availability
13
Harness and Protector WPL 3373622 Contact Us For Availability
13
Screw WPL 3370544 Contact Us For Availability
14
Panel, Top WPL 3373198 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Socket, Caster WPL 300450 Contact Us For Availability
16
Cover Timer WPL 3373367 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
17
Wheel and Axle Assembly (4) WPL 3371581 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
19
Washer WPL 713747 Contact Us For Availability
20
Retainer, Panel WPL 3374010 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
20
Bushing WPL 713748 Contact Us For Availability
21
Screw (2) WPL 3370826 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
22
Trim (2) WPL 3369586 Contact Us For Availability
22
Trim, Bottom WPL 3369588 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim, Console WPL 3369598 Contact Us For Availability
23
Trim, Side (2) WPL 3371430 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
24
Leveler (Thinner) WPL 350941 Contact Us For Availability
24
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
24
Avocado WPL 4317926 Contact Us For Availability
24
Gold WPL 4317927 Contact Us For Availability
24
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
24
Toast WPL 4317930 Contact Us For Availability
24
Platinum WPL 4317931 Contact Us For Availability
24
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
24
Channel, Retainer (Also Order Item No.20) WPL 3374015 Contact Us For Availability
24
Frame Assembly WPL 3370551 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 3371635 Contact Us For Availability
26
Screw, 8-18 x 5/8 WPL 3371644 Contact Us For Availability
27
Conversion Kit (To Convert From Portable To U WPL 4317856 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
× ![]()
