Model Maytag DP471 DISHWASHER – Common Parts & Diagrams
01 - BLOWER ASSEMBLY
02 - CABINET ASSY.

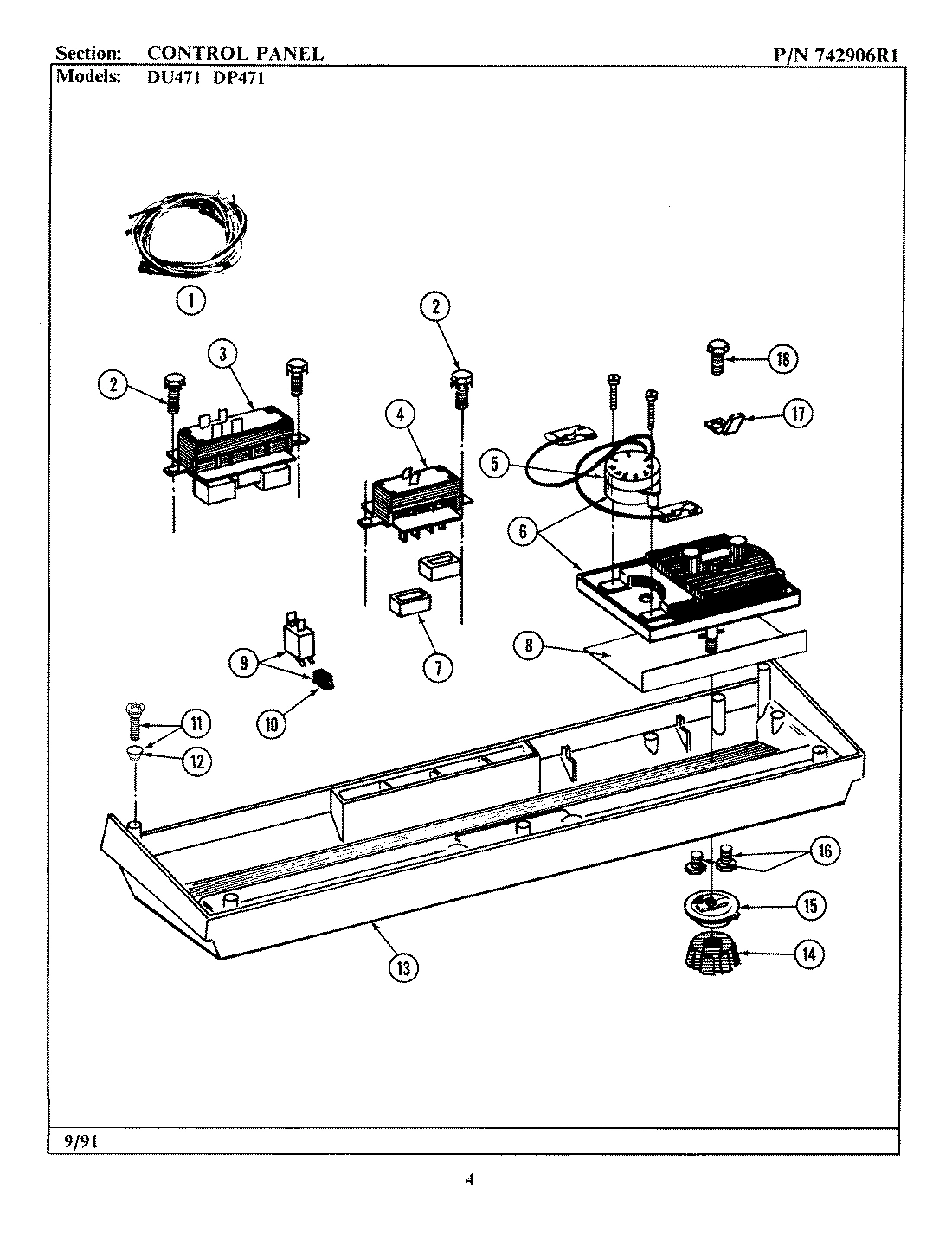

03 - CONTROL PANEL

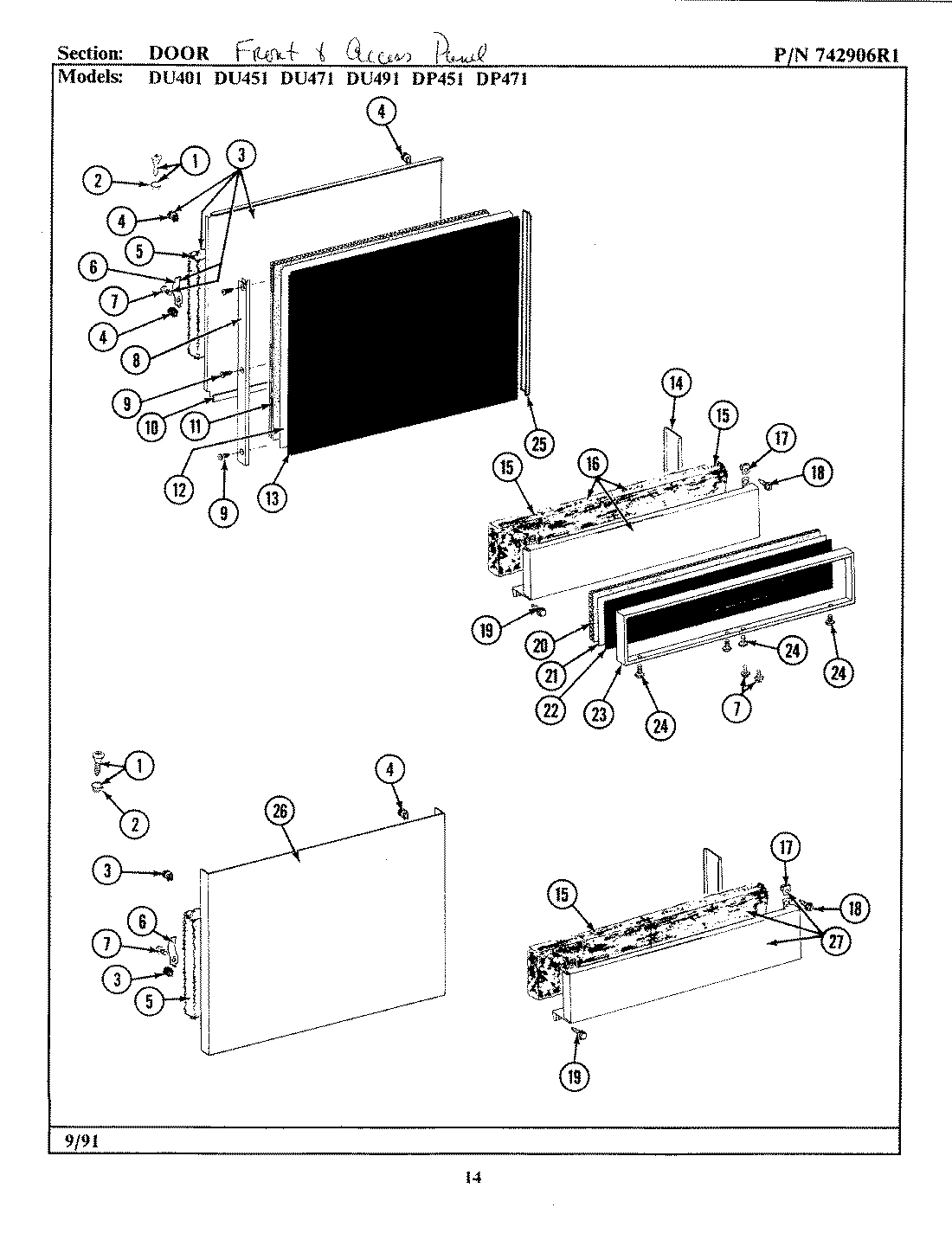

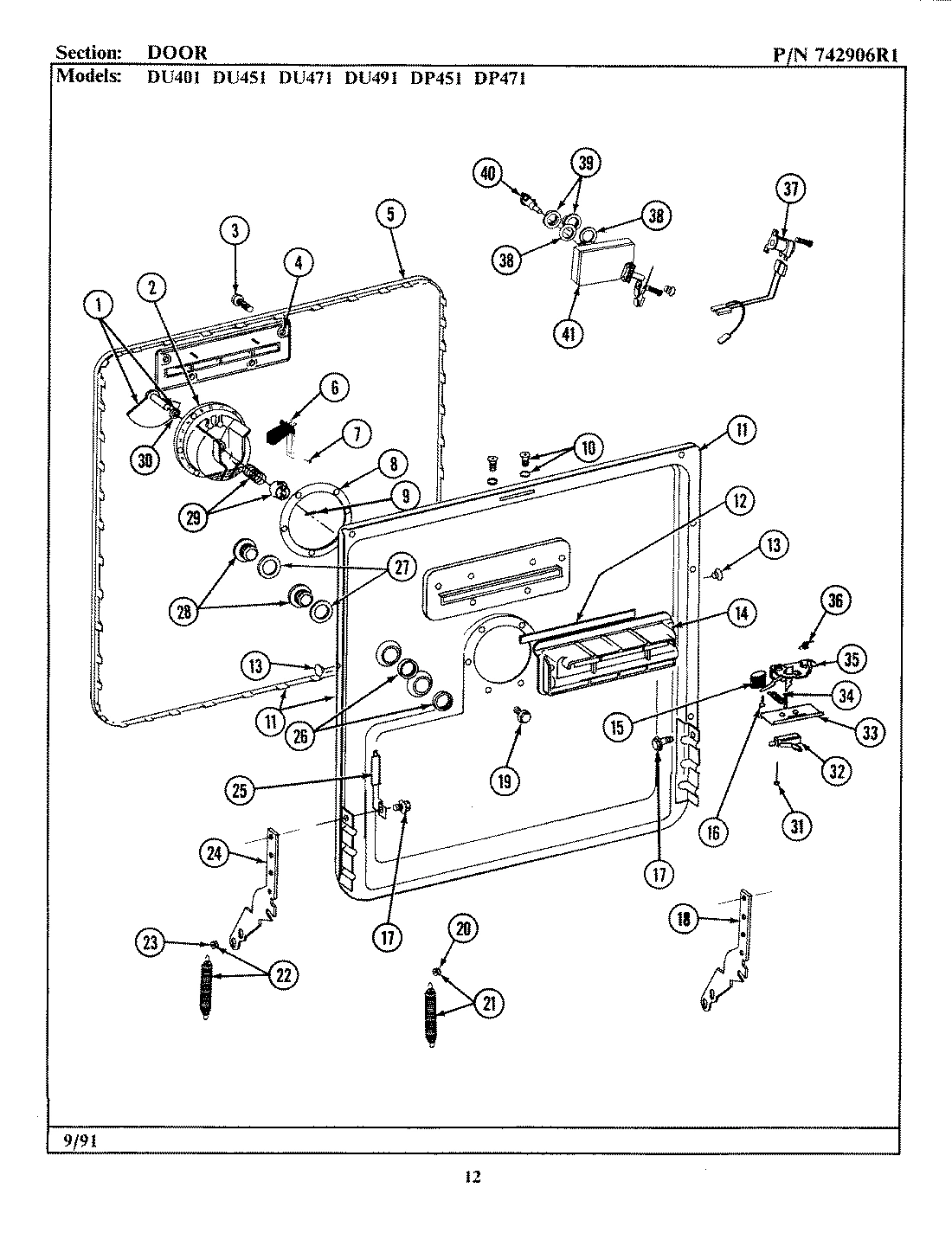

04 - DOOR
05 - DOOR

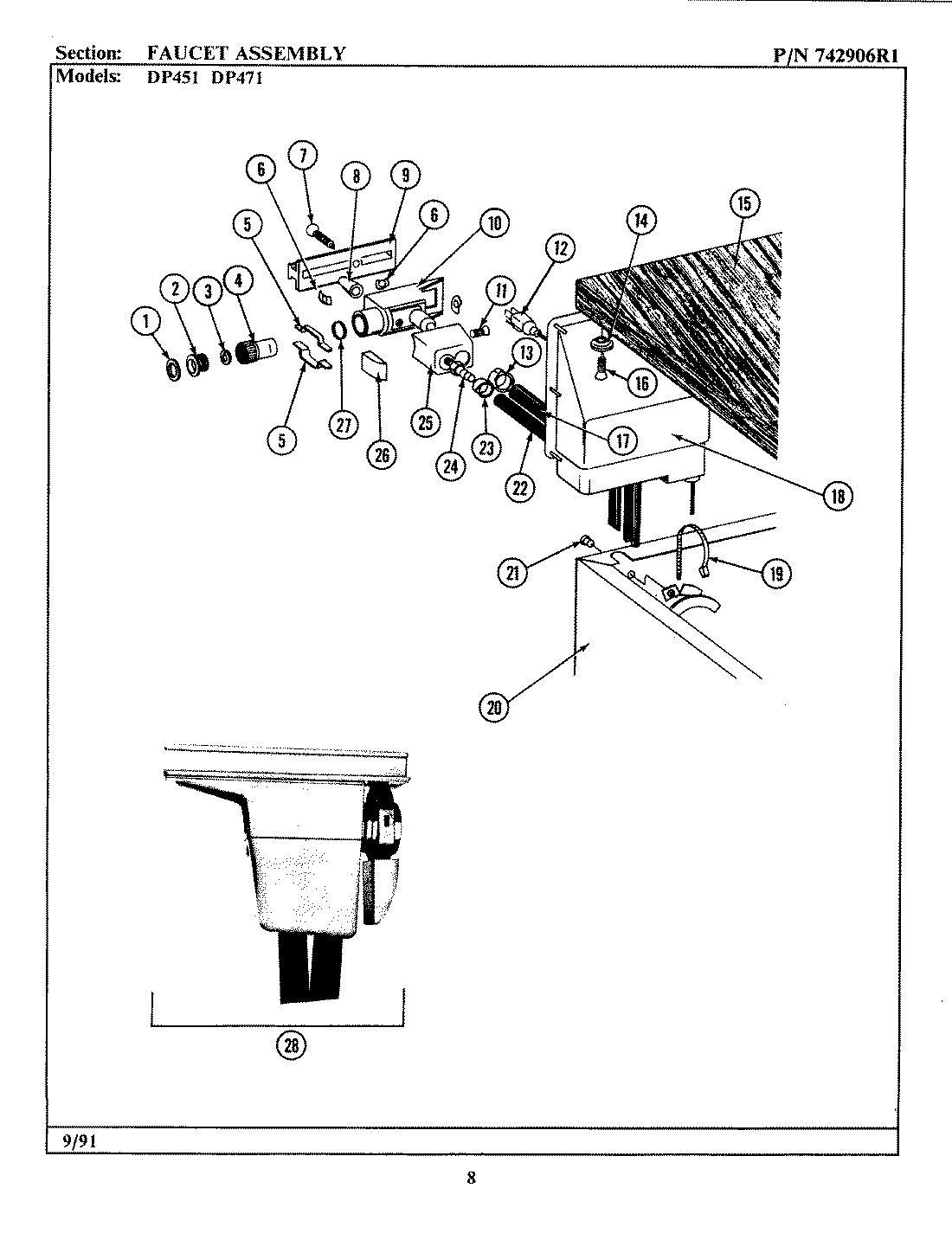

06 - FAUCET ASSY.

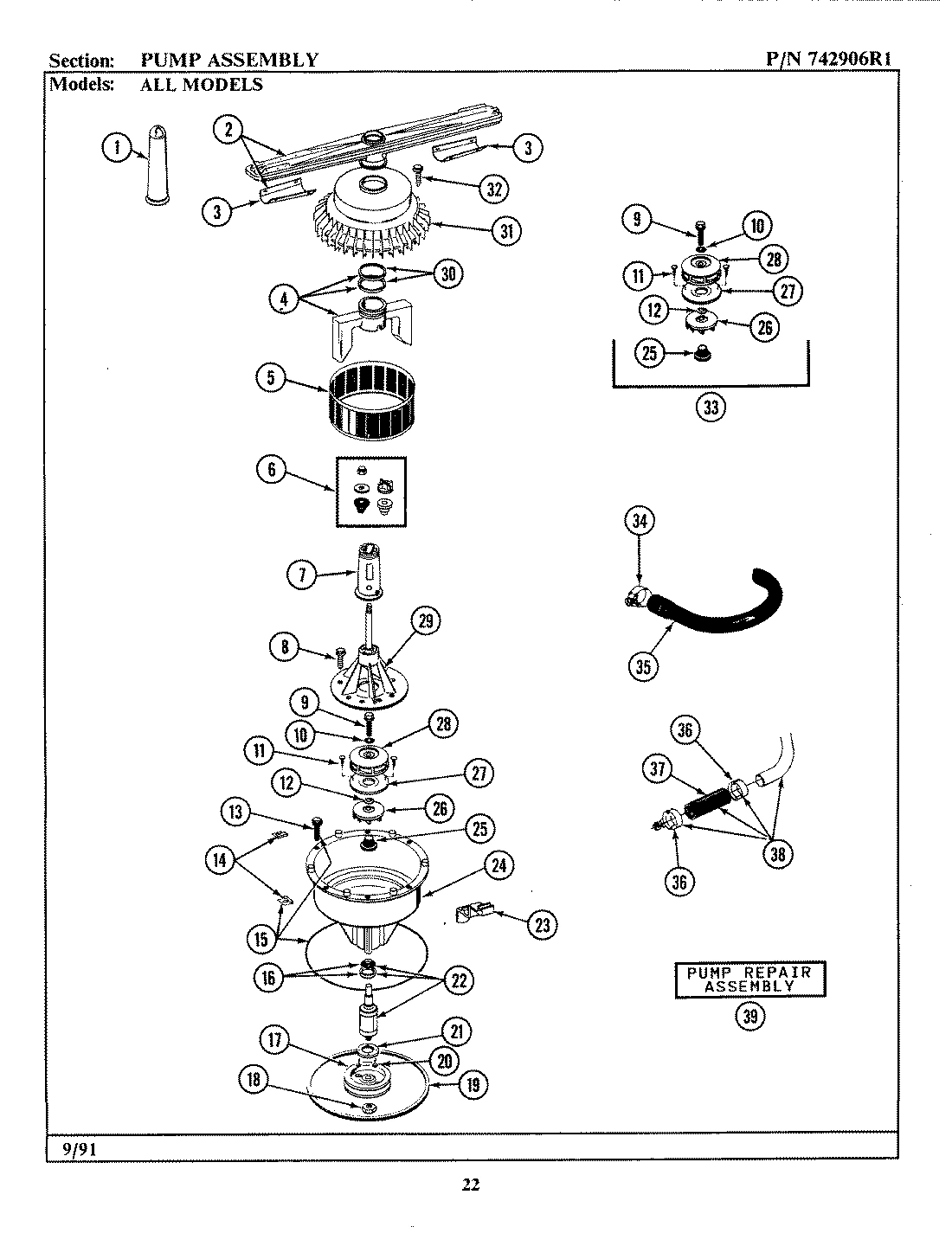

07 - PUMP ASSEMBLY

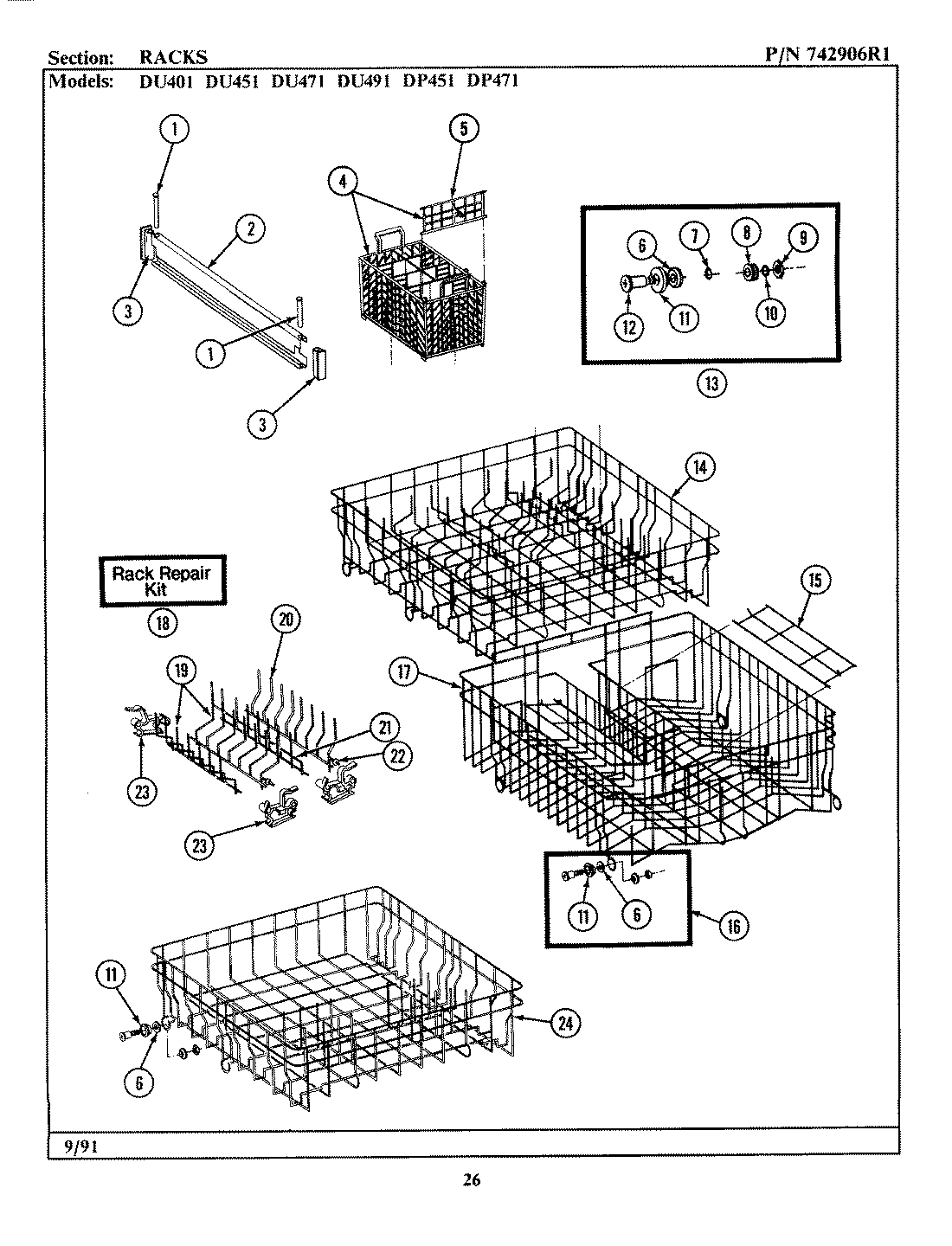

08 - RACKS

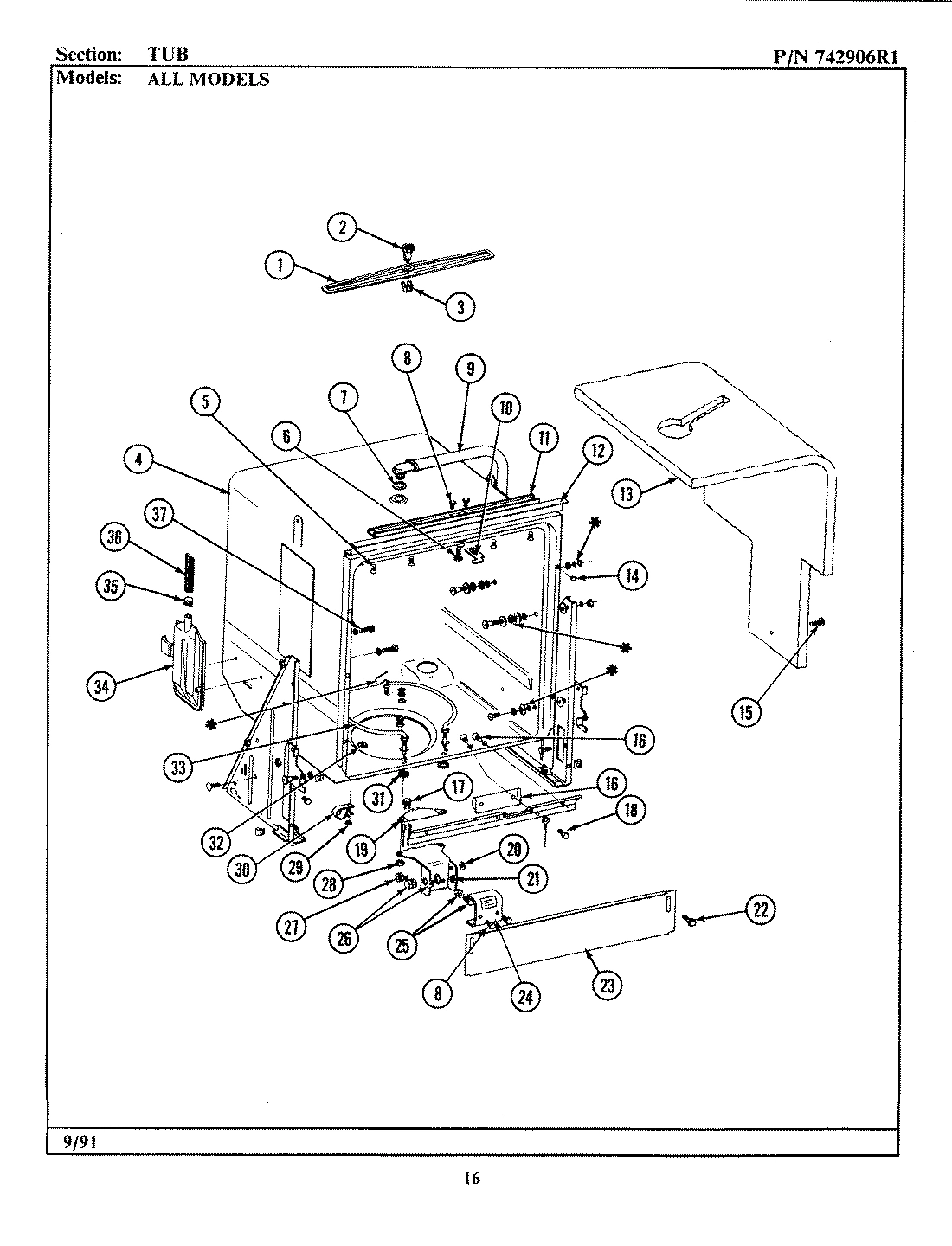

09 - TUB

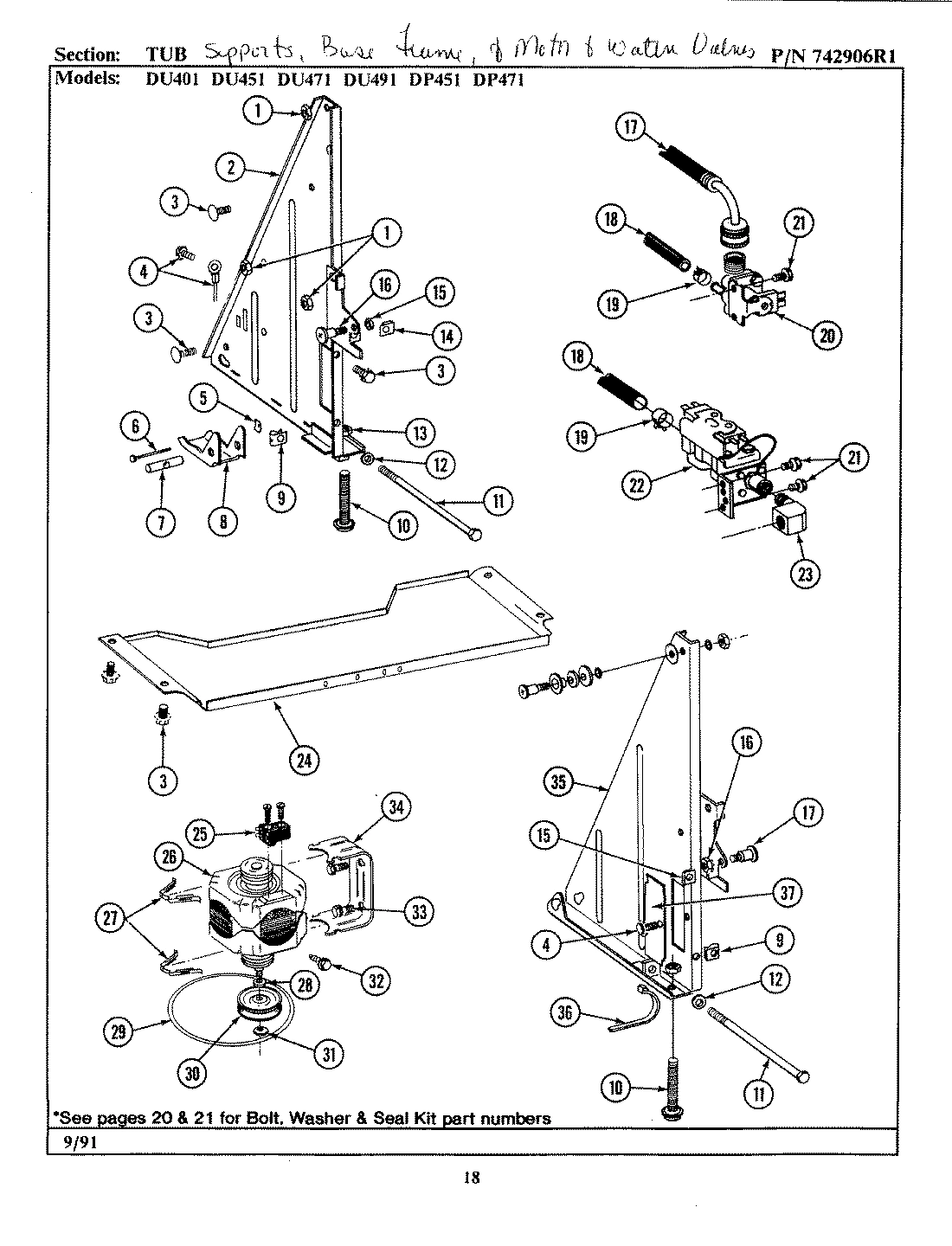

10 - TUB ASSEMBLY

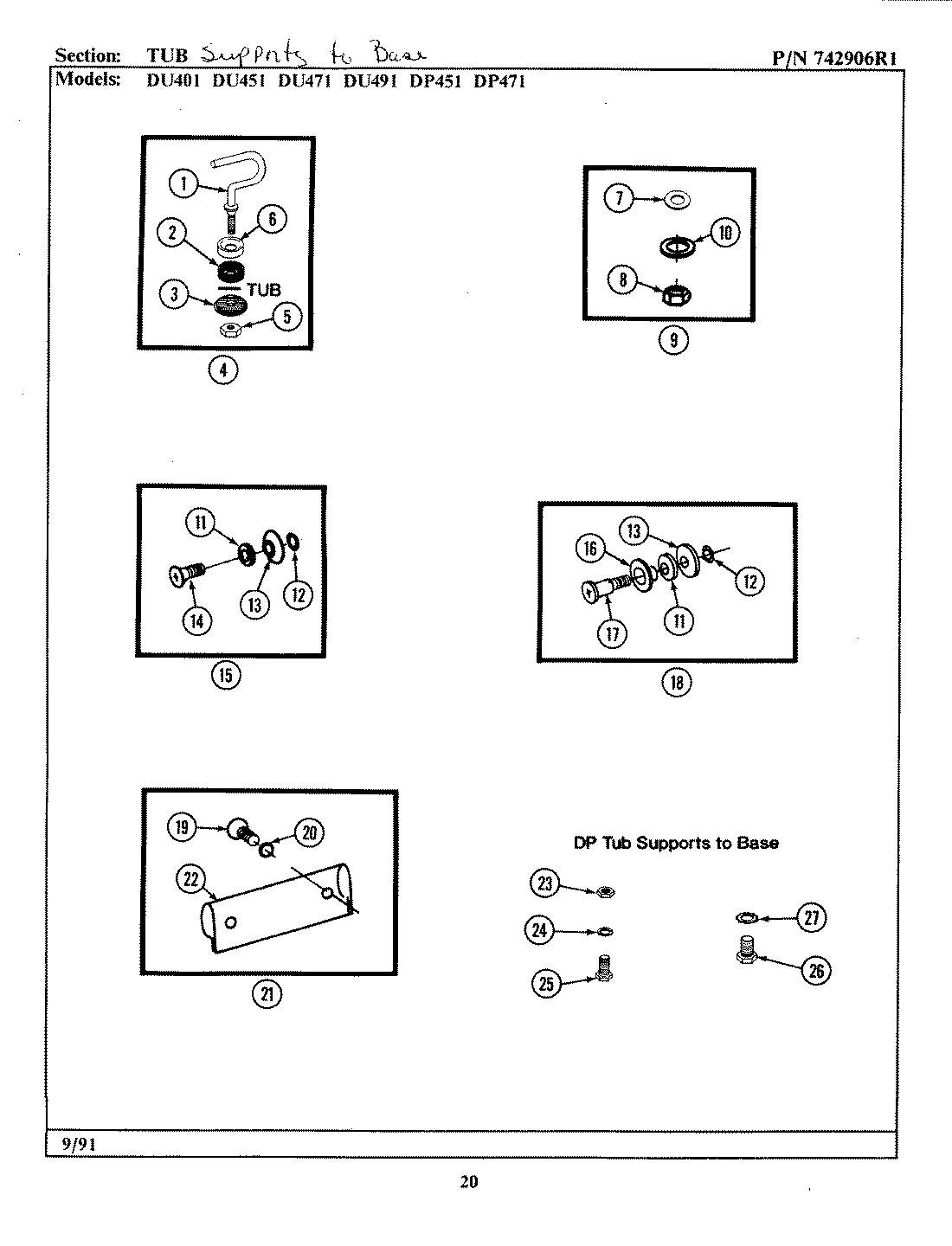

11 - TUB SUPPORT
Common parts from model Maytag DP471 DISHWASHER
