Model Hotpoint DLL2650BCL Dryer Gas – Common Parts & Diagrams
BACKSPLASH ASSEMBLIES
CABINET ASM.

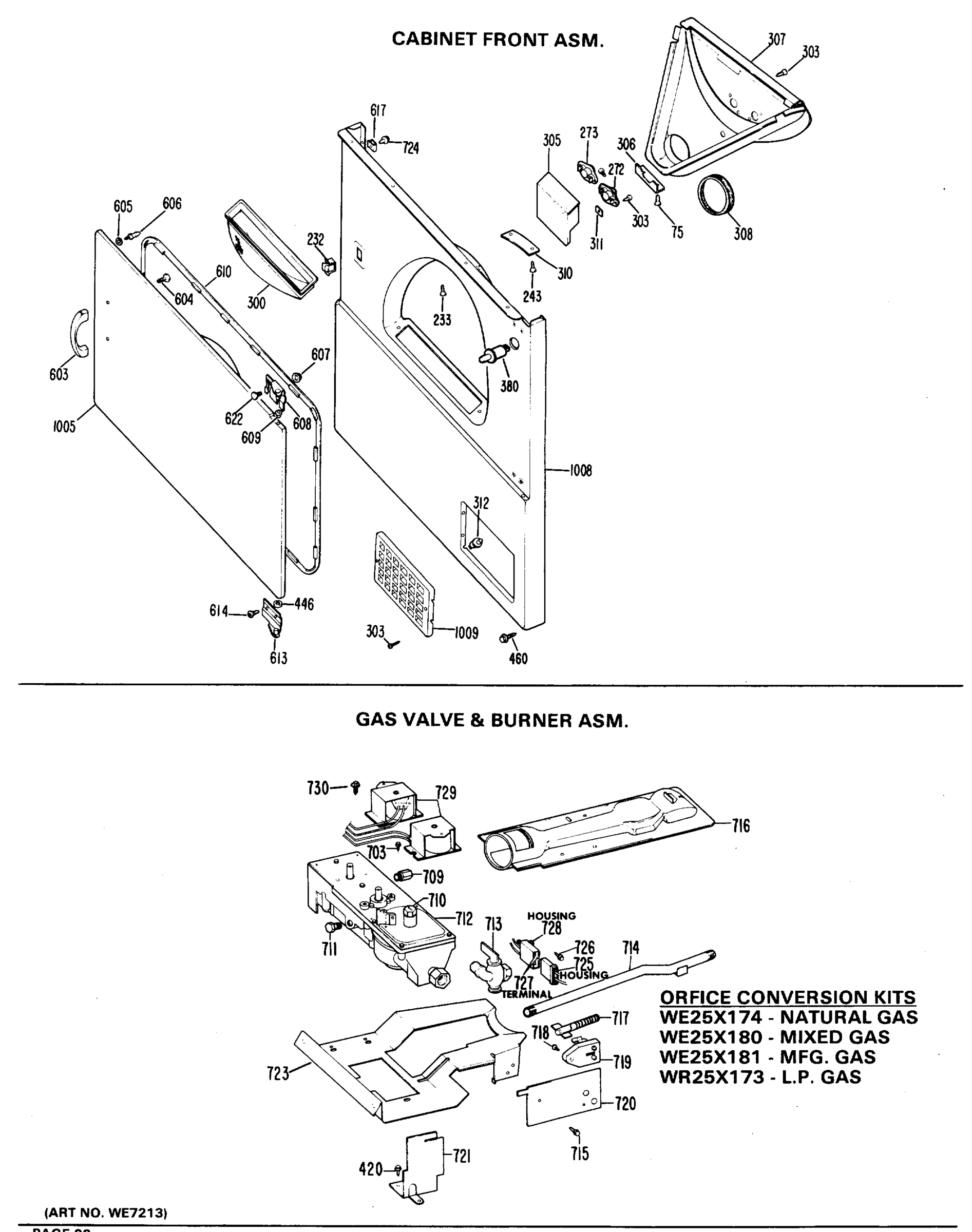

CABINET FRONT ASSM.

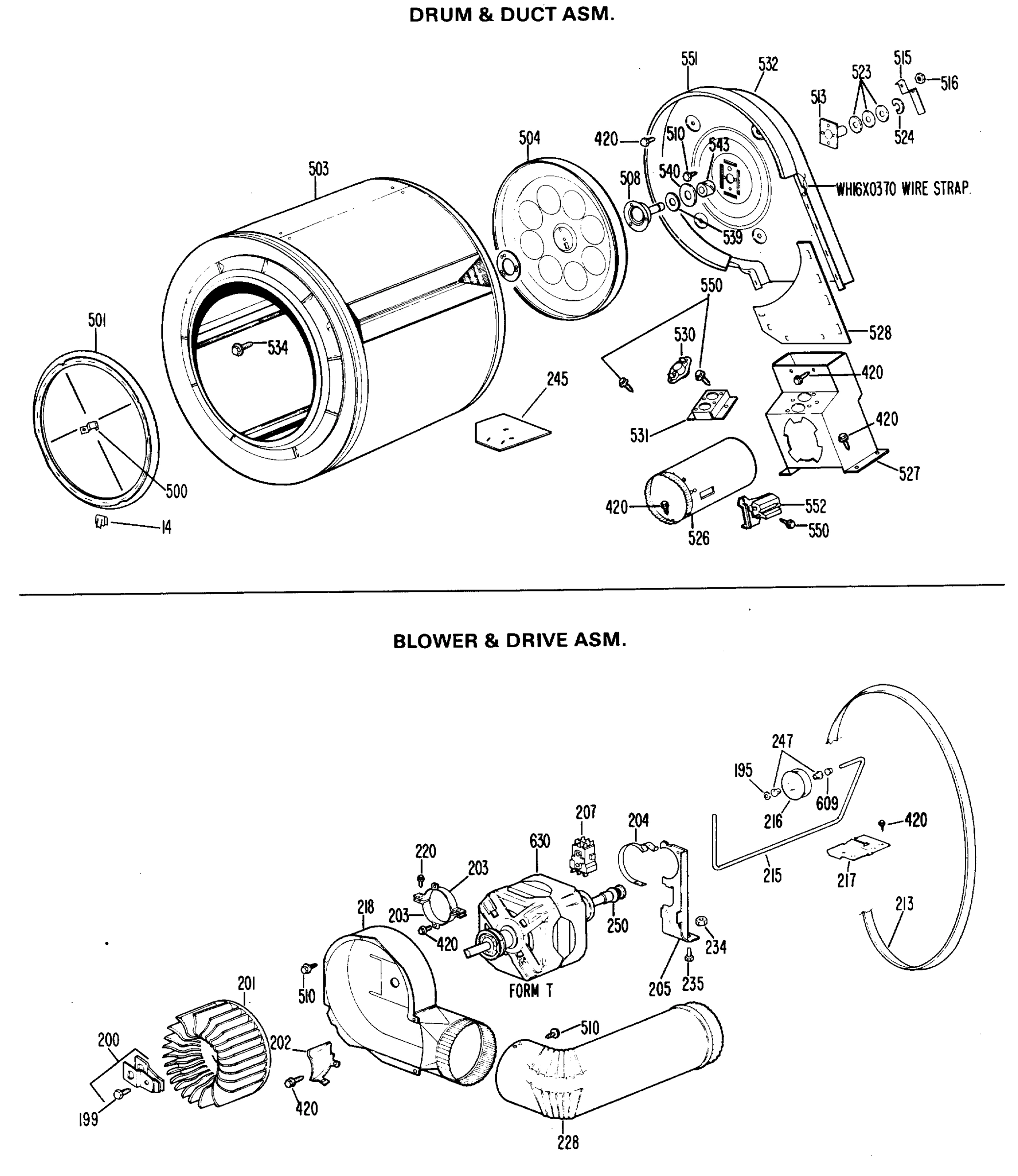

DRUM & DUCT ASSM.
Common parts from model Hotpoint DLL2650BCL Dryer Gas
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WH42X2005 GEN WH42X2005 Contact Us For Availability
4
GEN WH42X2006 GEN WH42X2006 Contact Us For Availability
7
GEN WE01X0982 GEN WE01X0982 Contact Us For Availability
12
SPEEDNUT GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0805 GEN WE19X0805 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
17
GEN WE01X0577 GEN WE01X0577 Contact Us For Availability
19
KNOB CLIP ASM GEN WH01X2274 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
23
GEN WH16X0401 GEN WH16X0401 Contact Us For Availability
26
GEN WH42X2004 GEN WH42X2004 Contact Us For Availability
32
STRAP-STEEL GEN WH16X0370 Contact Us For Availability
40
GEN WE01X0916 GEN WE01X0916 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
63
GEN WE04X0606 GEN WE04X0606 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
74
GEN WE13X0137 GEN WE13X0137 Contact Us For Availability
87
GEN WE04X0605 GEN WE04X0605 Contact Us For Availability
89
GEN WE04X0618 GEN WE04X0618 Contact Us For Availability
90
GEN WH16X0434 GEN WH16X0434 Contact Us For Availability
100
GEN WE04X0620 GEN WE04X0620 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
195
NUT (PUSH-ON) GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
BRACKET-MOTOR GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
215
GEN WE03X0062 GEN WE03X0062 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
HOUSING-SLOWER GEN WE14X0134 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0139 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/1 6-12 8 HX 3/4 S GEN WE02X0194 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
272
GEN WE04X0607 GEN WE04X0607 Contact Us For Availability
273
GEN WE04X0608 GEN WE04X0608 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT-TRAP GEN WE14X0144 Contact Us For Availability
309
GEN WE01X0427 GEN WE01X0427 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
314
GEN WX12X1456 GEN WX12X1456 Contact Us For Availability
375
GEN WE04X0185 GEN WE04X0185 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
BOX-RECESS GEN WE14X0066 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT-CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
453
GEN WE13X0050 GEN WE13X0050 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE01X0937 GEN WE01X0937 Contact Us For Availability
460
SCR 10-16 AB HXW 7/8 S GEN WZ04X0264 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
RETAINER-SEARING GEN WE01X0461 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
PLATE-DIFFUSER GEN WE14X0072 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
531
BRACKET-THERMOSTAT GEN WE13X0138 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AS HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
PAD-FELT K GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
HOUSING-TERMINAL GEN WH12X0497 Contact Us For Availability
557
GEN WE08X0031 GEN WE08X0031 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCR 10-32 TT PH 3/8 S GEN WZ04X0257 Contact Us For Availability
617
NUT-CUP GEN WH02X0782 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
703
GEN 8-32X7/16 GEN 8-32X7/16 Contact Us For Availability
709
GEN WE01X0968 GEN WE01X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
711
GEN 1/8NPT GEN 1/8NPT Contact Us For Availability
712
GEN WE14X0141 GEN WE14X0141 Contact Us For Availability
713
VALVE ASM-SHUT OFF GEN WE01X0758 Contact Us For Availability
714
GEN WE01X0804 GEN WE01X0804 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
GEN WZ04X0220 GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
BRACKET-SPACER GEN WE13X0118 Contact Us For Availability
723
GEN WE13X0117 GEN WE13X0117 Contact Us For Availability
724
SCR 10-16 AS HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
725
GEN WH12X0237 GEN WH12X0237 Contact Us For Availability
726
GEN 6-32X7/16 GEN 6-32X7/16 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0560 GEN WE04X0560 Contact Us For Availability
730
SCR (GAS VALVE ASM) GEN 8-32X5/8 Contact Us For Availability
1001
GEN WE20X0664 GEN WE20X0664 Contact Us For Availability
1001
GEN WE20X0665 GEN WE20X0665 Contact Us For Availability
1001
GEN WE20X0666 GEN WE20X0666 Contact Us For Availability
1001
GEN WE20X0667 GEN WE20X0667 Contact Us For Availability
1001
GEN WE20X0683 GEN WE20X0683 Contact Us For Availability
1001
GEN WE20X0684 GEN WE20X0684 Contact Us For Availability
1002
GEN WE46X0247 GEN WE46X0247 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0214 GEN WH46X0214 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1002
GEN WH46X0248 GEN WH46X0248 Contact Us For Availability
1002
GEN WH48X0212 GEN WH48X0212 Contact Us For Availability
1003
GEN WE20X0670 GEN WE20X0670 Contact Us For Availability
1003
GEN WE20X0671 GEN WE20X0671 Contact Us For Availability
1003
GEN WE20X0672 GEN WE20X0672 Contact Us For Availability
1003
GEN WE20X0689 GEN WE20X0689 Contact Us For Availability
1003
GEN WE20X0690 GEN WE20X0690 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0259 GEN WE10X0259 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1005
GEN WE10X0296 GEN WE10X0296 Contact Us For Availability
1005
GEN WE10X0297 GEN WE10X0297 Contact Us For Availability
1008
CABINET FRONT ASM WH GEN WE20X0500 Contact Us For Availability
1008
CABINET FRONT ASM FA GEN WE20X0567 Contact Us For Availability
1008
CABINET FRONT ASM HA GEN WE20X0568 Contact Us For Availability
1008
CABINET FRONT ASM AD GEN WE20X0570 Contact Us For Availability
1008
GEN WE20X0687 GEN WE20X0687 Contact Us For Availability
1008
GEN WE20X0688 GEN WE20X0688 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
GEN WE10X0253 GEN WE10X0253 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
1009
GEN WE10X0294 GEN WE10X0294 Contact Us For Availability
1009
GEN WE10X0295 GEN WE10X0295 Contact Us For Availability
9999
GEN 39-9226-1 GEN 39-9226-1 Contact Us For Availability
9999
GEN 39-9236 GEN 39-9236 Contact Us For Availability
9999
GEN 49-9060 GEN 49-9060 Contact Us For Availability
× ![]()
