Model Hotpoint DLL1550BAL Dryer Gas – Common Parts & Diagrams

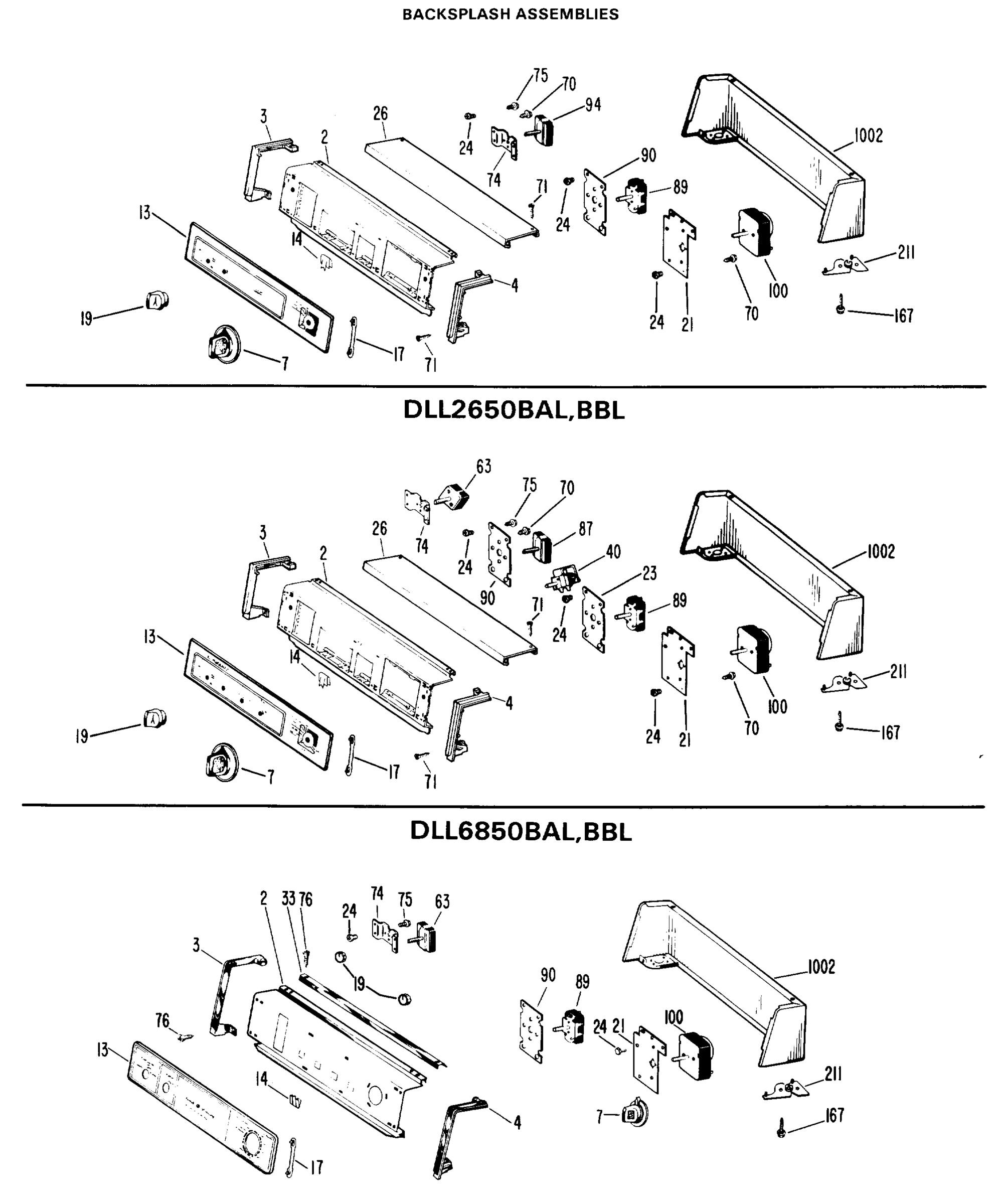

BACKSPLASH ASSEMBLIES

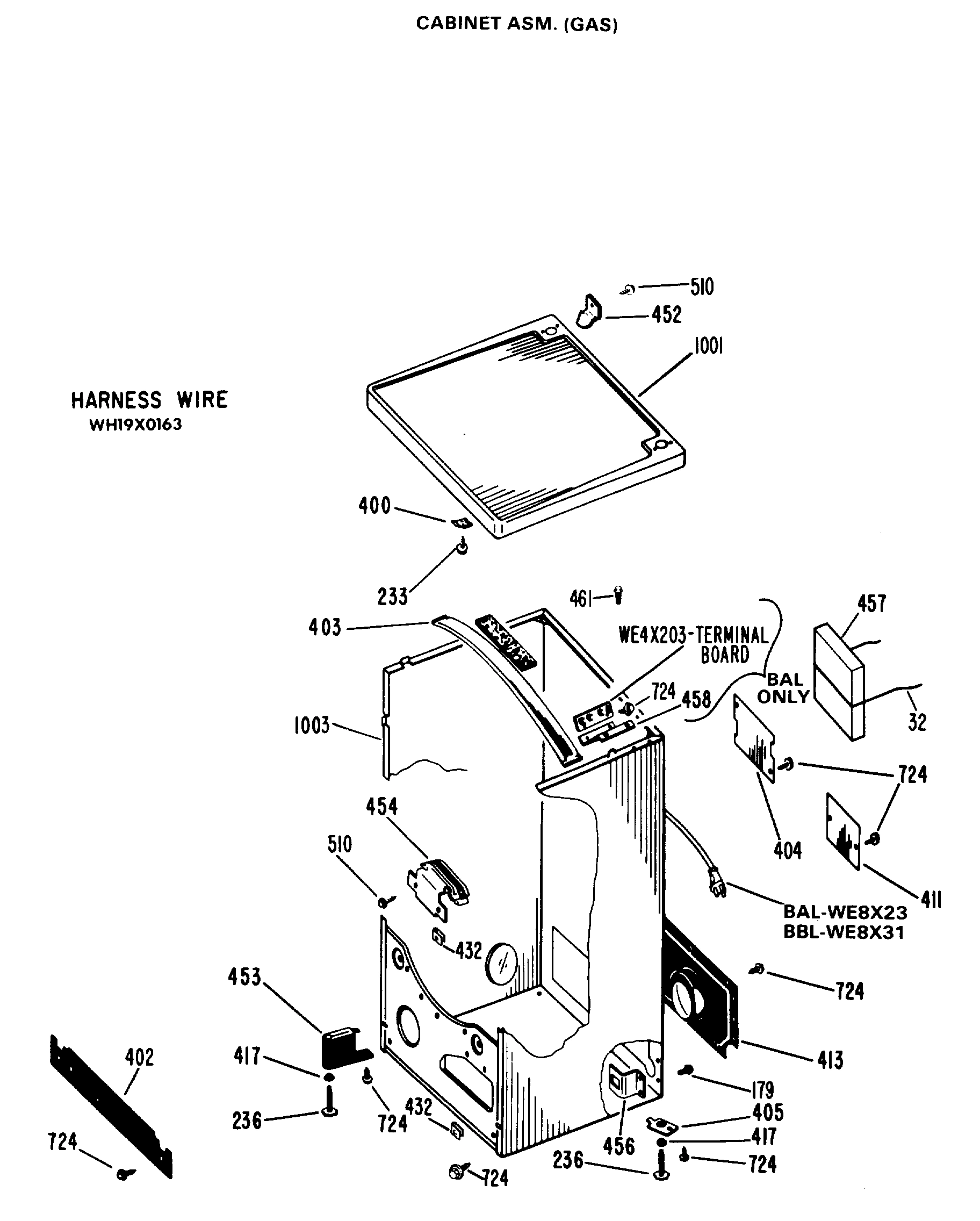

CABINET ASM. (GAS)

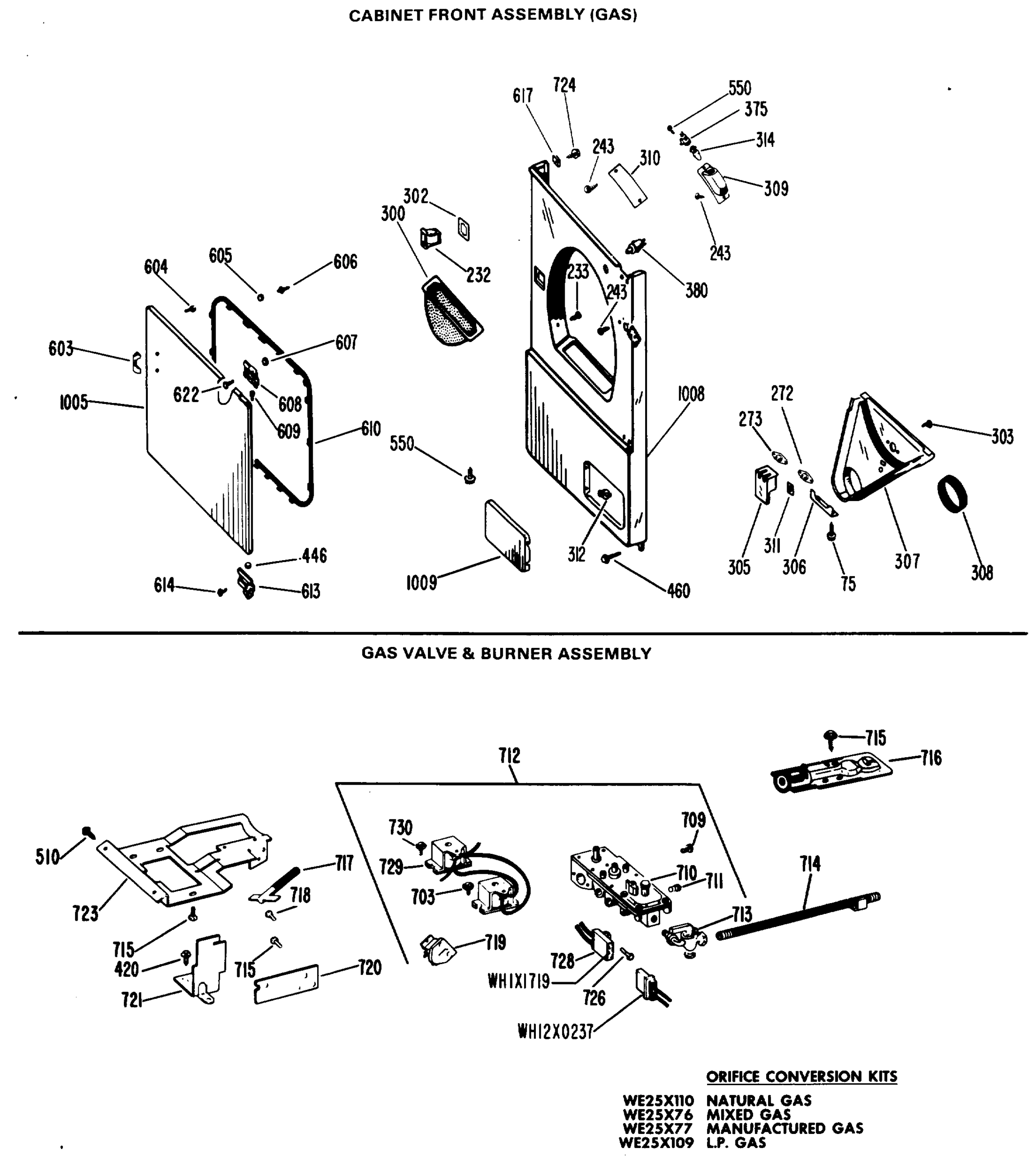

CABINET FRONT ASSEMBLY (GAS)

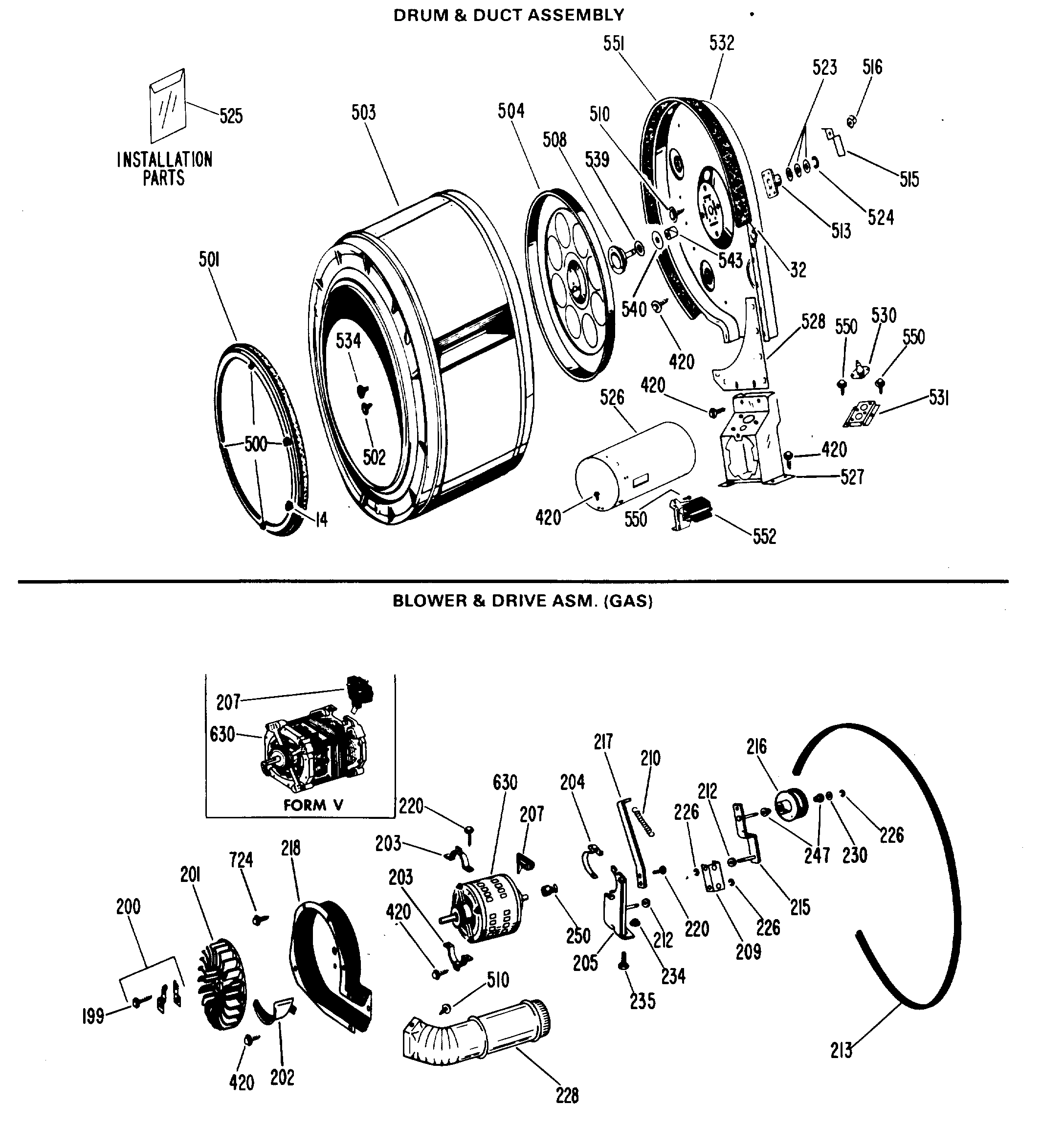

DRUM & DUCT ASSEMBLY
Common parts from model Hotpoint DLL1550BAL Dryer Gas
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WB42X2005 GEN WB42X2005 Contact Us For Availability
4
GEN WH42X2006 GEN WH42X2006 Contact Us For Availability
7
GEN WE01X0982 GEN WE01X0982 Contact Us For Availability
13
GEN WE19X0804 GEN WE19X0804 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
17
GEN WE01X0577 GEN WE01X0577 Contact Us For Availability
19
KNOB CLIP ASM GEN WH01X2274 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
26
GEN WH42X2004 GEN WH42X2004 Contact Us For Availability
32
STRAP-STEEL GEN WH16X0370 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
41
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
74
GEN WE13X0137 GEN WE13X0137 Contact Us For Availability
89
GEN WE04X0618 GEN WE04X0618 Contact Us For Availability
90
GEN WH16X0434 GEN WH16X0434 Contact Us For Availability
94
GEN WE04X0631 GEN WE04X0631 Contact Us For Availability
100
GEN WE04X0629 GEN WE04X0629 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW 14-10 X 1 HEX GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
SCREW 8-18 X 5/8 HEX GEN WE02X0275 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0139 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
233
SCREW 8-15 X 1/2 OVAL GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
243
SCREW 8-15 X 3/8 TRUSS GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
272
GEN WE04X0607 GEN WE04X0607 Contact Us For Availability
273
GEN WE04X0608 GEN WE04X0608 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
303
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT-TRAP GEN WE14X0144 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
BOX-RECESS GEN WE14X0066 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCREW 10-16 X 3/8 HEX GEN WH02X0893 Contact Us For Availability
432
GEN WE02X0282 GEN WE02X0282 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
453
SUPPORT-LEVELING SCREW GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE01X0937 GEN WE01X0937 Contact Us For Availability
458
BRACKET-TERMINAL BOARD GEN WE01X0411 Contact Us For Availability
460
SCREW 10-16 X 7/8 HEX GEN WZ04X0264 Contact Us For Availability
462
GEN WE04X0203 GEN WE04X0203 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
502
GEN WE02X0277 GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
PLATE-DIFFUSER GEN WE14X0072 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
531
BRACKET-THERMO GEN WE13X0138 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCREW 10-24 X 1/2 TRUSS GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCREW 8-18 X 3/8 HEX GEN WE02X0281 Contact Us For Availability
551
PAD-FELT K GEN WE09X0044 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCREW 10-32 X 3/8 PAN GEN WZ04X0257 Contact Us For Availability
617
NUT CLIP GEN WH02X0782 Contact Us For Availability
622
SCREW 10-32 X 1/2 ROUND GEN WE02X0177 Contact Us For Availability
703
SCREW (GAS VALUE ASM) GEN 8-32X7/16 Contact Us For Availability
709
GEN WE01X0968 GEN WE01X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
711
GEN 1/8NPT GEN 1/8NPT Contact Us For Availability
712
GEN WE14X0141 GEN WE14X0141 Contact Us For Availability
713
GEN WE01X0758 GEN WE01X0758 Contact Us For Availability
714
PIPE & LUG ASM GEN WE01X0804 Contact Us For Availability
715
SCREW 8-18 X 13/32 HEX GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
SCREW 6-20 X 1/2 HEX GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
BRACKET-SPACER GEN WE13X0118 Contact Us For Availability
723
GEN WE13X0139 GEN WE13X0139 Contact Us For Availability
724
SCREW 10-16 X 1/2 HEX GEN WZ04X0288 Contact Us For Availability
726
SCREW (GAS VALUE ASM) GEN 6-32X7/16 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0560 GEN WE04X0560 Contact Us For Availability
730
GEN 8-32X5/8 GEN 8-32X5/8 Contact Us For Availability
1001
GEN WE20X0530 GEN WE20X0530 Contact Us For Availability
1001
GEN WE20X0555 GEN WE20X0555 Contact Us For Availability
1001
GEN WE20X0556 GEN WE20X0556 Contact Us For Availability
1001
GEN WE20X0557 GEN WE20X0557 Contact Us For Availability
1001
GEN WE20X0558 GEN WE20X0558 Contact Us For Availability
1002
GEN WB46X0214 GEN WB46X0214 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0213 GEN WH46X0213 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
GEN WE20X0594 GEN WE20X0594 Contact Us For Availability
1003
GEN WE20X0595 GEN WE20X0595 Contact Us For Availability
1003
GEN WE20X0596 GEN WE20X0596 Contact Us For Availability
1003
GEN WE20X0597 GEN WE20X0597 Contact Us For Availability
1003
GEN WE20X0598 GEN WE20X0598 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0259 GEN WE10X0259 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0261 GEN WE10X0261 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1008
WELD ASM-CAB FRONT WH GEN WE20X0500 Contact Us For Availability
1008
GEN WE20X0567 GEN WE20X0567 Contact Us For Availability
1008
WELD ASM-CAB FRONT HA GEN WE20X0568 Contact Us For Availability
1008
GEN WE20X0569 GEN WE20X0569 Contact Us For Availability
1008
WELD ASM-CAB FRONT AD GEN WE20X0570 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
GEN WE10X0253 GEN WE10X0253 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
GEN WE10X0255 GEN WE10X0255 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
9999
GEN 39-9223 GEN 39-9223 Contact Us For Availability
9999
GEN 39-9225 GEN 39-9225 Contact Us For Availability
9999
GEN 49-9047 GEN 49-9047 Contact Us For Availability
× ![]()
