Model LG DLEY1201W.ABWEEUS 7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh Cycle – Common Parts & Diagrams

Common parts from model LG DLEY1201W.ABWEEUS 7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh Cycle

CONTROL PANEL AND PLATE ASSEMBLY

Print

• This Diagram
• All Diagrams

A120

PCB Assembly,Display LGE EBR75439403 Contact Us For Availability

View on Model

A130

EBR76210903 LG Dryer Main Power Control Board In Stock LGE EBR76210903 View Details $291.33

View on Model

A310

ACQ75450507 LG Cabinet Cover Assembly Backorder LGE ACQ75450507 View Details $131.67

View on Model

A314

MBL62213306 LG Cap Hole Backorder LGE MBL62213306 View Details $6.19

View on Model

A315

4000FD4191A LG Customized Screw Backorder LGE 4000FD4191A View Details $6.19

View on Model

A320

4027EL1001C LG Locker Assembly Backorder LGE 4027EL1001C View Details $20.35

View on Model

A325

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

A330

6601EL3001A LG Dryer Door Switch Assembly In Stock LGE 6601EL3001A View Details $33.69

View on Model

A410

4026EL3007C LG Locker Hook Backorder LGE 4026EL3007C View Details $26.26

View on Model

A520

4810EL3001A LG Base Bracket Backorder LGE 4810EL3001A View Details $9.86

View on Model

A570

3550EL3002A LG Safety Cover In Stock LGE 3550EL3002A View Details $6.19

View on Model

A600

EAD60946210 LG Multi Harness Backorder LGE EAD60946210 View Details $188.43

View on Model

F110

5301EL1001H LG Dryer Heater Element Assembly In Stock LGE 5301EL1001H View Details $198.74

View on Model

F110

5301EL1001J LG Dryer Heater Element Assembly In Stock LGE 5301EL1001J View Details $223.20

View on Model

F130

6931EL3003D LG Dryer High-Limit Thermal Fuse In Stock LGE 6931EL3003D View Details $7.58

View on Model

F140

6931EL3001F LG Thermostat Assembly In Stock LGE 6931EL3001F View Details $36.62

View on Model

F200

5209EL1001C LG Duct Assembly Backorder LGE 5209EL1001C View Details $91.26

View on Model

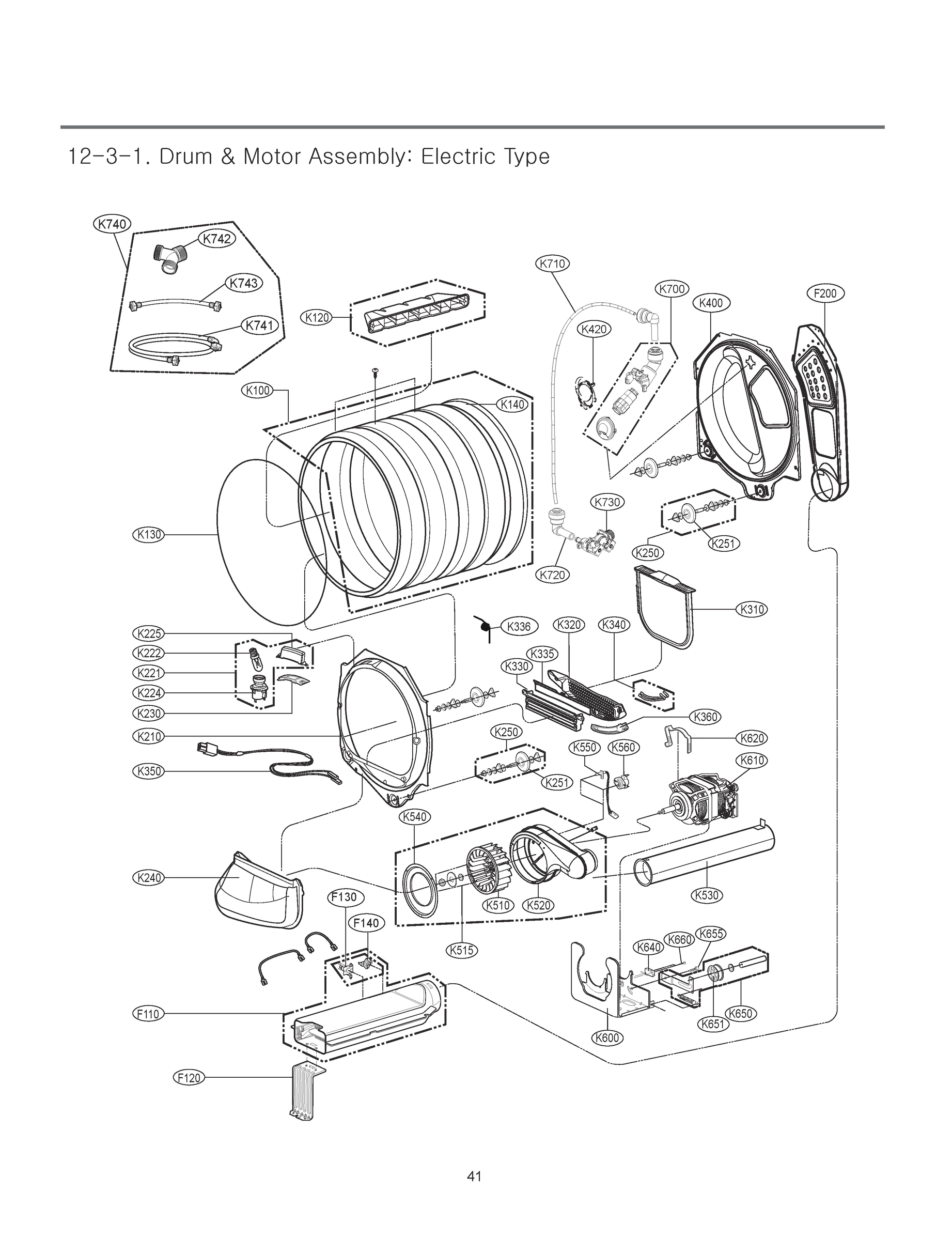

K100

3045EL1002P LG Dryer Drum Tub Assembly Backorder LGE 3045EL1002P View Details $294.36

View on Model

K120

4432EL1002A LG Dryer Drum Baffle Backorder LGE 4432EL1002A View Details $26.26

View on Model

K130

4400EL2001F LG Dryer Drum Belt In Stock LGE 4400EL2001F View Details $16.93

View on Model

K140

4036EL3001A LG Dryer Drum Felt Gasket In Stock LGE 4036EL3001A View Details $26.79

View on Model

K210

3045EL1005A LG Drum Assembly Backorder LGE 3045EL1005A View Details $255.48

View on Model

K221

6913EL3002K LG Dryer Incandescent Lamp Backorder LGE 6913EL3002K View Details $26.26

View on Model

K222

6913EL3001E LG Dryer Incandescent Lamp In Stock LGE 6913EL3001E View Details $9.86

View on Model

K224

4930EL3008A LG Holder Backorder LGE 4930EL3008A View Details $20.35

View on Model

K230

3550EL2001A LG Dryer Lamp Bulb Shield Cover In Stock LGE 3550EL2001A View Details $6.19

View on Model

K240

5209EL1002A LG Dryer Duct Assembly In Stock LGE 5209EL1002A View Details $72.49

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K310

5231EL1001C LG Dryer Lint Filter In Stock LGE 5231EL1001C View Details $16.98

View on Model

K320

3550EL1005C LG Dryer Lint Filter Grille In Stock LGE 3550EL1005C View Details $9.86

View on Model

K330

4974EL1002B LG Dryer Filter Support Bracket In Stock LGE 4974EL1002B View Details $26.26

View on Model

K335

3550EL2004B LG Dryer Lint Screen Guide Filter In Stock LGE 3550EL2004B View Details $20.35

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K340

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A View Details $9.86

View on Model

K350

6631EL3003B LG Dryer Wiring Harness In Stock LGE 6631EL3003B View Details $14.79

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006A LG Dryer Metal Duct Backorder LGE 5209EL1006A View Details $33.69

View on Model

K540

4975EL3001A LG Guide Assembly Backorder LGE 4975EL3001A View Details $26.26

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly Backorder LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $26.93

View on Model

K600

MAZ66065301 LG Bracket Motor Backorder LGE MAZ66065301 View Details $53.62

View on Model

K610

4681EL1008A LG Dryer Blower Drive Motor In Stock LGE 4681EL1008A View Details $202.66

View on Model

K620

4860EL3001A LG Dryer Blower Motor Clamp Backorder LGE 4860EL3001A View Details $4.79

View on Model

K640

EBF61734701 LG Dryer Micro Switch In Stock LGE EBF61734701 View Details $14.79

View on Model

K650

4561EL3002A LG Dryer Idler Pulley Assembly In Stock LGE 4561EL3002A View Details $43.28

View on Model

K651

4560EL3001A LG Dryer Idler Pulley Wheel In Stock LGE 4560EL3001A View Details $14.16

View on Model

K655

1SZZEL3001A LG Customized Screw Backorder LGE 1SZZEL3001A View Details $6.19

View on Model

K660

1TPL0303218 LG Tapping Screw In Stock LGE 1TPL0303218 View Details $6.19

View on Model

K700

AGB72911101 LG Nozzle Assembly Backorder LGE AGB72911101 View Details $167.80

View on Model

K730

AJU73432602 LG Inlet Valve Assembly In Stock LGE AJU73432602 View Details $91.26

View on Model

K740

AAA75232311 LG Accessory Assembly Backorder LGE AAA75232311 View Details $107.42

View on Model

K741

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V View Details $26.88

View on Model

K742

MCD63306801 LG Dryer Pipe Connector In Stock LGE MCD63306801 View Details $14.79

View on Model

×
