Model LG DLEX7480LE.APBEEUS 7.3 cu. ft. Smart Rear Control Electric Energy Star Dryer with Sensor Dry & Steam Technology – Common Parts & Diagrams

Common parts from model LG DLEX7480LE.APBEEUS 7.3 cu. ft. Smart Rear Control Electric Energy Star Dryer with Sensor Dry & Steam Technology

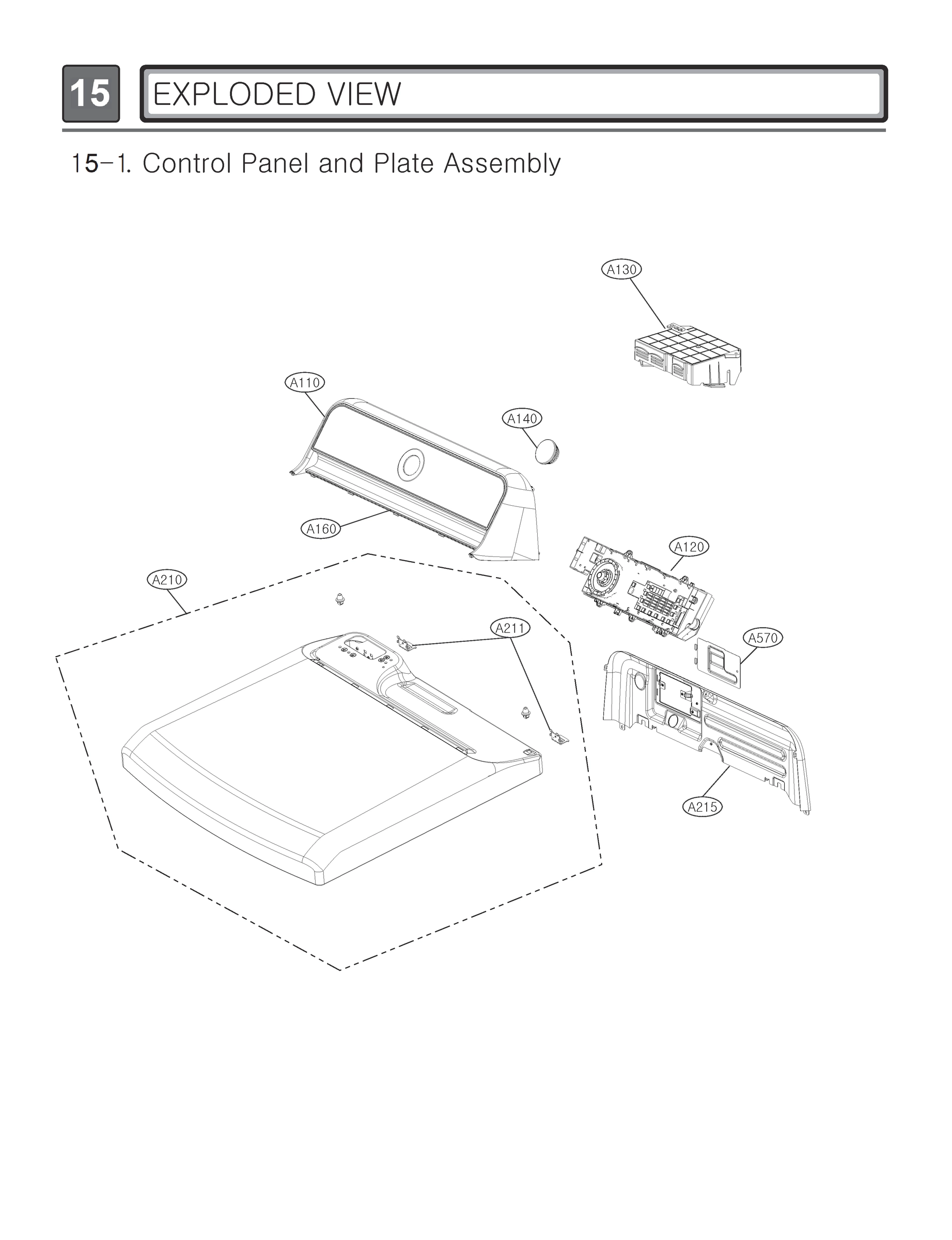

CONTROL PANEL AND PLATE ASSEMBLY

Print

• This Diagram
• All Diagrams

A130

EBR85130515 LG PCB Main Assembly Backorder LGE EBR85130515 View Details $235.58

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 View Details $6.19

View on Model

A140

AEZ73913406 LG Knob Assembly Backorder LGE AEZ73913406 View Details $53.62

View on Model

A160

MCR66471702 LG Panel Decor Backorder LGE MCR66471702 View Details $107.42

View on Model

A221

EAQ61400801 LG LED Lamp Backorder LGE EAQ61400801 View Details $41.23

View on Model

A300

MEF62782201 LG Hinge Assembly In Stock LGE MEF62782201 View Details $63.62

View on Model

A305

AEH74256601 LG Hinge Assembly Backorder LGE AEH74256601 View Details $41.23

View on Model

A314

MBL62213306 LG Cap Hole Backorder LGE MBL62213306 View Details $6.19

View on Model

A315

4000FD4191A LG Customized Screw Backorder LGE 4000FD4191A View Details $6.19

View on Model

A320

4027EL1001C LG Locker Assembly Backorder LGE 4027EL1001C View Details $20.35

View on Model

A340

FAB32258901 LG Screw Customized Backorder LGE FAB32258901 View Details $9.86

View on Model

A365

ACV73430101 LG Damper Assembly Backorder LGE ACV73430101 View Details $91.26

View on Model

A370

MAZ63869301 LG Hinge Bracket Backorder LGE MAZ63869301 View Details $20.35

View on Model

A380

MAZ61975501 LG Bracket Hinge Backorder LGE MAZ61975501 View Details $14.79

View on Model

A400

ADC74129528 LG Door Assembly Backorder LGE ADC74129528 View Details $381.73

View on Model

A410

4026EL3007C LG Locker Hook Backorder LGE 4026EL3007C View Details $26.26

View on Model

A430

MEF62782101 LG Hinge Assembly In Stock LGE MEF62782101 View Details $63.62

View on Model

A431

MEF62782001 LG Hinge Backorder LGE MEF62782001 View Details $53.62

View on Model

A435

MJH63096901 LG Hinge Supporter Backorder LGE MJH63096901 View Details $14.79

View on Model

A460

MDS61982901 LG Gasket Backorder LGE MDS61982901 View Details $49.19

View on Model

A481

MAK62727101 LG Bar Connector Backorder LGE MAK62727101 View Details $14.79

View on Model

A483

MFG63098701 LG Locker Hook Backorder LGE MFG63098701 View Details $4.79

View on Model

A491

1TTL0402418 LG Microwave Tapping Screw In Stock LGE 1TTL0402418 View Details $4.52

View on Model

A520

4810EL3001A LG Base Bracket Backorder LGE 4810EL3001A View Details $9.86

View on Model

A570

3550EL3002A LG Safety Cover In Stock LGE 3550EL3002A View Details $6.19

View on Model

A600

EAD60946254 LG Multi Harness Backorder LGE EAD60946254 View Details $212.13

View on Model

A610

383EEL9001H LG Assembly Parts In Stock LGE 383EEL9001H View Details $14.79

View on Model

A700

3750EL0001C LG Dishwasher Rack Dryer In Stock LGE 3750EL0001C View Details $23.31

View on Model

F110

5301EL1001H LG Dryer Heater Element Assembly In Stock LGE 5301EL1001H View Details $198.74

View on Model

F130

6931EL3003D LG Dryer High-Limit Thermal Fuse In Stock LGE 6931EL3003D View Details $7.58

View on Model

F140

6931EL3001F LG Thermostat Assembly In Stock LGE 6931EL3001F View Details $36.62

View on Model

F150

383EEL9001C LG Parts Assembly In Stock LGE 383EEL9001C View Details $63.62

View on Model

F200

5209EL1001C LG Duct Assembly Backorder LGE 5209EL1001C View Details $91.26

View on Model

K100

3045EL1002P LG Dryer Drum Tub Assembly Backorder LGE 3045EL1002P View Details $294.36

View on Model

K120

4432EL1002A LG Dryer Drum Baffle Backorder LGE 4432EL1002A View Details $26.26

View on Model

K130

4400EL2001F LG Dryer Drum Belt In Stock LGE 4400EL2001F View Details $16.93

View on Model

K140

4036EL3001A LG Dryer Drum Felt Gasket In Stock LGE 4036EL3001A View Details $26.79

View on Model

K230

MCD62587102 LG Nozzle Connector Backorder LGE MCD62587102 View Details $9.86

View on Model

K240

5209EL1002A LG Dryer Duct Assembly In Stock LGE 5209EL1002A View Details $72.49

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K252

4W50100F LG Customized In Stock LGE 4W50100F View Details $4.50

View on Model

K310

5231EL1001C LG Dryer Lint Filter In Stock LGE 5231EL1001C View Details $16.98

View on Model

K320

3550EL1005C LG Dryer Lint Filter Grille In Stock LGE 3550EL1005C View Details $9.86

View on Model

K330

4974EL1002B LG Dryer Filter Support Bracket In Stock LGE 4974EL1002B View Details $26.26

View on Model

K335

3550EL2004B LG Dryer Lint Screen Guide Filter In Stock LGE 3550EL2004B View Details $20.35

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K340

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A View Details $9.86

View on Model

K350

6631EL3003B LG Dryer Wiring Harness In Stock LGE 6631EL3003B View Details $14.79

View on Model

K411

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

K502

ADZ73410101 LG Dryer Generator Assembly Backorder LGE ADZ73410101 View Details $167.80

View on Model

K502

ADZ73410102 LG Generator Assembly In Stock LGE ADZ73410102 View Details $131.67

View on Model

K505

MEJ62404702 LG Inlet Hose Assembly Backorder LGE MEJ62404702 View Details $41.23

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006A LG Dryer Metal Duct Backorder LGE 5209EL1006A View Details $33.69

View on Model

K540

4975EL3001A LG Guide Assembly Backorder LGE 4975EL3001A View Details $26.26

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly Backorder LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $26.93

View on Model

K600

MAZ66065301 LG Bracket Motor Backorder LGE MAZ66065301 View Details $53.62

View on Model

K610

4681EL1008A LG Dryer Blower Drive Motor In Stock LGE 4681EL1008A View Details $202.66

View on Model

K620

4860EL3001A LG Dryer Blower Motor Clamp Backorder LGE 4860EL3001A View Details $4.79

View on Model

K640

EBF61734701 LG Dryer Micro Switch In Stock LGE EBF61734701 View Details $14.79

View on Model

K650

4561EL3002A LG Dryer Idler Pulley Assembly In Stock LGE 4561EL3002A View Details $43.28

View on Model

K651

4560EL3001A LG Dryer Idler Pulley Wheel In Stock LGE 4560EL3001A View Details $14.16

View on Model

K655

1SZZEL3001A LG Customized Screw Backorder LGE 1SZZEL3001A View Details $6.19

View on Model

K660

1TPL0303218 LG Tapping Screw In Stock LGE 1TPL0303218 View Details $6.19

View on Model

K720

MCD63206801 LG Nozzle Connector Backorder LGE MCD63206801 View Details $6.19

View on Model

K730

AJU73432602 LG Inlet Valve Assembly In Stock LGE AJU73432602 View Details $91.26

View on Model

K741

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V View Details $26.88

View on Model

K743

MEJ64525001 LG Inlet Hose Backorder LGE MEJ64525001 View Details $41.23

View on Model

×
