Model Hotpoint DLB6850TDL Dryer Electric – Common Parts & Diagrams

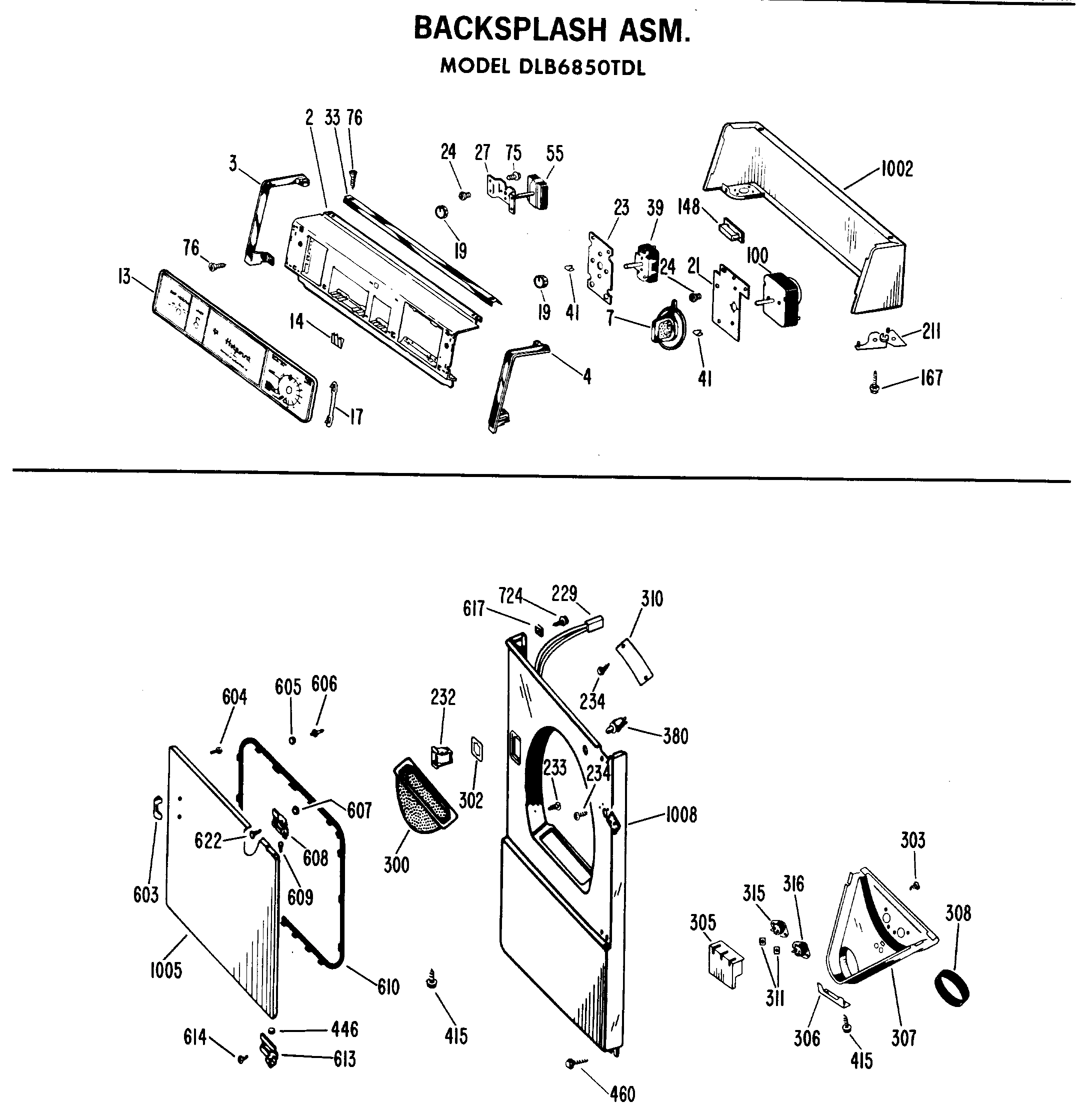

BACKSPLASH

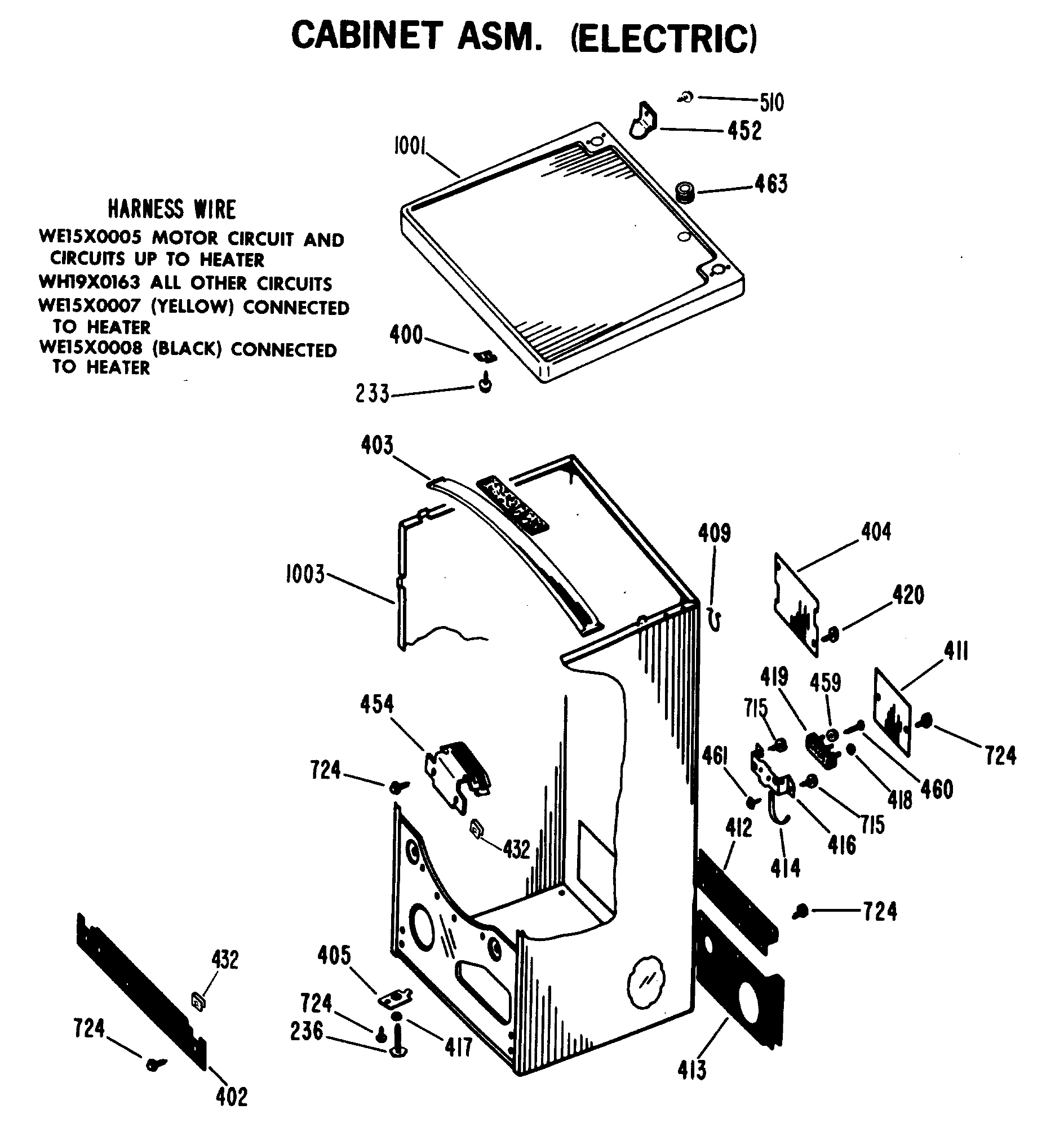

CABINET ASM. (ELECTRIC)
DRUM & HEATER ASSEMBLY (ELECTRIC)
Common parts from model Hotpoint DLB6850TDL Dryer Electric
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WH42X0974 GEN WH42X0974 Contact Us For Availability
4
GEN WH42X0975 GEN WH42X0975 Contact Us For Availability
7
GEN WE01X0957 GEN WE01X0957 Contact Us For Availability
13
GEN WE19X0739 GEN WE19X0739 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
17
GEN WE01X0577 GEN WE01X0577 Contact Us For Availability
19
GEN WH01X2157 GEN WH01X2157 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
23
GEN WH16X0401 GEN WH16X0401 Contact Us For Availability
27
BRACKET SWITCH GEN WH16X0402 Contact Us For Availability
33
GEN WE19X0310 GEN WE19X0310 Contact Us For Availability
39
SWITCH-SAFETY START GEN WE04X0463 Contact Us For Availability
41
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
55
GEN WE04X0576 GEN WE04X0576 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
76
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
100
GEN WE04X0563 GEN WE04X0563 Contact Us For Availability
148
GEN WE04X0499 GEN WE04X0499 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW-TYPE A GEN WE02X0280 Contact Us For Availability
201
GEN WE16X0016 GEN WE16X0016 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
GEN WE14X0085 GEN WE14X0085 Contact Us For Availability
220
SCREW-TYPE B GEN WE02X0275 Contact Us For Availability
225
SCREW-DRILL POINT GEN WE02X0276 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
GEN WE14X0065 GEN WE14X0065 Contact Us For Availability
229
GEN WH12X0183 GEN WH12X0183 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
233
SCREW-TYPE A GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW-TYPE B GEN WE02X0194 Contact Us For Availability
243
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
FILTER ASM LINT GEN WE18X0026 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0118 GEN WE14X0118 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
GEN WE04X0571 GEN WE04X0571 Contact Us For Availability
316
GEN WE04X0578 GEN WE04X0578 Contact Us For Availability
380
SWITCH ASM PB DOOR GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
409
GEN WE01X0353 GEN WE01X0353 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
412
GEN WE14X0054 GEN WE14X0054 Contact Us For Availability
413
GEN WE14X0055 GEN WE14X0055 Contact Us For Availability
414
STRAP-GROUND GEN WE01X0339 Contact Us For Availability
416
GEN WE01X0623 GEN WE01X0623 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
BLOCK-TERMINAL GEN WE04X0168 Contact Us For Availability
420
SCREW-TYPE B GEN WH02X0893 Contact Us For Availability
432
GEN WE02X0282 GEN WE02X0282 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
459
GEN WE02X0092 GEN WE02X0092 Contact Us For Availability
460
SCREW-TYPE AB GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
502
SCREW GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
512
GEN WE11X0067 GEN WE11X0067 Contact Us For Availability
517
GEN WE01X0336 GEN WE01X0336 Contact Us For Availability
518
GEN WE01X0335 GEN WE01X0335 Contact Us For Availability
519
GEN WE11X0060 GEN WE11X0060 Contact Us For Availability
520
GEN WE01X0158 GEN WE01X0158 Contact Us For Availability
521
GEN WE01X0159 GEN WE01X0159 Contact Us For Availability
522
SCREW-HEATER GEN WE02X0136 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
RING - RETAINING GEN WE01X5104 Contact Us For Availability
525
PACK ASM - INSTALLATION GEN WE25X0097 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCREW-TYPE AB GEN WE02X0281 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
GEN WE02X0227 GEN WE02X0227 Contact Us For Availability
605
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
607
NUT SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
617
NUT CLIP GEN WH02X0782 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
715
SCREW-TYPE BT GEN WD02X5063 Contact Us For Availability
724
SCREW-TYPE AB GEN WZ04X0288 Contact Us For Availability
1001
CABINET TOP WH GEN WE20X0530 Contact Us For Availability
1001
CABINET TOP FA GEN WE20X0555 Contact Us For Availability
1001
CABINET TOP HA GEN WE20X0556 Contact Us For Availability
1001
CABINET TOP CF GEN WE20X0557 Contact Us For Availability
1001
CABINET TOP AD GEN WE20X0558 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0213 GEN WH46X0213 Contact Us For Availability
1002
GEN WH46X0214 GEN WH46X0214 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
BASE & WRAPPER ASM WH GEN WE20X0396 Contact Us For Availability
1003
BASE & WRAPPER ASM FA GEN WE20X0559 Contact Us For Availability
1003
BASE & WRAPPER ASM HA GEN WE20X0560 Contact Us For Availability
1003
BASE & WRAPPER ASM CF GEN WE20X0561 Contact Us For Availability
1003
BASE & WRAPPER ASM AD GEN WE20X0562 Contact Us For Availability
1005
DOOR ASM WH GEN WE10X0258 Contact Us For Availability
1005
DOOR ASM FA GEN WE10X0259 Contact Us For Availability
1005
DOOR ASM HA GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0261 GEN WE10X0261 Contact Us For Availability
1005
DOOR ASM AD GEN WE10X0262 Contact Us For Availability
1008
CABINET FRONT ASM WH GEN WE20X0496 Contact Us For Availability
1008
CABINET FRONT ASM FA GEN WE20X0563 Contact Us For Availability
1008
CABINET FRONT ASM HA GEN WE20X0564 Contact Us For Availability
1008
WELD ASM CAB FRONT CF GEN WE20X0565 Contact Us For Availability
1008
CABINET FRONT ASM AD GEN WE20X0566 Contact Us For Availability
9999
GEN 39-9172 GEN 39-9172 Contact Us For Availability
9999
GEN 39-9186 GEN 39-9186 Contact Us For Availability
9999
GEN 49-9033 GEN 49-9033 Contact Us For Availability
× ![]()
