Model Maytag DE21CS ELECTRIC DRYER – Common Parts & Diagrams
01 - FRONT VIEW
02 - REAR VIEW

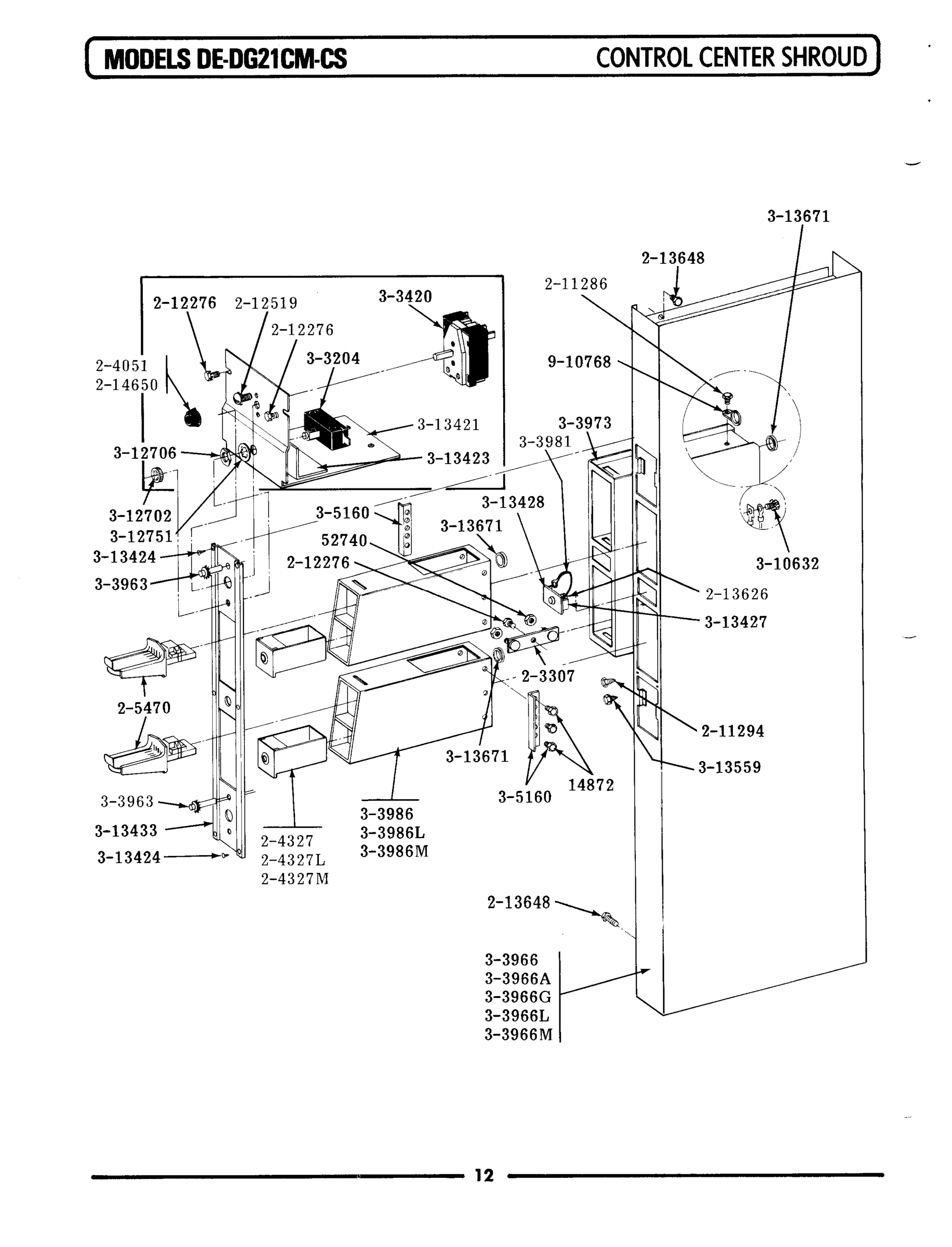

03 - CONTROL CENTER SHROUD

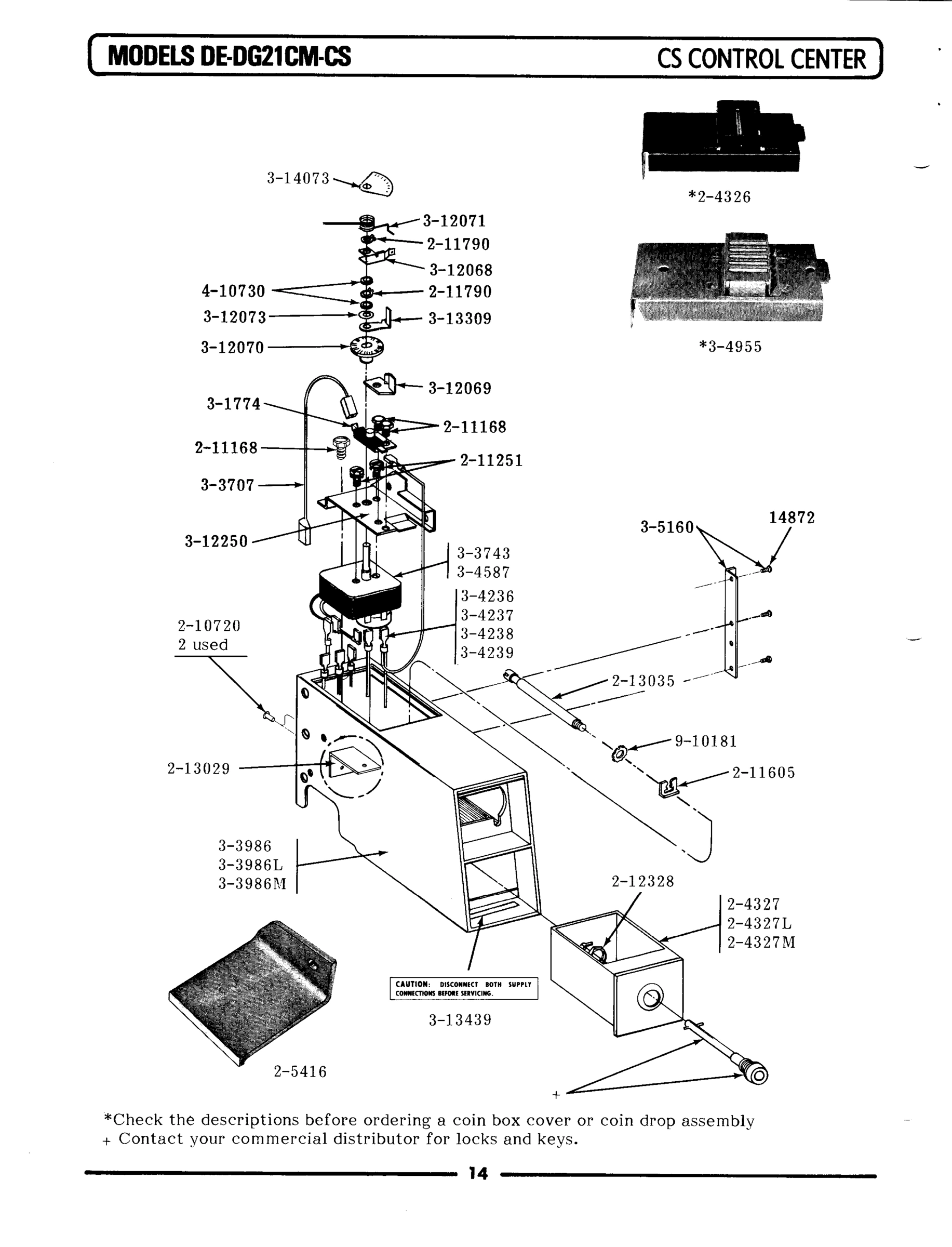

04 - CONTROL CENTER

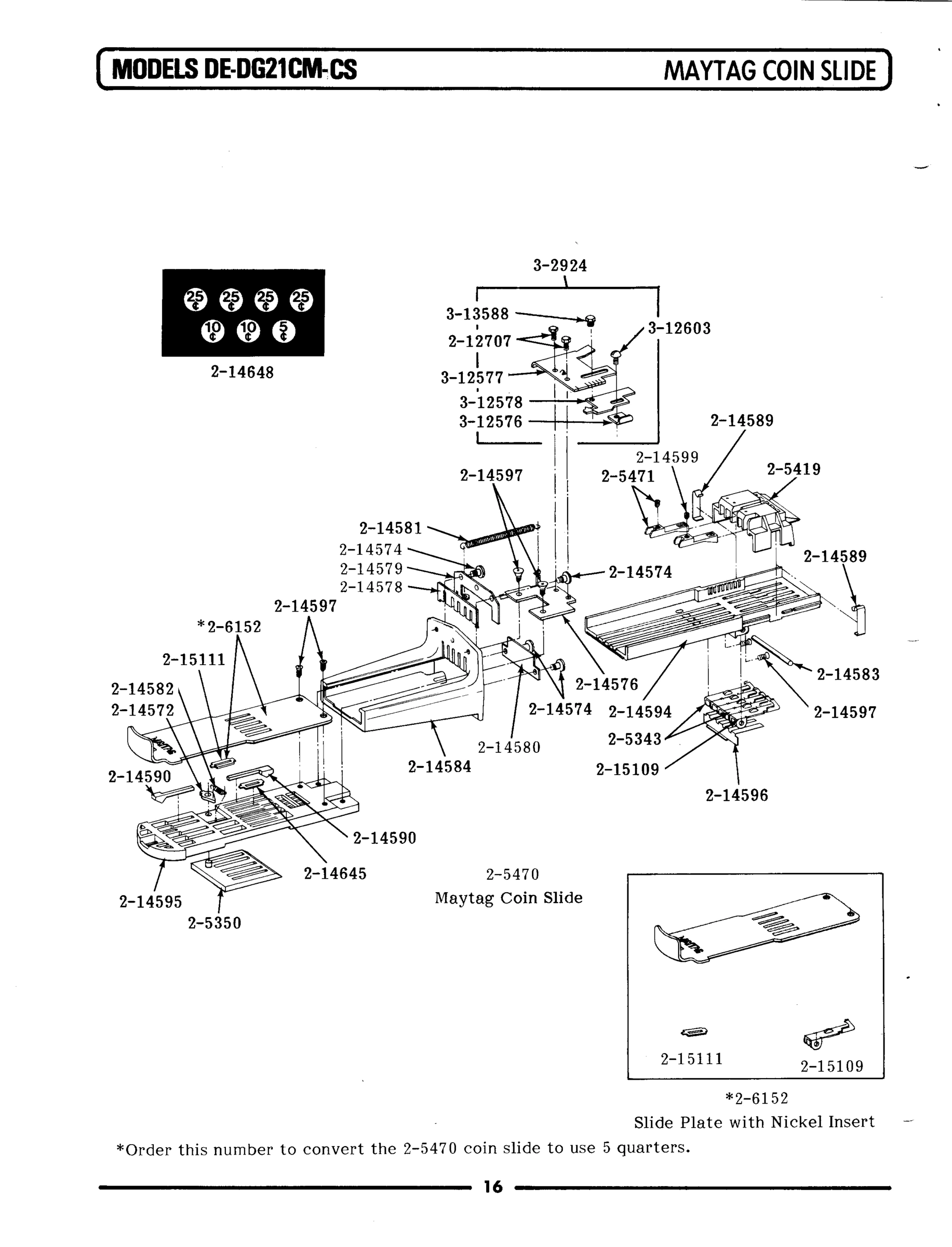

05 - MAYTAG COIN SLIDE
06 - FRONT PANEL & DOOR ASSEMBLY
07 - LINT SCREEN, TUMBLER (FRONT & BACK)
08 - INLET DUCT & HEATER ASSEMBLY

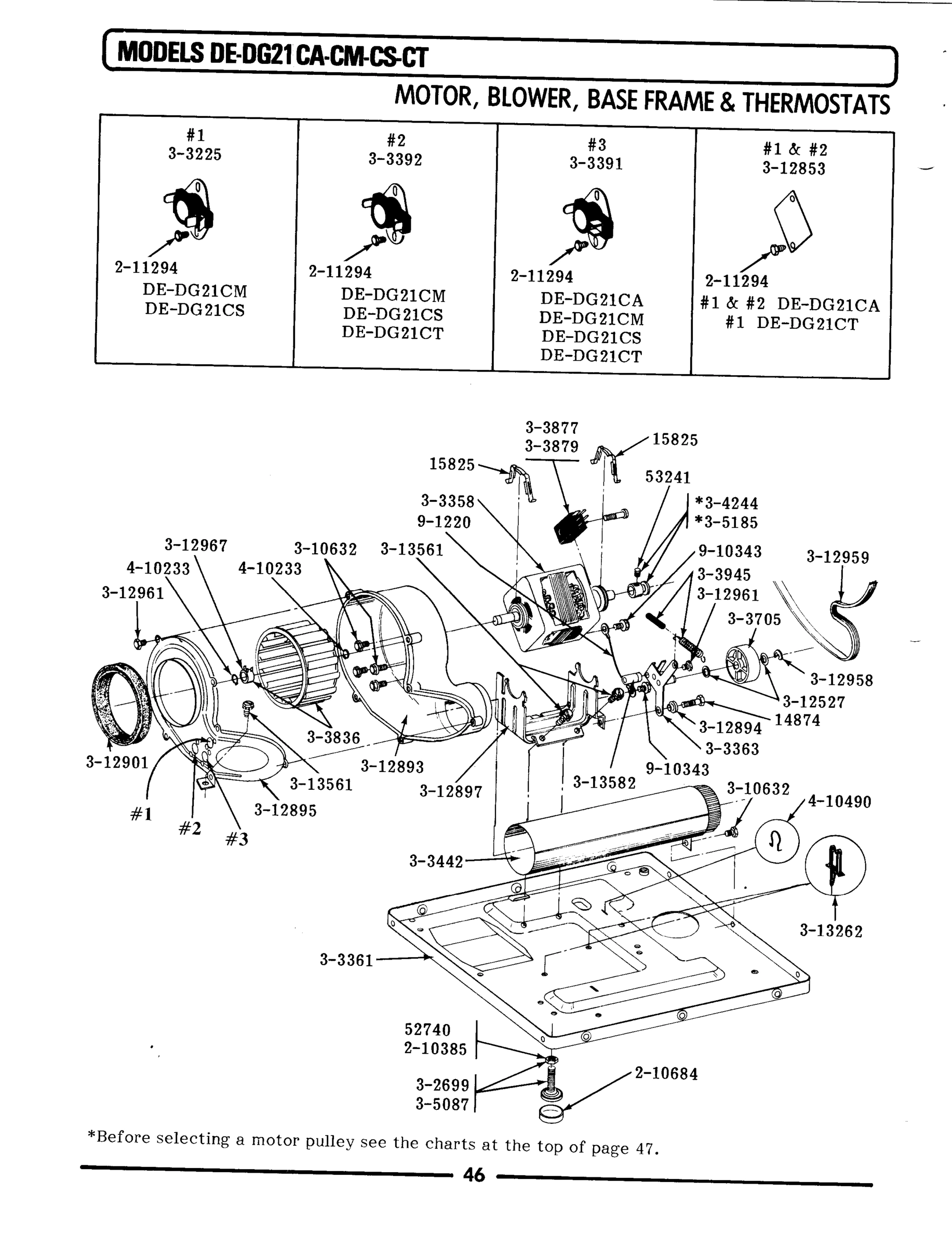

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

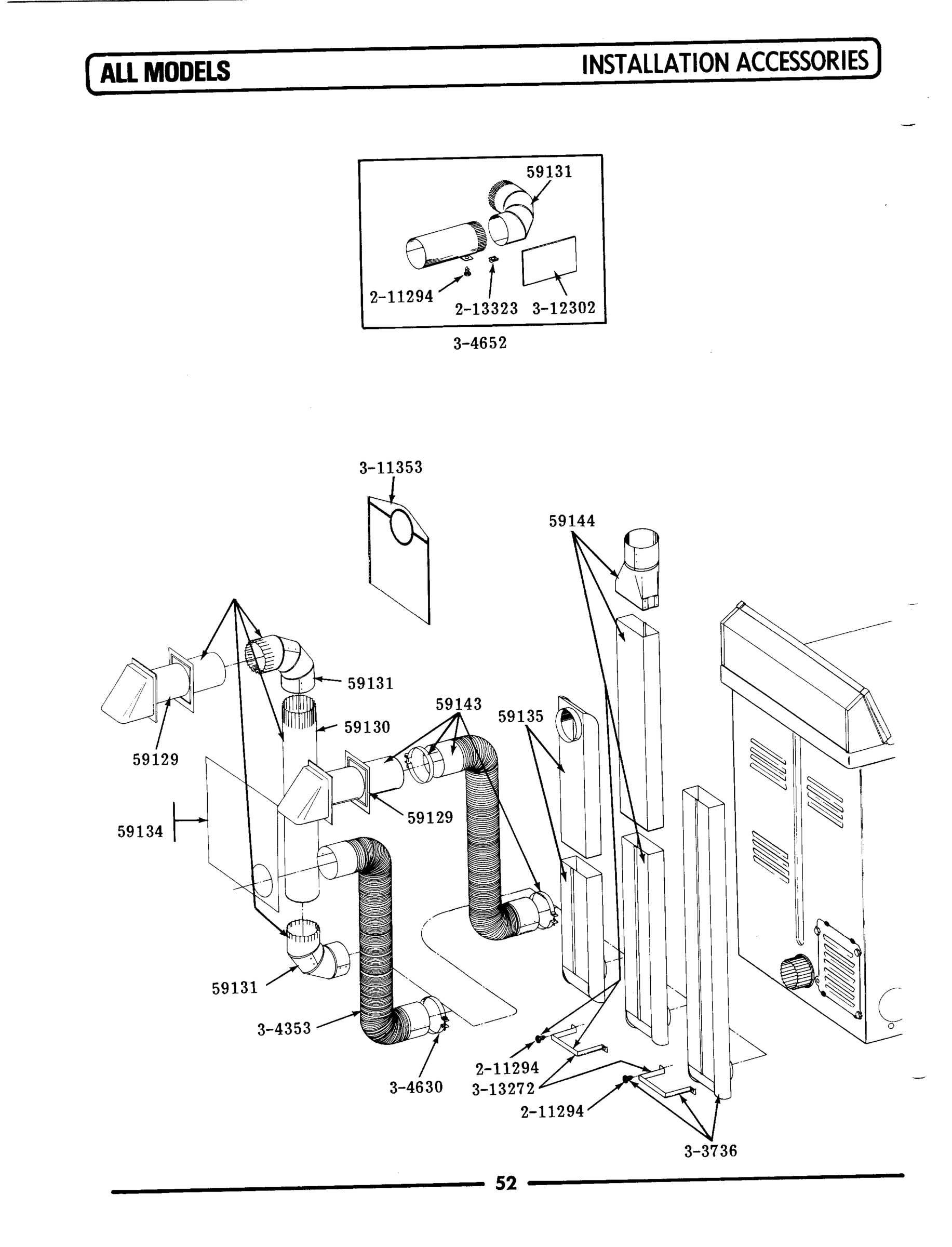

10 - INSTALLATION ACCESSORIES
Common parts from model Maytag DE21CS ELECTRIC DRYER
001
MAY 204439 MAY 204439 Contact Us For Availability
001
MAY Y014872 MAY Y014872 Contact Us For Availability
001
MAY 205343 MAY 205343 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY Y055978 MAY Y055978 Contact Us For Availability
002
MAY 205350 MAY 205350 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
003
GUARD, COIN BOX MAY 205416 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
GRND.WIRE, SUPP. PLTE MAY 204807 Contact Us For Availability
004
MAY 204051 MAY 204051 Contact Us For Availability
004
MAY Y053241 MAY Y053241 Contact Us For Availability
004
INLET DUCT ASSEMBLY MAY Y303362 Contact Us For Availability
005
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
006
MAY Y303778 MAY Y303778 Contact Us For Availability
006
MAY 211251 MAY 211251 Contact Us For Availability
006
MAY Y304578 MAY Y304578 Contact Us For Availability
006
MAY Y303373 MAY Y303373 Contact Us For Availability
006
MAY Y059130 MAY Y059130 Contact Us For Availability
007
MAY 211605 MAY 211605 Contact Us For Availability
007
MAY Y303815 MAY Y303815 Contact Us For Availability
007
MAY Y303856 MAY Y303856 Contact Us For Availability
007
MAY Y059131 MAY Y059131 Contact Us For Availability
008
MAY 214572 MAY 214572 Contact Us For Availability
008
MAY 304965 MAY 304965 Contact Us For Availability
008
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
008
MAY Y059134 MAY Y059134 Contact Us For Availability
009
THERMOSTAT, PERM. PRESS MAY Y303225 Contact Us For Availability
009
MAY 212276 MAY 212276 Contact Us For Availability
009
TUMBLER BACK W/SEAL MAY Y304648 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
009
MAY Y059135 MAY Y059135 Contact Us For Availability
010
MAY 212519 MAY 212519 Contact Us For Availability
010
MAY 213029 MAY 213029 Contact Us For Availability
010
MAY Y059143 MAY Y059143 Contact Us For Availability
011
MAY 213035 MAY 213035 Contact Us For Availability
011
GATE, COIN OPENING MAY 214578 Contact Us For Availability
011
TUMBLER W/BAFFLES MAY 305187 Contact Us For Availability
011
MAY Y303361 MAY Y303361 Contact Us For Availability
012
SWITCH, COIN SLIDE MAY Y301774 Contact Us For Availability
012
MAY Y310376 MAY Y310376 Contact Us For Availability
013
SCREW FOR 2-4051 KNOB MAY 214650 Contact Us For Availability
013
MAY Y303707 MAY Y303707 Contact Us For Availability
013
MAY 310557 MAY 310557 Contact Us For Availability
013
MAY 213323 MAY 213323 Contact Us For Availability
014
START SWITCH W/NUTS MAY Y303204 Contact Us For Availability
014
MAY Y303743 MAY Y303743 Contact Us For Availability
014
MAY 214581 MAY 214581 Contact Us For Availability
014
MAY 312369 MAY 312369 Contact Us For Availability
015
MAY Y303420 MAY Y303420 Contact Us For Availability
015
SPRING, RATCHET ARM MAY 214582 Contact Us For Availability
015
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
015
MAY Y303442 MAY Y303442 Contact Us For Availability
015
MAY Y304353 MAY Y304353 Contact Us For Availability
016
INDICATOR LIGHT MAY 303963 Contact Us For Availability
016
MAY Y313907 MAY Y313907 Contact Us For Availability
016
MAY Y304630 MAY Y304630 Contact Us For Availability
017
HOUSING, COIN SLIDE MAY 214584 Contact Us For Availability
017
CLIP, DOOR LINER MAY Y313910 Contact Us For Availability
017
MAY Y312890 MAY Y312890 Contact Us For Availability
017
MAY Y304652 MAY Y304652 Contact Us For Availability
018
MAY 214589 MAY 214589 Contact Us For Availability
018
MAY Y313911 MAY Y313911 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
HEATER ELEMENT MAY Y313322 Contact Us For Availability
018
MAY Y303877 MAY Y303877 Contact Us For Availability
018
MAY 311353 MAY 311353 Contact Us For Availability
019
GROUND WIRE, LATCH MAY Y303981 Contact Us For Availability
019
MAY Y313912 MAY Y313912 Contact Us For Availability
019
MAY Y312907 MAY Y312907 Contact Us For Availability
019
MAY Y303879 MAY Y303879 Contact Us For Availability
019
MAY 312302 MAY 312302 Contact Us For Availability
020
BEARING PAD, TUMBLER FRONT MAY 312940 Contact Us For Availability
020
BRACKET, EXHAUST DEFLECTOR MAY NLA Contact Us For Availability
020
BASE INSERT, HOUSING MAY 214594 Contact Us For Availability
020
MAY Y313927 MAY Y313927 Contact Us For Availability
020
MAY Y313537 MAY Y313537 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
021
MAY Y312068 MAY Y312068 Contact Us For Availability
021
MAY Y313946 MAY Y313946 Contact Us For Availability
021
BEARING, TUMBLER FRONT MAY 312941 Contact Us For Availability
021
MAY Y313575 MAY Y313575 Contact Us For Availability
022
STOP, ACTUATOR MAY Y312069 Contact Us For Availability
022
SPRING, LOWER GAGE ARM MAY 214596 Contact Us For Availability
022
GASKET, WINDOW MAY Y313947 Contact Us For Availability
022
MAY Y313576 MAY Y313576 Contact Us For Availability
022
MAY Y304245 MAY Y304245 Contact Us For Availability
023
MAY Y312184 MAY Y312184 Contact Us For Availability
023
MAY Y312702 MAY Y312702 Contact Us For Availability
023
MAY 214597 MAY 214597 Contact Us For Availability
023
LATCH, ACCESS DOOR MAY Y314025 Contact Us For Availability
023
ADJUSTABLE LEG & NUT MAY Y305087 Contact Us For Availability
024
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
024
MAY Y312706 MAY Y312706 Contact Us For Availability
024
RETURN SPRING, ACTUATOR MAY Y312071 Contact Us For Availability
024
MAY Y305185 MAY Y305185 Contact Us For Availability
025
MAY Y312904 MAY Y312904 Contact Us For Availability
025
MAY Y310632 MAY Y310632 Contact Us For Availability
025
SPRING WASHER MAY 312073 Contact Us For Availability
025
MAY 314077 MAY 314077 Contact Us For Availability
025
MAY Y312964 MAY Y312964 Contact Us For Availability
026
MAY Y312905 MAY Y312905 Contact Us For Availability
026
MAY 312250 MAY 312250 Contact Us For Availability
026
MAY 214648 MAY 214648 Contact Us For Availability
026
MAY Y312527 MAY Y312527 Contact Us For Availability
027
MAY Y313309 MAY Y313309 Contact Us For Availability
027
MAY Y312951 MAY Y312951 Contact Us For Availability
027
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
027
COVER,THERMOSTAT OPENING MAY Y312853 Contact Us For Availability
028
SCREW, BAFFLE MAY 313122 Contact Us For Availability
028
MAY Y313424 MAY Y313424 Contact Us For Availability
028
MAY Y313439 MAY Y313439 Contact Us For Availability
028
MAY Y312893 MAY Y312893 Contact Us For Availability
029
LATCH, COVER PLATE MAY Y313427 Contact Us For Availability
029
MAY 314073 MAY 314073 Contact Us For Availability
029
MAY Y302924 MAY Y302924 Contact Us For Availability
029
OUTLET GRID & DUCT MAY Y313794 Contact Us For Availability
029
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
030
PLATE, LATCH MAY 313428 Contact Us For Availability
030
MAY 410730 MAY 410730 Contact Us For Availability
030
MAY Y312576 MAY Y312576 Contact Us For Availability
030
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
030
COVER, BLOWER MAY Y312895 Contact Us For Availability
031
MAY 910181 MAY 910181 Contact Us For Availability
031
BRACKET, SLIDE MAY Y312577 Contact Us For Availability
031
TUMBLER No. MAY Y314153 Contact Us For Availability
032
MAY Y313559 MAY Y313559 Contact Us For Availability
032
MAY Y312578 MAY Y312578 Contact Us For Availability
033
GROMMET, CONTROL CENTER MAY Y313671 Contact Us For Availability
033
MAY 314155 MAY 314155 Contact Us For Availability
034
MAY 400008 MAY 400008 Contact Us For Availability
034
MAY 314158 MAY 314158 Contact Us For Availability
034
CABLE STRAP-HARNESS MAY 910768 Contact Us For Availability
036
MAY 911050 MAY 911050 Contact Us For Availability
037
MAY Y313262 MAY Y313262 Contact Us For Availability
038
MAY Y313561 MAY Y313561 Contact Us For Availability
041
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 901220 MAY 901220 Contact Us For Availability
043
MAY 910343 MAY 910343 Contact Us For Availability
× ![]()
