Model GE DDG9280GAL Dryer Gas – Common Parts & Diagrams
BACKSPLASH ASSEMBLY
BLOWER & DRIVE ASM.

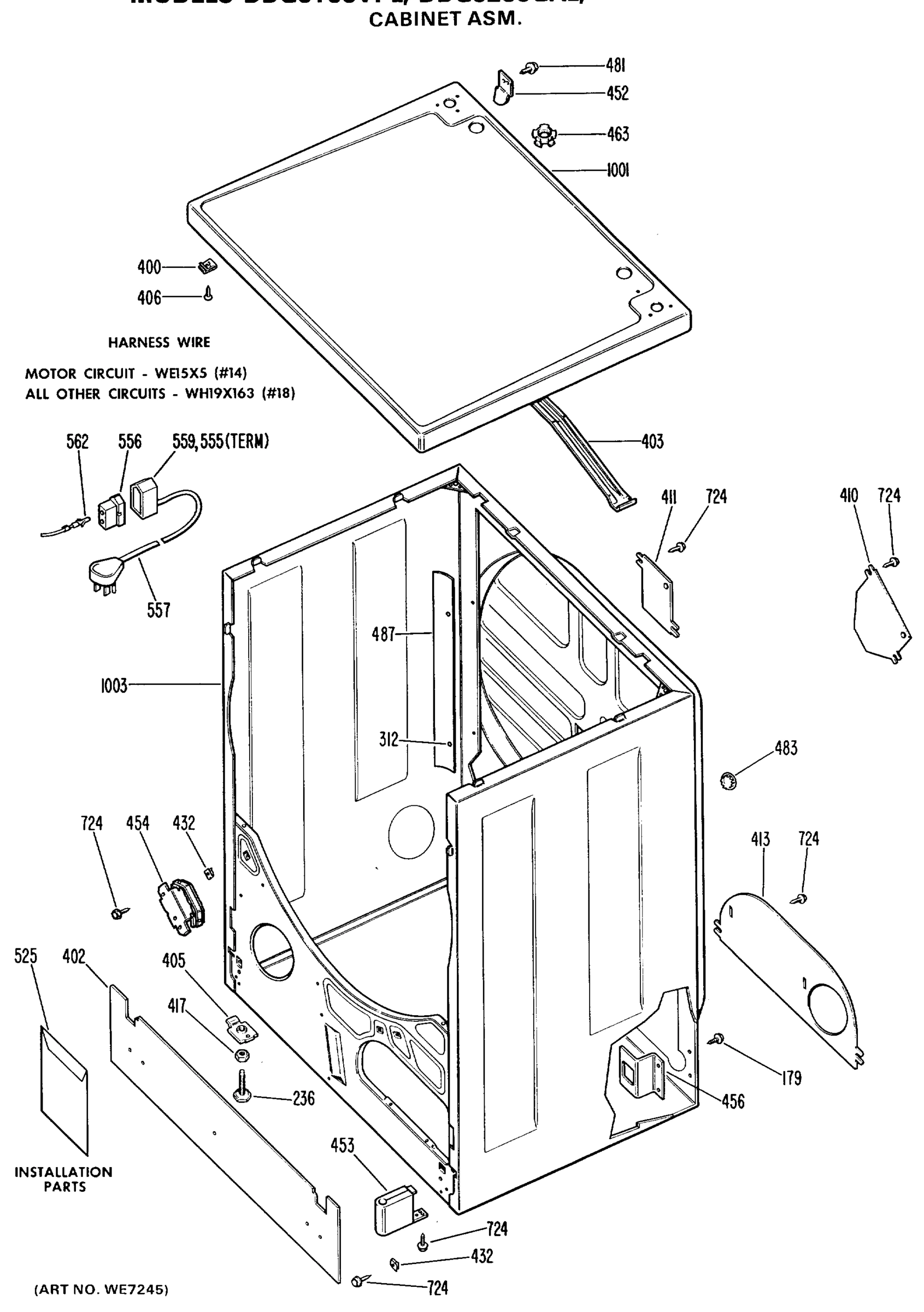

CABINET ASM.

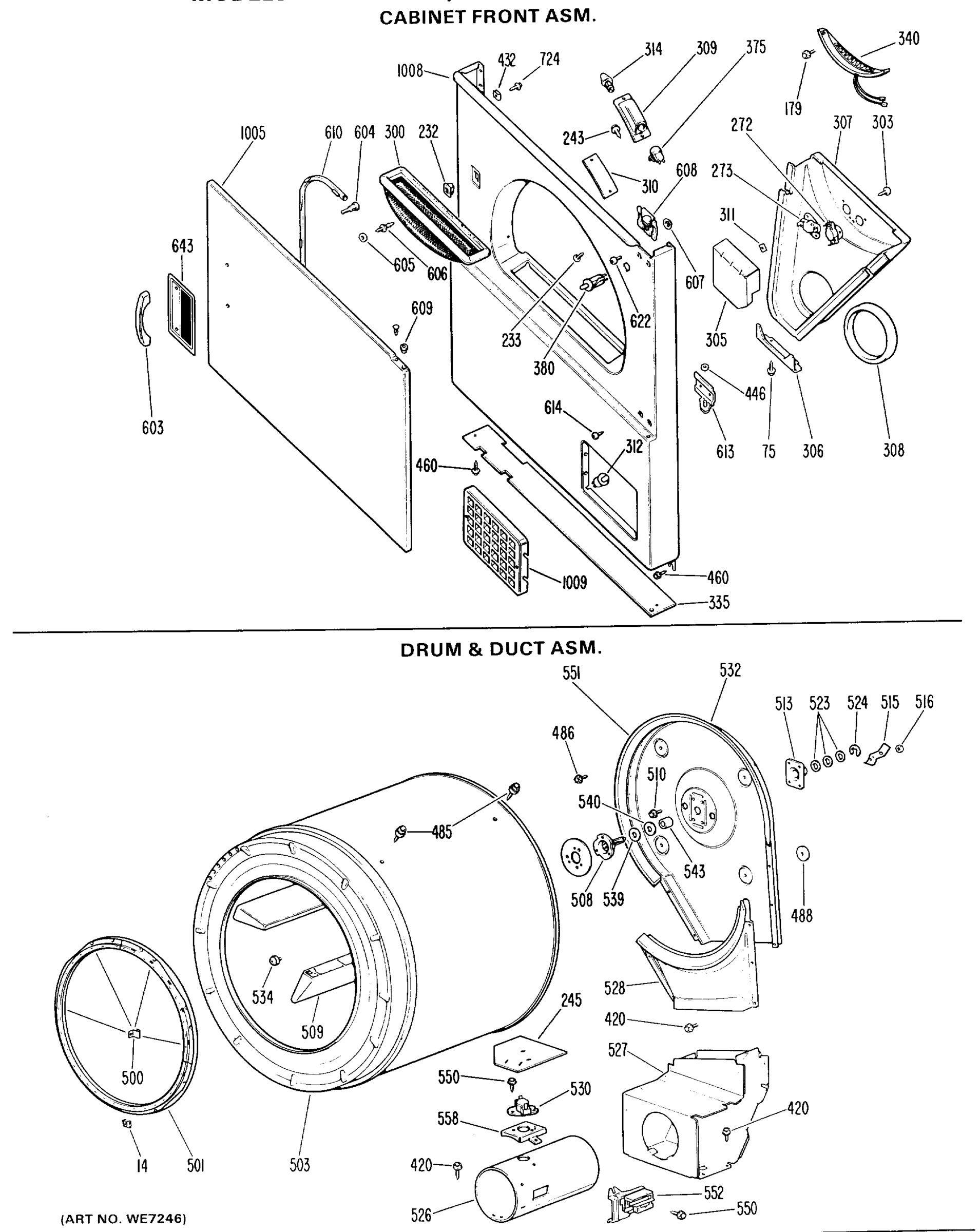

CABINET FRONT ASM.
Common parts from model GE DDG9280GAL Dryer Gas
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WE19X0793 GEN WE19X0793 Contact Us For Availability
4
GEN WE19X0792 GEN WE19X0792 Contact Us For Availability
7
GEN WE01X0978 GEN WE01X0978 Contact Us For Availability
12
SPEEDNUT GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0857 GEN WE19X0857 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
15
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
19
GEN WE01X1069 GEN WE01X1069 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
23
GEN WH16X0401 GEN WH16X0401 Contact Us For Availability
26
GEN WH42X2131 GEN WH42X2131 Contact Us For Availability
35
GEN WE04X0613 GEN WE04X0613 Contact Us For Availability
36
GEN WE01X0981 GEN WE01X0981 Contact Us For Availability
38
GEN WE13X0156 GEN WE13X0156 Contact Us For Availability
40
GEN WE01X0916 GEN WE01X0916 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
43
GEN WH16X0343 GEN WH16X0343 Contact Us For Availability
46
GEN WE04X0425 GEN WE04X0425 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
47
GEN WE01X0706 GEN WE01X0706 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
84
GEN WE01X0704 GEN WE01X0704 Contact Us For Availability
87
GEN WE04X0605 GEN WE04X0605 Contact Us For Availability
90
GEN WH16X0434 GEN WH16X0434 Contact Us For Availability
100
GEN WE14X0675 GEN WE14X0675 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
185
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
BRACKET-MOTOR GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
215
GEN WE03X0062 GEN WE03X0062 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0161 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
272
GEN WE04X0607 GEN WE04X0607 Contact Us For Availability
273
GEN WE04X0608 GEN WE04X0608 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0165 GEN WE14X0165 Contact Us For Availability
309
HOUSING-LAMP GEN WE01X0427 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
314
LAMP K GEN WX12X1456 Contact Us For Availability
335
PLATE-COVER GEN WE20X0655 Contact Us For Availability
340
GEN WE04X0667 GEN WE04X0667 Contact Us For Availability
375
GEN WE04X0185 GEN WE04X0185 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
410
GEN WE01X1048 GEN WE01X1048 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
GEN WE14X0167 GEN WE14X0167 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT-CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
453
SUPPORT-LEVELING SCREW GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
460
SCR 10-16 AB HXW 7/8 S GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
483
GEN WE01X1044 GEN WE01X1044 Contact Us For Availability
485
GEN WE02X0312 GEN WE02X0312 Contact Us For Availability
487
SHIELD-WIRE GEN WE01X1050 Contact Us For Availability
488
SPACER-DIFFUSER GEN WE01X1051 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0059 GEN WE21X0059 Contact Us For Availability
509
BAFFLE-DRUM GEN WE01X1052 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0185 GEN WE25X0185 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0158 Contact Us For Availability
527
GEN WE14X0160 GEN WE14X0160 Contact Us For Availability
528
COVER-DUCT GEN WE14X0168 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
532
GEN WE14X0159 GEN WE14X0159 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
PAD-FELT GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
HOUSING-TERMINAL GEN WH12X0497 Contact Us For Availability
557
GEN WE08X0031 GEN WE08X0031 Contact Us For Availability
558
BRACKET THERMOSTAT GEN WE13X0155 Contact Us For Availability
559
HOUSING-TERMINAL GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
603
GEN WE01X1054 GEN WE01X1054 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCR 10-32 TT PH 3/8 S GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
643
GEN WE19X0861 GEN WE19X0861 Contact Us For Availability
703
GEN 8-32X7/16 GEN 8-32X7/16 Contact Us For Availability
709
GEN WE01X0968 GEN WE01X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
712
GEN WE14X0141 GEN WE14X0141 Contact Us For Availability
713
GEN WE01X0758 GEN WE01X0758 Contact Us For Availability
714
GEN WE01X0804 GEN WE01X0804 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
GEN WZ04X0220 GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
BRACKET-SPACER GEN WE13X0118 Contact Us For Availability
723
BRACKET VALVE GEN WE13X0117 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
725
GEN WH12X0237 GEN WH12X0237 Contact Us For Availability
726
GEN 6-32X7/16 GEN 6-32X7/16 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0560 GEN WE04X0560 Contact Us For Availability
730
SCR (GAS VALVE ASM) GEN 8-32X5/8 Contact Us For Availability
1001
GEN WE20X0664 GEN WE20X0664 Contact Us For Availability
1001
GEN WE20X0665 GEN WE20X0665 Contact Us For Availability
1001
GEN WE20X0666 GEN WE20X0666 Contact Us For Availability
1001
GEN WE20X0683 GEN WE20X0683 Contact Us For Availability
1001
GEN WE20X0684 GEN WE20X0684 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1002
GEN WH46X0247 GEN WH46X0247 Contact Us For Availability
1002
GEN WH46X0248 GEN WH46X0248 Contact Us For Availability
1003
GEN WE20X0673 GEN WE20X0673 Contact Us For Availability
1003
GEN WE20X0674 GEN WE20X0674 Contact Us For Availability
1003
GEN WE20X0675 GEN WE20X0675 Contact Us For Availability
1003
GEN WE20X0691 GEN WE20X0691 Contact Us For Availability
1003
GEN WE20X0692 GEN WE20X0692 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1005
GEN WE10X0296 GEN WE10X0296 Contact Us For Availability
1005
GEN WE10X0297 GEN WE10X0297 Contact Us For Availability
1008
CABINET FRONT ASM WH GEN WE20X0500 Contact Us For Availability
1008
CABINET FRONT ASM HA GEN WE20X0568 Contact Us For Availability
1008
CABINET FRONT ASM AD GEN WE20X0570 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
1009
GEN WE10X0294 GEN WE10X0294 Contact Us For Availability
1009
GEN WE10X0295 GEN WE10X0295 Contact Us For Availability
9999
GEN 49-9069 GEN 49-9069 Contact Us For Availability
9999
GEN 49-9506 GEN 49-9506 Contact Us For Availability
× ![]()
