Model GE DDG7580VCL Dryer Electric – Common Parts & Diagrams
BACKSPLASH ASSEMBLY
CABINET ASM. (GAS)

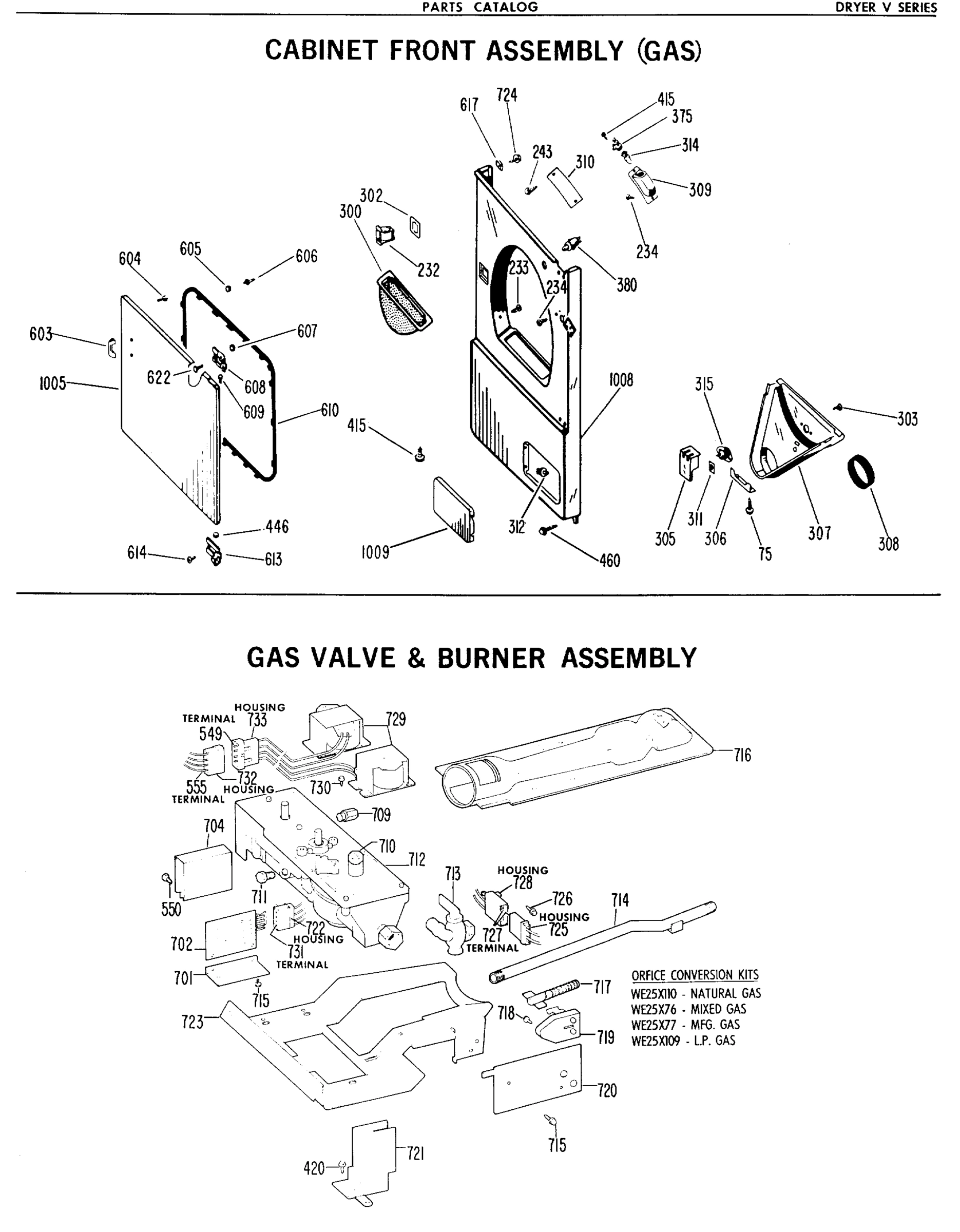

CABINET FRONT ASSEMBLY (GAS)

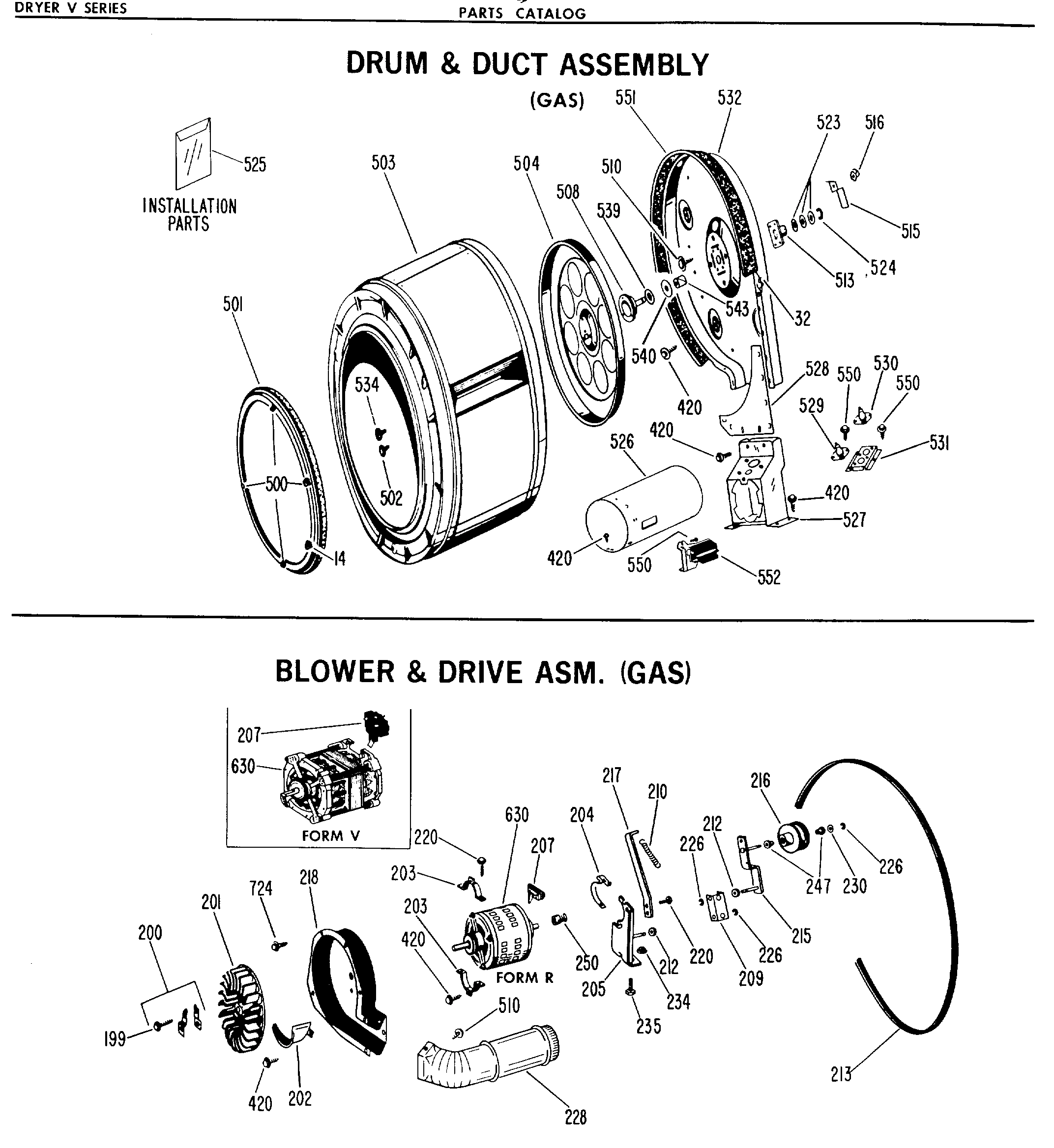

DRUM & DUCT ASSEMBLY (GAS)

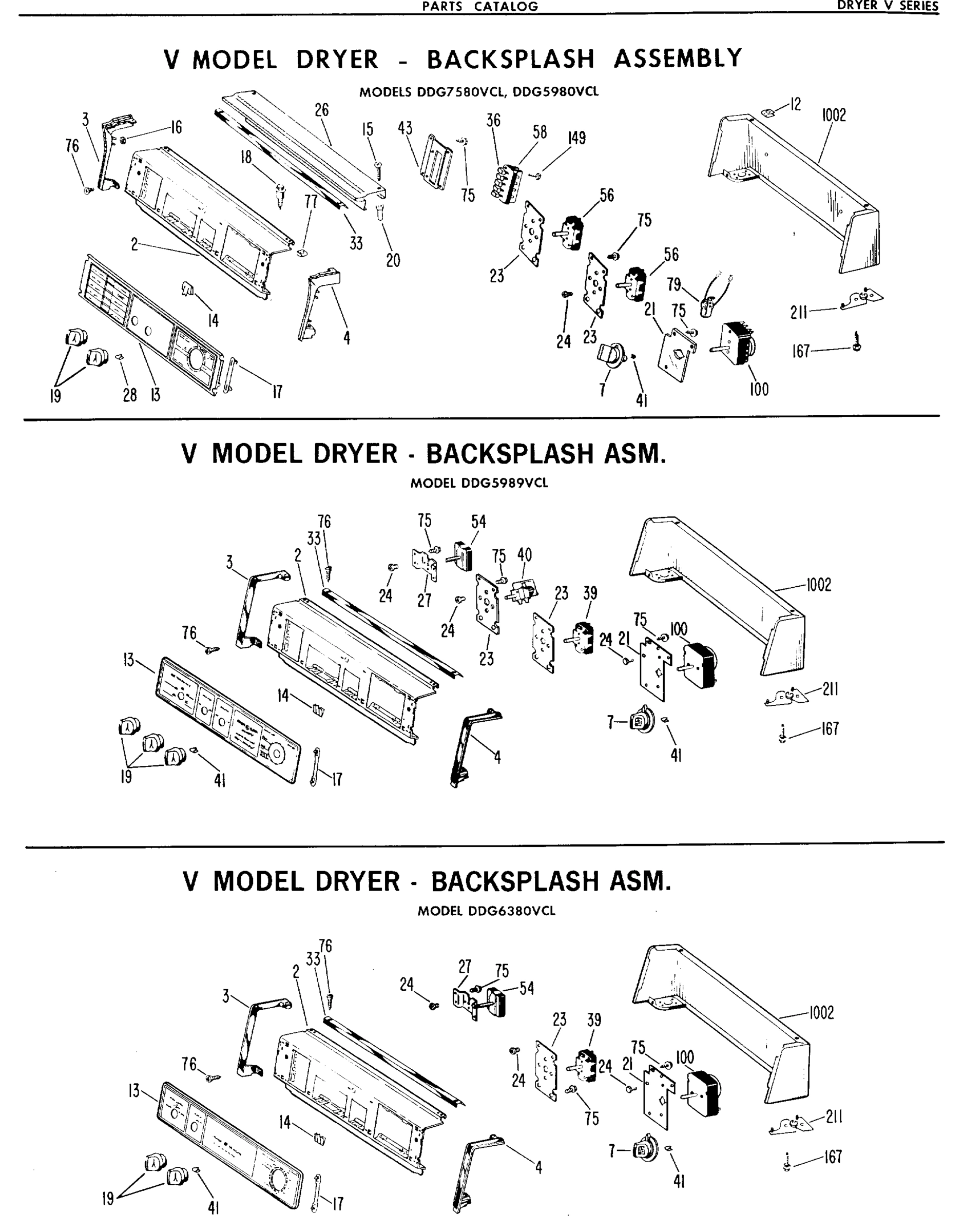

V MODEL DRYER - BACKSPLASH ASSEMBLY
Common parts from model GE DDG7580VCL Dryer Electric
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WE19X0519 GEN WE19X0519 Contact Us For Availability
4
GEN WE19X0520 GEN WE19X0520 Contact Us For Availability
7
GEN WE01X0946 GEN WE01X0946 Contact Us For Availability
12
SPEEDNUT GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0726 GEN WE19X0726 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
15
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
16
GEN WE02X0182 GEN WE02X0182 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
18
GEN WE02X0208 GEN WE02X0208 Contact Us For Availability
19
KNOB SWITCH GEN WH01X1977 Contact Us For Availability
20
GEN WE01X0685 GEN WE01X0685 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
23
GEN WH16X0346 GEN WH16X0346 Contact Us For Availability
26
GEN WH42X1134 GEN WH42X1134 Contact Us For Availability
28
GEN WH01X1974 GEN WH01X1974 Contact Us For Availability
32
STRAP-STEEL GEN WH16X0370 Contact Us For Availability
36
GEN WH01X2257 GEN WH01X2257 Contact Us For Availability
41
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
43
GEN WH16X0343 GEN WH16X0343 Contact Us For Availability
56
GEN WE04X0482 GEN WE04X0482 Contact Us For Availability
58
GEN WE04X0534 GEN WE04X0534 Contact Us For Availability
70
SCREW 10-15 X 7/16 HEX GEN WH02X0937 Contact Us For Availability
76
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
77
GEN WE02X0196 GEN WE02X0196 Contact Us For Availability
79
GEN WE01X0690 GEN WE01X0690 Contact Us For Availability
100
GEN WE04X0533 GEN WE04X0533 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW 14-10 X 1 HEX GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
SCREW 8-18 X 5/8 HEX GEN WE02X0275 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0139 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
243
SCREW 8-15 X 3/8 TRUSS GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
303
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0117 GEN WE14X0117 Contact Us For Availability
309
HOUSING-LAMP GEN WE01X0427 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
314
GEN WX12X0679 GEN WX12X0679 Contact Us For Availability
315
GEN WE04X0551 GEN WE04X0551 Contact Us For Availability
375
GEN WE04X0185 GEN WE04X0185 Contact Us For Availability
380
GEN WE04X1197 GEN WE04X1197 Contact Us For Availability
400
GEN WE02X1134 GEN WE02X1134 Contact Us For Availability
402
GEN WE20X1347 GEN WE20X1347 Contact Us For Availability
403
GEN WE14X1137 GEN WE14X1137 Contact Us For Availability
404
GEN WE01X1425 GEN WE01X1425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
406
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
BOX-RECESS GEN WE14X0066 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCREW 10-16 X 3/8 HEX GEN WH02X0893 Contact Us For Availability
432
GEN WE02X0282 GEN WE02X0282 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
453
SUPPORT-LEVELING SCREW GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE01X0937 GEN WE01X0937 Contact Us For Availability
458
BRACKET-TERMINAL BOARD GEN WE01X0411 Contact Us For Availability
460
SCREW 10-16 X 7/8 HEX GEN WZ04X0264 Contact Us For Availability
462
BOARD ASM-TERMINAL GEN WE04X0203 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
502
GEN WE02X0277 GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
PLATE-DIFFUSER GEN WE14X0072 Contact Us For Availability
529
GEN WE04X0419 GEN WE04X0419 Contact Us For Availability
530
GEN WE04X0552 GEN WE04X0552 Contact Us For Availability
531
BRACKET-THERMO GEN WE13X0127 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCREW 10-24 X 1/2 TRUSS GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
549
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
550
SCREW 8-18 X 3/8 HEX GEN WE02X0281 Contact Us For Availability
551
PAD-FELT K GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
557
CORDSET ASM-GROUNDING GEN WE08X0023 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCREW 10-32 X 3/8 PAN GEN WZ04X0257 Contact Us For Availability
617
NUT CLIP GEN WH02X0782 Contact Us For Availability
622
SCREW 10-32 X 1/2 ROUND GEN WE02X0177 Contact Us For Availability
701
GEN WE13X0136 GEN WE13X0136 Contact Us For Availability
702
GEN WE04X0580 GEN WE04X0580 Contact Us For Availability
704
GEN WE01X0969 GEN WE01X0969 Contact Us For Availability
709
GEN WE04X0968 GEN WE04X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
712
GEN WE14X0142 GEN WE14X0142 Contact Us For Availability
713
GEN WE01X0758 GEN WE01X0758 Contact Us For Availability
714
GEN WE01X0804 GEN WE01X0804 Contact Us For Availability
715
SCREW 8-18 X 13/32 HEX GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
SCREW 6-20 X 1/2 HEX GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
GEN WE13X9118 GEN WE13X9118 Contact Us For Availability
722
GEN WE01X0973 GEN WE01X0973 Contact Us For Availability
723
GEN WE13X0135 GEN WE13X0135 Contact Us For Availability
724
SCREW 10-16 X 1/2 HEX GEN WZ04X0288 Contact Us For Availability
725
GEN WH12X0237 GEN WH12X0237 Contact Us For Availability
726
GEN 6-32X3/8 GEN 6-32X3/8 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0581 GEN WE04X0581 Contact Us For Availability
730
GEN 8-32X5/8 GEN 8-32X5/8 Contact Us For Availability
731
GEN WE01X0974 GEN WE01X0974 Contact Us For Availability
732
GEN WE01X0972 GEN WE01X0972 Contact Us For Availability
733
GEN WE01X0970 GEN WE01X0970 Contact Us For Availability
1001
GEN WE20X0530 GEN WE20X0530 Contact Us For Availability
1001
GEN WE20X0555 GEN WE20X0555 Contact Us For Availability
1001
GEN WE20X0556 GEN WE20X0556 Contact Us For Availability
1001
GEN WE20X0557 GEN WE20X0557 Contact Us For Availability
1001
GEN WE20X0558 GEN WE20X0558 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0213 GEN WH46X0213 Contact Us For Availability
1002
GEN WH46X0214 GEN WH46X0214 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
BASE & WRAPPER ASM WH GEN WE20X0396 Contact Us For Availability
1003
BASE & WRAPPER ASM FA GEN WE20X0559 Contact Us For Availability
1003
BASE & WRAPPER ASM HA GEN WE20X0560 Contact Us For Availability
1003
BASE & WRAPPER ASM CF GEN WE20X0561 Contact Us For Availability
1003
BASE & WRAPPER ASM AD GEN WE20X0562 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0259 GEN WE10X0259 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0261 GEN WE10X0261 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1008
WELD ASM-CAB FRONT WH GEN WE20X0500 Contact Us For Availability
1008
GEN WE20X0567 GEN WE20X0567 Contact Us For Availability
1008
WELD ASM-CAB FRONT HA GEN WE20X0568 Contact Us For Availability
1008
GEN WE20X0569 GEN WE20X0569 Contact Us For Availability
1008
WELD ASM-CAB FRONT AD GEN WE20X0570 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
GEN WE10X0253 GEN WE10X0253 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
GEN WE10X0255 GEN WE10X0255 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
9999
GEN 49-9035 GEN 49-9035 Contact Us For Availability
9999
GEN 49-9225-2 GEN 49-9225-2 Contact Us For Availability
9999
GEN 49-9332 GEN 49-9332 Contact Us For Availability
× ![]()
