Model GE DDE9200DAL – Common Parts & Diagrams

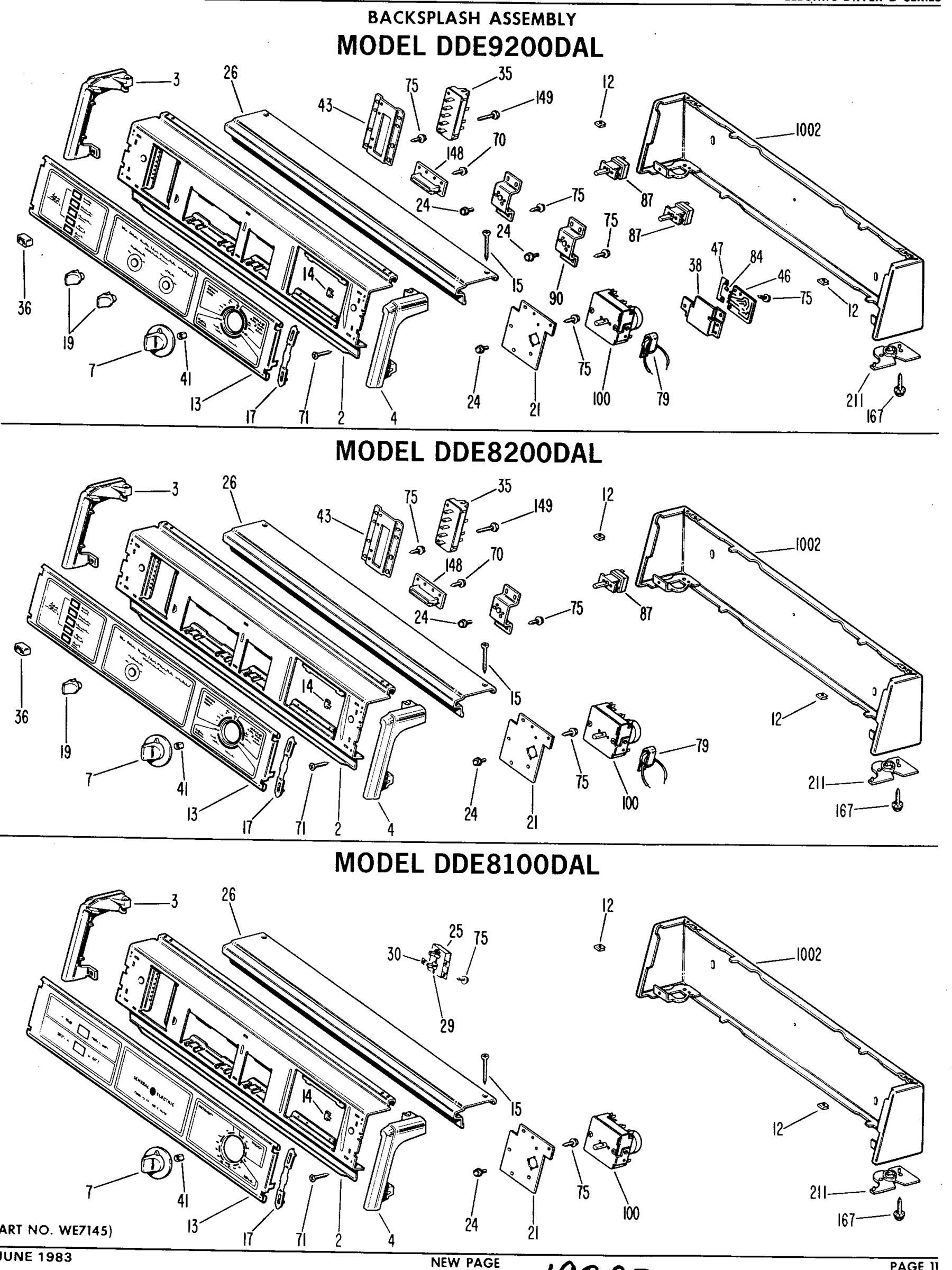

BACKSPLASH ASSEMBLY

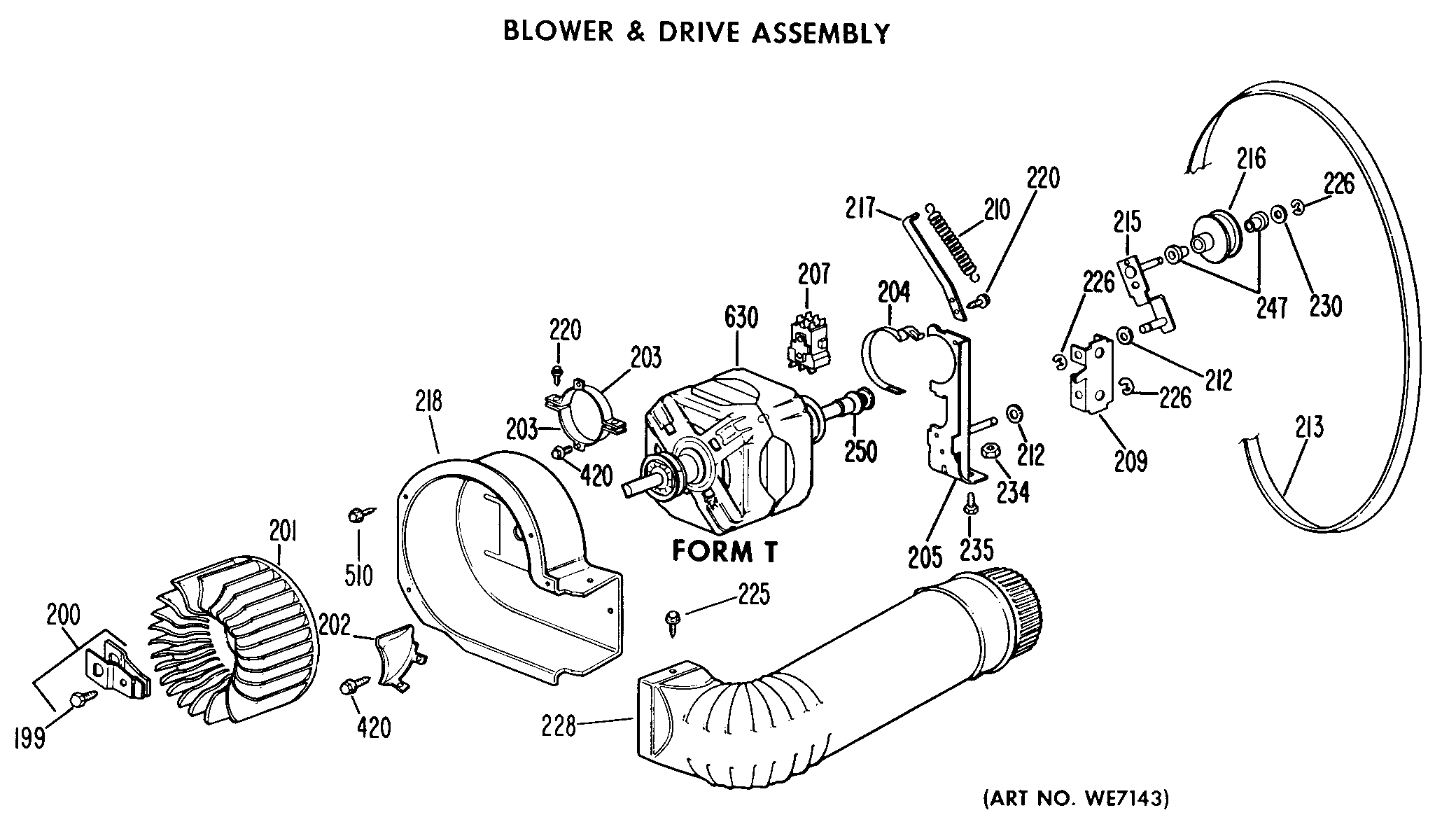

BLOWER & DRIVE ASSEMBLY
CABINET ASSEMBLY
CABINET FRONT ASSEMBLY
Common parts from model GE DDE9200DAL
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WE19X0793 GEN WE19X0793 Contact Us For Availability
4
GEN WE19X0792 GEN WE19X0792 Contact Us For Availability
7
GEN WE01X0978 GEN WE01X0978 Contact Us For Availability
12
SPEEDNUT GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0799 GEN WE19X0799 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
15
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
25
GEN WE04X0352 GEN WE04X0352 Contact Us For Availability
26
GEN WH42X2033 GEN WH42X2033 Contact Us For Availability
29
GEN WH01X1394 GEN WH01X1394 Contact Us For Availability
30
GEN WE01X0835 GEN WE01X0835 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
100
GEN WE04X0525 GEN WE04X0525 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW 14-10 X I HEX GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
SCREW 8-18 X 5/8 HEX GEN WE02X0275 Contact Us For Availability
225
SCREW 10-16 X 1/2 HEX GEN WE02X0276 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0166 Contact Us For Availability
229
HOUSING-RECEPTACLE GEN WH12X0183 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
233
SCREW 8-15 X 1/2 OVAL GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
243
SCREW 8-15 X 3/8 TRUSS GEN WZ05X0155 Contact Us For Availability
245
GEN WE01X1053 GEN WE01X1053 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
303
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0143 GEN WE14X0143 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
315
GEN WE04X0600 GEN WE04X0600 Contact Us For Availability
335
PLATE-COVER GEN WE20X0655 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
410
GEN WE01X1048 GEN WE01X1048 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
GEN WE14X0167 GEN WE14X0167 Contact Us For Availability
414
STRAP-GROUND GEN WE01X0339 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
BLOCK-TERMINAL GEN WE04X0168 Contact Us For Availability
420
SCREW 10-16 X 3/8 HEX GEN WH02X0893 Contact Us For Availability
432
NUT-CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE13X0157 GEN WE13X0157 Contact Us For Availability
459
GEN WE02X0092 GEN WE02X0092 Contact Us For Availability
460
SCREW 10-16 X 7/8 HEX GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
470
COVER, PIPE HOLE GEN WE01X1056 Contact Us For Availability
481
SCREW 12-14 X 1/2 HEX GEN WH02X0967 Contact Us For Availability
482
BUTTON PLUG GEN WE01X1043 Contact Us For Availability
484
GEN WE01X1045 GEN WE01X1045 Contact Us For Availability
485
GEN WE02X0312 GEN WE02X0312 Contact Us For Availability
487
SHIELD-WIRE GEN WE01X1050 Contact Us For Availability
488
GEN WE01X1051 GEN WE01X1051 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0059 GEN WE21X0059 Contact Us For Availability
509
GEN WE01X1052 GEN WE01X1052 Contact Us For Availability
513
GEN WE01X0461 GEN WE01X0461 Contact Us For Availability
519
GEN WE11X0080 GEN WE11X0080 Contact Us For Availability
520
INSULATOR OUTER GEN WE01X0158 Contact Us For Availability
521
INSULATOR INNER GEN WE01X0159 Contact Us For Availability
522
STUD HEATER GEN WE02X0136 Contact Us For Availability
523
WASHER FLAT GEN WE02X0183 Contact Us For Availability
524
RING RETAINING GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0186 GEN WE25X0186 Contact Us For Availability
527
GEN WE14X0164 GEN WE14X0164 Contact Us For Availability
528
COVER SEAL ASM GEN WE14X0162 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
532
GEN WE14X0163 GEN WE14X0163 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
540
WASHER FLAT GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AB HWX 3/8 S GEN WE02X0281 Contact Us For Availability
551
GEN WE09X0044 GEN WE09X0044 Contact Us For Availability
558
GEN WE13X0158 GEN WE13X0158 Contact Us For Availability
603
GEN WE01X1049 GEN WE01X1049 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCREW 10-32 X 3/8 PAN GEN WZ04X0257 Contact Us For Availability
617
GEN WH02X0782 GEN WH02X0782 Contact Us For Availability
622
SCREW 10-32 X 1/2 ROUND GEN WE02X0177 Contact Us For Availability
643
GEN WE19X0836 GEN WE19X0836 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
724
SCREW 10-16 X 1/2 HEX GEN WZ04X0288 Contact Us For Availability
1001
GEN WE20X0649 GEN WE20X0649 Contact Us For Availability
1001
GEN WE20X0650 GEN WE20X0650 Contact Us For Availability
1001
GEN WE20X0651 GEN WE20X0651 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
GEN WE20X0652 GEN WE20X0652 Contact Us For Availability
1003
GEN WE20X0653 GEN WE20X0653 Contact Us For Availability
1003
GEN WE20X0654 GEN WE20X0654 Contact Us For Availability
1005
DOOR ASM. WH GEN WE10X0258 Contact Us For Availability
1005
DOOR ASM. HA GEN WE10X0260 Contact Us For Availability
1005
DOOR ASM. AD GEN WE10X0262 Contact Us For Availability
1008
GEN WE20X0496 GEN WE20X0496 Contact Us For Availability
1008
GEN WE20X0564 GEN WE20X0564 Contact Us For Availability
1008
GEN WE20X0566 GEN WE20X0566 Contact Us For Availability
9999
GEN 49-9064 GEN 49-9064 Contact Us For Availability
9999
GEN 49-9458 GEN 49-9458 Contact Us For Availability
9999
GEN 49-9459 GEN 49-9459 Contact Us For Availability
× ![]()
