Model GE DDE7100MCL – Common Parts & Diagrams
0
CABINET & TOP

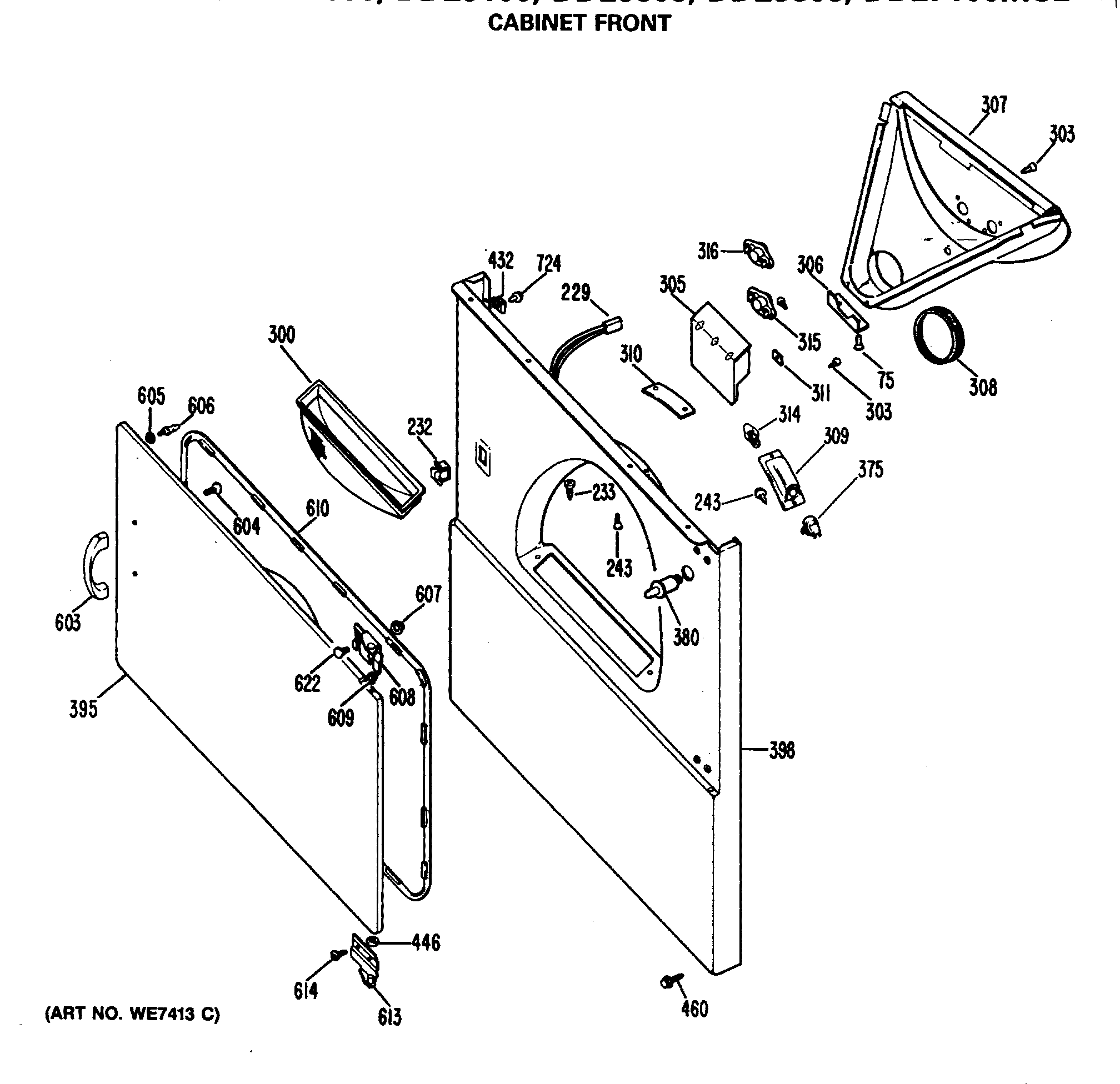

CABINET FRONT

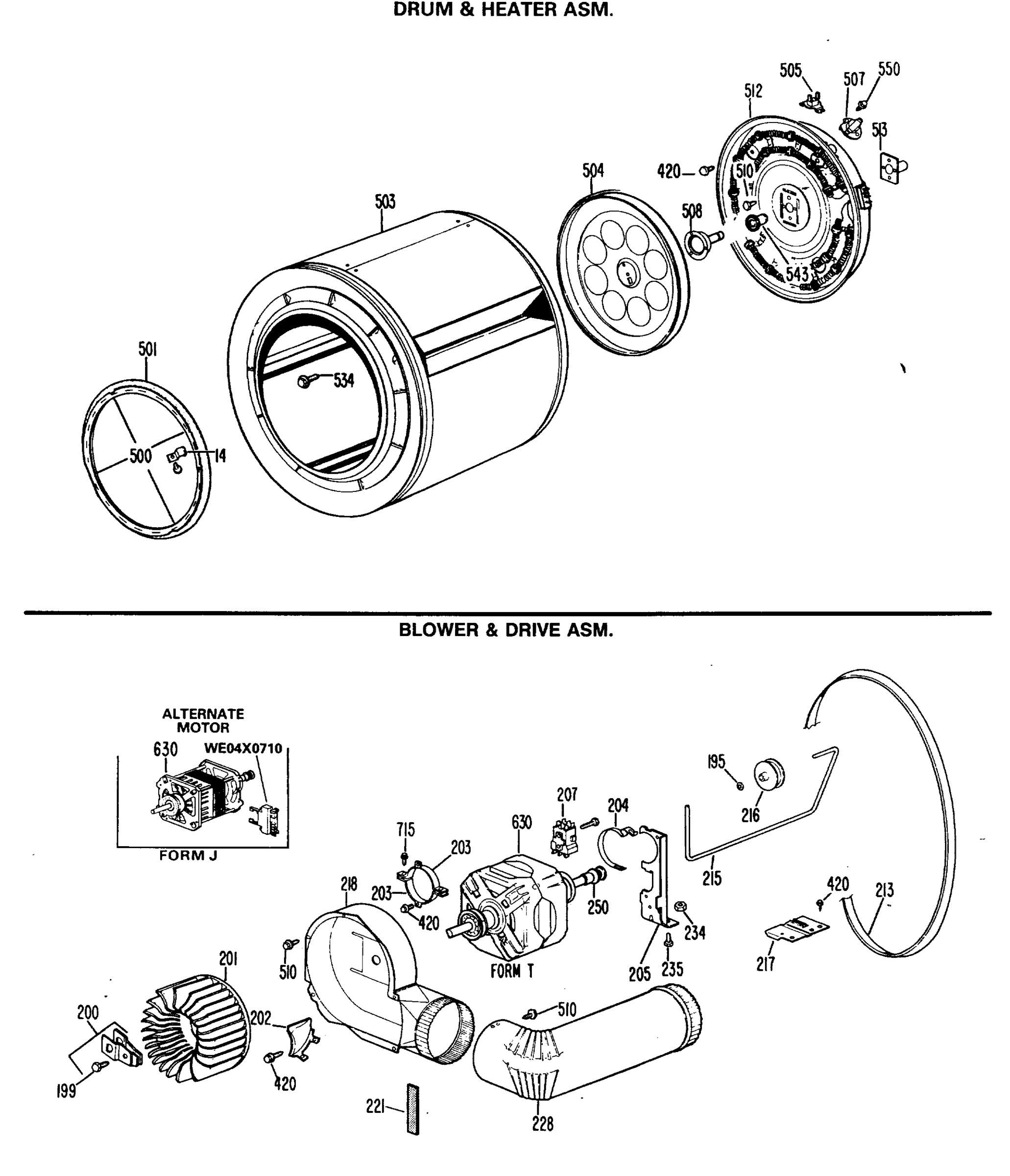

DRUM & HEATER ASM.
Common parts from model GE DDE7100MCL
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WH42X2199 GEN WH42X2199 Contact Us For Availability
4
GEN WH42X2200 GEN WH42X2200 Contact Us For Availability
7
GEN WE01X0978 GEN WE01X0978 Contact Us For Availability
12
SPEEDNUT GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0912 GEN WE19X0912 Contact Us For Availability
14
CLIP GROUND GEN WE01X0762 Contact Us For Availability
15
GEN WE02X0367 GEN WE02X0367 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
25
GEN WE04X0762 GEN WE04X0762 Contact Us For Availability
26
GEN WH42X2201 GEN WH42X2201 Contact Us For Availability
29
GEN WH01X1394 GEN WH01X1394 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
72
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
72
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
72
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
100
GEN WE04X0759 GEN WE04X0759 Contact Us For Availability
148
GEN WE04X0499 GEN WE04X0499 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
201
WHEEL BLOWER GEN WE16X0016 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
207
SWITCH START (FORM T) GEN WE04X0344 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
221
GEN WE01X1171 GEN WE01X1171 Contact Us For Availability
228
GEN WE14X0213 GEN WE14X0213 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
300
FILTER ASM LINT GEN WE18X0026 Contact Us For Availability
303
SCR 8-15 ATR 1/2 S GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0144 GEN WE14X0144 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
GEN WE04X0600 GEN WE04X0600 Contact Us For Availability
316
GEN WE04X0601 GEN WE04X0601 Contact Us For Availability
380
GEN WE04X0197 GEN WE04X0197 Contact Us For Availability
390
GEN WE01X1174 GEN WE01X1174 Contact Us For Availability
391
WELD ASM COVER WH GEN WE20X0664 Contact Us For Availability
391
WELD ASM COVER AD GEN WE20X0665 Contact Us For Availability
393
GEN WE20X0755 GEN WE20X0755 Contact Us For Availability
393
GEN WE20X0756 GEN WE20X0756 Contact Us For Availability
393
GEN WE20X0757 GEN WE20X0757 Contact Us For Availability
395
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
395
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
398
GEN WE20X0496 GEN WE20X0496 Contact Us For Availability
398
GEN WE20X0566 GEN WE20X0566 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
413
GEN WE14X0212 GEN WE14X0212 Contact Us For Availability
414
STRAP GROUND GEN WE01X0339 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE13X0162 GEN WE13X0162 Contact Us For Availability
460
SCR 10-16 AB HXW 1S GEN WZ04X0264 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
482
GEN WH01X2571 GEN WH01X2571 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
RETAINER BEARING GEN WE01X0461 Contact Us For Availability
525
GEN WE25X0097 GEN WE25X0097 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
GEN WE02X0110 GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
715
SCREW GEN WD02X5063 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
9999
GEN 31-1702 GEN 31-1702 Contact Us For Availability
9999
GEN 31-2525 GEN 31-2525 Contact Us For Availability
9999
GEN 49-9693 GEN 49-9693 Contact Us For Availability
× ![]()
