Model GE DDE5944VEL Dryer Electric – Common Parts & Diagrams
CABINET ASM.
CABINET FRONT & DOOR ASM.

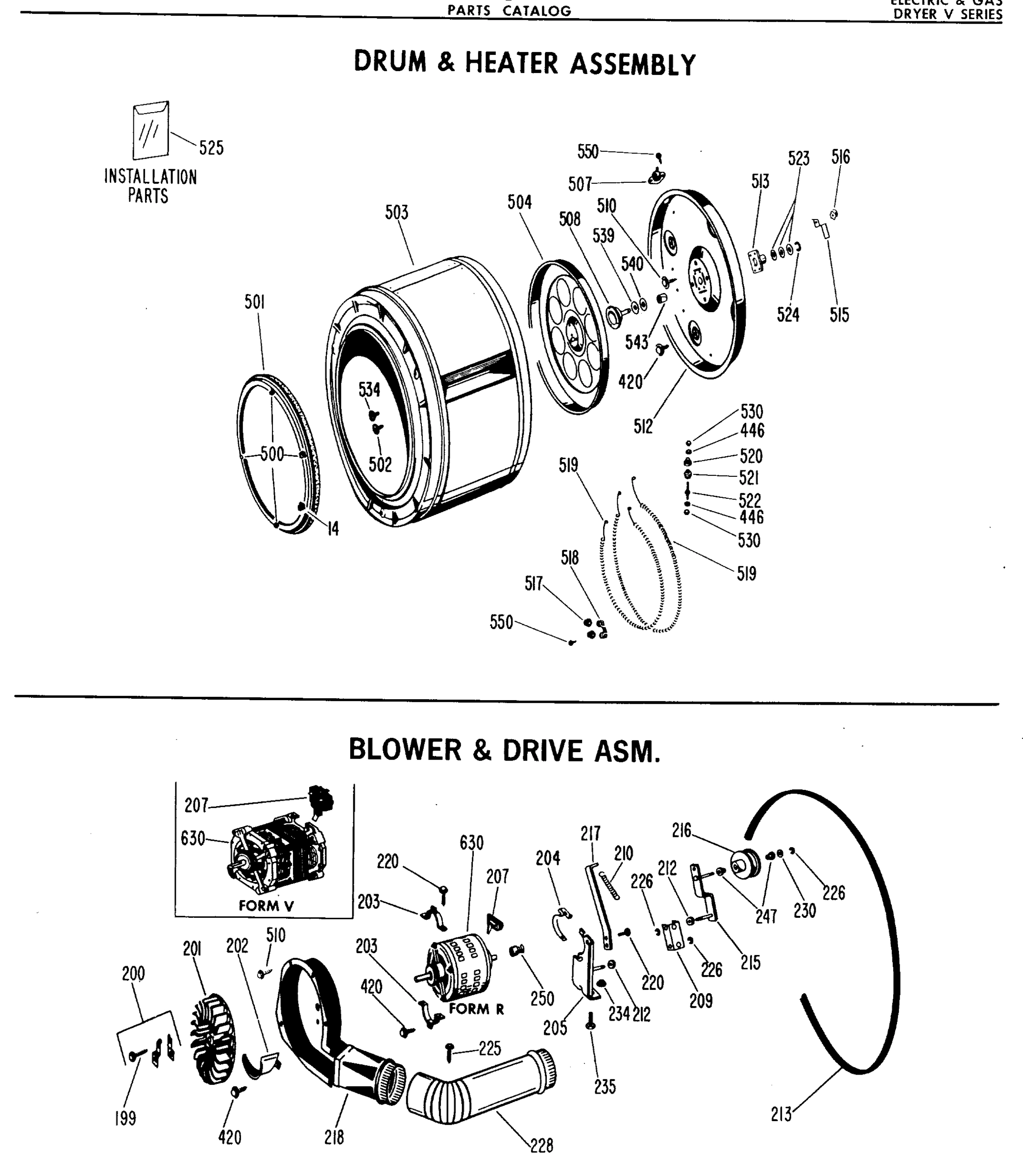

DRUM & HEATER ASSEMBLY

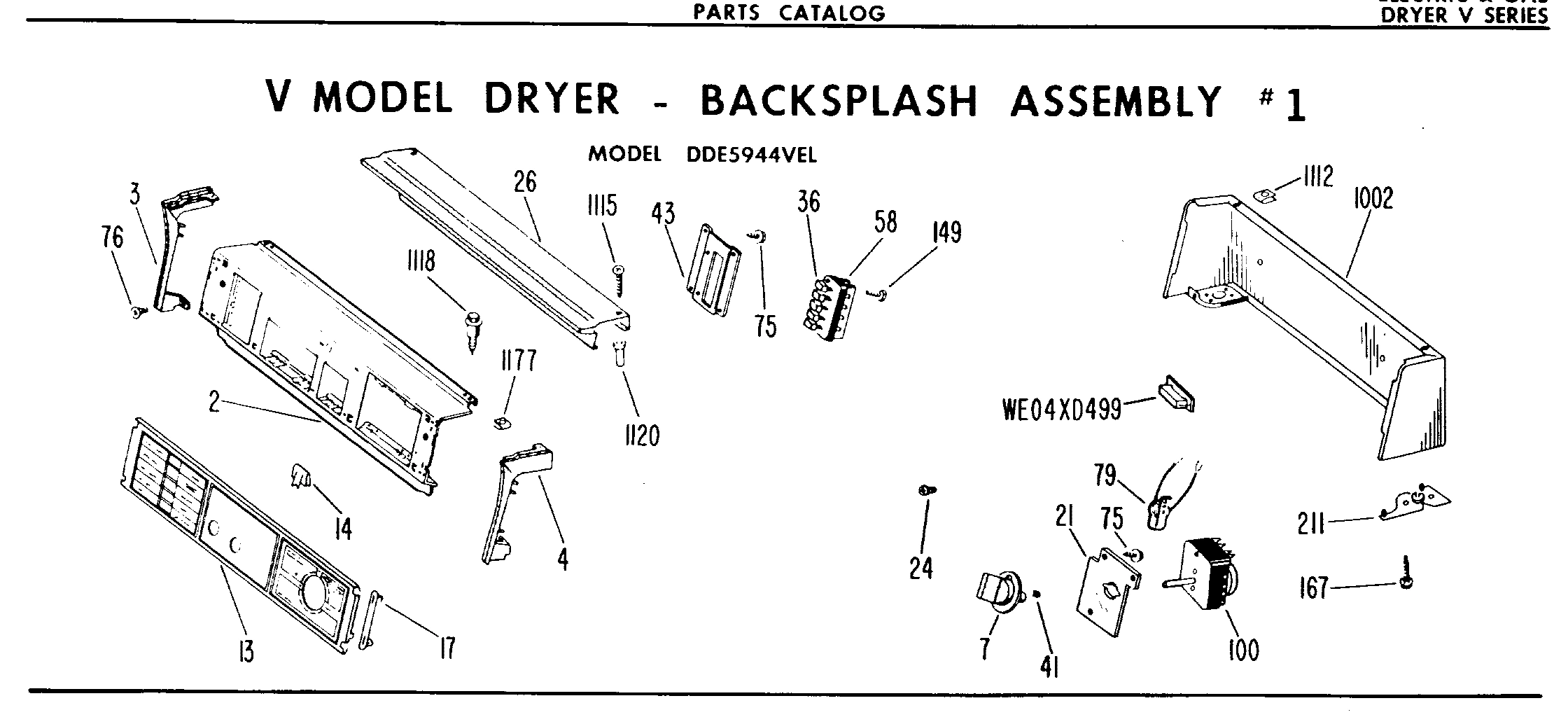

V MODEL DRYER - BACKSPLASH ASSEMBLY #1
Common parts from model GE DDE5944VEL Dryer Electric
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WE19X0519 GEN WE19X0519 Contact Us For Availability
4
GEN WE19X0520 GEN WE19X0520 Contact Us For Availability
7
GEN WE01X0946 GEN WE01X0946 Contact Us For Availability
13
GEN WE19X0788 GEN WE19X0788 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
26
GEN WH42X1134 GEN WH42X1134 Contact Us For Availability
35
GEN WE04X0577 GEN WE04X0577 Contact Us For Availability
36
GEN WH01X2257 GEN WH01X2257 Contact Us For Availability
41
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
43
GEN WH16X0343 GEN WH16X0343 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
76
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
79
GEN WE01X0690 GEN WE01X0690 Contact Us For Availability
100
GEN WE04X0533 GEN WE04X0533 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW 14-10 X 1 HEX GEN WE02X0280 Contact Us For Availability
201
GEN WE16X0016 GEN WE16X0016 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
HOUSING WELD ASM BLOWER GEN WE14X0085 Contact Us For Availability
220
SCREW 8-18 X 5/8 HEX GEN WE02X0275 Contact Us For Availability
225
SCREW 10-16 X 1/2 HEX GEN WE02X0276 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
GEN WE14X0065 GEN WE14X0065 Contact Us For Availability
229
HOUSING-RECEPTACLE GEN WH12X0183 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
243
SCREW 8-15 X 3/8 TRUSS GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
303
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT-TRAP GEN WE14X0144 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
GEN WE04X0600 GEN WE04X0600 Contact Us For Availability
316
GEN WE04X0601 GEN WE04X0601 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
406
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
412
GEN WE14X0054 GEN WE14X0054 Contact Us For Availability
413
GEN WE14X0055 GEN WE14X0055 Contact Us For Availability
414
STRAP-GROUND GEN WE01X0339 Contact Us For Availability
416
GEN WE01X0623 GEN WE01X0623 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
BLOCK-TERMINAL GEN WE04X0168 Contact Us For Availability
420
SCREW 10-16 X 3/8 HEX GEN WH02X0893 Contact Us For Availability
432
GEN WE02X0282 GEN WE02X0282 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
459
GEN WE02X0092 GEN WE02X0092 Contact Us For Availability
460
SCREW 10-16 X 7/8 HEX GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
502
GEN WE02X0277 GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
512
GEN WE11X0067 GEN WE11X0067 Contact Us For Availability
517
GEN WE01X0336 GEN WE01X0336 Contact Us For Availability
518
GEN WE01X0335 GEN WE01X0335 Contact Us For Availability
519
GEN WE11X0060 GEN WE11X0060 Contact Us For Availability
520
GEN WE01X0158 GEN WE01X0158 Contact Us For Availability
521
GEN WE01X0159 GEN WE01X0159 Contact Us For Availability
522
SCREW 1/4-28 X 1 3/4 HEX GEN WE02X0136 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0097 GEN WE25X0097 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
534
SCREW 10-24 X 1/2 TRUSS GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCREW 8-18 X 3/8 HEX GEN WE02X0281 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCREW 10-32 X 3/8 PAN GEN WZ04X0257 Contact Us For Availability
617
NUT CLIP GEN WH02X0782 Contact Us For Availability
622
SCREW 10-32 X 1/2 ROUND GEN WE02X0177 Contact Us For Availability
715
SCREW 8-18 X 13/32 HEX GEN WD02X5063 Contact Us For Availability
724
SCREW 10-16 X 1/2 HEX GEN WZ04X0288 Contact Us For Availability
1001
GEN WE20X0530 GEN WE20X0530 Contact Us For Availability
1001
GEN WE20X0555 GEN WE20X0555 Contact Us For Availability
1001
GEN WE20X0556 GEN WE20X0556 Contact Us For Availability
1001
GEN WE20X0557 GEN WE20X0557 Contact Us For Availability
1001
GEN WE20X0558 GEN WE20X0558 Contact Us For Availability
1002
GEN WH46X0211 GEN WH46X0211 Contact Us For Availability
1002
GEN WH46X0212 GEN WH46X0212 Contact Us For Availability
1002
GEN WH46X0213 GEN WH46X0213 Contact Us For Availability
1002
GEN WH46X0214 GEN WH46X0214 Contact Us For Availability
1002
GEN WH46X0215 GEN WH46X0215 Contact Us For Availability
1003
GEN WE20X0594 GEN WE20X0594 Contact Us For Availability
1003
GEN WE20X0595 GEN WE20X0595 Contact Us For Availability
1003
GEN WE20X0596 GEN WE20X0596 Contact Us For Availability
1003
GEN WE20X0597 GEN WE20X0597 Contact Us For Availability
1003
GEN WE20X0598 GEN WE20X0598 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0259 GEN WE10X0259 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0261 GEN WE10X0261 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1008
WELD ASM-CAB FRONT WH GEN WE20X0496 Contact Us For Availability
1008
GEN WE20X0563 GEN WE20X0563 Contact Us For Availability
1008
WELD ASM-CAB FRONT HA GEN WE20X0564 Contact Us For Availability
1008
GEN WE20X0565 GEN WE20X0565 Contact Us For Availability
1008
WELD ASM-CAB FRONT AD GEN WE20X0566 Contact Us For Availability
1112
SPEEDNUT GEN WB01X0358 Contact Us For Availability
1115
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
1118
GEN WE02X0208 GEN WE02X0208 Contact Us For Availability
1120
GEN WE01X0685 GEN WE01X0685 Contact Us For Availability
1177
GEN WE02X0196 GEN WE02X0196 Contact Us For Availability
9999
GEN 49-9040 GEN 49-9040 Contact Us For Availability
9999
GEN 49-9332 GEN 49-9332 Contact Us For Availability
9999
GEN 49-9420 GEN 49-9420 Contact Us For Availability
× ![]()
