Model GE DDE0580GAL Dryer Electric – Common Parts & Diagrams
BACKSPLASH ASM.
BACKSPLASH ASSEMBLY

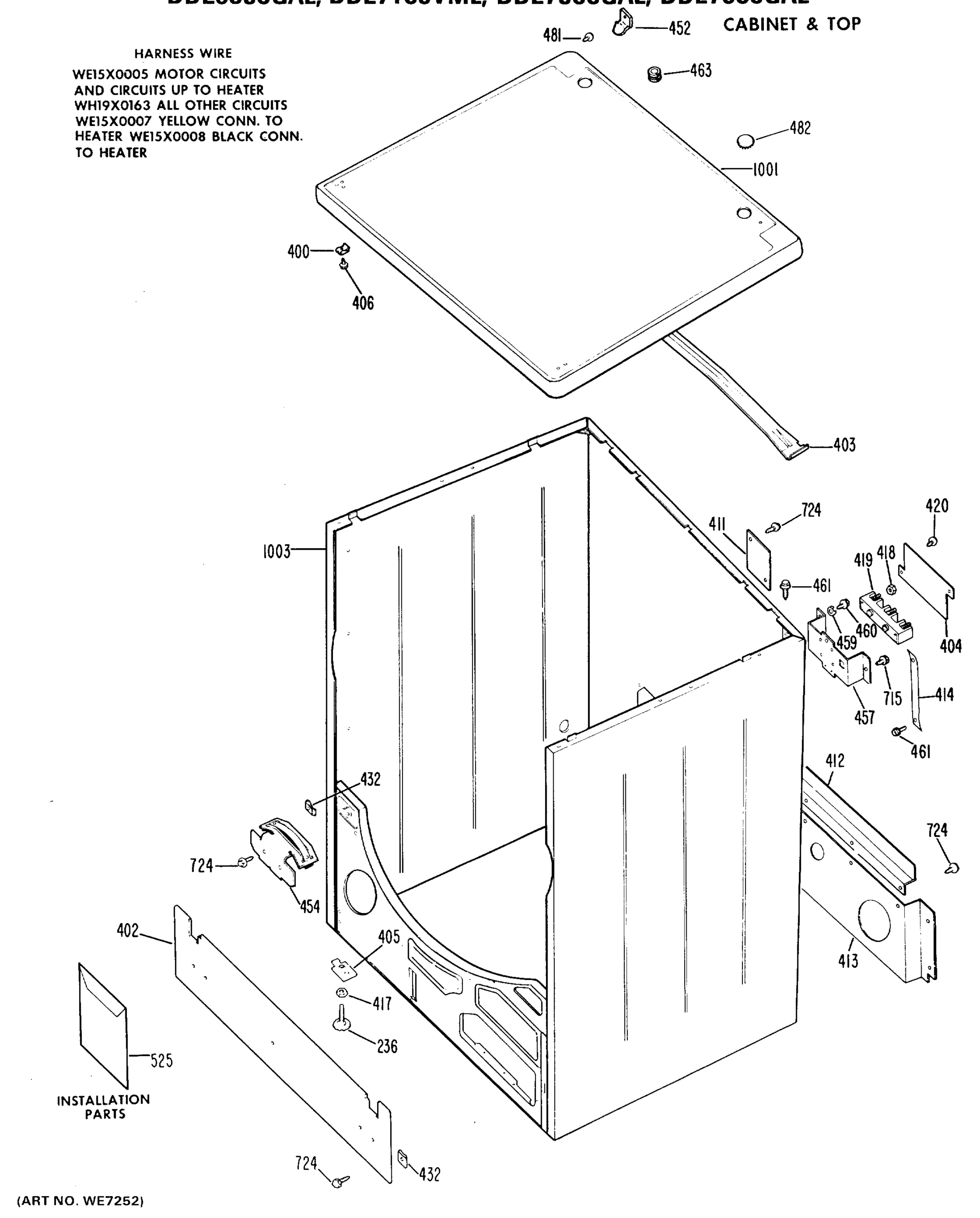

CABINET & TOP

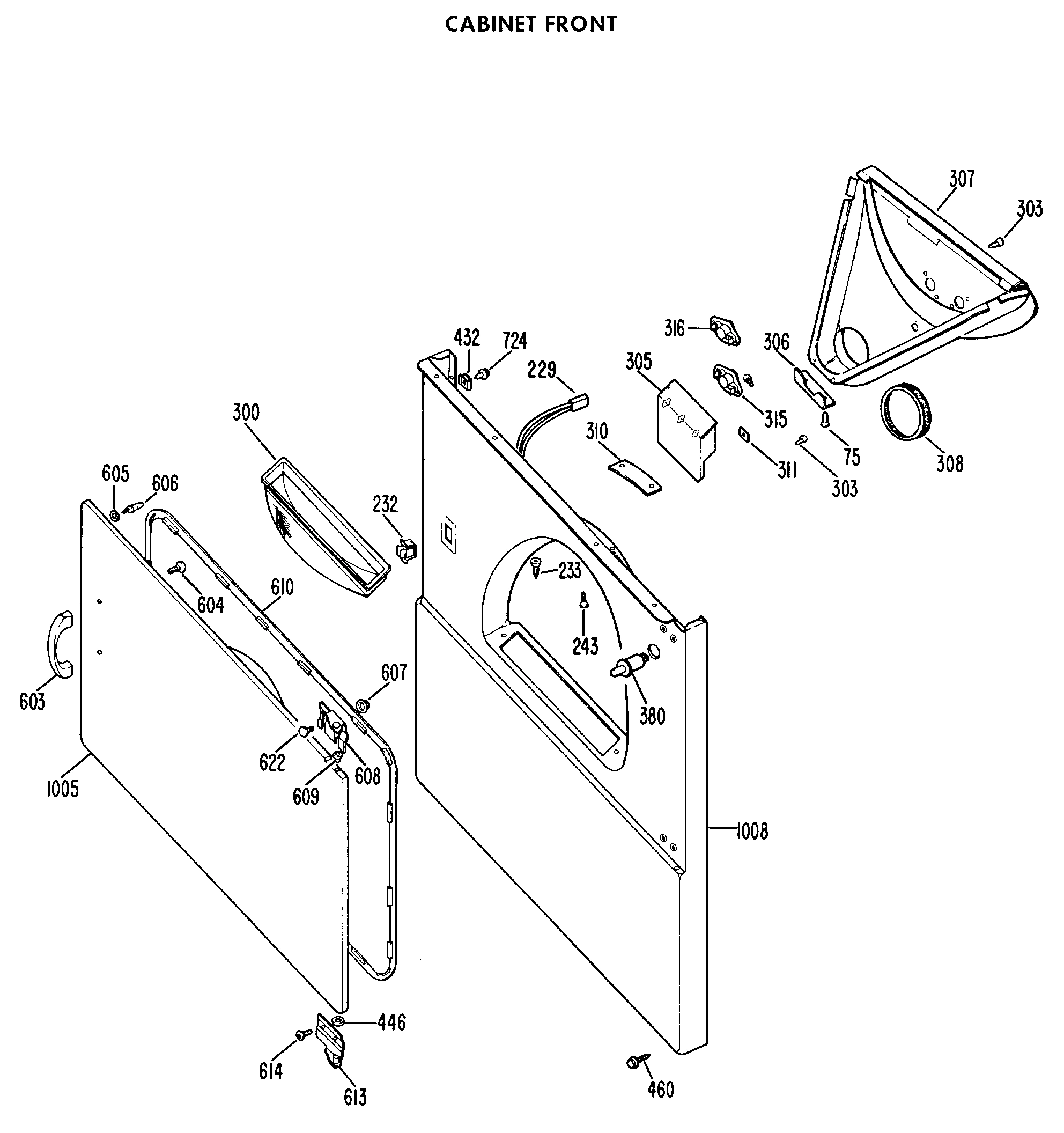

CABINET FRONT

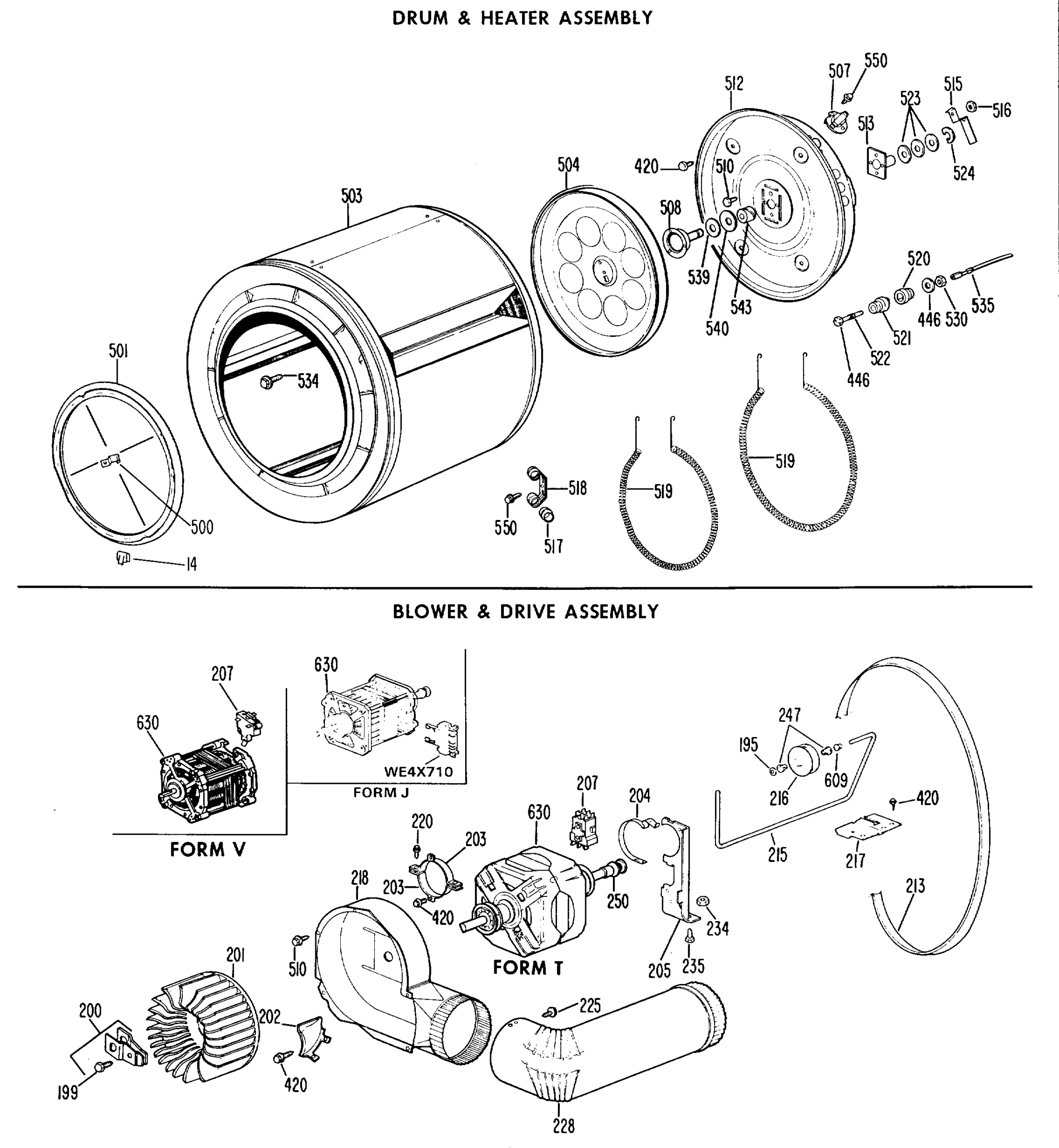

DRUM & HEATER ASSEMBLY
Common parts from model GE DDE0580GAL Dryer Electric
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
TRIM-END L.H. GEN WE19X0796 Contact Us For Availability
4
TRIM-END R.H. GEN WE19X0797 Contact Us For Availability
7
KNOB & CLIP ASM GEN WE01X0978 Contact Us For Availability
12
NUT-SHEET METAL GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0847 GEN WE19X0847 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
17
CLIP-TRIM GEN WH01X2008 Contact Us For Availability
21
PLATE-CONTROL GEN WE13X0076 Contact Us For Availability
25
GEN WE04X0352 GEN WE04X0352 Contact Us For Availability
29
GEN WH01X1394 GEN WH01X1394 Contact Us For Availability
30
GEN WE01X0835 GEN WE01X0835 Contact Us For Availability
41
CLIP-KNOB GEN WE01X0980 Contact Us For Availability
70
SCR 10-1 5 A HXW 7/16 S GEN WH02X0937 Contact Us For Availability
71
SCR 8-18 AB OV 3/4 S GEN WH02X0947 Contact Us For Availability
100
GEN WE04X0525 GEN WE04X0525 Contact Us For Availability
167
SCR 1/4-14 AB HXW 3/4 S GEN WE02X0186 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
201
GEN WE16X0016 GEN WE16X0016 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
BRACKET-MOTOR GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
211
GASKET-INSULATING GEN WE01X0553 Contact Us For Availability
215
GEN WE03X0062 GEN WE03X0062 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0085 GEN WE14X0085 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
225
GEN WE02X0276 GEN WE02X0276 Contact Us For Availability
228
GEN WE14X0065 GEN WE14X0065 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0143 GEN WE14X0143 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
THERMOSTAT L1 45-15 GEN WE04X0600 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
412
GEN WE14X0054 GEN WE14X0054 Contact Us For Availability
413
GEN WE14X0055 GEN WE14X0055 Contact Us For Availability
414
STRAP-GROUND GEN WE01X0339 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
BLOCK-TERMINAL GEN WE04X0168 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT-CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE13X0162 GEN WE13X0162 Contact Us For Availability
459
GEN WE02X0092 GEN WE02X0092 Contact Us For Availability
460
SCR 10-16 AB HXW 7/8 S GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
482
BUTTON PLUG GEN WE01X1043 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
SEALASM GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
512
GEN WE11X0067 GEN WE11X0067 Contact Us For Availability
517
GEN WE01X0336 GEN WE01X0336 Contact Us For Availability
518
GEN WE01X0335 GEN WE01X0335 Contact Us For Availability
519
GEN WE11X0060 GEN WE11X0060 Contact Us For Availability
520
GEN WE01X0158 GEN WE01X0158 Contact Us For Availability
521
GEN WE01X0159 GEN WE01X0159 Contact Us For Availability
522
GEN WE02X0136 GEN WE02X0136 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0097 GEN WE25X0097 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
535
GEN WE01X1063 GEN WE01X1063 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCR 10-32 TT PH 3/8 S GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
1001
GEN WE20X0664 GEN WE20X0664 Contact Us For Availability
1001
GEN WE20X0665 GEN WE20X0665 Contact Us For Availability
1001
GEN WE20X0666 GEN WE20X0666 Contact Us For Availability
1002
BACKSPLASH WRAPPER WH GEN WH46X0211 Contact Us For Availability
1002
BACKSPLASH WRAPPER AD GEN WH46X0212 Contact Us For Availability
1002
BACKSPLASH WRAPPER HA GEN WH46X0215 Contact Us For Availability
1003
GEN WE20X0670 GEN WE20X0670 Contact Us For Availability
1003
GEN WE20X0671 GEN WE20X0671 Contact Us For Availability
1003
GEN WE20X0672 GEN WE20X0672 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1008
GEN WE20X0496 GEN WE20X0496 Contact Us For Availability
1008
GEN WE20X0564 GEN WE20X0564 Contact Us For Availability
1008
GEN WE20X0566 GEN WE20X0566 Contact Us For Availability
9999
GEN 49-9041 GEN 49-9041 Contact Us For Availability
9999
GEN 49-9514 GEN 49-9514 Contact Us For Availability
× ![]()
