Model GE DDC5000MDL Dryer Electric – Common Parts & Diagrams

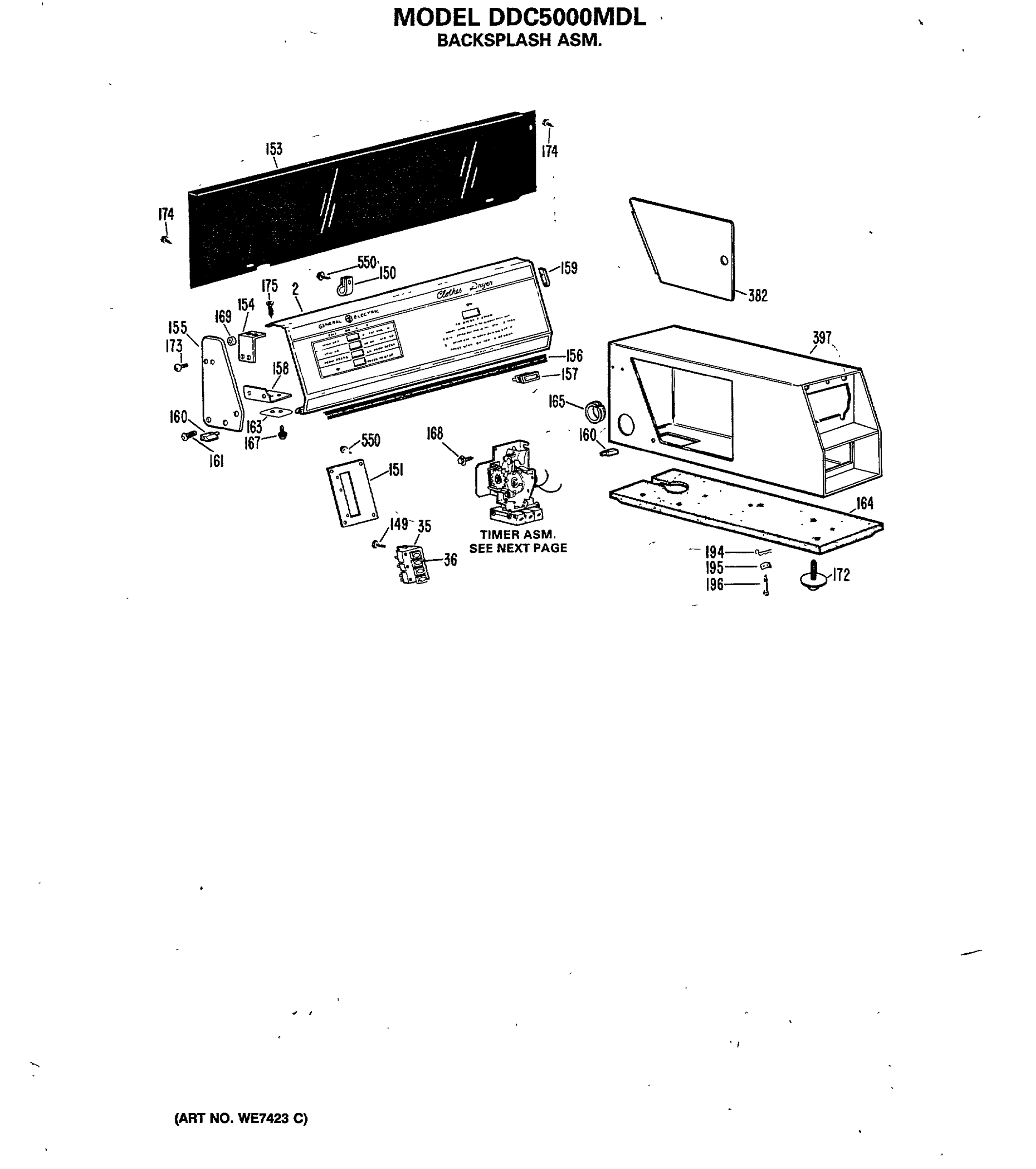

BACKSPLASH ASM.

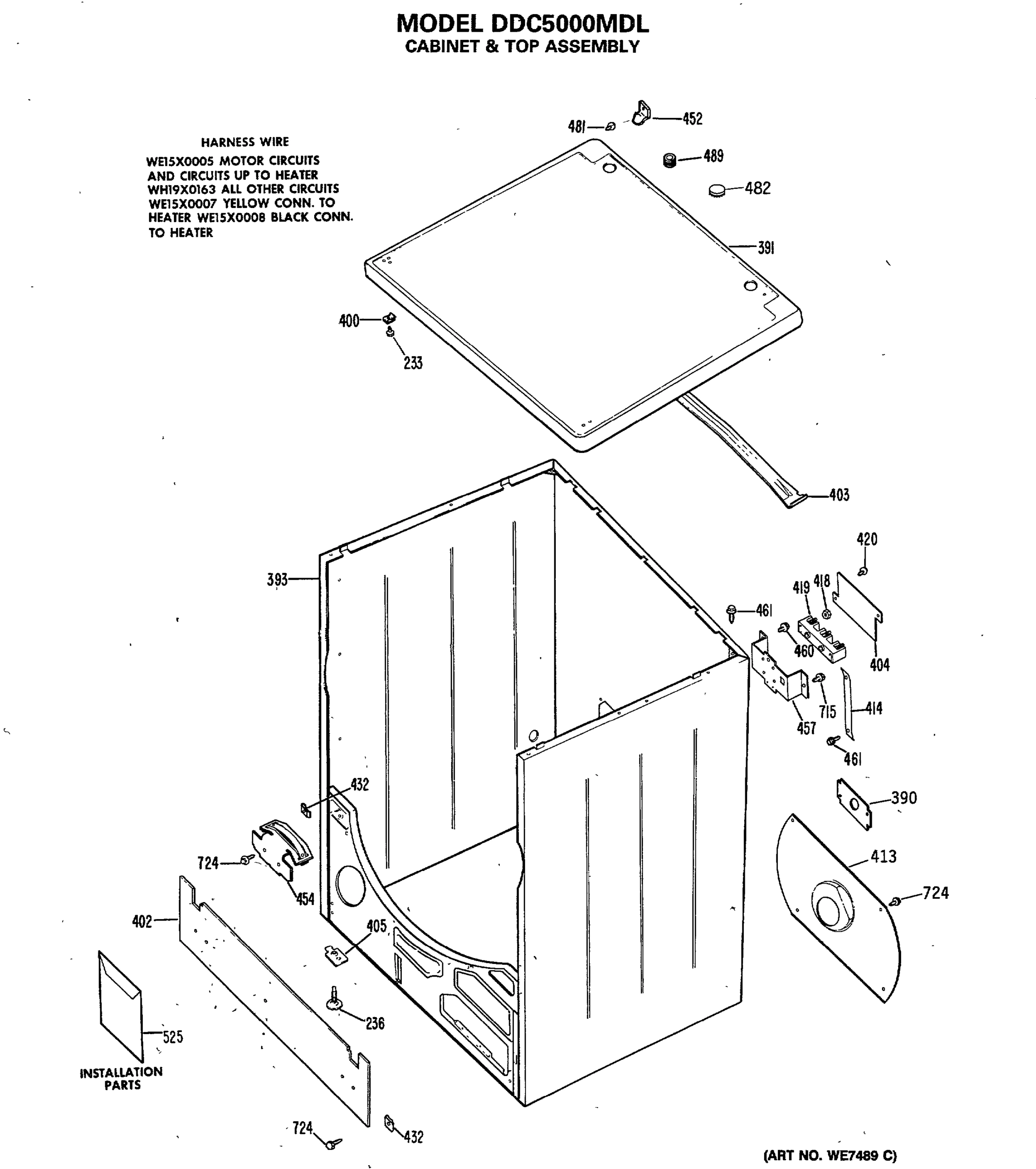

CABINET & TOP ASSEMBLY

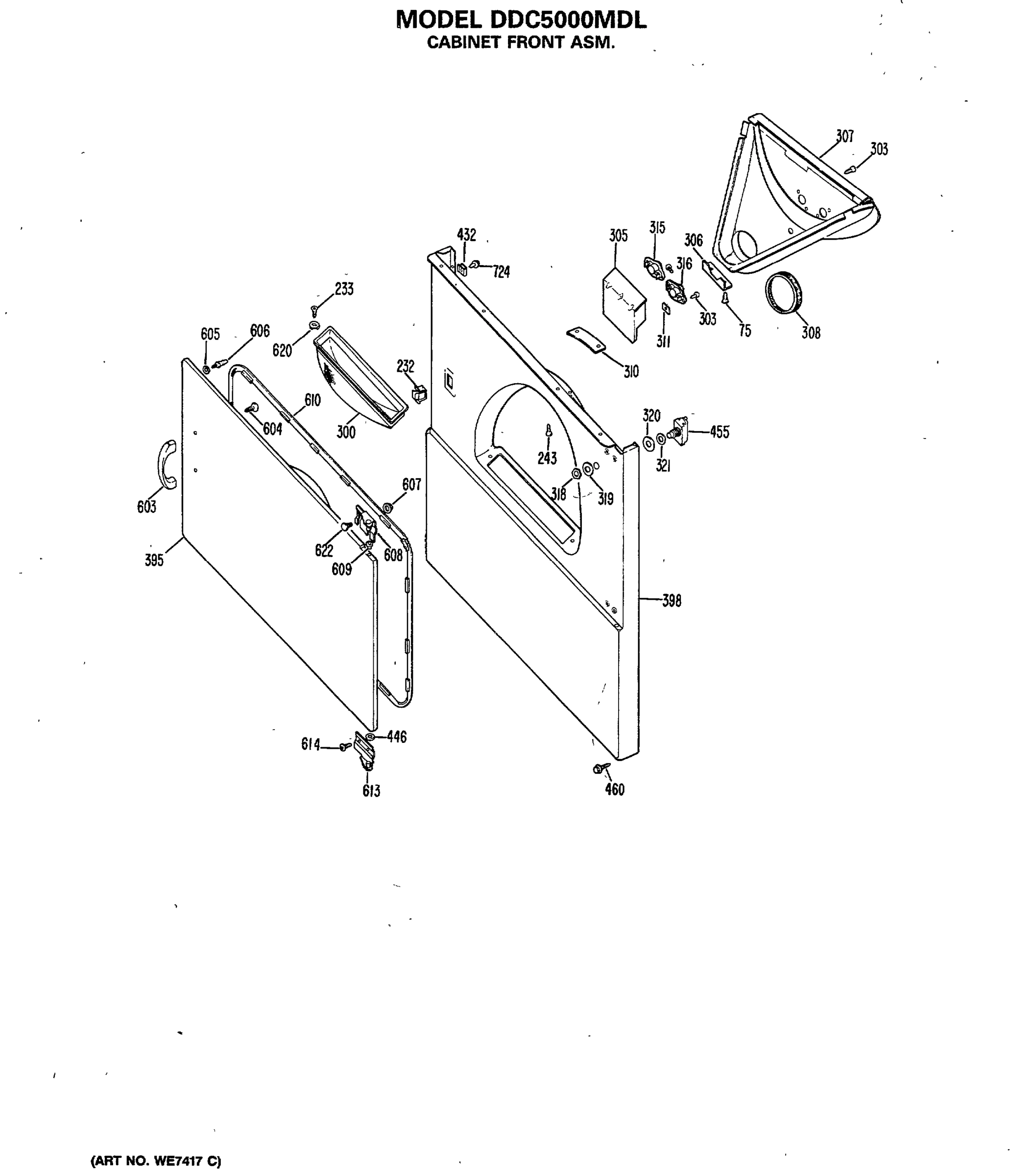

CABINET FRONT ASM.

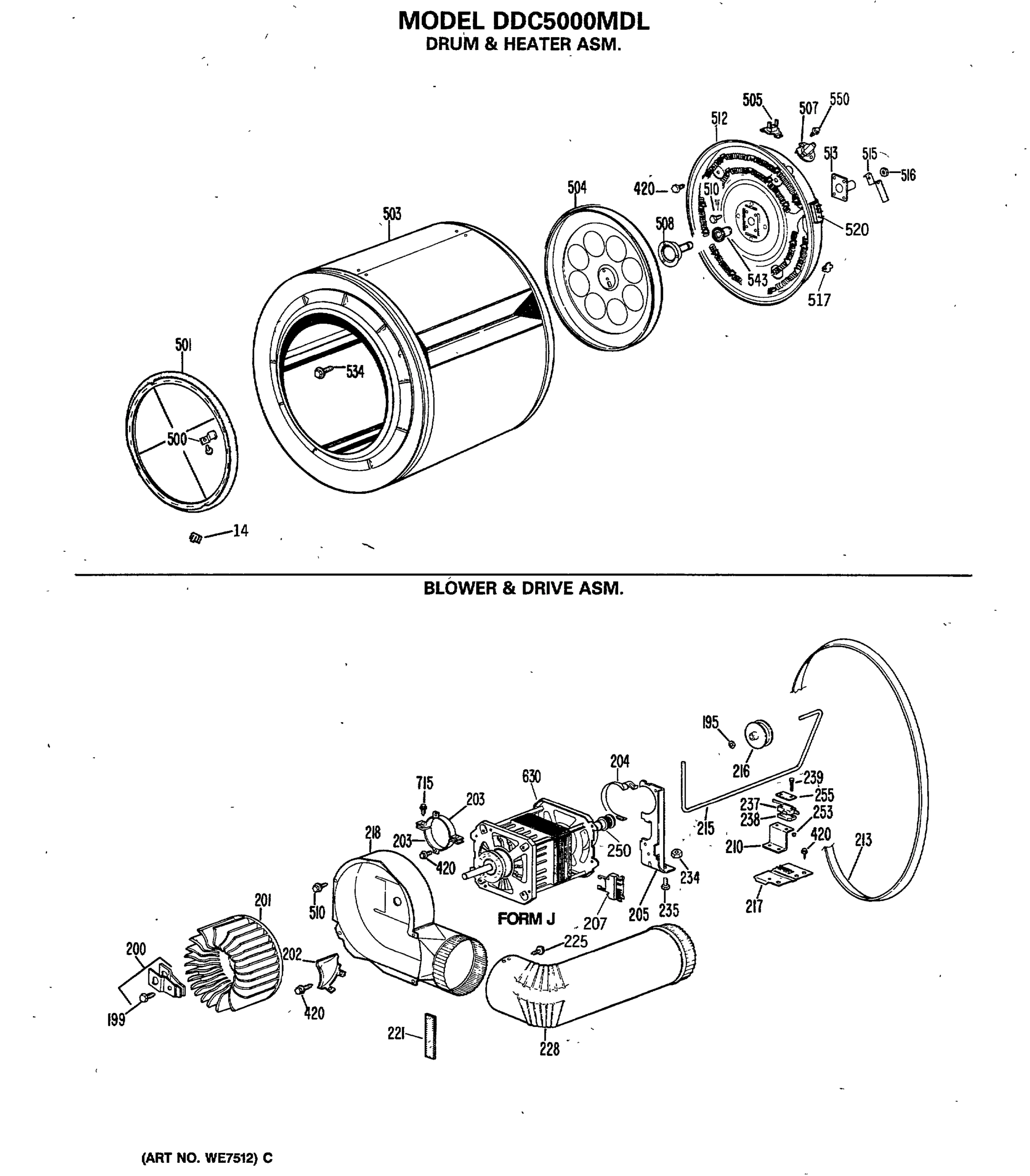

DRUM & HEATER ASM.
Common parts from model GE DDC5000MDL Dryer Electric
1
GEN 31-1702 GEN 31-1702 Contact Us For Availability
2
GEN WE19X0911 GEN WE19X0911 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
35
GEN WE04X0707 GEN WE04X0707 Contact Us For Availability
36
GEN WH01X2562 GEN WH01X2562 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
150
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
151
GEN WE13X0133 GEN WE13X0133 Contact Us For Availability
153
GEN WH46X0263 GEN WH46X0263 Contact Us For Availability
154
GEN WE01X0913 GEN WE01X0913 Contact Us For Availability
155
GEN WE01X0948 GEN WE01X0948 Contact Us For Availability
156
GEN WE01X0949 GEN WE01X0949 Contact Us For Availability
157
GEN WE01X0950 GEN WE01X0950 Contact Us For Availability
158
GEN WE01X0951 GEN WE01X0951 Contact Us For Availability
159
GEN WE01X0952 GEN WE01X0952 Contact Us For Availability
160
GEN WE01X0953 GEN WE01X0953 Contact Us For Availability
161
GEN WE02X0273 GEN WE02X0273 Contact Us For Availability
162
GEN WE02X0274 GEN WE02X0274 Contact Us For Availability
163
GEN WE09X0048 GEN WE09X0048 Contact Us For Availability
164
GEN WH08X0371 GEN WH08X0371 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
168
GEN WZ02X0468 GEN WZ02X0468 Contact Us For Availability
169
GEN WH01X2194 GEN WH01X2194 Contact Us For Availability
172
GEN WH02X0735 GEN WH02X0735 Contact Us For Availability
173
GEN WH02X0932 GEN WH02X0932 Contact Us For Availability
175
GEN WH02X0933 GEN WH02X0933 Contact Us For Availability
194
GEN WH01X1728 GEN WH01X1728 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
196
GEN WH02X0783 GEN WH02X0783 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
210
GEN WE13X0160 GEN WE13X0160 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
221
GEN WE01X1171 GEN WE01X1171 Contact Us For Availability
228
GEN WE14X0213 GEN WE14X0213 Contact Us For Availability
233
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
234
GEN WE02X0154 GEN WE02X0154 Contact Us For Availability
235
GEN WE02X0194 GEN WE02X0194 Contact Us For Availability
237
GEN WE04X0532 GEN WE04X0532 Contact Us For Availability
238
GEN WE01X0945 GEN WE01X0945 Contact Us For Availability
239
GEN WE02X0272 GEN WE02X0272 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
253
GEN WE02X0245 GEN WE02X0245 Contact Us For Availability
255
GEN WE01X0844 GEN WE01X0844 Contact Us For Availability
300
GEN WE18X0043 GEN WE18X0043 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0144 GEN WE14X0144 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
THERMOSTAT L155-20 GEN WE04X0595 Contact Us For Availability
316
THERMOSTAT L135-15 GEN WE04X0590 Contact Us For Availability
318
GEN WE02X0125 GEN WE02X0125 Contact Us For Availability
319
GEN WE02X0200 GEN WE02X0200 Contact Us For Availability
320
GEN WE01X0667 GEN WE01X0667 Contact Us For Availability
321
GEN WE01X0932 GEN WE01X0932 Contact Us For Availability
382
DOOR MTR CASE ACCESS WH GEN WH42X2090 Contact Us For Availability
382
DOOR MTR CASE ACCESS AD GEN WH42X2091 Contact Us For Availability
382
DOOR MTR CASE ACCESS HA GEN WH42X2092 Contact Us For Availability
390
GEN WE01X1174 GEN WE01X1174 Contact Us For Availability
391
GEN WE20X0705 GEN WE20X0705 Contact Us For Availability
391
GEN WE20X0706 GEN WE20X0706 Contact Us For Availability
391
GEN WE20X0707 GEN WE20X0707 Contact Us For Availability
393
CABINET ASM AD GEN WE20X0755 Contact Us For Availability
393
CABINET ASM HA GEN WE20X0756 Contact Us For Availability
393
CABINET ASM WH GEN WE20X0757 Contact Us For Availability
395
DOOR ASM WH GEN WE10X0258 Contact Us For Availability
395
DOOR ASM HA GEN WE10X0260 Contact Us For Availability
395
DOOR ASM AD GEN WE10X0262 Contact Us For Availability
397
GEN WH42X2083 GEN WH42X2083 Contact Us For Availability
397
GEN WH42X2085 GEN WH42X2085 Contact Us For Availability
397
GEN WH42X2086 GEN WH42X2086 Contact Us For Availability
398
CABINET FRONT ASM WH GEN WE20X0496 Contact Us For Availability
398
CABINET FRONT ASM HA GEN WE20X0564 Contact Us For Availability
398
CABINET FRONT ASM AD GEN WE20X0566 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
413
GEN WE14X0212 GEN WE14X0212 Contact Us For Availability
414
GEN WE01X0339 GEN WE01X0339 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
446
GEN WE02X0279 GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
455
GEN WL11X0056 GEN WL11X0056 Contact Us For Availability
457
GEN WE13X0162 GEN WE13X0162 Contact Us For Availability
458
GEN WE01X0411 GEN WE01X0411 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
463
GEN WE01X0956 GEN WE01X0956 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
517
GEN WE01X1176 GEN WE01X1176 Contact Us For Availability
520
GEN WE01X1177 GEN WE01X1177 Contact Us For Availability
525
GEN WE25X0097 GEN WE25X0097 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
550
GEN WE02X0281 GEN WE02X0281 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
GEN WE02X0227 GEN WE02X0227 Contact Us For Availability
605
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
620
GEN WE02X0252 GEN WE02X0252 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
679
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
724
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
× ![]()
