Model GE DDC4492AEL – Common Parts & Diagrams

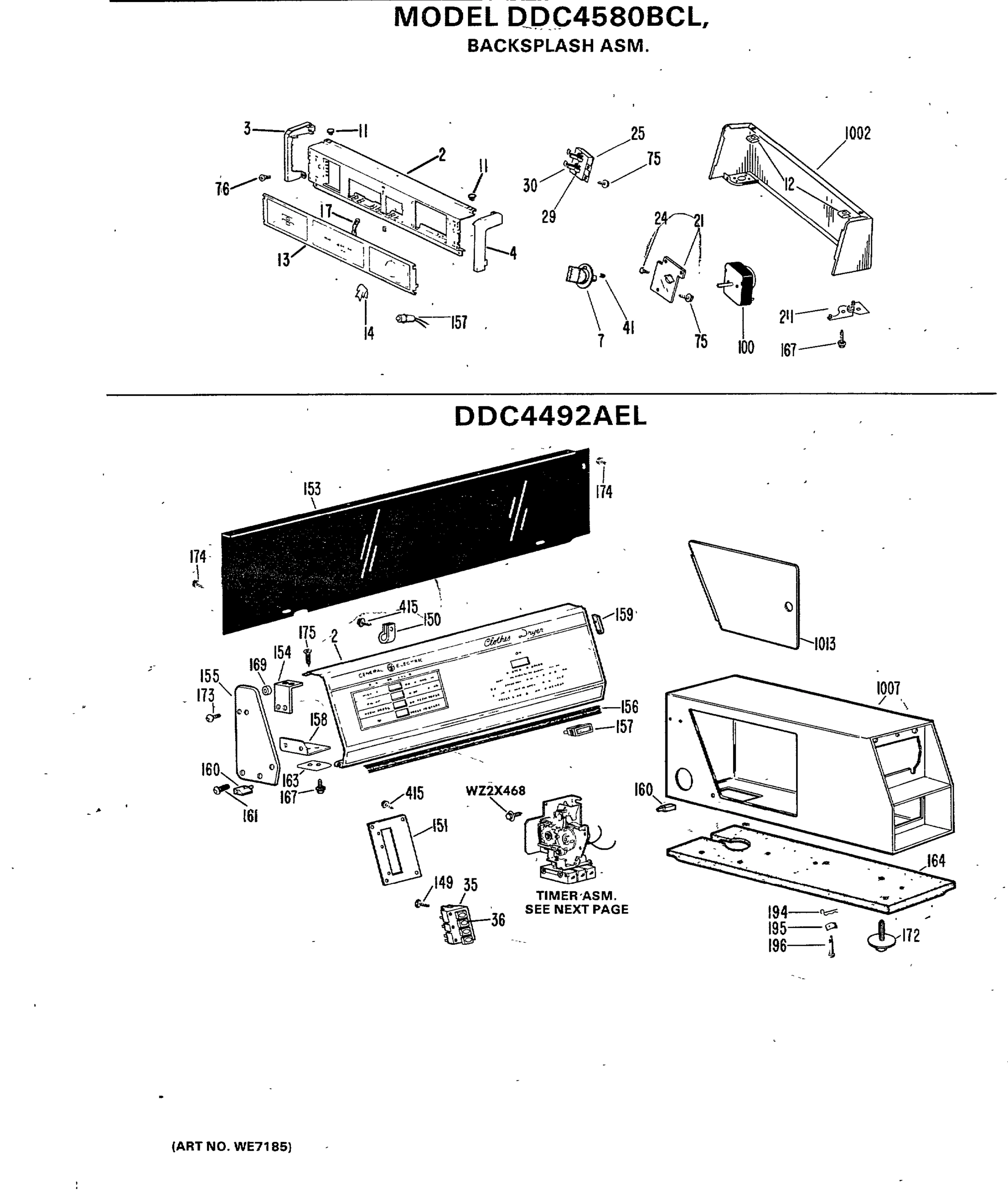

BACKSPLASH ASM.

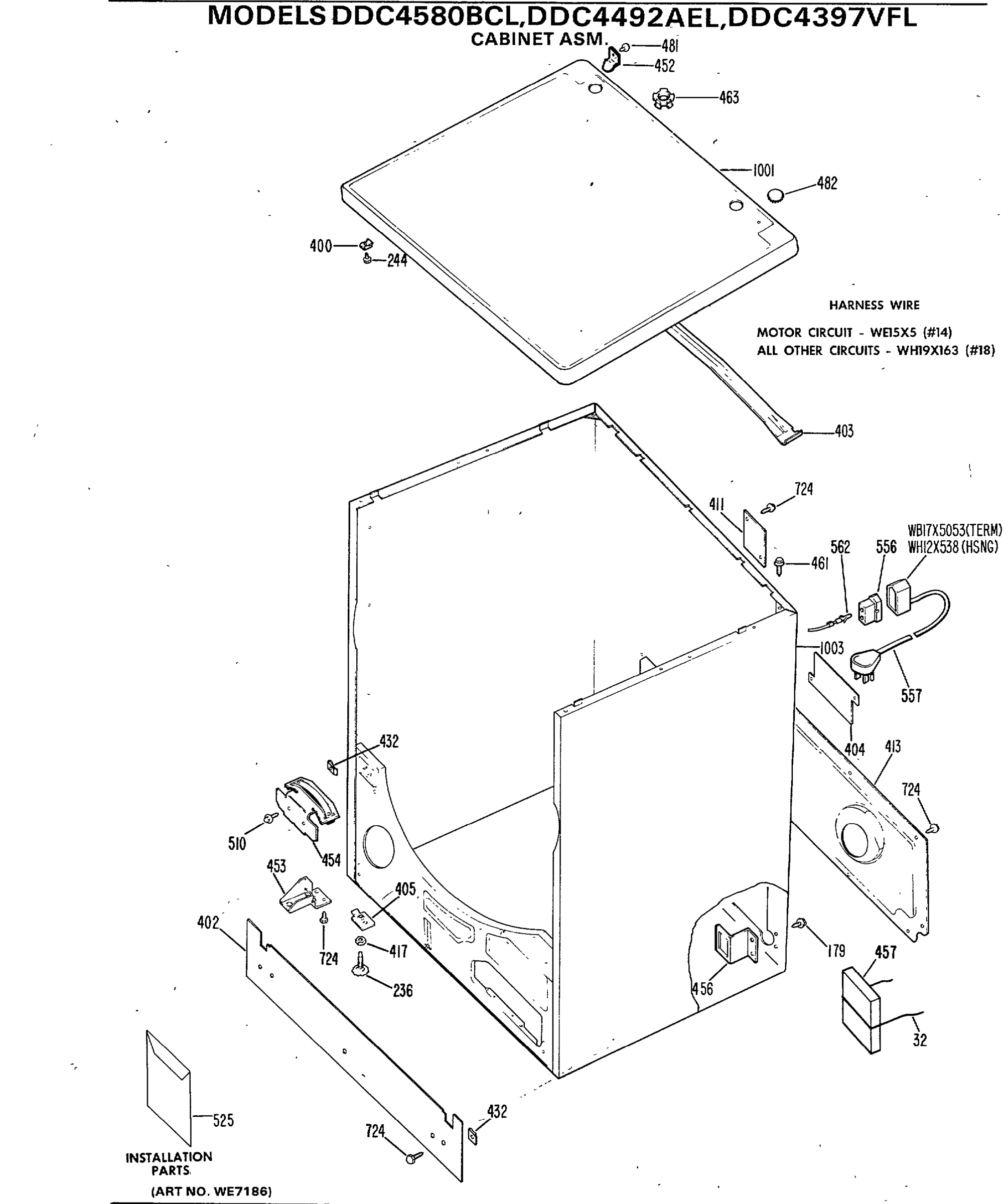

CABINET ASM.
CABINET FRONT ASM.
DRUM & DUCT ASM.
TIMER ASSEMBLY
Common parts from model GE DDC4492AEL
2
GEN WE19X0723 GEN WE19X0723 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
35
GEN WE04X0569 GEN WE04X0569 Contact Us For Availability
36
GEN WH01X2257 GEN WH01X2257 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
151
GEN WE13X0125 GEN WE13X0125 Contact Us For Availability
153
GEN WE01X0911 GEN WE01X0911 Contact Us For Availability
154
GEN WE01X0913 GEN WE01X0913 Contact Us For Availability
155
GEN WE01X0948 GEN WE01X0948 Contact Us For Availability
156
GEN WE01X0949 GEN WE01X0949 Contact Us For Availability
157
GEN WE01X0950 GEN WE01X0950 Contact Us For Availability
158
GEN WE01X0951 GEN WE01X0951 Contact Us For Availability
159
GEN WE01X0952 GEN WE01X0952 Contact Us For Availability
160
GEN WE01X0953 GEN WE01X0953 Contact Us For Availability
161
GEN WE02X0273 GEN WE02X0273 Contact Us For Availability
162
GEN WE02X0274 GEN WE02X0274 Contact Us For Availability
163
GEN WE09X0048 GEN WE09X0048 Contact Us For Availability
164
GEN WE09X0050 GEN WE09X0050 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
168
GEN WZ02X0468 GEN WZ02X0468 Contact Us For Availability
169
GEN WH01X2194 GEN WH01X2194 Contact Us For Availability
172
GEN WH02X0735 GEN WH02X0735 Contact Us For Availability
173
GEN WH02X0932 GEN WH02X0932 Contact Us For Availability
174
GEN WH02X0934 GEN WH02X0934 Contact Us For Availability
175
GEN WH02X0933 GEN WH02X0933 Contact Us For Availability
185
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
194
GEN WH01X1728 GEN WH01X1728 Contact Us For Availability
195
NUT (PUSH-ON) GEN WH02X0885 Contact Us For Availability
196
GEN WH02X0783 GEN WH02X0783 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
BRACKET-MOTOR GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
210
GEN WE13X0160 GEN WE13X0160 Contact Us For Availability
215
GEN WE03X0062 GEN WE03X0062 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
228
ELBOW-EXHAUST GEN WE14X0139 Contact Us For Availability
233
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
237
GEN WE04X0532 GEN WE04X0532 Contact Us For Availability
238
SPACER-SWITCH GEN WE01X0945 Contact Us For Availability
239
GEN WE02X0272 GEN WE02X0272 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
244
GEN WE02X0235 GEN WE02X0235 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
FILTER ASM-LINT GEN WE18X0043 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT-TRAP GEN WE14X0144 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
315
GEN WE04X0598 GEN WE04X0598 Contact Us For Availability
316
GEN WE04X0547 GEN WE04X0547 Contact Us For Availability
318
GEN WE02X0125 GEN WE02X0125 Contact Us For Availability
319
WASHER-FLAT GEN WE02X0200 Contact Us For Availability
320
ADAPTER-SWITCH GEN WE01X0667 Contact Us For Availability
321
GEN WE01X0932 GEN WE01X0932 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
BRACE-CABINET TOP GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
PLATE-LEVELING SCREW GEN WE01X0468 Contact Us For Availability
411
GEN WE01X0426 GEN WE01X0426 Contact Us For Availability
413
BOX-RECESS GEN WE14X0066 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT-CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WH16X0431 GEN WH16X0431 Contact Us For Availability
453
SUPPORT-LEVELING SCREW GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
455
SWITCH ASM-PUSH BUTTON GEN WL11X0056 Contact Us For Availability
458
GEN WE01X0411 GEN WE01X0411 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
463
SLEEVE-SPLIT GEN WE01X0956 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
RETAINER-BEARING GEN WE01X0461 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
PLATE-DIFFUSER GEN WE14X0072 Contact Us For Availability
529
GEN WE04X0583 GEN WE04X0583 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
531
BRACKET-THERMOSTAT GEN WE13X0127 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
549
GEN WB17X0145 GEN WB17X0145 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
PAD-FELT K GEN WE09X0044 Contact Us For Availability
551
HOUSING-TERMINAL GEN WH12X0417 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
HOUSING-TERMINAL GEN WH12X0497 Contact Us For Availability
557
GEN WE08X0031 GEN WE08X0031 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
611
GEN WH12X0416 GEN WH12X0416 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCR 10-32 TT PH 3/8 S GEN WZ04X0257 Contact Us For Availability
617
GEN WH02X0782 GEN WH02X0782 Contact Us For Availability
620
GEN WE02X0252 GEN WE02X0252 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
703
GEN 8-32X7/16 GEN 8-32X7/16 Contact Us For Availability
709
GEN WE01X0968 GEN WE01X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
711
GEN 1/8NPT GEN 1/8NPT Contact Us For Availability
712
GEN WE14X0141 GEN WE14X0141 Contact Us For Availability
713
GEN WE01X0758 GEN WE01X0758 Contact Us For Availability
714
GEN WE01X0804 GEN WE01X0804 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
GEN WZ04X0220 GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
BRACKET-SPACER GEN WE13X0118 Contact Us For Availability
723
GEN WE13X0117 GEN WE13X0117 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
725
GEN WH12X0237 GEN WH12X0237 Contact Us For Availability
726
GEN 6-32X7/16 GEN 6-32X7/16 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0560 GEN WE04X0560 Contact Us For Availability
730
SCR (GAS VALVE ASM) GEN 8-32X5/8 Contact Us For Availability
1001
WELD ASM-COVER WH GEN WE20X0387 Contact Us For Availability
1001
WELD ASM-COVER HA GEN WE20X0576 Contact Us For Availability
1001
WELD ASM-COVER AD GEN WE20X0587 Contact Us For Availability
1003
GEN WE20X0670 GEN WE20X0670 Contact Us For Availability
1003
GEN WE20X0671 GEN WE20X0671 Contact Us For Availability
1003
GEN WE20X0672 GEN WE20X0672 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1007
GEN WH42X2083 GEN WH42X2083 Contact Us For Availability
1007
GEN WH42X2085 GEN WH42X2085 Contact Us For Availability
1007
GEN WH42X2086 GEN WH42X2086 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
1013
DOOR MTR CASE ACCESS WH GEN WH42X2090 Contact Us For Availability
1013
DOOR MTR CASE ACCESS AD GEN WH42X2091 Contact Us For Availability
1013
DOOR MTR CASE ACCESS HA GEN WH42X2092 Contact Us For Availability
1133
NUT-STOP GEN WE02X0245 Contact Us For Availability
1135
SHIELD-SWITCH GEN WE01X0844 Contact Us For Availability
32767
GEN 00-6164 GEN 00-6164 Contact Us For Availability
32767
GEN 00-8003 GEN 00-8003 Contact Us For Availability
32767
GEN 50-1213-28 GEN 50-1213-28 Contact Us For Availability
32767
GEN 50-161-4 GEN 50-161-4 Contact Us For Availability
32767
GEN 50-61-13 GEN 50-61-13 Contact Us For Availability
32767
GEN 59-204 GEN 59-204 Contact Us For Availability
32767
GEN 59-9999 GEN 59-9999 Contact Us For Availability
32767
GEN 75-44 GEN 75-44 Contact Us For Availability
32767
GEN KIT-1585 GEN KIT-1585 Contact Us For Availability
× ![]()
