Model GE DDC4408AEL Dryer Electric – Common Parts & Diagrams

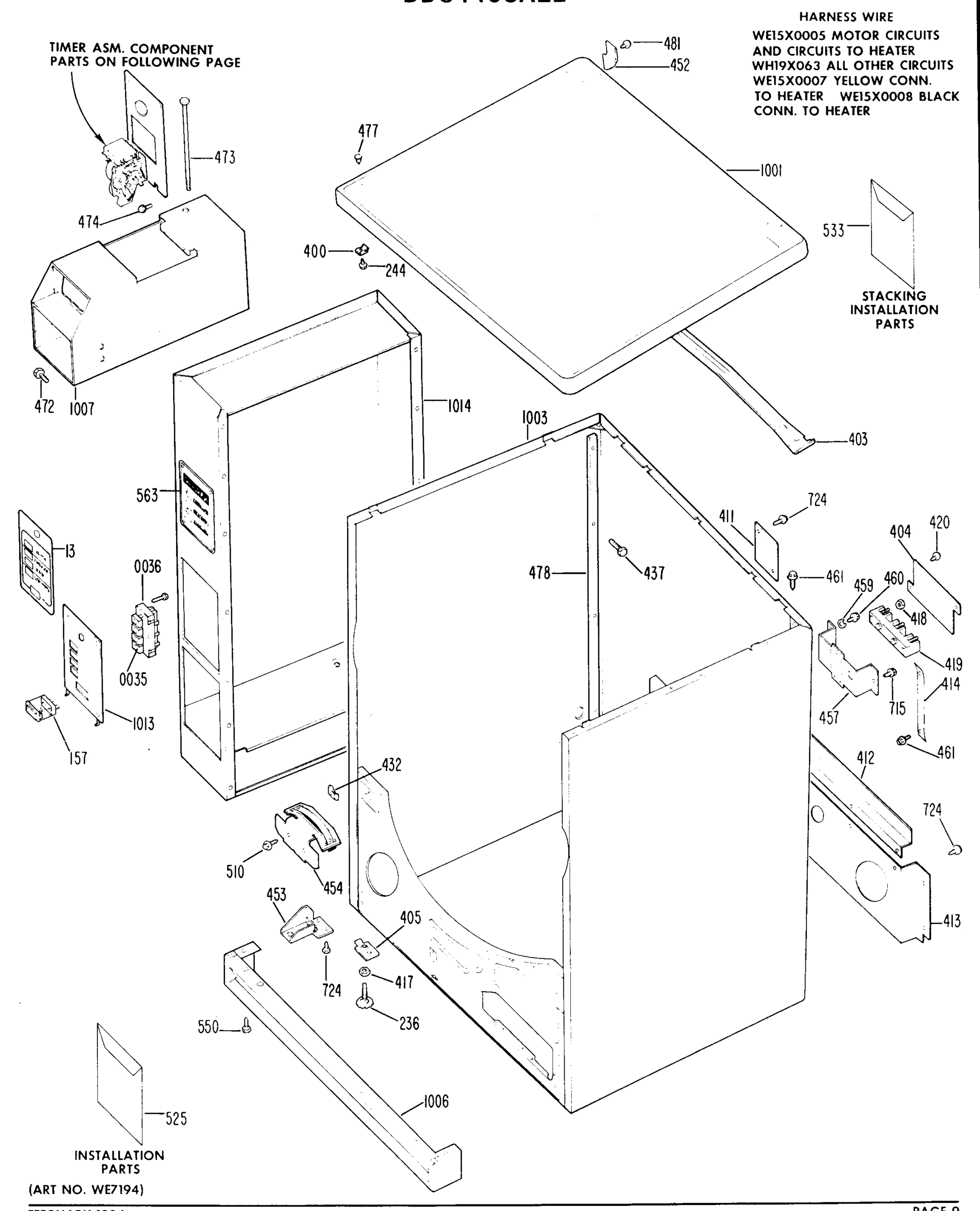

0

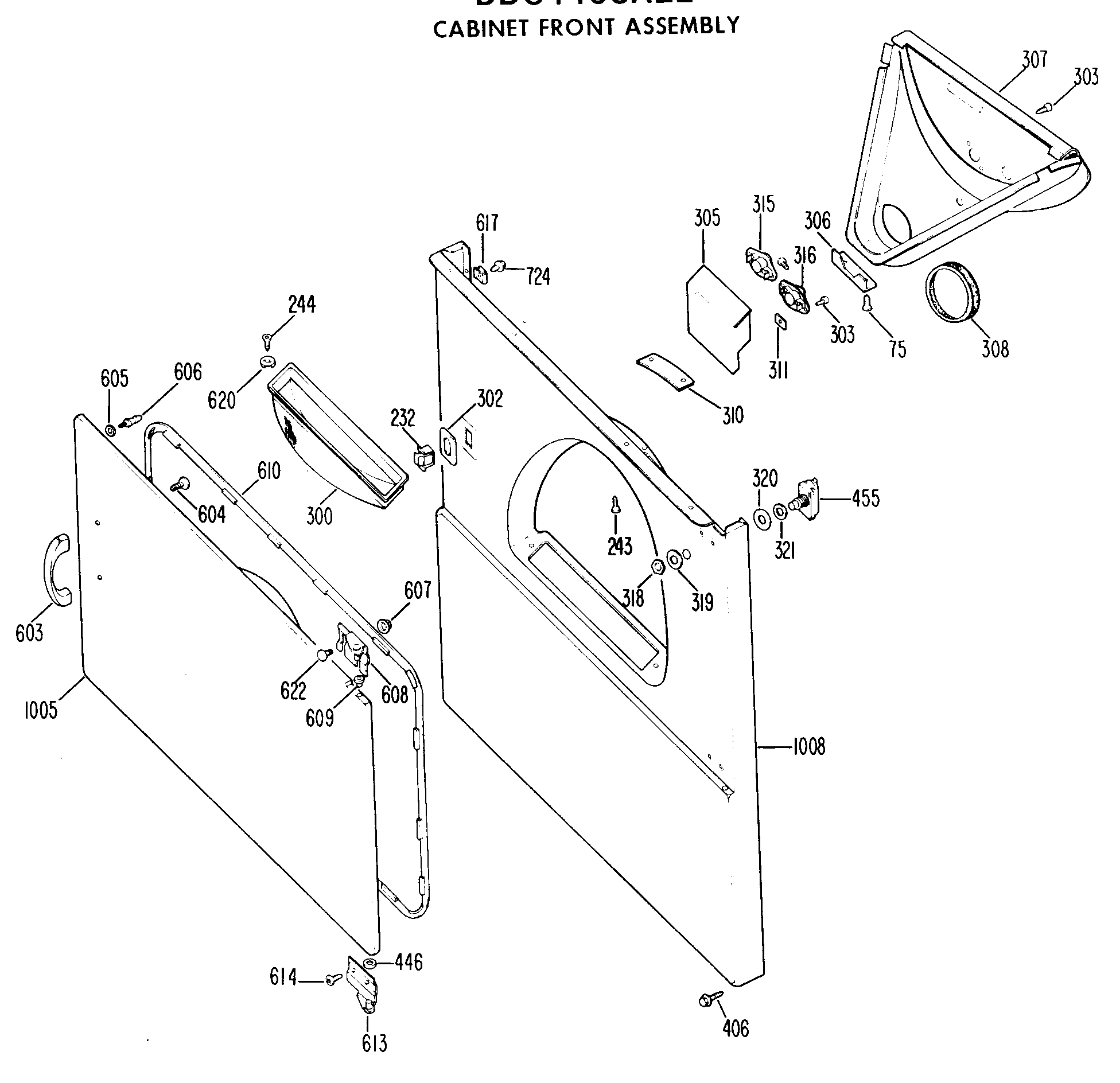

CABINET FRONT ASSEMBLY

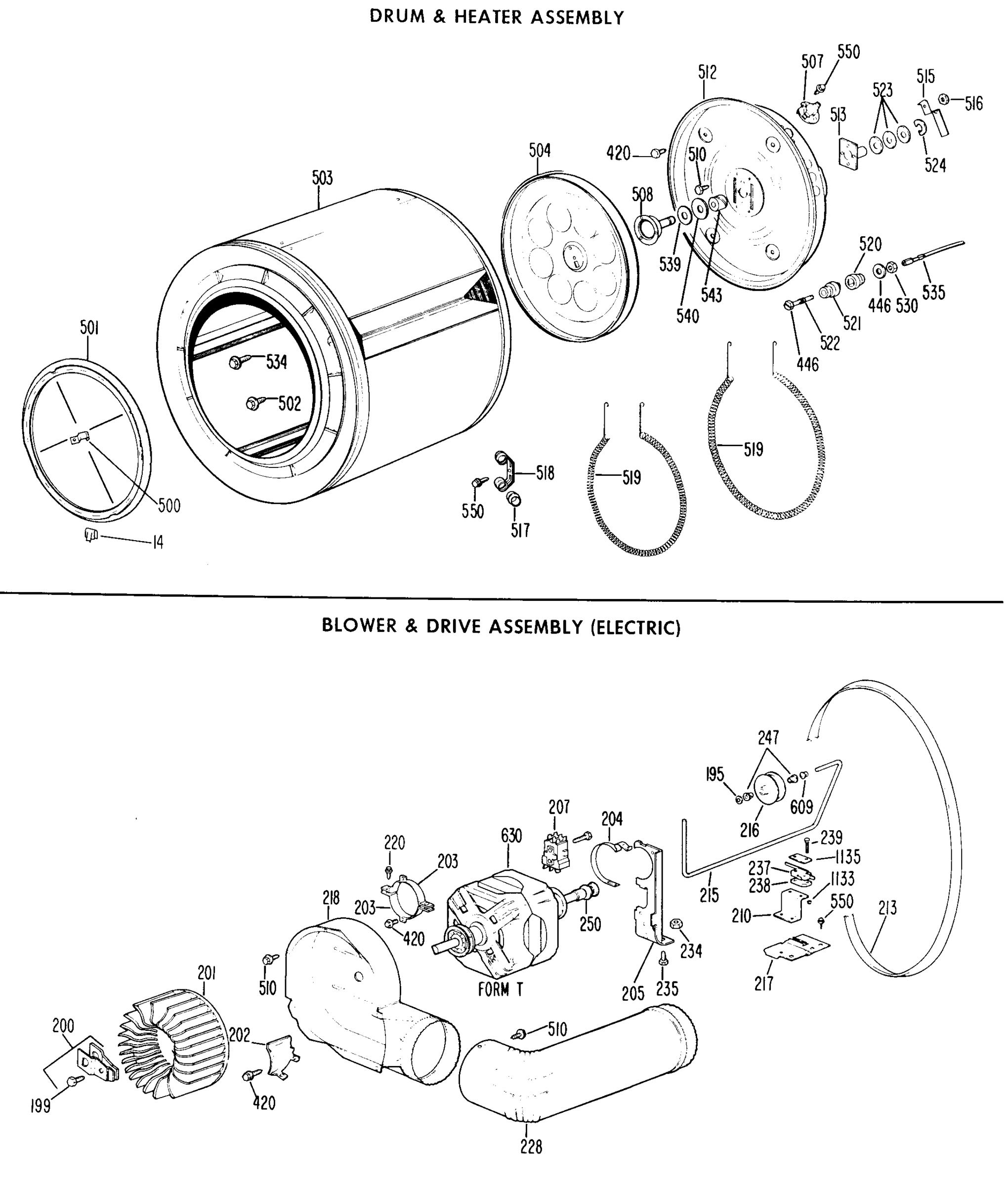

DRUM & HEATER ASSEMBLY
Common parts from model GE DDC4408AEL Dryer Electric
13
GEN WE01X0977 GEN WE01X0977 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
35
GEN WE04X0569 GEN WE04X0569 Contact Us For Availability
36
GEN WH01X2257 GEN WH01X2257 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
157
GEN WE01X0976 GEN WE01X0976 Contact Us For Availability
177
NUT CLIP GEN WH02X0923 Contact Us For Availability
195
NUT (PUSH-ON) GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
BRACKET-MOTOR GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
210
GEN WE13X0160 GEN WE13X0160 Contact Us For Availability
215
GEN WE03X0062 GEN WE03X0062 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0085 GEN WE14X0085 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
225
GEN WE02X0276 GEN WE02X0276 Contact Us For Availability
228
GEN WE14X0065 GEN WE14X0065 Contact Us For Availability
229
GEN WH12X0183 GEN WH12X0183 Contact Us For Availability
233
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
237
GEN WE04X0532 GEN WE04X0532 Contact Us For Availability
238
SPACER-SWITCH GEN WE01X0945 Contact Us For Availability
239
GEN WE02X0272 GEN WE02X0272 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
244
GEN WE02X0235 GEN WE02X0235 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
300
FILTER ASM-LINT GEN WE18X0043 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
DUCT-TRAP GEN WE14X0144 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
315
GEN WE04X0595 GEN WE04X0595 Contact Us For Availability
316
GEN WE04X0590 GEN WE04X0590 Contact Us For Availability
318
GEN WE02X0125 GEN WE02X0125 Contact Us For Availability
319
WASHER-FLAT GEN WE02X0200 Contact Us For Availability
320
ADAPTER-SWITCH GEN WE01X0667 Contact Us For Availability
321
GEN WE01X0932 GEN WE01X0932 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
411
WRAPPER CABINET KNOCKOUT GEN WE01X0426 Contact Us For Availability
412
BRACKET RECESS GEN WE14X0054 Contact Us For Availability
413
BOX ASM RECESS GEN WE14X0055 Contact Us For Availability
414
GEN WE01X0339 GEN WE01X0339 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
BRACKET HINGE GEN WH16X0431 Contact Us For Availability
453
GEN WE13X0104 GEN WE13X0104 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
455
SWITCH ASM-PUSH BUTTON GEN WL11X0056 Contact Us For Availability
457
GEN WE13X0162 GEN WE13X0162 Contact Us For Availability
459
WASHER CUP GEN WE02X0092 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
473
GEN WE02X0283 GEN WE02X0283 Contact Us For Availability
474
GEN 10-32X1/2 GEN 10-32X1/2 Contact Us For Availability
477
GEN WE01X0966 GEN WE01X0966 Contact Us For Availability
478
GEN WE01X0965 GEN WE01X0965 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
512
GEN WE11X0067 GEN WE11X0067 Contact Us For Availability
517
GEN WE01X0336 GEN WE01X0336 Contact Us For Availability
518
GEN WE01X0335 GEN WE01X0335 Contact Us For Availability
519
GEN WE11X0060 GEN WE11X0060 Contact Us For Availability
520
INSULAT0R-TERMINAL GEN WE01X0158 Contact Us For Availability
521
GEN WE01X0159 GEN WE01X0159 Contact Us For Availability
522
GEN WE02X0136 GEN WE02X0136 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0143 GEN WE25X0143 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
533
GEN WE25X0144 GEN WE25X0144 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
535
GEN WE01X1063 GEN WE01X1063 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
563
GEN WE01X0975 GEN WE01X0975 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCR 10-32 TT PH 3/8 S GEN WZ04X0257 Contact Us For Availability
617
GEN WH02X0782 GEN WH02X0782 Contact Us For Availability
620
GEN WE02X0252 GEN WE02X0252 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
1001
GEN WE20X0608 GEN WE20X0608 Contact Us For Availability
1001
GEN WE20X0609 GEN WE20X0609 Contact Us For Availability
1001
GEN WE20X0610 GEN WE20X0610 Contact Us For Availability
1003
CABINET ASM AD GEN WE20X0670 Contact Us For Availability
1003
CABINET ASM HA GEN WE20X0671 Contact Us For Availability
1003
CABINET ASM WH GEN WE20X0672 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1006
GEN WE20X0611 GEN WE20X0611 Contact Us For Availability
1006
GEN WE20X0612 GEN WE20X0612 Contact Us For Availability
1006
GEN WE20X0613 GEN WE20X0613 Contact Us For Availability
1007
GEN WE20X0656 GEN WE20X0656 Contact Us For Availability
1007
GEN WE20X0657 GEN WE20X0657 Contact Us For Availability
1007
GEN WE20X0658 GEN WE20X0658 Contact Us For Availability
1008
GEN WE20X0496 GEN WE20X0496 Contact Us For Availability
1008
GEN WE20X0564 GEN WE20X0564 Contact Us For Availability
1008
GEN WE20X0566 GEN WE20X0566 Contact Us For Availability
1013
GEN WE10X0263 GEN WE10X0263 Contact Us For Availability
1013
GEN WE10X0264 GEN WE10X0264 Contact Us For Availability
1013
GEN WE10X0265 GEN WE10X0265 Contact Us For Availability
1133
NUT-STOP GEN WE02X0245 Contact Us For Availability
1135
SHIELD-SWITCH GEN WE01X0844 Contact Us For Availability
9999
GEN 30-9599 GEN 30-9599 Contact Us For Availability
9999
GEN 49-9049 GEN 49-9049 Contact Us For Availability
9999
GEN 49-9050 GEN 49-9050 Contact Us For Availability
× ![]()
