Model GE DDC4397VEL Dryer Gas – Common Parts & Diagrams
CABINET FRONT ASM. (GAS)
DRUM & DUCT ASM.

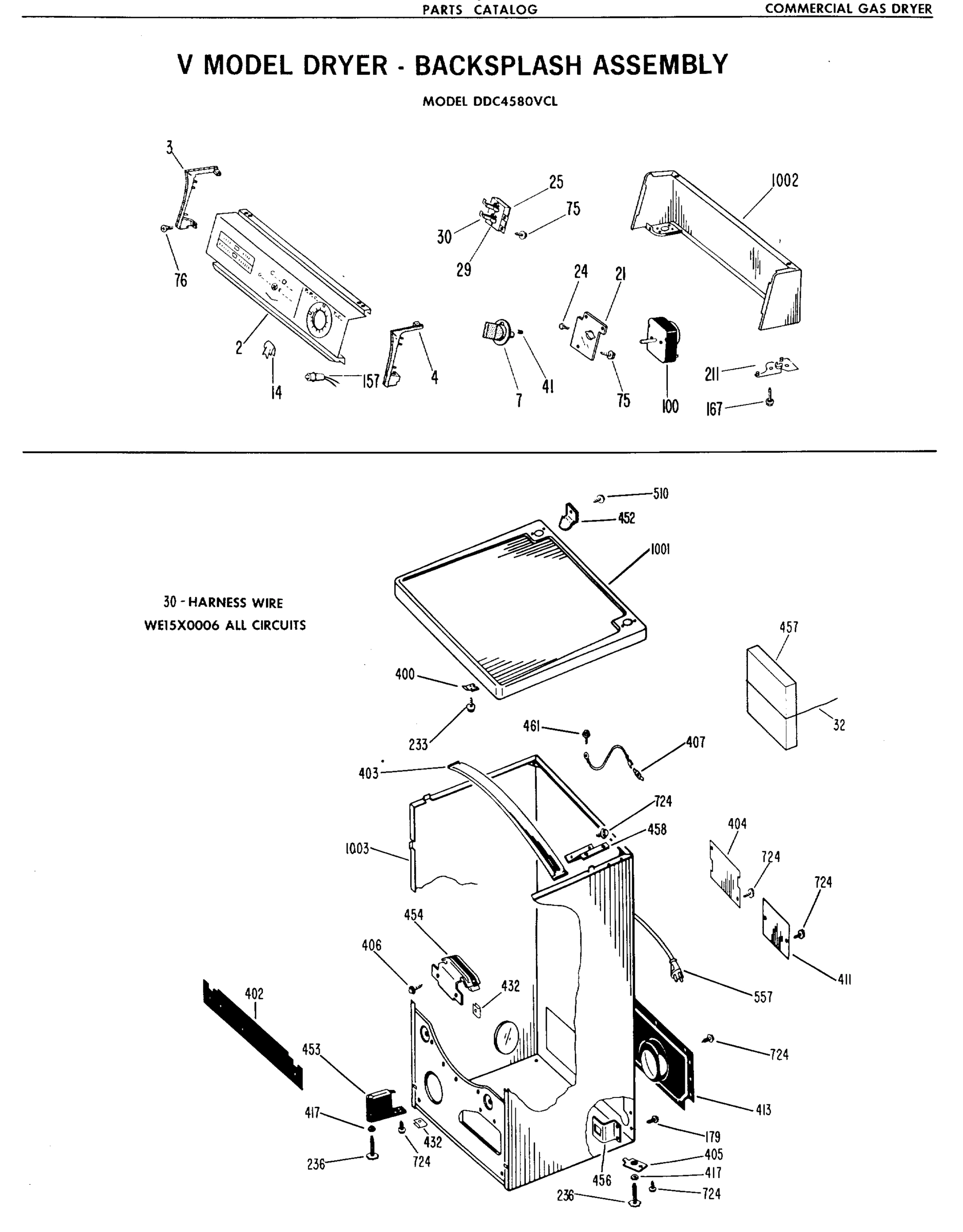

V MODEL DRYER - BACKSPLASH ASSEMBLY
Common parts from model GE DDC4397VEL Dryer Gas
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
199
SCREW 14-10 X 1 HEX GEN WE02X0280 Contact Us For Availability
202
BAFFLE-BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0088 GEN WE13X0088 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE13X0089 GEN WE13X0089 Contact Us For Availability
210
GEN WE01X0528 GEN WE01X0528 Contact Us For Availability
212
GEN WE02X0206 GEN WE02X0206 Contact Us For Availability
215
GEN WE03X0038 GEN WE03X0038 Contact Us For Availability
217
GEN WE01X0527 GEN WE01X0527 Contact Us For Availability
218
HOUSING-BLOWER GEN WE14X0134 Contact Us For Availability
220
SCREW 8-18 X 5/8 HEX GEN WE02X0275 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
228
GEN WE14X0140 GEN WE14X0140 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
237
GEN WE04X0532 GEN WE04X0532 Contact Us For Availability
238
SPACER-SWITCH GEN WE01X0945 Contact Us For Availability
239
SCREW 4-40 X 7/8 HEX GEN WE02X0272 Contact Us For Availability
243
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
250
PULLEY-DRIVE GEN WE12X0041 Contact Us For Availability
259
GEN WE04X0568 GEN WE04X0568 Contact Us For Availability
300
GEN WE18X0026 GEN WE18X0026 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
303
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
305
COVER-THERMOSTAT GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0118 GEN WE14X0118 Contact Us For Availability
310
PLATE-CLOSURE GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
315
GEN WE04X0567 GEN WE04X0567 Contact Us For Availability
316
GEN WE04X0566 GEN WE04X0566 Contact Us For Availability
318
GEN WE02X0125 GEN WE02X0125 Contact Us For Availability
319
WASHER-FLAT GEN WE02X0200 Contact Us For Availability
320
ADAPTER-SWITCH GEN WE01X0667 Contact Us For Availability
321
GEN WE01X0932 GEN WE01X0932 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
406
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
411
WRAPPER CABINET KNOCKOUT GEN WE01X0426 Contact Us For Availability
413
GEN WE14X0066 GEN WE14X0066 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
SCREW 10-16 X 3/8 HEX GEN WH02X0893 Contact Us For Availability
432
GEN WE02X0282 GEN WE02X0282 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
452
BRACKET HINGE GEN WH16X0431 Contact Us For Availability
453
GEN WE13X0080 GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
455
SW ASM-PUSH BUTTON GEN WL11X0056 Contact Us For Availability
458
GEN WE01X0411 GEN WE01X0411 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
462
GEN WE04X0203 GEN WE04X0203 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
502
GEN WE02X0277 GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE01X5104 GEN WE01X5104 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
CHAMBER-COMBUSTION GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
PLATE-DIFFUSER GEN WE14X0072 Contact Us For Availability
529
GEN WE04X0419 GEN WE04X0419 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
530
GEN WE04X0552 GEN WE04X0552 Contact Us For Availability
531
BRACKET-THERMO GEN WE13X0127 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCREW 10-24 X 1/2 TRUSS GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
548
GEN WE17X0151 GEN WE17X0151 Contact Us For Availability
549
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
550
SCREW 8-18 X 3/8 HEX GEN WE02X0281 Contact Us For Availability
551
PAD-FELT K GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
557
GEN WE08X0023 GEN WE08X0023 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
607
NUT-SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
BRACKET ASM-HINGE GEN WE01X0345 Contact Us For Availability
609
BUSHING-HINGE GEN WE01X0404 Contact Us For Availability
610
GASKET-DOOR GEN WE09X0028 Contact Us For Availability
613
BRACKET ASM-HINGE GEN WE01X0344 Contact Us For Availability
614
SCREW 10-32 X 3/8 PAN GEN WZ04X0257 Contact Us For Availability
617
NUT CLIP GEN WH02X0782 Contact Us For Availability
620
GEN WE02X0252 GEN WE02X0252 Contact Us For Availability
622
SCREW 10-32 X 1/2 ROUND GEN WE02X0177 Contact Us For Availability
701
GEN WE13X0136 GEN WE13X0136 Contact Us For Availability
702
GEN WE04X0580 GEN WE04X0580 Contact Us For Availability
704
GEN WE01X0969 GEN WE01X0969 Contact Us For Availability
709
GEN WE04X0968 GEN WE04X0968 Contact Us For Availability
710
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
712
GEN WE14X0142 GEN WE14X0142 Contact Us For Availability
713
GEN WE01X0758 GEN WE01X0758 Contact Us For Availability
714
GEN WE01X0804 GEN WE01X0804 Contact Us For Availability
715
SCREW 8-18 X 13/32 HEX GEN WD02X5063 Contact Us For Availability
716
GEN WE01X0967 GEN WE01X0967 Contact Us For Availability
718
SCREW 6-20 X 1/2 HEX GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X0941 GEN WE01X0941 Contact Us For Availability
720
GEN WE13X0116 GEN WE13X0116 Contact Us For Availability
721
BRACKET-SPACER GEN WE13X0118 Contact Us For Availability
722
GEN WE01X0973 GEN WE01X0973 Contact Us For Availability
723
GEN WE13X0135 GEN WE13X0135 Contact Us For Availability
724
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
725
GEN WH12X0237 GEN WH12X0237 Contact Us For Availability
726
GEN 6-32X3/8 GEN 6-32X3/8 Contact Us For Availability
727
GEN WH01X1719 GEN WH01X1719 Contact Us For Availability
728
GEN WH12X0242 GEN WH12X0242 Contact Us For Availability
729
GEN WE04X0581 GEN WE04X0581 Contact Us For Availability
730
GEN 8-32X5/8 GEN 8-32X5/8 Contact Us For Availability
731
GEN WE01X0974 GEN WE01X0974 Contact Us For Availability
732
GEN WE01X0972 GEN WE01X0972 Contact Us For Availability
733
GEN WE01X0970 GEN WE01X0970 Contact Us For Availability
1001
WELD ASM COVER WH GEN WE20X0492 Contact Us For Availability
1003
GEN WE20X0396 GEN WE20X0396 Contact Us For Availability
1003
GEN WE20X0559 GEN WE20X0559 Contact Us For Availability
1003
GEN WE20X0560 GEN WE20X0560 Contact Us For Availability
1003
GEN WE20X0561 GEN WE20X0561 Contact Us For Availability
1003
GEN WE20X0562 GEN WE20X0562 Contact Us For Availability
1005
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
1005
GEN WE10X0259 GEN WE10X0259 Contact Us For Availability
1005
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
1005
GEN WE10X0261 GEN WE10X0261 Contact Us For Availability
1005
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
1008
WELD ASM-CAB FRONT WH GEN WE20X0500 Contact Us For Availability
1008
GEN WE20X0567 GEN WE20X0567 Contact Us For Availability
1008
WELD ASM-CAB FRONT HA GEN WE20X0568 Contact Us For Availability
1008
GEN WE20X0569 GEN WE20X0569 Contact Us For Availability
1008
WELD ASM-CAB FRONT AD GEN WE20X0570 Contact Us For Availability
1009
DOOR-ACCESS WH GEN WE10X0205 Contact Us For Availability
1009
GEN WE10X0253 GEN WE10X0253 Contact Us For Availability
1009
DOOR-ACCESS HA GEN WE10X0254 Contact Us For Availability
1009
GEN WE10X0255 GEN WE10X0255 Contact Us For Availability
1009
DOOR-ACCESS AD GEN WE10X0256 Contact Us For Availability
1133
NUT-STOP GEN WE02X0245 Contact Us For Availability
1135
SHIELD-SWITCH GEN WE01X0844 Contact Us For Availability
9999
GEN 49-9035 GEN 49-9035 Contact Us For Availability
9999
GEN 49-9335 GEN 49-9335 Contact Us For Availability
× ![]()
