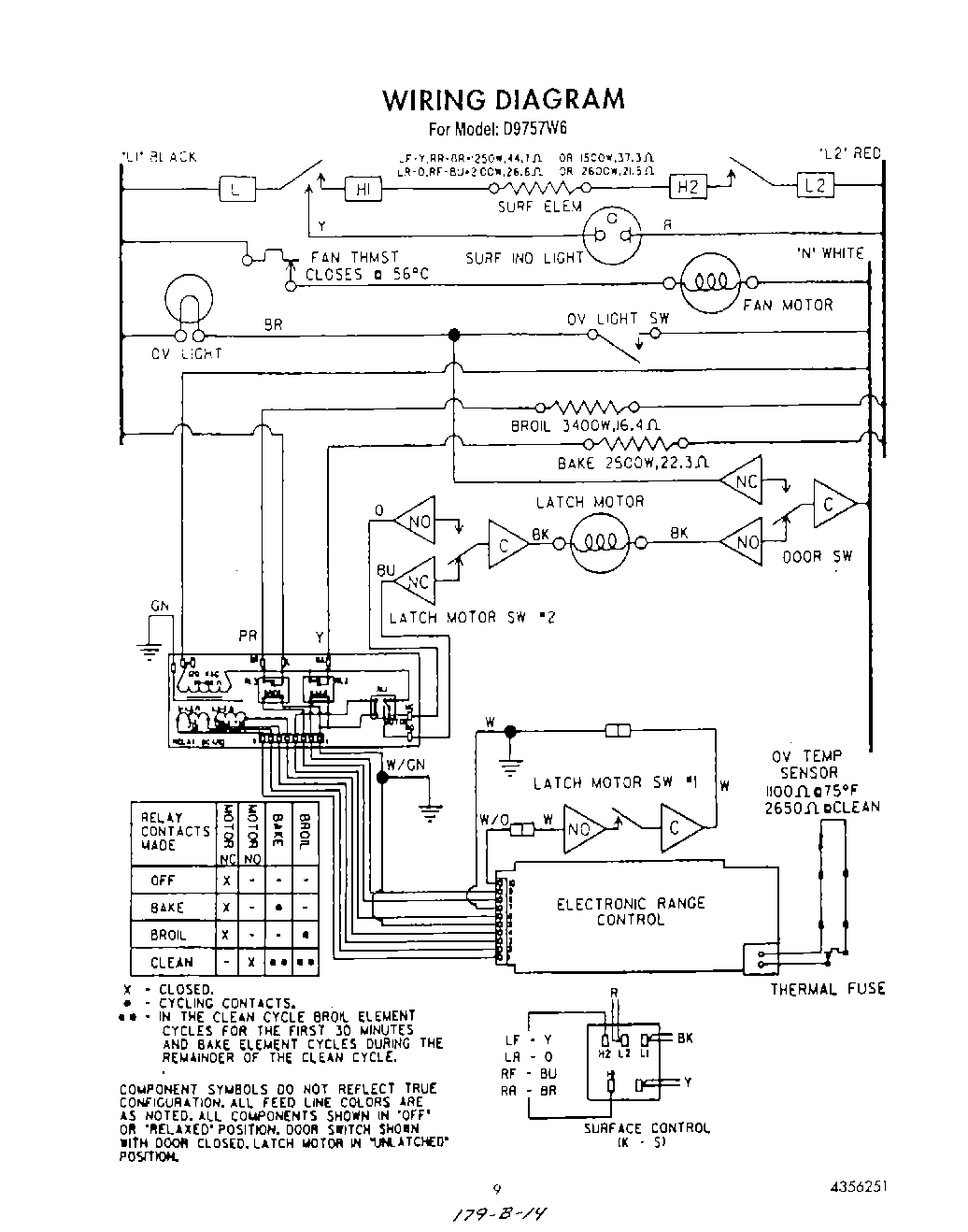

Model Whirlpool D9757W6 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

Seal, Inner Glass WPL 4342634 Contact Us For Availability

2

Glass-Inner WPL 4337767 Contact Us For Availability

2

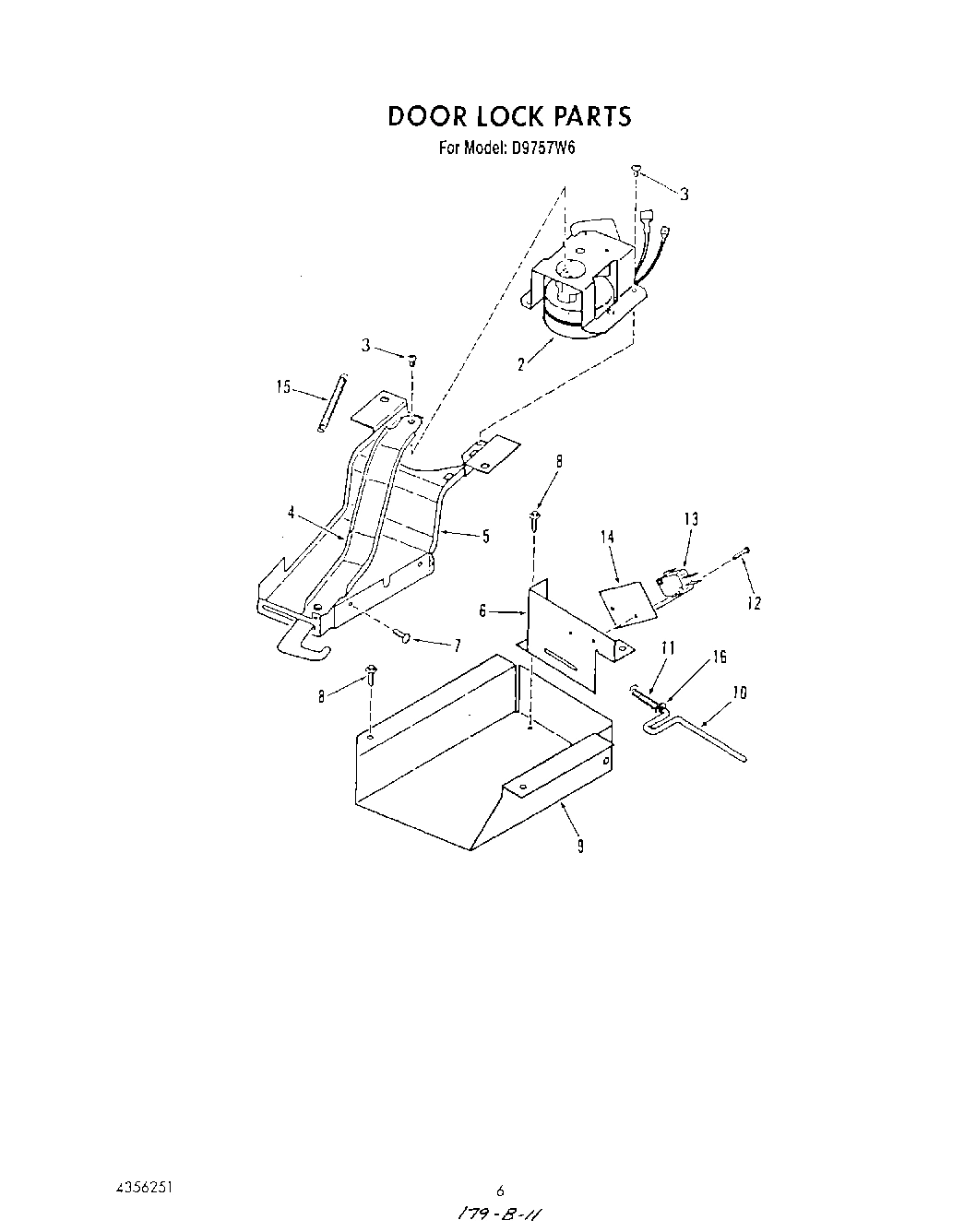

Lock Motor Asm. WPL 4343039 Contact Us For Availability

2

Screw WPL 4338182 Contact Us For Availability

2

Bracket, Fan WPL 4338067 Contact Us For Availability

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

3

Lining WPL 4336608 Contact Us For Availability

3

Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability

3

Speed Nut WPL 4324015 Contact Us For Availability

4

Lock Lever Asm. WPL 4338225 Contact Us For Availability

4

Medallion WPL 4332924 Contact Us For Availability

4

Fan Duct WPL 4338111 Contact Us For Availability

5

WPY04100165 Whirlpool Surface Element In Stock WPL WPY04100165 $35.36

5

Retainer, Glass WPL 4334791 Contact Us For Availability

5

Plate WPL 4338210 Contact Us For Availability

5

Lock Cover WPL 4343150 Contact Us For Availability

6

WP3177565 Whirlpool Surface Element Backorder WPL WP3177565 $76.44

6

Clip WPL 4323413 Contact Us For Availability

6

Glass, Intermediate WPL 4334821 Contact Us For Availability

6

Bracket, Door Switch WPL 4343145 Contact Us For Availability

6

Wire Cover WPL 4331576 Contact Us For Availability

7

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.06

7

Screen, Burner Box WPL 4336923 Contact Us For Availability

7

Glass, Outer WPL 4336721 Contact Us For Availability

7

Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability

7

Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability

8

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

8

Insulation, Back And Bottom WPL 4353609 Contact Us For Availability

8

Cushion (3) WPL 4324217 Contact Us For Availability

8

Light, Indicator WPL 4336634 Contact Us For Availability

9

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

9

Bottom, Main WPL 4336438 Contact Us For Availability

9

Frame, Door WPL 4338148 Contact Us For Availability

9

Lock Box WPL 4338068 Contact Us For Availability

9

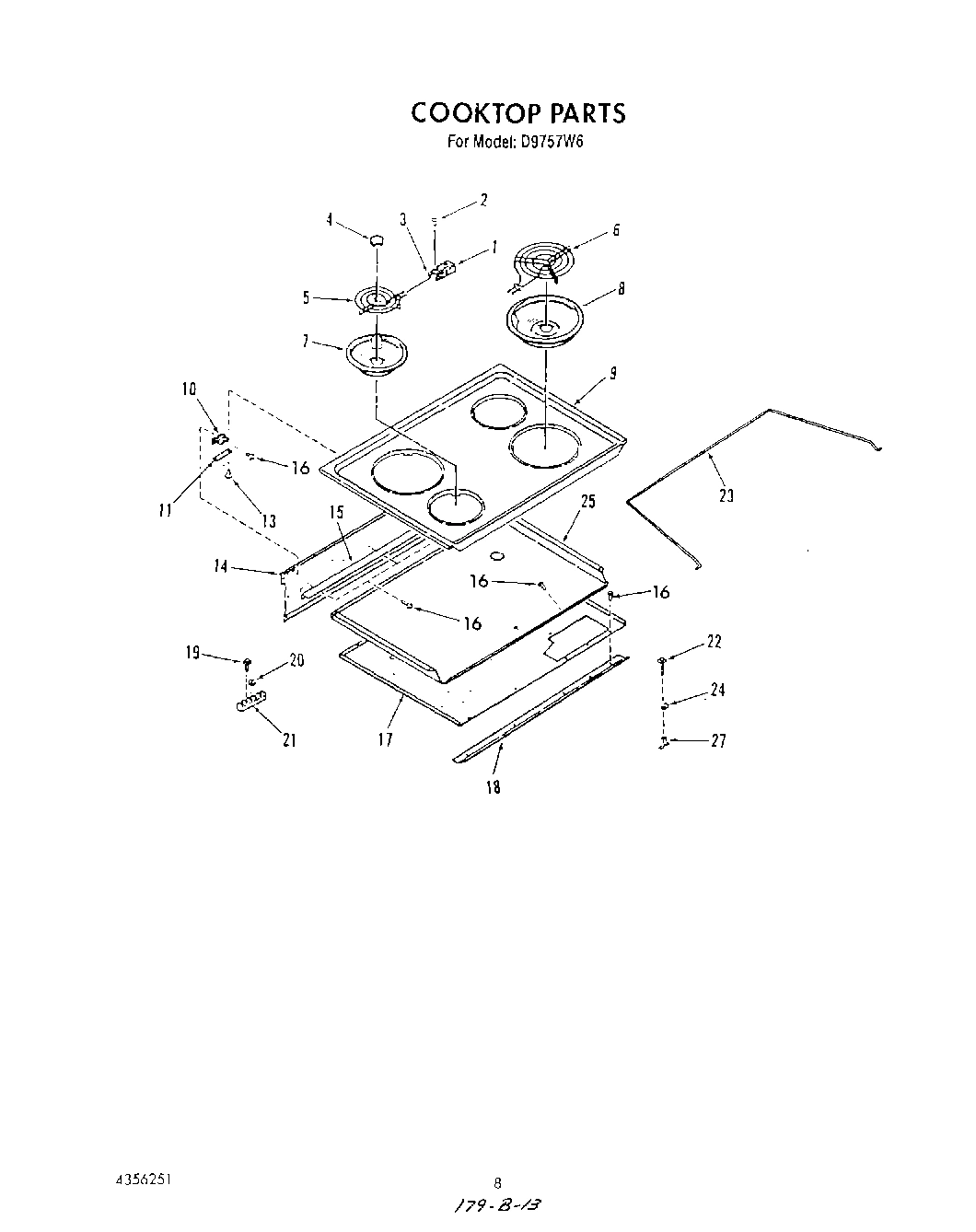

Cooktop (White) WPL 4329792 Contact Us For Availability

9

Cooktop (Almond) WPL 4331513 Contact Us For Availability

9

Cooktop (Chrome) WPL 4334228 Contact Us For Availability

10

Handle WPL 4336828 Contact Us For Availability

10

Actuator Pin WPL 4338149 Contact Us For Availability

10

Hinge, Main Top WPL 4332197 Contact Us For Availability

Retainer, Bottom Insulation WPL 4336427 Contact Us For Availability

Spacer, Handle WPL 4323997 Contact Us For Availability

Spring WPL 4338171 Contact Us For Availability

Mounting Bracket, Hinge WPL 4332273 Contact Us For Availability

Retainer, Insulation (Right Side) WPL 4343031 Contact Us For Availability

Retainer, Insulation (Left Side) WPL 4343032 Contact Us For Availability

Screw WPL 4336631 Contact Us For Availability

Screw, No.4 x 3/4 WPL 4343068 Contact Us For Availability

Mounting Bracket, Control Panel (Right) WPL 4332175 Contact Us For Availability

Mounting Bracket, Control Panel (Left) WPL 4332176 Contact Us For Availability

Washer WPL 4336868 Contact Us For Availability

Switch, Micro WPL 4337116 Contact Us For Availability

Screw, No.6-32 x 1/4 WPL 4327216 Contact Us For Availability

End Cap (Right) WPL 4336416 Contact Us For Availability

End Cap (Left) WPL 4336417 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Spring, Oven Door WPL 4343203 Contact Us For Availability

Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability

Insulator WPL 4335973 Contact Us For Availability

Cover, Wire WPL 4336870 Contact Us For Availability

WP9750343 Whirlpool Light Lens Backorder WPL WP9750343 $2.84

Hinge, Oven Door (Right) WPL 4337545 Contact Us For Availability

Hinge, Oven Door (Left) WPL 4337546 Contact Us For Availability

Mounting Plate WPL 4335753 Contact Us For Availability

Spring, Lock WPL 4338207 Contact Us For Availability

Shield, Rear Wire WPL 4343035 Contact Us For Availability

Spacer, Expansion WPL 4336445 Contact Us For Availability

Washer WPL 4323206 Contact Us For Availability

Glass, Center WPL 4338251 Contact Us For Availability

Washer WPL 4337415 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Retainer, Insulation WPL 4338314 Contact Us For Availability

Bottom, Burner Box WPL 4343199 Contact Us For Availability

Knob, Infinite WPL 4337760 Contact Us For Availability

Side Trim (Left) WPL 4336443 Contact Us For Availability

Side Trim (Right) WPL 4336444 Contact Us For Availability

Insulation WPL 4354947 Contact Us For Availability

Extension, Burner Box WPL 4337015 Contact Us For Availability

Knob, Clock WPL 4338513 Contact Us For Availability

Bake Element (240 Volt) WPL 4337605 Contact Us For Availability

Bake Element (208 Volt (Opt)) WPL 4337606 Contact Us For Availability

Gasket, Door WPL 4342564 Contact Us For Availability

Screw, No.10-32x1 WPL 4331572 Contact Us For Availability

Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability

20

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

20

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

20

Plug, Door Lining WPL 4337448 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Trim, Bottom Vent WPL 4343193 Contact Us For Availability

Spacer, Glass WPL 4336869 Contact Us For Availability

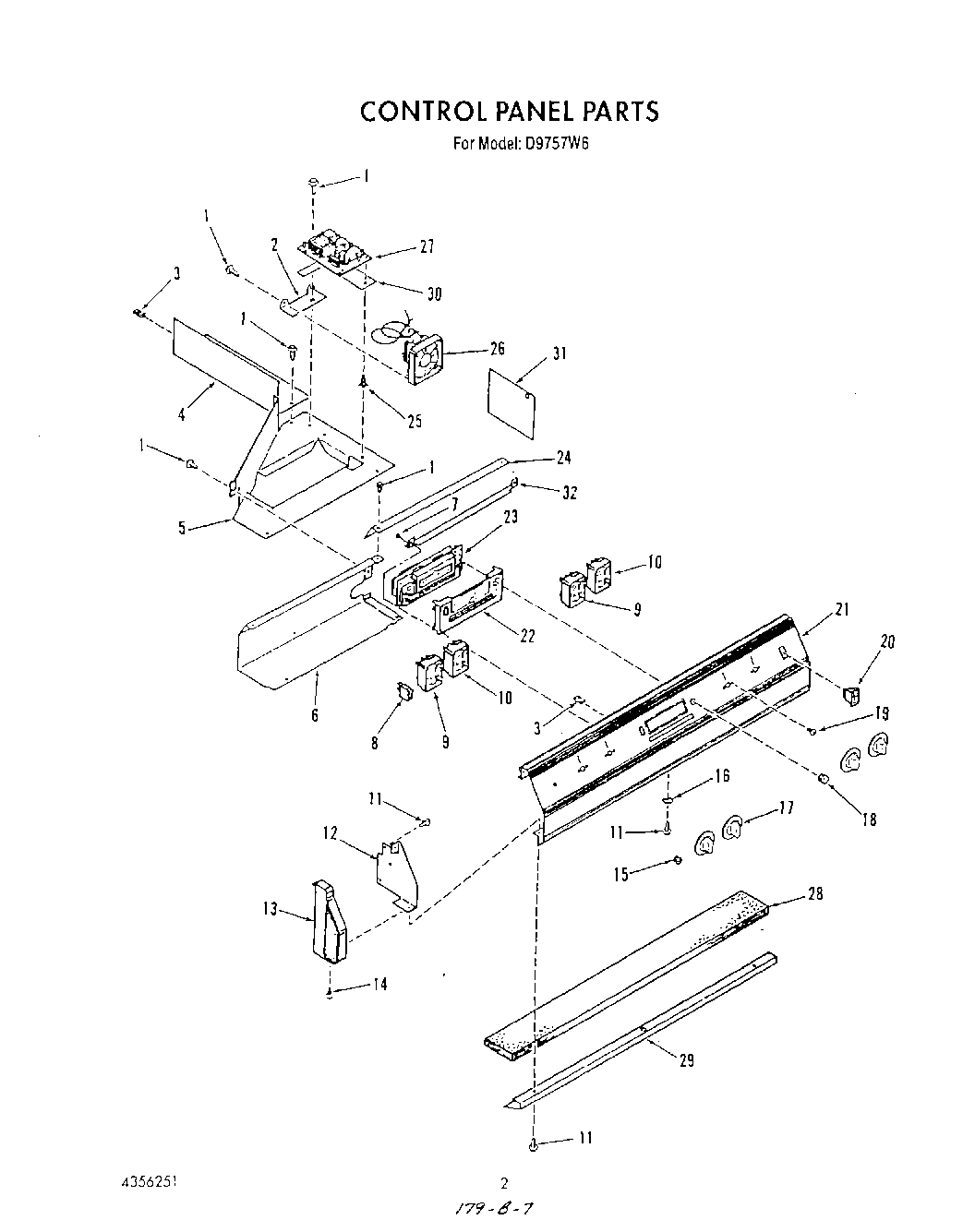

Control Panel WPL 4337803 Contact Us For Availability

W10856866 Whirlpool Light Socket In Stock WPL W10856866 $3.70

Clock Lens Asm. WPL 4342950 Contact Us For Availability

Retainer WPL 4342666 Contact Us For Availability

Screw, No.10-2 x 1/2 WPL 4335315 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Washer WPL 4337453 Contact Us For Availability

Support Rod, Main Top WPL 4338405 Contact Us For Availability

Clock/Oven Control WPL 4342969 Contact Us For Availability

24

Retainer WPL 4331472 Contact Us For Availability

24

Clamp WPL 4343200 Contact Us For Availability

24

Cover, Control WPL 4338289 Contact Us For Availability

25

Screw, No.10-32 x 17/32 WPL 4323776 Contact Us For Availability

25

Top, Burner Box WPL 4354959 Contact Us For Availability

25

Spacer WPL 4336562 Contact Us For Availability

26

Fan WPL 4337779 Contact Us For Availability

Cover WPL 4329206 Contact Us For Availability

240 Volt WPL 4335055 Contact Us For Availability

208 Volt (Opt) WPL 4335056 Contact Us For Availability

Spacer WPL 4343037 Contact Us For Availability

Relay, Circuit Board WPL 4338265 Contact Us For Availability

28

Insulation WPL 4338352 Contact Us For Availability

29

Oven Cavity WPL 4337959 Contact Us For Availability

29

Moisture Shield WPL 4343205 Contact Us For Availability

30

Frame, Front WPL 4337682 Contact Us For Availability

30

Insulator, Relay WPL 4343206 Contact Us For Availability

31

Shield, Louver WPL 4338517 Contact Us For Availability

32

Insulation WPL 4354262 Contact Us For Availability

32

Brace, Clock Stiffener WPL 4343122 Contact Us For Availability

33

Insulation, Wrap WPL 4330229 Contact Us For Availability

34

Rack, Oven WPL 4334809 Contact Us For Availability

36

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

37

Support, Broil Element WPL 4337249 Contact Us For Availability

39

Broil Element (240 Volt) WPL 4343194 Contact Us For Availability

39

Broil Element (208 Volt (Opt)) WPL 4343195 Contact Us For Availability

40

Vent Tube WPL 4343204 Contact Us For Availability

41

Gasket, Lens WPL 4324481 Contact Us For Availability

42

Lens, Oven Light WPL 4324415 Contact Us For Availability

44

Retainer, Lens WPL 4324482 Contact Us For Availability

45

Sensor WPL 4337170 Contact Us For Availability

46

Screw WPL 4324445 Contact Us For Availability

47

Trim, Burner Box Side WPL 4332532 Contact Us For Availability
