Model Whirlpool D5257X2 ELECTRIC RANGE – Common Parts & Diagrams
05 - COOK TOP
06 - WIRING DIAGRAM

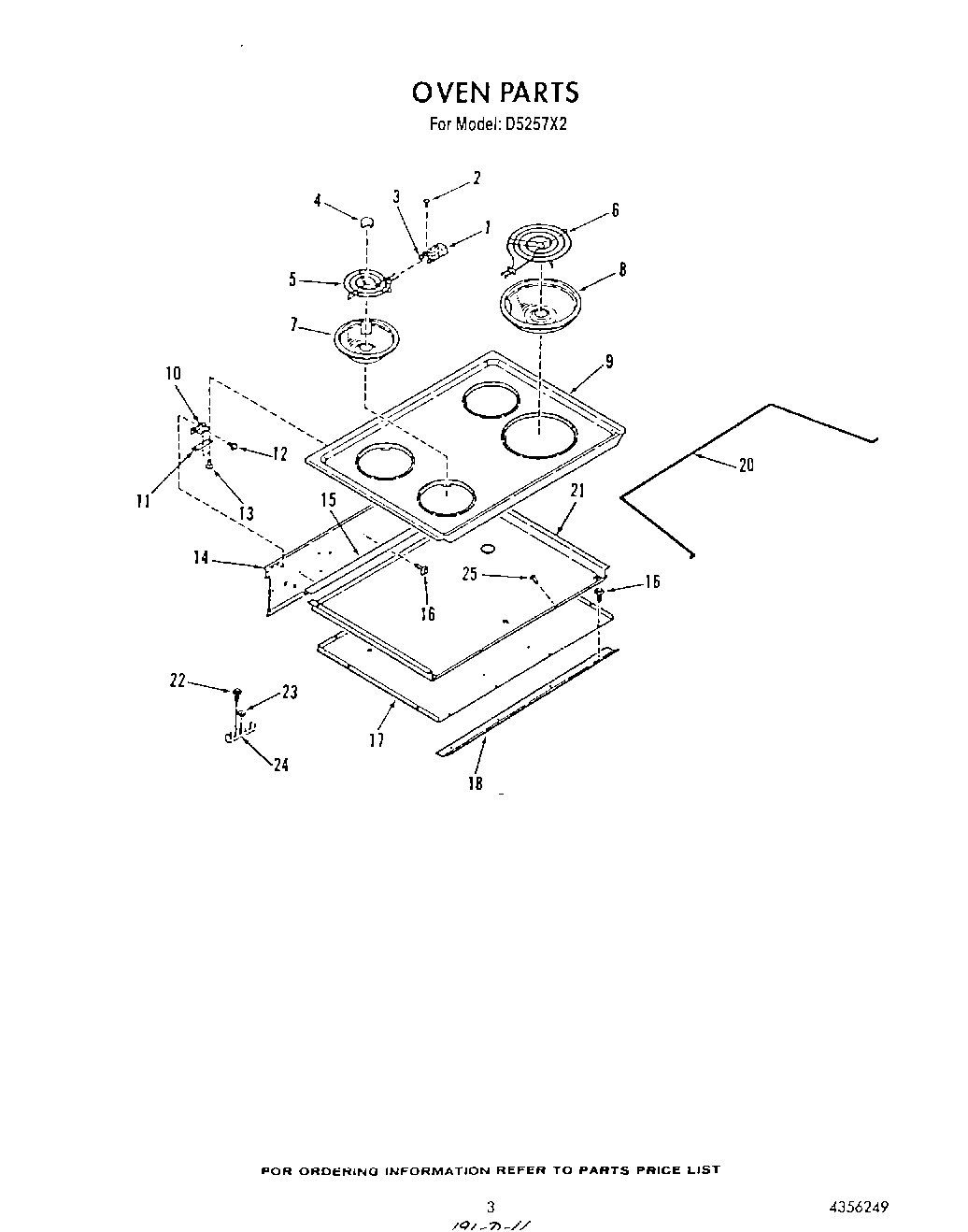

03 - OVEN

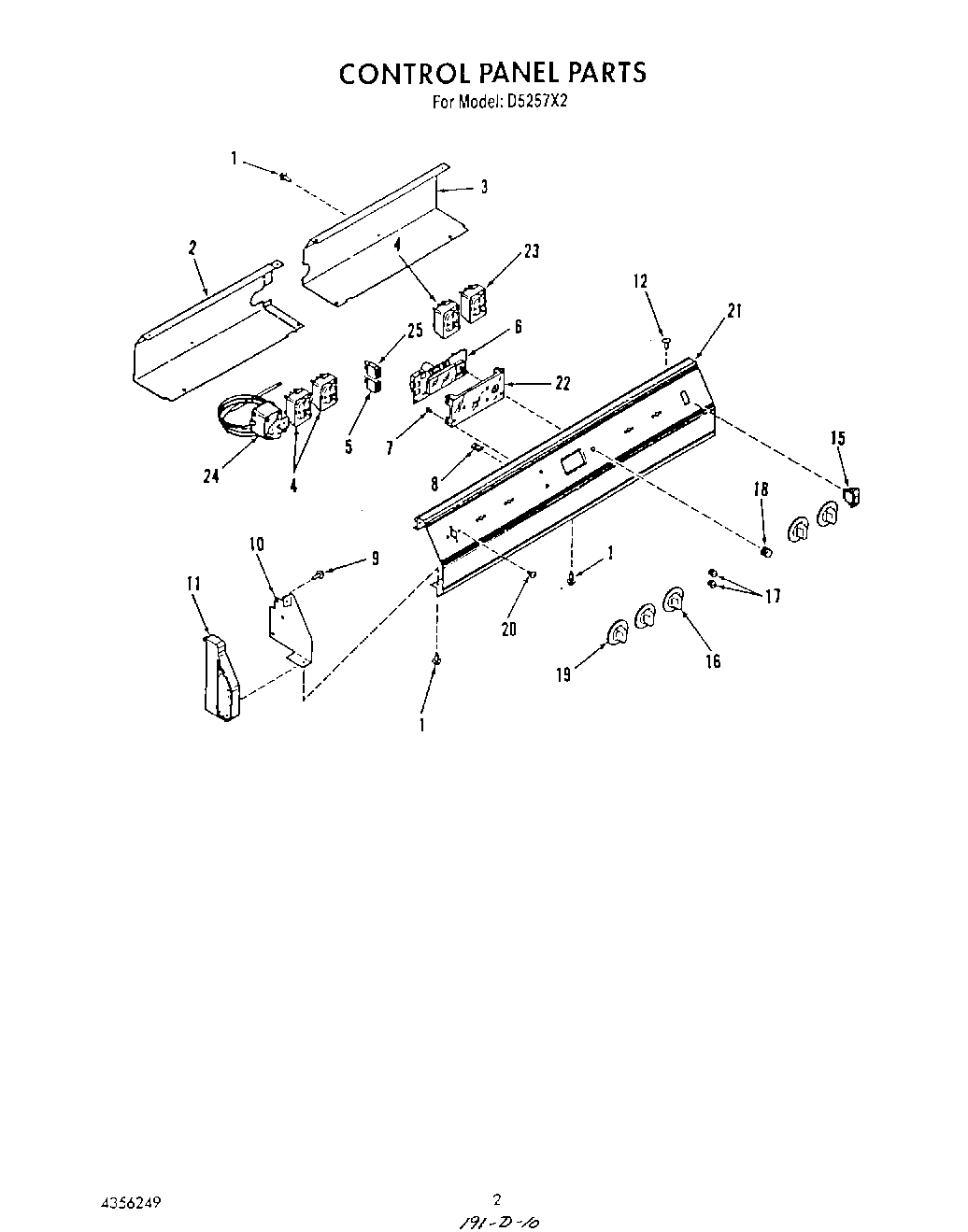

02 - CONTROL PANEL

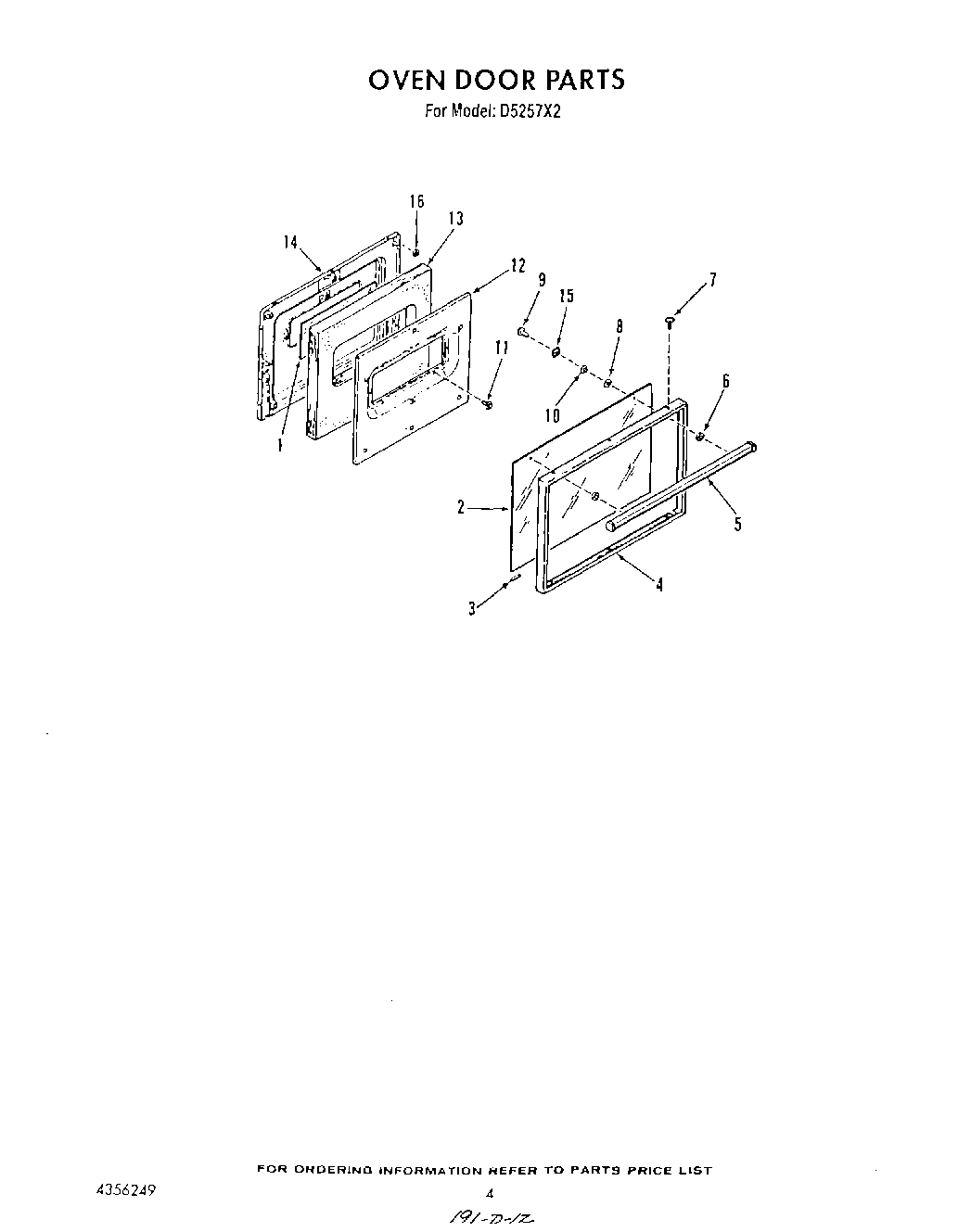

04 - OVEN DOOR
Common parts from model Whirlpool D5257X2 ELECTRIC RANGE
1
Glass, Inner WPL 4334792 Contact Us For Availability
2
Screw WPL 4338182 Contact Us For Availability
2
Wire Cover, Left WPL 4331576 Contact Us For Availability
2
Glass, Outer WPL 4336721 Contact Us For Availability
3
Wire Cover, Right WPL 4331575 Contact Us For Availability
3
Cushion WPL 4324217 Contact Us For Availability
4
Wire Cover WPL 4343192 Contact Us For Availability
4
Medallion WPL 4332924 Contact Us For Availability
4
Frame WPL 4336720 Contact Us For Availability
5
Indicator Light (Oven Unit) WPL 4336634 Contact Us For Availability
5
Handle WPL 4336828 Contact Us For Availability
6
Clip WPL 4323413 Contact Us For Availability
6
Clock WPL 4338432 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
7
Screen, Burner Box WPL 4336923 Contact Us For Availability
7
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
7
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
8
Insulation, Back And Bottom WPL 4354753 Contact Us For Availability
8
Speed Nut WPL 4324015 Contact Us For Availability
8
Washer, Fibre WPL 4336868 Contact Us For Availability
9
Bottom, Main WPL 4336438 Contact Us For Availability
9
Chrome Cooktop WPL 4334227 Contact Us For Availability
9
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
10
Hinge, Main Top WPL 4332197 Contact Us For Availability
10
Mounting Bracket (Right) WPL 4332175 Contact Us For Availability
10
Mounting Bracket (Left) WPL 4332176 Contact Us For Availability
10
Spacer, Glass WPL 4336869 Contact Us For Availability
11
Retainer, Bottom Insulation WPL 4336427 Contact Us For Availability
11
Mounting Bracket, Hinge WPL 4332273 Contact Us For Availability
11
End Cap (Right) WPL 4336416 Contact Us For Availability
11
End Cap (Left) WPL 4336417 Contact Us For Availability
11
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
12
Retainer, Insulation (Right Side) WPL 4343031 Contact Us For Availability
12
Retainer, Insulation (Left Side) WPL 4343032 Contact Us For Availability
12
Screw, No.10-32 x 5/16 WPL 4326322 Contact Us For Availability
12
Retainer WPL 4335755 Contact Us For Availability
13
Screw WPL 4336631 Contact Us For Availability
13
Screw, No.6-32 x 1/4 WPL 4327216 Contact Us For Availability
13
Insulation WPL 4354748 Contact Us For Availability
14
Spring, Oven Door WPL 4343197 Contact Us For Availability
14
Cover, Wire WPL 4336870 Contact Us For Availability
14
Liner, Inner Door WPL 4336593 Contact Us For Availability
15
Hinge, Oven Door (Right) WPL 4337545 Contact Us For Availability
15
Hinge, Oven Door (Left) WPL 4337546 Contact Us For Availability
15
Shield, Rear Wire WPL 4343035 Contact Us For Availability
15
Retainer WPL 4342666 Contact Us For Availability
16
Spacer, Expansion WPL 4336445 Contact Us For Availability
16
Knob, Infinite Control (4) WPL 4337760 Contact Us For Availability
16
Washer, Felt WPL 4337618 Contact Us For Availability
17
Bottom, Burner Box WPL 4343189 Contact Us For Availability
18
Side Trim (Left) WPL 4336443 Contact Us For Availability
18
Side Trim (Right) WPL 4336444 Contact Us For Availability
18
Extension, Burner Box WPL 4343190 Contact Us For Availability
18
Knob, Clock WPL 4338513 Contact Us For Availability
19
Bake Element (240 Volt) WPL 4337605 Contact Us For Availability
19
Bake Element (208 Volt (Opt)) WPL 4337606 Contact Us For Availability
19
Knob, Thermostat WPL 4337759 Contact Us For Availability
20
Support Rod, Main Top WPL 4338405 Contact Us For Availability
20
Screw WPL 4323479 Contact Us For Availability
21
Trim, Bottom WPL 4343193 Contact Us For Availability
21
Top, Burner Box WPL 4354959 Contact Us For Availability
21
Control Panel WPL 4337804 Contact Us For Availability
22
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
22
Lens, Clock WPL 4337926 Contact Us For Availability
24
Washer WPL 4323206 Contact Us For Availability
24
Thermostat WPL 4337360 Contact Us For Availability
25
Screw, No.10-32 x 17/32 WPL 4323776 Contact Us For Availability
25
Indicator Light, (Surface Unit) WPL 4336633 Contact Us For Availability
25
Installation Instructions WPL 4343040 Contact Us For Availability
25
Repair Parts List WPL 4356249 Contact Us For Availability
25
Use & Care Manual WPL 4356250 Contact Us For Availability
29
Oven Cavity WPL 4337959 Contact Us For Availability
30
Frame, Front WPL 4336846 Contact Us For Availability
32
Seal, Oven Door WPL 4331799 Contact Us For Availability
33
Insulation, Wrap WPL 4354750 Contact Us For Availability
34
Rack, Oven (2) WPL 4354754 Contact Us For Availability
37
Support, Broil Element WPL 4337249 Contact Us For Availability
38
Washer WPL 4337453 Contact Us For Availability
39
Broil Element (240 Volt) WPL 4343194 Contact Us For Availability
39
Broil Element (208 Volt (Opt)) WPL 4343195 Contact Us For Availability
40
Vent Tube WPL 4343196 Contact Us For Availability
41
Plug, Button WPL 4338588 Contact Us For Availability
42
Trim WPL 4332532 Contact Us For Availability
× ![]()
