Model Whirlpool CW6500Q WASHER – Common Parts & Diagrams

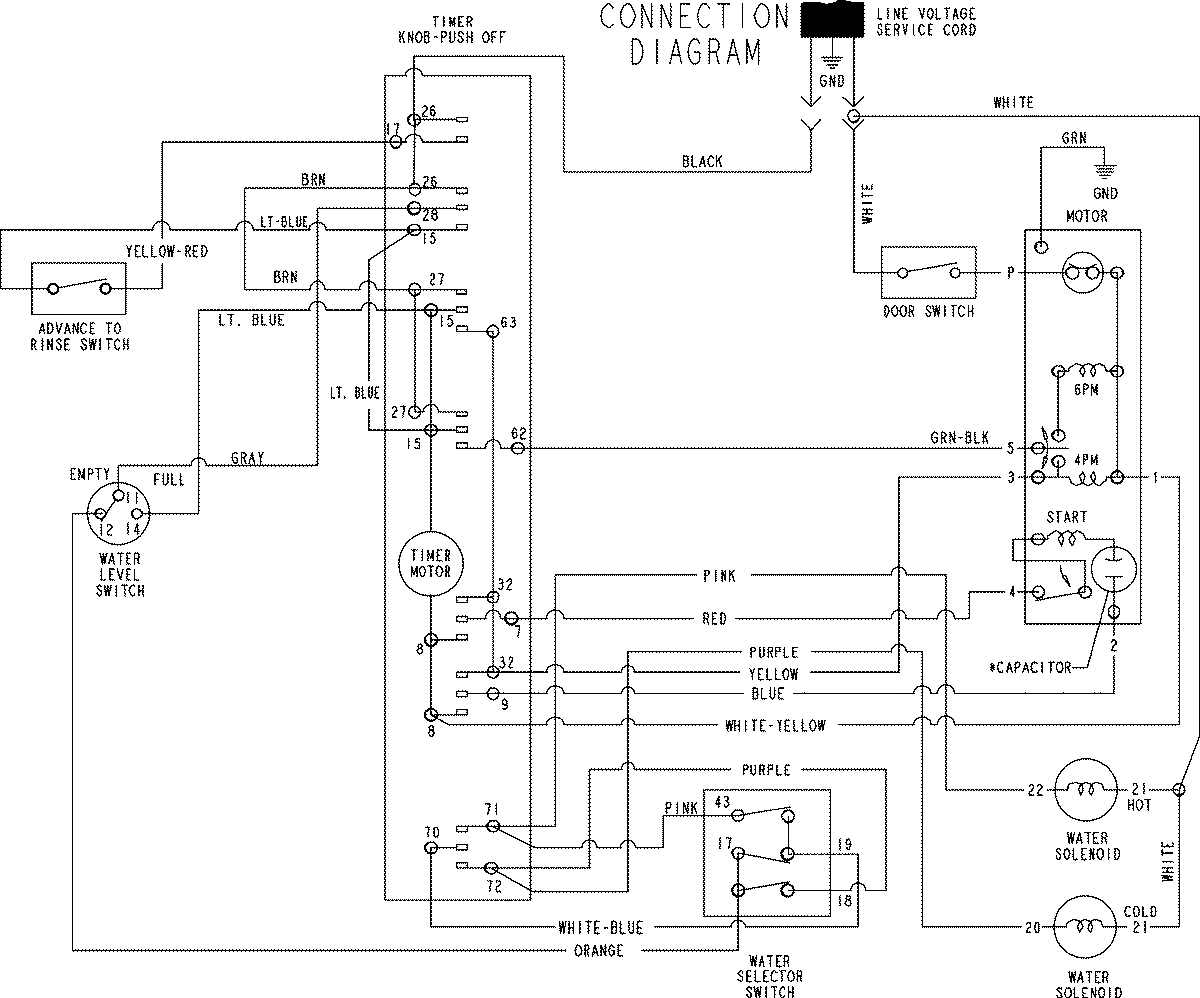

10 - WIRING INFORMATION
01 - BASE

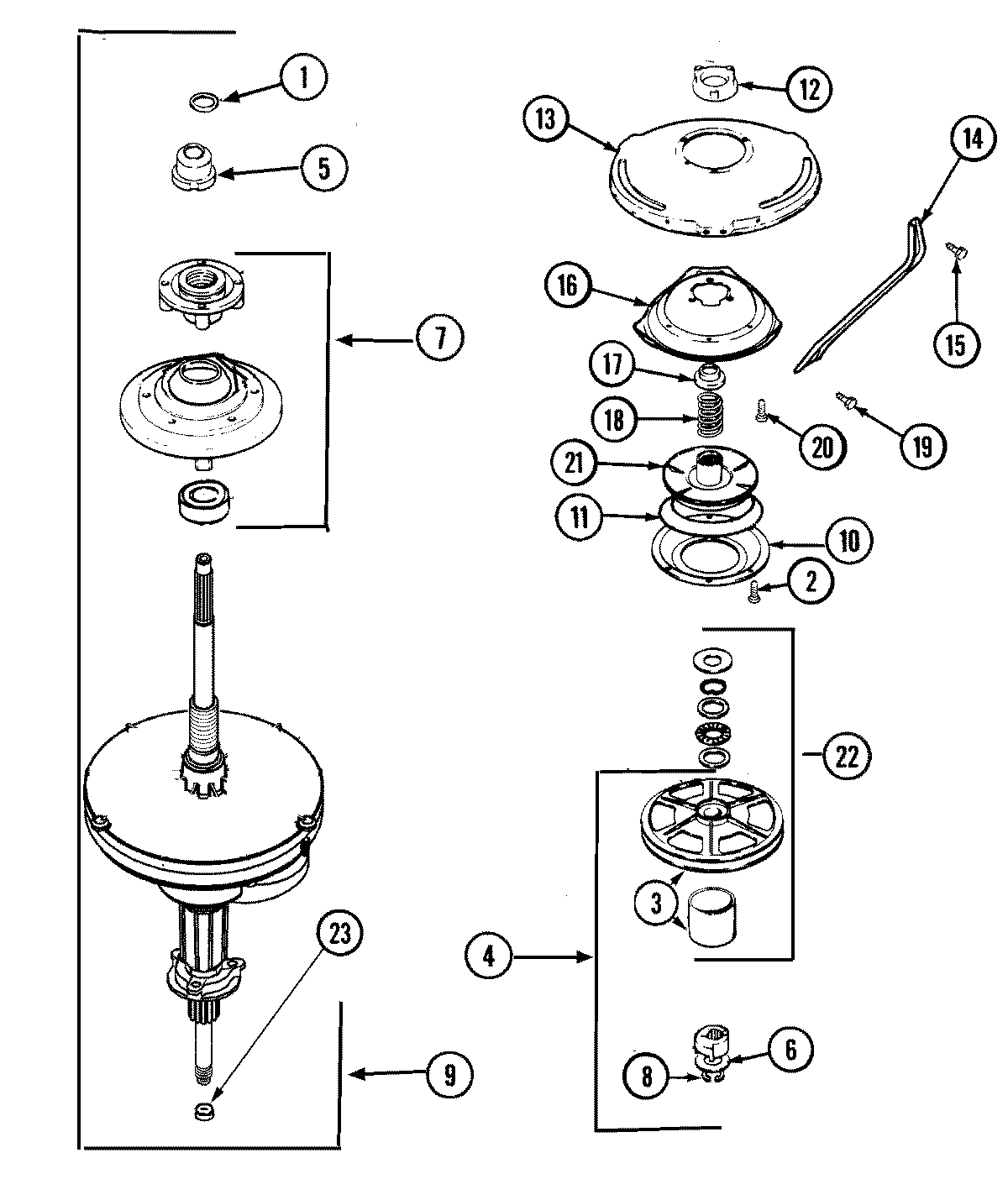

06 - TRANSMISSION

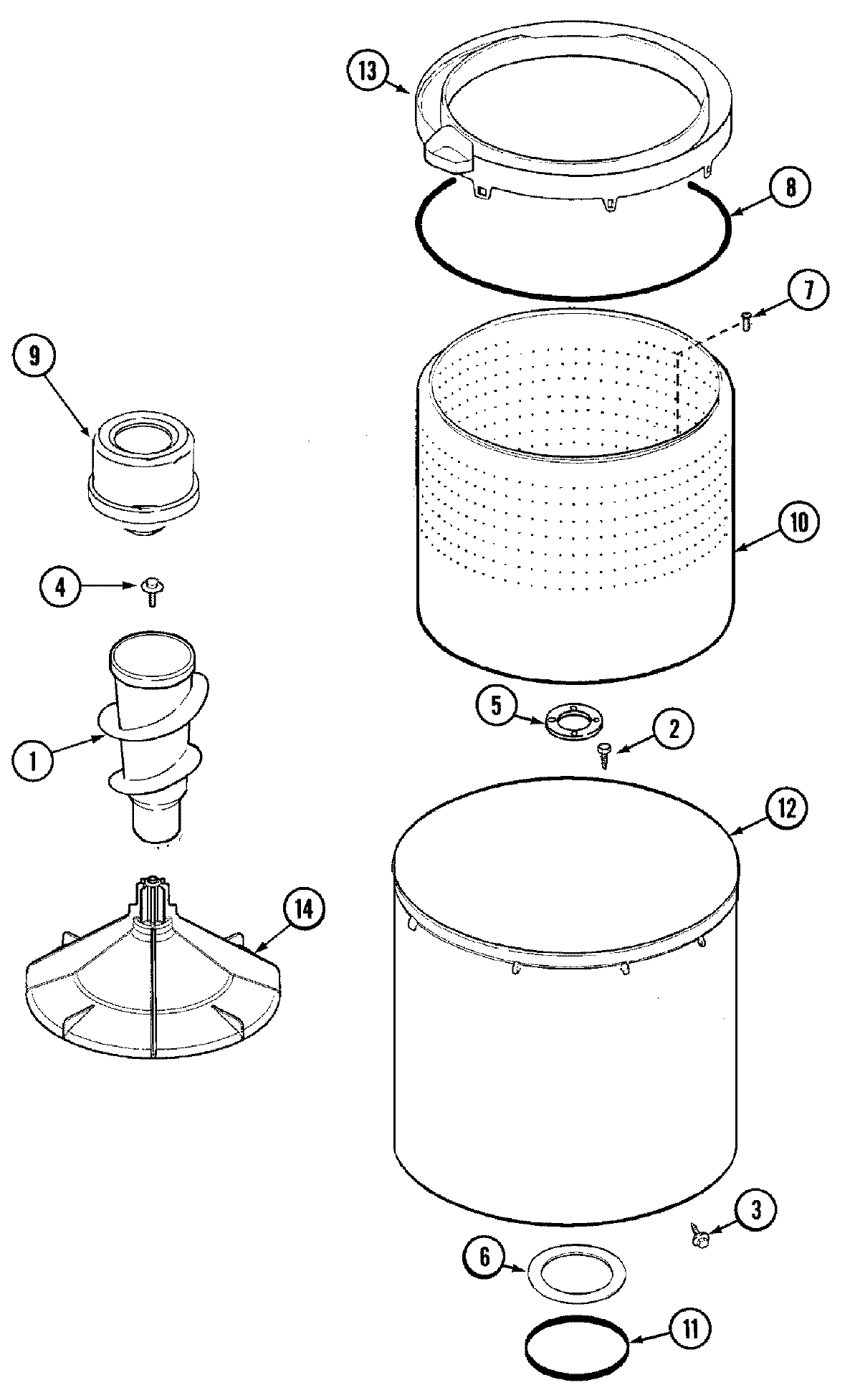

08 - TUB

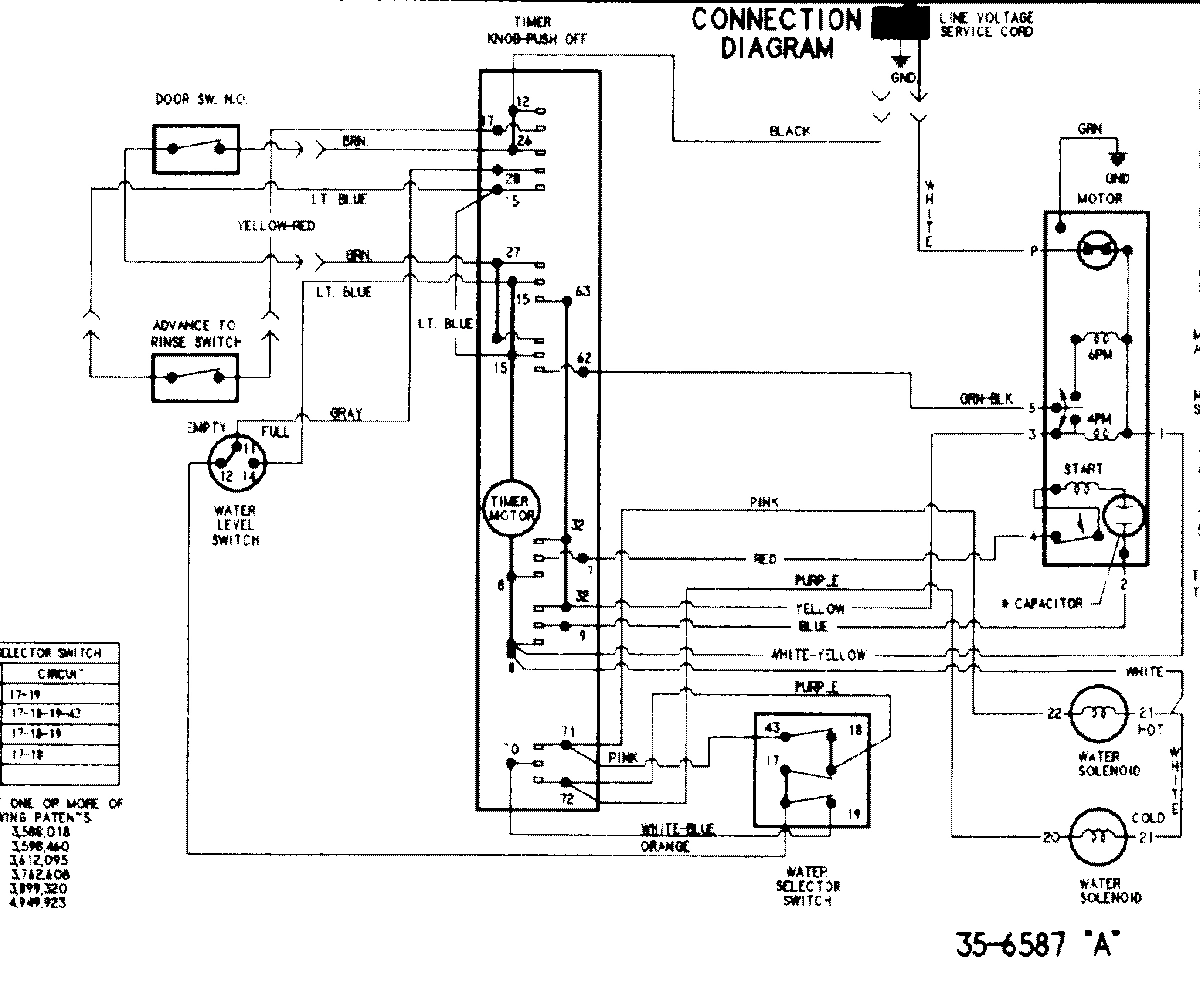

09 - WIRING INFORMATION

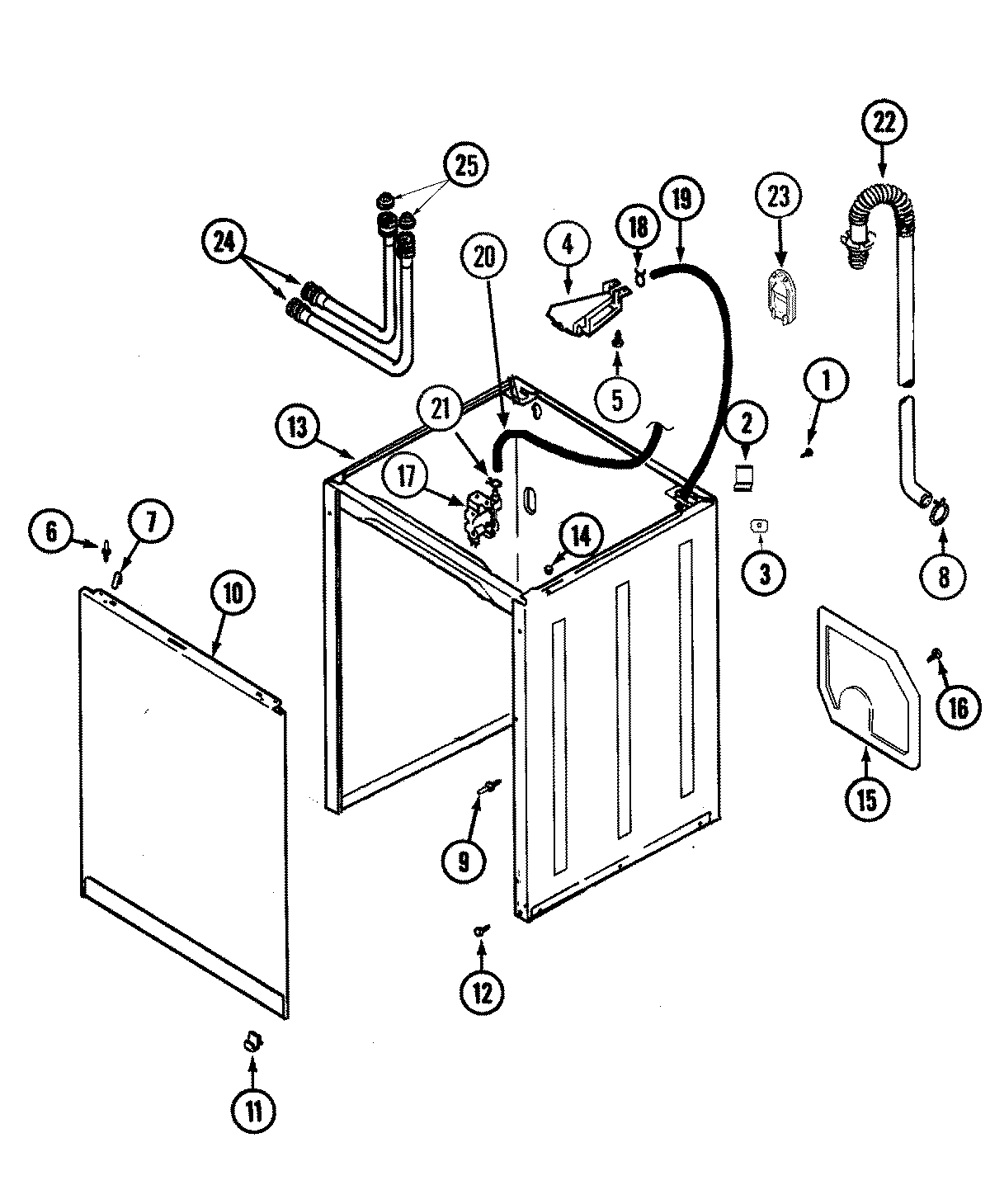

02 - CABINET

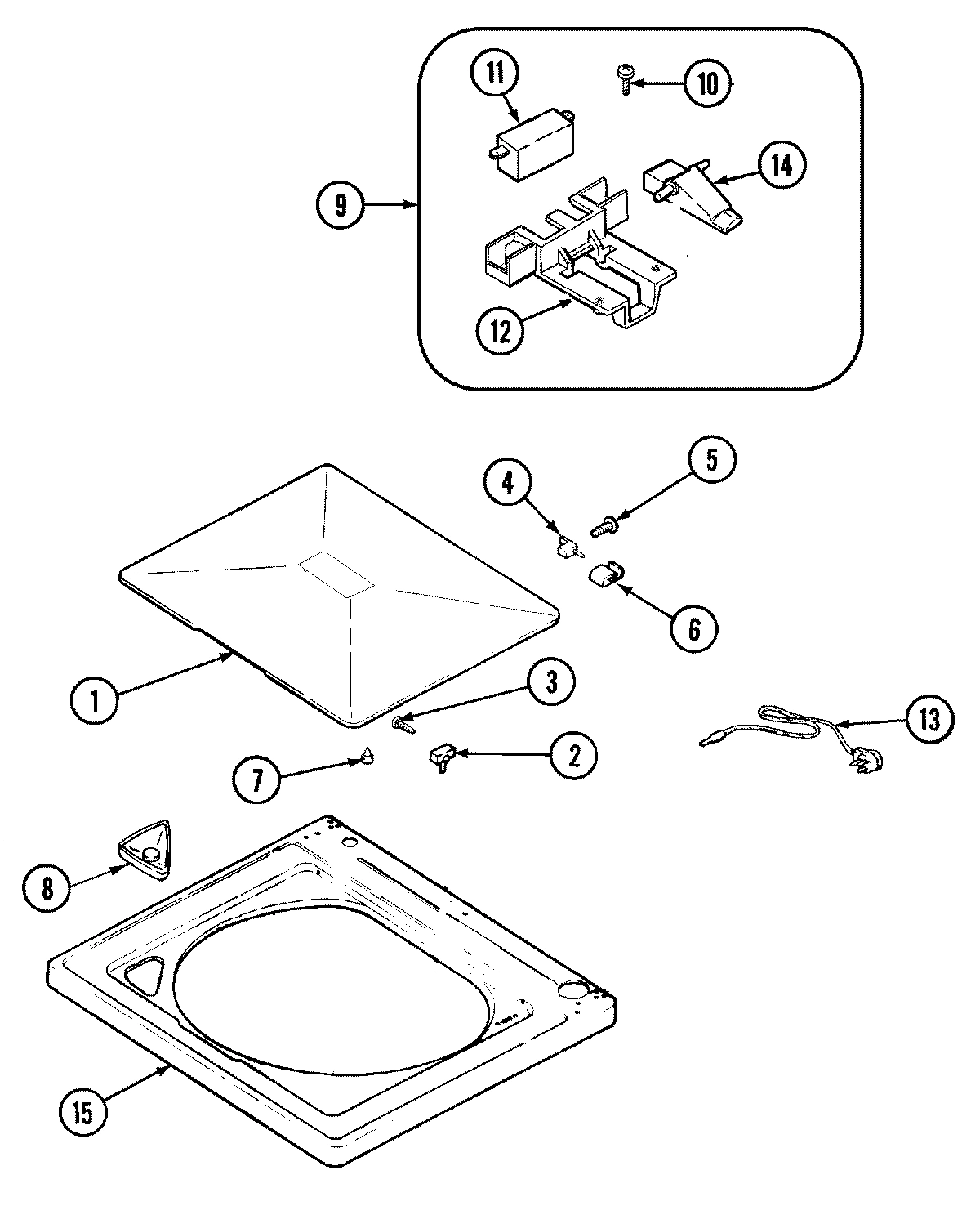

05 - TOP

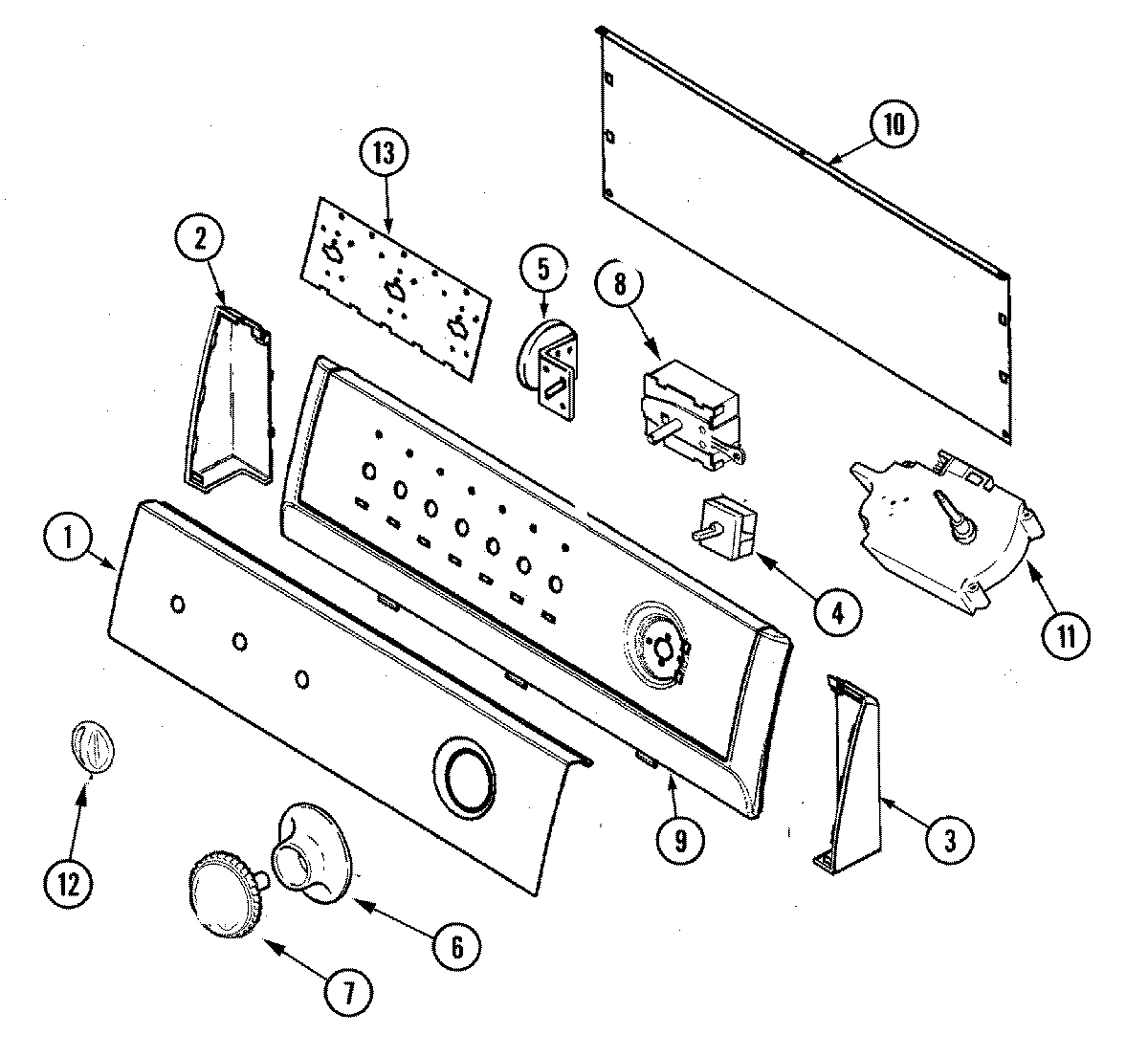

03 - CONTROL PANEL
04 - SUPPLEMENTAL INFORMATION

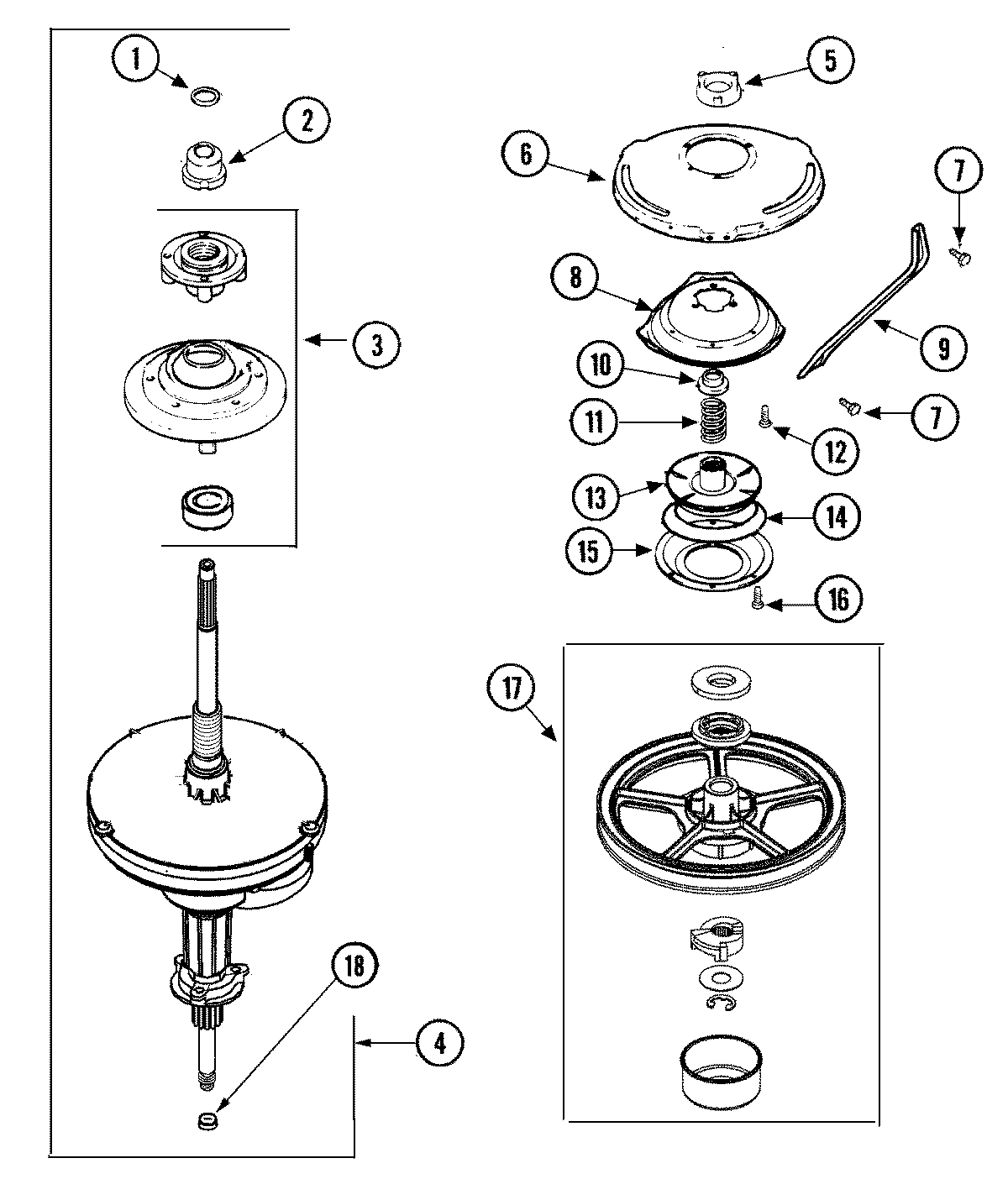

07 - TRANSMISSION (SERIES 22)
Common parts from model Whirlpool CW6500Q WASHER
1
``O`` RING WPL 257941 Contact Us For Availability
1
AUGER/POST ASSM (ASPK) WPL 21001878 Contact Us For Availability
1
LID (BSQ) WPL 21001779 Contact Us For Availability
1
PANEL, CONTROL (BSQ) / FACIA WPL 21002019 Contact Us For Availability
1
FACIA WPL 21002156 Contact Us For Availability
2
SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability
2
HINGE, CABINET TOP WPL 352846 Contact Us For Availability
2
ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability
2
ENDCAP, PANEL (LT-BSQ) WPL 21001769 Contact Us For Availability
3
SEAL HUB ASSEMBLY (HT TRAN) WPL 21001868 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
3
PAD, HINGE WPL 354128 Contact Us For Availability
3
SCREW WPL 257438 Contact Us For Availability
3
ENDCAP, PANEL (RT-BSQ) WPL 21001768 Contact Us For Availability
4
CAM REPLACEMENT KIT WPL LA2007 Contact Us For Availability
4
HT TRANS/SEAL HUB ASSEMBLY WPL 21001867 Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 258004 Contact Us For Availability
4
FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability
4
PIN, HINGE WPL 352045 Contact Us For Availability
4
SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability
4
SWITCH, TWO POS (ON/OFF)ROTARY WPL 31001443 Contact Us For Availability
5
SCREW (PRE-ASSEMBLED WASHER) WPL 21001977 Contact Us For Availability
5
HOUSING/LWR.BEARING ASSY. WPL 21001511 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
5
SCREW WPL 257893 Contact Us For Availability
5
SWITCH, PRESSURE (EMZ) WPL 21001882 Contact Us For Availability
5
SHIELD, CONTROL (3 HOLE) WPL 21002067 Contact Us For Availability
5
SWITCH, PRESSURE WPL Y2201474 Contact Us For Availability
6
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
6
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
6
WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability
6
SUPPORT, TUB WPL 21001518 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
6
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
6
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
6
PIN, LOCATOR WPL 530643 Contact Us For Availability
6
HINGE, LID WPL 352044 Contact Us For Availability
6
SKIRT, TIMER KNOB (BSQ) WPL 21001771 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
7
SCREW 5/16-18X1/2 WPL 21001858 Contact Us For Availability
7
SCREW, SHOULDER WPL 257967 Contact Us For Availability
7
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
7
BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability
7
KNOB, TIMER (BSQ) WPL 21001770 Contact Us For Availability
8
WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability
8
RING, RETAINING WPL 257854 Contact Us For Availability
8
HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability
8
SEAL, TUB TOP WPL 352328 Contact Us For Availability
8
DISPENSER, BLEACH WPL 21001597 Contact Us For Availability
8
SWITCH, WATER TEMP. 4 POSITION WPL 21001226 Contact Us For Availability
9
PLATE & SCREW ASSEMBLY WPL 21001783 Contact Us For Availability
9
BRACE, TUB WPL 21001532 Contact Us For Availability
9
FABRIC DISP ASSEMBLY (WHT) WPL 21002006 Contact Us For Availability
9
POST, LOCATING WPL 21001829 Contact Us For Availability
9
LID SWITCH ASSY.-W/LEADS WPL 21001137 Contact Us For Availability
9
FRAME (BSQ) WPL 21001767 Contact Us For Availability
10
ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability
10
STATOR, BRAKE WPL 352018 Contact Us For Availability
10
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
10
BASKET ASSEMBLY (PLASTIC) WPL 21001529 Contact Us For Availability
10
PANEL, FRONT (BSQ) WPL 21001781 Contact Us For Availability
10
PAD, CABINET WPL 21002011 Contact Us For Availability
10
SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability
11
SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
11
SNUBBER WPL 21001161 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
11
SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability
11
TIMER WPL 21001561 Contact Us For Availability
12
BEARING, SPIN WPL 352205 Contact Us For Availability
12
SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability
12
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
12
BUMPER, CABINET WPL 354129 Contact Us For Availability
12
KNOB, SELECTOR (BSQ) WPL 21001772 Contact Us For Availability
13
SHIELD, MOTOR WPL 22002721 Contact Us For Availability
13
TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability
13
DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability
13
CABINET (BSQ) WPL 21001877 Contact Us For Availability
13
CORD, POWER WPL 21001592 Contact Us For Availability
13
SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability
13
BRAKE ROTOR & LINING ASM WPL 21002010 Contact Us For Availability
14
LEVER, LID SWITCH WPL 21001134 Contact Us For Availability
14
SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability
14
BASE, AGITATOR WPL 21001530 Contact Us For Availability
14
BUMPER, CABINET WPL 332653 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
15
SHIELD, REAR WPL 21001876 Contact Us For Availability
15
TOP, CABINET (BSQ) WPL 21001778 Contact Us For Availability
15
STATOR, BRAKE WPL 356918 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
16
SCREW WPL 257732 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
18
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
18
CLAMP WPL 257867 Contact Us For Availability
19
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
19
HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability
20
BAR, STABILIZER WPL 21001754 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
21
BRAKE ROTOR & LINING ASSY WPL 352948 Contact Us For Availability
21
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
23
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
23
OUTLET, DRAIN HOSE WPL 21001874 Contact Us For Availability
24
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
24
HOSE, 4` INLET WPL 337891 Contact Us For Availability
24
HOSE, INLET WPL 350874 Contact Us For Availability
25
BASE, WASHER WPL 21001893 Contact Us For Availability
25
BASE SOUND KIT WPL 21001982 Contact Us For Availability
25
STRAINER & WASHER KIT WPL 334264N Contact Us For Availability
26
SPEEDNUT WPL 257845 Contact Us For Availability
28
FOOT & PAD ASSY WPL 353507 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
CLAMP, HOSE WPL 256068 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003220 Contact Us For Availability
NI
MANUAL, SRVC WASHER-NO REFUND WPL 16008333 Contact Us For Availability
NI
HARNESS, WIRING WPL 21001946 Contact Us For Availability
NI
LEAD ASSEMBLY (DR SWITCH) WPL 21001979 Contact Us For Availability
NI
LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability
NI
HARNESS, WIRE WPL 21002098 Contact Us For Availability
NI
LABEL, ENERGY GUIDE - CW WPL 21002207 Contact Us For Availability
NI
MANUAL, USE & CARE CROSLEY WPL 2206667 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 356891 Contact Us For Availability
NI
GUIDE, ENERGY WPL 356910 Contact Us For Availability
NI
MANUAL, USE & CARE WPL Y2205349 Contact Us For Availability
× ![]()
