Model GE CVE28DP2NBS1 Refrigerator – Common Parts & Diagrams
CAFE CUSTOMIZATION
DISPENSER DOOR

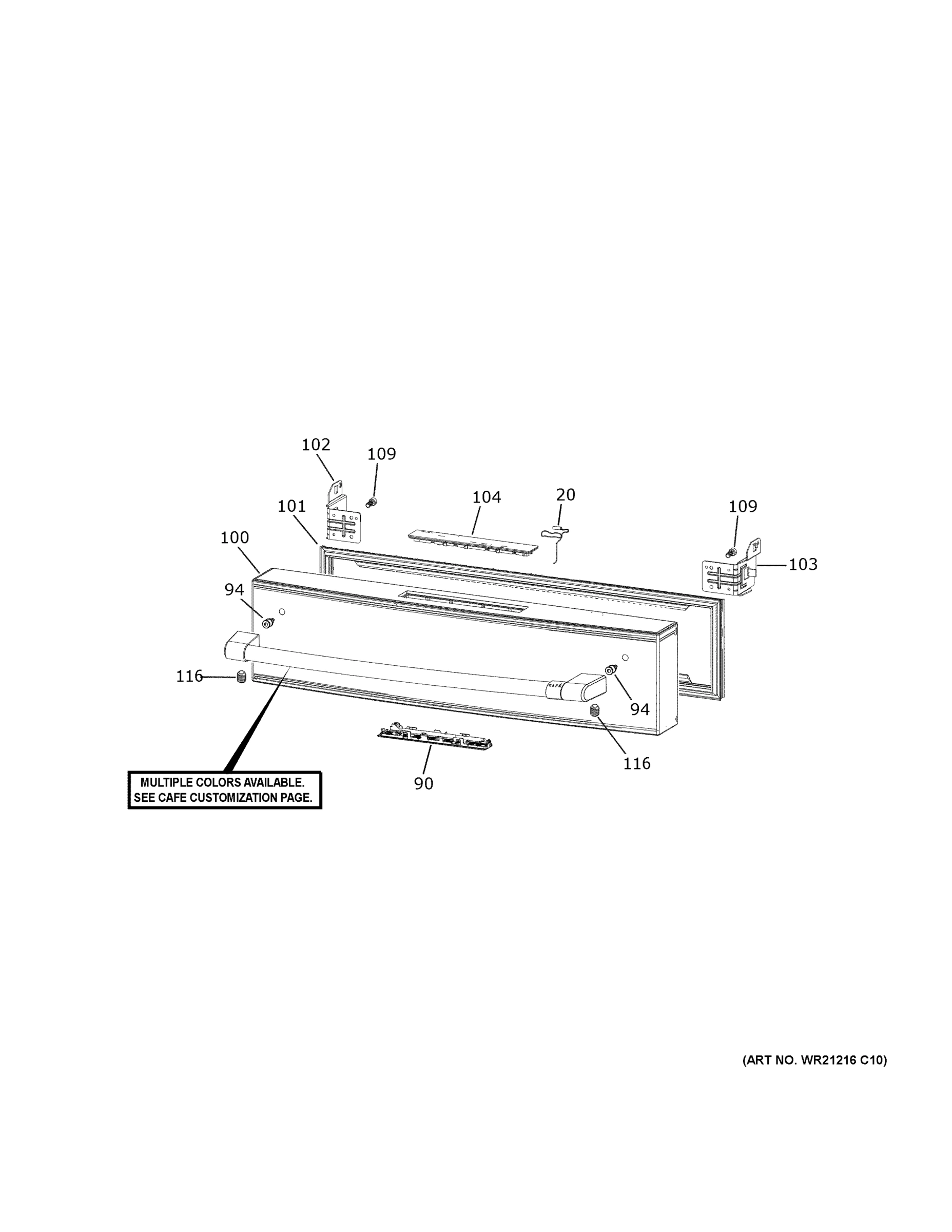

CONVERTIBLE DRAWER

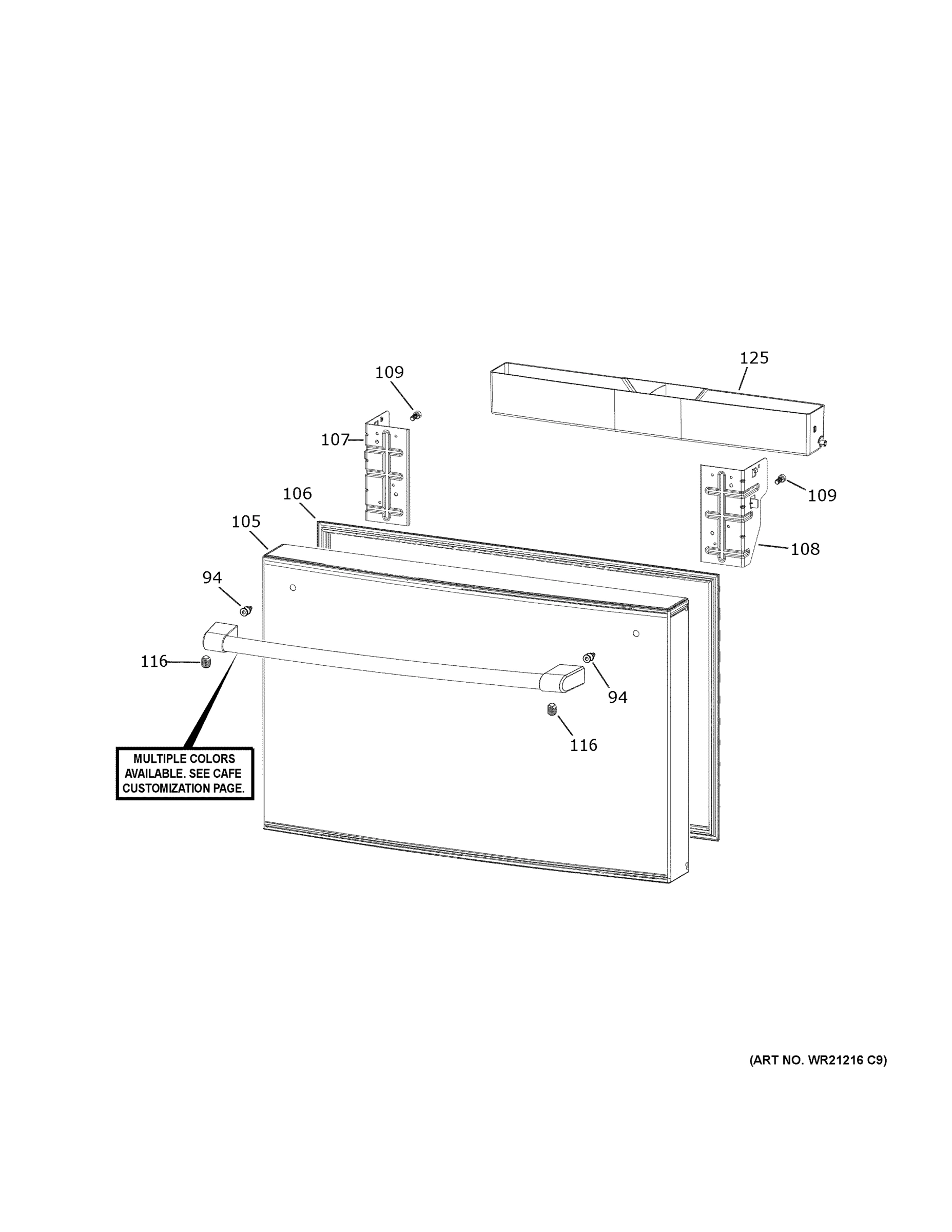

FREEZER DRAWER

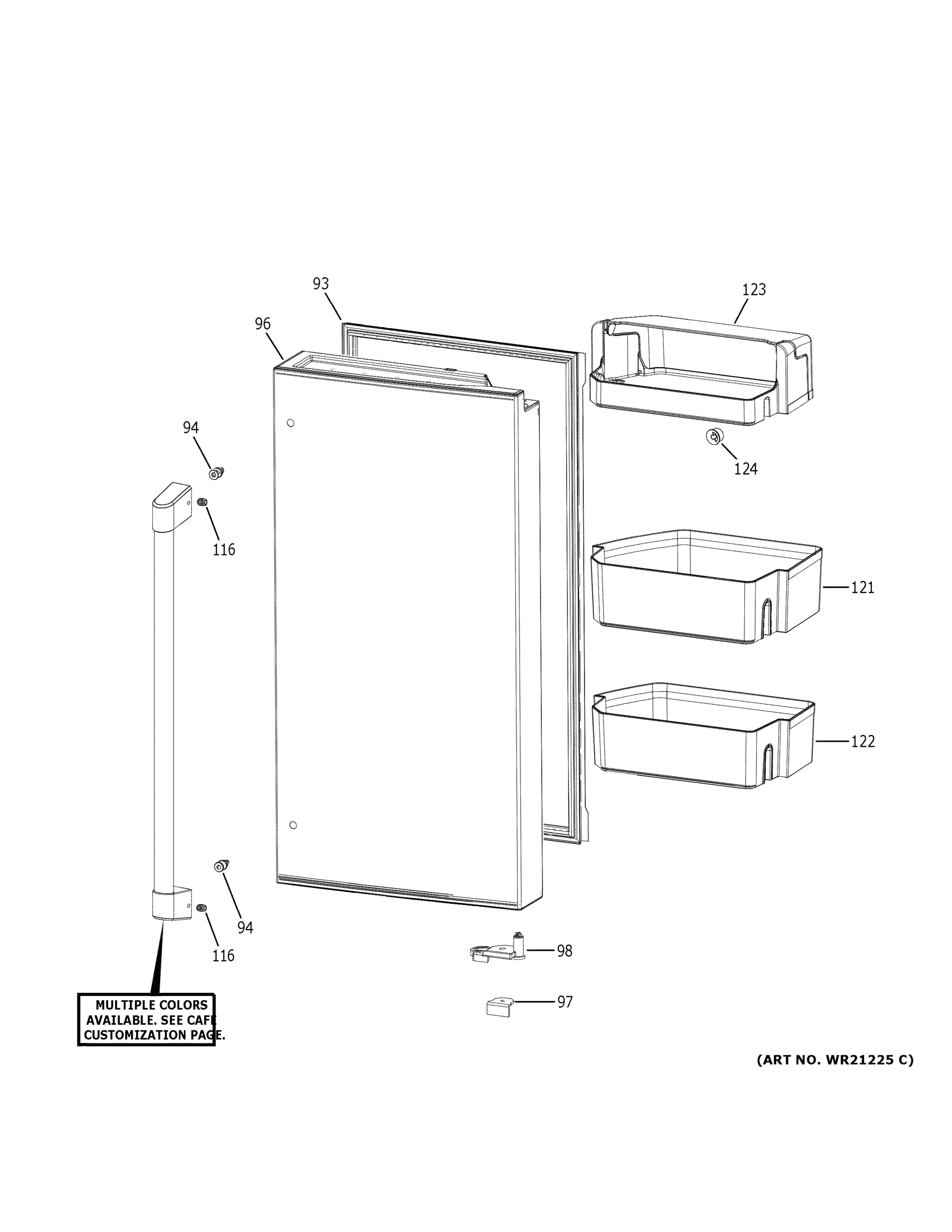

REFRIGERATOR DOOR

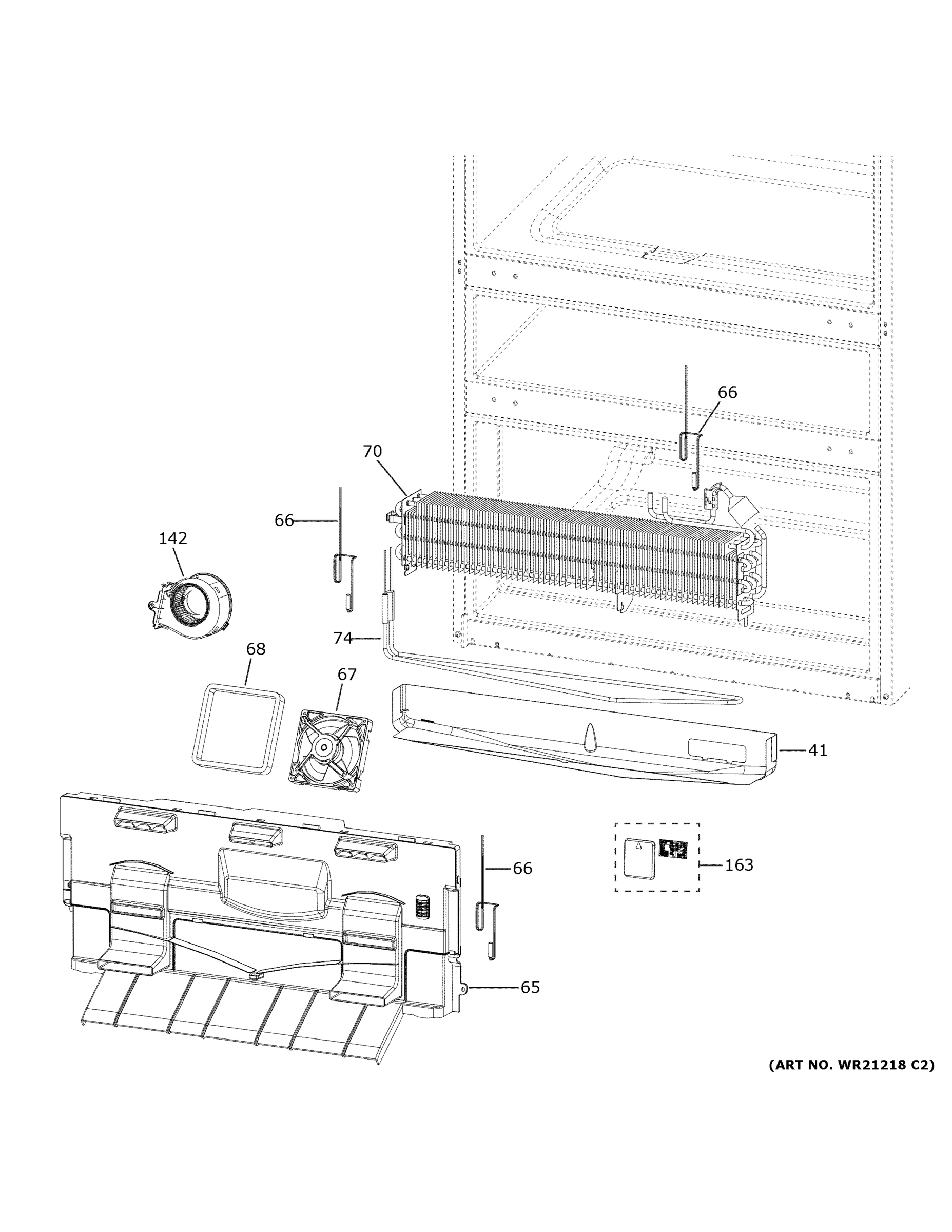

FREEZER SECTION

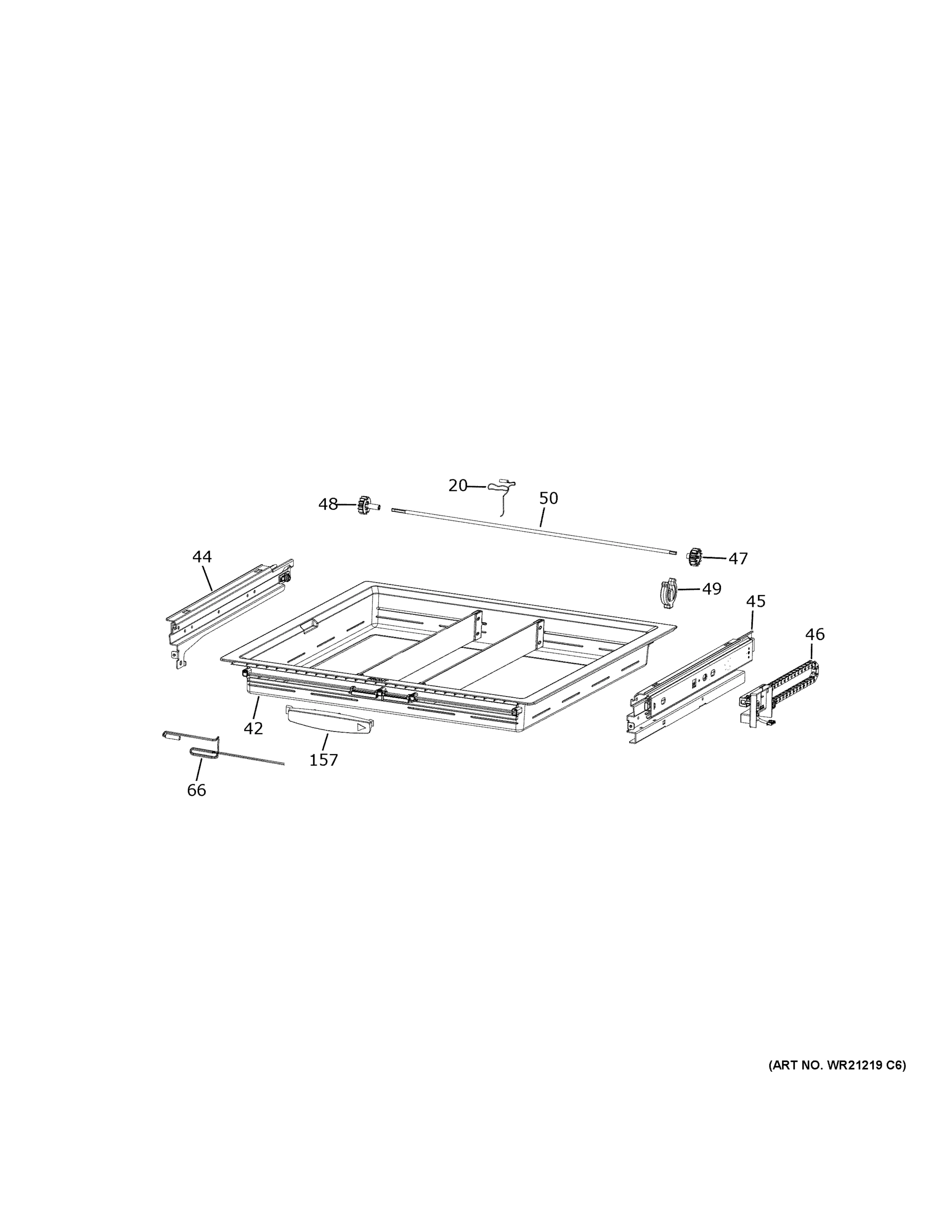

CAFE CONVERTIBLE SHELVES

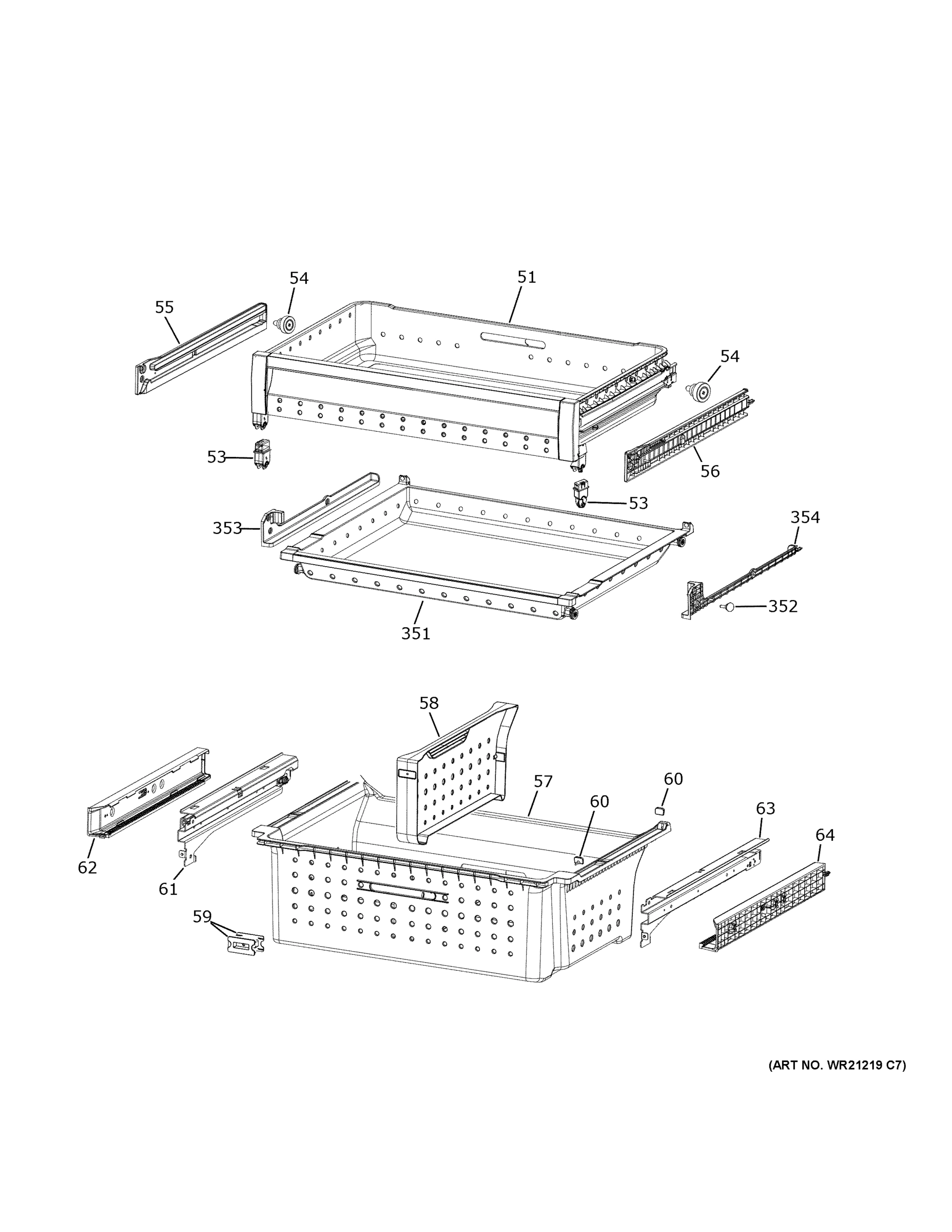

FREEZER SHELVES

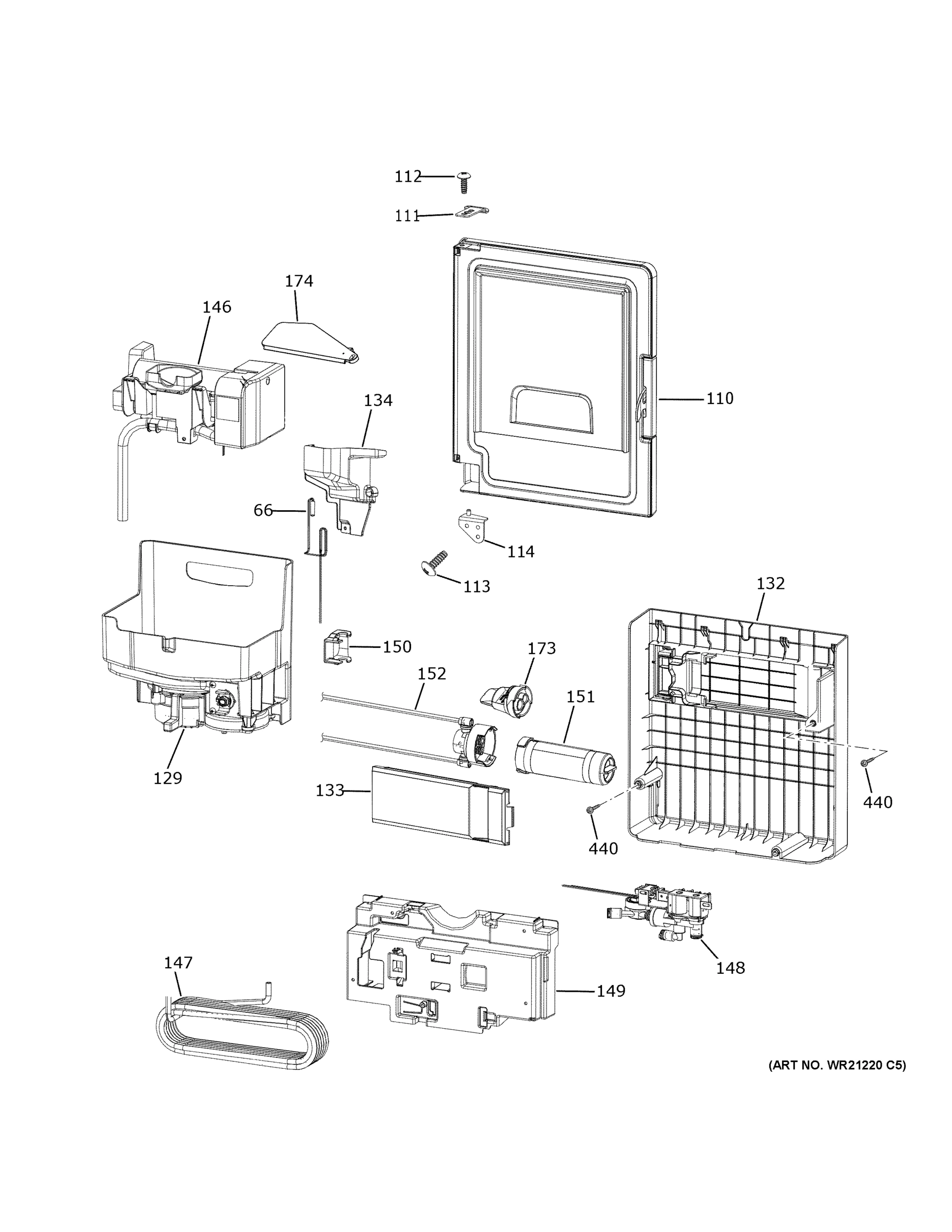

ICE MAKER & DISPENSER

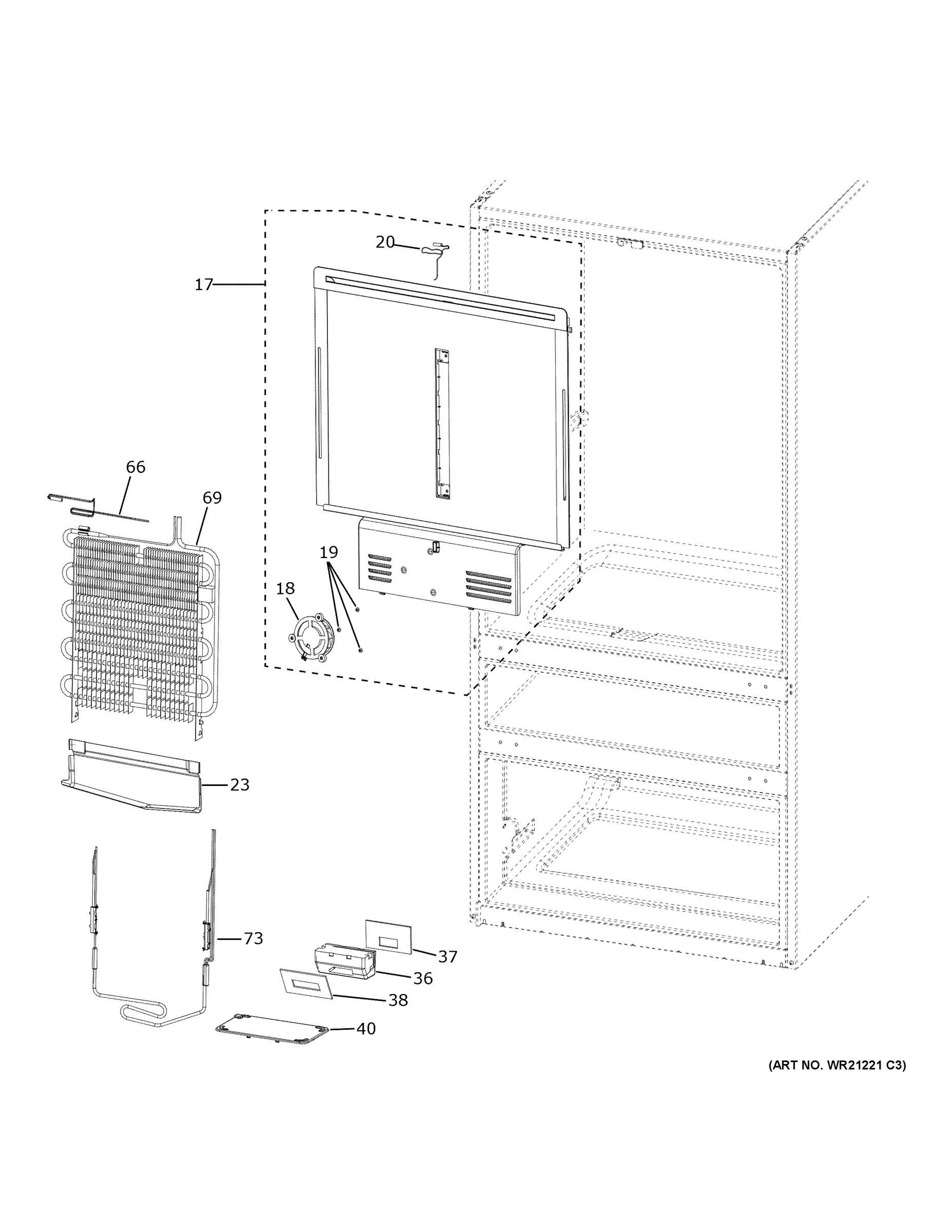

REFRIGERATOR SECTION

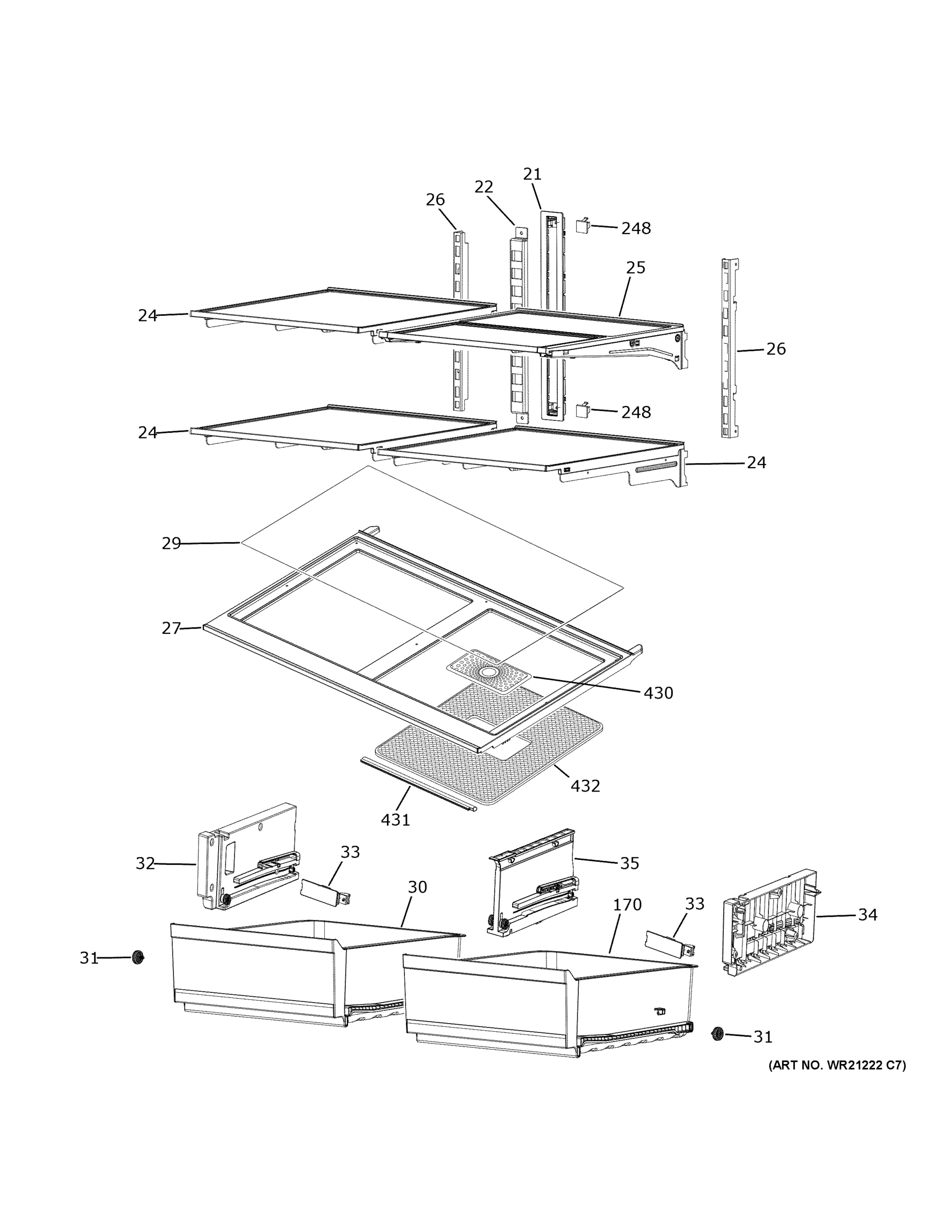

REFRIGERATOR SHELVES

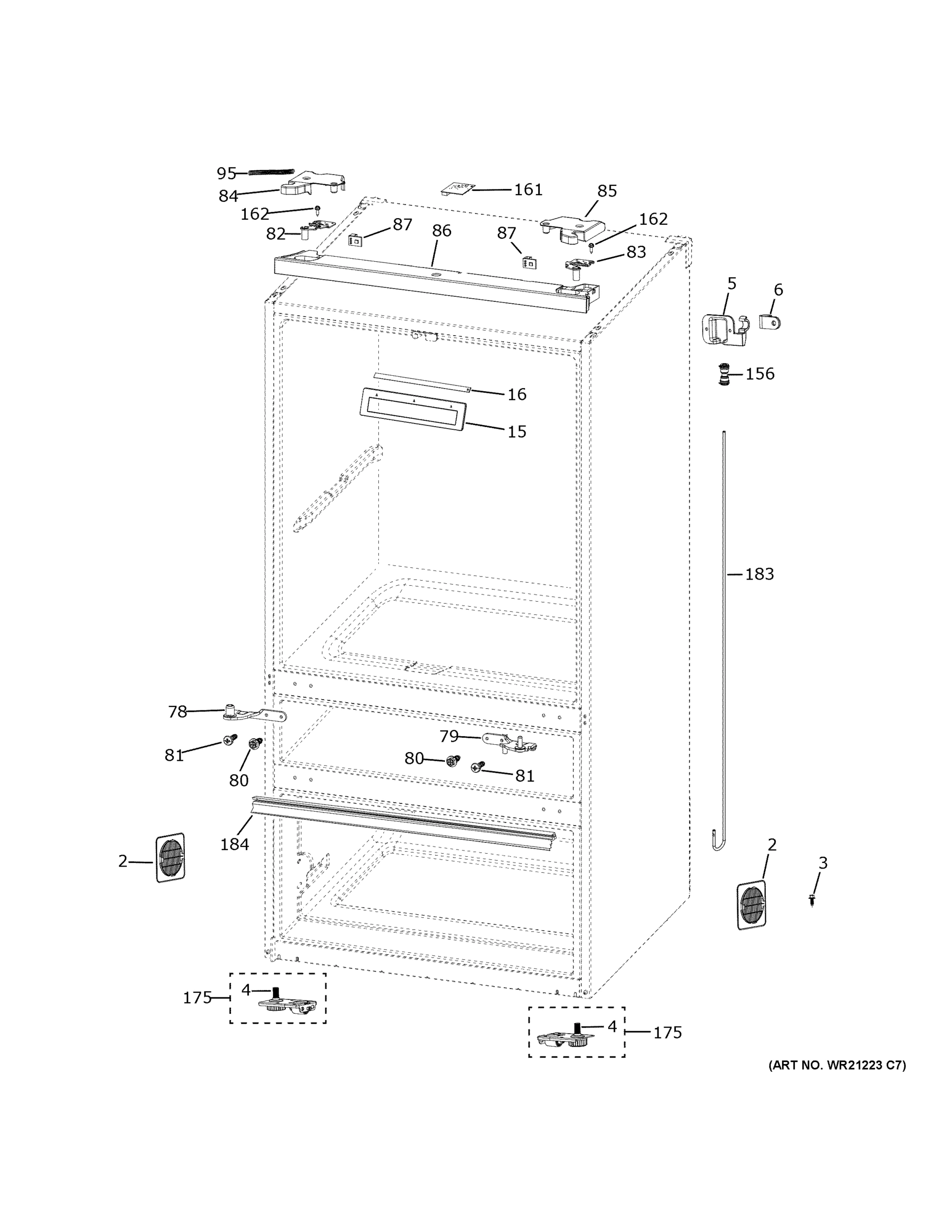

CASE PARTS

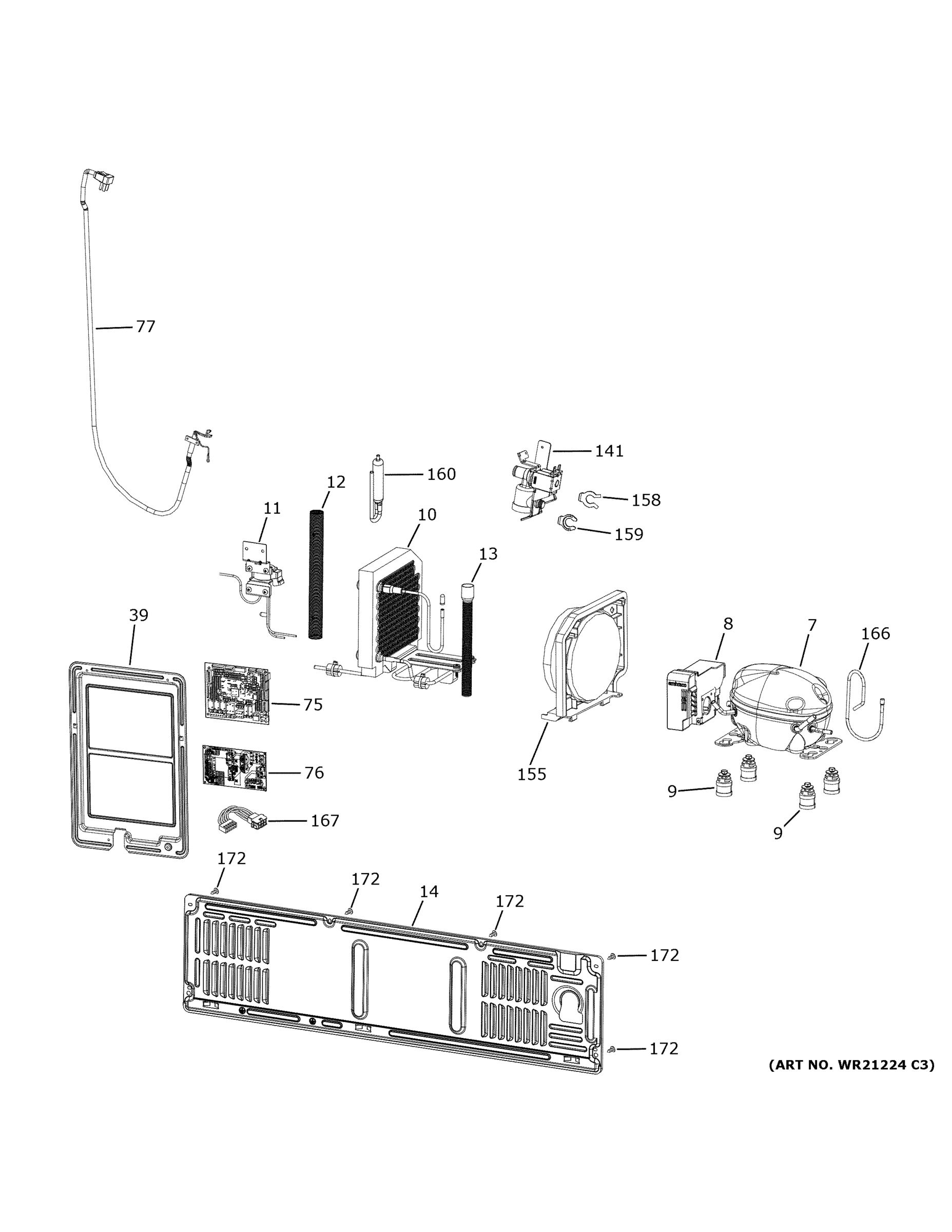

MACHINE COMPARTMENT

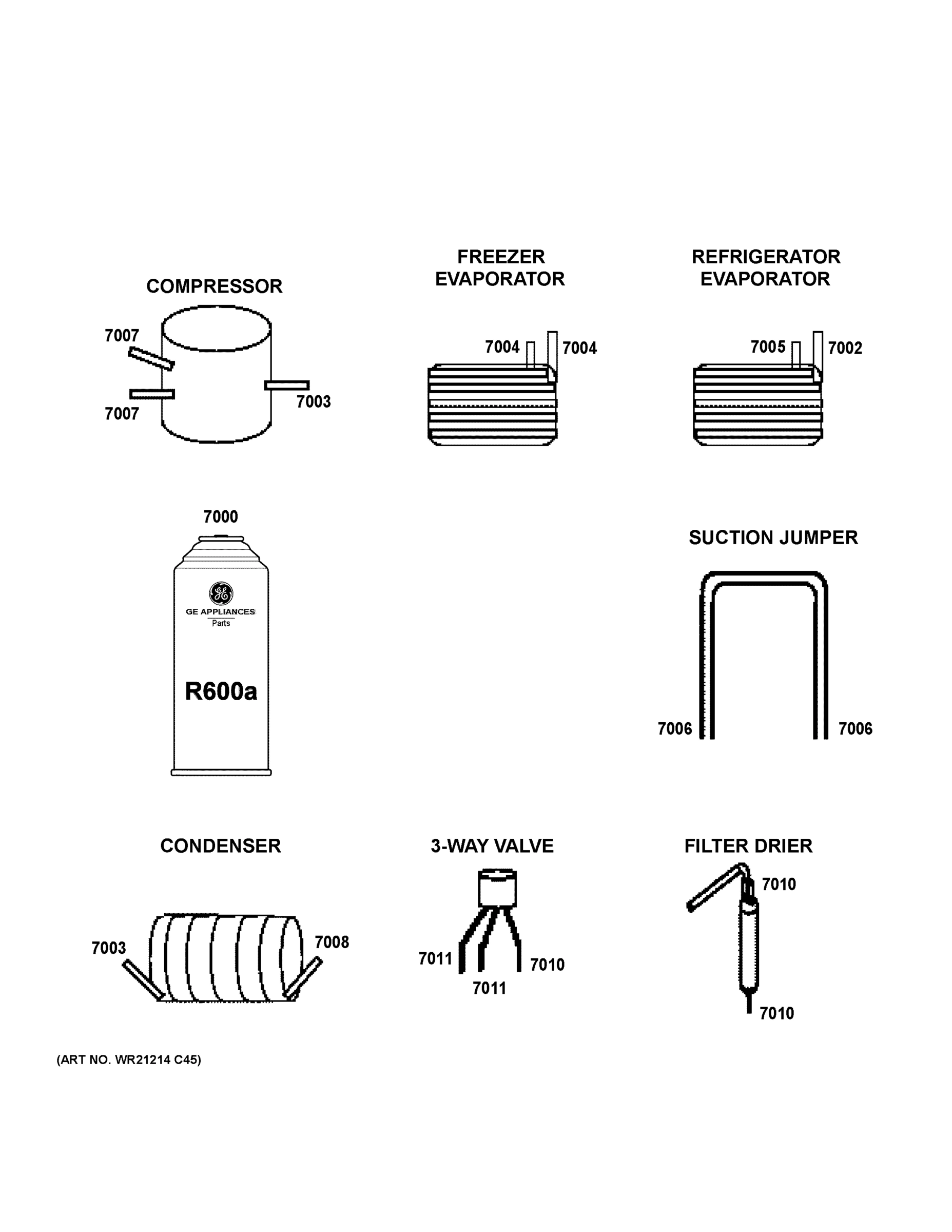

LOKRING CONNECTORS
Common parts from model GE CVE28DP2NBS1 Refrigerator
2
VENT COVER SIDE CASE GEN WR02X43225 Contact Us For Availability
3
SCREW GEN WR02X27683 Contact Us For Availability
4
LEVELING LEG GEN WR01X31892 Contact Us For Availability
5
WATER LINE COVER GEN WR02X31869 Contact Us For Availability
6
WATER LINE CLIP GEN WR02X31796 Contact Us For Availability
9
COMPRESSOR MOUNTING HARDWARE GEN WR02X32074 Contact Us For Availability
10
CONDENSER GEN WR87X32099 Contact Us For Availability
12
DRAIN TUBE GEN WR01X28429 Contact Us For Availability
14
REAR ACCESS COVER GEN WR82X31888 Contact Us For Availability
15
GRAY LED SHIELD GEN WR02X31979 Contact Us For Availability
16
CEILING LED GEN WR55X31998 Contact Us For Availability
17
CAF AIR TOWER W/ FAN AND LED GEN WR17X31980 Contact Us For Availability
18
REFRIGERATOR EVAPORATOR FAN GEN WR60X32071 Contact Us For Availability
19
SCREW GEN WR01X29729 Contact Us For Availability
20
CONVERTIBLE THERMISTOR GEN WR55X31992 Contact Us For Availability
21
GRAY CENTER CANTILEVER TRACK TRIM GEN WR02X32486 Contact Us For Availability
22
GRAY CENTER CANTILEVER TRACK GEN WR72X31780 Contact Us For Availability
23
REFRIGERATOR DRAIN TROUGH GEN WR17X31784 Contact Us For Availability
25
GRAY REFRIGERATOR TUCKAWAY SHELF GEN WR32X31957 Contact Us For Availability
27
GRAY VEGETABLE PAN FRAME GEN WR32X32496 Contact Us For Availability
29
WHITE VEGETABLE PAN FRAME GLASS GEN WR32X31875 Contact Us For Availability
30
TINTED VEGETABLE PAN GEN WR32X31955 Contact Us For Availability
31
ROLLER GEN WR02X31813 Contact Us For Availability
32
GRAY CLIMATE ZONE LEFT SUPPORT GEN WR72X32427 Contact Us For Availability
33
WHITE VEGETABLE PAN LED GEN WR55X32072 Contact Us For Availability
34
GRAY CLIMATE ZONE RIGHT SUPPORT GEN WR72X32428 Contact Us For Availability
35
GRAY CLIMATE ZONE CENTER SUPPORT GEN WR72X31968 Contact Us For Availability
36
CONVERTIBLE DRAWER DAMPER GEN WR02X31945 Contact Us For Availability
37
CONVERTIBLE DRAWER DAMPER FOAM GEN WR14X31873 Contact Us For Availability
38
CONVERTIBLE DRAWER DAMPER FOAM GEN WR14X31874 Contact Us For Availability
39
MAIN CONTROL BOARD COVER GEN WR02X31778 Contact Us For Availability
40
GRAY DAMPER COVER GEN WR02X31833 Contact Us For Availability
42
GRAY CONVERTIBLE DRAWER BASKET W/ DIVIDE GEN WR32X32487 Contact Us For Availability
46
CAF CHAIN HARNESS W/ REED SWITCH GEN WR02X32474 Contact Us For Availability
49
CROSSBAR PINION GEAR CLIP GEN WR02X31800 Contact Us For Availability
50
CROSSBAR GEN WR02X31776 Contact Us For Availability
65
FREEZER EVAPORATOR COVER W/ THERMISTOR GEN WR14X32098 Contact Us For Availability
66
DEFROST THERMISTOR GEN WR55X29875 Contact Us For Availability
68
EVAPORATOR FAN BRACKET GEN WR01X27755 Contact Us For Availability
73
REFRIGERATOR DEFROST HEATER GEN WR51X31996 Contact Us For Availability
74
FREEZER DEFROST HEATER GEN WR51X31995 Contact Us For Availability
76
REFRIGERATOR POWER SUPPLY BOARD GEN WR55X31984 Contact Us For Availability
77
POWER CORD GEN WR55X32470 Contact Us For Availability
78
REFRIGERATOR DOOR LEFT LOWER HINGE GEN WR13X31786 Contact Us For Availability
80
LOWER HINGE SCREW GEN WR01X31884 Contact Us For Availability
81
LOWER HINGE SCREW GEN WR01X31986 Contact Us For Availability
82
REFRIGERATOR DOOR LEFT UPPER HINGE GEN WR13X32502 Contact Us For Availability
83
REFRIGERATOR DOOR RIGHT UPPER HINGE GEN WR13X31769 Contact Us For Availability
84
TOP LEFT HINGE COVER GEN WR17X31988 Contact Us For Availability
85
TOP RIGHT HINGE COVER GEN WR17X31858 Contact Us For Availability
86
TOP CENTER HINGE COVER W/ HARNESS AND SW GEN WR17X31989 Contact Us For Availability
87
REED SWITCH GEN WR55X31994 Contact Us For Availability
88
GRAY ARTICULATING MULLION W/ HINGES AND GEN WR17X31946 Contact Us For Availability
89
STAINLESS CAF REFRIGERATOR DISPENSER DOO GEN WR78X31899 Contact Us For Availability
91
CLOSURE DOOR ASM LH GEN WR11X23034 Contact Us For Availability
94
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
95
WATER LINE SPRING GEN WR02X31791 Contact Us For Availability
96
STAINLESS CAF REFRIGERATOR RIGHT DOOR GEN WR78X31959 Contact Us For Availability
100
STAINLESS CAF CONVERTIBLE DRAWER GEN WR78X32492 Contact Us For Availability
106
FREEZER DRAWER GASKET GEN WR14X32103 Contact Us For Availability
109
CONVERTIBLE DRAWER BRACKET SCREW GEN WR02X31885 Contact Us For Availability
124
DAIRY BIN BUMPER GEN WR02X31857 Contact Us For Availability
129
ICE BUCKET AND CRUSHER GEN WR30X31923 Contact Us For Availability
137
DUCT DOOR MOTOR GEN WR60X32001 Contact Us For Availability
140
STAINLESS DISPENSER PADDLE GEN WR17X32424 Contact Us For Availability
141
ISOLATION WATER VALVE GEN WR57X31999 Contact Us For Availability
142
ICE BOX FAN GEN WR60X31997 Contact Us For Availability
144
DOOR BOARD GEN WR55X32080 Contact Us For Availability
147
WATER TANK GEN WR17X31817 Contact Us For Availability
148
DUAL WATER VALVE W/ FLOW METER GEN WR57X32000 Contact Us For Availability
149
WATER FILTER MANIFOLD HOLDER GEN WR17X31814 Contact Us For Availability
150
WATER FILTER MANIFOLD BRACKET GEN WR17X31815 Contact Us For Availability
152
WATER FILTER MANIFOLD GEN WR17X31816 Contact Us For Availability
155
CONDENSER FAN W/ FOAM GEN WR60X32087 Contact Us For Availability
158
QUICK CLIP CONN 5/16 GEN WR01X11040 Contact Us For Availability
159
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
162
SERRATED FLANGE HEX M6X16 GEN WR02X32482 Contact Us For Availability
164
STAINLESS DRIP TRAY COVER GEN WR17X32472 Contact Us For Availability
167
PERSONALITY WIRE HARNESS GEN WR55X31881 Contact Us For Availability
170
TINTED HUMIDITY CONTROL PAN GEN WR32X32495 Contact Us For Availability
172
SCREW GEN WR01X35867 Contact Us For Availability
173
BYPASS FILTER PLUG GEN WR17X33825 Contact Us For Availability
174
FEELER ARM GEN WR29X36234 Contact Us For Availability
175
WHEEL FRONT ASM GEN WR01X35645 Contact Us For Availability
184
UPPER GASKET GEN WR14X41645 Contact Us For Availability
248
GRAY CENTER CANTILEVER SCREW COVER GEN WR02X31854 Contact Us For Availability
430
HUMIDTY CONTROL SYSTEM FILTER DOOR GEN WR32X31887 Contact Us For Availability
431
HUMIDTY CONTROL SYSTEM COVER SEAL GEN WR14X32420 Contact Us For Availability
432
HUMIDTY CONTROL SYSTEM COVER GEN WR32X31956 Contact Us For Availability
440
SCR 8-18 AB TRP 3/4 S GEN WR01X10762 Contact Us For Availability
7000
R600a CHARGE CAN 35 GRAMS GEN WR98X35 Contact Us For Availability
7002
.295" - 1/4" BRASS REDUC GEN WR97X10081 Contact Us For Availability
7003
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
7004
8MM X 8MM LOKRING AL GEN WR97X30616 Contact Us For Availability
7005
3.5MM X 3.5MM LOKRING GEN WR97X10143 Contact Us For Availability
7006
6MM X 6MM LOKRING GEN WR97X10031 Contact Us For Availability
7007
8MM X 6MM LOKRING GEN WR97X10036 Contact Us For Availability
7008
5MM X 4MM LOKRING GEN WR97X10075 Contact Us For Availability
7010
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7011
3MM X 2MM LOKRING GEN WR97X10140 Contact Us For Availability
× ![]()
