Model GE CTS90FP3M2D1 – Common Parts & Diagrams
CAFE CUSTOMIZATION
CONTROL PANEL

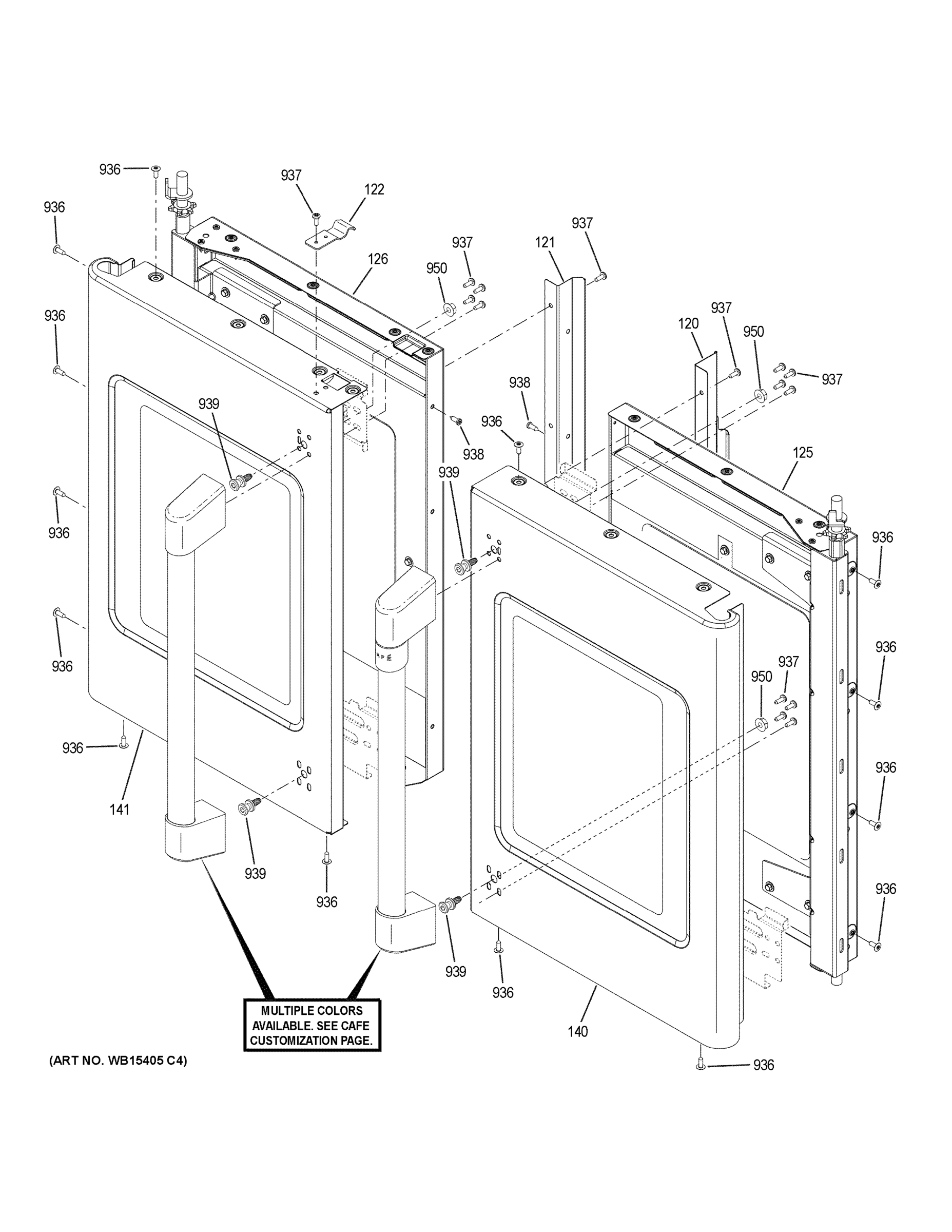

DOORS

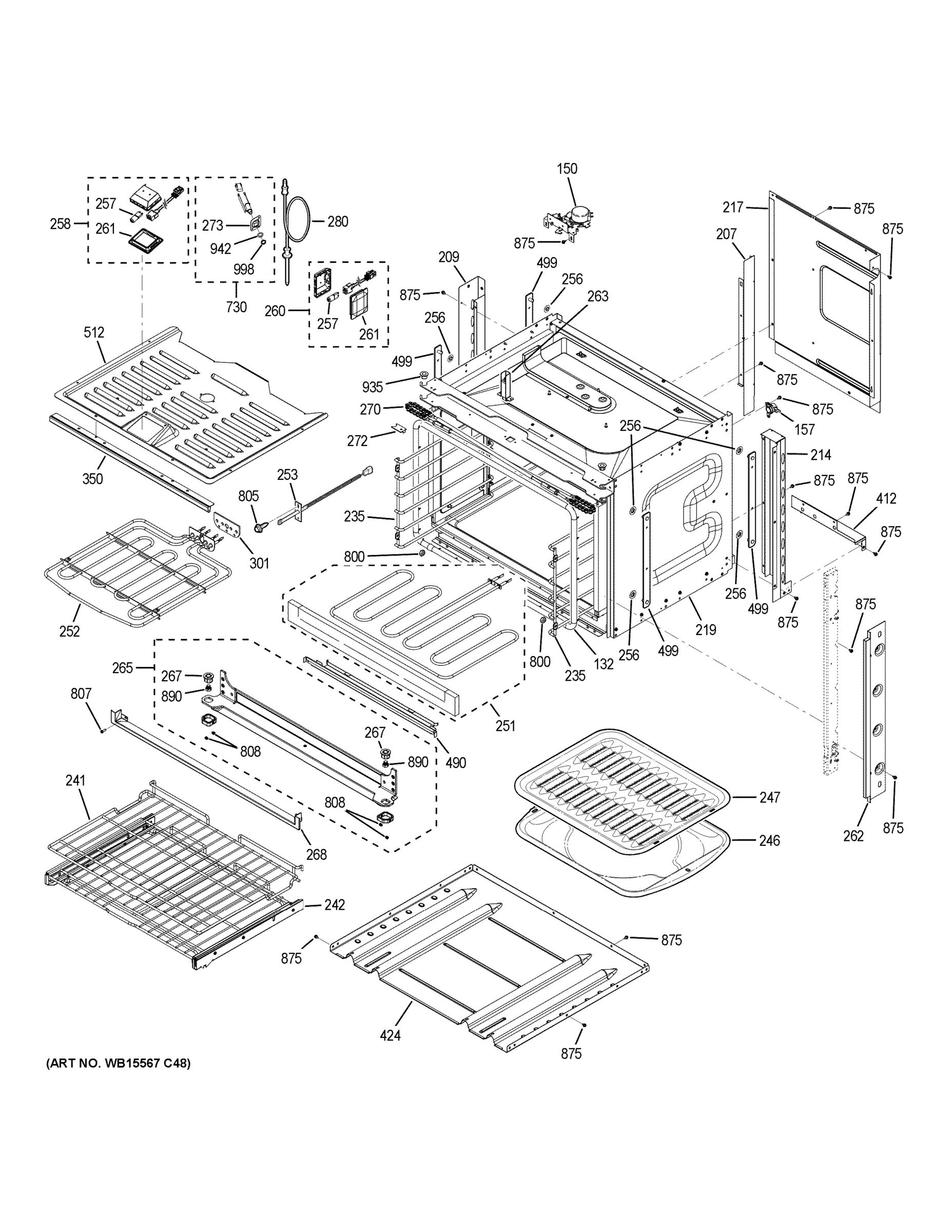

BODY PARTS

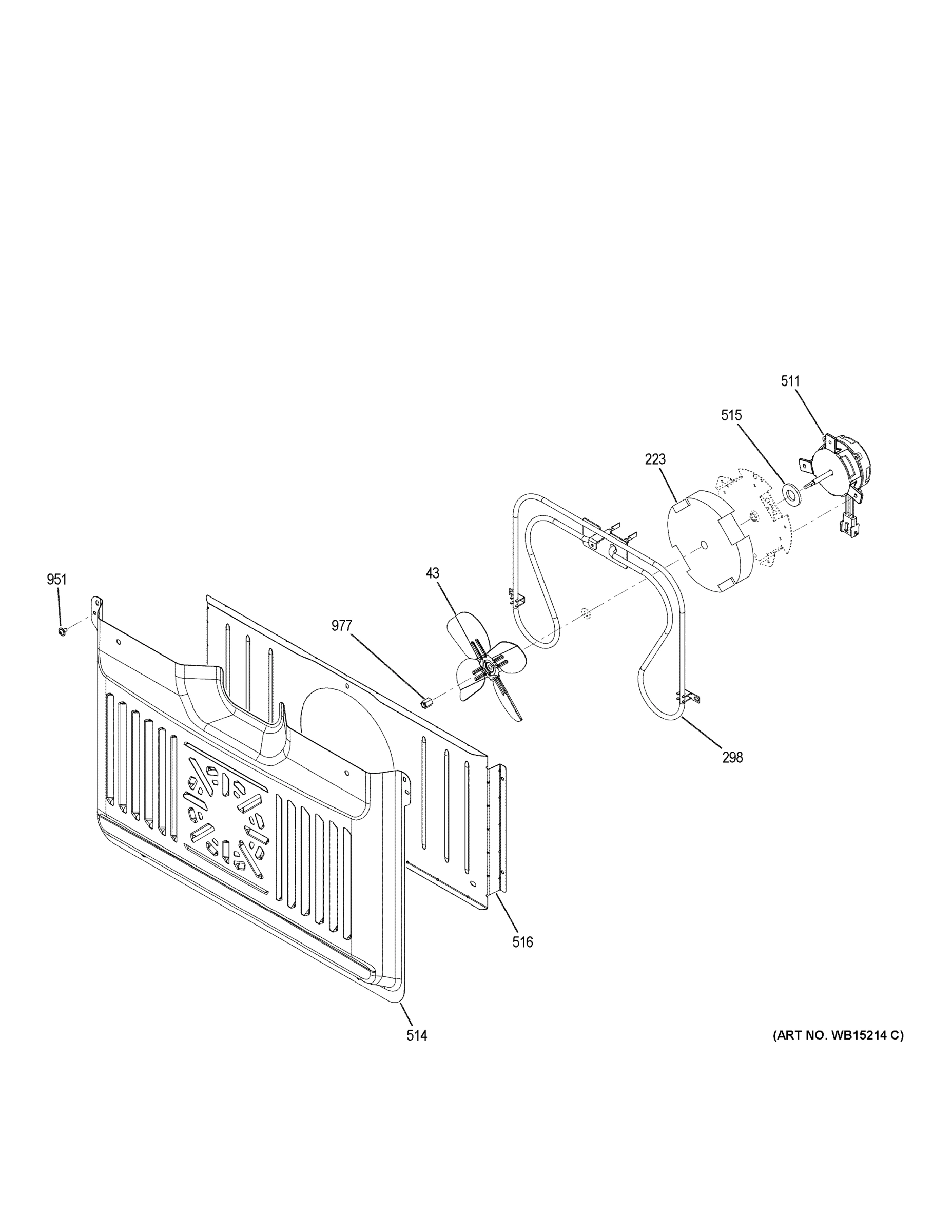

CONVECTION FAN
Common parts from model GE CTS90FP3M2D1
5
CONTROL PANEL SUPPORT BRACKET GEN WB34X29268 Contact Us For Availability
7
BRACKET CNTL PNL MTG GEN WB34X28389 Contact Us For Availability
14
BOARD UI KNOB GEN WB27X24643 Contact Us For Availability
15
BOARD UI KNOB GEN WB27X24642 Contact Us For Availability
16
BOARD MACHINE CONTROL GEN WB27X24645 Contact Us For Availability
26
BOARD UI DISPLAY GEN WB27X28530 Contact Us For Availability
32
FAN BLOWER GEN WB26X31060 Contact Us For Availability
120
SEAL CENTER RT GEN WB35X23767 Contact Us For Availability
121
SEAL CENTER LT GEN WB35X23775 Contact Us For Availability
122
PLATE STRIKE GEN WB10X23776 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
156
SWITCH PLATE ASM GEN WB24X23760 Contact Us For Availability
207
DIVIDER AIR CENTER GEN WB34T10134 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
214
CHANNEL REAR GEN WB55X10971 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
219
RETAINER INSLN SDE GEN WB34X21913 Contact Us For Availability
223
INSULATION CONVECT FAN GEN WB35T10259 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
246
BROILER PAN GEN WB48X31885 Contact Us For Availability
247
BROILER PAN GRID GEN WB48X31884 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25X31221 Contact Us For Availability
260
HALOGEN LAMP ASM GEN WB25X31223 Contact Us For Availability
261
OVEN LIGHT LENS GEN WB34X31317 Contact Us For Availability
262
TRIM VERT SIDE (BK) GEN WB07T10732 Contact Us For Availability
263
SPRING ROLLER ASM GEN WB10X23764 Contact Us For Availability
265
SUPPORT AND RECEIVER ASM GEN WB07X30087 Contact Us For Availability
267
RECEIVER PIVOT ASM GEN WB01X28392 Contact Us For Availability
268
TRIM BTM ASM GEN WB07X23779 Contact Us For Availability
272
RETAINER BEARING GEN WB34X28805 Contact Us For Availability
273
PR0BE COVER GEN WB34K5140 Contact Us For Availability
301
GASKET BROIL ELEMENT GEN WB35X21972 Contact Us For Availability
350
TRIM BROIL ELEMENT (BK) GEN WB07T10787 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
412
COVER LOWER RT AIR DUCT GEN WB34T10151 Contact Us For Availability
416
COVER HOUSING FRT GEN WB34X28390 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
499
CAVITY BRACE ASM GEN WB34X30789 Contact Us For Availability
512
PLATE - TOP OVEN GEN WB37T10024 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10023 Contact Us For Availability
516
DUCT CONVECTION FAN GEN WB37T10022 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10578 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
808
SCREW 1/4 X 32 RECESS A1 GEN WB01X23771 Contact Us For Availability
890
SCR 3/8-24 MCH SK 1/4 GEN WB01X28394 Contact Us For Availability
935
BEARING BRONZE GEN WB01X23762 Contact Us For Availability
936
SCR 8-18X GEN WB01X24096 Contact Us For Availability
937
SCREW 8-32 MCH PNT-15 7/16 GEN WB01X29985 Contact Us For Availability
938
SCREW 8-18 AB PNT15 1/2 GEN WB01X23768 Contact Us For Availability
939
MOUNTING STUD GEN WB01X31574 Contact Us For Availability
950
HEX NUT 1/4-20 GEN WB01X31575 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
999
PM OWNERS MANUAL GEN 4980827 Contact Us For Availability
1002
SCR 8-18 B PNP 3/8 S ZN GEN WR01X10791 Contact Us For Availability
2000
KNOB ASM (SS) GEN WB03X23785 Contact Us For Availability
× ![]()
