Model Whirlpool CTL1511BEW REFRIGERATOR – Common Parts &amp; Diagrams

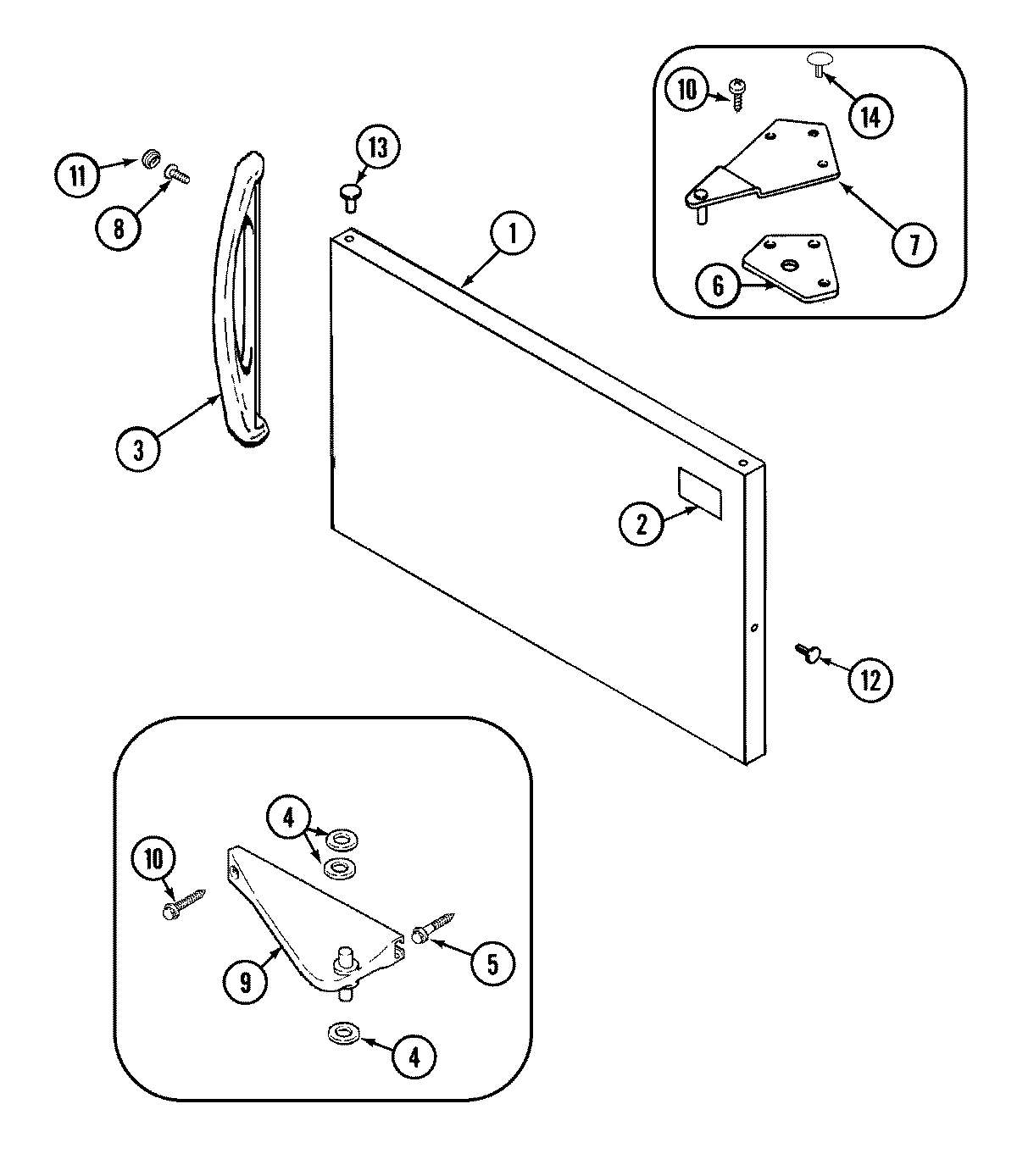

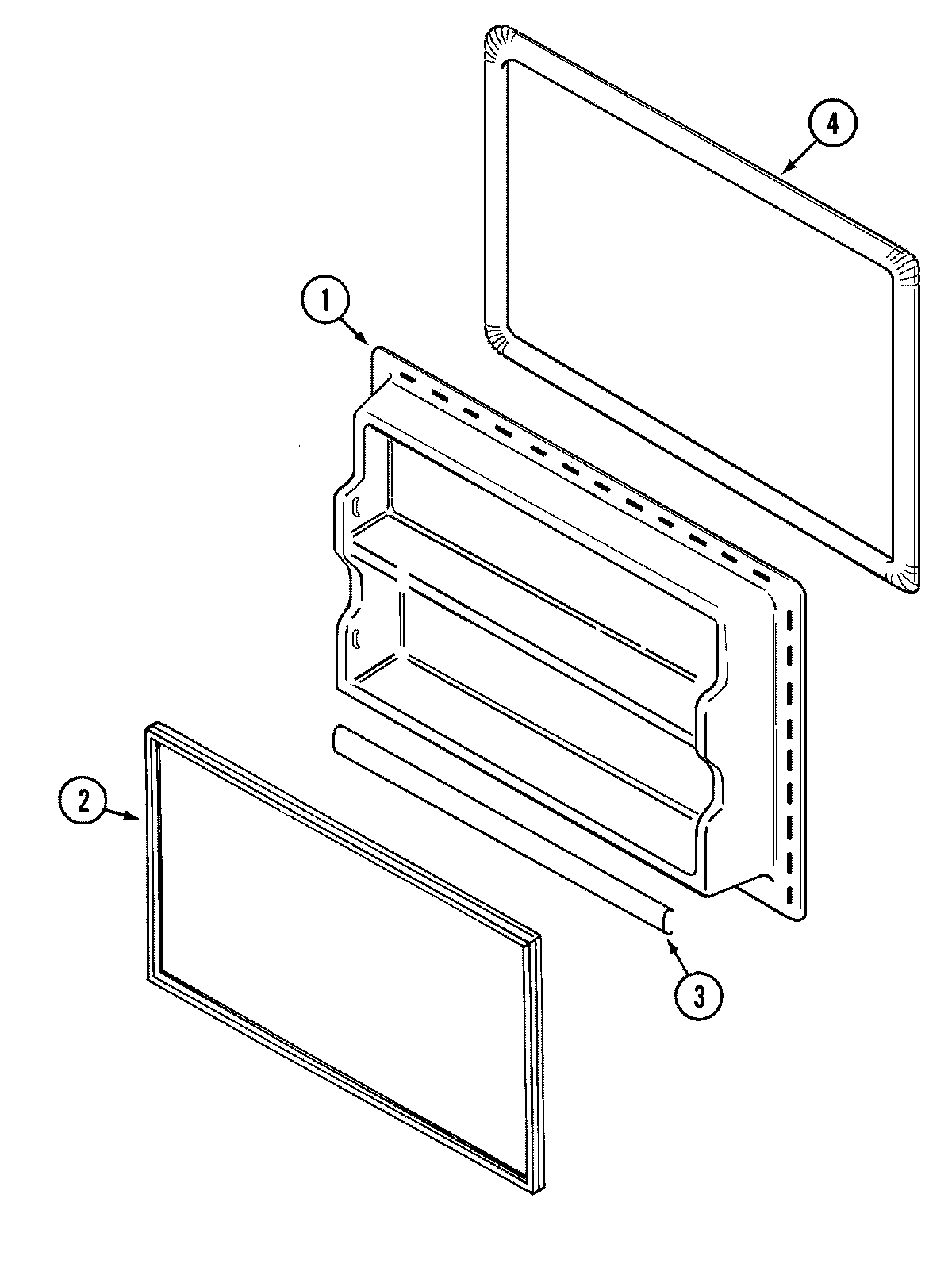

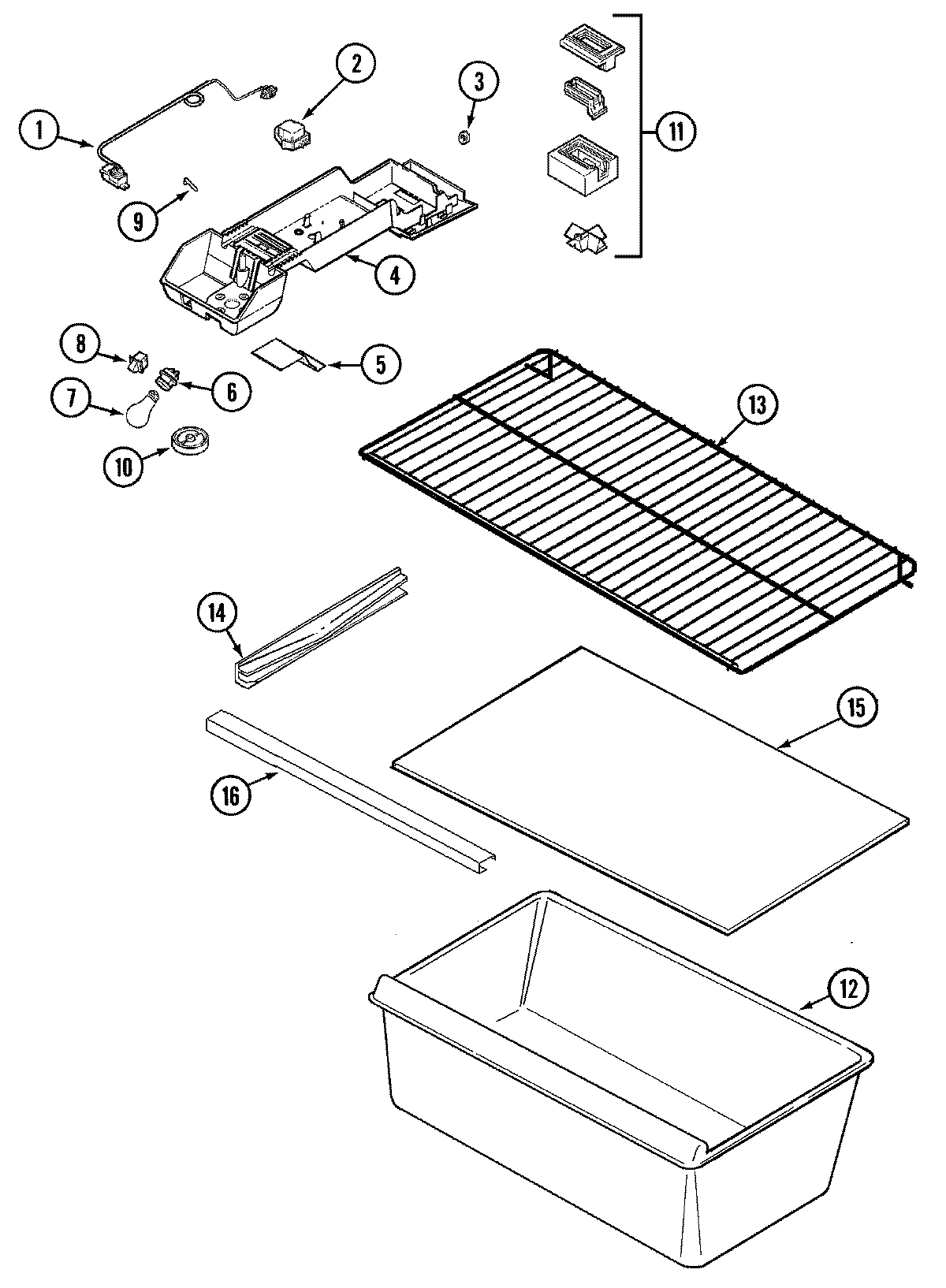

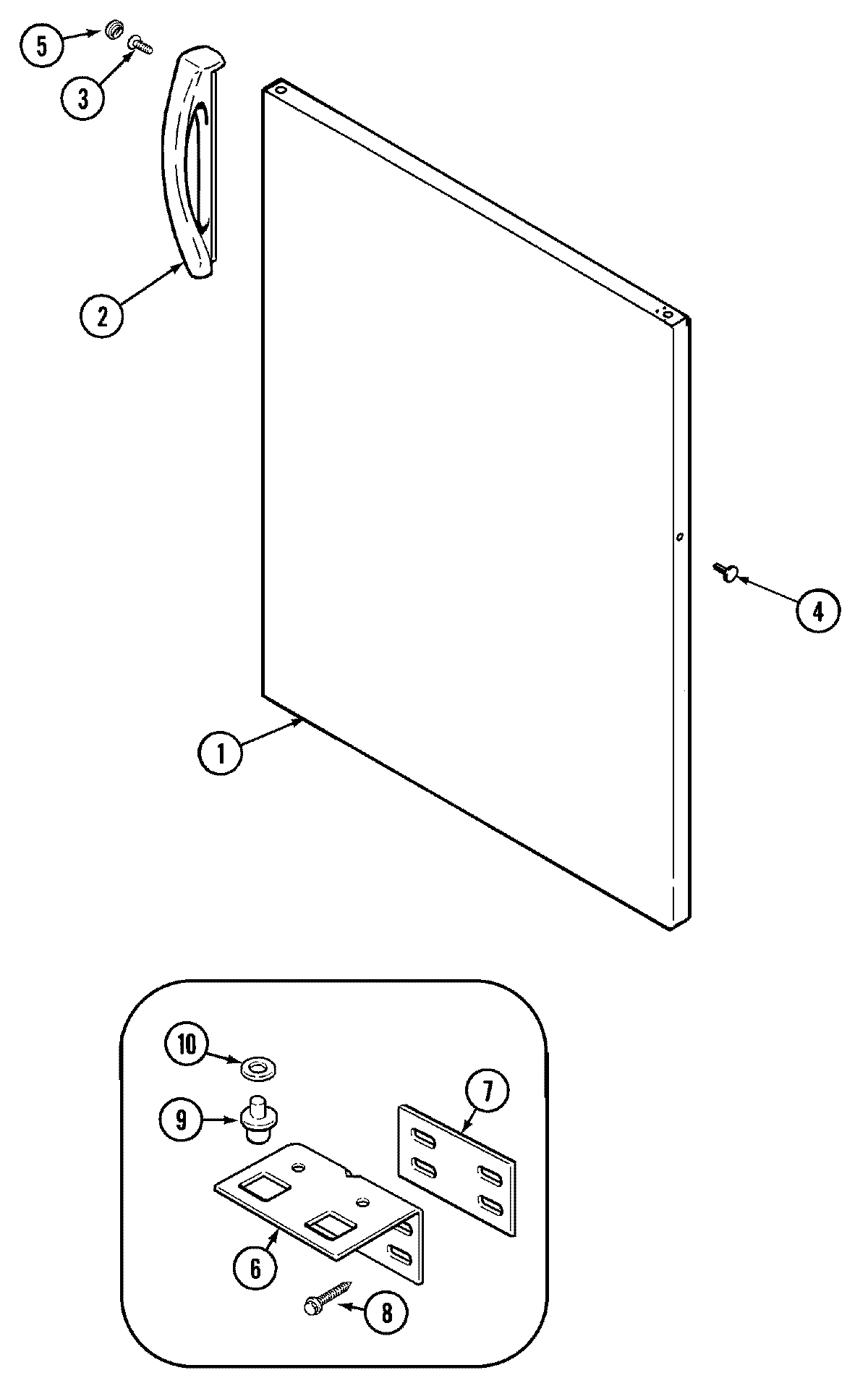

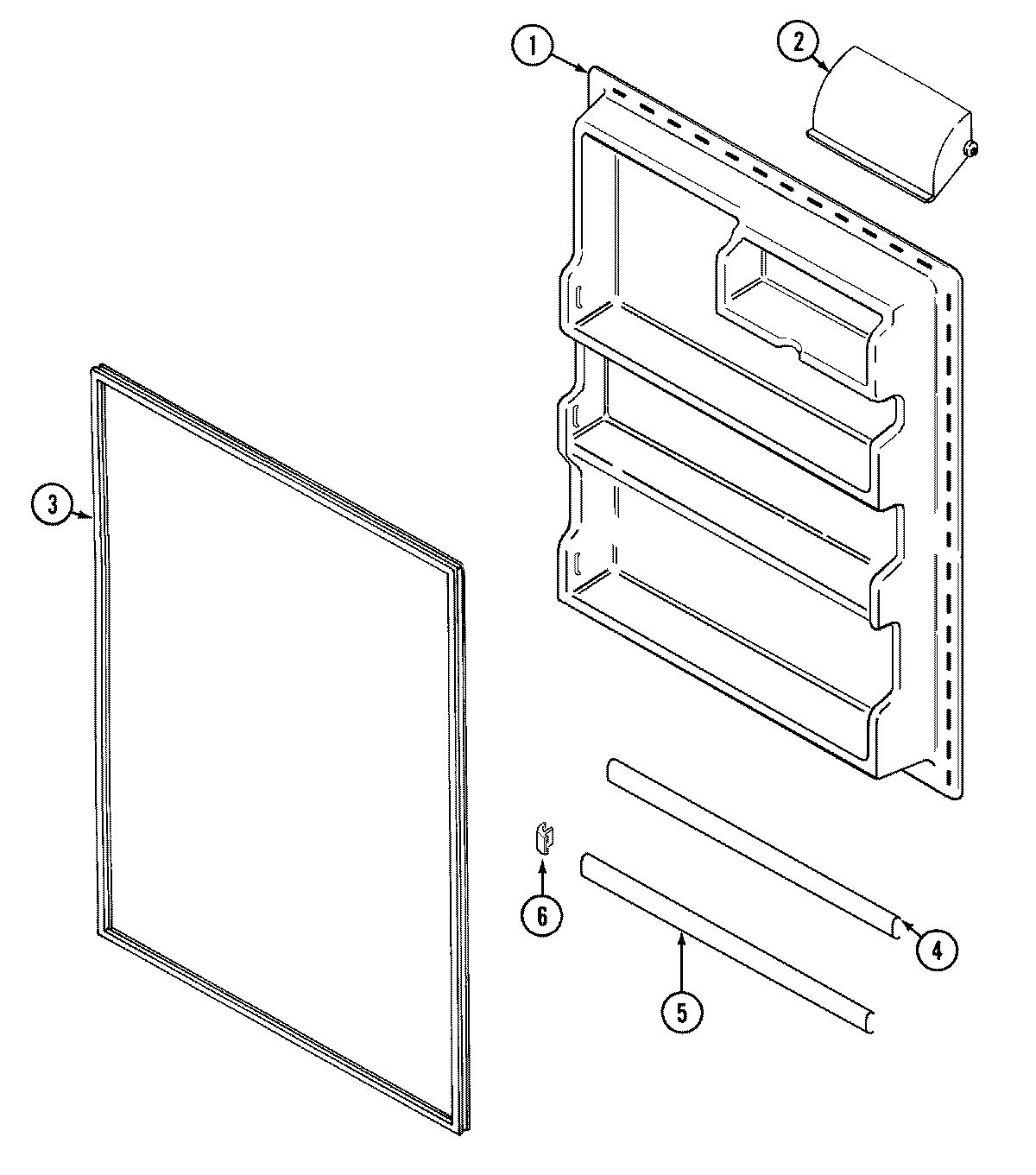

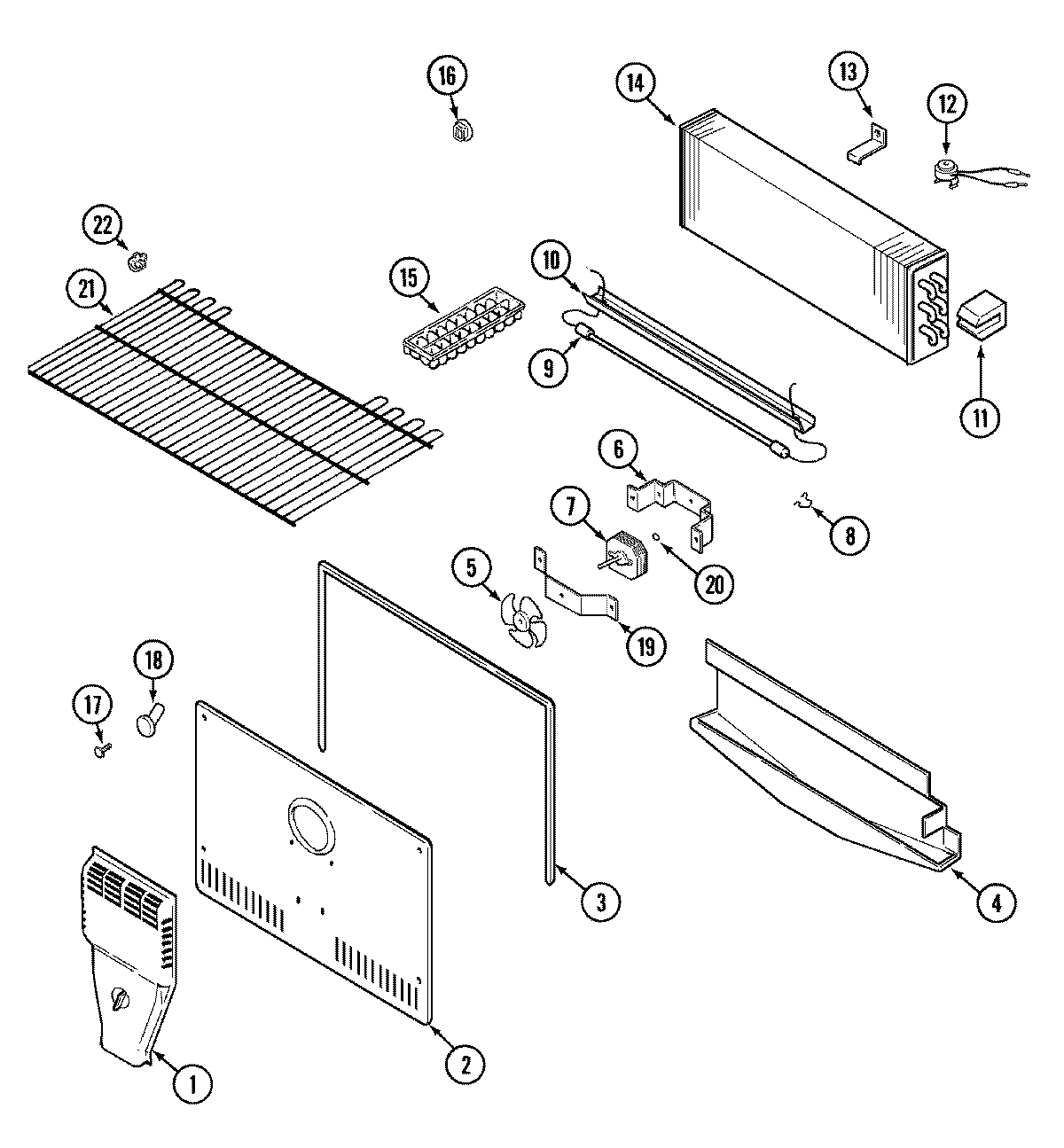

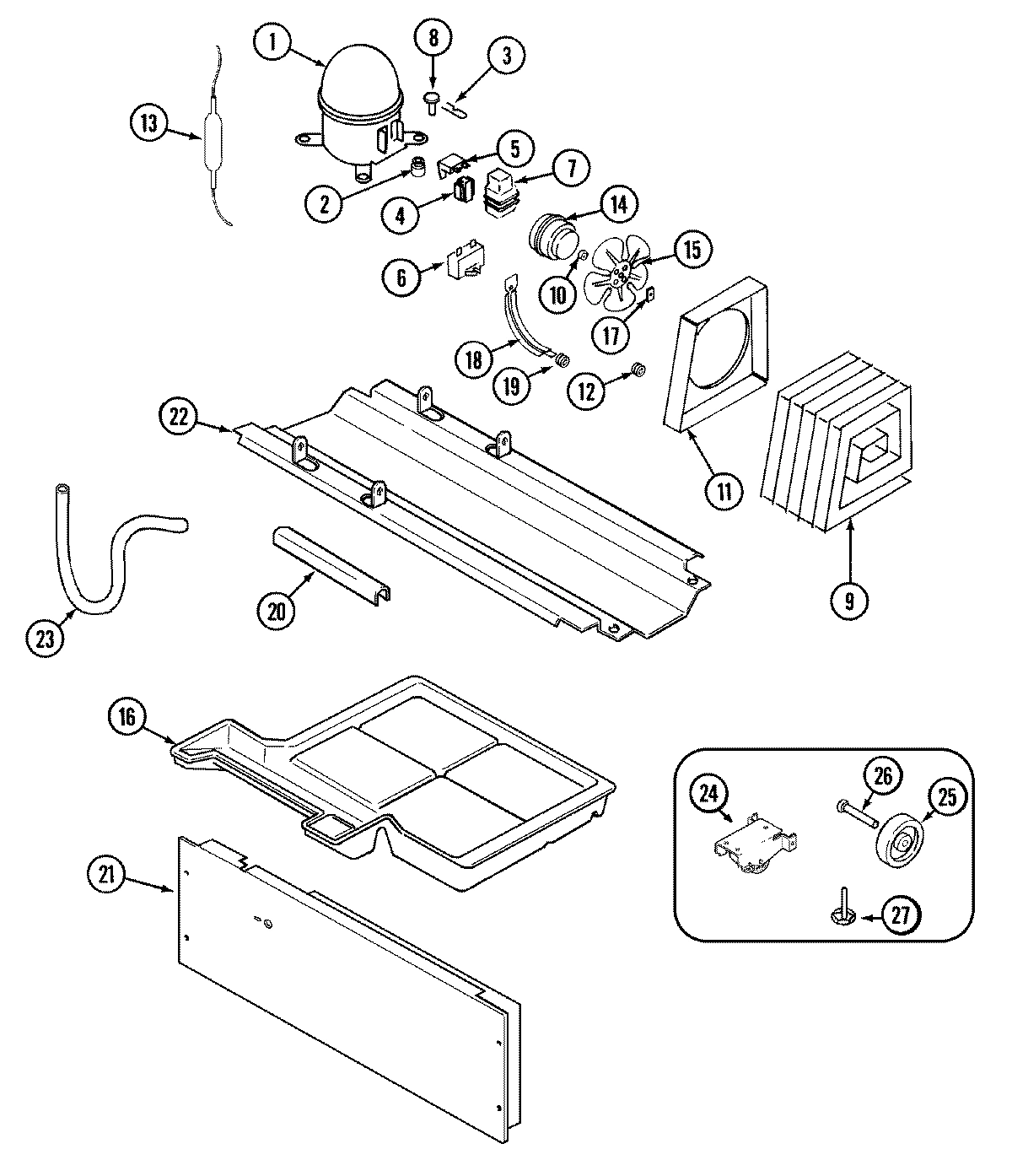

1

KIT,COMPRESSOR (R134A) 115V WPL 12001378 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61002222 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002229 Contact Us For Availability

1

INSUL., FRZ. LINER SUPPORT WPL 61002232 Contact Us For Availability

1

CONTROL ASSY., TEMPERATURE WPL 61002088 Contact Us For Availability

1

SCREW WPL 6527581 Contact Us For Availability

1

PANEL, F.F. DOOR (WHT) WPL 61002195 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 61002197 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61001936 Contact Us For Availability

1

INSUL., F.F. LINER SUPPORT WPL 61002225 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002226 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.84

2

HANDLE, DOOR (WHT) WPL 61002016 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002106 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61004002 Contact Us For Availability

2

SCREW WPL 4050071 Contact Us For Availability

2

TIMER, DEFROST WPL 682332 Contact Us For Availability

2

DOOR, DAIRY WPL 61002023 Contact Us For Availability

3

W11045462 Whirlpool Door Trim In Stock WPL W11045462 $34.28

3

SEAL, DRAIN WPL 61001977 Contact Us For Availability

3

SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61001968 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

HANDLE, DOOR (WHT) WPL 61002017 Contact Us For Availability

3

SEAL, F.F. DOOR (WHT) WPL 61004003 Contact Us For Availability

4

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $5.21

4

TRAY, DRIP WPL 61002015 Contact Us For Availability

4

TRAY, DRIP WPL 61004830 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

RELAY, START WPL 688572 Contact Us For Availability

4

SCREW WPL 61002984 Contact Us For Availability

4

HOUSING, CONTROL WPL 61004398 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

OVERLOAD WPL 61002037 Contact Us For Availability

5

FOIL, BARRIER WPL 61001949 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

6

WP61002112 Whirlpool Refrigerator Shelf Retai In Stock WPL WP61002112 $8.19

6

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

6

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $39.05

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $4.66

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $67.02

7

BULB, LIGHT WPL 319561 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

HINGE, UPPER WPL 61001971 Contact Us For Availability

8

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $31.54

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

8

WP61003071 Whirlpool Refrigerator Clip Backorder WPL WP61003071 $4.77

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

ANCHOR, SCREW WPL 61002912 Contact Us For Availability

9

WP61001946 Whirlpool Refrigerator Defrost Hea Backorder WPL WP61001946 $81.40

9

CONDENSER WPL 61002841 Contact Us For Availability

9

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

9

PIN, LOWER HINGE WPL 61002230 Contact Us For Availability

9

HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $33.29

WP61006074 Whirlpool Control Knob Backorder WPL WP61006074 $32.49

SHIELD, DEFROST HEATER WPL 61001956 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DAMPER/INSULATION KIT WPL 12001838 Contact Us For Availability

PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability

WP61002992 Whirlpool Defrost Thermostat Backorder WPL WP61002992 $60.48

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $57.89

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

PAN, CRISPER WPL 61001933 Contact Us For Availability

PLUG BUTTON, HANDLE HOLE (WHT) WPL 61001910 Contact Us For Availability

13

DRIER WPL 139001 Contact Us For Availability

13

SHELF WPL 61001950 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

RAIL, CRISPER PAN (LT) WPL 61004399 Contact Us For Availability

RAIL, CRISPER PAN (RT) WPL 61004400 Contact Us For Availability

15

TRAY, ICE WPL 592812 Contact Us For Availability

15

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

15

KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability

16

CAP, WATER ENTRY WPL 61002028 Contact Us For Availability

16

PAN, DRAIN WPL 61001955 Contact Us For Availability

16

TRIM, GLASS WPL 61001961 Contact Us For Availability

17

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.84

17

PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability

18

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

19

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

19

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

19

GROMMET, BRACKET WPL 569331 Contact Us For Availability

20

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

21

SHELF, FREEZER WPL 61002141 Contact Us For Availability

21

COVER, COMPRESSOR COMPARTMENT WPL 61004397 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.84

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61002032 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005242 Contact Us For Availability

23

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

24

SCREW WPL 4000161 Contact Us For Availability

24

WHEEL ASSY. WPL 61001978 Contact Us For Availability

24

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

25

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.84

27

LEG, LEVELING WPL 61002014 Contact Us For Availability

WIRE HARNESS, FRZ. WPL 61002915 Contact Us For Availability

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

MANUAL, USE & CARE WPL 61001981 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability

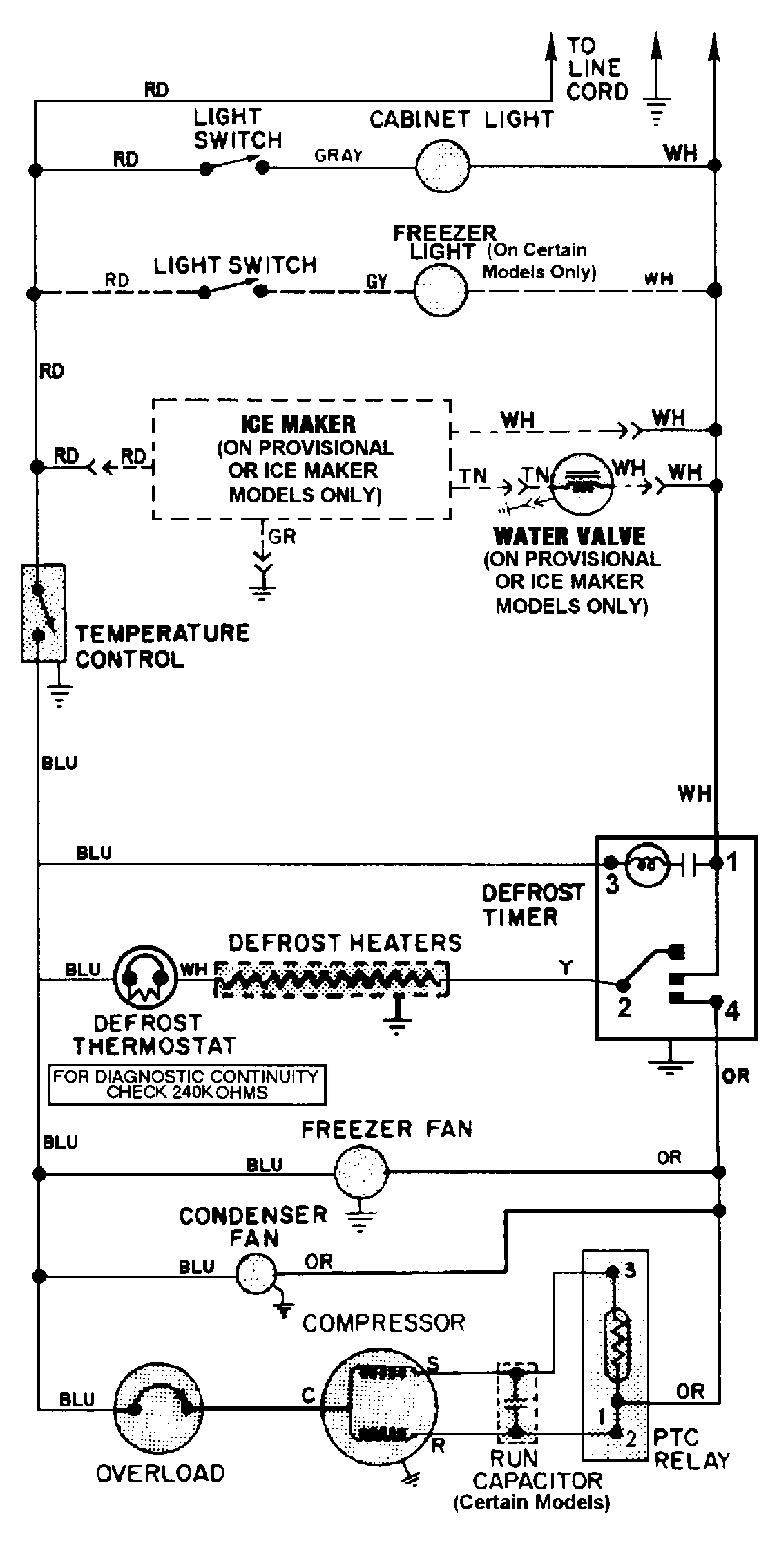

WIRING INFORMATION WPL 15002065 Contact Us For Availability
