Model Whirlpool CTL1511AEW REFRIGERATOR – Common Parts & Diagrams

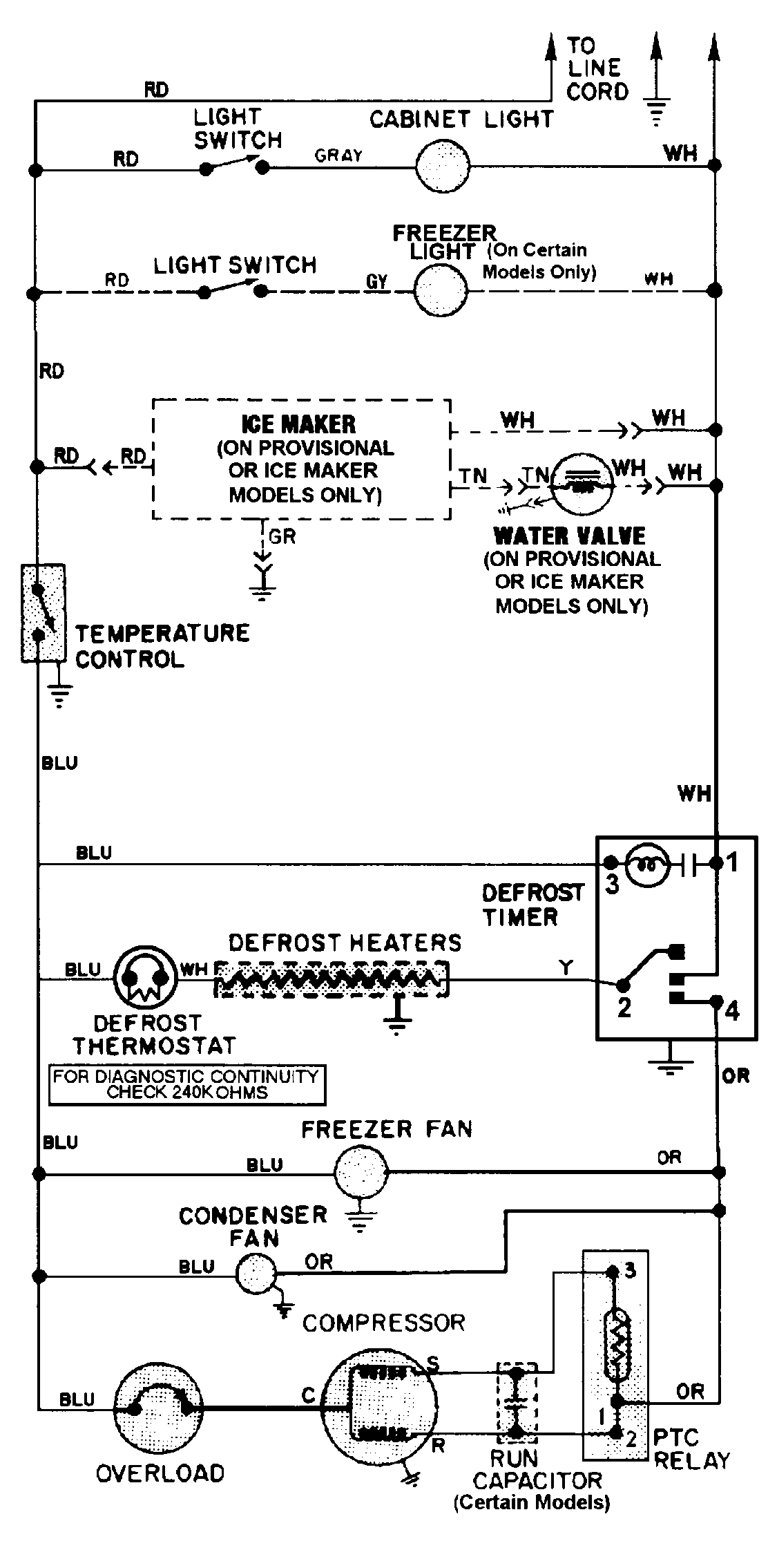

08 - WIRING INFORMATION

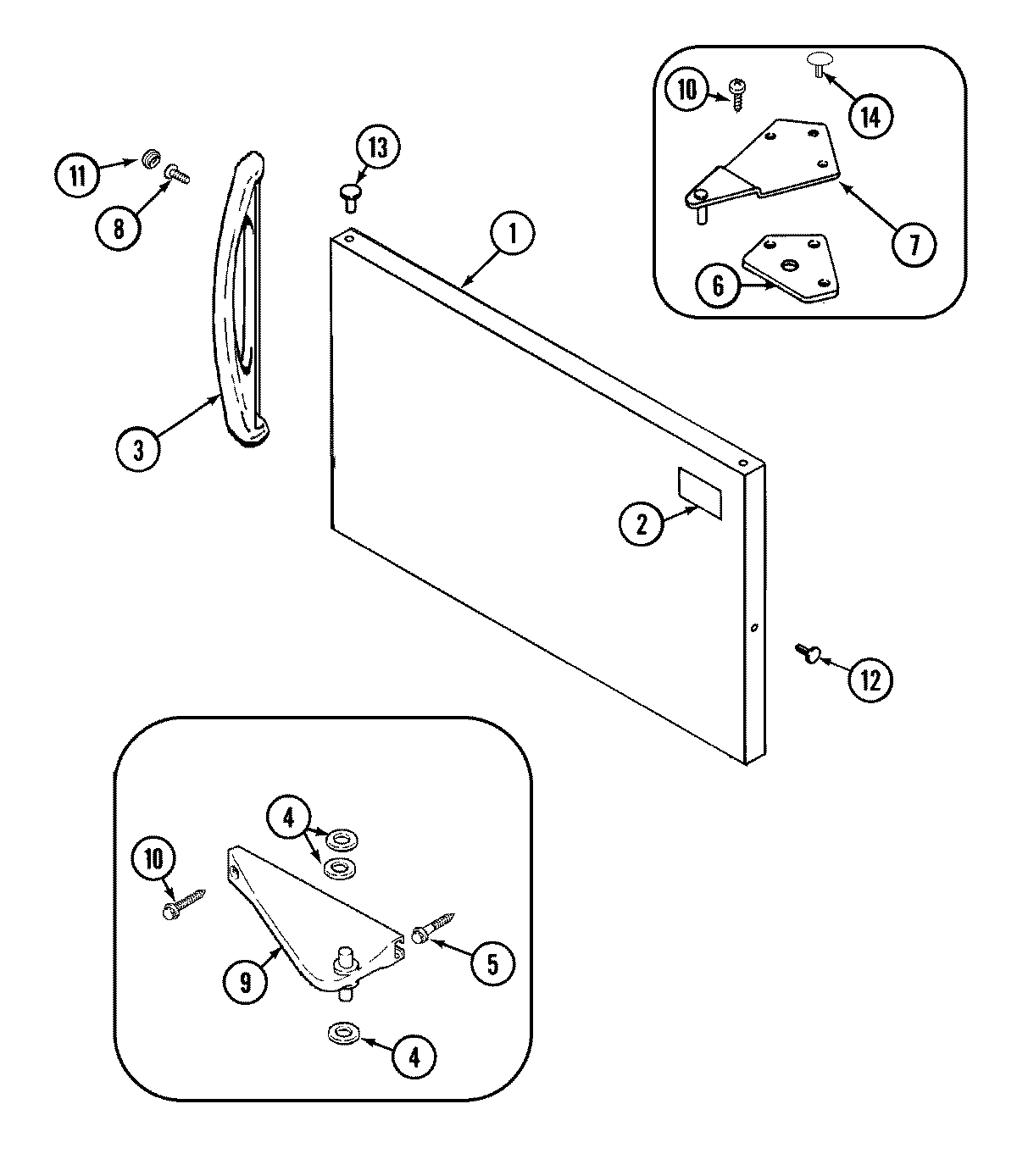

04 - FREEZER OUTER DOOR

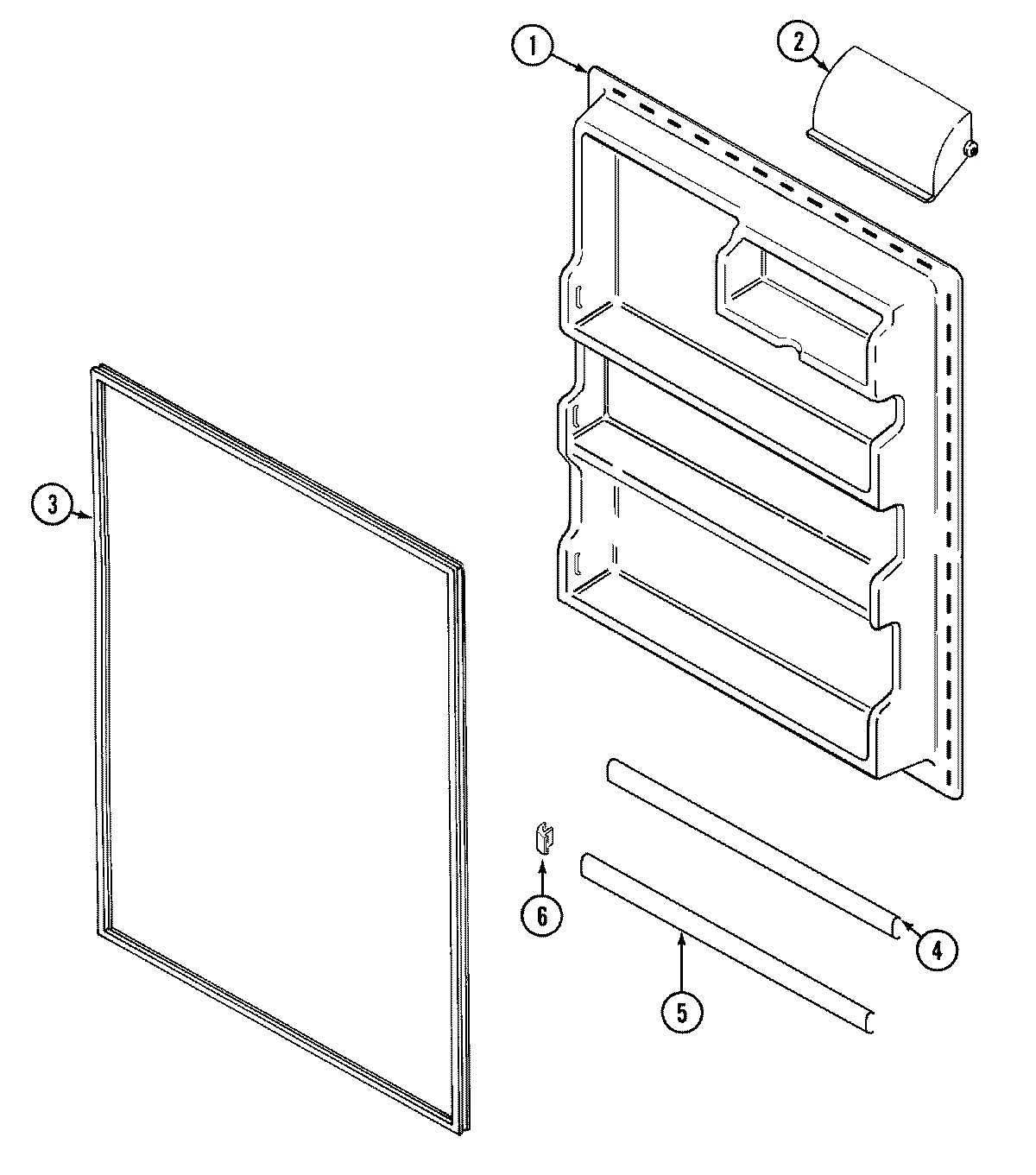

06 - FRESH FOOD INNER DOOR

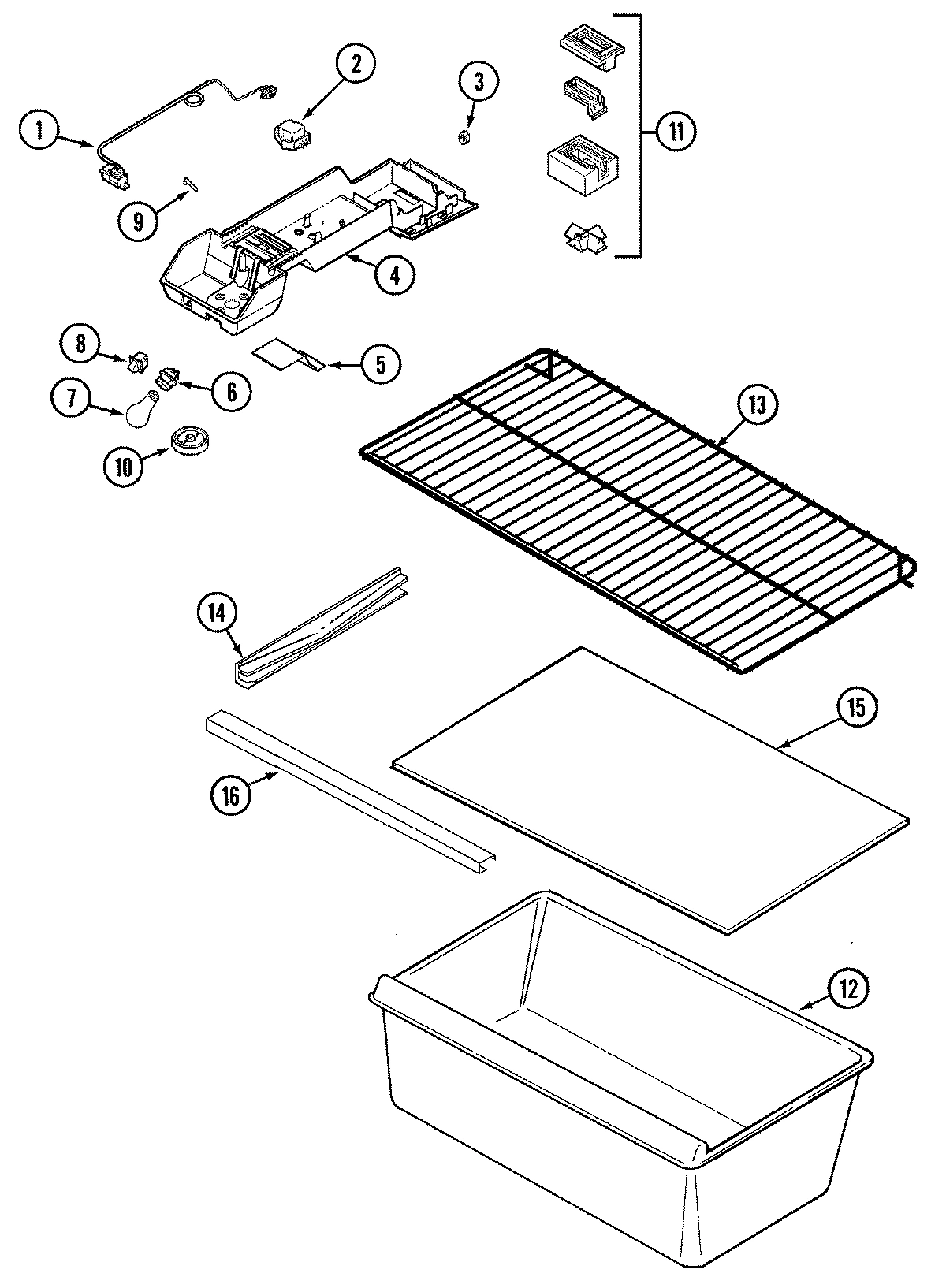

05 - FRESH FOOD COMPARTMENT

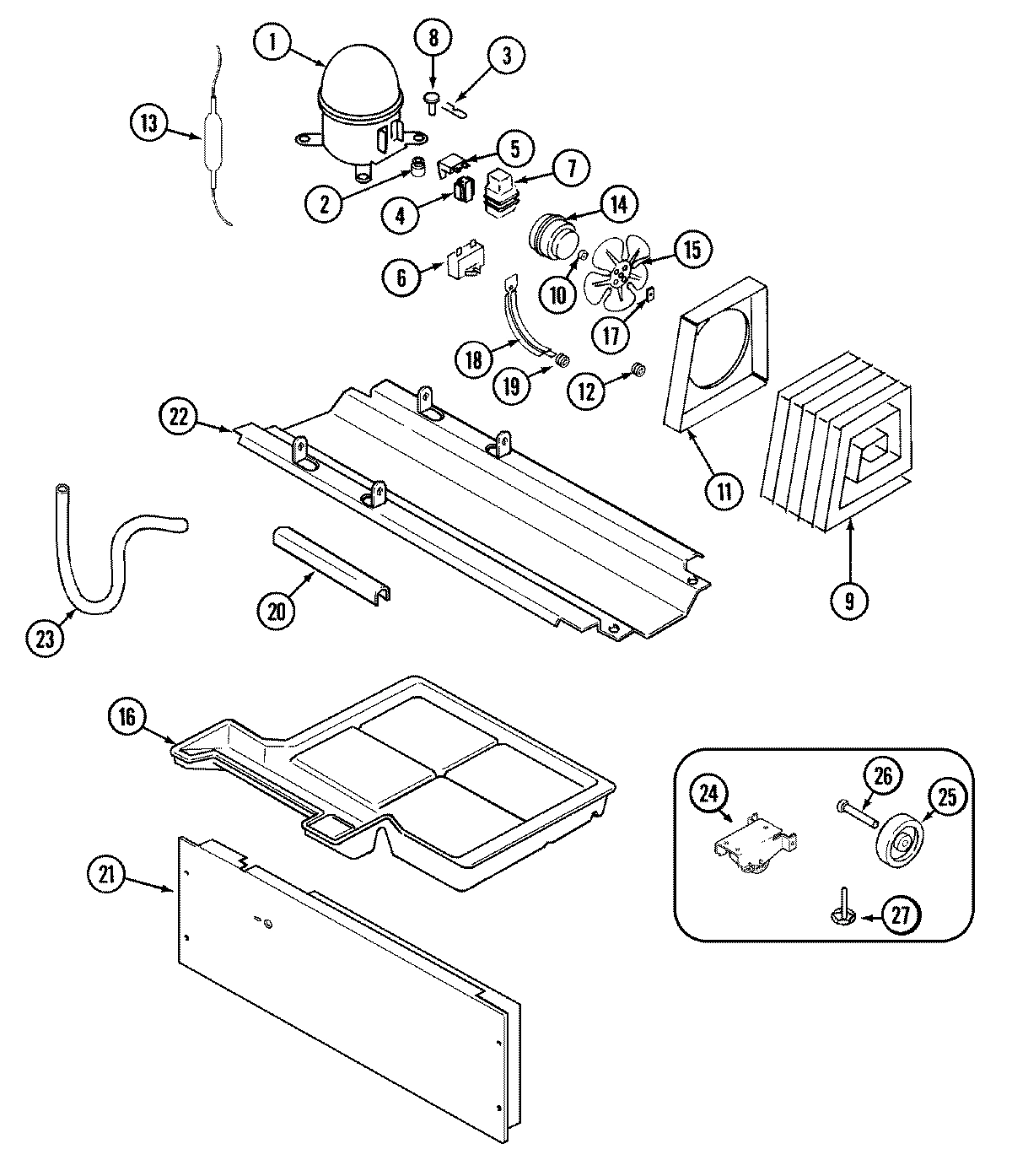

01 - COMPRESSOR

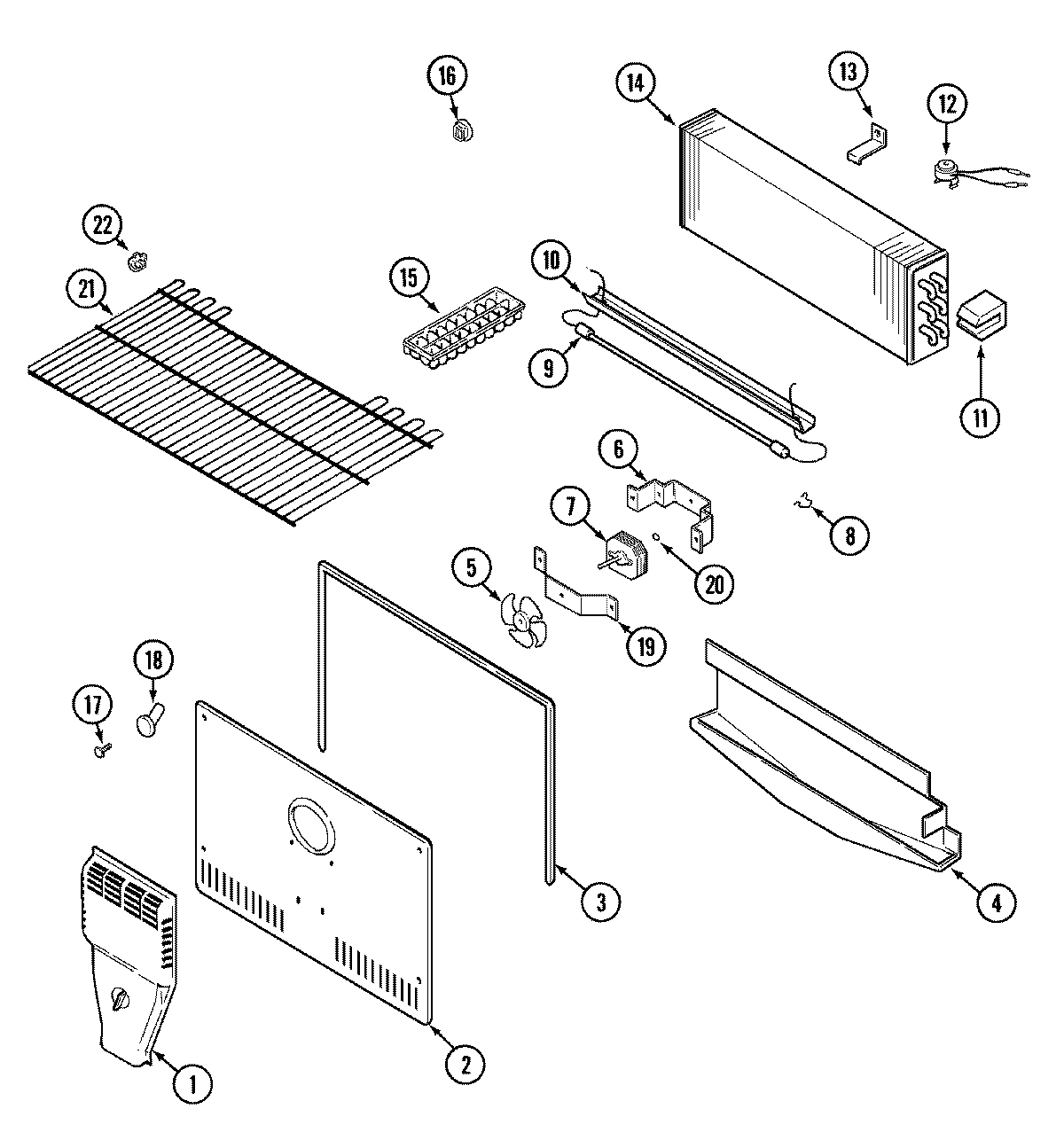

02 - FREEZER COMPARTMENT

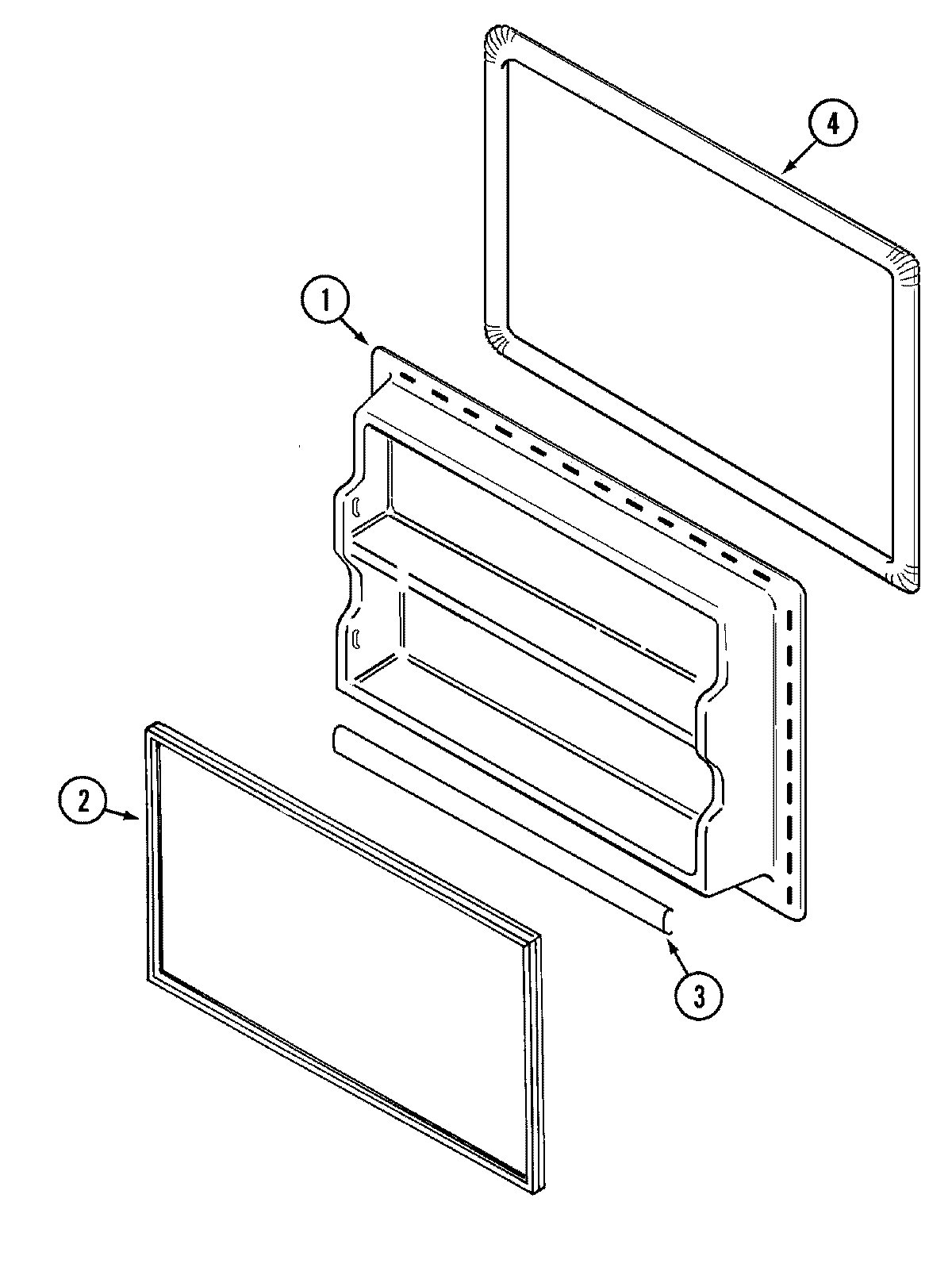

03 - FREEZER INNER DOOR

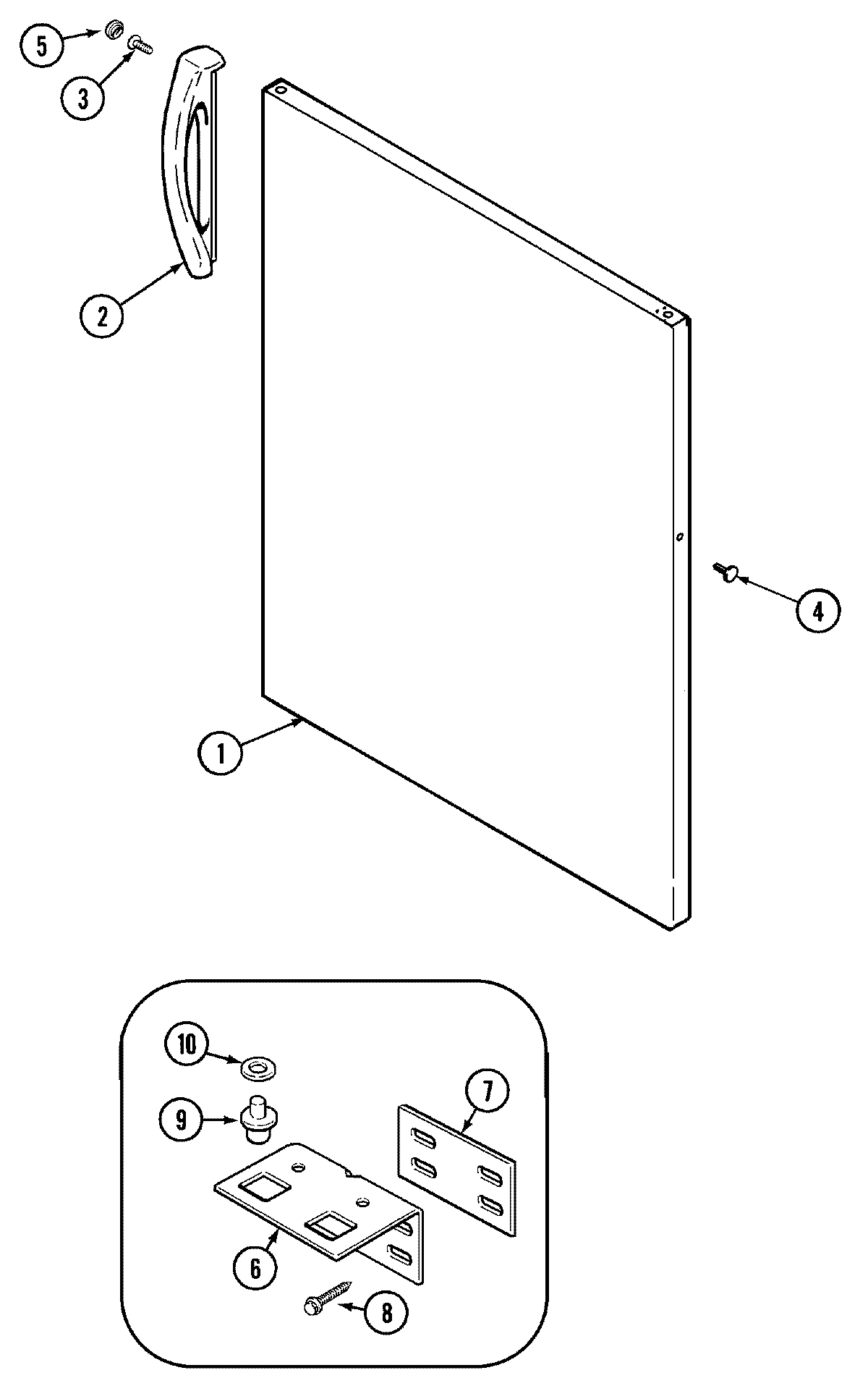

07 - FRESH FOOD OUTER DOOR
Common parts from model Whirlpool CTL1511AEW REFRIGERATOR
1
LINER, F.F. DOOR WPL 61001936 Contact Us For Availability
1
INSUL., F.F. LINER SUPPORT WPL 61002225 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002226 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
CONTROL ASSY., TEMPERATURE WPL 61002088 Contact Us For Availability
1
SCREW WPL 6527581 Contact Us For Availability
1
KIT,COMPRESSOR (R134A) 115V WPL 12001378 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability
1
TUNNEL, AIR WPL 61001943 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002222 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002229 Contact Us For Availability
1
INSUL., FRZ. LINER SUPPORT WPL 61002232 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61002195 Contact Us For Availability
2
HANDLE, DOOR (WHT) WPL 61002016 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61001980 Contact Us For Availability
2
DOOR, DAIRY WPL 61002023 Contact Us For Availability
2
SCREW WPL 4050071 Contact Us For Availability
2
TIMER, DEFROST WPL 682332 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002106 Contact Us For Availability
3
SEAL, DRAIN WPL 61001977 Contact Us For Availability
3
HANDLE, DOOR (WHT) WPL 61002017 Contact Us For Availability
3
ANCHOR, SCREW WPL 61002912 Contact Us For Availability
3
SEAL, F.F. DOOR (WHT) WPL 61002224 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
3
SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61001968 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002517 Contact Us For Availability
4
PLUG BUTTON, HANDLE HOLE (WHT) WPL 61001910 Contact Us For Availability
4
HOUSING, CONTROL WPL 61001948 Contact Us For Availability
4
SCREW WPL 61002984 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
TRAY, DRIP WPL 61002015 Contact Us For Availability
4
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
4
SEAL, SECONDARY WPL 61002227 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
5
PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability
5
FOIL, BARRIER WPL 61001949 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
6
SCREW WPL 4000171 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
7
HINGE, UPPER WPL 61001971 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
8
SWITCH, LIGHT WPL 669871 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
9
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
9
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
9
COIL, CONDENSER WPL 61002048 Contact Us For Availability
9
PIN, LOWER HINGE WPL 61002230 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61001956 Contact Us For Availability
11
DAMPER/INSULATION KIT WPL 12001838 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
12
PAN, CRISPER WPL 61001933 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
13
SHELF WPL 61001950 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
14
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
14
RAIL, CRISPER PAN (LT) WPL 61001959 Contact Us For Availability
14
RAIL, CRISPER PAN (RT) WPL 61001960 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability
15
KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
16
TRIM, GLASS WPL 61001961 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
21
COVER, COMPRESSOR COMPT. WPL 61002204 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002032 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
24
SCREW WPL 4000161 Contact Us For Availability
24
WHEEL ASSY. WPL 61001978 Contact Us For Availability
27
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001981 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61002915 Contact Us For Availability
× ![]()
