Model Whirlpool CT18GKXRT00 REFRIGERATOR – Common Parts & Diagrams

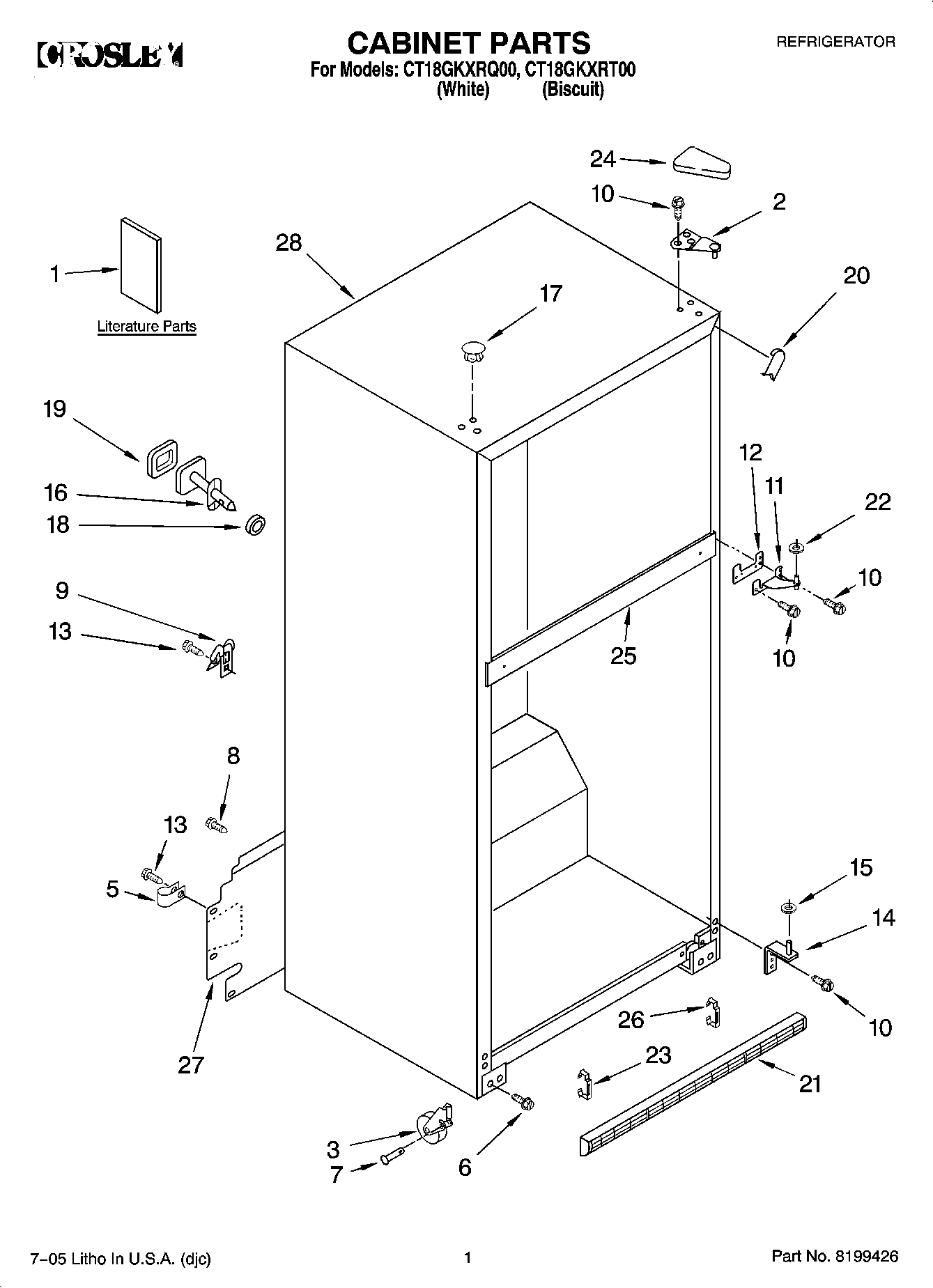

Common parts from model Whirlpool CT18GKXRT00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability
1
Following May Be Purchased DO-IT-YOURSELF REP WPL ARI22327A5 Contact Us For Availability
5
Handle, Refrigerator (Biscuit) WPL 2202807T Contact Us For Availability
7
(Complete Shelf Not Shown Includes Items 7,8, WPL 2201107K Contact Us For Availability
8
Trim, Shelf WPL 2188684 Contact Us For Availability
11
Support Block WPL 2201184 Contact Us For Availability
12
Cover, Screw (Biscuit) WPL 2202819T Contact Us For Availability
16
Fitting, Water Tube (Not Serviced) WPL ARI22328A3 Contact Us For Availability
17
Shelf, Freezer WPL 2189453 Contact Us For Availability
17
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
18
Seal, Front (Not Serviced) WPL ARI22329A6 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Seal, Rear (Not Serviced) WPL ARI22330A3 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
CLIP, GRILLE WPL 2189356 Contact Us For Availability
25
Rail Center (Not Serviced) WPL ARI22331A4 Contact Us For Availability
26
Air Separator Assembly WPL 2210390 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Cover, Unit WPL 2221775 Contact Us For Availability
28
Cabinet (Not A Serviceable Part) WPL ARI22332A1 Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
33
Wire Assy. Unit WPL 2187764 Contact Us For Availability
35
Wire Assembly, Frzr. Compartment (Includes Il WPL 2310041 Contact Us For Availability
35
Tube, Discharge WPL 2205294 Contact Us For Availability
40
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
