Model GE CSX24DFB – Common Parts & Diagrams
0
1

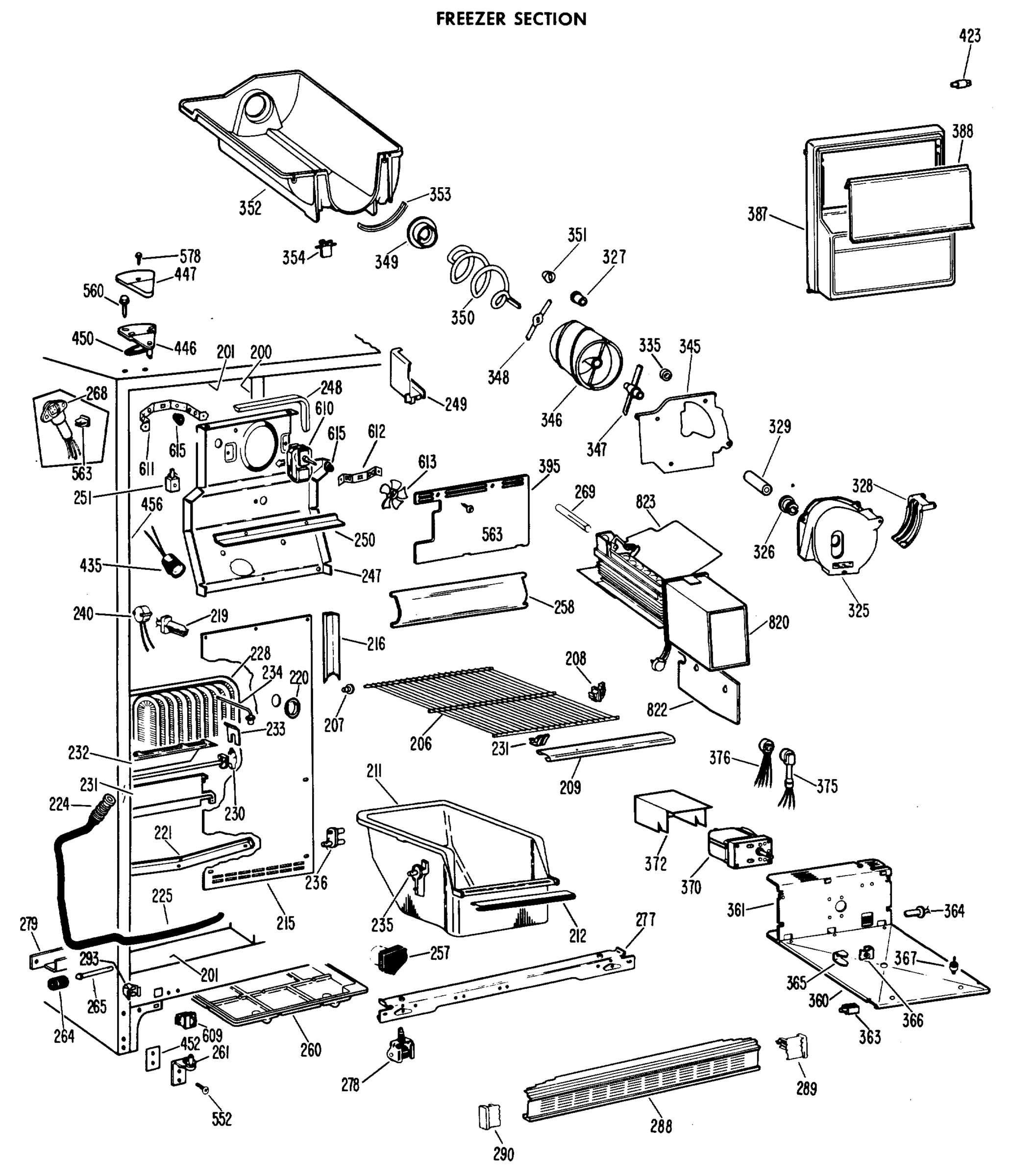

FREEZER SECTION

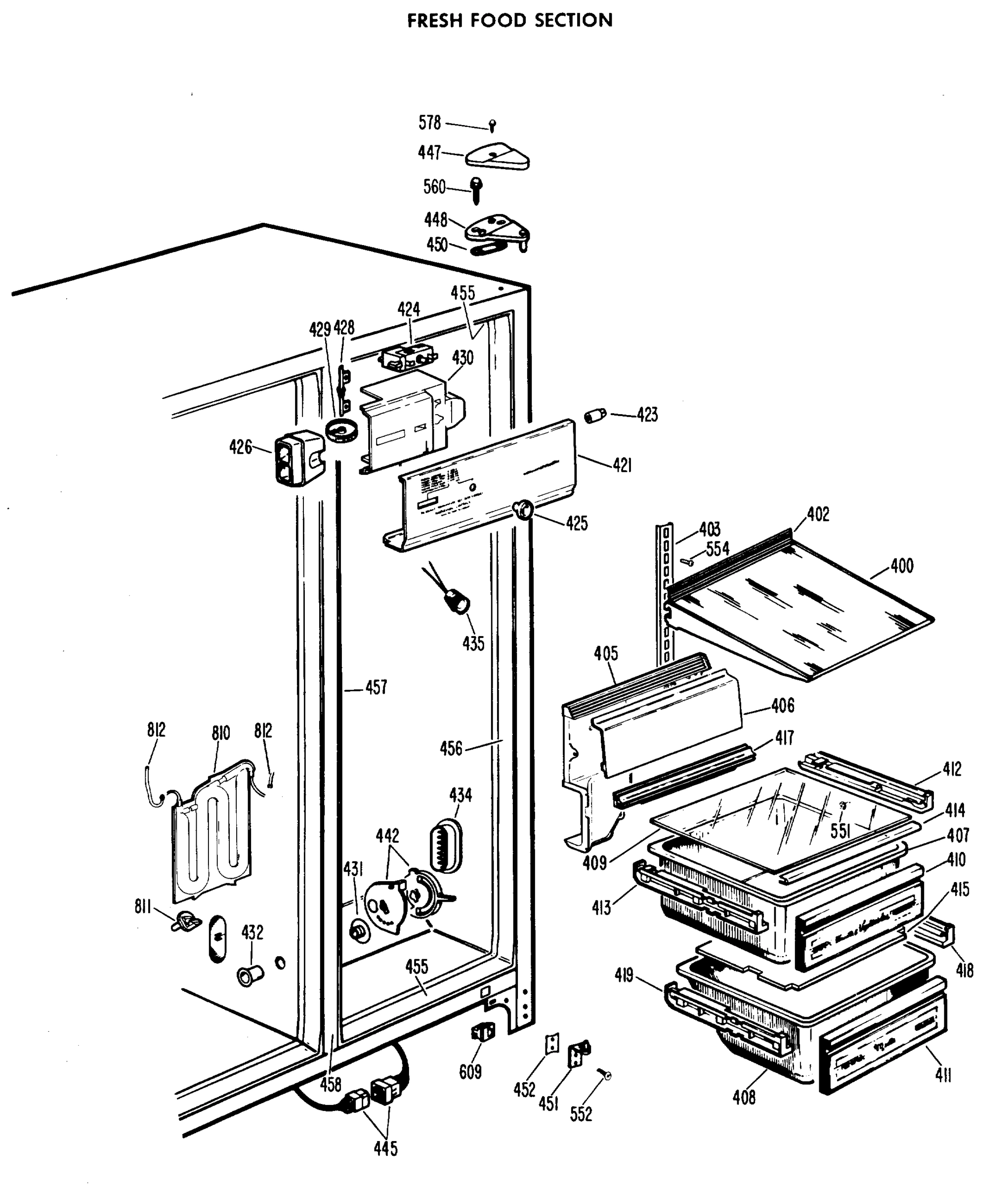

FRESH FOOD SECTION
Common parts from model GE CSX24DFB
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
10
GEN WR12X0520 GEN WR12X0520 Contact Us For Availability
10
GEN WR12X0524 GEN WR12X0524 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1020 GEN WR38X1020 Contact Us For Availability
11
GEN WR38X1313 GEN WR38X1313 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0247 GEN WR24X0247 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X5509 GEN WR77X5509 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR02X4100 GEN WR02X4100 Contact Us For Availability
22
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
23
GEN WR71X6010 GEN WR71X6010 Contact Us For Availability
24
GEN WR71X6009 GEN WR71X6009 Contact Us For Availability
27
GEN WR17X5977 GEN WR17X5977 Contact Us For Availability
29
HARNESS RECESS DISP GEN WR49X0201 Contact Us For Availability
29
GEN WR49X5102 GEN WR49X5102 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
GEN WR14X0245 GEN WR14X0245 Contact Us For Availability
32
GEN WR17X5880 GEN WR17X5880 Contact Us For Availability
33
GEN WR51X0260 GEN WR51X0260 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
37
CLIP TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
41
CRANK & RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
LANYARD DISPENSER GEN WR02X4237 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
49
GEN WR02X4242 GEN WR02X4242 Contact Us For Availability
50
GEN WR17X1259 GEN WR17X1259 Contact Us For Availability
52
GEN WR02X4459 GEN WR02X4459 Contact Us For Availability
53
GEN WR17X5976 GEN WR17X5976 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0844 GEN WR38X0844 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X3959 GEN WR02X3959 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
58
GEN WR02X4771 GEN WR02X4771 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
GEN WR17X1586 GEN WR17X1586 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM DISP GEN WR17X5881 Contact Us For Availability
71
HOUSING-DISP SWITCH GEN WR02X7068 Contact Us For Availability
72
GEN WR02X7237 GEN WR02X7237 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
101
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0246 GEN WR24X0246 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
105
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
106
GEN WR01X5438 GEN WR01X5438 Contact Us For Availability
106
GEN WR22X5066 GEN WR22X5066 Contact Us For Availability
108
GEN WR77X5510 GEN WR77X5510 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X0906 GEN WR38X0906 Contact Us For Availability
113
GEN WR38X1019 GEN WR38X1019 Contact Us For Availability
113
GEN WR38X1038 GEN WR38X1038 Contact Us For Availability
114
GEN WR01X5341 GEN WR01X5341 Contact Us For Availability
114
GEN WR72X5026 GEN WR72X5026 Contact Us For Availability
117
SHELF DOOR ADJ ASM B GEN WR17X5978 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR71X6004 GEN WR71X6004 Contact Us For Availability
120
GEN WR71X6005 GEN WR71X6005 Contact Us For Availability
121
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
121
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
122
GEN WR22X5062 GEN WR22X5062 Contact Us For Availability
152
GEN WZ04X0355 GEN WZ04X0355 Contact Us For Availability
154
SCR SPECIAL 10-16 GEN WR01X5477 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5379 Contact Us For Availability
206
GEN WR71X1366 GEN WR71X1366 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
211
GEN WR21X5081 GEN WR21X5081 Contact Us For Availability
212
GEN WR02X6061 GEN WR02X6061 Contact Us For Availability
213
GEN WR38X5226 GEN WR38X5226 Contact Us For Availability
214
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
215
GEN WR17X2003 GEN WR17X2003 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
GEN WR17X1245 GEN WR17X1245 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
228
L0W SIDE ASM GEN WR85X0103 Contact Us For Availability
230
GEN WR02X4557 GEN WR02X4557 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
232
GEN WR02X4970 GEN WR02X4970 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X1425 GEN WR17X1425 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
250
GEN WR02X4844 GEN WR02X4844 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0191 Contact Us For Availability
269
GEN WR01X1543 GEN WR01X1543 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
277
GEN WR17X1487 GEN WR17X1487 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2005 GEN WR17X2005 Contact Us For Availability
288
GEN WR79X5145 GEN WR79X5145 Contact Us For Availability
288
GEN WR79X5158 GEN WR79X5158 Contact Us For Availability
289
GEN WR02X6810 GEN WR02X6810 Contact Us For Availability
289
GEN WR02X6942 GEN WR02X6942 Contact Us For Availability
290
GEN WR02X6811 GEN WR02X6811 Contact Us For Availability
290
GEN WR02X6943 GEN WR02X6943 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
327
BUSHING HELIX DISP GEN WR02X4142 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X1248 Contact Us For Availability
329
GEN WR02X6326 GEN WR02X6326 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
345
GEN WR17X1422 GEN WR17X1422 Contact Us For Availability
347
BLADE HELIX DISP GEN WR02X4136 Contact Us For Availability
348
GEN WR02X4137 GEN WR02X4137 Contact Us For Availability
351
CONE AUGER DISP GEN WR02X4144 Contact Us For Availability
352
BUCKET ICE DISP GEN WR30X0189 Contact Us For Availability
354
GEN WR02X4563 GEN WR02X4563 Contact Us For Availability
354
GEN WR02X4564 GEN WR02X4564 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
SHELF BUCKET BTM DISP GEN WR71X1255 Contact Us For Availability
361
GEN WR17X1423 GEN WR17X1423 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X4783 GEN WR02X4783 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
GEN WR02X4588 GEN WR02X4588 Contact Us For Availability
370
GEN WR60X0111 GEN WR60X0111 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
COVER & ICE DOOR ASM GEN WR17X5979 Contact Us For Availability
388
GEN WR17X5884 GEN WR17X5884 Contact Us For Availability
395
GEN WR74X0139 GEN WR74X0139 Contact Us For Availability
400
GEN WR71X6008 GEN WR71X6008 Contact Us For Availability
402
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
403
GEN WR72X5045 GEN WR72X5045 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
406
GEN WR17X5749 GEN WR17X5749 Contact Us For Availability
407
GEN WR32X5140 GEN WR32X5140 Contact Us For Availability
408
GEN WR32X5097 GEN WR32X5097 Contact Us For Availability
409
GEN WR32X5177 GEN WR32X5177 Contact Us For Availability
410
GEN WR17X5972 GEN WR17X5972 Contact Us For Availability
411
GEN WR02X6390 GEN WR02X6390 Contact Us For Availability
411
GEN WR17X5971 GEN WR17X5971 Contact Us For Availability
412
GEN WR72X5046 GEN WR72X5046 Contact Us For Availability
414
GEN WR14X5112 GEN WR14X5112 Contact Us For Availability
417
GEN WR14X5117 GEN WR14X5117 Contact Us For Availability
418
GEN WR72X5002 GEN WR72X5002 Contact Us For Availability
419
GEN WR72X5003 GEN WR72X5003 Contact Us For Availability
421
GEN WR17X6033 GEN WR17X6033 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X7156 GEN WR02X7156 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
446
GEN WR13X0499 GEN WR13X0499 Contact Us For Availability
447
COVER HINGE GEN WR02X4574 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0500 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
564
SCR 6-20 AB TR 3/8 SS GEN WZ04X0284 Contact Us For Availability
610
GEN WR60X0131 GEN WR60X0131 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02 GEN WR02 Contact Us For Availability
616
GEN WR82X0259 GEN WR82X0259 Contact Us For Availability
627
BAFFLE AIR COND FAN GEN WR17X1488 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
675
SCR 8-18 AB RNDW 5/8 SS GEN WZ06X0094 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
729
GEN WR62X0038 GEN WR62X0038 Contact Us For Availability
730
GEN WR84X0051 GEN WR84X0051 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7225 GEN WR02X7225 Contact Us For Availability
734
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
GEN WR07X0174 GEN WR07X0174 Contact Us For Availability
735
GEN WR02X7227 GEN WR02X7227 Contact Us For Availability
735
GEN WR08X0085 GEN WR08X0085 Contact Us For Availability
736
CLIP MTG GROMMET GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0046 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
748
GEN WR17X2004 GEN WR17X2004 Contact Us For Availability
800
GEN WR57X0078 GEN WR57X0078 Contact Us For Availability
801
GEN WR62X0025 GEN WR62X0025 Contact Us For Availability
801
COIL ASM-WATER(BLUE) GEN WR62X0027 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0040 GEN WR57X0040 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
GEN WR57X0049 GEN WR57X0049 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
WATER TANK ASM DISP GEN WR17X1505 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
32767
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
× ![]()
