Model Whirlpool CSP2761TQ1 COMMERCIAL GAS DRYER – Common Parts &amp; Diagrams

2

681615 Whirlpool Screw Backorder WPL 681615 $9.59

2

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.11

4

3391846 Whirlpool Clip In Stock WPL 3391846 $10.76

4

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $33.21

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $27.52

6

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.70

7

Cabinet (Upper) WPL 3978859 Contact Us For Availability

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $5.37

8

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

8

WP689172 Whirlpool Leveling Feet Backorder WPL WP689172 $27.52

9

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $30.05

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.33

12

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

12

Panel, Control WPL 3979100 Contact Us For Availability

12

Gasket, Window WPL 3392915 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $11.53

14

3979327 Whirlpool Light Backorder WPL 3979327 $11.80

14

Lamp, Indicator (Amber) WPL 3979326 Contact Us For Availability

14

Lamp, Indicator (Red) WPL 3979325 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

15

Window (Not Shown Part 3396122, Window Pack. WPL 3392918 Contact Us For Availability

16

8283296 Whirlpool Wire Harness Backorder WPL 8283296 $39.84

16

W10167612 Whirlpool Wire Backorder WPL W10167612 $8.00

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

17

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $3.33

18

WPW10330137 Whirlpool Push Button Switch In Stock WPL WPW10330137 $182.73

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $32.83

21

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $4.52

3392914 Whirlpool Window Frame Backorder WPL 3392914 $89.85

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

Valve & Union Shut-Off WPL 697441 Contact Us For Availability

23

3979115 Whirlpool Bracket Backorder WPL 3979115 $36.25

W11222083 Whirlpool Power Cord Backorder WPL W11222083 $39.98

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $55.54

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $4.52

Nut, Compression WPL 233076 Contact Us For Availability

25

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.51

26

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

27

W10841144 Whirlpool Drive Motor In Stock WPL W10841144 $155.31

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

28

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

29

353424 Whirlpool Connector Backorder WPL 353424 $10.76

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $12.06

30

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $4.78

32

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

32

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $89.94

33

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $15.06

34

693152 Whirlpool Bumper In Stock WPL 693152 $7.89

34

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

34

4``-90 ELBOW WPL 279731 Contact Us For Availability

35

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.70

36

Washer WPL 3392186 Contact Us For Availability

37

W11126319 Whirlpool Washer Dryer Coin Chute In Stock WPL W11126319 $135.70

38

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

38

8283298 Whirlpool Wire Harness Backorder WPL 8283298 $30.25

38

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

39

WP3387138 Whirlpool Cycling Thermostat In Stock WPL WP3387138 $48.99

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

41

WPW10237959 Whirlpool Door Switch In Stock WPL WPW10237959 $28.99

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

3390424 Whirlpool Extension Backorder WPL 3390424 $35.32

43

Bushing WPL 3389233 Contact Us For Availability

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.99

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.09

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

47

W10244331 Whirlpool Rear Door Backorder WPL W10244331 $112.91

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

49

W10322548 Whirlpool Door Assembly Backorder WPL W10322548 $38.32

50

Screw, 8-18 x 3/4 WPL 718032 Contact Us For Availability

51

Upper Front Panel WPL 3393081 Contact Us For Availability

53

285875 Whirlpool Security Kit Backorder WPL 285875 $7.80

53

Fastener WPL 3393933 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

8529989 Whirlpool Wire Harness Backorder WPL 8529989 $148.90

8529990 Whirlpool Wire Harness Backorder WPL 8529990 $179.94

Plug, Multi- Terminal WPL 3390423 Contact Us For Availability

Receptacle WPL 717252 Contact Us For Availability

57

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $43.30

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

59

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

60

WPW10213202 Whirlpool Handle In Stock WPL WPW10213202 $46.81

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $85.61

62

3389351 Whirlpool Top Backorder WPL 3389351 $152.46

63

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

64

WPL W10117347 WPL W10117347 Contact Us For Availability

65

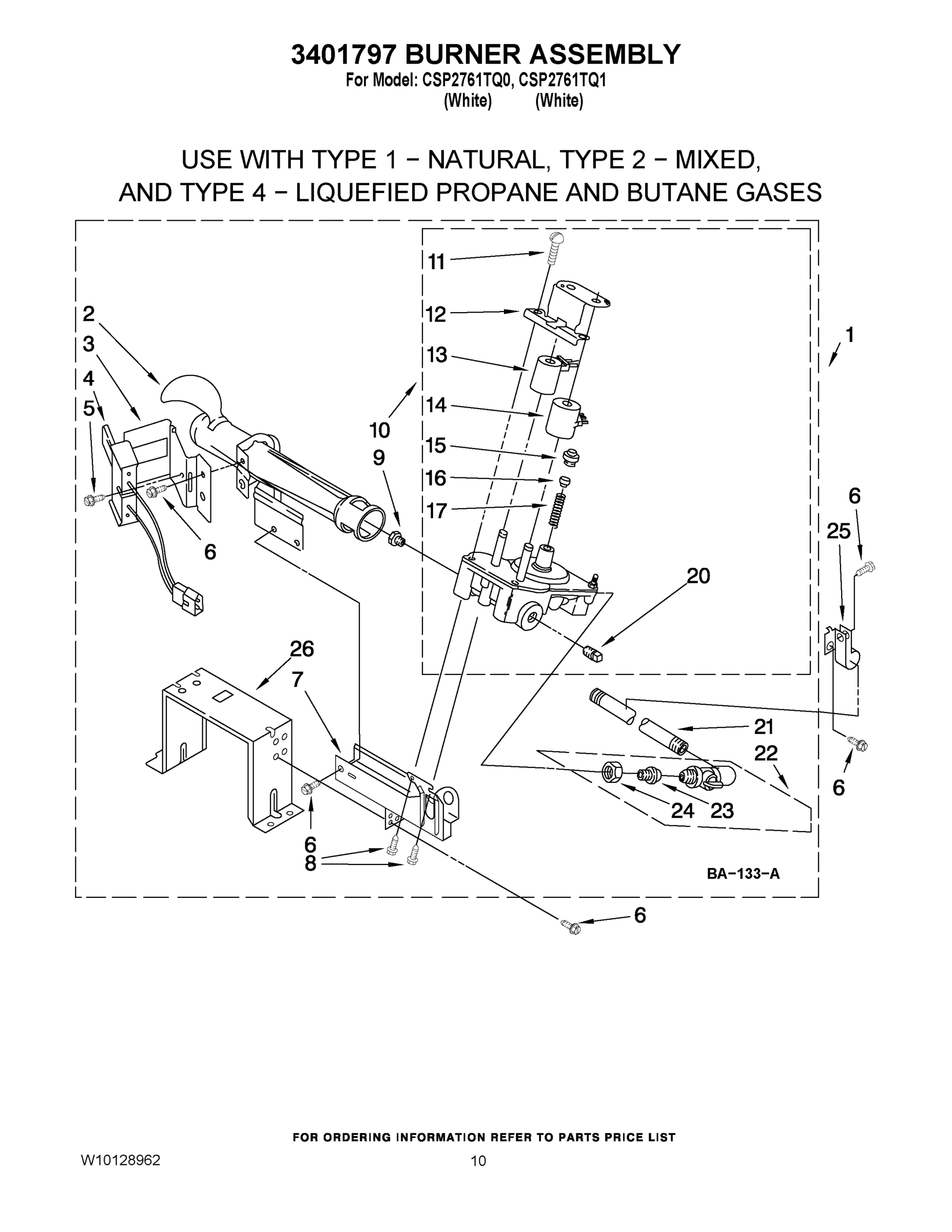

WPL 3401797 WPL 3401797 Contact Us For Availability

66

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

67

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

68

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

69

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

70

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

71

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.93

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.58

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
