Model Hotpoint CSK27PFXBAA Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

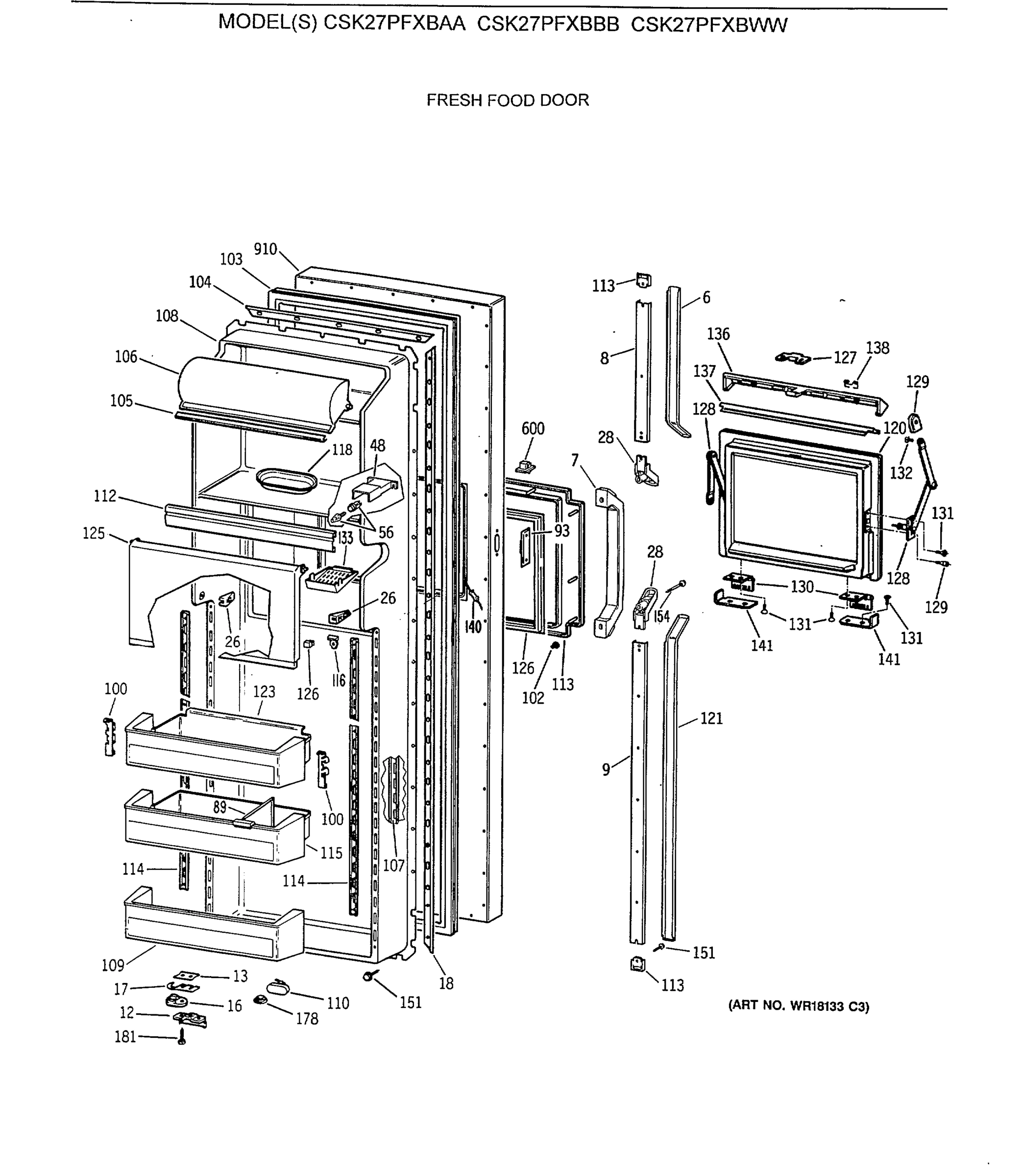

FRESH FOOD DOOR

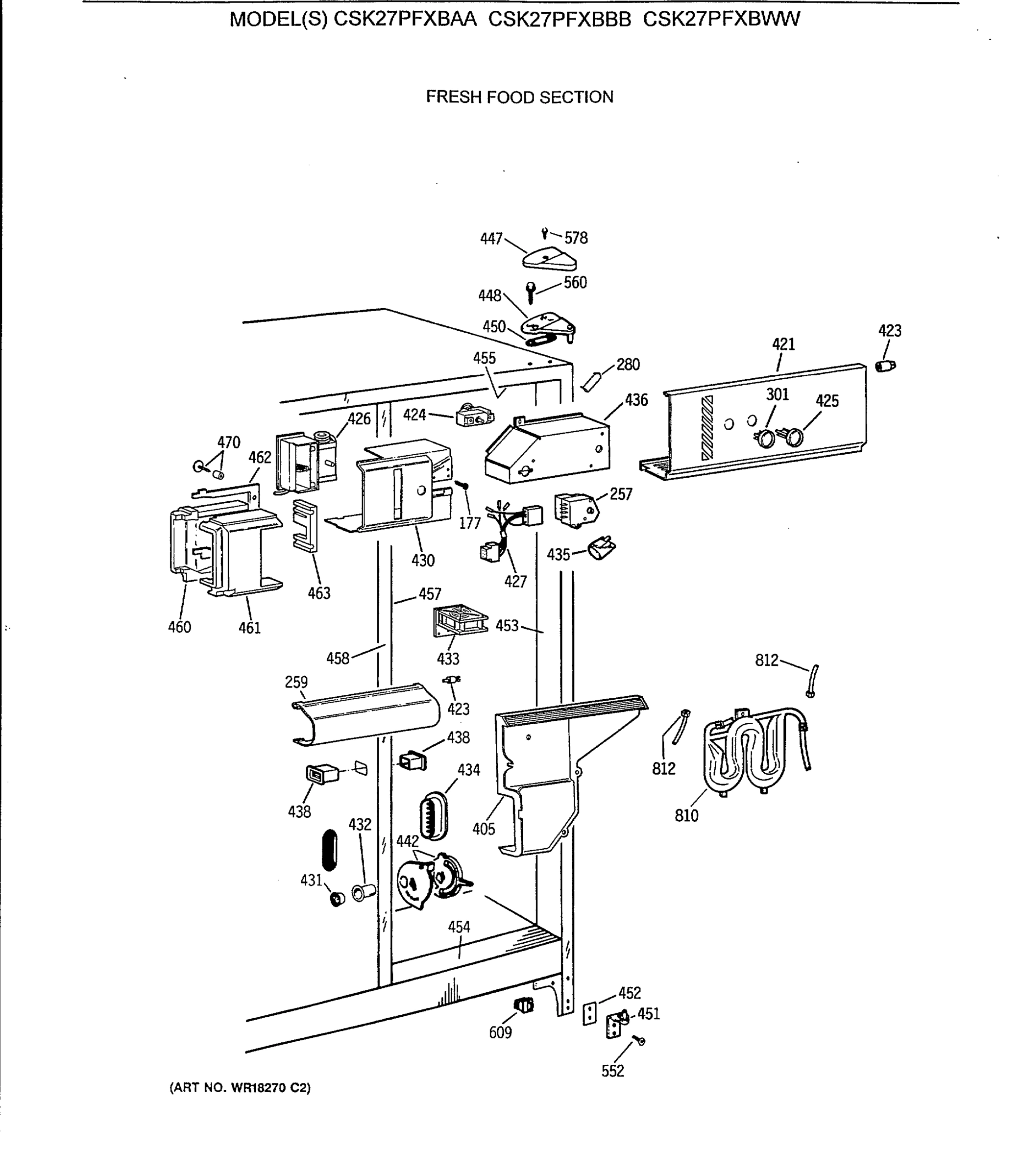

FRESH FOOD SECTION

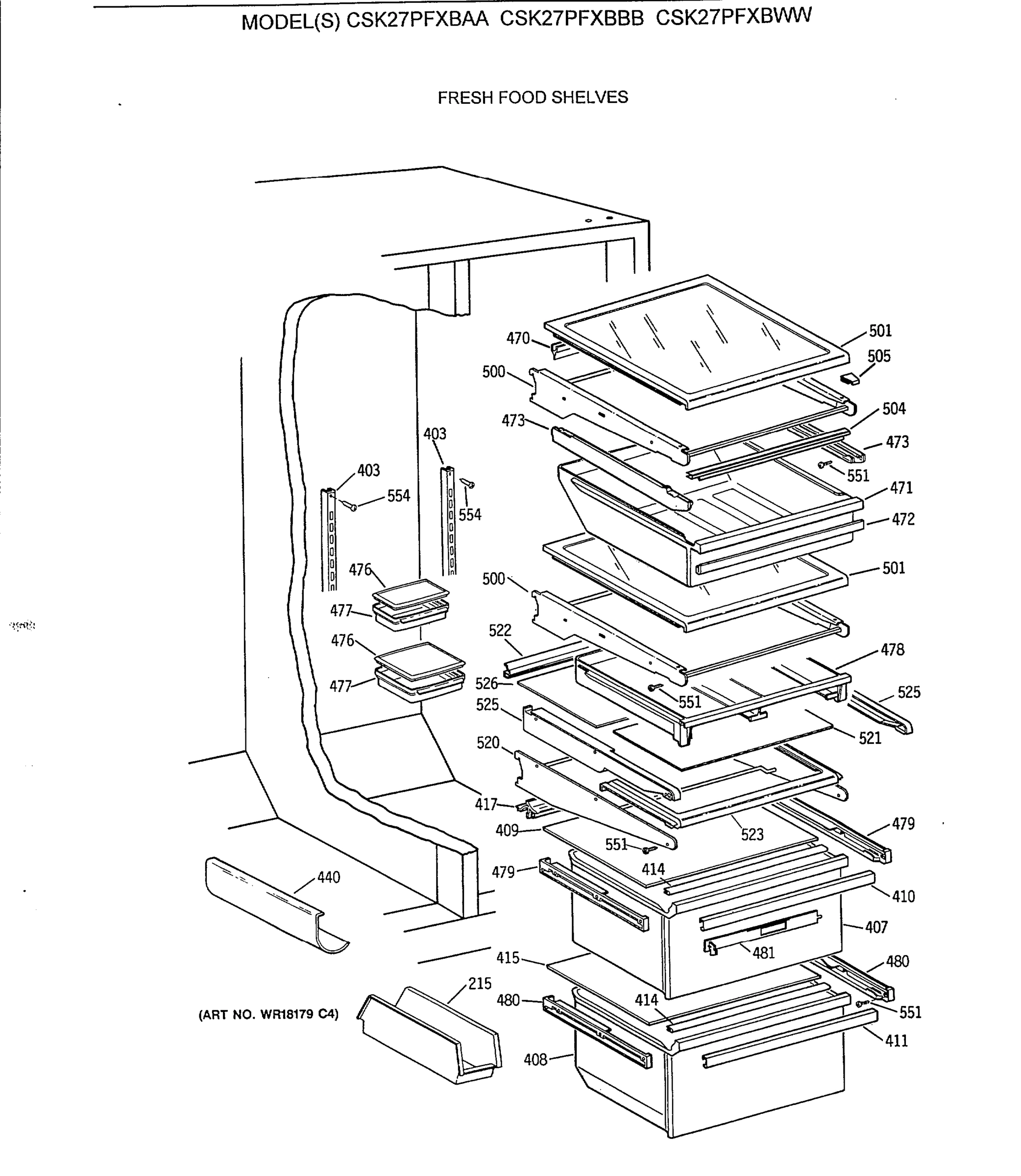

FRESH FOOD SHELVES
UNIT PARTS
Common parts from model Hotpoint CSK27PFXBAA Refrigerator
6
GEN WR12X1043 GEN WR12X1043 Contact Us For Availability
7
GEN WR12X0870 GEN WR12X0870 Contact Us For Availability
8
GEN WR12X0918 GEN WR12X0918 Contact Us For Availability
9
GEN WR12X1034 GEN WR12X1034 Contact Us For Availability
12
GEN WR02X9302 GEN WR02X9302 Contact Us For Availability
13
GEN WR02X7489 GEN WR02X7489 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
16
GEN WR02X7512 GEN WR02X7512 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
17
GEN WR02X9147 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
26
GEN WR02X7844 GEN WR02X7844 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
29
GEN WR23X0428 GEN WR23X0428 Contact Us For Availability
29
GEN WR23X0446 GEN WR23X0446 Contact Us For Availability
31
GEN WR17X4151 GEN WR17X4151 Contact Us For Availability
32
GEN WR17X3334 GEN WR17X3334 Contact Us For Availability
33
GEN WR51X0399 GEN WR51X0399 Contact Us For Availability
36
GEN WR62X0093 GEN WR62X0093 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8726 GEN WR02X8726 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8938 GEN WR02X8938 Contact Us For Availability
54
GEN WR17X4013 GEN WR17X4013 Contact Us For Availability
56
GEN 10S6/10BB GEN 10S6/10BB Contact Us For Availability
56
GEN WR02X8660 GEN WR02X8660 Contact Us For Availability
56
GEN WR02X8932 GEN WR02X8932 Contact Us For Availability
57
GEN WR23X0373 GEN WR23X0373 Contact Us For Availability
58
GEN WR17X3468 GEN WR17X3468 Contact Us For Availability
59
GEN WR02X9132 GEN WR02X9132 Contact Us For Availability
60
GEN WR02X8652 GEN WR02X8652 Contact Us For Availability
61
GEN WR17X3086 GEN WR17X3086 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8956 GEN WR02X8956 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GEN WR17X3460 GEN WR17X3460 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
89
GEN WR02X7957 GEN WR02X7957 Contact Us For Availability
90
GEN WR55X0113 GEN WR55X0113 Contact Us For Availability
91
GEN WR02X7313 GEN WR02X7313 Contact Us For Availability
92
GEN WR23X0389 GEN WR23X0389 Contact Us For Availability
93
GEN WR23X0388 GEN WR23X0388 Contact Us For Availability
95
GEN WR55X0115 GEN WR55X0115 Contact Us For Availability
97
GEN WR52X0025 GEN WR52X0025 Contact Us For Availability
98
SCREW & WASHER ASM GEN WR01X1928 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
102
GEN WR02X8162 GEN WR02X8162 Contact Us For Availability
103
GEN WR24X0526 GEN WR24X0526 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2067 GEN WR38X2067 Contact Us For Availability
106
GEN WR22X0378 GEN WR22X0378 Contact Us For Availability
107
GEN WR72X0090 GEN WR72X0090 Contact Us For Availability
108
GEN WR77X0505 GEN WR77X0505 Contact Us For Availability
109
GEN WR71X2631 GEN WR71X2631 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X3959 GEN WR17X3959 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
113
GEN WR38X1810 GEN WR38X1810 Contact Us For Availability
114
GEN WR72X0088 GEN WR72X0088 Contact Us For Availability
115
GEN WR71X2629 GEN WR71X2629 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
120
GEN WR17X3215 GEN WR17X3215 Contact Us For Availability
121
GEN WR12X1042 GEN WR12X1042 Contact Us For Availability
123
GEN WR71X2630 GEN WR71X2630 Contact Us For Availability
124
GEN WR71X2628 GEN WR71X2628 Contact Us For Availability
125
GEN WR17X3092 GEN WR17X3092 Contact Us For Availability
126
GEN WR02X7828 GEN WR02X7828 Contact Us For Availability
126
GEN WR24X0453 GEN WR24X0453 Contact Us For Availability
127
GEN WR02X7830 GEN WR02X7830 Contact Us For Availability
128
GEN WR13X0605 GEN WR13X0605 Contact Us For Availability
128
GEN WR13X0606 GEN WR13X0606 Contact Us For Availability
129
GEN WR01X1706 GEN WR01X1706 Contact Us For Availability
129
GEN WR01X1710 GEN WR01X1710 Contact Us For Availability
129
GEN WR01X1760 GEN WR01X1760 Contact Us For Availability
129
GEN WR01X2074 GEN WR01X2074 Contact Us For Availability
130
GEN WR13X0607 GEN WR13X0607 Contact Us For Availability
130
GEN WR13X0608 GEN WR13X0608 Contact Us For Availability
131
GEN WR01X1707 GEN WR01X1707 Contact Us For Availability
132
GEN WR01X1708 GEN WR01X1708 Contact Us For Availability
133
GEN WR17X2096 GEN WR17X2096 Contact Us For Availability
136
GEN WR12X0860 GEN WR12X0860 Contact Us For Availability
137
GEN WR38X1055 GEN WR38X1055 Contact Us For Availability
138
GEN WR02X7353 GEN WR02X7353 Contact Us For Availability
140
GEN WR51X0459 GEN WR51X0459 Contact Us For Availability
141
GEN WR02X8684 GEN WR02X8684 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
171
GEN WR71X2352 GEN WR71X2352 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1730 GEN WR40X1730 Contact Us For Availability
201
GEN WR40X1731 GEN WR40X1731 Contact Us For Availability
202
GEN WR40X1732 GEN WR40X1732 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X4091 GEN WR17X4091 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
230
GEN WR51X0445 GEN WR51X0445 Contact Us For Availability
230
GEN WR55X0068 GEN WR55X0068 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3651 GEN WR17X3651 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
254
GEN WR17X3668 GEN WR17X3668 Contact Us For Availability
257
GEN WR09X0541 GEN WR09X0541 Contact Us For Availability
258
GEN WR17X3489 No Longer Available
259
GEN WR17X4077 GEN WR17X4077 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
261
GEN WR13X0745 GEN WR13X0745 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X8668 GEN WR02X8668 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0210 GEN WR74X0210 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
301
GEN WR02X9215 GEN WR02X9215 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1990 GEN WR01X1990 Contact Us For Availability
326
GEN WR01X1991 GEN WR01X1991 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR02X9164 GEN WR02X9164 Contact Us For Availability
329
GEN WR17X3737 GEN WR17X3737 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X9165 GEN WR02X9165 Contact Us For Availability
332
GEN WR17X3740 GEN WR17X3740 Contact Us For Availability
333
GEN WR17X3741 GEN WR17X3741 Contact Us For Availability
334
GEN WR17X3742 GEN WR17X3742 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X3739 GEN WR17X3739 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
340
GEN WR17X3738 GEN WR17X3738 Contact Us For Availability
345
GEN WR17X3733 GEN WR17X3733 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X3729 GEN WR17X3729 Contact Us For Availability
354
GEN WR17X3734 GEN WR17X3734 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2510 GEN WR71X2510 Contact Us For Availability
361
GEN WR71X2517 GEN WR71X2517 Contact Us For Availability
362
GEN WR02X9166 GEN WR02X9166 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
370
GEN WR60X0201 GEN WR60X0201 Contact Us For Availability
375
GEN WR23X0415 GEN WR23X0415 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X4016 GEN WR17X4016 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
405
GEN WR17X3890 GEN WR17X3890 Contact Us For Availability
408
GEN WR32X1493 GEN WR32X1493 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X4110 GEN WR17X4110 Contact Us For Availability
411
GEN WR17X4111 GEN WR17X4111 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1473 GEN WR32X1473 Contact Us For Availability
417
GEN WR14X0470 GEN WR14X0470 Contact Us For Availability
421
GEN WR17X4078 GEN WR17X4078 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0530 GEN WR09X0530 Contact Us For Availability
425
GEN WR02X9216 GEN WR02X9216 Contact Us For Availability
426
GEN WR09X0522 GEN WR09X0522 Contact Us For Availability
427
GEN WR23X0444 GEN WR23X0444 Contact Us For Availability
430
GEN WR17X3416 GEN WR17X3416 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
GEN WR60X0246 GEN WR60X0246 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X8909 GEN WR02X8909 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X9138 GEN WR02X9138 Contact Us For Availability
446
GEN WR13X0748 GEN WR13X0748 Contact Us For Availability
447
GEN WR02X8334 GEN WR02X8334 Contact Us For Availability
448
GEN WR13X0747 GEN WR13X0747 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
451
GEN WR13X0746 GEN WR13X0746 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
452
GEN WR02 GEN WR02 Contact Us For Availability
452
GEN WR02X9443 GEN WR02X9443 Contact Us For Availability
453
GEN WR40X1734 GEN WR40X1734 Contact Us For Availability
454
GEN WR40X1735 GEN WR40X1735 Contact Us For Availability
455
GEN WR40X1736 GEN WR40X1736 Contact Us For Availability
457
GEN WR40X1737 GEN WR40X1737 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1740 GEN WR40X1740 Contact Us For Availability
460
GEN WR02X8911 GEN WR02X8911 Contact Us For Availability
461
GEN WR02X8910 GEN WR02X8910 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
462
GEN WR14X0442 GEN WR14X0442 Contact Us For Availability
463
GEN WR82X0338 GEN WR82X0338 Contact Us For Availability
470
GEN WR01X1929 GEN WR01X1929 Contact Us For Availability
470
GEN WR14X0420 GEN WR14X0420 Contact Us For Availability
471
GEN WR32X1339 GEN WR32X1339 Contact Us For Availability
472
GEN WR38X2065 GEN WR38X2065 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
476
GEN WR02X9357 GEN WR02X9357 Contact Us For Availability
476
GEN WR02X9358 GEN WR02X9358 Contact Us For Availability
477
GEN WR17X4008 GEN WR17X4008 Contact Us For Availability
477
GEN WR17X4009 GEN WR17X4009 Contact Us For Availability
478
GEN WR71X2516 GEN WR71X2516 Contact Us For Availability
480
GEN WR72X0253 GEN WR72X0253 Contact Us For Availability
481
GEN WR01X2079 GEN WR01X2079 Contact Us For Availability
500
GEN WR71X2559 GEN WR71X2559 Contact Us For Availability
501
GEN WR32X1561 GEN WR32X1561 Contact Us For Availability
504
GEN WR14X0469 GEN WR14X0469 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2246 GEN WR71X2246 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0218 GEN WR72X0218 Contact Us For Availability
525
GEN WR72X0219 GEN WR72X0219 Contact Us For Availability
526
GEN WR32X1268 GEN WR32X1268 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X2078 GEN WR01X2078 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
SCR 12-24 C AHXW 7/8 S GEN WR01X2140 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
562
GEN WX05X0558 GEN WX05X0558 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
600
GEN WR23X0362 GEN WR23X0362 Contact Us For Availability
616
GEN WR82X0372 GEN WR82X0372 Contact Us For Availability
626
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
626
GEN WR23X0414 GEN WR23X0414 Contact Us For Availability
627
GEN WR17X4072 GEN WR17X4072 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
656
GEN WR17X4071 GEN WR17X4071 Contact Us For Availability
657
GEN WR55X0127 GEN WR55X0127 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
725
COMPRESSOR REPL KIT GEN WR87X0469 Contact Us For Availability
729
GEN WR62X0085 GEN WR62X0085 Contact Us For Availability
730
GEN WR84X0189 GEN WR84X0189 Contact Us For Availability
731
GEN WR01X2014 GEN WR01X2014 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
733
GEN WR07X0241 GEN WR07X0241 Contact Us For Availability
734
GEN WR02X9291 GEN WR02X9291 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
754
GEN WR82X0356 GEN WR82X0356 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
801
GEN WR02X8935 GEN WR02X8935 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
830
GEN WR17X3732 GEN WR17X3732 Contact Us For Availability
831
GEN WR51X0410 GEN WR51X0410 Contact Us For Availability
900
GEN WR78X8619 GEN WR78X8619 Contact Us For Availability
910
GEN WR78X8639 GEN WR78X8639 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
