Model Hotpoint CSF22TBG Refrigerator – Common Parts & Diagrams
BACK VIEW
FREEZER DOOR

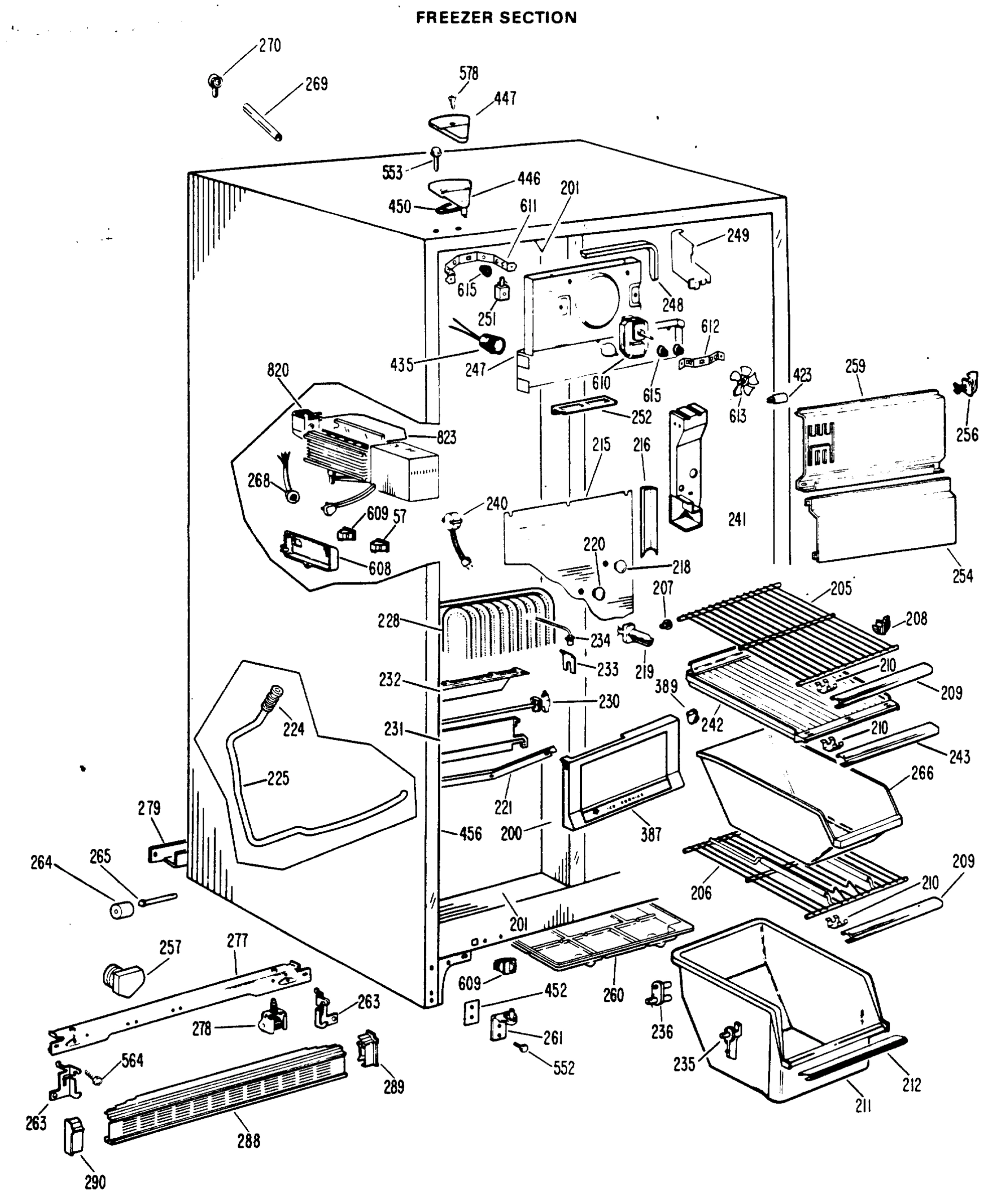

FREEZER SECTION

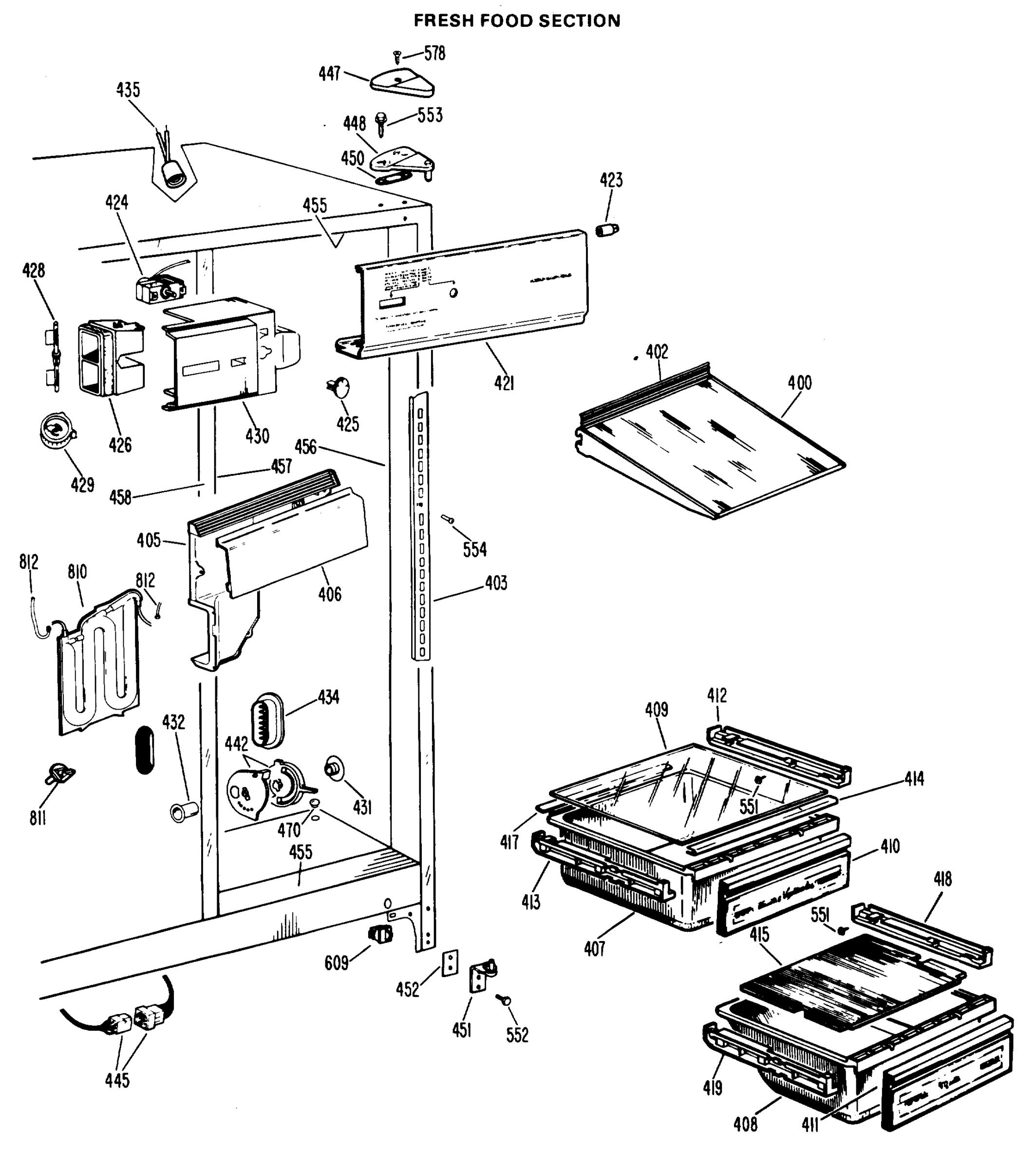

FRESH FOOD SECTION
REFRIGERATOR DOOR
Common parts from model Hotpoint CSF22TBG Refrigerator
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR01X5476 GEN WR01X5476 Contact Us For Availability
4
END CAP-HANDLE GEN WR02X6283 Contact Us For Availability
4
GEN WR12X5148 GEN WR12X5148 Contact Us For Availability
4
GEN WR12X5149 GEN WR12X5149 Contact Us For Availability
5
GEN WR01X5473 GEN WR01X5473 Contact Us For Availability
6
GEN WR12X5106 GEN WR12X5106 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
7
GEN WR01X5349 GEN WR01X5349 Contact Us For Availability
8
GEN WR38X5351 GEN WR38X5351 Contact Us For Availability
9
TRIM DOOR GEN WR03X5085 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
12
GEN WR02X4537 GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM DOOR STOP CAM GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0252 GEN WR24X0252 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
DOOR INNER FZ GEN WR77X5480 Contact Us For Availability
21
GEN WR02X4100 GEN WR02X4100 Contact Us For Availability
22
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
28
CLIP SPEED GEN WR01X5351 Contact Us For Availability
29
GEN WR49X5102 GEN WR49X5102 Contact Us For Availability
29
GEN WR49X5103 GEN WR49X5103 Contact Us For Availability
40
GEN WR17X5969 GEN WR17X5969 Contact Us For Availability
41
GEN WR17X5968 GEN WR17X5968 Contact Us For Availability
42
GEN WR17X5970 GEN WR17X5970 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
75
TUBE WATER LINE ASM DISP GEN WR17X5845 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
81
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
101
GEN WR04X5053 GEN WR04X5053 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GASKET DOOR FF GEN WR24X0246 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
105
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
106
GEN WR22X5029 GEN WR22X5029 Contact Us For Availability
107
GEN WR01X5438 GEN WR01X5438 Contact Us For Availability
108
GEN WR77X5510 GEN WR77X5510 Contact Us For Availability
109
GEN WR01X5346 GEN WR01X5346 Contact Us For Availability
109
CAP DOOR TRIM -TOP GEN WR03X5105 Contact Us For Availability
109
CAP DOOR TRIM -BTM GEN WR03X5106 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X0906 GEN WR38X0906 Contact Us For Availability
114
GROMMET SCREW GEN WR01X5341 Contact Us For Availability
114
TRACK DOOR SHELF GEN WR72X5026 Contact Us For Availability
117
GEN WR17X5978 GEN WR17X5978 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR17X5966 GEN WR17X5966 Contact Us For Availability
120
GEN WR17X5967 GEN WR17X5967 Contact Us For Availability
121
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
121
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
122
RACK EGG GEN WR02X6318 Contact Us For Availability
123
TRIM FF. O. DOOR GEN WR38X5353 Contact Us For Availability
124
GEN WR02X6228 GEN WR02X6228 Contact Us For Availability
125
HEATER BRKR FRAME ASM GEN WR51X5191 Contact Us For Availability
126
HANDLE MINI DOOR ASM GEN WR12X5147 Contact Us For Availability
127
HOUSING LATCH MINI DOOR GEN WR02X6265 Contact Us For Availability
127
LATCH MINI DOOR GEN WR02X6266 Contact Us For Availability
127
SPRING LATCH MINI DOOR GEN WR02X6267 Contact Us For Availability
127
SCR 6-20 BT FL 3/8 SS GEN WZ05X0218 Contact Us For Availability
128
DOOR INNER MINI GEN WR77X5499 Contact Us For Availability
128
INSUL MINI DOOR GEN WR82X5035 Contact Us For Availability
129
SPRING GEN WR01X5464 Contact Us For Availability
130
SLIDE HOOK MINI DR GEN WR02X6223 Contact Us For Availability
131
HOOK MINI DOOR GEN WR02X6227 Contact Us For Availability
131
GEN WR02X6391 GEN WR02X6391 Contact Us For Availability
132
GASKET MINI DOOR GEN WR24X5122 Contact Us For Availability
133
RETAINER STRIP GEN WR17X5628 Contact Us For Availability
134
RETAINER STRIP MINI DOOR GEN WR17X5536 Contact Us For Availability
135
GEN WR10X5030 GEN WR10X5030 Contact Us For Availability
136
STOP DOOR-R. SIDE GEN WR13X5110 Contact Us For Availability
136
STOP DOOR-L. SIDE GEN WR13X5111 Contact Us For Availability
137
CLIP U GEN WR01X5359 Contact Us For Availability
137
SCR DOOR STOP GEN WR01X5360 Contact Us For Availability
138
CLIP MINI DOOR LATCH GEN WR01X5480 Contact Us For Availability
138
BASE HINGE MINI DOOR GEN WR02X5948 Contact Us For Availability
140
HINGE MINI DOOR GEN WR13X5137 Contact Us For Availability
141
RECESS WATER DISP GEN WR17X5915 Contact Us For Availability
141
SCR 8-18 BAT HX 7/8SSXTW GEN WZ06X0093 Contact Us For Availability
142
HARNESS RECESS WTR DISP GEN WR51X5187 Contact Us For Availability
143
PAD RECESS WATER SW GEN WR02X6212 Contact Us For Availability
144
CLAMP HOSE GEN WR01X5474 Contact Us For Availability
144
GROMMET WATER FILL LNR GEN WR02X6381 Contact Us For Availability
145
PLATE RECESS SWITCH MTG GEN WR02X6218 Contact Us For Availability
146
SWITCH PLUNGER GEN WR23X5124 Contact Us For Availability
147
BRACKET RECESS SWITCH GEN WR02X6219 Contact Us For Availability
148
COVER RECESS SWITCH GEN WR02X6220 Contact Us For Availability
150
GEN WR38X5352 GEN WR38X5352 Contact Us For Availability
154
GEN WR01X5477 GEN WR01X5477 Contact Us For Availability
175
GEN WR01X1464 GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
PLUG BUTTON GEN WR02X6058 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
180
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X5872 Contact Us For Availability
204
RETAINER BREAKER-BTM. GEN WR02X7032 Contact Us For Availability
205
SHELF FZ-TOP GEN WR71X1355 Contact Us For Availability
205
SHELF FZ-2ND GEN WR71X5873 Contact Us For Availability
206
PLASTIC SLEEVE GEN WR02X6175 Contact Us For Availability
206
SHELF FZ-BTM. GEN WR71X1356 Contact Us For Availability
206
SHELF FZ-4TH GEN WR71X5872 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X5180 GEN WR38X5180 Contact Us For Availability
210
CLIP SHELF TRIM A GEN WR02X5008 Contact Us For Availability
211
BASKET FRZ. GEN WR21X5087 Contact Us For Availability
212
GEN WR02X6042 GEN WR02X6042 Contact Us For Availability
215
GEN WR17X5902 GEN WR17X5902 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
217
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
218
PLUG HOLE GEN WR02X6008 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
223
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
227
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
229
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
229
REFRIGERANT GEN WR97X5036 Contact Us For Availability
230
HEATER DEF ASM GEN WR51X0231 Contact Us For Availability
231
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
233
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
241
PLUG BUTTON GEN WR02X4212 Contact Us For Availability
241
DUCT AIR FZ VE RT GEN WR17X5835 Contact Us For Availability
242
3RD SHELF-PLASTIC GEN WR71X5663 Contact Us For Availability
243
TRIM SHELF GEN WR38X5145 Contact Us For Availability
244
SUPPORT-R. SIDE GEN WR02X5811 Contact Us For Availability
245
SUPPORT-L. SIDE GEN WR02X5810 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
SUPPORT SHELF GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
SHIELD LIGHT FZ GEN WR17X5900 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
GEN WR17X5963 GEN WR17X5963 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
263
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
263
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
265
NUT PUSH ON GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
266
GEN WR30X5103 GEN WR30X5103 Contact Us For Availability
266
GEN WR38X5255 GEN WR38X5255 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X5126 Contact Us For Availability
269
GEN WR01X1543 GEN WR01X1543 Contact Us For Availability
269
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
269
TUBE WATER FILL GEN WR02X6269 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X1492 GEN WR17X1492 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
RAIL MACH MTG REAR GEN WR17X1493 Contact Us For Availability
288
GRILLE-O. CASE GEN WR79X5144 Contact Us For Availability
289
GEN WR02X6383 GEN WR02X6383 Contact Us For Availability
290
GEN WR02X6384 GEN WR02X6384 Contact Us For Availability
307
GEN WR02X4493 GEN WR02X4493 Contact Us For Availability
325
GEN WR02X4396 GEN WR02X4396 Contact Us For Availability
371
GEN WR02X4254 GEN WR02X4254 Contact Us For Availability
387
GEN WR22X5043 GEN WR22X5043 Contact Us For Availability
388
GEN WR14X0266 GEN WR14X0266 Contact Us For Availability
389
SUPPORT SHELF GEN WR02X6300 Contact Us For Availability
400
SHELF CANT GLASS ASM GEN WR71X5866 Contact Us For Availability
402
REFLECTOR SHELF GEN WR38X5253 Contact Us For Availability
403
GEN WR72X5045 GEN WR72X5045 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
DUCT AIR & GASKET ASM FF GEN WR17X1523 Contact Us For Availability
406
GEN WR17X5749 GEN WR17X5749 Contact Us For Availability
407
GEN WR32X5140 GEN WR32X5140 Contact Us For Availability
408
GEN WR32X5097 GEN WR32X5097 Contact Us For Availability
409
GEN WR32X5177 GEN WR32X5177 Contact Us For Availability
410
GEN WR17X5972 GEN WR17X5972 Contact Us For Availability
411
GEN WR02X6390 GEN WR02X6390 Contact Us For Availability
411
GEN WR17X5971 GEN WR17X5971 Contact Us For Availability
412
GEN WR72X5046 GEN WR72X5046 Contact Us For Availability
414
GEN WR14X5112 GEN WR14X5112 Contact Us For Availability
415
GEN WR32X5118 GEN WR32X5118 Contact Us For Availability
417
GEN WR14X5117 GEN WR14X5117 Contact Us For Availability
418
GEN WR72X5002 GEN WR72X5002 Contact Us For Availability
419
GEN WR72X5003 GEN WR72X5003 Contact Us For Availability
421
GEN WR17X5962 GEN WR17X5962 Contact Us For Availability
422
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
CONTROL TEMP GEN WR09X5131 Contact Us For Availability
425
GEN WR02X6389 GEN WR02X6389 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
DUCT AIR RETURN ASM FF GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
436
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
446
CLIP HINGE UPR GEN WR02X4630 Contact Us For Availability
446
HINGE TOP-FRZ. SIDE GEN WR13X0499 Contact Us For Availability
447
COVER HINGE GEN WR02X4574 Contact Us For Availability
447
INSULATOR HINGE COVER GEN WR02X4575 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0500 Contact Us For Availability
449
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
453
NUT STRIP GEN WR02X4400 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETAINER BREAKER GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
MULLION & TAB ASM(WH) GEN WR40X1576 Contact Us For Availability
459
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
460
GEN WR02 GEN WR02 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
552
SCR 12-24 HXW 1 1/64 SPP GEN WR01X1587 Contact Us For Availability
553
SCR 12-24 HXW 7/8 S PP GEN WR01X1188 Contact Us For Availability
554
SCR 10-24 BP PA 11/8 S GEN WR01X1483 Contact Us For Availability
564
SCR 1/4-14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
564
SCR 6-20 AB TR 3/8 SS GEN WZ04X0284 Contact Us For Availability
608
COVER SWITCH HP DISP GEN WR17X5791 Contact Us For Availability
610
GEN WR60X0131 GEN WR60X0131 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
GEN WR82X0220 GEN WR82X0220 Contact Us For Availability
627
BAFFLE & GRMT ASM.-COND. FAN GEN WR17X6132 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
BLADE CONDENSER FAN GEN WR60X0042 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
BRACKET-COND FAN GEN WR02X7106 Contact Us For Availability
675
SCR 8-18 AB RNDW 5/8 SS GEN WZ06X0094 Contact Us For Availability
675
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
683
SCREW(MOTOR) 8-36 X 3/8 GEN WZ05X0164 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
732
CUP & BRACKET ASM-R.SIDE GEN WR02X1864 Contact Us For Availability
732
CUP & BRACKET ASM-L.SIDE GEN WR02X1865 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
734
RELAY COMP GEN WR07X0138 Contact Us For Availability
735
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
737
SLEEVE COMP MTG GEN WR02X2202 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0045 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG D/J GEN WR02X3904 Contact Us For Availability
746
BAFFLE COMP FRT GEN WR17X1489 Contact Us For Availability
747
BAFFLE COMP FLR GEN WR17X1494 Contact Us For Availability
800
WATER VALVE ASM GEN WR57X0074 Contact Us For Availability
801
GEN WR62X0025 GEN WR62X0025 Contact Us For Availability
801
COIL ASM-WATER(BLUE) GEN WR62X0027 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0040 GEN WR57X0040 Contact Us For Availability
803
WASHER HOSE FITTING GEN WR57X0046 Contact Us For Availability
803
GEN WR57X0049 GEN WR57X0049 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
810
WATER TANK ASM DISP GEN WR17X1505 Contact Us For Availability
811
GEN WR02X4464 GEN WR02X4464 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
823
GEN WR29X0099 GEN WR29X0099 Contact Us For Availability
905
FF O.D. PANEL (SN WH) GEN WR78X6895 Contact Us For Availability
905
FF O.D. PANEL (HA) GEN WR78X6896 Contact Us For Availability
905
GEN WR78X6897 GEN WR78X6897 Contact Us For Availability
905
FF O.D. PANEL (AD) GEN WR78X6898 Contact Us For Availability
× ![]()
