Model Hotpoint CSF22MBB Refrigerator – Common Parts & Diagrams

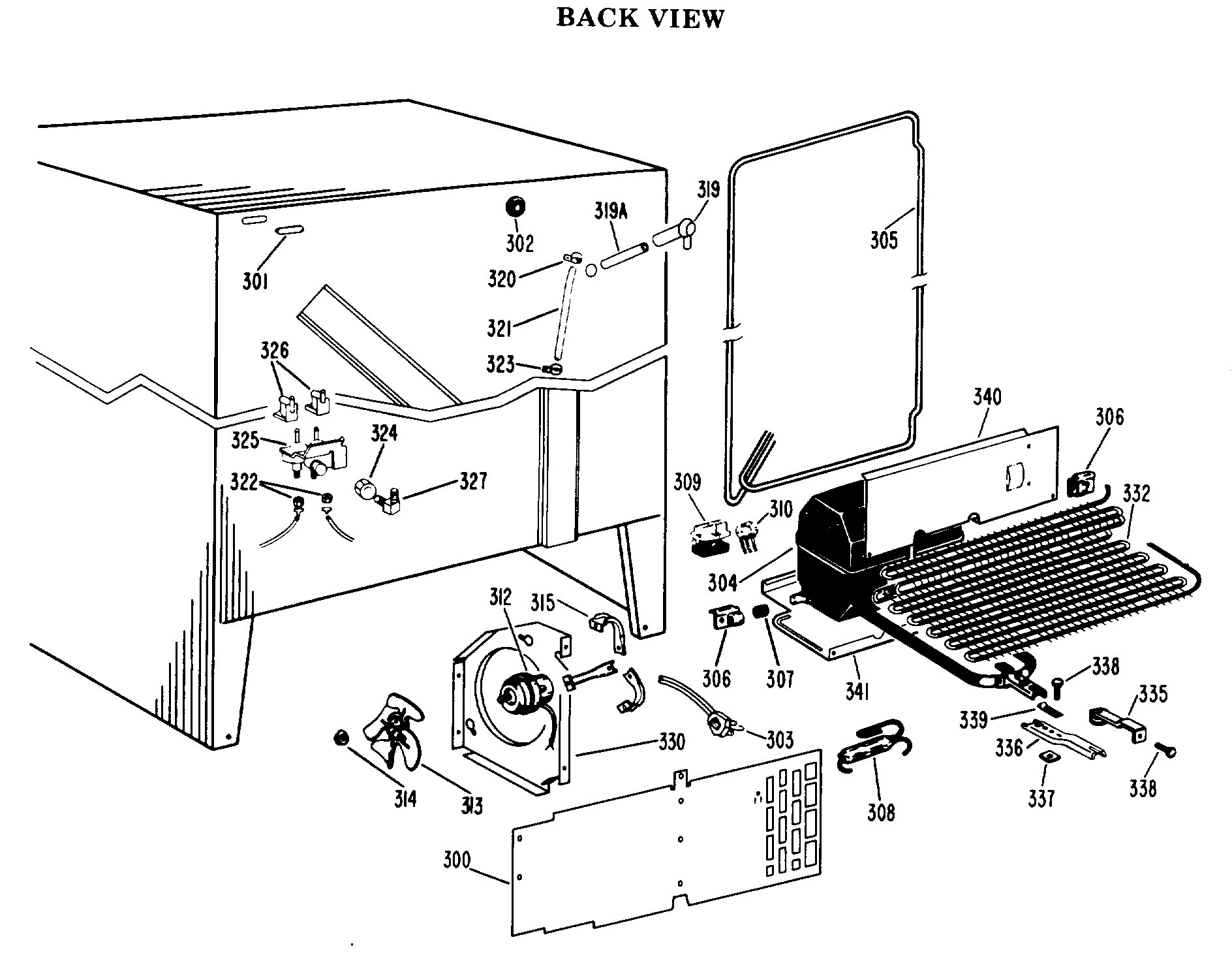

BACK VIEW
FREEZER DOOR

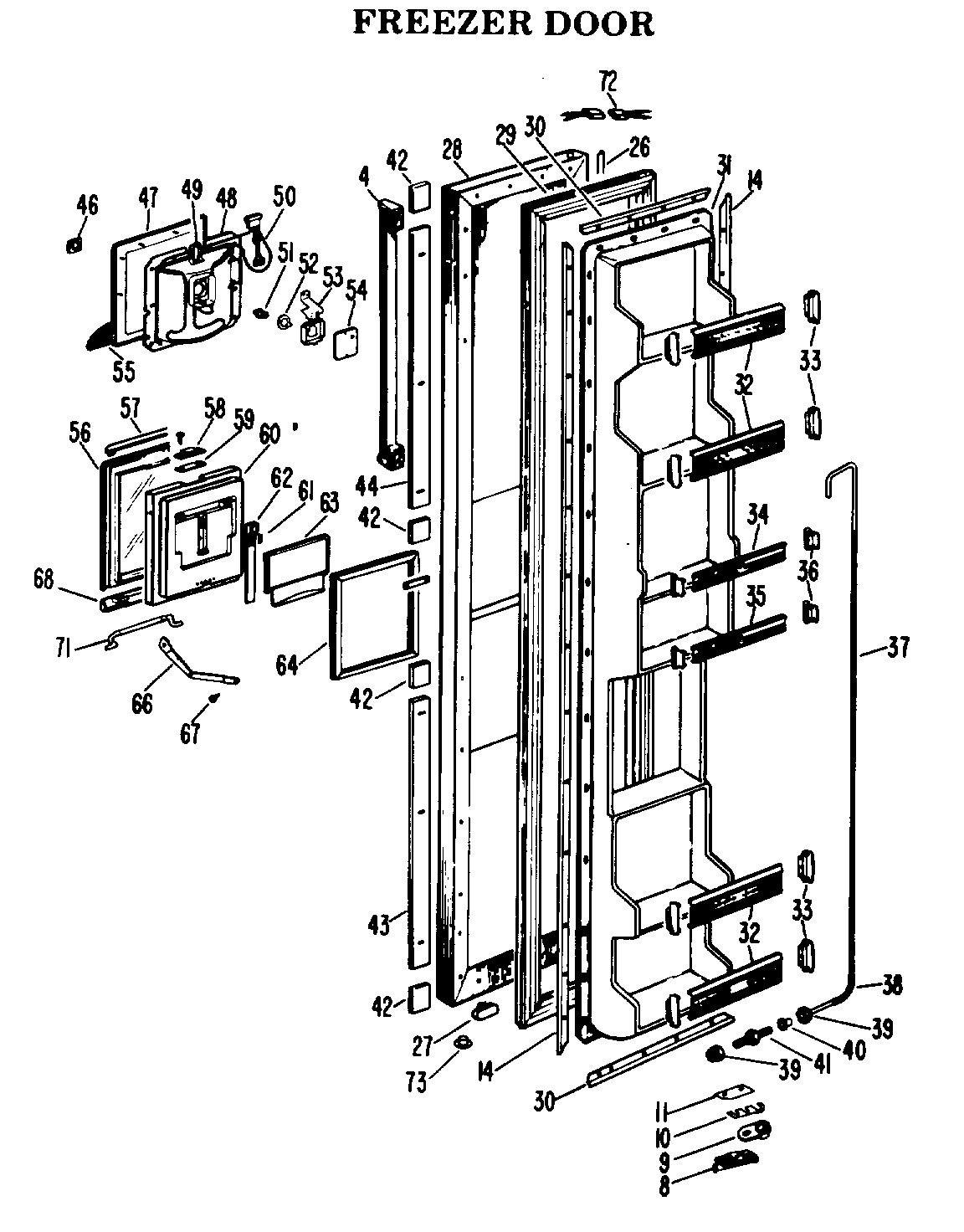

FREEZER SECTION
FRESH FOOD SECTION
REFRIGERATOR DOOR
Common parts from model Hotpoint CSF22MBB Refrigerator
1
GEN WR78X6753 GEN WR78X6753 Contact Us For Availability
1
GEN WR78X6754 GEN WR78X6754 Contact Us For Availability
1
GEN WR78X6755 GEN WR78X6755 Contact Us For Availability
1
GEN WR78X6756 GEN WR78X6756 Contact Us For Availability
1
GEN WR78X6798 GEN WR78X6798 Contact Us For Availability
2
GEN WR04X5053 GEN WR04X5053 Contact Us For Availability
3
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
4
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
4
GEN WR01X5477 GEN WR01X5477 Contact Us For Availability
4
GEN WR02X6282 GEN WR02X6282 Contact Us For Availability
4
END CAP-HANDLE GEN WR02X6283 Contact Us For Availability
4
GEN WR02X6284 GEN WR02X6284 Contact Us For Availability
5
GEN WR03X5105 GEN WR03X5105 Contact Us For Availability
6
GEN WR03X5106 GEN WR03X5106 Contact Us For Availability
7
GEN WR01X5346 GEN WR01X5346 Contact Us For Availability
7
GEN WR01X5473 GEN WR01X5473 Contact Us For Availability
7
GEN WR38X5295 GEN WR38X5295 Contact Us For Availability
8
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
8
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
8
SCR DOOR STOP GEN WR01X5360 Contact Us For Availability
10
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
11
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
12
GEN WR24X0246 GEN WR24X0246 Contact Us For Availability
13
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
14
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
15
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
15
GEN WR77X5443 GEN WR77X5443 Contact Us For Availability
16
GEN WR17X5766 GEN WR17X5766 Contact Us For Availability
17
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
18
GEN WR01X5438 GEN WR01X5438 Contact Us For Availability
18
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
18
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
18
GEN WR22X5029 GEN WR22X5029 Contact Us For Availability
19
BUTTER DISH GEN WR19X5003 Contact Us For Availability
20
GEN WR02X6318 GEN WR02X6318 Contact Us For Availability
21
GEN WR17X5779 GEN WR17X5779 Contact Us For Availability
22
SCREW GEN WZ04X0244 Contact Us For Availability
22
GEN WR01X5341 GEN WR01X5341 Contact Us For Availability
22
GEN WR72X5026 GEN WR72X5026 Contact Us For Availability
23
GEN WR17X5767 GEN WR17X5767 Contact Us For Availability
24
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
25
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
26
GEN WR38X0906 GEN WR38X0906 Contact Us For Availability
27
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
28
GEN WR51X5191 GEN WR51X5191 Contact Us For Availability
28
GEN WR78X6758 GEN WR78X6758 Contact Us For Availability
28
GEN WR78X6759 GEN WR78X6759 Contact Us For Availability
28
GEN WR78X6760 GEN WR78X6760 Contact Us For Availability
28
GEN WR78X6761 GEN WR78X6761 Contact Us For Availability
28
GEN WR78X6799 GEN WR78X6799 Contact Us For Availability
29
GASKET FRZ.DOOR GEN WR24X0252 Contact Us For Availability
30
RETAINER TOP&BTM. GEN WR17X1231 Contact Us For Availability
31
GEN WR77X5480 GEN WR77X5480 Contact Us For Availability
32
GEN WR17X5778 GEN WR17X5778 Contact Us For Availability
33
END CAP GEN WR02X4100 Contact Us For Availability
34
GEN WR17X5780 GEN WR17X5780 Contact Us For Availability
35
GEN WR17X5781 GEN WR17X5781 Contact Us For Availability
37
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
37
GEN WR17X5845 GEN WR17X5845 Contact Us For Availability
37
GEN WZ04X0287 GEN WZ04X0287 Contact Us For Availability
38
SPRING GEN WR02X4633 Contact Us For Availability
40
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
42
CAP TOP & BTM. TRIM FRZ. GEN WR12X5106 Contact Us For Availability
43
GEN WR03X5085 GEN WR03X5085 Contact Us For Availability
44
CLIP TRIM GEN WR01X5349 Contact Us For Availability
44
GEN WR03X5111 GEN WR03X5111 Contact Us For Availability
46
GEN WR02X6212 GEN WR02X6212 Contact Us For Availability
47
FASTENER GEN WR02X3757 Contact Us For Availability
47
PALNUT TRIM GEN WR01X5469 Contact Us For Availability
47
GEN WR38X5254 GEN WR38X5254 Contact Us For Availability
48
GEN WR14X0262 GEN WR14X0262 Contact Us For Availability
48
GEN WR17X5915 GEN WR17X5915 Contact Us For Availability
49
GEN WR01X5474 GEN WR01X5474 Contact Us For Availability
49
GEN WR02X6381 GEN WR02X6381 Contact Us For Availability
50
GEN WR51X5187 GEN WR51X5187 Contact Us For Availability
51
GEN WR23X5124 GEN WR23X5124 Contact Us For Availability
52
GEN WR02X6218 GEN WR02X6218 Contact Us For Availability
52
SCREW GEN WZ04X0284 Contact Us For Availability
53
GEN WR02X6219 GEN WR02X6219 Contact Us For Availability
54
GEN WR02X6220 GEN WR02X6220 Contact Us For Availability
55
GEN WR02X6228 GEN WR02X6228 Contact Us For Availability
56
GEN WR17X5828 GEN WR17X5828 Contact Us For Availability
56
GEN WR17X5829 GEN WR17X5829 Contact Us For Availability
56
GEN WR17X5830 GEN WR17X5830 Contact Us For Availability
56
GEN WR17X5831 GEN WR17X5831 Contact Us For Availability
56
GEN WR17X5832 GEN WR17X5832 Contact Us For Availability
57
GEN WR12X5147 GEN WR12X5147 Contact Us For Availability
58
GEN WR02X6265 GEN WR02X6265 Contact Us For Availability
58
GEN WR02X6266 GEN WR02X6266 Contact Us For Availability
58
GEN WR02X6267 GEN WR02X6267 Contact Us For Availability
59
GEN WR02X5838 GEN WR02X5838 Contact Us For Availability
60
GEN WR77X5499 GEN WR77X5499 Contact Us For Availability
60
GEN WR82X5035 GEN WR82X5035 Contact Us For Availability
61
GEN WR01X5464 GEN WR01X5464 Contact Us For Availability
62
GEN WR02X6223 GEN WR02X6223 Contact Us For Availability
63
GEN WR02X6224 GEN WR02X6224 Contact Us For Availability
63
GEN WR02X6227 GEN WR02X6227 Contact Us For Availability
64
GEN WR17X5536 GEN WR17X5536 Contact Us For Availability
64
GEN WR17X5628 GEN WR17X5628 Contact Us For Availability
64
GEN WR24X5122 GEN WR24X5122 Contact Us For Availability
65
SCR 6-20 BT FL 3/8 SS GEN WZ05X0218 Contact Us For Availability
65
GEN WR10X5030 GEN WR10X5030 Contact Us For Availability
66
GEN WR13X5110 GEN WR13X5110 Contact Us For Availability
66
GEN WR13X5111 GEN WR13X5111 Contact Us For Availability
67
GEN WR01X5359 GEN WR01X5359 Contact Us For Availability
68
GEN WR01X5351 GEN WR01X5351 Contact Us For Availability
68
GEN WR01X5480 GEN WR01X5480 Contact Us For Availability
68
GEN WR02X5948 GEN WR02X5948 Contact Us For Availability
71
GEN WR13X5137 GEN WR13X5137 Contact Us For Availability
71
GEN WZ06X0093 GEN WZ06X0093 Contact Us For Availability
72
GEN WR49X5102 GEN WR49X5102 Contact Us For Availability
72
GEN WR49X5103 GEN WR49X5103 Contact Us For Availability
73
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
75
AIR DEFLECTOR GEN WR17X1414 Contact Us For Availability
76
SUPPORT COVER TOP GEN WR02X4839 Contact Us For Availability
76
GEN WR17X5899 GEN WR17X5899 Contact Us For Availability
76
GEN WR17X5900 GEN WR17X5900 Contact Us For Availability
78
GEN WR02X5927 GEN WR02X5927 Contact Us For Availability
78
GEN WR40X5371 GEN WR40X5371 Contact Us For Availability
79
GEN WR40X5376 GEN WR40X5376 Contact Us For Availability
80
RETAINER MULLION GEN WR02X7032 Contact Us For Availability
80
GEN WR40X1574 GEN WR40X1574 Contact Us For Availability
81
GEN WR85X0074 GEN WR85X0074 Contact Us For Availability
81
FREON CHARGE 6 OZ. GEN WR97X0096 Contact Us For Availability
82
SUPPORT EVAPORATOR GEN WR02X4421 Contact Us For Availability
82
SCREW SUPPORT GEN WZ06X0107 Contact Us For Availability
83
LEAD & CONNECTOR GEN WR02X4546 Contact Us For Availability
83
HEATER DEFROST GEN WR51X0231 Contact Us For Availability
84
BRACKET HEATER MTG. GEN WR02X4837 Contact Us For Availability
85
GEN WR02X4418 GEN WR02X4418 Contact Us For Availability
85
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
85
GEN WR17X1276 GEN WR17X1276 Contact Us For Availability
87
PLUG BUTTON COVER (1.25" DIA. HOLE) GEN WR02X3025 Contact Us For Availability
87
GEN WR02X4843 GEN WR02X4843 Contact Us For Availability
87
PLUG BUTTON COVER (.75" DIA. HOLE) GEN WR02X6008 Contact Us For Availability
87
GEN WR14X0267 GEN WR14X0267 Contact Us For Availability
87
GEN WR17X5902 GEN WR17X5902 Contact Us For Availability
87
GEN WZ06X0113 GEN WZ06X0113 Contact Us For Availability
88
SCREW DUCT GEN WZ06X0094 Contact Us For Availability
88
PLUG BUTTON DUCT GEN WR02X4212 Contact Us For Availability
88
GEN WR17X5835 GEN WR17X5835 Contact Us For Availability
90
GEN WR17X5791 GEN WR17X5791 Contact Us For Availability
92
SWITCH FAN GEN WR23X0192 Contact Us For Availability
93
GEN WR38X5144 GEN WR38X5144 Contact Us For Availability
95
GEN WR02X6175 GEN WR02X6175 Contact Us For Availability
95
GEN WR71X5872 GEN WR71X5872 Contact Us For Availability
96
GEN WR30X5086 GEN WR30X5086 Contact Us For Availability
96
GEN WR38X5255 GEN WR38X5255 Contact Us For Availability
97
GEN WR02X4629 GEN WR02X4629 Contact Us For Availability
97
GEN WR22X5019 GEN WR22X5019 Contact Us For Availability
98
GEN WR02X6300 GEN WR02X6300 Contact Us For Availability
99
DRAIN TUBE FRZ. GEN WR02X4967 Contact Us For Availability
100
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
100
GEN WR02X4969 GEN WR02X4969 Contact Us For Availability
101
RECEPTACLE WITH LEADS GEN WR02X4735 Contact Us For Availability
102
GEN WR01X5043 GEN WR01X5043 Contact Us For Availability
102
GEN WR02X4594 GEN WR02X4594 Contact Us For Availability
102
GEN WR17X1238 GEN WR17X1238 Contact Us For Availability
103
GEN WR71X1355 GEN WR71X1355 Contact Us For Availability
103
5TH SHELF GEN WR71X1356 Contact Us For Availability
103
GEN WR71X5873 GEN WR71X5873 Contact Us For Availability
104
TRIM FRONT TOP, 2ND, 3RD 4TH & 5TH GEN WR38X5180 Contact Us For Availability
105
CLIP TRIM GEN WR02X5008 Contact Us For Availability
106
SUPPORT SHELF R/SIDE GEN WR02X4674 Contact Us For Availability
107
GROMMET SHELF L/SIDE GEN WR02X4676 Contact Us For Availability
108
GEN WR02X5810 GEN WR02X5810 Contact Us For Availability
108
GEN WR02X5811 GEN WR02X5811 Contact Us For Availability
108
GEN WR71X5663 GEN WR71X5663 Contact Us For Availability
109
GEN WR38X5145 GEN WR38X5145 Contact Us For Availability
111
GEN WR21X5080 GEN WR21X5080 Contact Us For Availability
112
TRIM GEN WR02X6042 Contact Us For Availability
113
GEN WR02X4791 GEN WR02X4791 Contact Us For Availability
114
SUPPORT REAR GEN WR02X4548 Contact Us For Availability
115
GEN WR32X0687 GEN WR32X0687 Contact Us For Availability
116
SCREW BRKT. BTM. GEN WZ05X0164 Contact Us For Availability
116
SCREW BRKT. TOP GEN WZ04X0364 Contact Us For Availability
116
GEN WR02X4527 GEN WR02X4527 Contact Us For Availability
117
GEN WR79X5129 GEN WR79X5129 Contact Us For Availability
118
CAP GRILLE R/SIDE GEN WR02X5776 Contact Us For Availability
119
CAP GRILLE L/SIDE GEN WR02X5777 Contact Us For Availability
120
BRACKET GRILLE R/SIDE GEN WR02X4098 Contact Us For Availability
121
BRACKET GRILLE L/SIDE GEN WR02X4099 Contact Us For Availability
122
SCREW BRACKET GEN WR01X1194 Contact Us For Availability
123
FRONT CHANNEL ASM. GEN WR17X1492 Contact Us For Availability
124
FRONT WHEEL ASM. GEN WR02X4858 Contact Us For Availability
125
REAR CHANNEL GEN WR17X1493 Contact Us For Availability
126
GEN WR01X1168 GEN WR01X1168 Contact Us For Availability
126
GUARD ORIFICE GEN WR02X7042 Contact Us For Availability
128
AXLE REAR WHEEL GEN WR02X4742 Contact Us For Availability
130
GROMMET SCREW GEN WR01X1510 Contact Us For Availability
130
CLAMP LINE CORD GEN WR02X4625 Contact Us For Availability
130
GEN WR30X0186 GEN WR30X0186 Contact Us For Availability
132
GEN WR02X4630 GEN WR02X4630 Contact Us For Availability
132
GEN WR13X0499 GEN WR13X0499 Contact Us For Availability
133
GEN WR02 GEN WR02 Contact Us For Availability
133
GEN WR02X4574 GEN WR02X4574 Contact Us For Availability
133
GEN WR02X4575 GEN WR02X4575 Contact Us For Availability
134
SHIM GEN WR02X4194 Contact Us For Availability
135
SCREW HINGE GEN WR01X1249 Contact Us For Availability
136
GEN WR01X1361 GEN WR01X1361 Contact Us For Availability
136
SCREW HINGE GEN WR01X1587 Contact Us For Availability
136
GEN WR02X4400 GEN WR02X4400 Contact Us For Availability
137
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
150
GEN WR02X6255 GEN WR02X6255 Contact Us For Availability
151
GEN WR17X1412 GEN WR17X1412 Contact Us For Availability
153
DAMPER SHAFT GEN WR02X4835 Contact Us For Availability
154
DAMPER WHEEL GEN WR02X4836 Contact Us For Availability
155
NOZZLE GEN WR02X4834 Contact Us For Availability
156
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
156
FOAM GASKET GEN WR14X0271 Contact Us For Availability
157
CLIP GEN WR01X1332 Contact Us For Availability
157
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
157
SUPPORT SHIELD BTM. GEN WR02X6350 Contact Us For Availability
157
GEN WR17X5910 GEN WR17X5910 Contact Us For Availability
158
LAMP 60A GEN WR02X4049 Contact Us For Availability
159
BRACKET LAMP SOCKET GEN WR02X4849 Contact Us For Availability
159
SCREW BRACKET TO LINER GEN WZ05X0196 Contact Us For Availability
160
GEN WR38X5253 GEN WR38X5253 Contact Us For Availability
160
GEN WR71X5866 GEN WR71X5866 Contact Us For Availability
161
SCREW TRACK GEN WR01X1483 Contact Us For Availability
161
TRACK SHELF GEN WR72X5045 Contact Us For Availability
162
MEAT PAN GEN WR32X5097 Contact Us For Availability
163
GEN WR02X6322 GEN WR02X6322 Contact Us For Availability
163
GEN WR17X5873 GEN WR17X5873 Contact Us For Availability
164
COVER MEAT PAN GEN WR32X5118 Contact Us For Availability
165
SLIDE MEAT PAN R/SIDE GEN WR72X5002 Contact Us For Availability
166
SLIDE MEAT PAN L/SIDE GEN WR72X5003 Contact Us For Availability
167
VEG. PAN GEN WR32X5140 Contact Us For Availability
168
GEN WR17X5874 GEN WR17X5874 Contact Us For Availability
169
COVER VEG. PAN (GLASS) GEN WR32X5177 Contact Us For Availability
170
GASKET PAN FRONT GEN WR14X5112 Contact Us For Availability
171
GASKET PAN REAR GEN WR14X5117 Contact Us For Availability
172
SLIDE VEG. PAN R/SIDE GEN WR72X5046 Contact Us For Availability
177
FERRULE (VENT) GEN WR02X3886 Contact Us For Availability
178
PLUG VENT GEN WR02X4799 Contact Us For Availability
180
DAMPER ASM. GEN WR02X3883 Contact Us For Availability
181
AIR RETURN BAFFLE GEN WR02X4542 Contact Us For Availability
181
GEN WR02X4543 GEN WR02X4543 Contact Us For Availability
184
GEN WR49X0233 GEN WR49X0233 Contact Us For Availability
185
GROMMET SCREW GEN WR01X1326 Contact Us For Availability
185
TAPE DUCT GEN WR14X0264 Contact Us For Availability
185
FF AIR RETURN DUCT GEN WR17X1523 Contact Us For Availability
186
COVER DUCT GEN WR17X5749 Contact Us For Availability
188
GEN WR02X4035 GEN WR02X4035 Contact Us For Availability
188
SUPPORT BOTTOM GEN WR02X4469 Contact Us For Availability
188
GEN WR02X4800 GEN WR02X4800 Contact Us For Availability
188
GEN WR17X1505 GEN WR17X1505 Contact Us For Availability
191
GEN WR02X4198 GEN WR02X4198 Contact Us For Availability
191
GEN WR13X0500 GEN WR13X0500 Contact Us For Availability
192
RETAINER BRKR. STRIP TOP GEN WR02X5926 Contact Us For Availability
192
RETAINER BRKR. STRIP BTM. GEN WR02X5872 Contact Us For Availability
192
BREAKER STRIP TOP & BTM. FF GEN WR40X5378 Contact Us For Availability
193
BREAKER STRIP MULLION SIDE GEN WR40X1575 Contact Us For Availability
194
SCREW MULLION BTM. GEN WZ06X0096 Contact Us For Availability
194
SCREW MULLION BRKTS. GEN WR01X1501 Contact Us For Availability
194
U-NUT BRACKET BTM. GEN WR02X4739 Contact Us For Availability
194
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
194
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
194
MULLION PLATE (WH) GEN WR40X1576 Contact Us For Availability
196
CLIP CAP TUBE TO HSG. GEN WR01X5463 Contact Us For Availability
196
GEN WR09X5131 GEN WR09X5131 Contact Us For Availability
196
SCREW CONTROL TO HOUSING GEN WZ02X0460 Contact Us For Availability
300
GEN WR82X0208 GEN WR82X0208 Contact Us For Availability
301
GEN WR02X5930 GEN WR02X5930 Contact Us For Availability
302
PLUG BUTTON (1.79" HEX HOLE) GEN WR02X4829 Contact Us For Availability
302
PLUG BUTTON (1-1/2" DIA. HOLE) GEN WR02X4968 Contact Us For Availability
304
FREON 6-1/2 OZ. GEN WR97X5036 Contact Us For Availability
305
GEN WR84X0045 GEN WR84X0045 Contact Us For Availability
306
CUP & BRACKET R. SIDE GEN WR02X1864 Contact Us For Availability
306
CUP & BRACKET L. SIDE GEN WR02X1865 Contact Us For Availability
307
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
307
GEN WZ06X0062 GEN WZ06X0062 Contact Us For Availability
309
CLIP-COVER GEN WR02X3583 Contact Us For Availability
309
COVER GEN WR02X3867 Contact Us For Availability
309
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
310
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
313
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
314
NUT BLADE GEN WR01X1515 Contact Us For Availability
315
GEN WR01X1514 GEN WR01X1514 Contact Us For Availability
315
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
315
GEN WR02X4801 GEN WR02X4801 Contact Us For Availability
319
WATER FILL GROMMET GEN WR02X6268 Contact Us For Availability
319
GEN WR02X6269 GEN WR02X6269 Contact Us For Availability
323
SCREW GEN WR01X5034 Contact Us For Availability
324
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
324
GEN WR57X0049 GEN WR57X0049 Contact Us For Availability
324
GEN WR57X0050 GEN WR57X0050 Contact Us For Availability
325
GEN WR57X0074 GEN WR57X0074 Contact Us For Availability
326
GREEN COIL ASM. I.M. SIDE GEN WR62X0025 Contact Us For Availability
326
GEN WR62X0027 GEN WR62X0027 Contact Us For Availability
327
GEN WR57X0052 GEN WR57X0052 Contact Us For Availability
330
GEN WR17X1488 GEN WR17X1488 Contact Us For Availability
332
CLIP WIRE GEN WR02X4621 Contact Us For Availability
332
CONDENSER ASM. GEN WR84X0036 Contact Us For Availability
335
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
335
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
336
GEN WR02X6157 GEN WR02X6157 Contact Us For Availability
337
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
338
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
339
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
340
GEN WR17X1489 GEN WR17X1489 Contact Us For Availability
341
GEN 39-6162-1 GEN 39-6162-1 Contact Us For Availability
341
GEN WR17X1494 GEN WR17X1494 Contact Us For Availability
× ![]()
