Model Maytag CLY1628BDB RV GAS RANGE – Common Parts & Diagrams

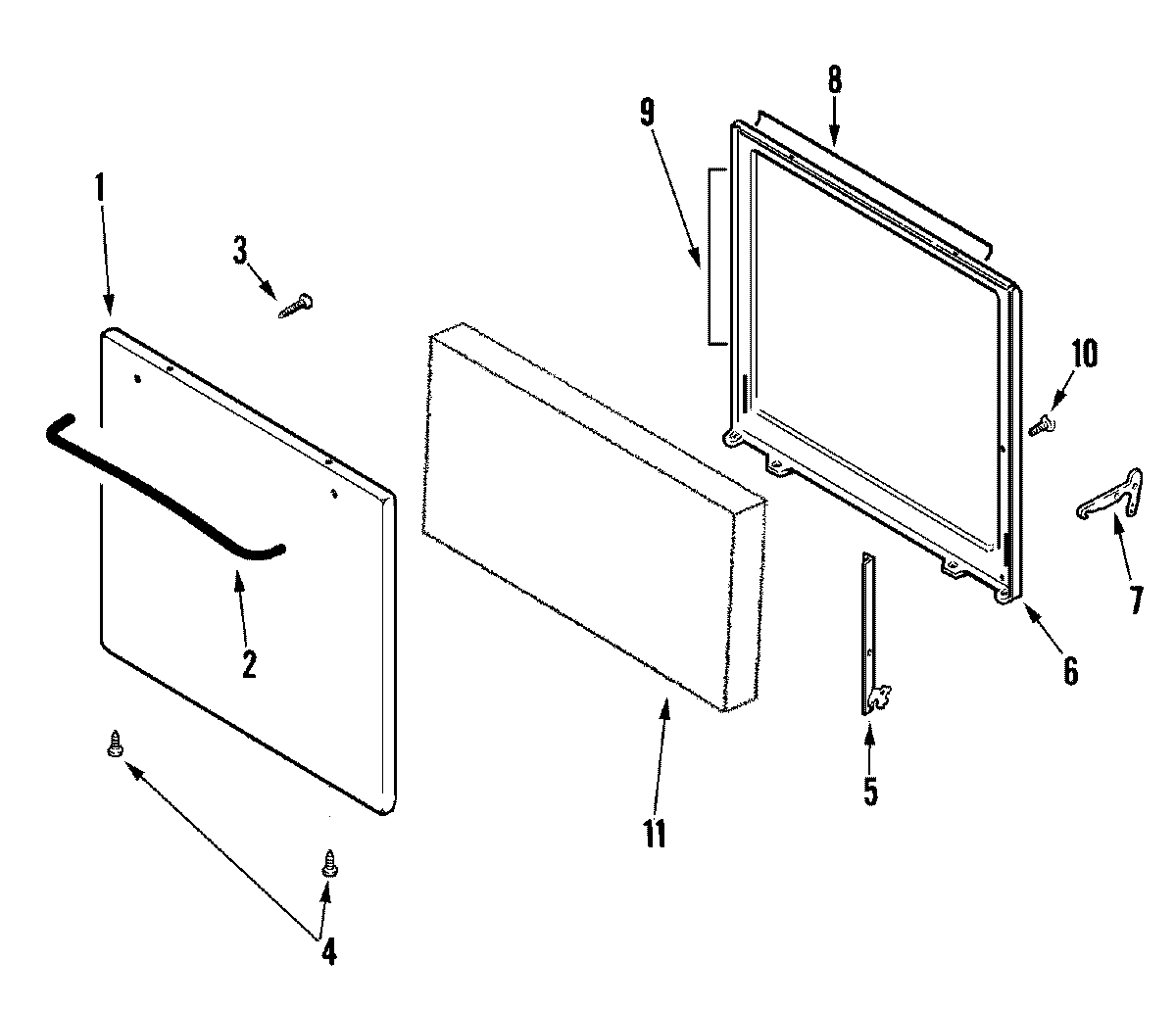

01 - DOOR

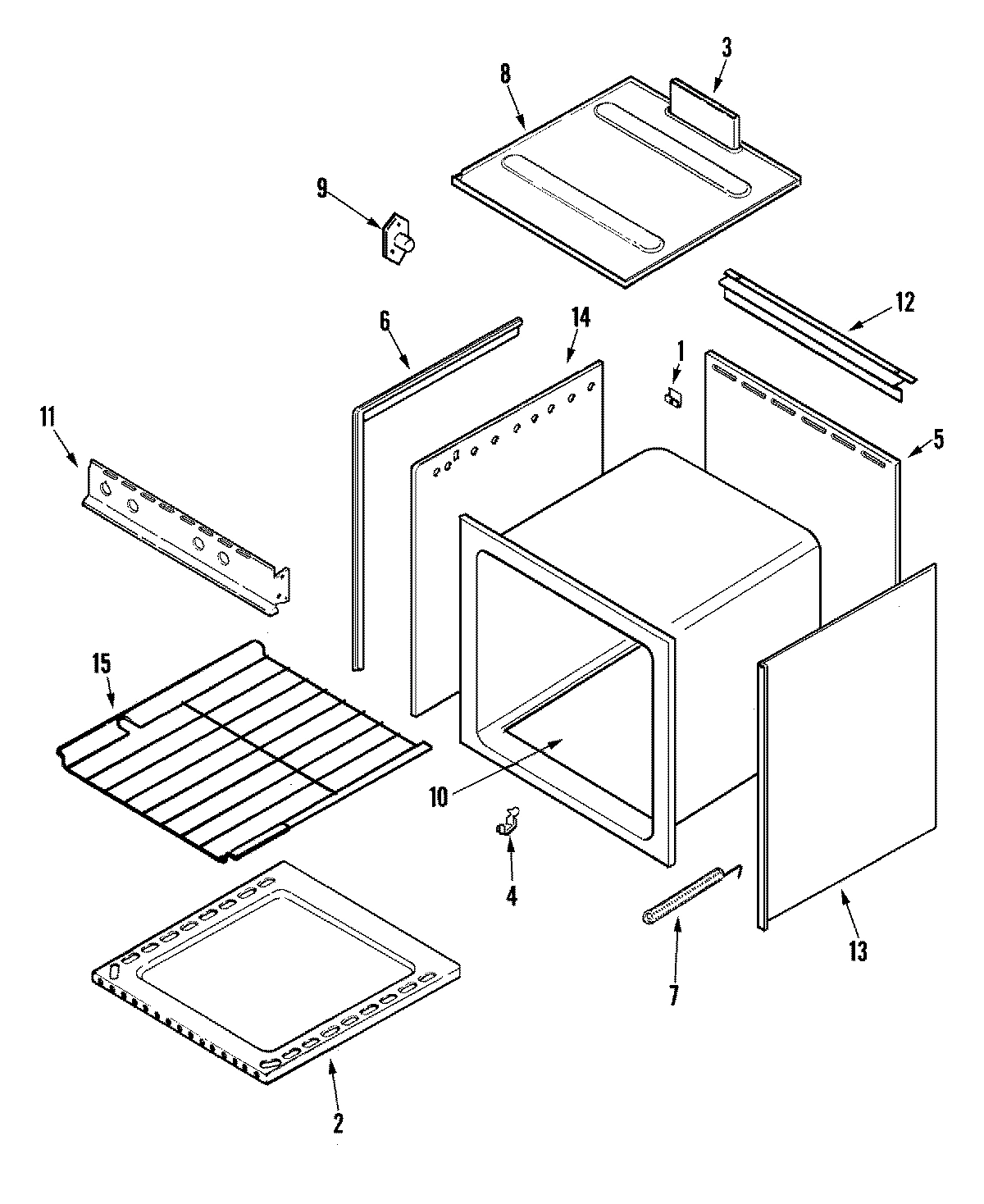

02 - OVEN
03 - SUPPLEMENTAL INFORMATION
04 - TOP & GAS CONTROLS
Common parts from model Maytag CLY1628BDB RV GAS RANGE
1
MAY 74009853 MAY 74009853 Contact Us For Availability
2
MAY 74003929 MAY 74003929 Contact Us For Availability
2
MAY 74004584 MAY 74004584 Contact Us For Availability
3
MAY 74004582 MAY 74004582 Contact Us For Availability
3
MAY 4006W075-80 MAY 4006W075-80 Contact Us For Availability
4
MAY Y8007P02060 MAY Y8007P02060 Contact Us For Availability
5
MAY 74001747 MAY 74001747 Contact Us For Availability
5
MAY 74009861 MAY 74009861 Contact Us For Availability
5
MAY 74009862 MAY 74009862 Contact Us For Availability
6
MAY 74002812 MAY 74002812 Contact Us For Availability
6
MAY 74002813 MAY 74002813 Contact Us For Availability
6
MAY 74004234 MAY 74004234 Contact Us For Availability
7
MAY 3423F001-34 MAY 3423F001-34 Contact Us For Availability
7
MAY 74003941 MAY 74003941 Contact Us For Availability
8
MAY 7212P014-60 MAY 7212P014-60 Contact Us For Availability
8
MAY 74009863 MAY 74009863 Contact Us For Availability
8
MAY 74009858 MAY 74009858 Contact Us For Availability
9
SCREW No.6 X 1/2 MAY 7101P301-60 Contact Us For Availability
9
MAY 7103P109-60 MAY 7103P109-60 Contact Us For Availability
9
MAY 74009852 MAY 74009852 Contact Us For Availability
10
MAY 74003342 MAY 74003342 Contact Us For Availability
10
MAY 74009856 MAY 74009856 Contact Us For Availability
10
MAY 74010755 MAY 74010755 Contact Us For Availability
11
MAY 74004235 MAY 74004235 Contact Us For Availability
12
MAY 74002809 MAY 74002809 Contact Us For Availability
13
MAY 8003P008-60 MAY 8003P008-60 Contact Us For Availability
14
MAY 74009850 MAY 74009850 Contact Us For Availability
14
MAY 74009854 MAY 74009854 Contact Us For Availability
14
MAY 7507P049-60 MAY 7507P049-60 Contact Us For Availability
15
MAY 74003106 MAY 74003106 Contact Us For Availability
15
MAY 74003323 MAY 74003323 Contact Us For Availability
16
MAY 1555279 MAY 1555279 Contact Us For Availability
16
MAY 74009864 MAY 74009864 Contact Us For Availability
17
MAY 12002245 MAY 12002245 Contact Us For Availability
17
MAY 12002246 MAY 12002246 Contact Us For Availability
17
MAY 74009427 MAY 74009427 Contact Us For Availability
17
MAY 74010756 MAY 74010756 Contact Us For Availability
18
MAY 74009848 MAY 74009848 Contact Us For Availability
19
MAY 7432P077-60 MAY 7432P077-60 Contact Us For Availability
19
MAY 7104P002-60 MAY 7104P002-60 Contact Us For Availability
20
MAY 74003326 MAY 74003326 Contact Us For Availability
20
MAY 74003327 MAY 74003327 Contact Us For Availability
21
MAY 7112P068-60 MAY 7112P068-60 Contact Us For Availability
22
MAY 5111A719-60 MAY 5111A719-60 Contact Us For Availability
24
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
24
MAY 3807F462-45 MAY 3807F462-45 Contact Us For Availability
26
MAY 3604F211-45 MAY 3604F211-45 Contact Us For Availability
27
MAY 74004641 MAY 74004641 Contact Us For Availability
28
MAY 74009867 MAY 74009867 Contact Us For Availability
29
MAY 74009866 MAY 74009866 Contact Us For Availability
30
NUT, WING MAY 7103P030-60 Contact Us For Availability
NI
MAY 16023515 MAY 16023515 Contact Us For Availability
NI
MAY 16023516 MAY 16023516 Contact Us For Availability
NI
MAY 74009865 MAY 74009865 Contact Us For Availability
NI
MAY 8110P258-60 MAY 8110P258-60 Contact Us For Availability
NI
MAY 8113P439-60 MAY 8113P439-60 Contact Us For Availability
× ![]()
