Model GE CGE29DP4TCW2 – Common Parts & Diagrams

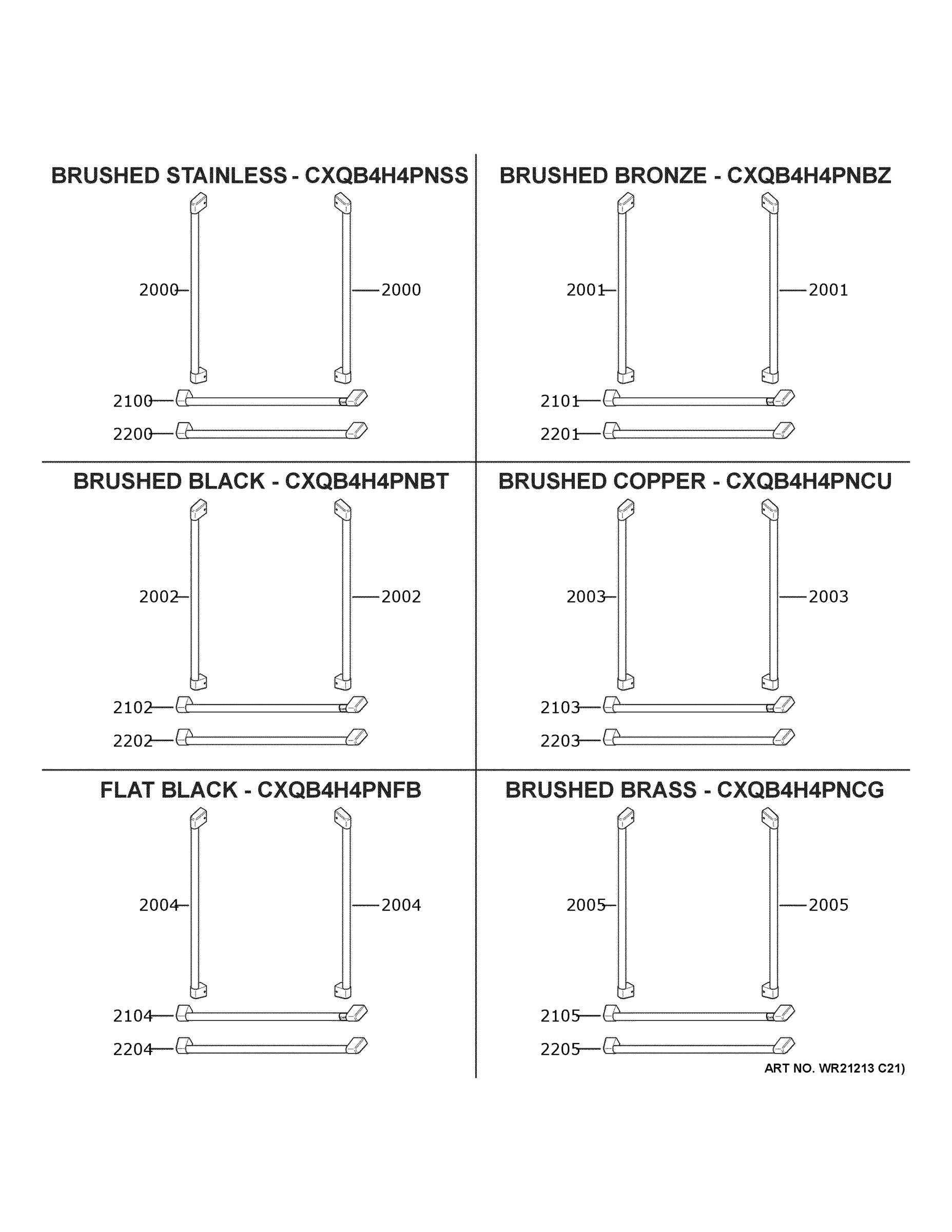

CAFE CUSTOMIZATION

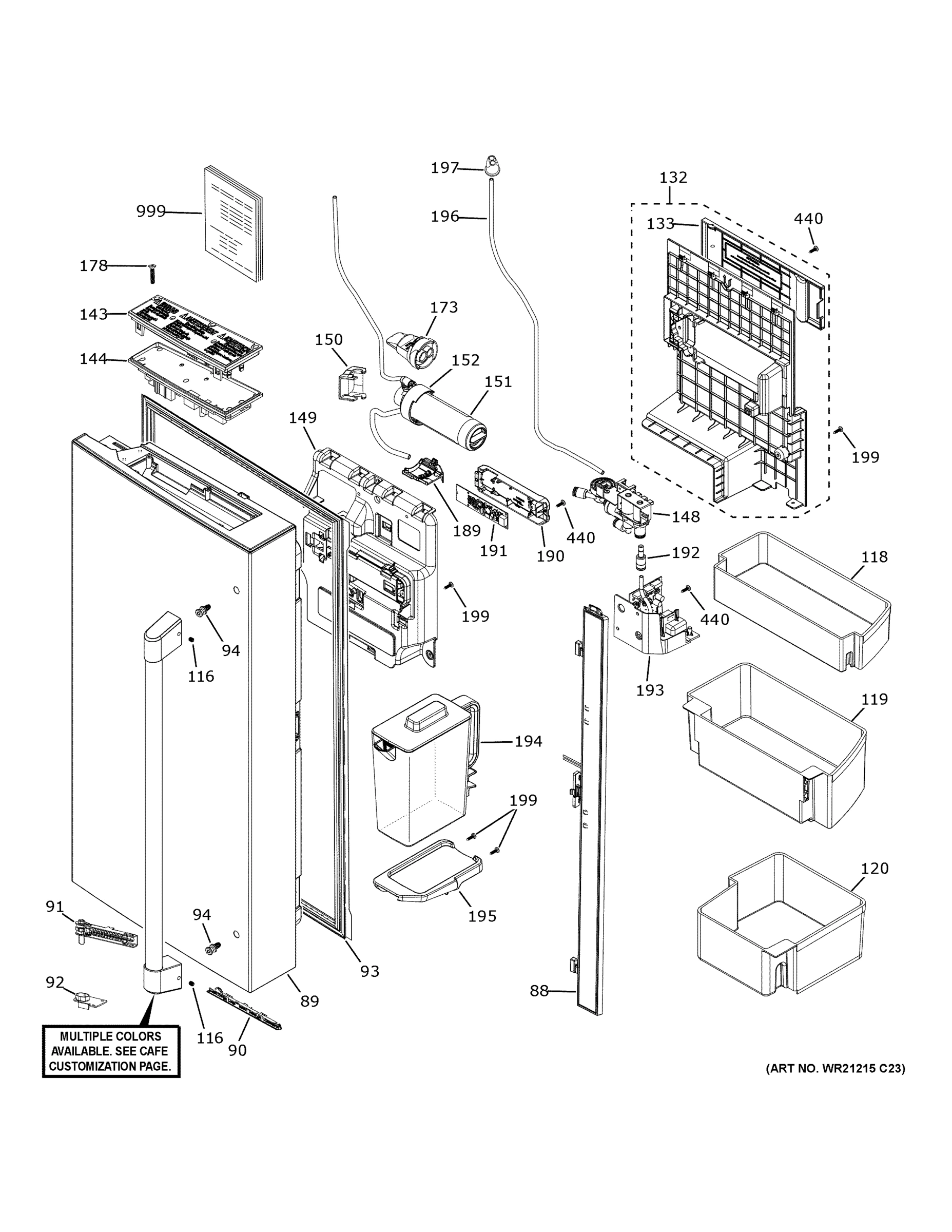

LEFT DOOR & WATER PITCHER
FREEZER DRAWER
CONVERTIBLE DRAWER
REFRIGERATOR DOOR - RH
FREEZER SECTION
FREEZER SHELVES
CAFE CONVERTIBLE SHELF
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
CASE PARTS
MACHINE COMPARTMENT
LOKRING CONNECTORS
Common parts from model GE CGE29DP4TCW2
2
VENT COVER SIDE CASE GEN WR02X43225 Contact Us For Availability
3
SCREW GEN WR02X27683 Contact Us For Availability
4
LEVELING LEG GEN WR01X31892 Contact Us For Availability
5
WATER LINE COVER GEN WR02X31869 Contact Us For Availability
6
WATER LINE CLIP GEN WR02X31796 Contact Us For Availability
8
INVERTER GEN WR55X43006 Contact Us For Availability
9
COMPRESSOR MOUNTING HARDWARE GEN WR02X32074 Contact Us For Availability
10
CONDENSER GEN WR87X32099 Contact Us For Availability
11
3 WAY VALVE W/ BRACKET GEN WR86X36438 Contact Us For Availability
12
DRAIN TUBE GEN WR01X28429 Contact Us For Availability
14
REAR ACCESS COVER GEN WR82X31888 Contact Us For Availability
15
GRAY LED SHIELD GEN WR02X31979 Contact Us For Availability
16
CEILING LED GEN WR55X31998 Contact Us For Availability
17
CAF AIR TOWER W/ FAN AND LED GEN WR17X31980 Contact Us For Availability
18
REFRIGERATOR EVAPORATOR FAN GEN WR60X32071 Contact Us For Availability
19
SCREW GEN WR01X29729 Contact Us For Availability
20
CONVERTIBLE THERMISTOR GEN WR55X31992 Contact Us For Availability
21
GRAY CENTER CANTILEVER TRACK TRIM GEN WR02X32486 Contact Us For Availability
22
GRAY CENTER CANTILEVER TRACK GEN WR72X31780 Contact Us For Availability
23
REFRIGERATOR DRAIN TROUGH GEN WR17X31784 Contact Us For Availability
25
GRAY REFRIGERATOR TUCKAWAY SHELF GEN WR32X31957 Contact Us For Availability
27
GRAY VEGETABLE PAN FRAME GEN WR32X32496 Contact Us For Availability
29
WHITE VEGETABLE PAN FRAME GLASS GEN WR32X31875 Contact Us For Availability
30
TINTED VEGETABLE PAN GEN WR32X31955 Contact Us For Availability
31
ROLLER ASM GEN WR02X13658 Contact Us For Availability
32
GRAY CLIMATE ZONE LEFT SUPPORT GEN WR72X32427 Contact Us For Availability
33
WHITE VEGETABLE PAN LED GEN WR55X32072 Contact Us For Availability
34
GRAY CLIMATE ZONE RIGHT SUPPORT GEN WR72X32428 Contact Us For Availability
35
GRAY CLIMATE ZONE CENTER SUPPORT GEN WR72X31968 Contact Us For Availability
36
CONVERTIBLE DRAWER DAMPER GEN WR02X31945 Contact Us For Availability
37
CONVERTIBLE DRAWER DAMPER FOAM GEN WR14X31873 Contact Us For Availability
38
CONVERTIBLE DRAWER DAMPER FOAM GEN WR14X31874 Contact Us For Availability
39
MAIN CONTROL BOARD COVER GEN WR02X31778 Contact Us For Availability
40
GRAY DAMPER COVER GEN WR02X31833 Contact Us For Availability
41
FREEZER DRAIN TROUGH GEN WR17X31777 Contact Us For Availability
42
GRAY CONVERTIBLE DRAWER BASKET W/ DIVIDE GEN WR32X32487 Contact Us For Availability
44
CONVERTIBLE DRAWER LEFT SLIDE AND BRACKE GEN WR72X39427 Contact Us For Availability
45
CONVERTIBLE DRAWER RIGHT SLIDE AND BRACK GEN WR72X39428 Contact Us For Availability
46
CAF CHAIN HARNESS W/ REED SWITCH GEN WR02X32474 Contact Us For Availability
47
CROSSBAR RIGHT PINION GEAR GEN WR02X42065 Contact Us For Availability
48
CROSSBAR LEFT PINION GEAR GEN WR02X42066 Contact Us For Availability
49
CROSSBAR PINION GEAR CLIP GEN WR02X31800 Contact Us For Availability
50
CROSSBAR GEN WR02X31776 Contact Us For Availability
51
UPPER FREEZER BASKET - CAF GEN WR71X44288 Contact Us For Availability
53
GRAY FREEZER UPPER BASKET ROLLER GEN WR02X32499 Contact Us For Availability
55
GRAY FREEZER UPPER BASKET GLIDE LEFT GEN WR72X31832 Contact Us For Availability
56
GRAY FREEZER UPPER BASKET GLIDE RIGHT GEN WR72X32477 Contact Us For Availability
57
GRAY FREEZER LOWER BASKET W/ DIVIDER GEN WR32X42347 Contact Us For Availability
58
GRAY FREEZER LOWER BASKET DIVIDER GEN WR02X31809 Contact Us For Availability
59
GRAY FREEZER LOWER BASKET DIVIDER BRACKE GEN WR02X32479 Contact Us For Availability
60
BASKET BUMPER GRAY GEN WR02X42345 Contact Us For Availability
61
WHITE FREEZER LOWER BASKET SLIDE AND BRA GEN WR72X39425 Contact Us For Availability
62
GRAY LEFT SLIDE HOLDER GEN WR72X31830 Contact Us For Availability
63
WHITE FREEZER LOWER BASKET SLIDE AND BRA GEN WR72X39426 Contact Us For Availability
64
GRAY RIGHT SLIDE HOLDER GEN WR72X31831 Contact Us For Availability
65
FREEZER EVAPORATOR COVER W/ THERMISTOR GEN WR14X32098 Contact Us For Availability
66
DEFROST THERMISTOR GEN WR55X29875 Contact Us For Availability
68
EVAPORATOR FAN BRACKET GEN WR01X27755 Contact Us For Availability
73
REFRIGERATOR DEFROST HEATER GEN WR51X31996 Contact Us For Availability
74
FREEZER DEFROST HEATER GEN WR51X31995 Contact Us For Availability
76
REFRIGERATOR POWER SUPPLY BOARD GEN WR55X31984 Contact Us For Availability
77
POWER CORD GEN WR55X32470 Contact Us For Availability
78
REFRIGERATOR DOOR LEFT LOWER HINGE GEN WR13X31786 Contact Us For Availability
80
LOWER HINGE SCREW GEN WR01X31884 Contact Us For Availability
81
LOWER HINGE SCREW GEN WR01X31986 Contact Us For Availability
82
REFRIGERATOR DOOR LEFT UPPER HINGE GEN WR13X32502 Contact Us For Availability
83
REFRIGERATOR DOOR RIGHT UPPER HINGE GEN WR13X31769 Contact Us For Availability
84
TOP LEFT HINGE COVER GEN WR17X31988 Contact Us For Availability
85
TOP RIGHT HINGE COVER GEN WR17X31858 Contact Us For Availability
86
TOP INTERFACE & HOUSING GEN WR09X44278 Contact Us For Availability
87
REED SWITCH GEN WR55X31994 Contact Us For Availability
88
GRAY ARTICULATING MULLION W/ HINGES AND GEN WR17X31946 Contact Us For Availability
91
CLOSURE DOOR ASM LH GEN WR11X23034 Contact Us For Availability
94
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
95
DOOR WATER LINE SPRING GEN WR01X44244 Contact Us For Availability
96
MATTE WHITE CAF REFRIGERATOR RIGHT DOOR GEN WR78X31961 Contact Us For Availability
106
FREEZER DRAWER GASKET GEN WR14X32103 Contact Us For Availability
109
CONVERTIBLE DRAWER BRACKET SCREW GEN WR02X31885 Contact Us For Availability
116
SET SCREW GEN WR01X20424 Contact Us For Availability
124
DAIRY BIN BUMPER GEN WR02X31857 Contact Us For Availability
141
ISOLATION WATER VALVE GEN WR57X31999 Contact Us For Availability
146
SMALL CUBE ICEMAKER GEN WR29X44279 Contact Us For Availability
148
VALVE DUAL WATER W FM GEN WR57X24979 Contact Us For Availability
151
XWFE RETAIL FILTER GEN XWFE Contact Us For Availability
155
CONDENSER FAN W/ FOAM GEN WR60X32087 Contact Us For Availability
156
COUPLER STRAIGHT 1/4 GEN WR02X13738 Contact Us For Availability
157
THERMISTOR COVER GEN WR13X36674 Contact Us For Availability
158
QUICK CLIP CONN 5/16 GEN WR01X11040 Contact Us For Availability
159
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
161
GEA2 WIFI/BLE BOARD W/INSTRUCTIONS GEN WB27X48606 Contact Us For Availability
162
SERRATED FLANGE HEX M6X16 GEN WR02X32482 Contact Us For Availability
163
FREEZER REED SWITCH W/ GRAY COVER GEN WR55X32480 Contact Us For Availability
166
SUCTION JUMPER TUBE GEN WR84X36434 Contact Us For Availability
167
PERSONALITY HARNESS GEN WR55X44291 Contact Us For Availability
170
TINTED HUMIDITY CONTROL PAN GEN WR32X32495 Contact Us For Availability
172
SCREW GEN WR01X35867 Contact Us For Availability
173
BYPASS FILTER PLUG GEN WR17X33825 Contact Us For Availability
174
FEELER ARM GEN WR29X36234 Contact Us For Availability
175
WHEEL FRONT ASM GEN WR01X35645 Contact Us For Availability
179
FILL TUBE & HEATER ASSEMBLY GEN WR29X44280 Contact Us For Availability
180
FILL TUBE COVER GEN WR29X44281 Contact Us For Availability
181
FILL TUBE GROMMET GEN WR29X44282 Contact Us For Availability
182
WATER LINE CLIP GEN WR01X44277 Contact Us For Availability
184
UPPER GASKET GEN WR14X41645 Contact Us For Availability
197
DOOR WATER LINE GROMMET GEN WR02X44231 Contact Us For Availability
198
ICE BUCKET & COVER - CAF GEN WR29X44766 Contact Us For Availability
206
TOP INTERFACE HARNESS GEN WR55X44527 Contact Us For Availability
248
GRAY CENTER CANTILEVER SCREW COVER GEN WR02X31854 Contact Us For Availability
352
GRAY FREEZER PIZZA TRAY BUMPER GEN WR02X31805 Contact Us For Availability
353
GRAY FREEZER PIZZA TRAY GUIDE LEFT GEN WR72X31837 Contact Us For Availability
354
GRAY FREEZER PIZZA TRAY GUIDE RIGHT GEN WR72X31838 Contact Us For Availability
430
HUMIDTY CONTROL SYSTEM FILTER DOOR GEN WR32X31887 Contact Us For Availability
431
HUMIDTY CONTROL SYSTEM COVER SEAL GEN WR14X32420 Contact Us For Availability
432
HUMIDTY CONTROL SYSTEM COVER GEN WR32X31956 Contact Us For Availability
440
SCREW ST3.9 X 16 GEN WR01X28345 Contact Us For Availability
7000
R600a CHARGE CAN 35 GRAMS GEN WR98X35 Contact Us For Availability
7002
.295" - 1/4" BRASS REDUC GEN WR97X10081 Contact Us For Availability
7003
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
7004
8MM X 8MM LOKRING AL GEN WR97X30616 Contact Us For Availability
7005
3.5MM X 3.5MM LOKRING GEN WR97X10143 Contact Us For Availability
7006
6MM X 6MM LOKRING GEN WR97X10031 Contact Us For Availability
7007
8MM X 6MM LOKRING GEN WR97X10036 Contact Us For Availability
7008
5MM X 4MM LOKRING GEN WR97X10075 Contact Us For Availability
7010
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7011
3MM X 2MM LOKRING GEN WR97X10140 Contact Us For Availability
× ![]()
