Model Whirlpool CFI1301W2 COMMERCIAL GAS DRYER – Common Parts & Diagrams

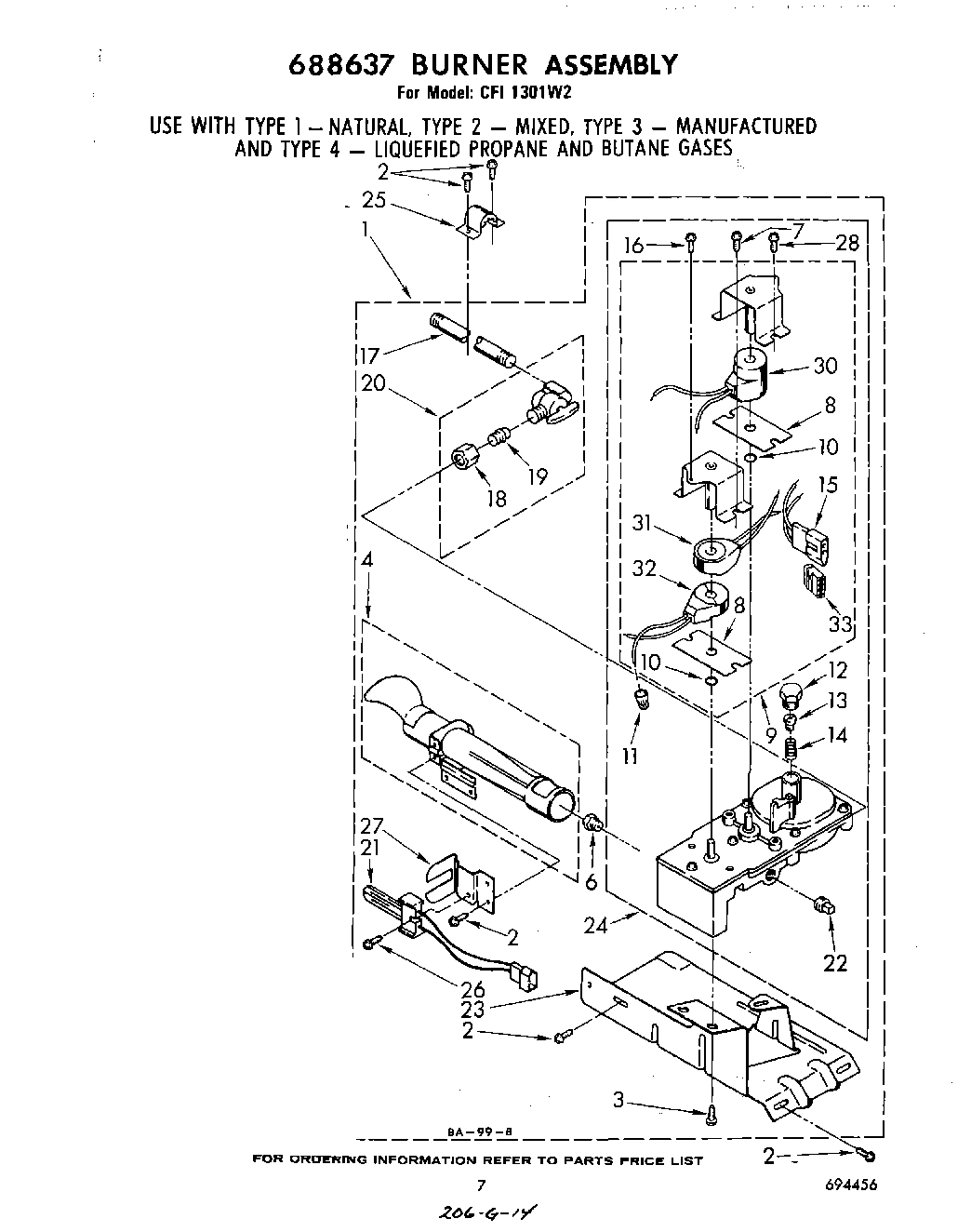

06 - 688637 BURNER

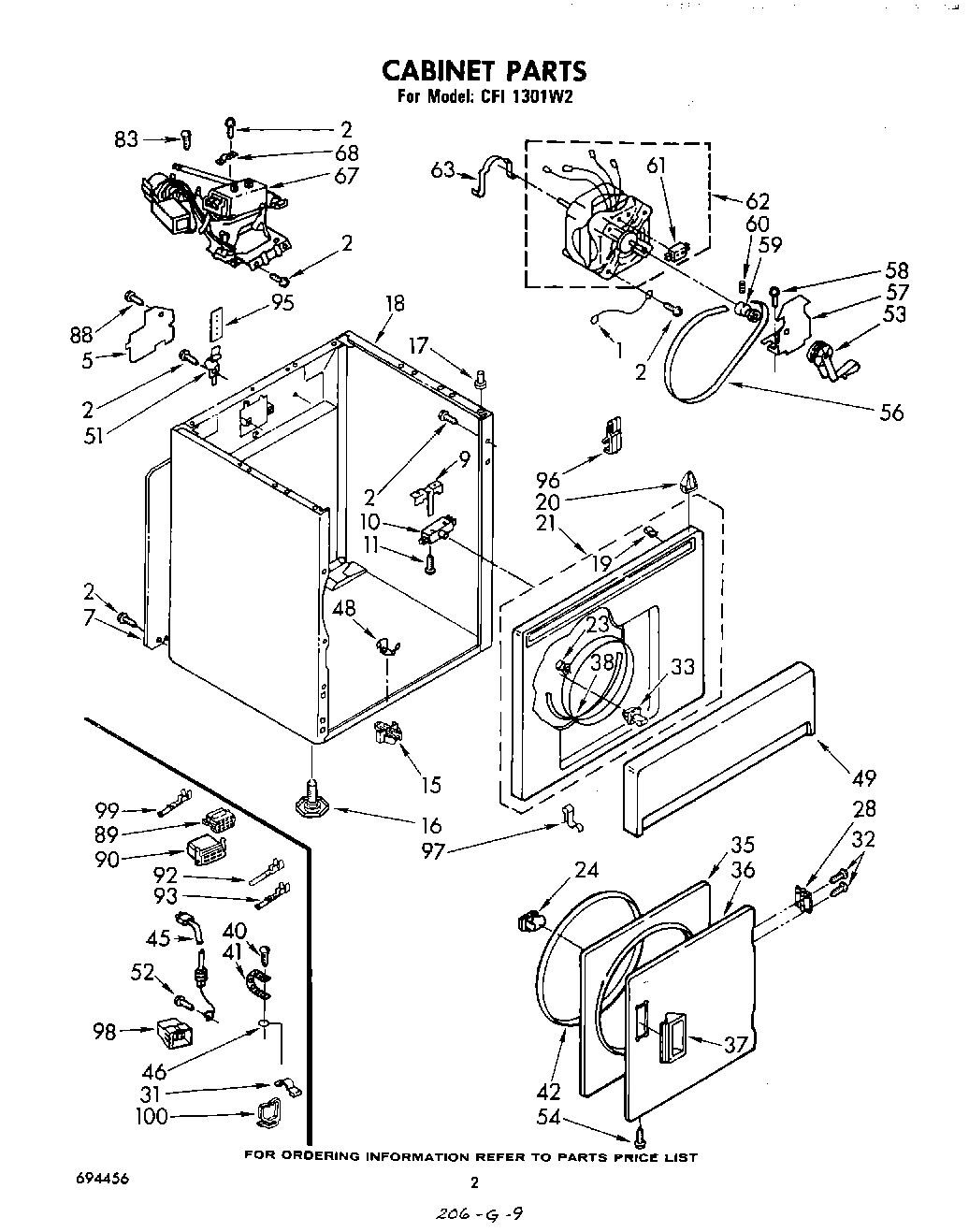

02 - CABINET

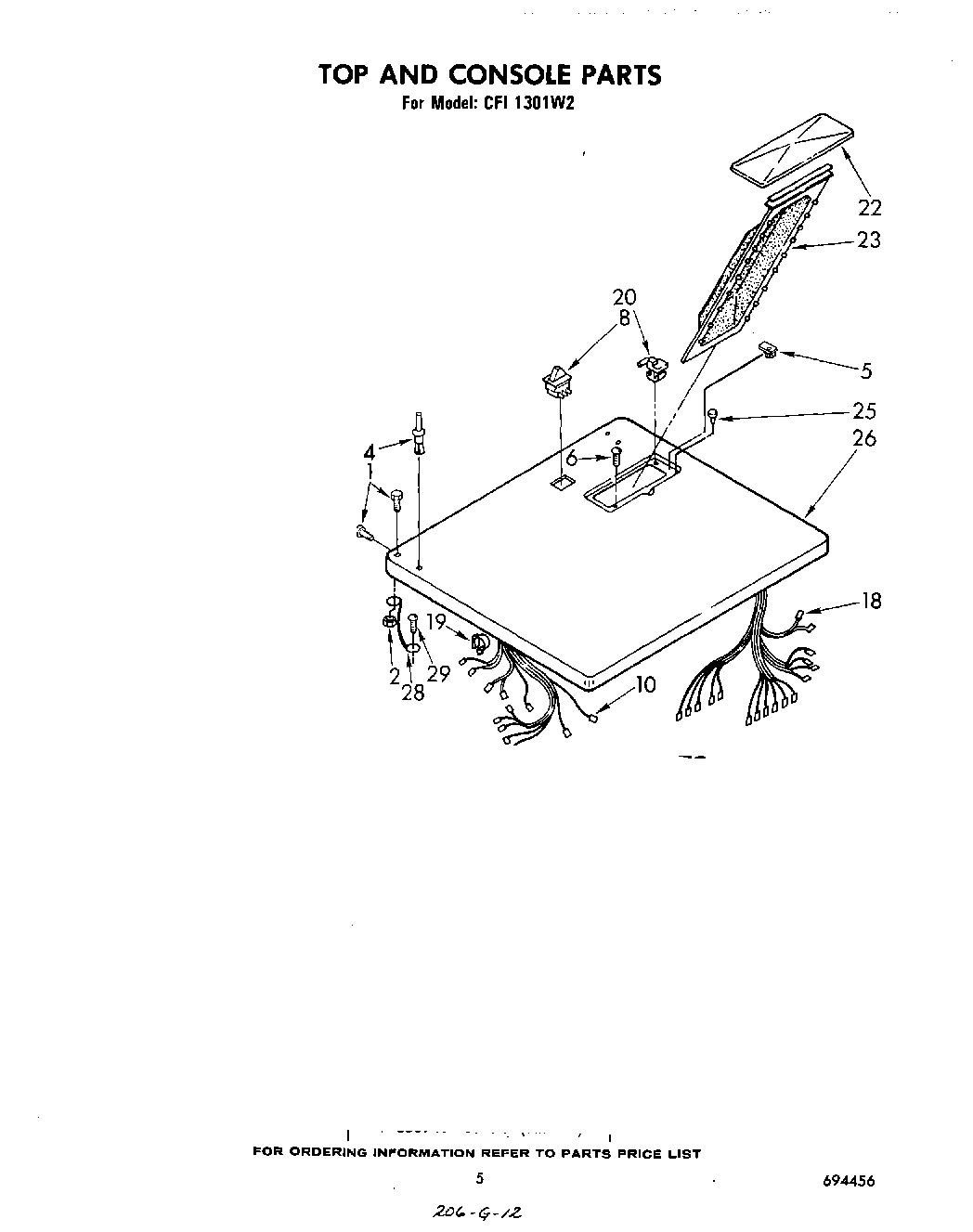

04 - TOP AND CONSOLE , LITERATURE AND OPTIONAL

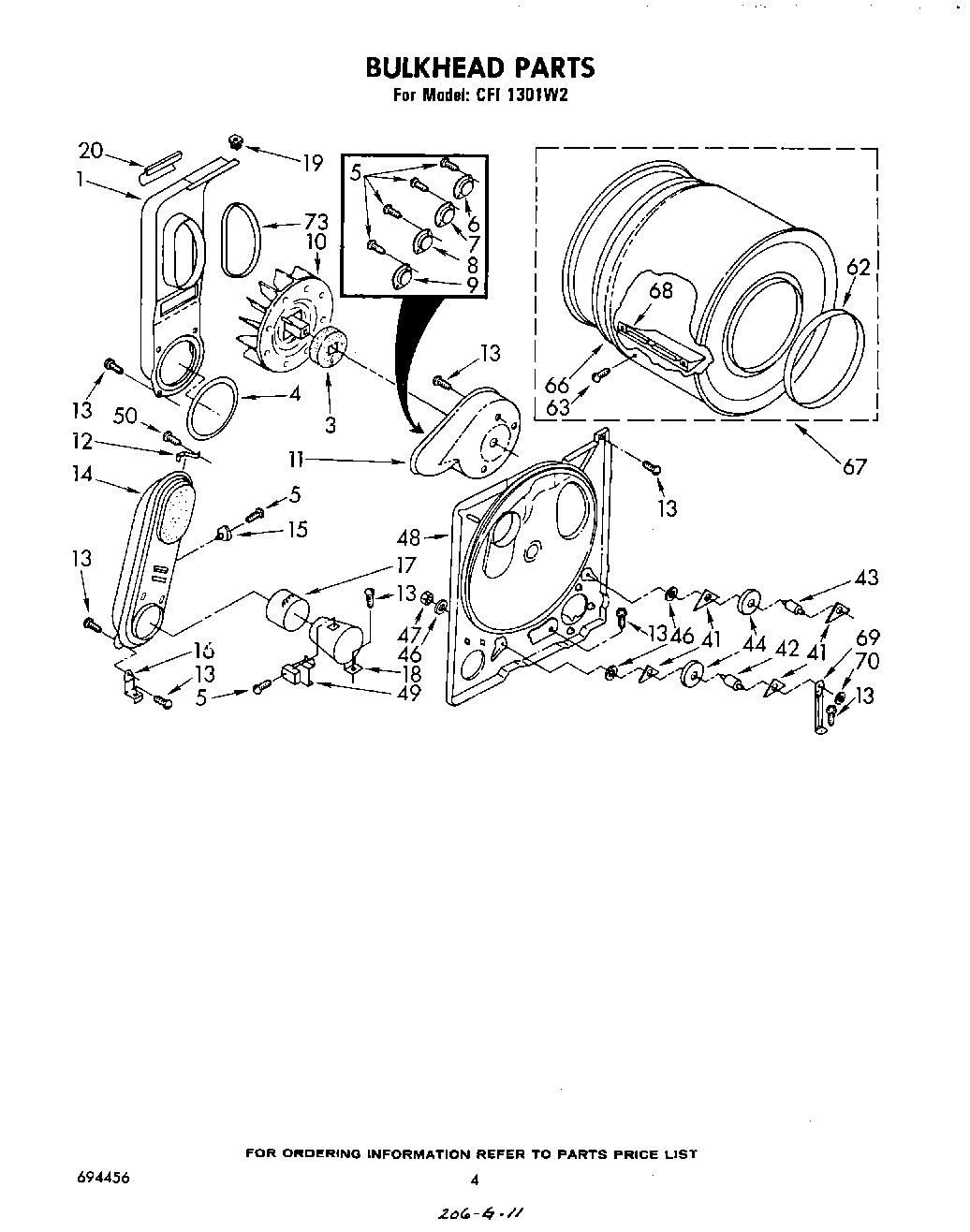

03 - BULKHEAD

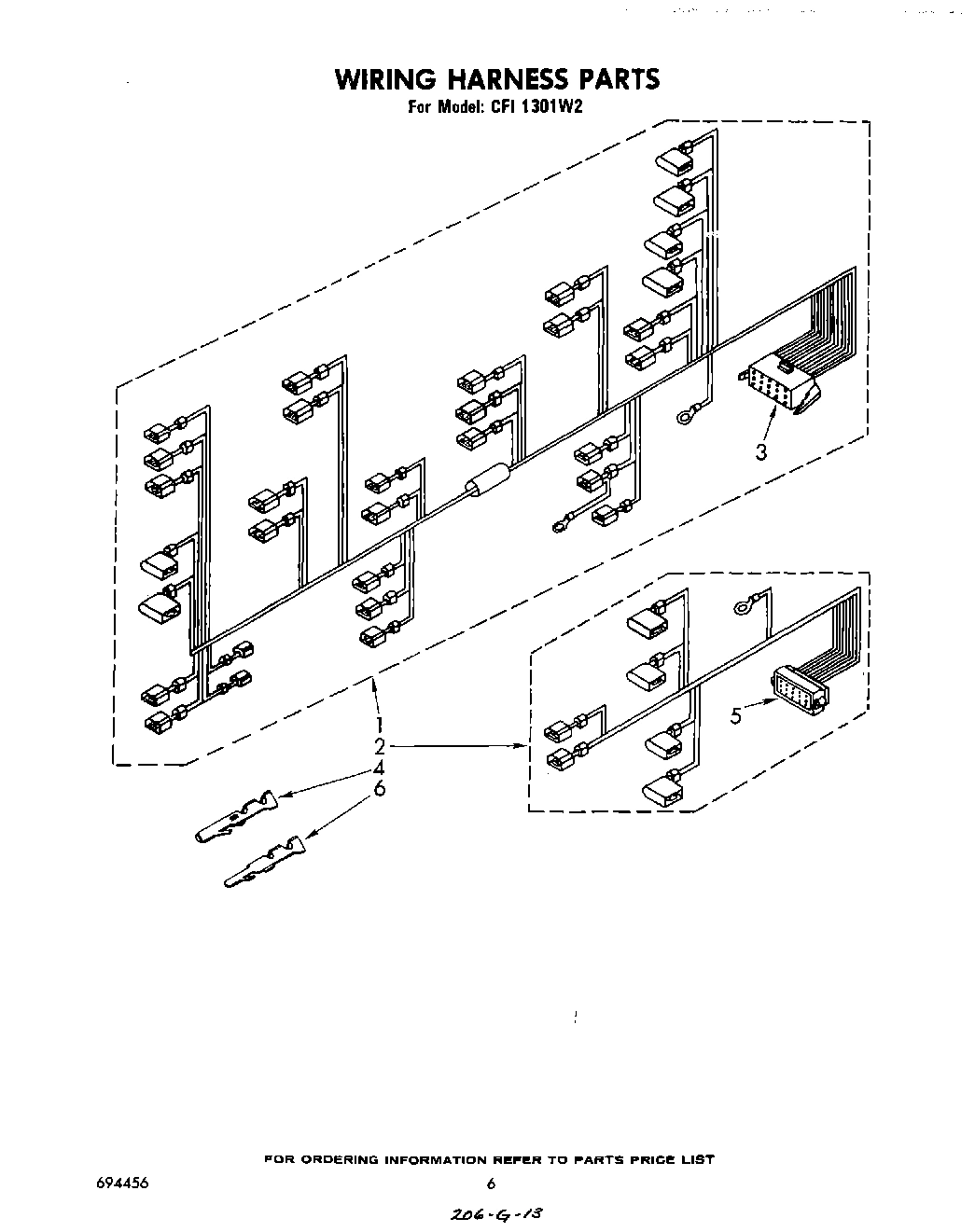

05 - WIRING HARNESS
Common parts from model Whirlpool CFI1301W2 COMMERCIAL GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
xNew Avocado (Uncut) WPL 261889 Contact Us For Availability
xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
1
Harness, Lower WPL 689444 Contact Us For Availability
2
Harness, Switch WPL 689443 Contact Us For Availability
3
Plug, Terminal (15 Way) (Use Terminal 96413) WPL 689552 Contact Us For Availability
3
Seal, Blower WPL 694630 Contact Us For Availability
4
Terminal, Male WPL 96413 Contact Us For Availability
5
Cap, Terminal (15 Way) (Use Terminal 97452) WPL 689553 Contact Us For Availability
6
Terminal, Male WPL 97452 Contact Us For Availability
6
Thermostat, 180~F (82~C) (Alt.) WPL 295432 Contact Us For Availability
6
Thermostat, 180~F (82~C) (Alt.) WPL 341197 Contact Us For Availability
6
Thermostat, 180~F (82~C) WPL 660368 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Switch, Push-To-Start WPL 689238 Contact Us For Availability
9
Thermostat, SPDT 140~F (60~C) WPL 344395 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support WPL 337445 Contact Us For Availability
17
Locator, Top (2) WPL 98669 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (New Avocado) WPL 690850 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
19
Clip, Harness WPL 688412 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 693202 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 693203 Contact Us For Availability
21
Upper Front Panel Assembly (New Avocado) WPL 693205 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 693206 Contact Us For Availability
22
Cover, Lint Screen WPL 691199 Contact Us For Availability
25
Bumper, Lint Cover (2) WPL 297535 Contact Us For Availability
26
Top, Dryer (White) WPL 689229 Contact Us For Availability
26
Top, Dryer (New Avocado) WPL 689672 Contact Us For Availability
26
Top, Dryer (Golden Harvest) WPL 689673 Contact Us For Availability
26
Top, Dryer (Almond) WPL 691631 Contact Us For Availability
28
Wire, Ground WPL 340025 Contact Us For Availability
29
New Avocado WPL 261888 Contact Us For Availability
29
Golden Harvest WPL 261890 Contact Us For Availability
29
Instructions, Multi-Venting WPL 348772 Contact Us For Availability
29
Leveler (Thinner) WPL 350941 Contact Us For Availability
29
Instructions, Installation WPL 687451 Contact Us For Availability
29
List, Service Parts WPL 694456 Contact Us For Availability
29
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
32
Screw, Hinge WPL 689791 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door, Front (New Avocado) WPL 689318 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
37
Handle, Door (Almond) WPL 689306 Contact Us For Availability
37
Handle, Door (New Avocado) WPL 689583 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689537 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability
49
Panel, Toe (New Avoca WPL 689540 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
63
Screw, 11-16 x 7/8 (3) WPL 690372 Contact Us For Availability
67
WPL 688637 WPL 688637 Contact Us For Availability
69
Bracket WPL 348945 Contact Us For Availability
96
WPL 689180 WPL 689180 Contact Us For Availability
97
WPL 341776 WPL 341776 Contact Us For Availability
98
WPL 353425 WPL 353425 Contact Us For Availability
× ![]()
