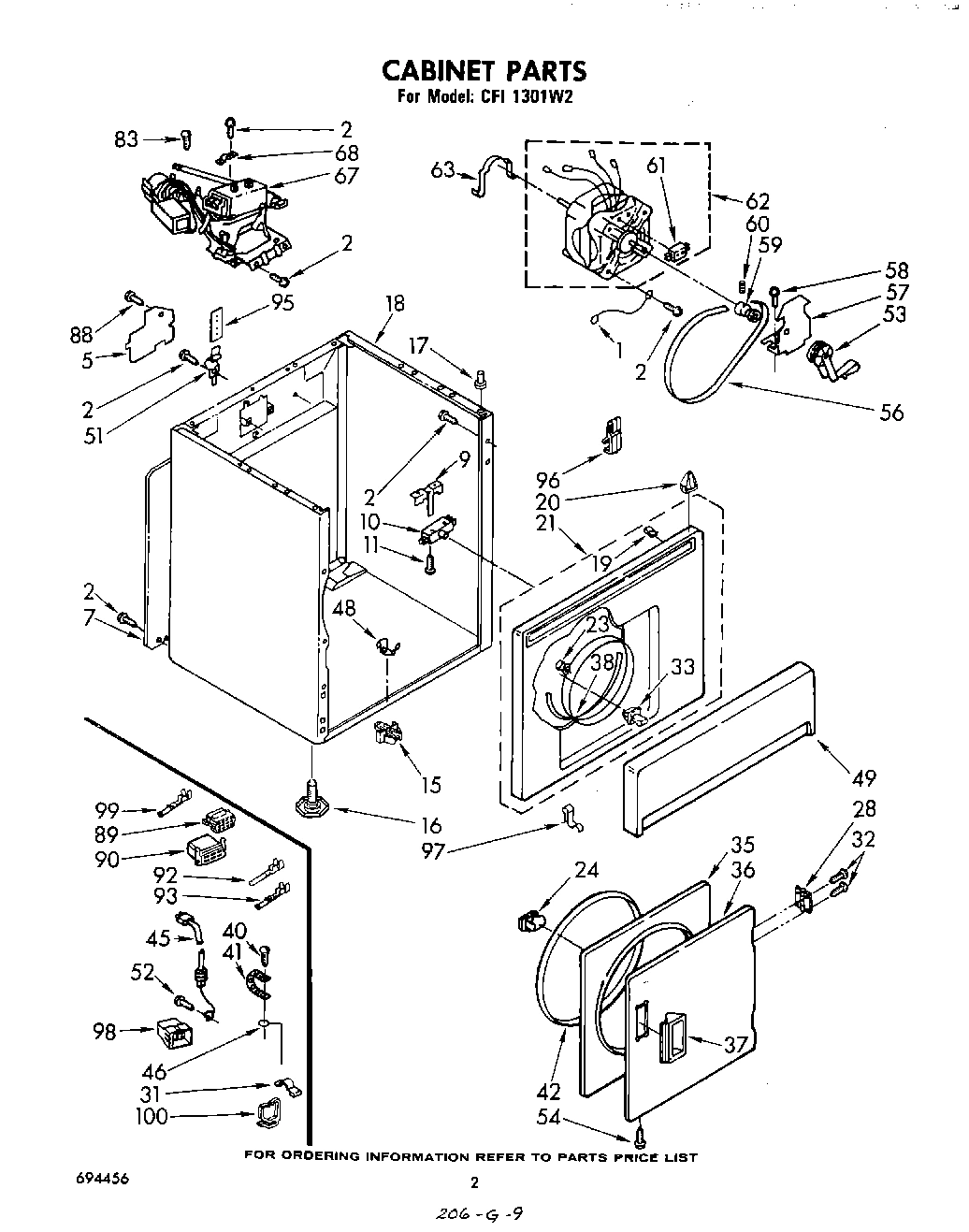

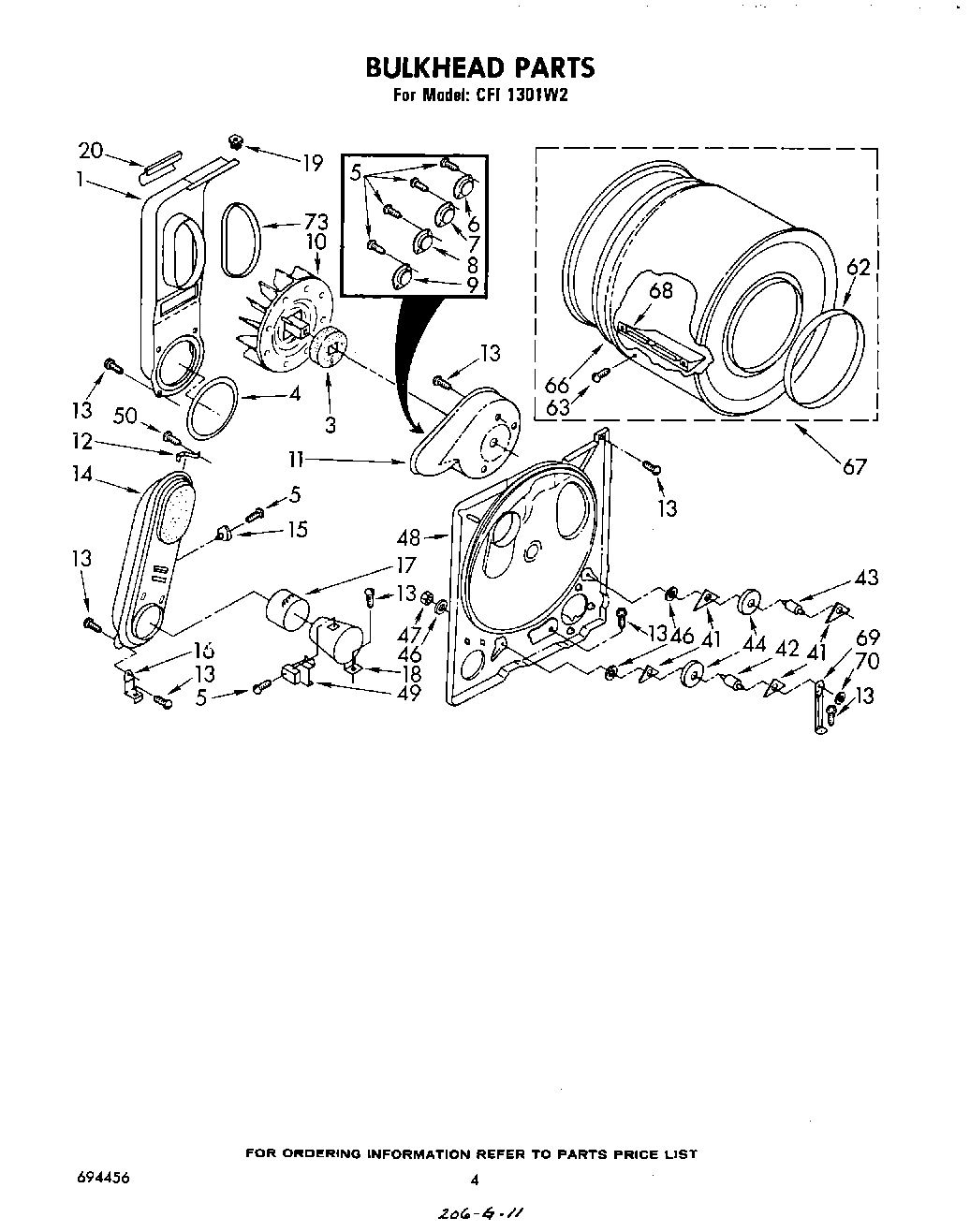

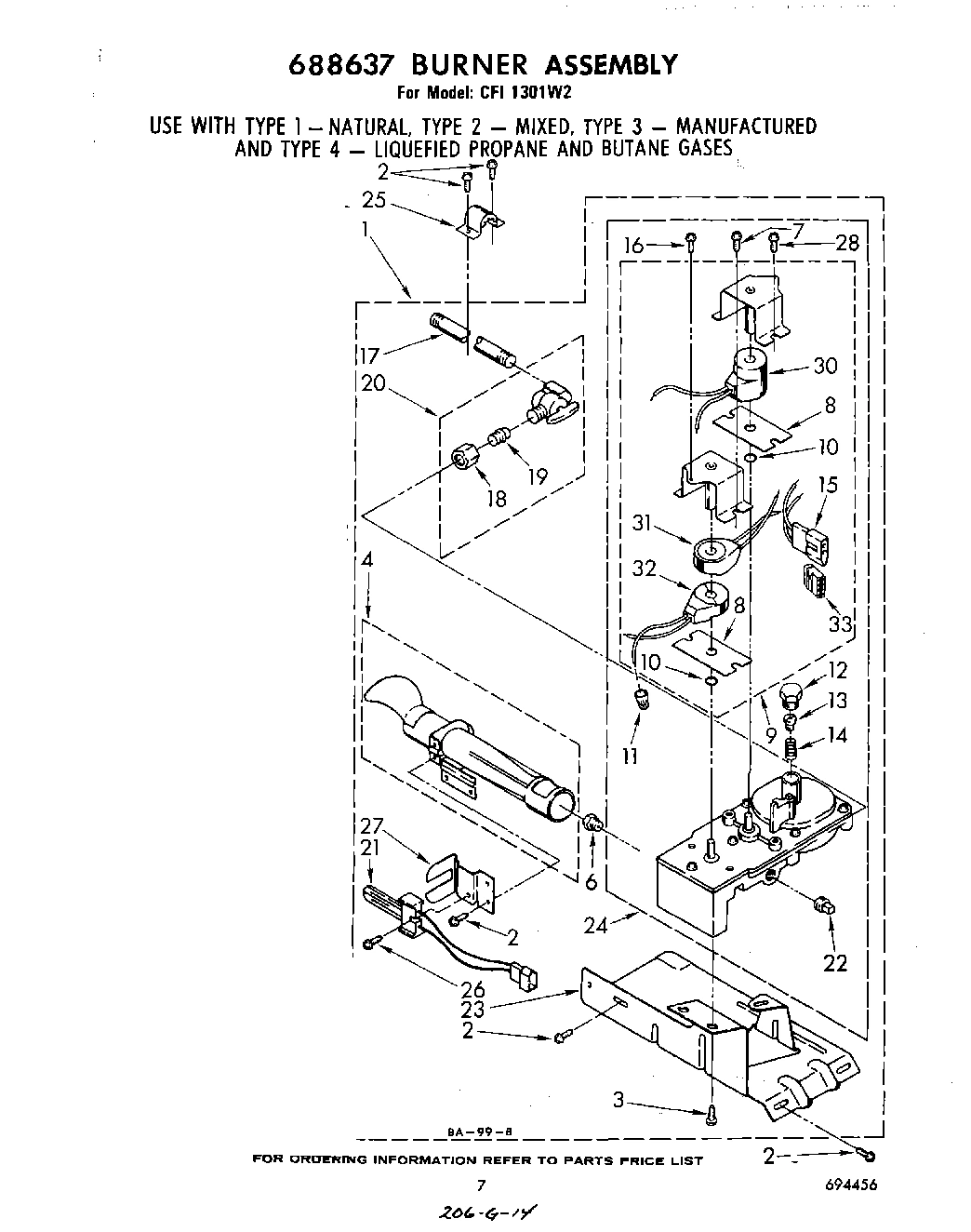

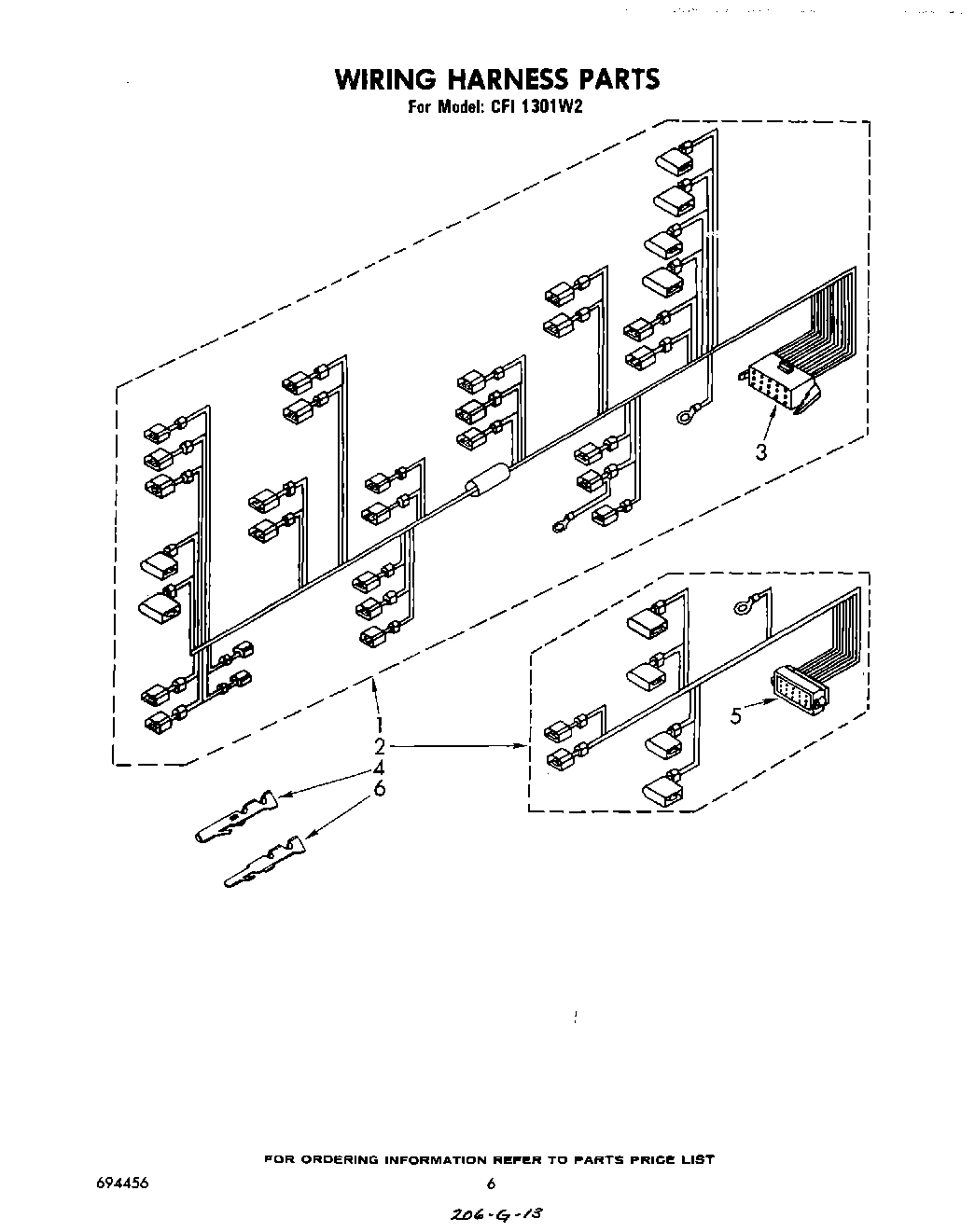

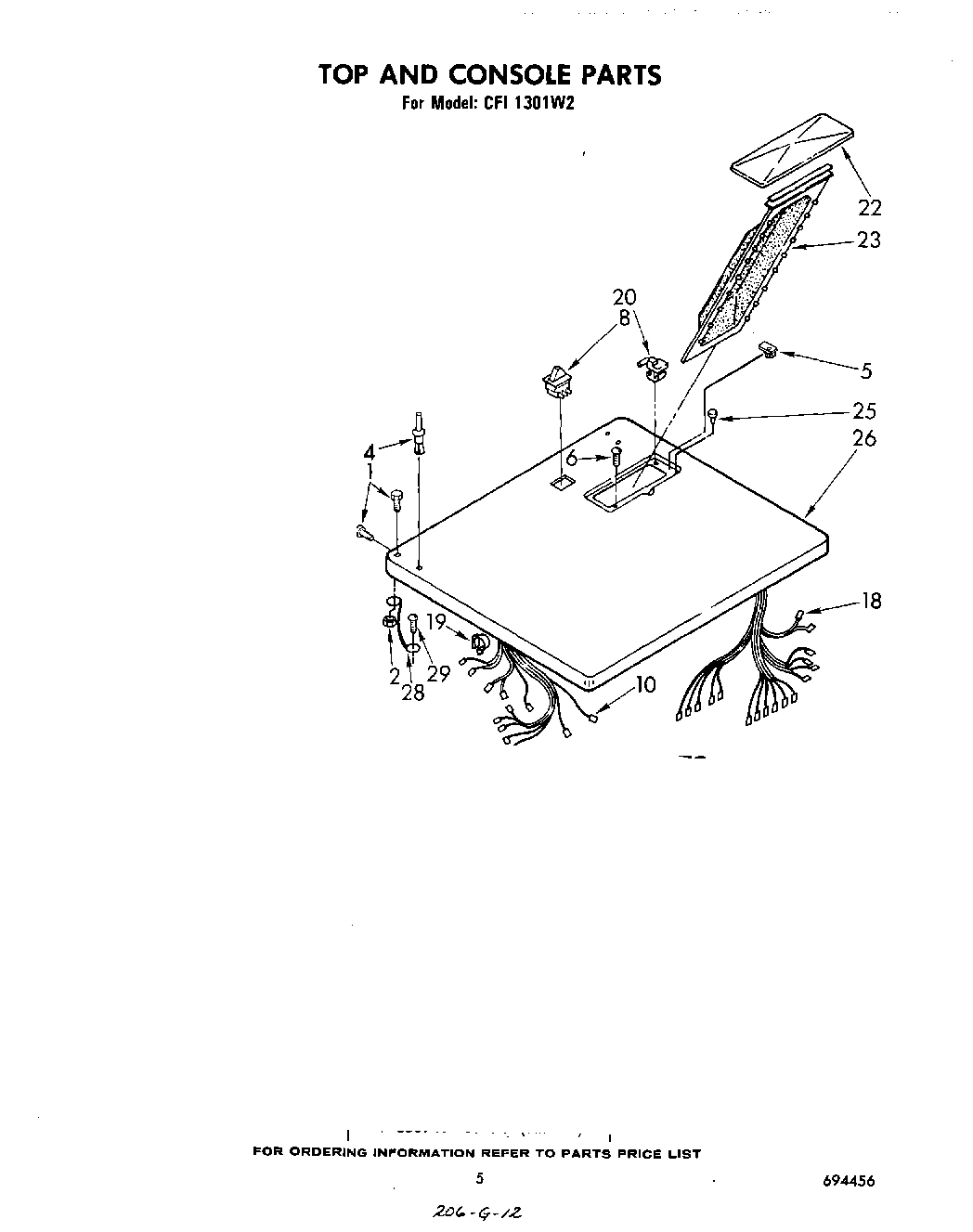

Model Whirlpool CFI1301W2 COMMERCIAL GAS DRYER – Common Parts &amp; Diagrams

xNew Avocado (Uncut) WPL 261889 Contact Us For Availability

xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Harness, Lower WPL 689444 Contact Us For Availability

2

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

2

Harness, Switch WPL 689443 Contact Us For Availability

3

Plug, Terminal (15 Way) (Use Terminal 96413) WPL 689552 Contact Us For Availability

3

Seal, Blower WPL 694630 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

4

Terminal, Male WPL 96413 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Cap, Terminal (15 Way) (Use Terminal 97452) WPL 689553 Contact Us For Availability

6

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

Terminal, Male WPL 97452 Contact Us For Availability

6

Thermostat, 180~F (82~C) (Alt.) WPL 295432 Contact Us For Availability

6

Thermostat, 180~F (82~C) (Alt.) WPL 341197 Contact Us For Availability

6

Thermostat, 180~F (82~C) WPL 660368 Contact Us For Availability

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Panel, Rear WPL 347736 Contact Us For Availability

8

Switch, Push-To-Start WPL 689238 Contact Us For Availability

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

9

Thermostat, SPDT 140~F (60~C) WPL 344395 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

Support WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

Locator, Top (2) WPL 98669 Contact Us For Availability

Nut, Compression WPL 233076 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (New Avocado) WPL 690850 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

19

98460 Whirlpool Nut Backorder WPL 98460 $9.59

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 688412 Contact Us For Availability

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Upper Front Panel Assembly (White) WPL 693202 Contact Us For Availability

Upper Front Panel Assembly (Almond) WPL 693203 Contact Us For Availability

Upper Front Panel Assembly (New Avocado) WPL 693205 Contact Us For Availability

Upper Front Panel Assembly (Golden Harvest) WPL 693206 Contact Us For Availability

22

Cover, Lint Screen WPL 691199 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

25

Bumper, Lint Cover (2) WPL 297535 Contact Us For Availability

Top, Dryer (White) WPL 689229 Contact Us For Availability

Top, Dryer (New Avocado) WPL 689672 Contact Us For Availability

Top, Dryer (Golden Harvest) WPL 689673 Contact Us For Availability

Top, Dryer (Almond) WPL 691631 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

28

Wire, Ground WPL 340025 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Instructions, Multi-Venting WPL 348772 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Instructions, Installation WPL 687451 Contact Us For Availability

List, Service Parts WPL 694456 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

32

Screw, Hinge WPL 689791 Contact Us For Availability

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door, Front (New Avocado) WPL 689318 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (New Avocado) WPL 689583 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Bulkhead WPL 685769 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Panel, Toe (White) WPL 237035 Contact Us For Availability

Panel, Toe (Almond) WPL 689537 Contact Us For Availability

Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability

Panel, Toe (New Avoca WPL 689540 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

54

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 (3) WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

WPL 688637 WPL 688637 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

83

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

95

18849 Whirlpool Pad Backorder WPL 18849 $9.13

96

WPL 689180 WPL 689180 Contact Us For Availability

97

WPL 341776 WPL 341776 Contact Us For Availability

98

353424 Whirlpool Connector Backorder WPL 353424 $10.76

98

WPL 353425 WPL 353425 Contact Us For Availability

99

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

99

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51
