Model Whirlpool CEX630VL0 ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool CEX630VL0 ELECTRIC COOK-TOP

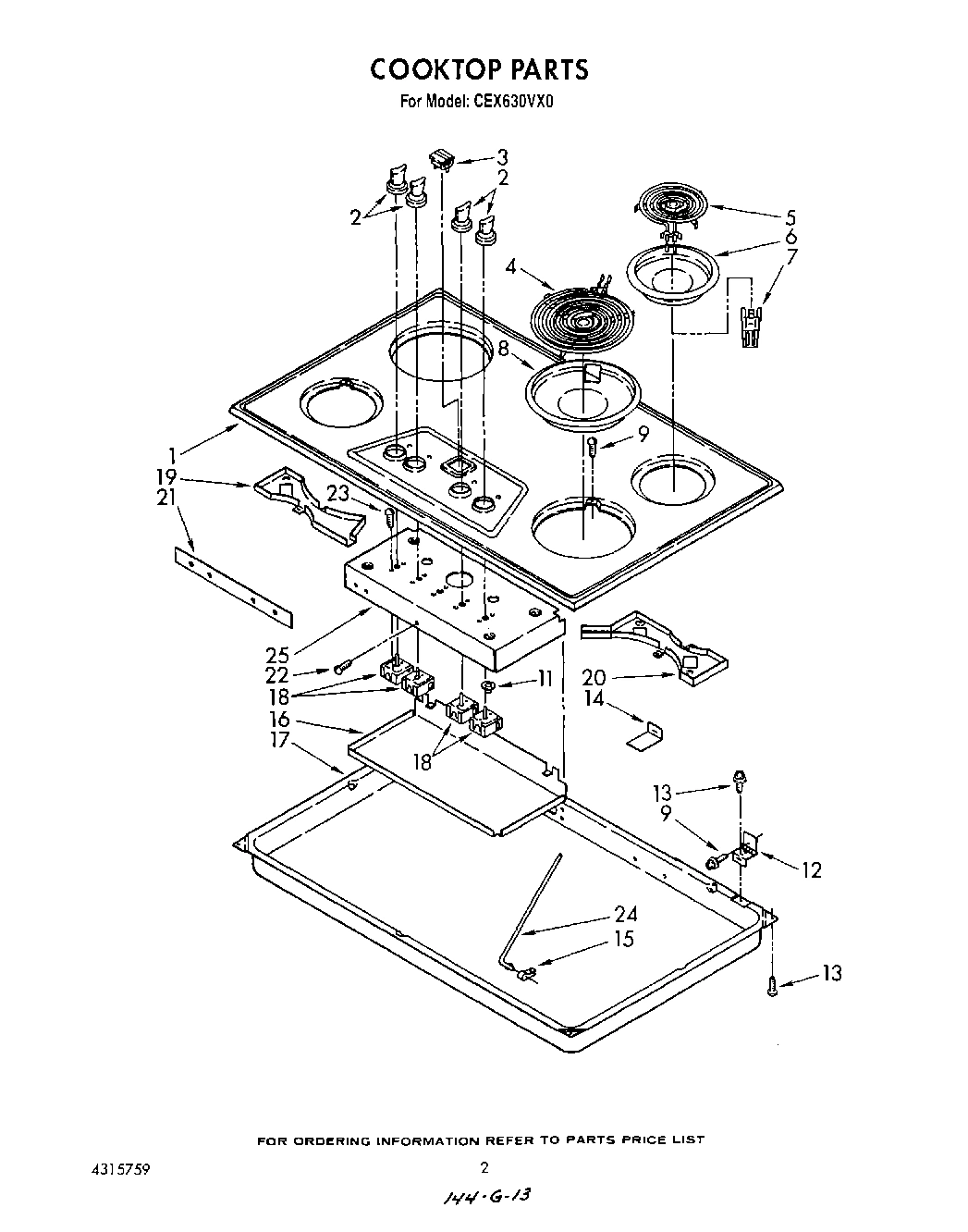

02 - SECTION

Print

• This Diagram
• All Diagrams

1

Cooktop (Chrome) WPL 4315590 Contact Us For Availability

View on Model

1

Cooktop (White) WPL 4315655 Contact Us For Availability

View on Model

1

Cooktop (Almond) WPL 4315656 Contact Us For Availability

View on Model

2

Knob (4) Infinite WPL 4315581 Contact Us For Availability

View on Model

3

Indicator Light WPL 4315595 Contact Us For Availability

View on Model

4

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 View Details $15.88

View on Model

5

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 View Details $12.14

View on Model

6

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $3.06

View on Model

7

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 View Details $5.40

View on Model

8

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $4.48

View on Model

9

WP313808 Whirlpool Screw In Stock WPL WP313808 View Details $2.51

View on Model

11

Nut WPL 4315652 Contact Us For Availability

View on Model

12

Hinge (2) WPL 4157485 Contact Us For Availability

View on Model

13

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 View Details $2.64

View on Model

14

Gasket, Switch WPL 4315286 Contact Us For Availability

View on Model

15

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 View Details $4.81

View on Model

16

Cover, Switch Box WPL 4315592 Contact Us For Availability

View on Model

17

Burner Box WPL 4315591 Contact Us For Availability

View on Model

18

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 View Details $28.79

View on Model

19

Wire Cover, Left WPL 4315596 Contact Us For Availability

View on Model

20

Wire Cover, Right WPL 4315593 Contact Us For Availability

View on Model

21

Nameplate WPL 4315578 Contact Us For Availability

View on Model

22

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 View Details $2.51

View on Model

23

Screw (8) WPL 786231 Contact Us For Availability

View on Model

24

Rod, Support WPL 4157408 Contact Us For Availability

View on Model

25

Owners Guide WPL 4315474 Contact Us For Availability

View on Model

25

Installation Guide WPL 4315475 Contact Us For Availability

View on Model

25

Box, Control WPL 4315594 Contact Us For Availability

View on Model

25

Repair Parts List WPL 4315759 Contact Us For Availability

View on Model

25

Wiring Diagram WPL 4320361 Contact Us For Availability

View on Model

×
