Model GE CES700P4M5W2 Electric Range – Common Parts & Diagrams

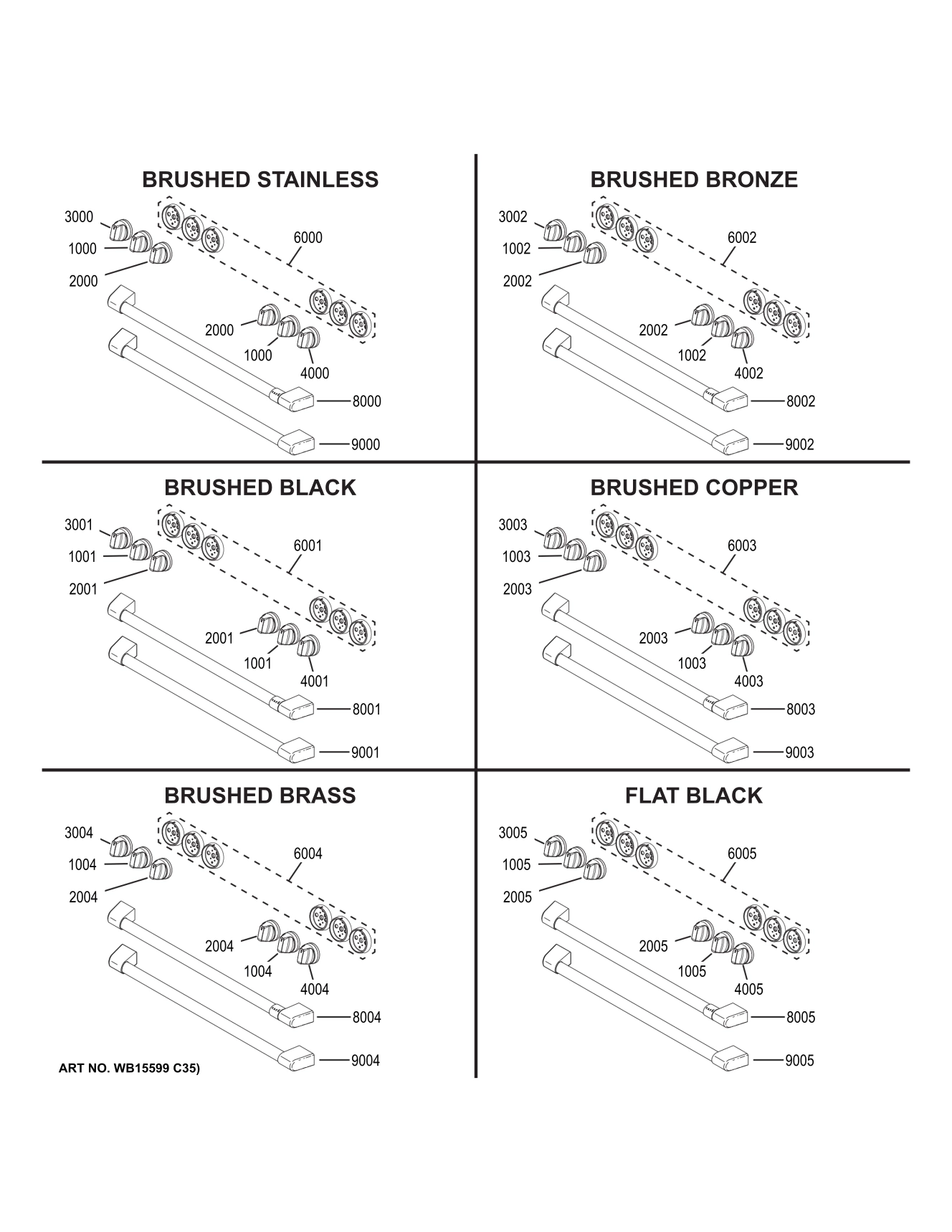

CAFE CUSTOMIZATION

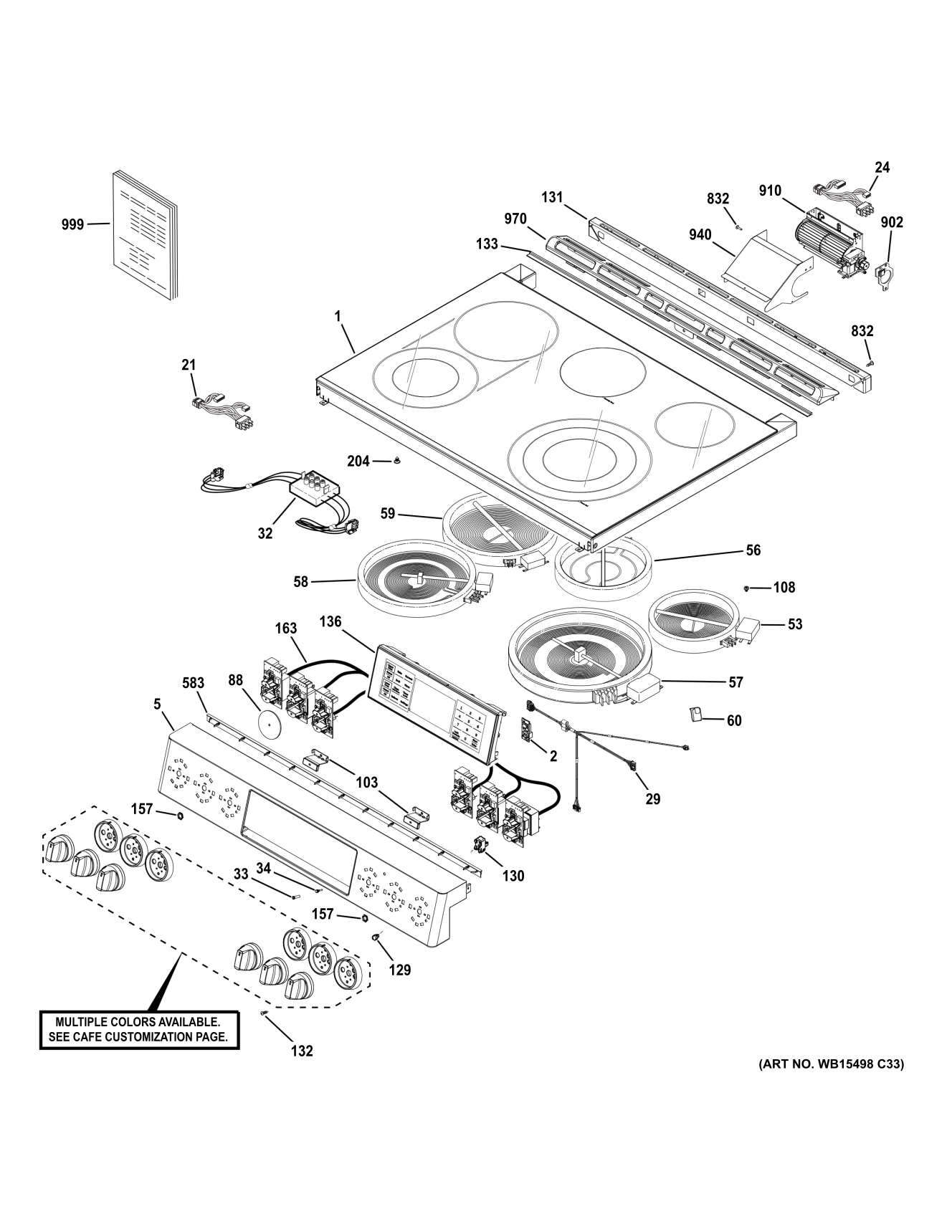

CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
CONVECTION FAN
Common parts from model GE CES700P4M5W2 Electric Range
1
RANGETOP & GLASS ASM GEN WB62X31946 Contact Us For Availability
22
DC HARNESS GEN WB18X28690 Contact Us For Availability
24
HARNESS BLOWER GEN WB18X31604 Contact Us For Availability
26
HARNESS WARMING DRAWER GEN WB18X31613 Contact Us For Availability
40
DOOR HANDLE FASTENER GEN WR01X11007 Contact Us For Availability
53
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
56
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
57
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
58
ELEMENT HALIANT (DUAL) GEN WB30T10135 Contact Us For Availability
59
ELEMENT HALIANT 8 GEN WB30X26465 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
102
SWITCH HIGH LIMIT GEN WB24X29505 Contact Us For Availability
103
BRACKET GEN WB34X28908 Contact Us For Availability
109
BACKGUARD COMPLEMENT GEN WB34X28912 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
130
LIGHT INDICATOR PILOT GEN WB25K10010 Contact Us For Availability
131
TRIM KIT GEN WB07X28825 Contact Us For Availability
132
SCR 8-18 AB TRP 3/8 SS GEN WB01K10086 Contact Us For Availability
163
SWITCH ASM GEN WB24X31698 Contact Us For Availability
200
OVEN RACK GEN WB48X21508 Contact Us For Availability
201
RACK OVEN SLIDE ASM GEN WB48X20990 Contact Us For Availability
203
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
204
SCR 8-18 AB X 5/16S GEN WB01X26995 Contact Us For Availability
205
COVER MOTOR GEN WB34K10099 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X28847 Contact Us For Availability
222
DOOR HINGE RT GEN WB10X24777 Contact Us For Availability
223
DOOR HINGE GEN WB10X26769 Contact Us For Availability
231
BRACKET ASM ANTI-TIP GEN WB02K10386 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X20215 Contact Us For Availability
244
SUPPORT BASE LT GEN WB63X20216 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
255
CLAMP-HEAT ELEMENT GEN WB02K10023 Contact Us For Availability
257
VENT GEN WB34X28915 Contact Us For Availability
258
DRAWER SLIDE ASSY RIGHT GEN WB39K10020 Contact Us For Availability
259
DRAWER SLIDE ASSY LEFT GEN WB39K10021 Contact Us For Availability
260
INSULATION OVEN BACK GEN WB35X28786 Contact Us For Availability
271
SCREW M4X8 GEN WB01X1189 Contact Us For Availability
274
SHIELD DRAWER TOP GEN WB34X20748 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
278
INSULATON COVER SOCKET GEN WB35X28791 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X28793 Contact Us For Availability
290
ELEMENT BAKE ASM GEN WB44X47929 Contact Us For Availability
291
HEATING ELEMENT GEN WB30X46988 Contact Us For Availability
292
BROIL ELEMENT GEN WB44X47935 Contact Us For Availability
293
GUARD INSULATION BOTTOM GEN WB35X20420 Contact Us For Availability
300
KIT DRAWER BODY ASM & GUIDE- SLIDE DRAW GEN WB49X26562 Contact Us For Availability
314
WHITE SLATE GLASS & PANEL DOOR GEN WB56X31645 Contact Us For Availability
318
GASKET OVEN GEN WB35X43792 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10174 Contact Us For Availability
331
PANEL VENT BACKER GEN WB34X31702 Contact Us For Availability
332
INSULATION GEN WB35K10221 Contact Us For Availability
340
LINER DOOR WELD ASSEMBLY GEN WB56X24760 Contact Us For Availability
343
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
344
BRACKET DRAWER GEN WB02X24742 Contact Us For Availability
362
BLACK BARRIER DOOR GEN WB07X43802 Contact Us For Availability
374
FASTENER BRACKET GEN WB34X31703 Contact Us For Availability
375
FASTENER BRACKET GEN WB34X31701 Contact Us For Availability
376
BRACKET BACKER GEN WB34X31739 Contact Us For Availability
377
INSULATION BRACKET GEN WB34X31737 Contact Us For Availability
378
ANCHOR NUT GEN WB01X38735 Contact Us For Availability
400
FRAME WINDOW ASSY GEN WB34X28742 Contact Us For Availability
457
WHITE SLATE PANEL DRAWER GEN WB56X31640 Contact Us For Availability
458
LINER DRAWER GEN WB56X43809 Contact Us For Availability
459
GASKET DRAWER ASM GEN WB35X43793 Contact Us For Availability
479
REFLECTOR FRONT GEN WB34X21711 Contact Us For Availability
583
FRONT GASKET ASM GEN WB35X28743 Contact Us For Availability
588
COVER FRONT FRAME GEN WB34X21714 Contact Us For Availability
609
DOOR GUARD GEN WB34X24749 Contact Us For Availability
667
INSULATION DOOR GEN WB35X45406 Contact Us For Availability
673
INSULATION DOOR GEN WB35X21567 Contact Us For Availability
707
CLIP WIRE GEN WB02K10267 Contact Us For Availability
720
FAN COVER GEN WB34X28703 Contact Us For Availability
721
BLADE FAN GEN WB2X8351 Contact Us For Availability
722
FAN INSULATOR GEN WB35X20989 Contact Us For Availability
723
FAN INSULATION GEN WB35K10013 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10170 Contact Us For Availability
725
CONTROL COVER GEN WB34X28674 Contact Us For Availability
726
MOTOR PSC CONV GEN WB26X25118 Contact Us For Availability
727
PROBE RECEPTACLE & HARNESS GEN WB34K10121 Contact Us For Availability
728
HEAT ELEMENT CONVECTION GEN WB44X47934 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
753
SCR 8-18 AB X 5/8 S GEN WB01X21893 Contact Us For Availability
788
COVER HEATING ELEMENT GEN WB34K10128 Contact Us For Availability
900
CAPACITOR MOTOR GEN WB08K10009 Contact Us For Availability
901
CAPACITOR HOLDER GEN WB02K10172 Contact Us For Availability
910
BLOWER TANGENTIAL GEN WB26X35086 Contact Us For Availability
940
FAN SUPPORT GEN WB34X28735 Contact Us For Availability
1000
BRUSHED STAINLESS SINGLE ELEMENT KNOB GEN WB03X31660 Contact Us For Availability
1156
HARNESS JUMPER GEN WB18X29669 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X28563 Contact Us For Availability
1950
TRIM FRONT BOTTOM GEN WB01K10072 Contact Us For Availability
3000
BRUSHED STAINLESS DOUBLE BURNER KNOB GEN WB03X31678 Contact Us For Availability
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEN WB15X31679 Contact Us For Availability
8002
BRONZE RANGE HANDLE W/ CAF BAND GEN WB15X33467 Contact Us For Availability
8003
BRUSHED COPPER HANDLE W/ CAF BAND GEN WB15X33782 Contact Us For Availability
9000
BRUSHED STAINLESS RANGE HANDLE GEN WB15X31680 Contact Us For Availability
9002
BRONZE RANGE HANDLE GEN WB15X33466 Contact Us For Availability
× ![]()
