Model GE CES700M2N1S5 – Common Parts & Diagrams
CONTROL PANEL

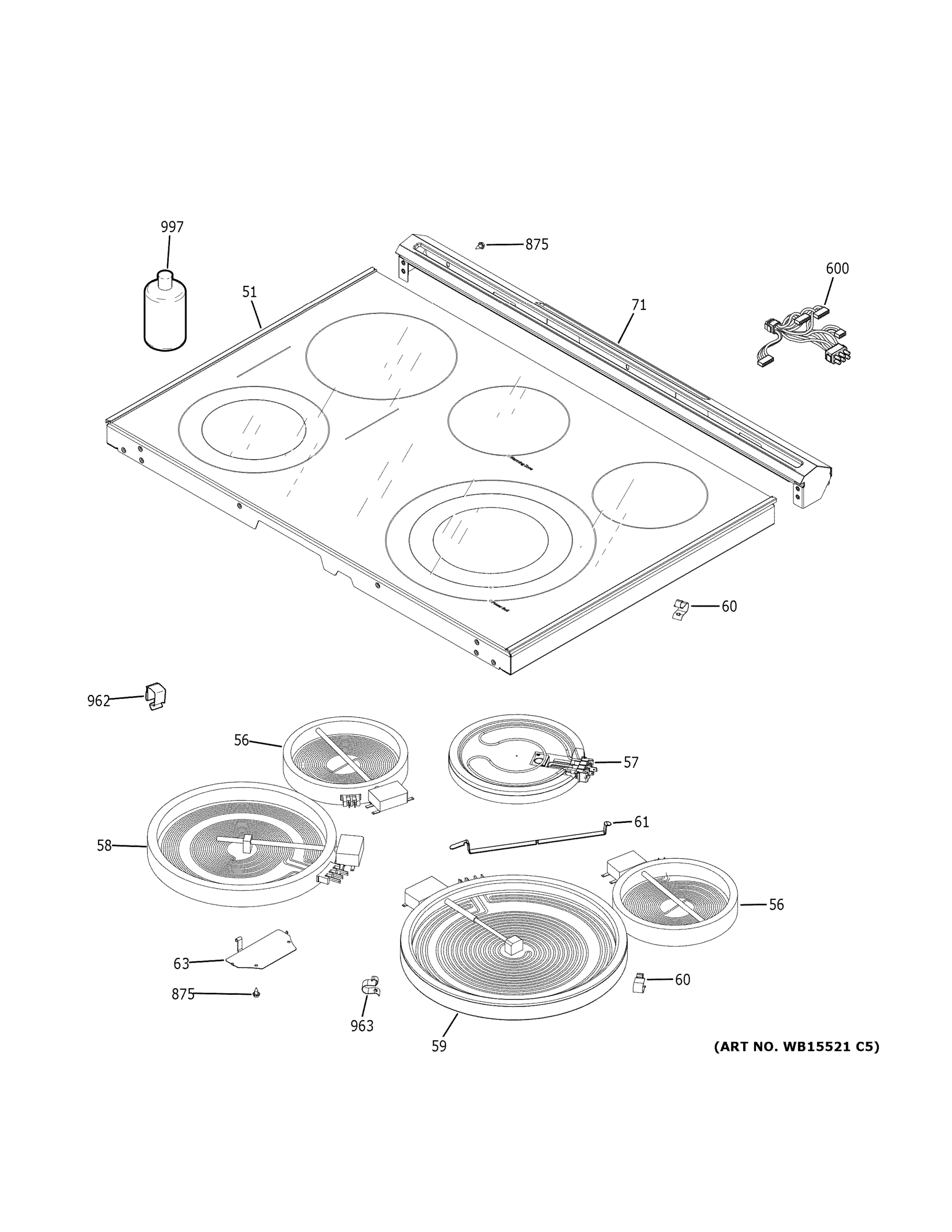

COOKTOP
COOLING FAN
BODY PARTS
DOOR
CONVECTION FAN
Common parts from model GE CES700M2N1S5
5
CONTROL LIGHTS GUIDE GEN WB63X29528 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
32
COOLING FAN ASM GEN WB26X29468 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
56
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
57
ELEMENT WARMER LOW PRF GEN WB30X10035 Contact Us For Availability
58
ELEMENT HALIANT (DUAL) GEN WB30T10135 Contact Us For Availability
59
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
132
OVEN DOOR GASKET GEN WB35X30048 Contact Us For Availability
136
STAINLESS STEEL HANDLE AND ENDCAP GEN WB15X32948 Contact Us For Availability
150
LATCH ASM GEN WB10X29077 Contact Us For Availability
217
MAIN WIRE COVER GEN WB34X29069 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10560 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
241
RACK OVEN (SC) GEN WB48T10082 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
270
MACHINE CONTROL RELAY BOARD GEN WB27X29202 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
280
MEAT PROBE GEN WB20T10024 Contact Us For Availability
281
HINGE ASM GEN WB10T10072 Contact Us For Availability
288
COOLING FAN DUCT GEN WB34X29483 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
298
CONVECTION ELEMENT GEN WB44X29154 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X29157 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
803
SET SCREW GEN WR01X11014 Contact Us For Availability
828
INSERT PLUG GEN WB01X29474 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1004
WZ04X0408 GEN WZ4X416 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
